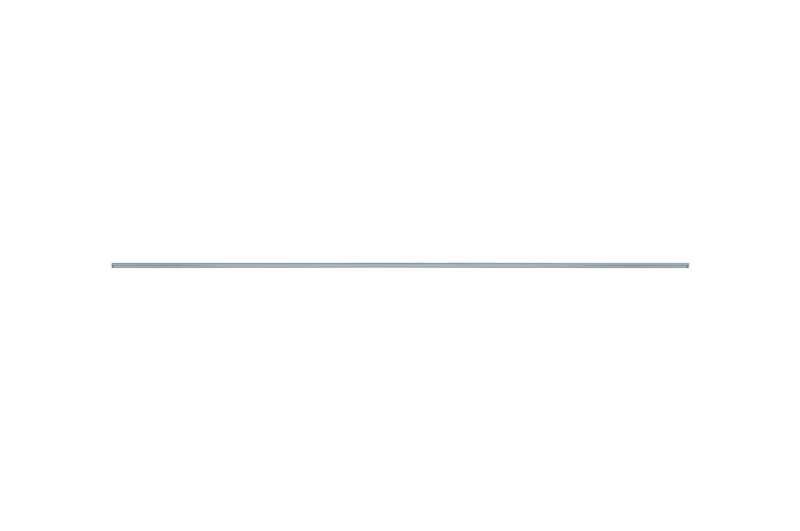

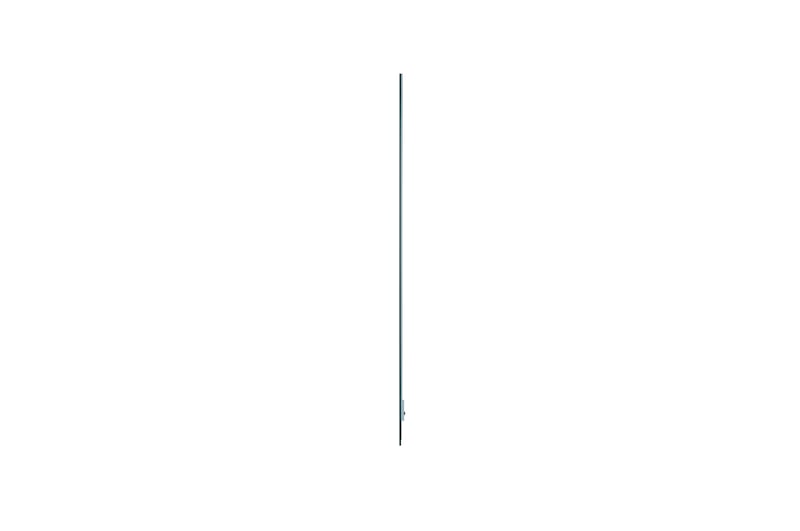

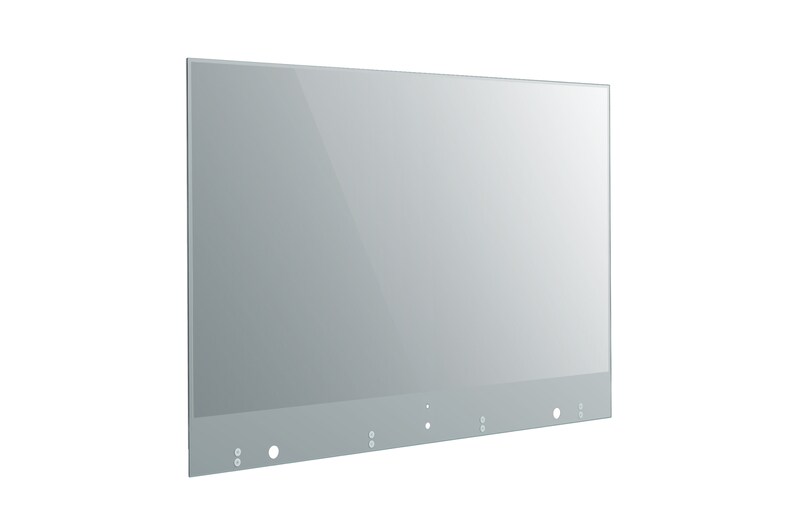

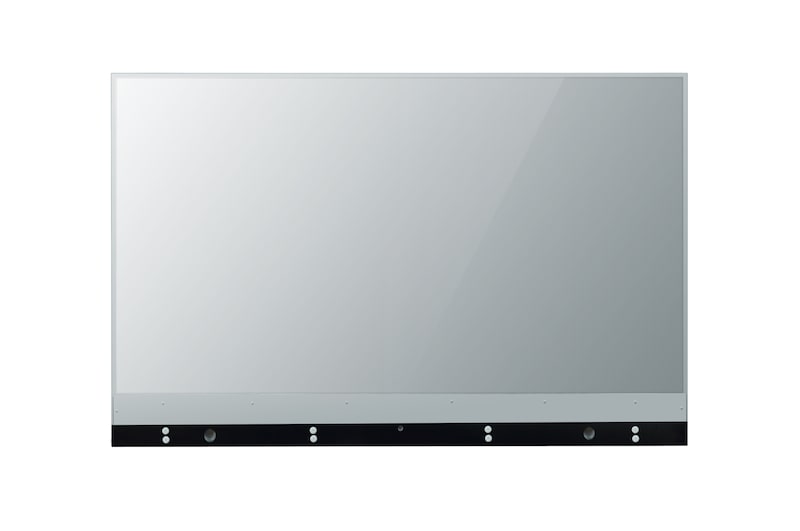

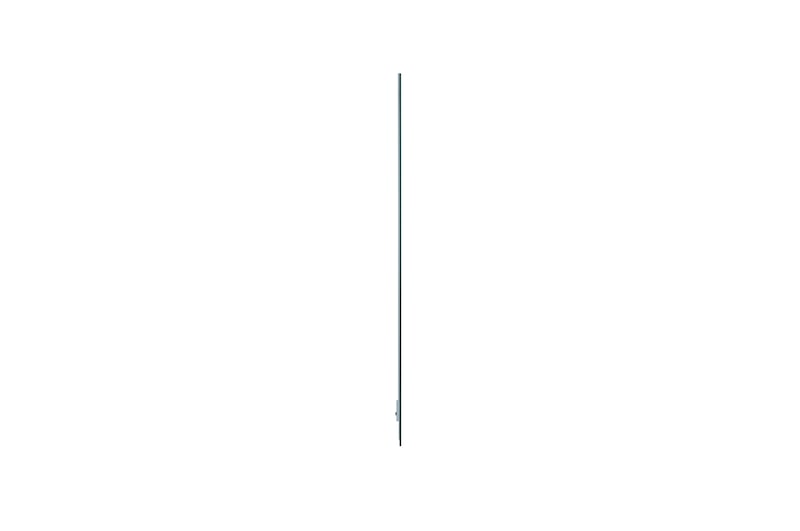

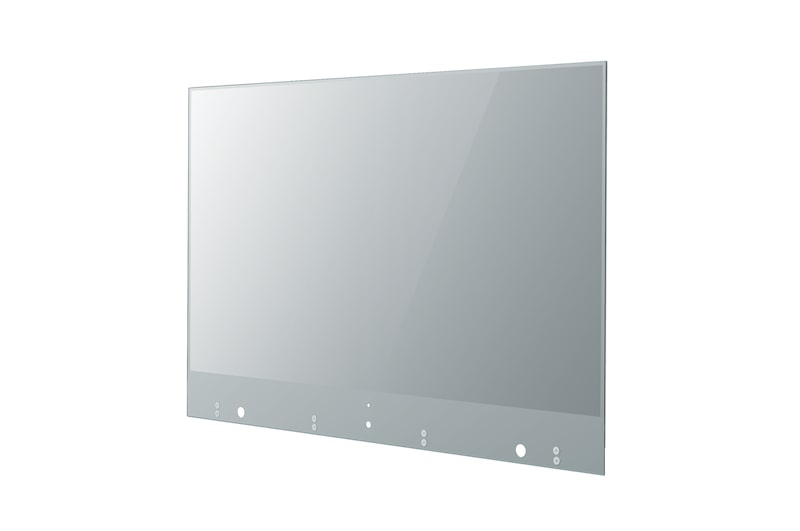

55EW5F-A

Transparent OLED Signage

(1)

A New Level of See-through View

LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.

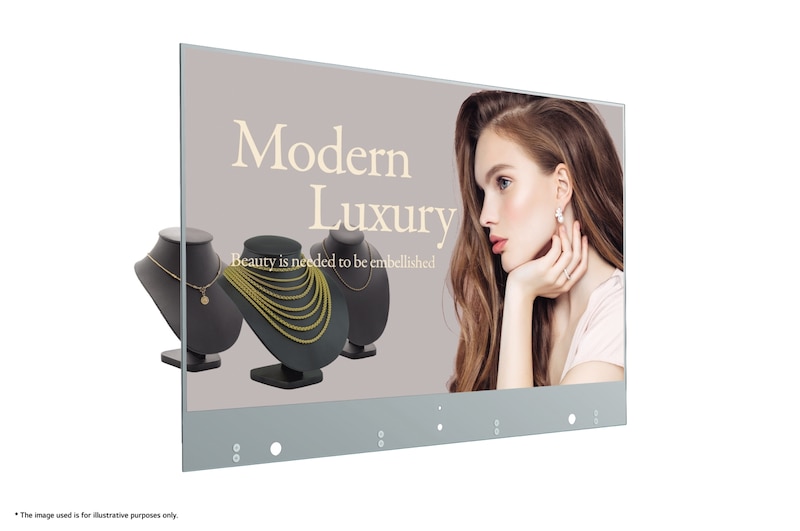

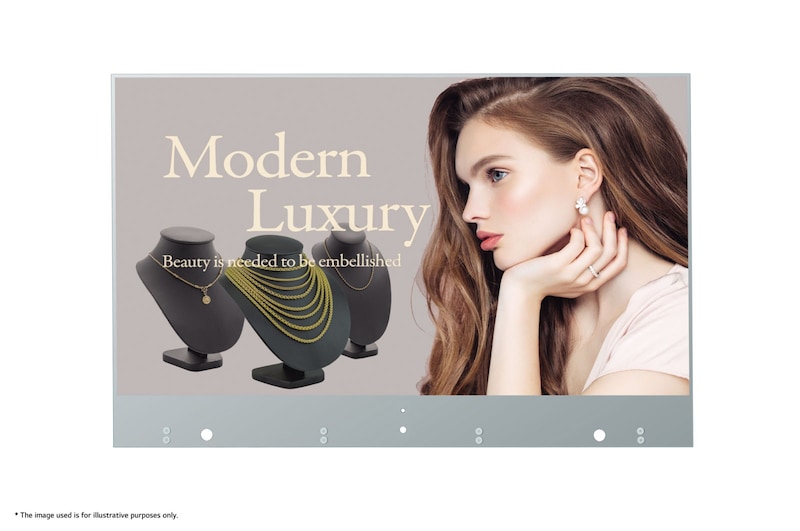

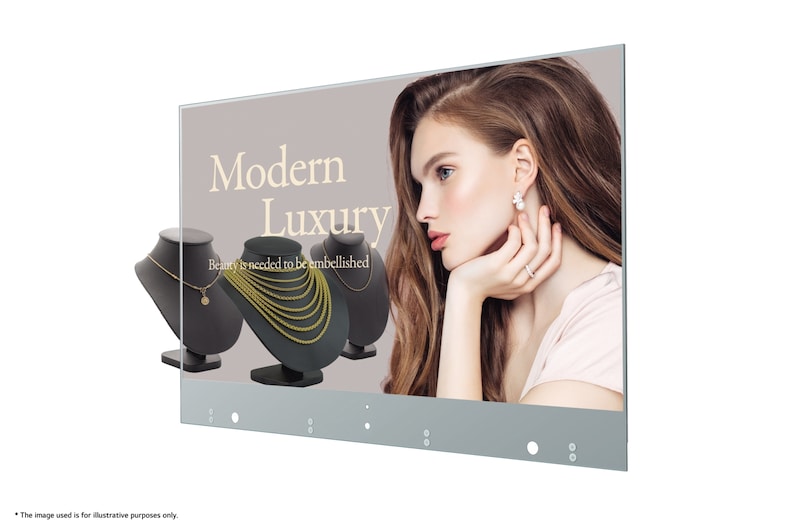

*All image used are for illustrative purposes only.

FULL OF LIFE

Unrivaled Picture Quality

LG's OLED technology, featuring self-lighting pixels, maintains accurate and vivid colors even when the display becomes transparent. It brings content to life, making it difficult for people to separate content from the real objects placed behind the screen.
SPACIAL HARMONY

High Transparency

Thanks to its high transparency (38%), much higher than conventional LCD transparent displays, LG Transparent OLED signage blends into its surroundings seamlessly and naturally. The display's see-through view turns places where it is installed into open and interactive spaces.
SPACIAL HARMONY

Customizable and Expandable Design

LG Transparent OLED signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. There is no limit to the applications of Transparent OLED signage, and it can complement any venue in which it is installed.

* Installation accessories are not supplied by LG.

Effective Information Delivery
SEE THROUGH

Effective Information Delivery

While clearly showing objects behind the screen, LG Transparent OLED signage overlays information right over them so that viewers can easily see both the object and the relevant information without having to change their view.
VISUAL FEAST

AR Effects in the Dark

Using LG transparent OLED signage, you can surprise viewers with AR effects in the dark. The content displayed seems life-like, adding another “wow” factor to the viewing experience.
Robust Design for Safety
PRODUCT DURABILITY

Robust Design for Safety

The tempered front glass protects the screen from external impact, and its certified safety design means it is reliable enough to endure shock and vibration caused by the surrounding environment, such as moving trains.

All specs

PANEL

  • Screen Size

    55"

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness (APL25%, Typ., cd/m²)

    400

  • Brightness (APL100%, Typ., cd/m²)

    150

  • Transparency (Typ.)

    38% (Panel)

CONNECTIVITY

  • Input

    HDMI, DP, USB (2)

  • Output

    DP, Audio

  • External Control

    RS232C In/out, RJ45 (LAN) In/out, IR In

MECHANICAL SPECIFICATION

  • Bezel Width

    7.9 / 7.9 / 7.9 / 121.7 mm (T/L/R/B)

  • Monitor Dimension (W × H × D)

    (Head) 1,225.53 x 810.1 x 6.6 mm
    (Signage Box) 782.8 x 238.4 x 34.7 mm

  • Weight

    (Head) 13.9 kg
    (Signage Box) 3.4 kg

  • Carton Dimensions (W × H × D)

    1,329 x 898 x 191 mm

  • Packed Weight

    22.4 kg

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    309 W *8 color bar

  • Max.

    318 W *8 color bar

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    No

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control / Control+

ACCESSORY

  • Basic
