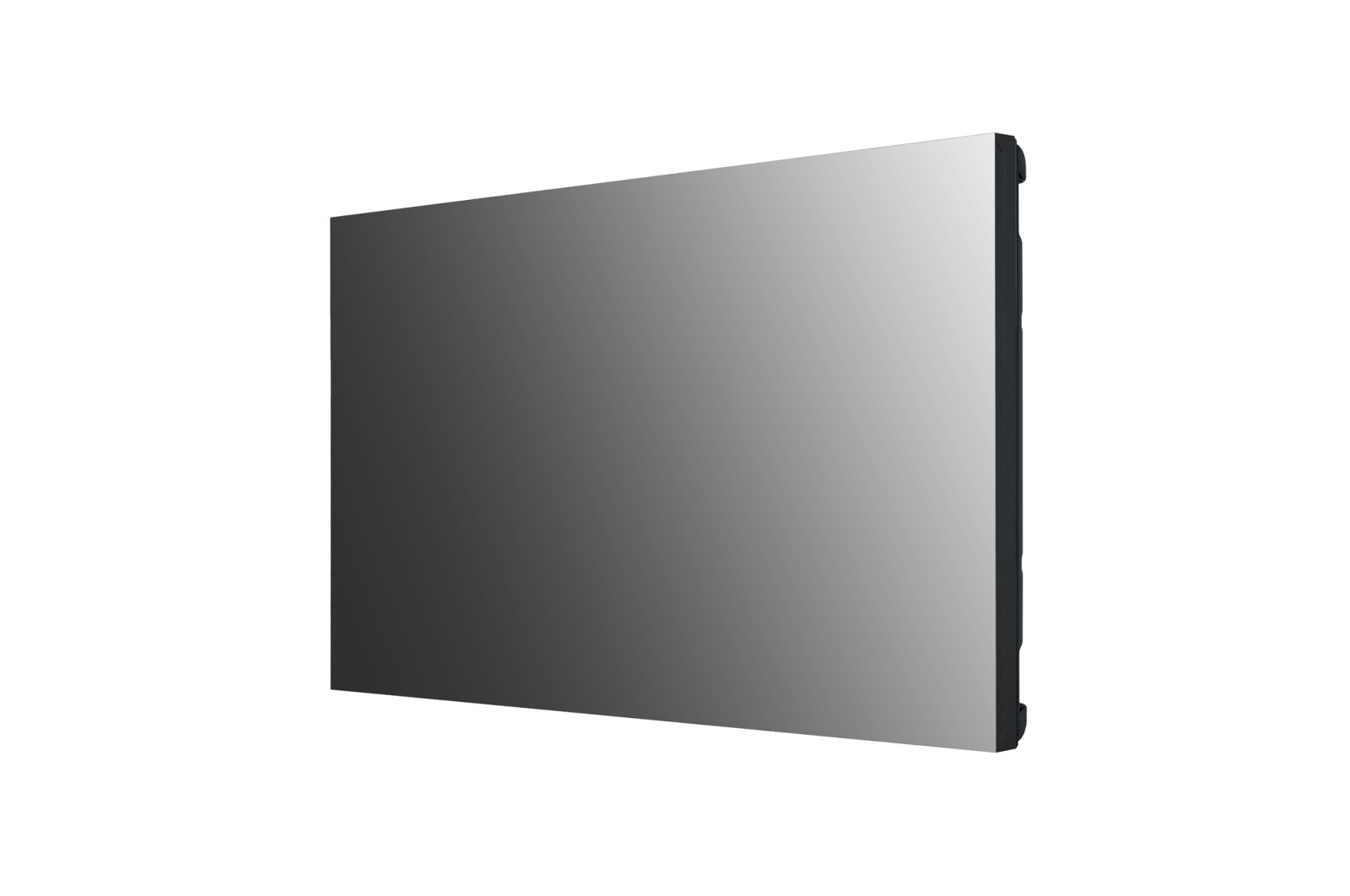

55" 700 nits FHD 0.44mm Even Bezel Video Wall

55" 700 nits FHD 0.44mm Even Bezel Video Wall

55" 700 nits FHD 0.44mm Even Bezel Video Wall

55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55" 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : 0.44 mm (Even)
Depth : 86.5 mm
Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Smart Calibration

All specs

ACCESSORY

Included:
Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)

CONNECTIVITY

External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
Input
HDMI (2), DP, DVI-D, Audio, USB
Output
DP, Audio

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0°C to 40°C

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
0.44 mm (Even)
Carton Dimensions (W × H × D)
1,353 x 855 x 263 mm
Handle
Yes
Monitor Dimension (W × H × D)
1,210.51 x 681.22 x 86.5 mm
Packed Weight
23.6 kg
VESA™ Standard Mount Interface
600 x 400 mm
Weight (Head)
16.8 kg

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible
Yes (Piggyback)

PANEL

Aspect Ratio
16 : 9
Brightness (Typ., cd/m²)
700
Contrast Ratio
1,200:1
Life Time (Typ.)
60,000 Hrs
Resolution
1,920 x 1,080 (FHD)
Orientation
Landscape & Portrait
Panel Technology
IPS RGB
Response Time
8 ms (G to G)
Screen Size
55"
Surface Treatment
Haze 3%
Viewing Angle (H x V)
178 x 178

POWER

Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power

POWER CONSUMPTION

Typ. / Max.
210 W / 250 W

SOFTWARE COMPATIBILITY

Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control / Control+

STANDARD(CERTIFICATION)

EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes(EU Only) / Yes(Energy Star 8.0)
Safety
CB / NRTL
