55'' 700 nits FHD Slim Bezel Video Wall

55'' 700 nits FHD Slim Bezel Video Wall

55'' 700 nits FHD Slim Bezel Video Wall

55VH7J-H

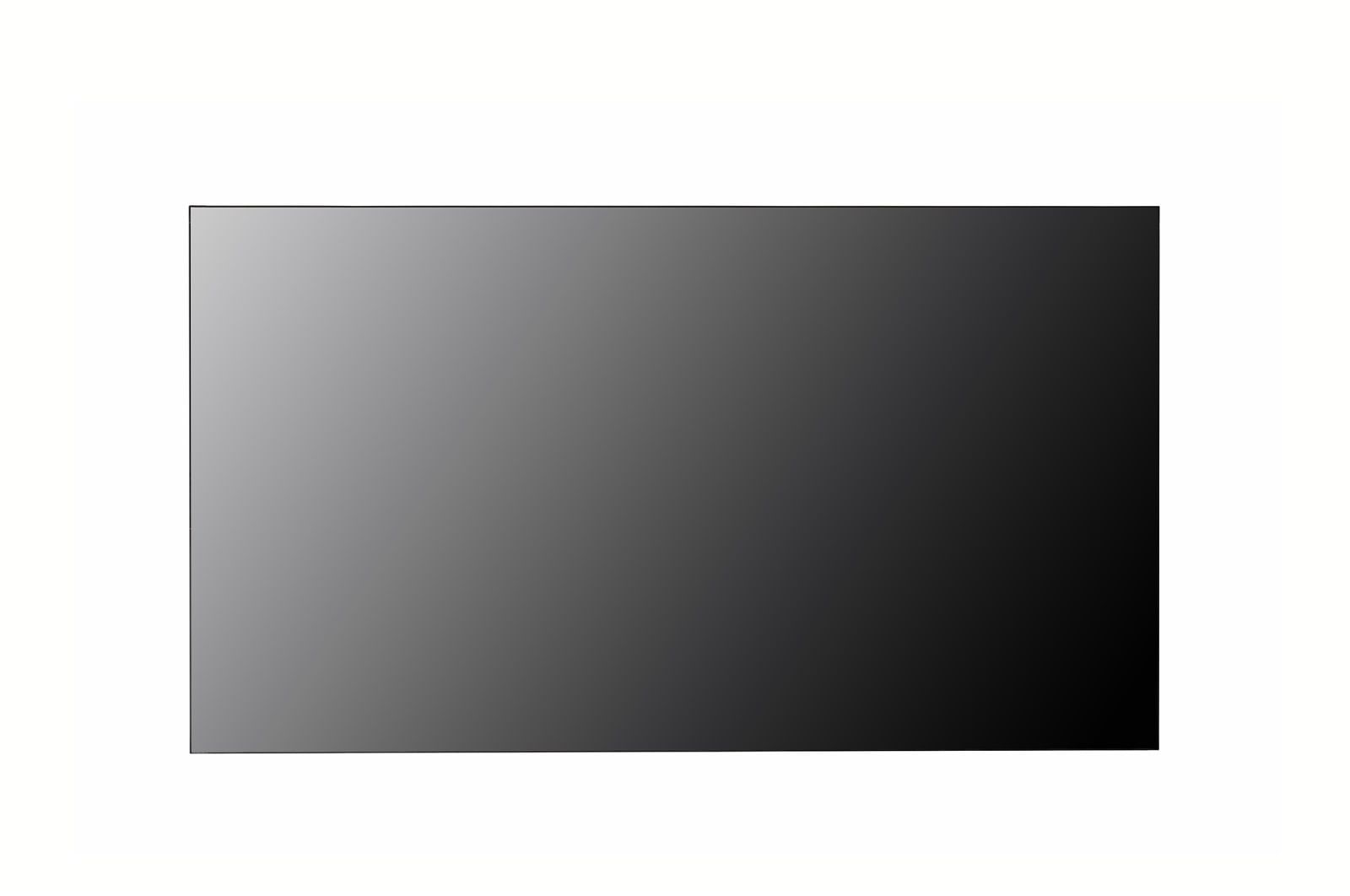

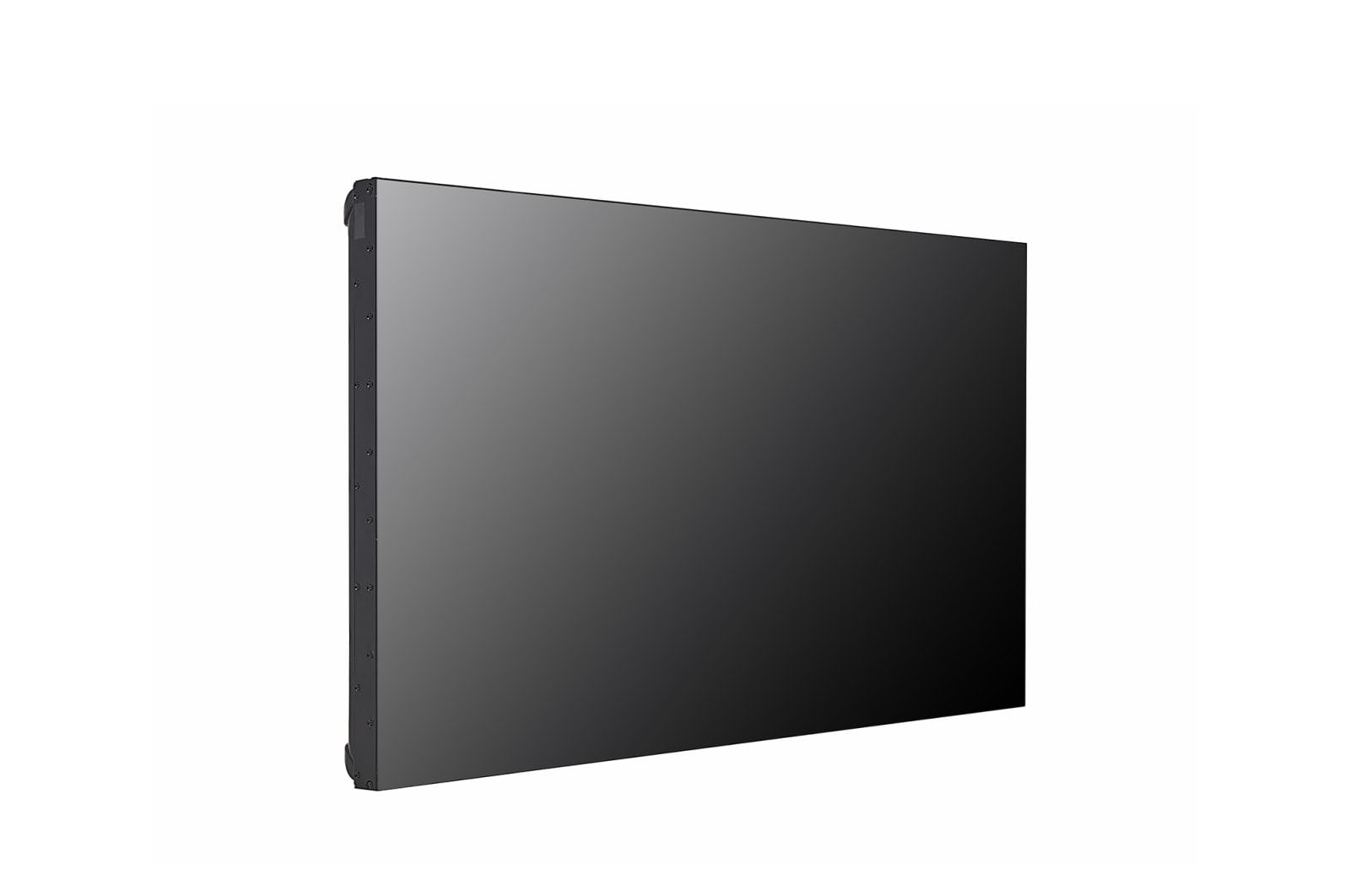

Front view of 55'' 700 nits FHD Slim Bezel Video Wall 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H

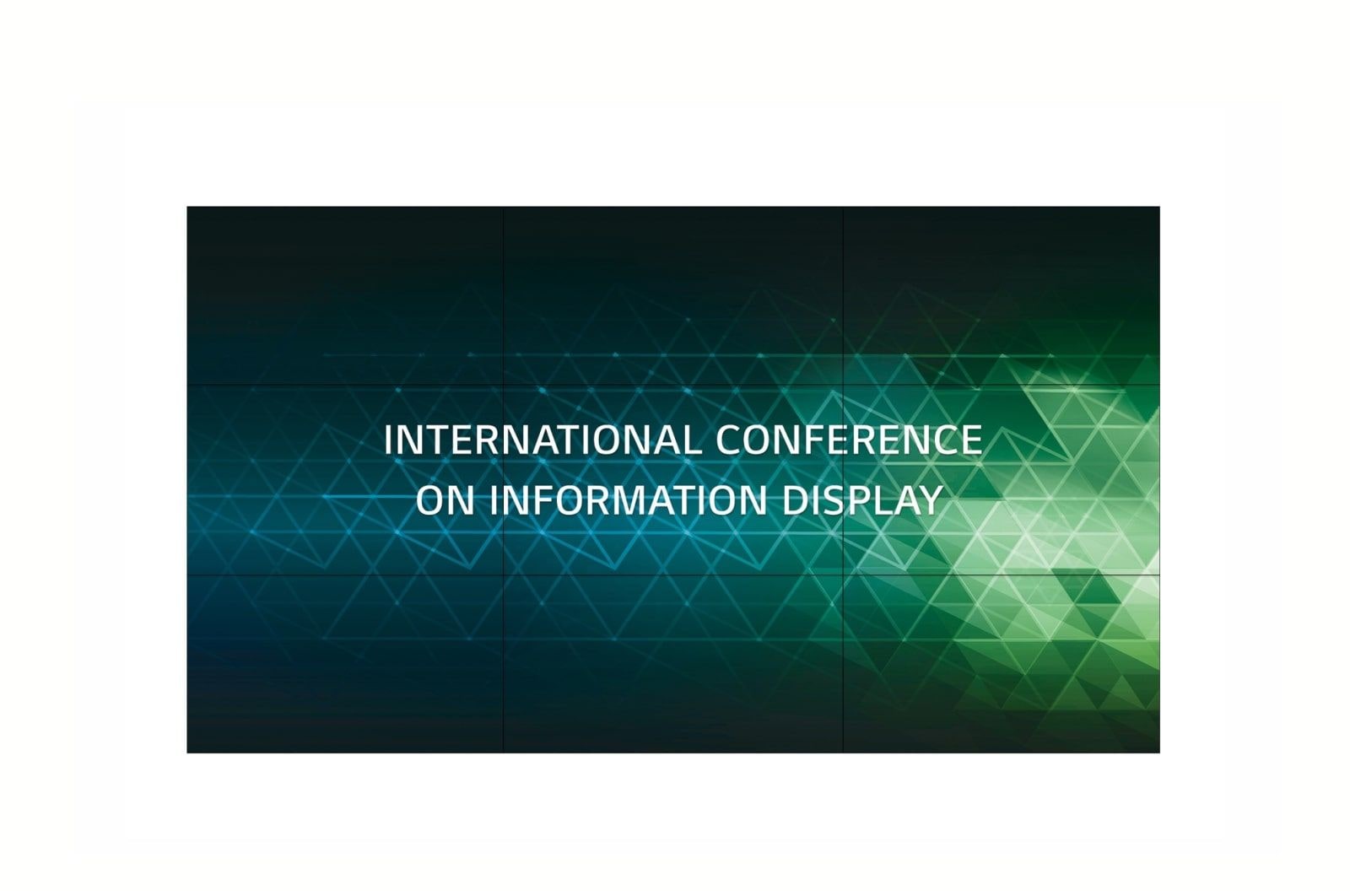

Front view of 55'' 700 nits FHD Slim Bezel Video Wall 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H
LG 55'' 700 nits FHD Slim Bezel Video Wall, 55VH7J-H

Key Features

  • Brightness(Typ.) : 700 nit

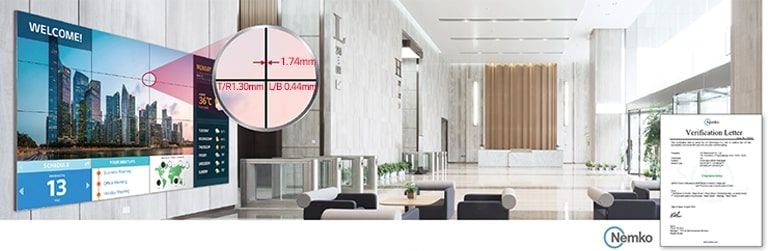

  • Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)

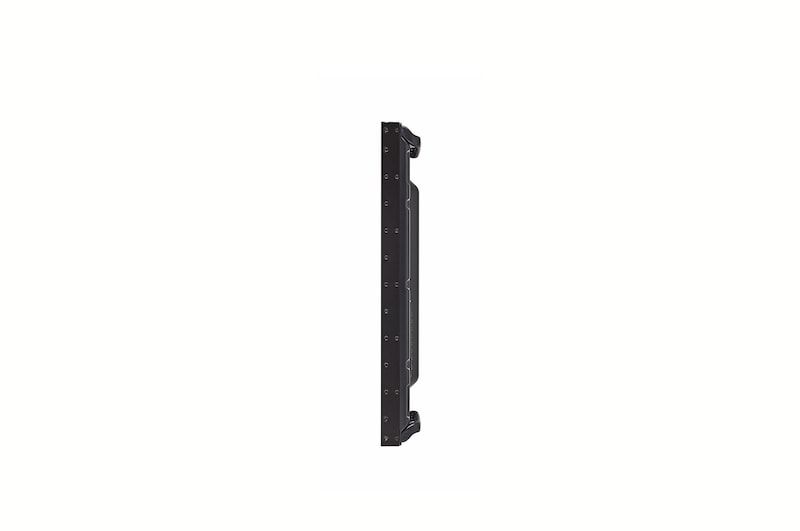

  • Depth : 86.9 mm
  • Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
More
Print

All specs

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual

  • Optional

    OPS Kit (KT-OPSF)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

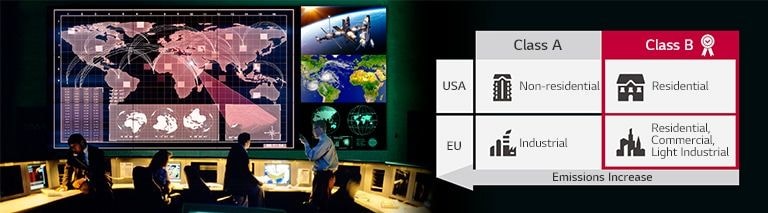

    FCC Class "B" / CE / KC

  • ErP

    Yes (Energy Star 8.0 (EU Only))

CONNECTIVITY

  • Input

    HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A

  • Output

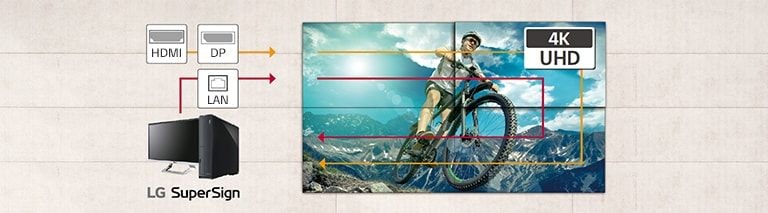

    DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

KEY FEATURE

  • HW

    Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation

  • SW

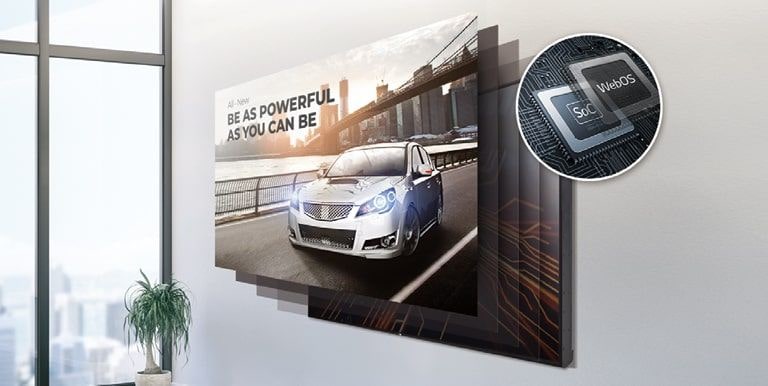

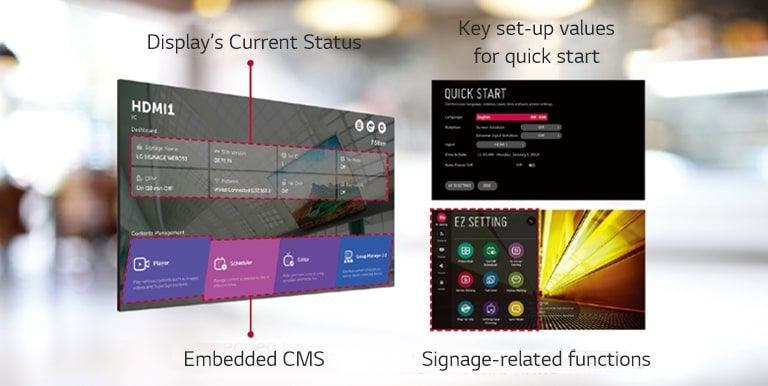

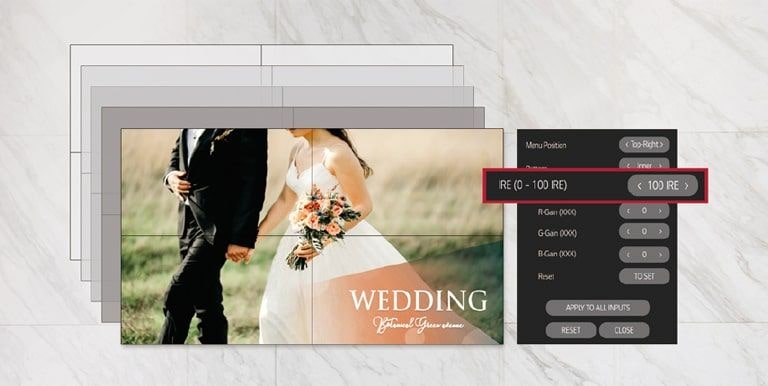

    webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R)A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)

  • Weight(Head)

    18.8 Kg

  • Packed Weight

    31.0 Kg (when individual pallet applied)

  • Monitor Dimension(W x H x D)

    1,212.2 × 683.0 × 86.9 mm

  • Carton Dimensions(W x H x D) (Box outer size)

    1,353 x 855 x 263 mm

  • Handle

    Yes

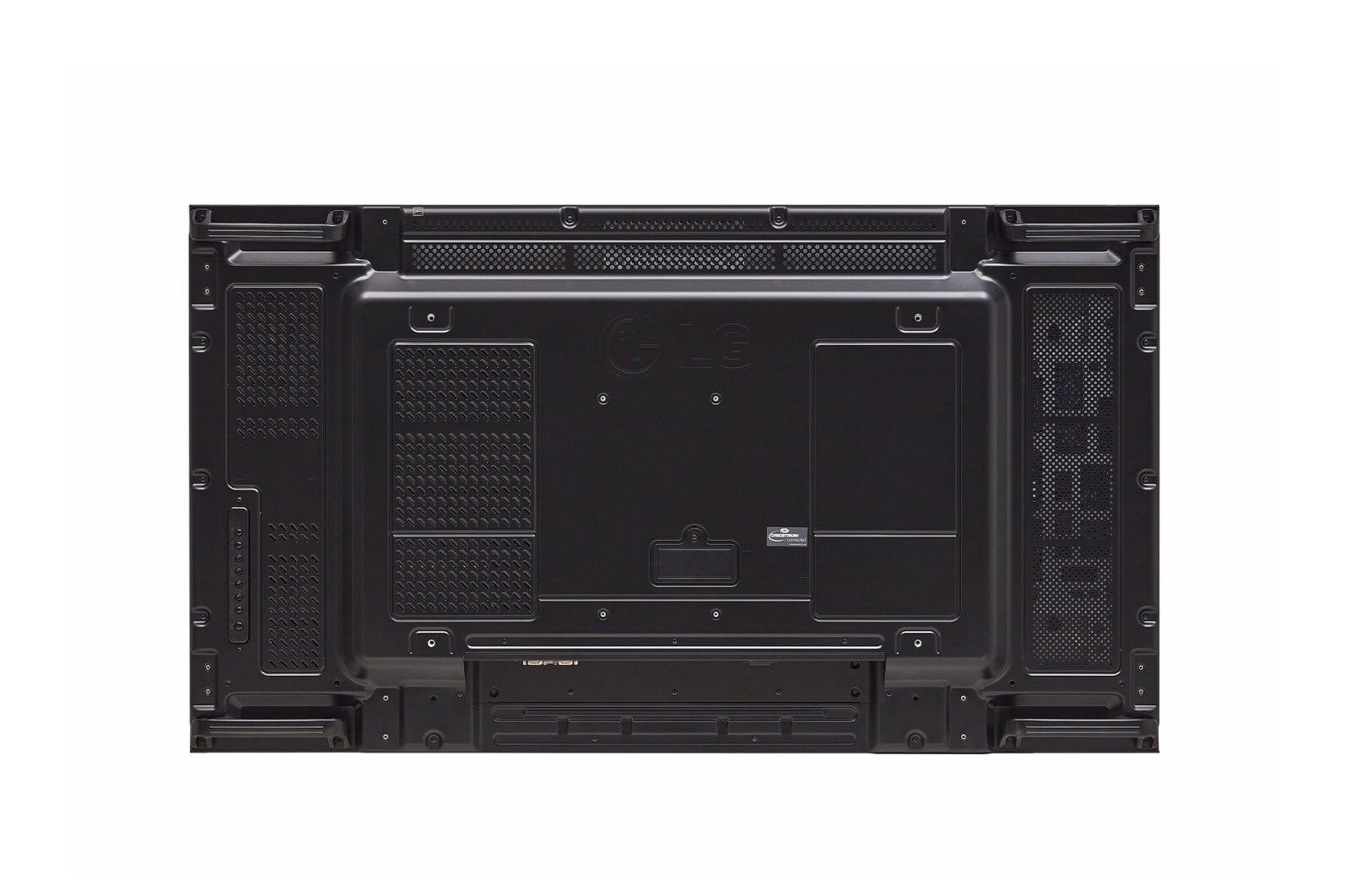

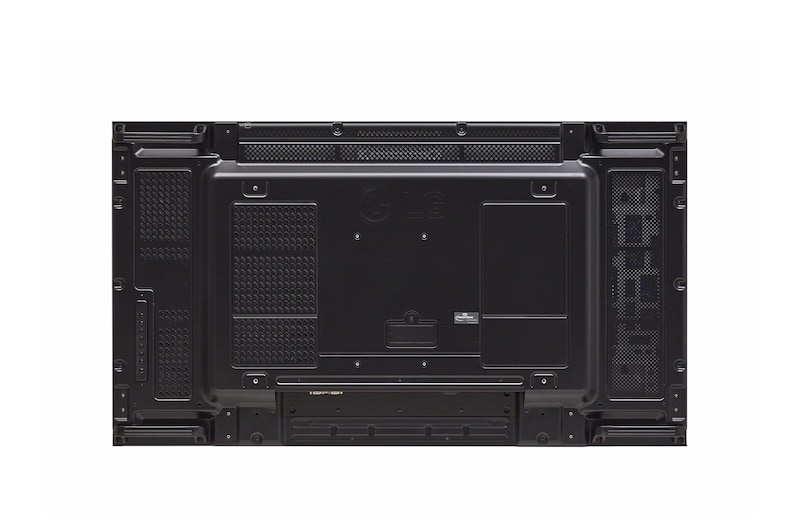

  • VESA™ Standard Mount Interface

    600 x 400

OPS COMPATIBILITY

  • OPS Type Compatible

    Yes (Piggyback)

PANEL

  • Screen Size

    55"

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Refresh Rate

    60 Hz

  • Brightness(Typ., nit)

    700

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    500,000:1

  • Color gamut

    NTSC 72%

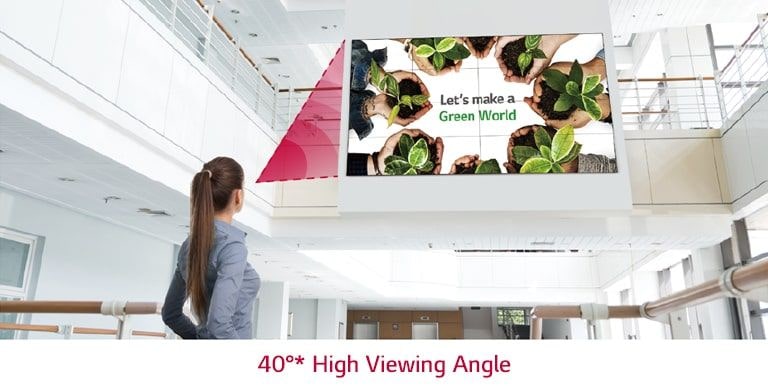

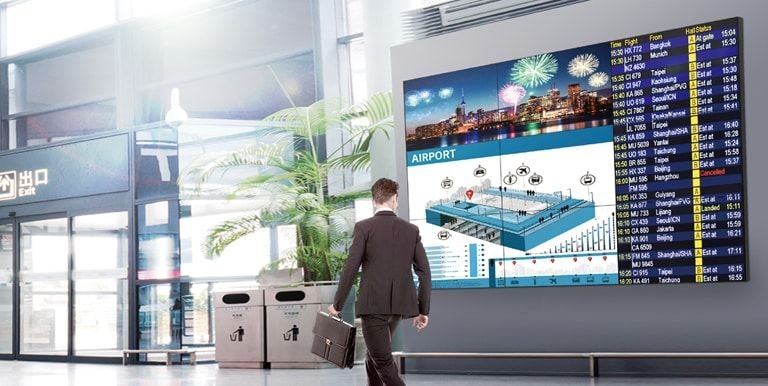

  • Viewing Angle(H x V)

    178x178

  • Color Depth

    10bit, 1.07Billion colors

  • Response Time

    8 ms (G to G)

  • Surface Treatment(Haze)

    28%

  • Life time

    60,000Hrs (Typ.) / 50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

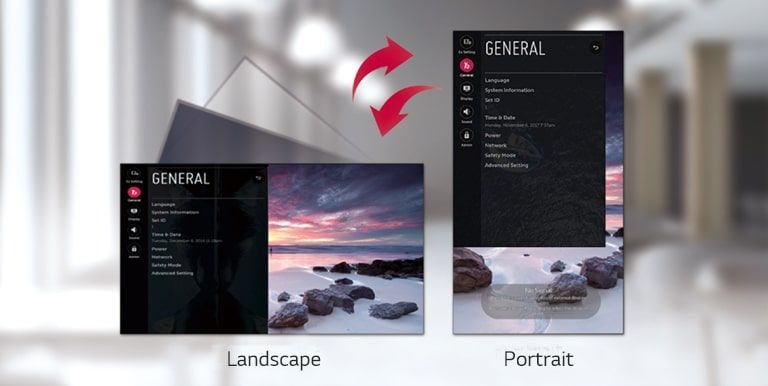

  • Portrait / Landscape

    Yes / Yes

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    210 W

  • Max.

    250 W

  • BTU (British Thermal Unit)

    717 BTU/Hr(Typ.), 853 BTU/Hr(Max)

  • Smart Enegy Saving

    110 W

  • DPM

    0.5 W

  • Power off

    0.5 W

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes / Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • LG Connected care

    Yes

SPECIAL FEATURE

  • IP Rating

    IP5X tested

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Turkish, Arabic
