Color Transparent LED Film

Specs

Color Transparent LED Film

Color Transparent LED Film

LAT240DT1
  • LG Color Transparent LED Film, LAT240DT1
  • LG Color Transparent LED Film, LAT240DT1
  • LG Color Transparent LED Film, LAT240DT1
  • LG Color Transparent LED Film, LAT240DT1
  • LG Color Transparent LED Film, LAT240DT1
  • LG Color Transparent LED Film, LAT240DT1
  • LG Color Transparent LED Film, LAT240DT1
  • LG Color Transparent LED Film, LAT240DT1
  • LG Color Transparent LED Film, LAT240DT1
LG Color Transparent LED Film, LAT240DT1
LG Color Transparent LED Film, LAT240DT1
LG Color Transparent LED Film, LAT240DT1
LG Color Transparent LED Film, LAT240DT1
LG Color Transparent LED Film, LAT240DT1
LG Color Transparent LED Film, LAT240DT1
LG Color Transparent LED Film, LAT240DT1
LG Color Transparent LED Film, LAT240DT1
LG Color Transparent LED Film, LAT240DT1

Key Features

  • Pitch: 24mm
  • LED Type: R,G,B 3in1 Color Package
  • Transmittance: 73%
  • Curvature(Convex and Concave): 1,100R
  • Self-adhesive Film
More
Print

All specs

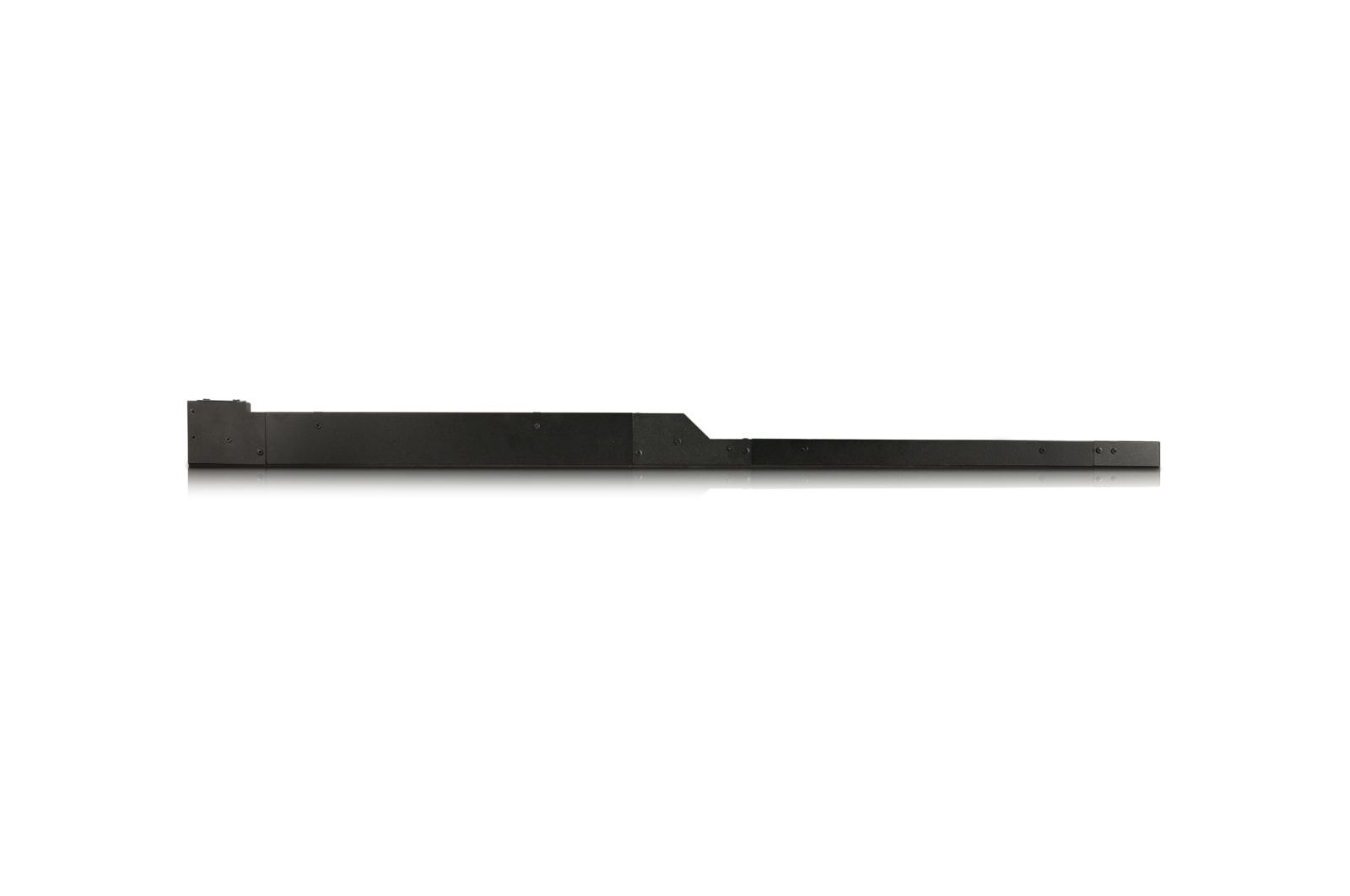

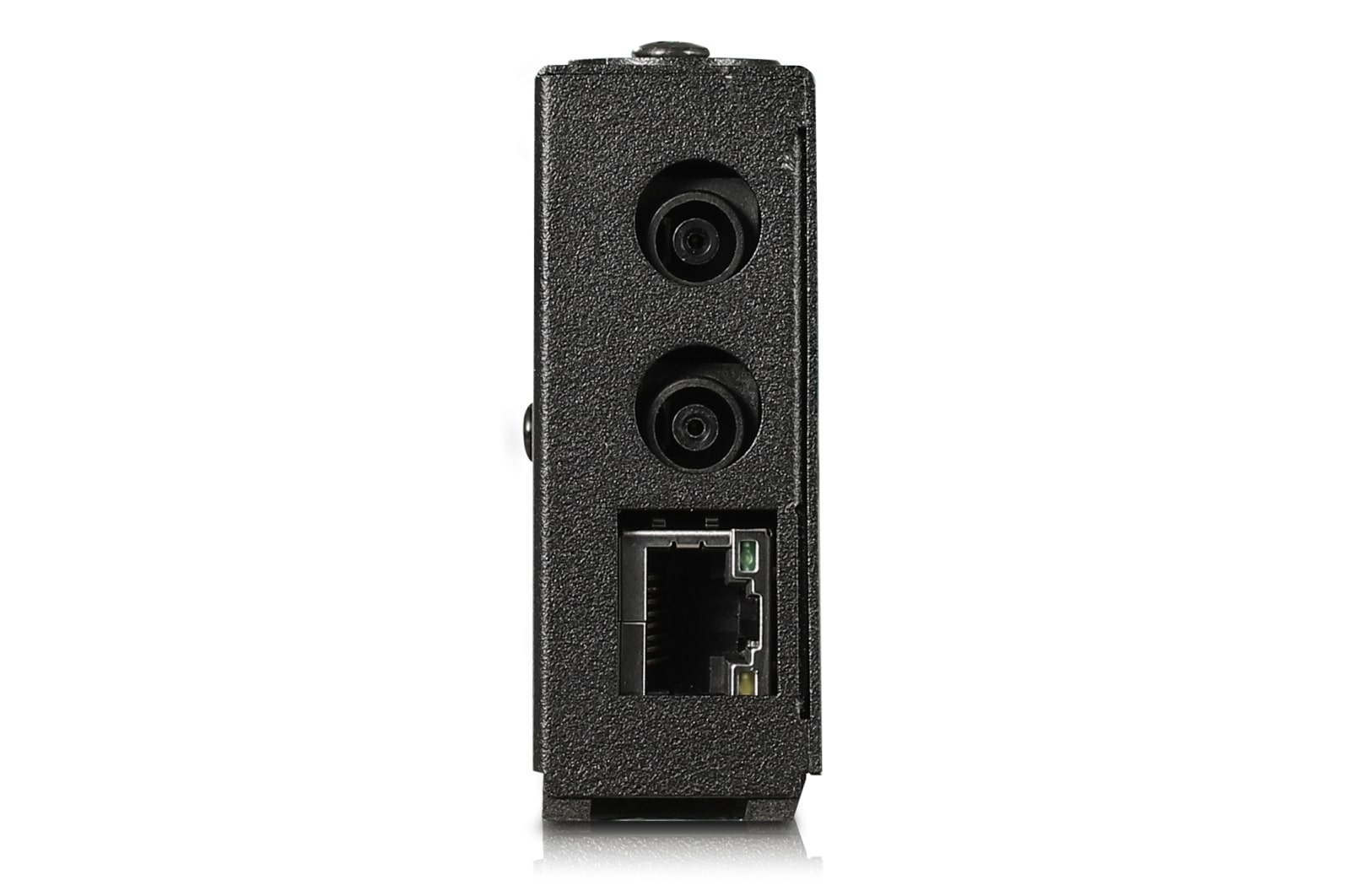

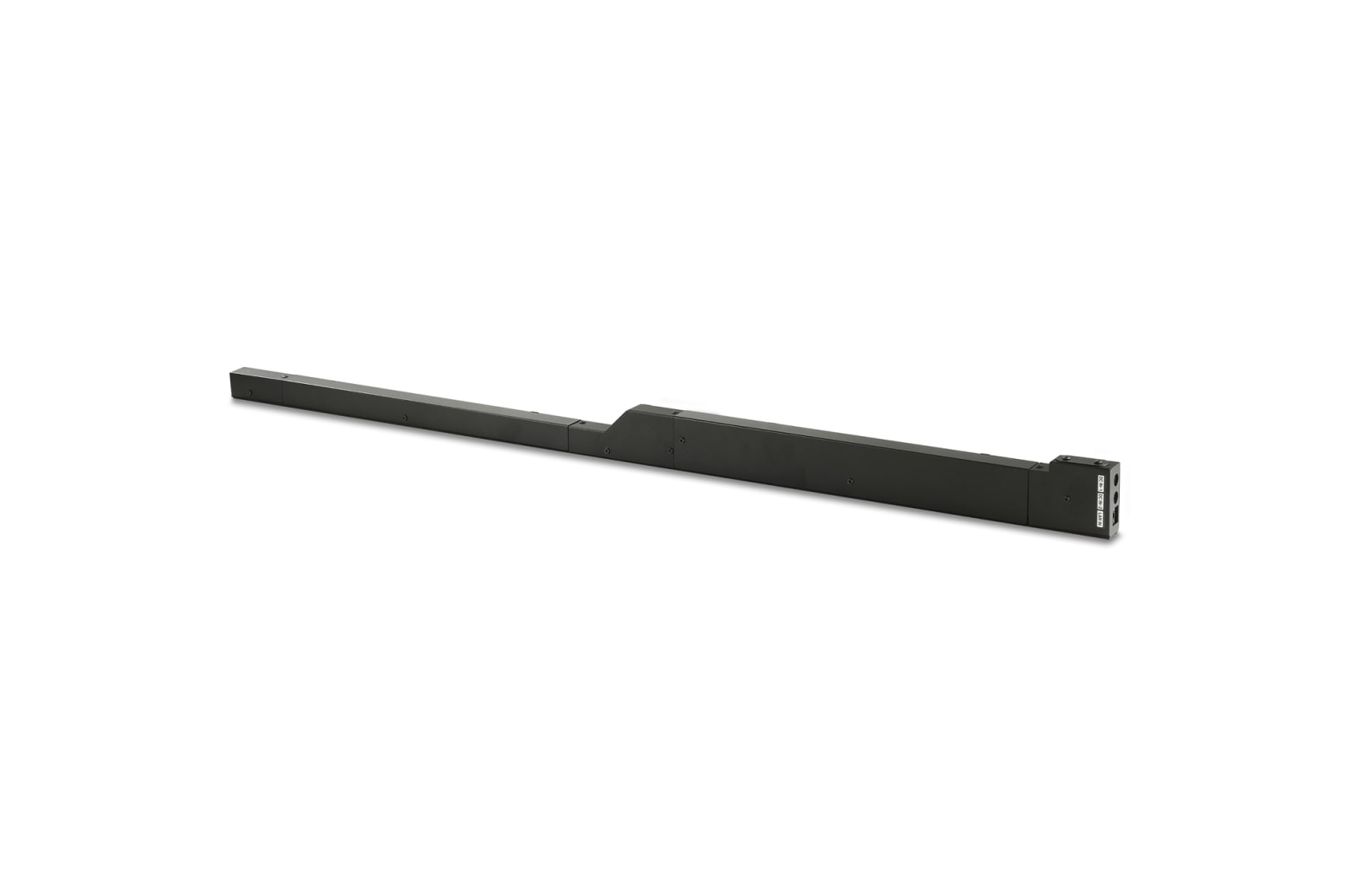

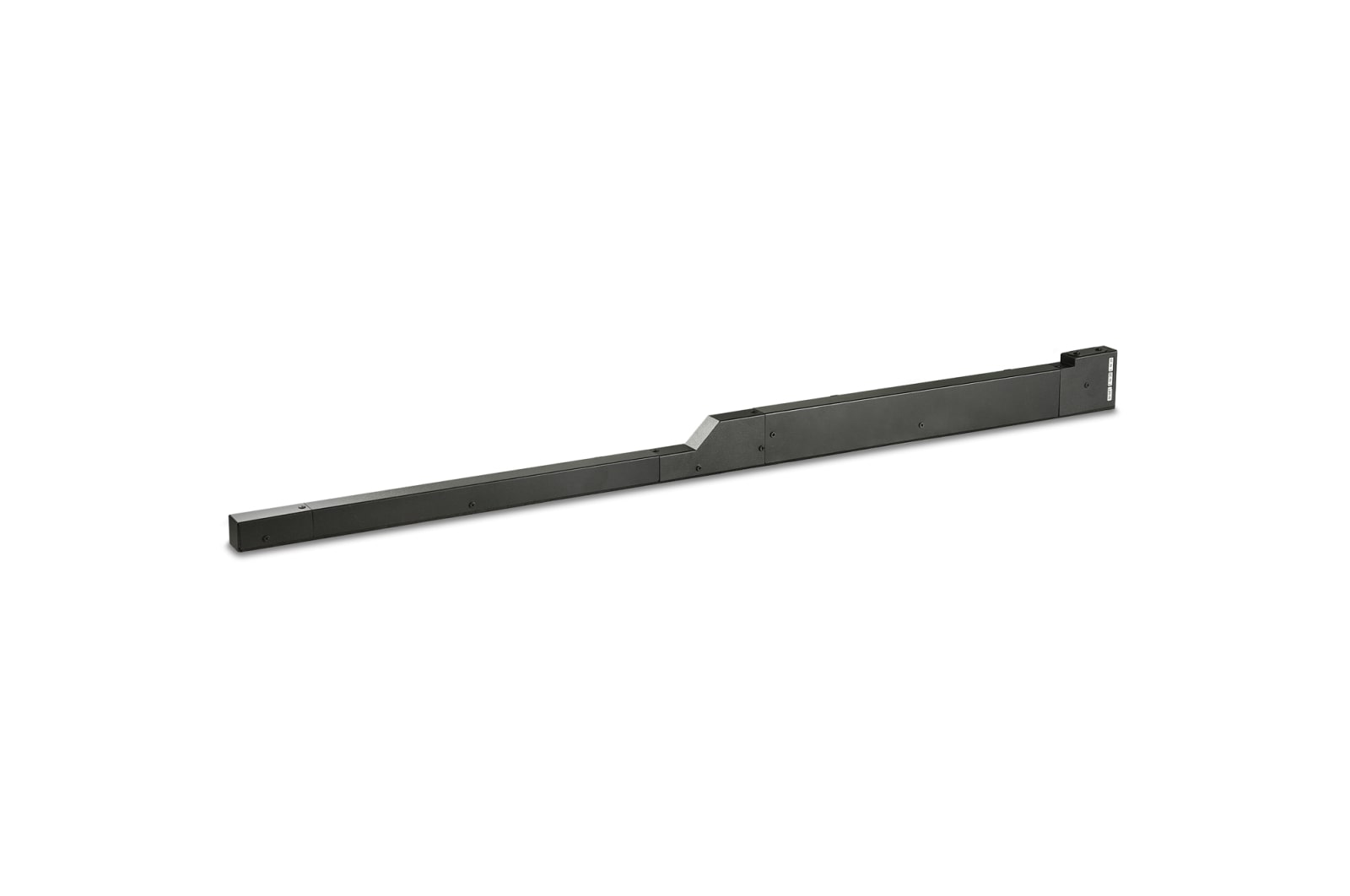

1ST BEZEL KIT

  • Dimension (W x H x D)

    547.3 x 63 x 24㎜

  • Weight

    0.45Kg

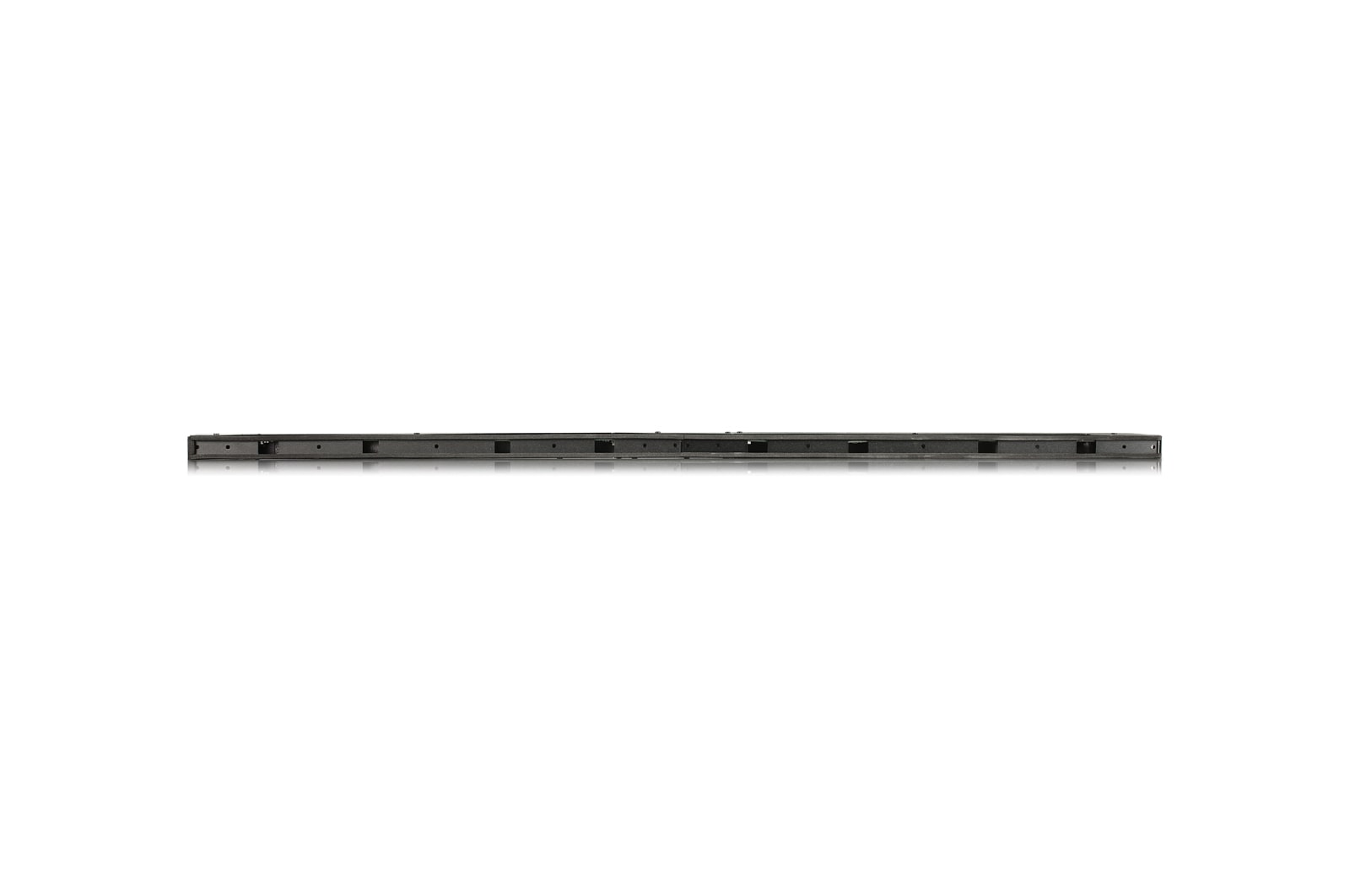

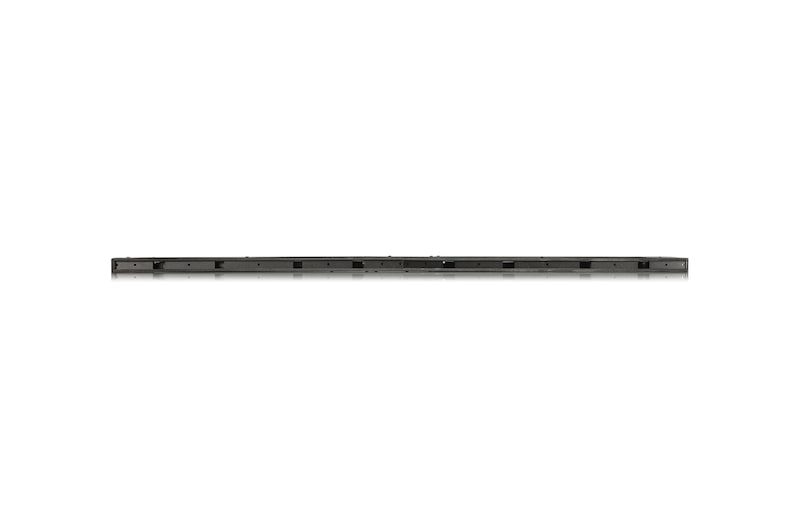

COMMON BEZEL KIT

  • Dimension (W x H x D)

    479.5 x 28.1 x 24㎜

  • Weight

    0.26Kg

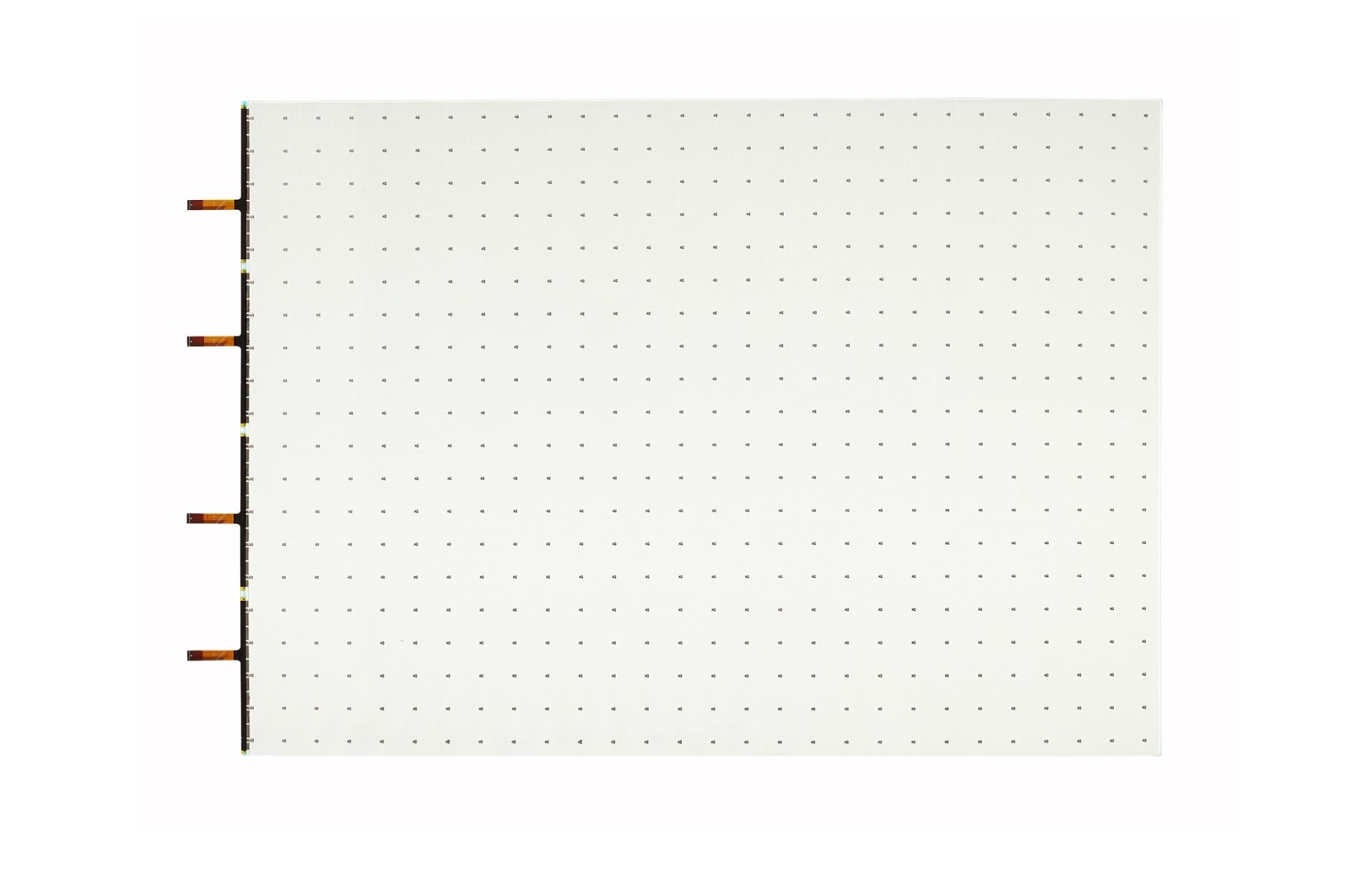

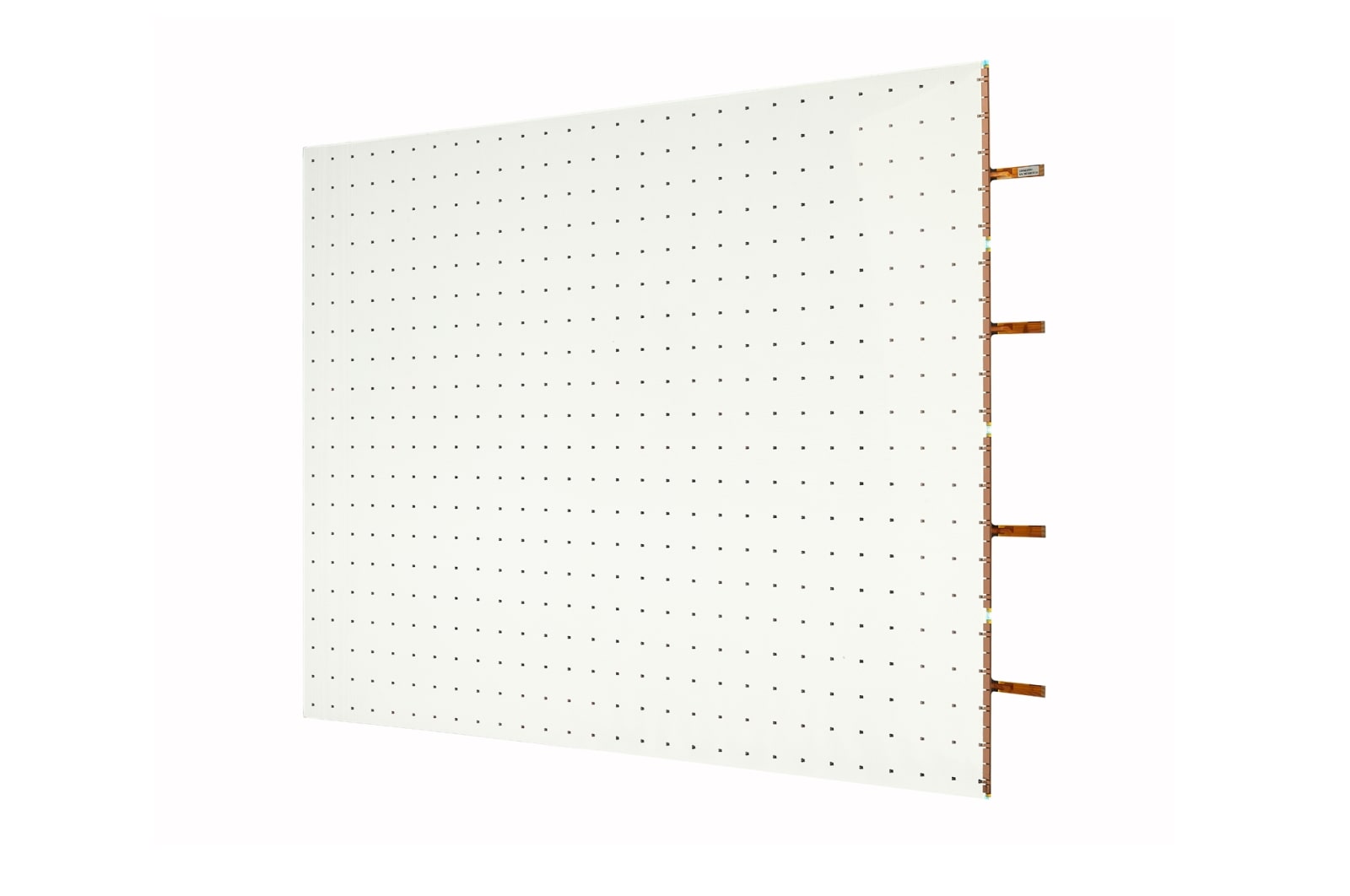

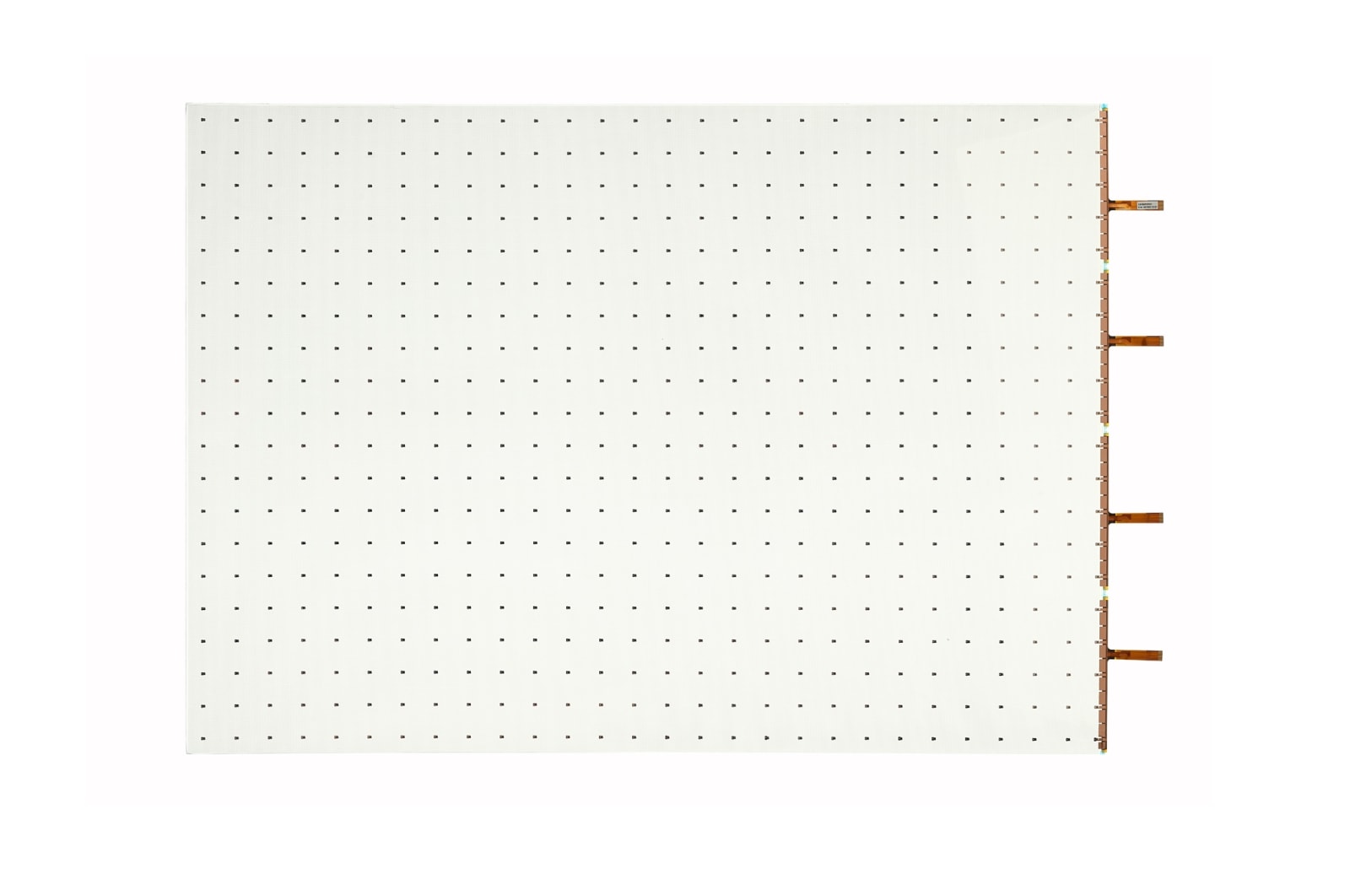

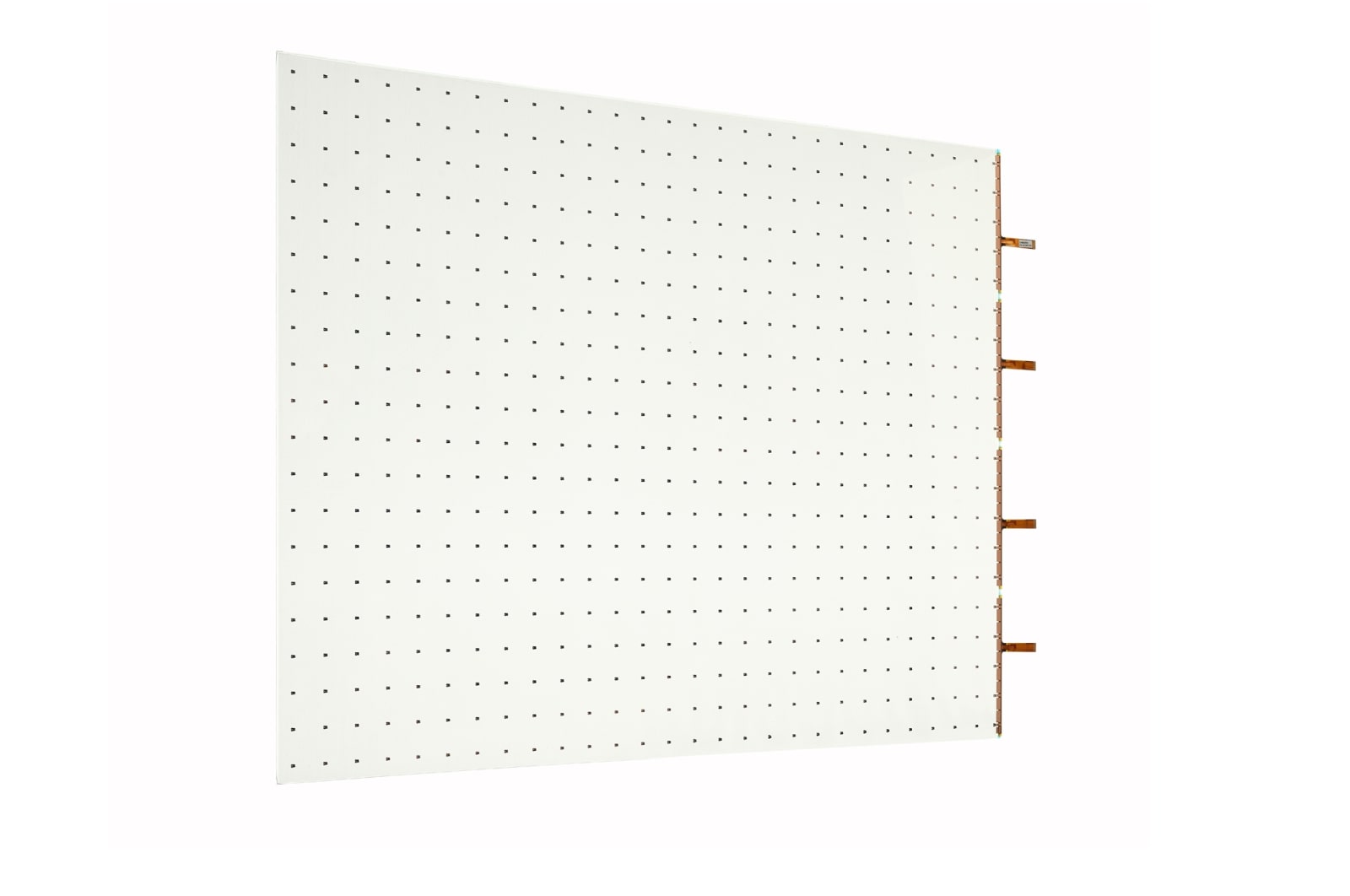

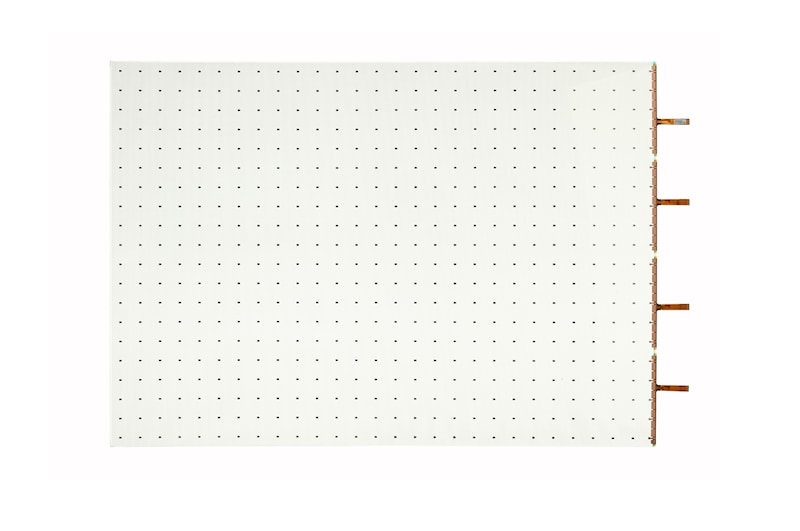

LAT240DT1

  • Accessory

    ESG, Regulation book, Warranty Card

  • Brightness (After Calibration)

    >1,000nit

  • Chromaticity Uniformity

    Δu’v’≤0.015

  • Color Chromaticity

    Cx: 0.28±0.03, Cy : 0.28±0.03

  • Color Processing

    130/120/110 Level ( R, G, B)

  • Colors

    1,716,000 Colors

  • Contrast Ratio

    ≥ 100,000:1

  • Curved Installation

    1,100 R (Convex and Concave)

  • Daily Usage

    24h / 7days

  • Dimension (W x H x D)

    668 x 480 x 2.0㎜ (with Front & Back Protection Film)

  • Film Surface Color Distortion

    No

  • Film Trimming

    Yes (Parallel to the Bezel Side Only)

  • LED Type

    R, G, B 3in1 Color Package (SMD1818)

  • Life Time (Brightness 50%)

    50,000 Hrs

  • Luminance Uniformity

    ≥ 70%

  • Operating Temperature

    0℃ ~ 45℃ (Indoor Glass Installation Only)

  • Pitch

    24±0.2mm

  • Pixel Density [point/㎡ ]

    1,736

  • Pixels per Panel

    560

  • Power Consumption

    37W (Transparent panel 1EA + Bezel kit 1EA)

  • Resolution

    28 x 20

  • Transparency

    73%

  • Viewing Angle (H x V)

    120 x 120

  • Warranty

    2 Years

  • Weight

    0.73kg

POWER

  • Color

    White

  • DC output cable

    14AWG, 1.5m

  • Dimension (W x H x D)

    183×86×28mm

  • Input

    100~240V, 50~60Hz

  • Output

    19.5V/10.8A (210W)

  • Type

    L Type

  • Weight

    769g

SYSTEM CONTROLLER

  • Accessory

    Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card

  • CMS S/W

    Yes

  • Dimension (W x H x D mm)

    293 x 40.1 x 193.3mm

  • Inerface - Comm. Port - IR Receiver (w/ Light Sensor)

    1EA (Phone Jack Type) : Used for installation

  • Inerface - Comm. Port - RJ-45

    Input : 1EA (without LED indicator) Output : 1EA (without LED indicator)

  • Interface - Comm. Port - RS-232C

    Input : 1EA (Phone Jack Type) Output : 1EA (Phone Jack Type)

  • Interface - Digital (w/ HDCP) - DP

    Input : 1EA Output : 1EA

  • Interface - Digital (w/ HDCP) - DVI-D

    Input : 1EA

  • Interface - Digital (w/ HDCP) - HDMI

    Input : 1EA

  • Interface - LVDS

    Output : 1EA

  • Interface - USB3.0

    1EA

  • Light Sensor

    O

  • Motion Eye Care

    Yes

  • Power Consumption

    17W

  • Source Selection

    HDMI, DVI-D, DP

  • Temperature Sensor

    O

  • TPC (Temporal Peak luminance Control)

    Yes

  • Video - Max. Input Resolution

    DP : 3840 x 2160@30Hz HDMI : 3840x2160@30Hz DVI-D : 1920x1080@60Hz

  • Weight (Head, Kg)

    1.6kg

UNIT CONTROLLER

  • Dimension (W x H x D)

    293 x 37 x 188.7mm

  • Interface

    Input : LVDS Output : RJ45 x4EA

  • Maximum Transmission Length

    100m

  • Power Consumption

    20 W

  • Resolution

    960x540 (4 Unit Controllers Needed for FHD))

  • Temperature Sensor

    Yes

  • Weight

    1.5Kg
