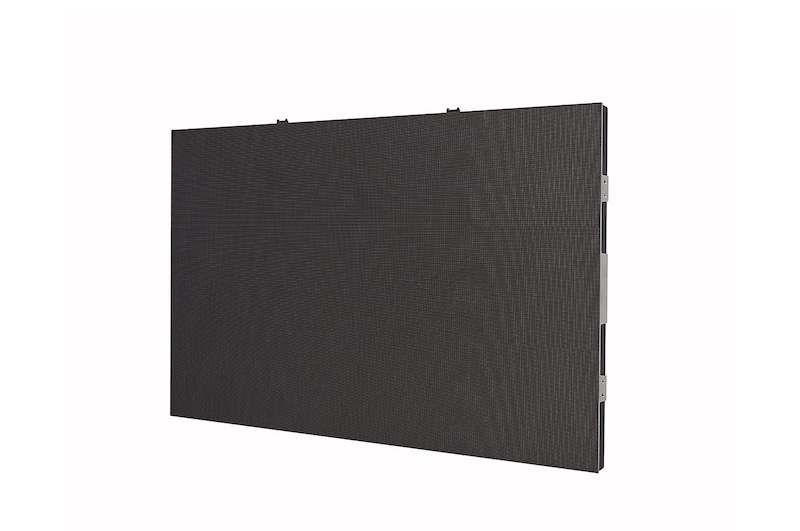

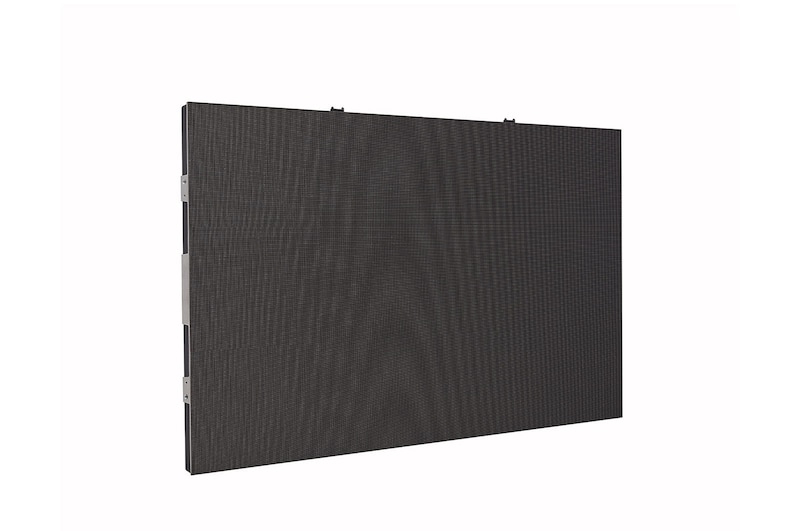

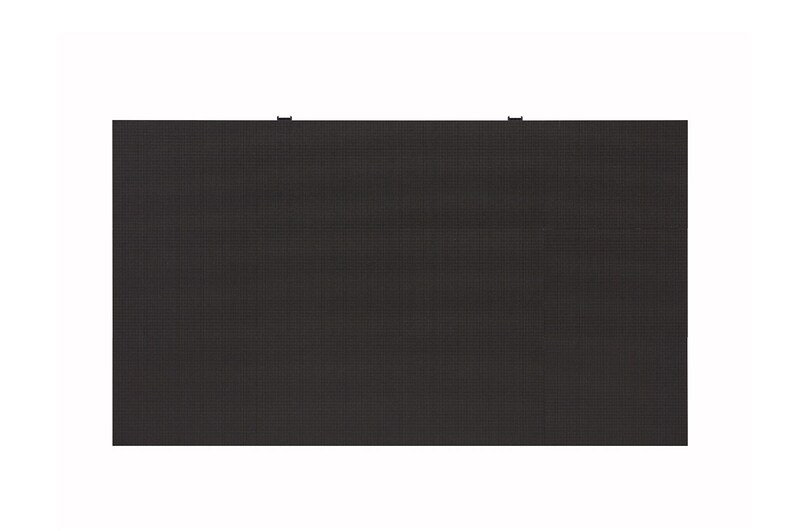

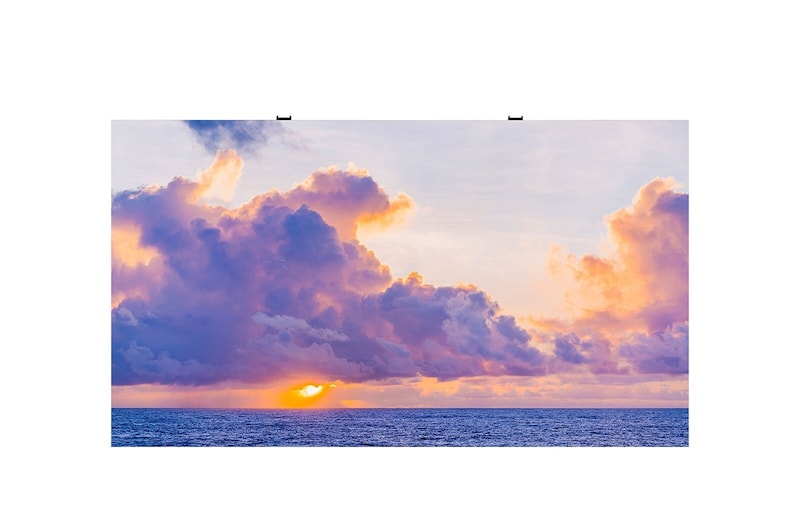

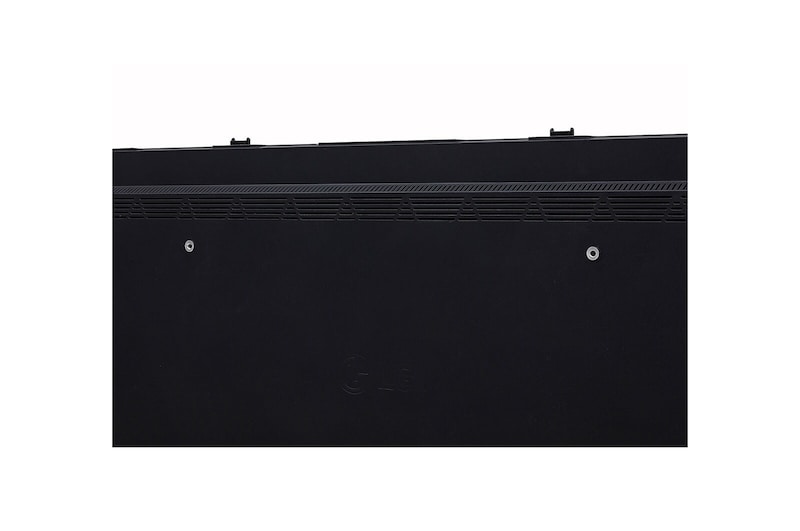

LG LED Bloc
Controller
CSAC-012K
Power Consumption (W/Cabinet, Max.)
320
Power Consumption (W/Cabinet, Avg.)
210
Power Consumption (W/m², Max.)
395
Heat Dissipation (BTU/h/Cabinet, Max.)
1,092
Heat Dissipation (BTU/h/Cabinet, Avg.)
717
Heat Dissipation (BTU/h/m², Max.)
1,348
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
0∘to +40∘
Operating Humidity
10-80% RH
IP Rating Front / Rear
IP20
Max Brightness (After Calibration, nit)
Peak. 1,000nit / Max. 600nit
Color Temperature (K)
3,200~9,300K
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
95%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
Peak. 9,000:1 / Typ. 5,000:1
Processing Depth (bit)
20 (HDR10, HDR10 Pro)
Pixel Configuration
3 in 1 SMD
Pixel Pitch(mm)
1.25
Module Resolution (WxH)
240x180
Module Dimensions(WxH,mm)
300x225
Weight per Module (kg)
0.63
No. of Modules per Cabinet (WxH)
4x3
Cabinet Resolution (WxH)
960x540
Cabinet Dimensions (W x H x D, mm)
1200x675x51
Cabinet Surface Area (㎡)
0.810
Weight per Cabinet (kg/unit)
23.5kg
Weight per Square Meter (kg/m²)
29kg
Physical Pixel Density (pixels/m²)
640,000
Flatness of Cabinet (mm)
±0.5
Cabinet Material
Die-cast Aluminum
Service Access
Front
