Ultra Slim Series

LSCB025-RK

Key Features

Pixel Pitch: 2.50mm
Brightness: 800cd/m²
Ultra Slim Depth
EMC Class B, BS 476 Part7 Class 1

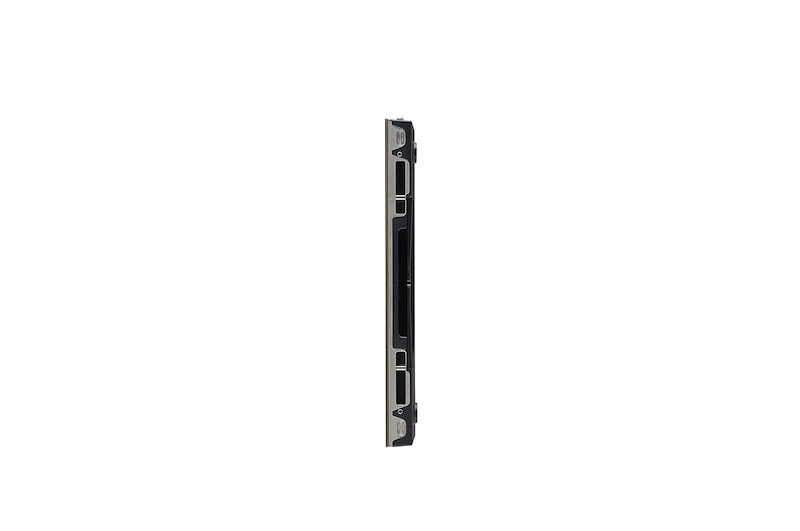

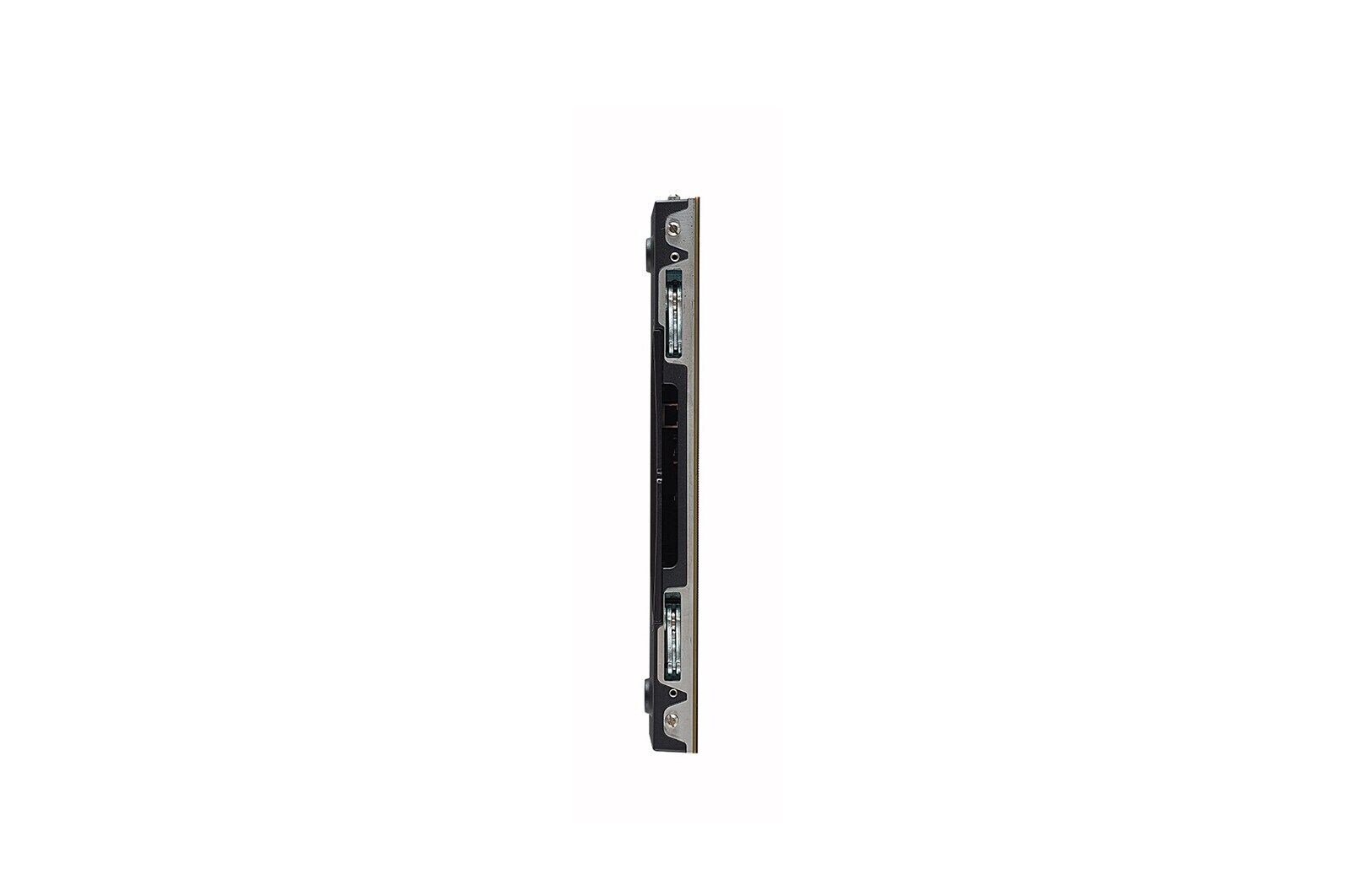

Ultra Slim Depth

Its ultra-slim design with 37.5 mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed and utilized in any type of venues without restriction.

Easy & Seamless Installation

The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a magnetic tool.

16:9 FHD/UHD Configuration

Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content.
This allows you to keep using existing content without additional cost and time for editing.

90° Corner Design Available

If you add 90° corner option, the LSCB series fits naturally into the space and delivers smooth & flawless content to customers.

EMC Class B Certified & Fire Resistant Design

The LSCB series is safe from electromagnetic waves, which are harmful to the environment and human body, with EMC Class B certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.

User-specific Customization

LSCB series provides a mini and curved cabinet to implement various types of screens required by users such as customized curvature, concave, and convex.

* Left & right side cutting
* Depending on the radius, the unit case dimension size changes.

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LSCB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

All specs

ELECTRICAL PARAMETER

Power Consumption (W/cabinet, Max.)
150
Power Consumption (W/cabinet, Avg.)
50
Power Consumption (W/m², Max.)
740
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840

OPERATION CONDITIONS

Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-10 °C to +45 °C
Operating Humidity
0 - 80 % RH
IP rating Front / Rear
IP30 / IP30

OPTICAL PARAMETER

Max. Brightness (After Calibration)
800
Color Temperature
3,200-9,300 (K)
Visual Viewing Angle (Horizontal/Vertical)
160 × 160
Brightness Uniformity
97%
Color Uniformity
± 0.003 Cx,Cy
Contrast Ratio
5,000
Processing Depth (bit)
14

PHYSICAL PARAMETER

Pitch Name
3 in 1 SMD
Pixel Pitch (mm)
2.500
Module Resolution (W x H)
120 × 135
Module Dimensions (W x H, mm)
300 × 337.5
Weight per Module (kg)
1.20
No. of Modules per Cabinet (W × H)
2 × 1
Cabinet Resolution (W × H)
240 × 135
Cabinet Dimensions (W × H × D, mm)
600 × 337.5 × 33.8
Cabinet Surface Area (m²)
0.203
Weight per Cabinet (kg/cabinet)
6.0
Weight per Square Meter (kg/m²)
29.6
Physical Pixel Density (pixels/m²)
160,000
Flatness of Cabinet
± 0.1 mm
Cabinet Material
Die Casting Aluminum Alloy
Service Access
Front

CONTROLLER(CVCA)

Input Interface
HDMI / DP / OPS / USB
Input Resolution
3,840 x 2,160 @60Hz
Output Signal
Gigabit Ethernet (16 ea)
Output Fiber Optical
No
Control RJ45
Yes
Control USB
No
Electrical Power Consumption (W)
50
Electrical Power Supply (V)
AC 100-240 V
Mechanical Size (mm)
443 (W) × 307.5 (D) × 63 (H)→ EIA Standard Rack (2U)
Mechanical Weight (kg)
4.9
Feature Signal Redundancy
Yes
Feature HDR10
Yes

CONTROLLER(LCIN006)

Input Interface
HDMI / DVI
Input Resolution
1,920 x 1,200 @60Hz
Output Signal
Gigabit Ethernet (4 ea)
Output Fiber Optical
No
Control RJ45
No
Control USB
Yes
Electrical Power Consumption (W)
16
Electrical Power Supply (V)
AC 100-240 V
Mechanical Size (mm)
482.6 (W) × 250 (D) × 44.45 (H)→ EIA Standard Rack (1U)
Mechanical Weight (kg)
2.9
Feature Signal Redundancy
Yes
Feature HDR10
No

CONTROLLER(LCIN008(4K))

Input Interface
HDMI / DVI / DP
Input Resolution
3,840 x 2,160 @60Hz
Output Signal
Gigabit Ethernet (16 ea)
Output Fiber Optical
4 ea
Control RJ45
Yes
Control USB
Yes
Electrical Power Consumption (W)
30
Electrical Power Supply (V)
AC 100-240 V
Mechanical Size (mm)
482.6 (W) × 250 (D) × 96 (H)→ EIA Standard Rack (3U)
Mechanical Weight (kg)
4.6
Feature Signal Redundancy
Yes
Feature HDR10
Yes
