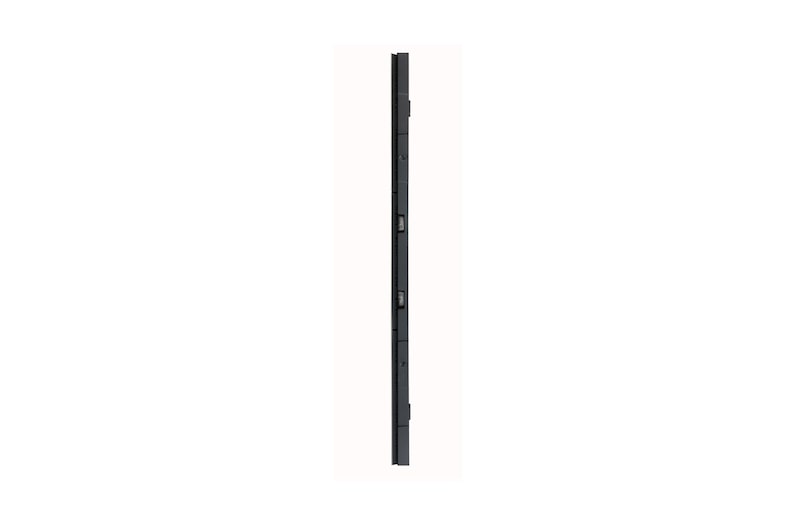

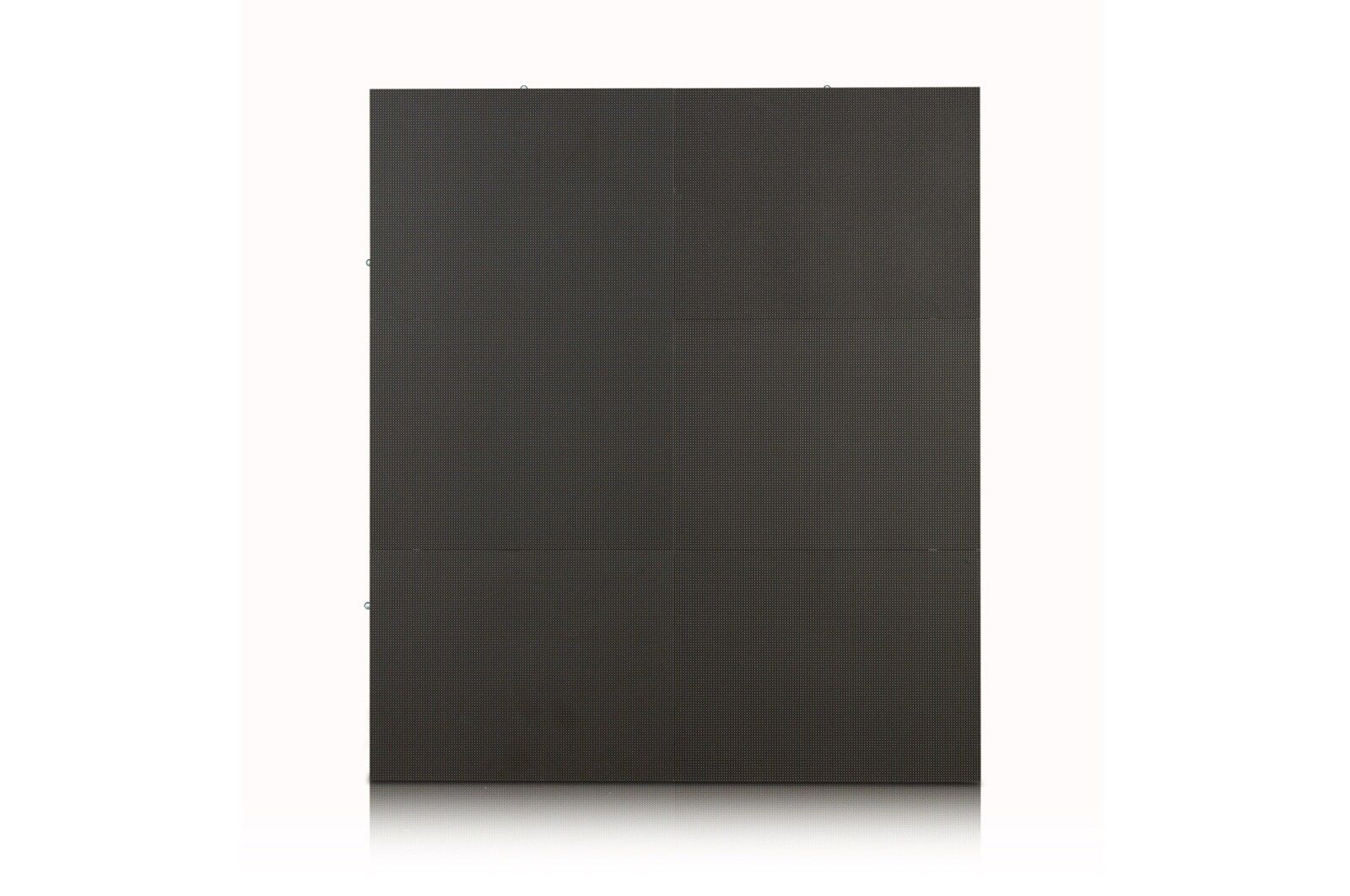

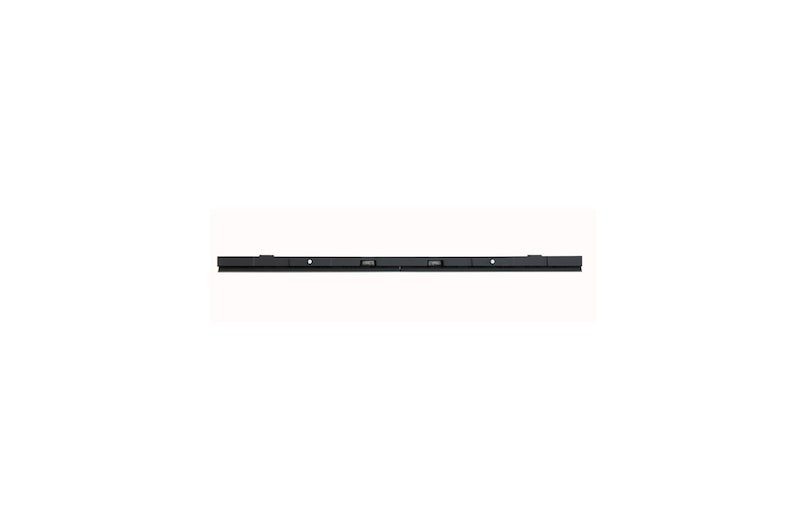

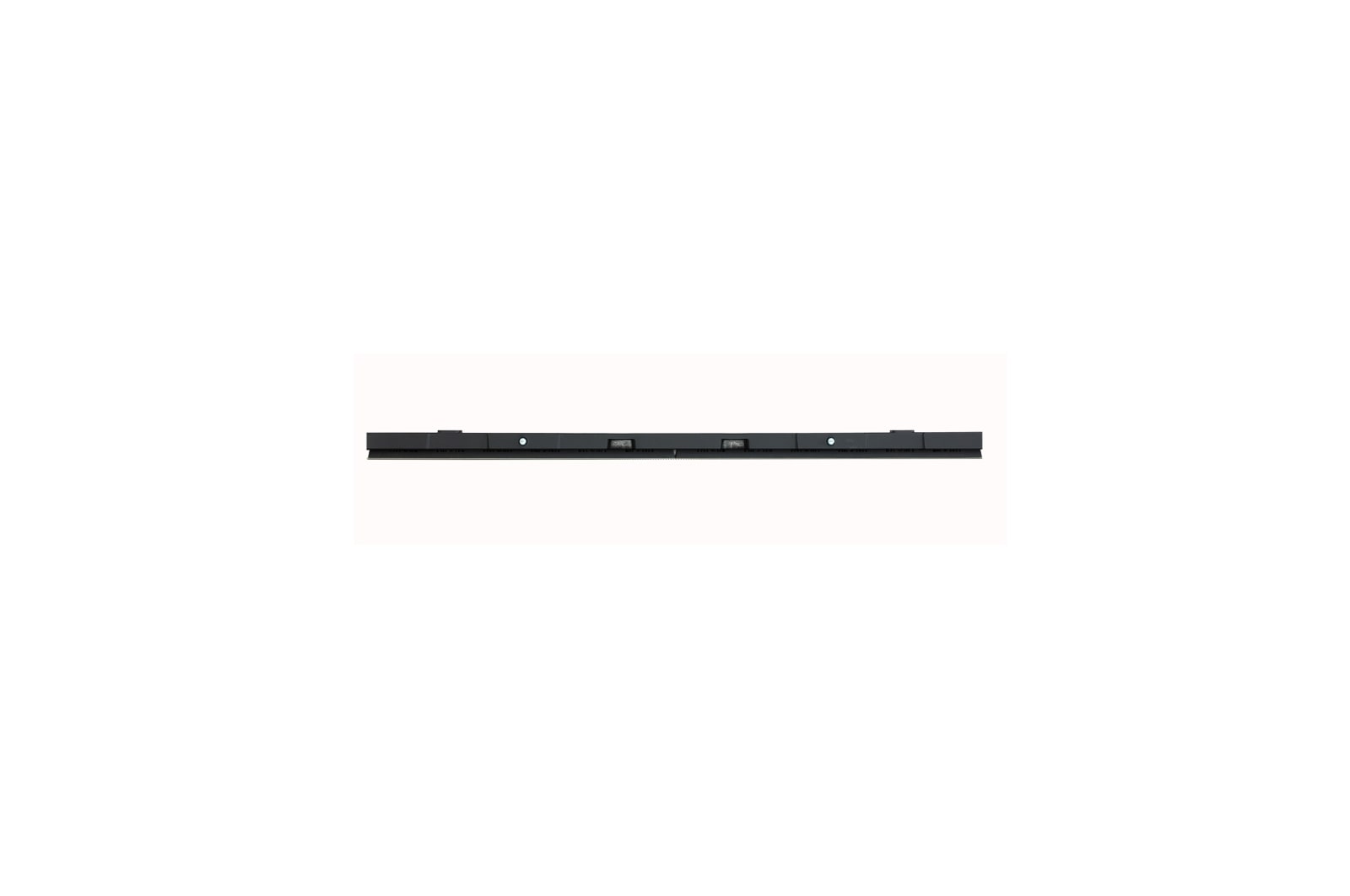

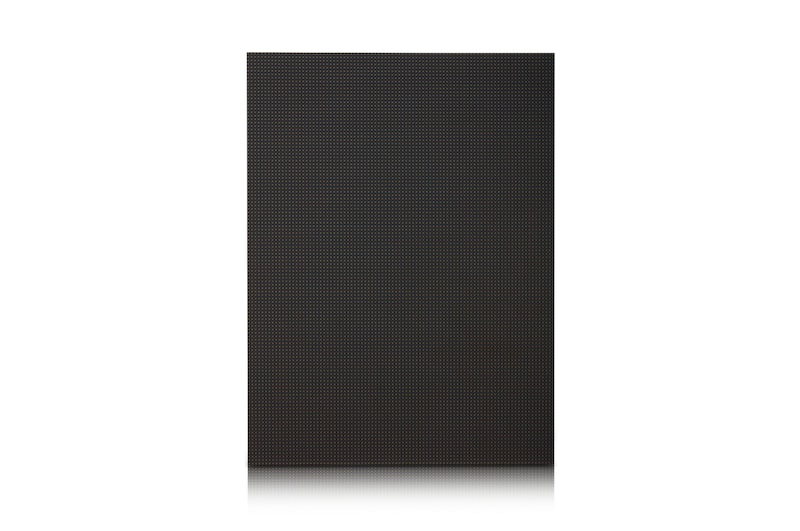

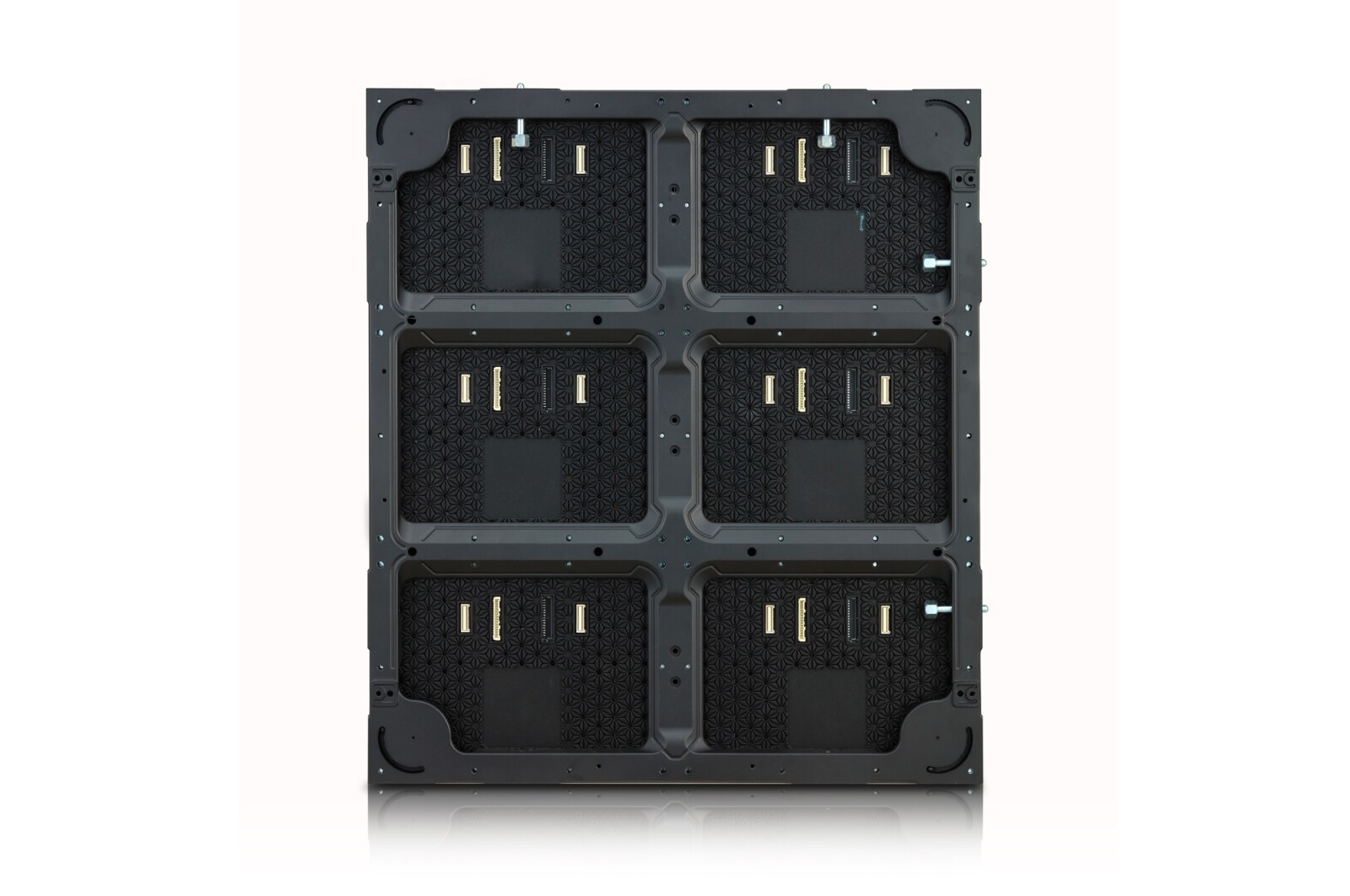

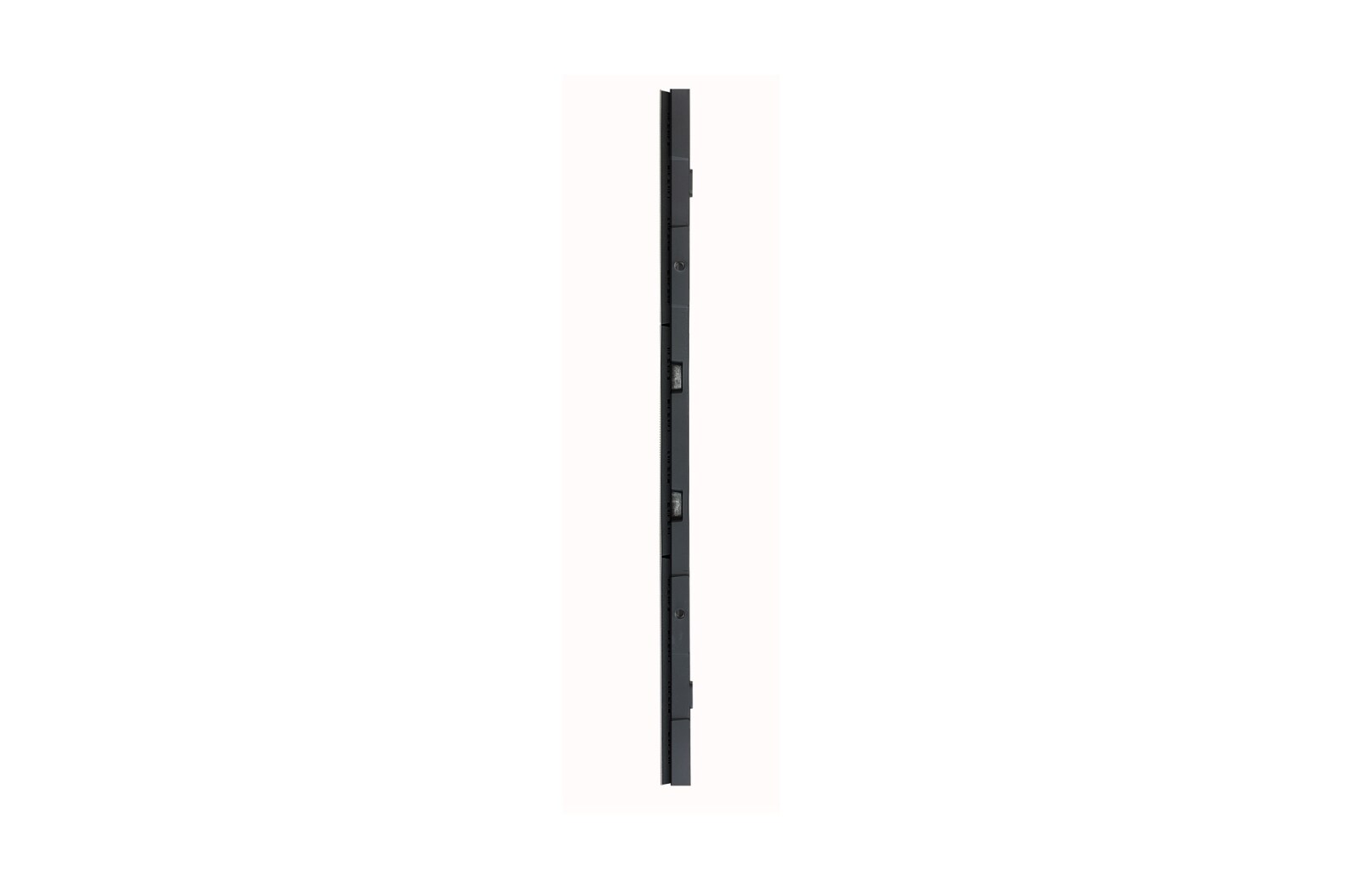

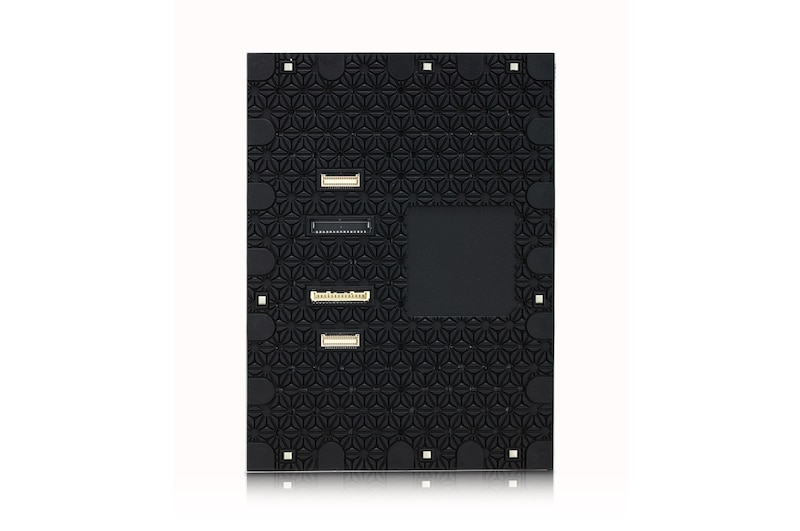

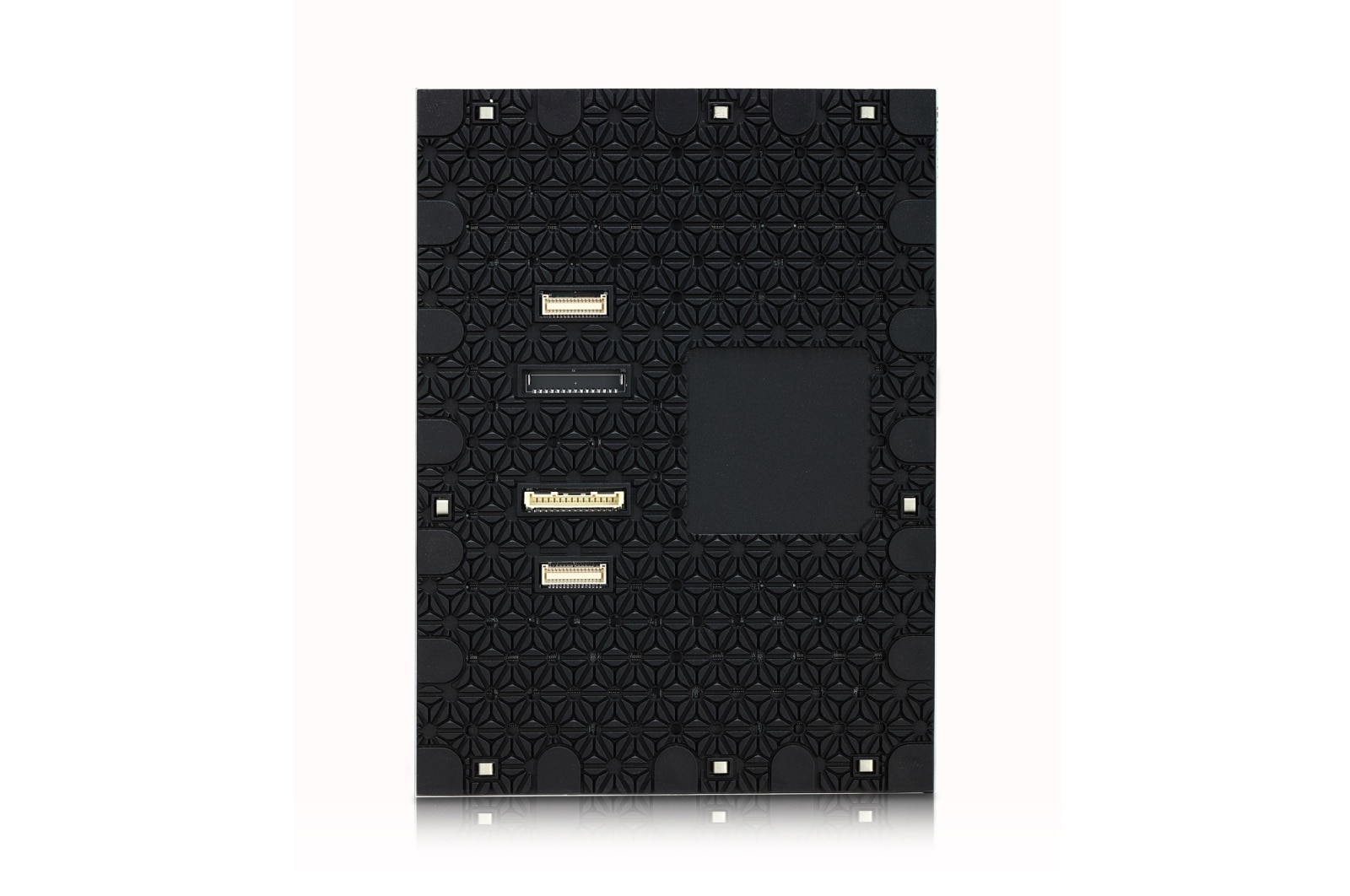

P1.5 1,000 nits LG LED Curve Series for Indoor
Controller
LCLG003
Power Consumption (W/Unit, Avg.)
170
Power Consumption (W/Unit, Max.)
330
Power Consumption (W/㎡, Max.)
1270(@1,000nit)
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Half brightness)* * The Lifetime(Half brightness) spec is subject to LED package spec.
100,000
Operating Temperature(℃)
0∘to +40∘
Operating Humidity
10-80%RH(TBD)
IP rating Front
-
IP Rating Rear
-
Min. Brightness (After Calibration)
300 ~ 1,000
Color Temperature
3,200 ~ 9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
≥97%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
6,000
Processing Depth (bit)
16
Pixel Configuration
3 in 1 SMD
Pixel Pitch(mm)
1.50
Module Resolution (WxH)
160x120

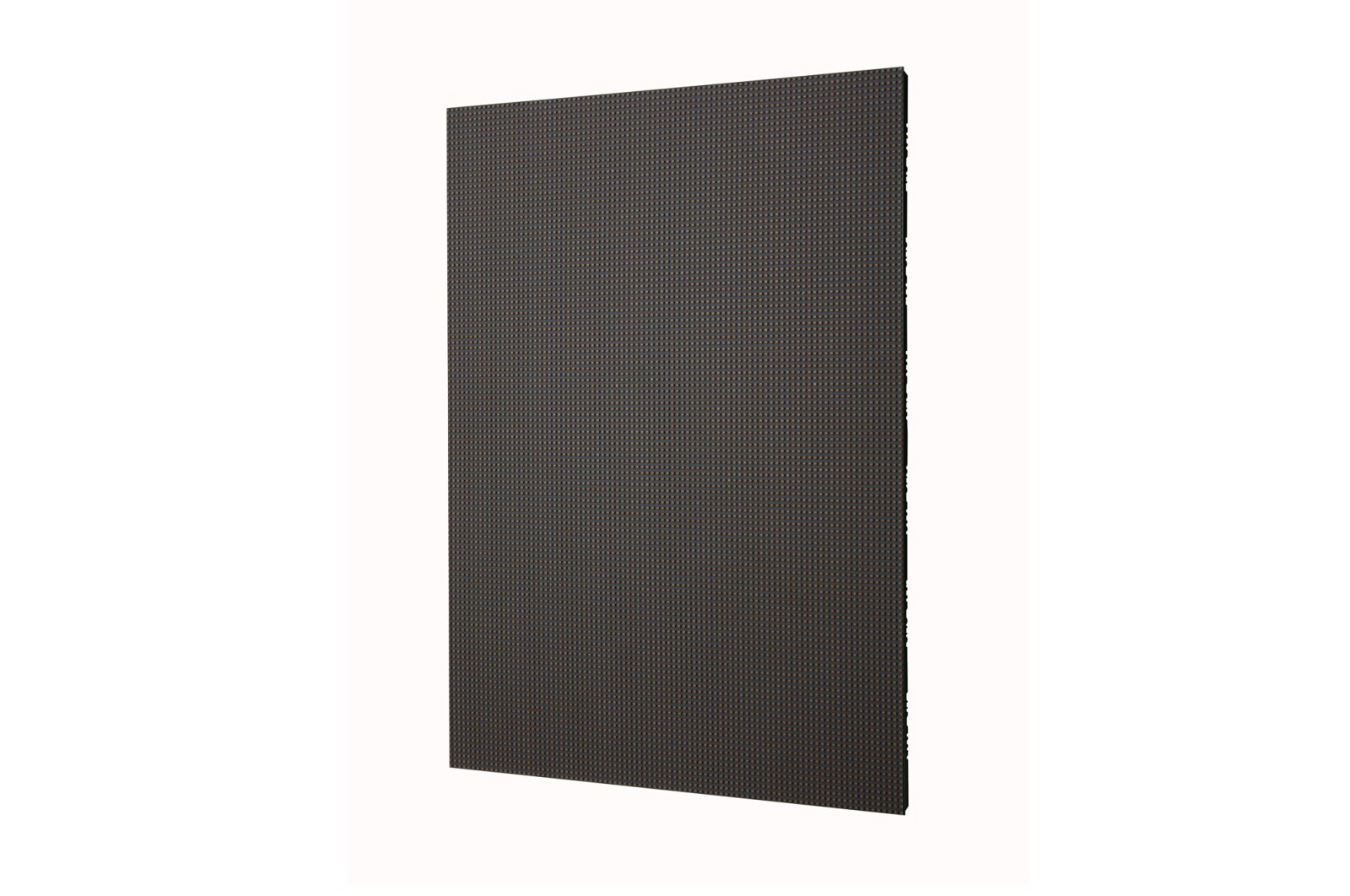

Module Dimensions(WxH,mm)
240x180
Weight per Module (kg)
0.36
No. of Modules per Unit Case (WxH)
2x3
Unit Case Resolution (WxH)
320x360

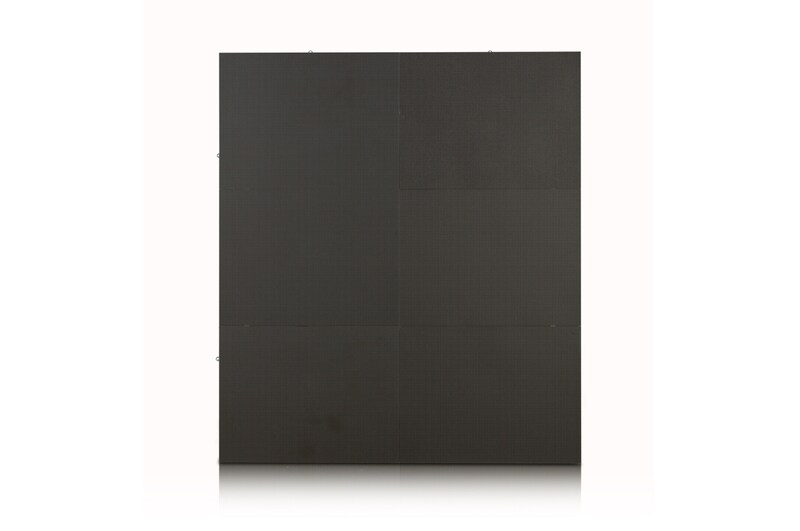

Unit Case Dimensions (W x H x D, mm)
480x540x40
Unit Case Surface Area (㎡)
0.260
Weight per Unit Case (kg/unit)
5.0
Weight per Square Meter (kg/㎡)
19.8
Physical Pixel Density (pixels/m²)
444,444
Flatness of Unit Case (mm)
±0.2
Unit Case material
Die casting alluminum
Service Access
Front or Rear
