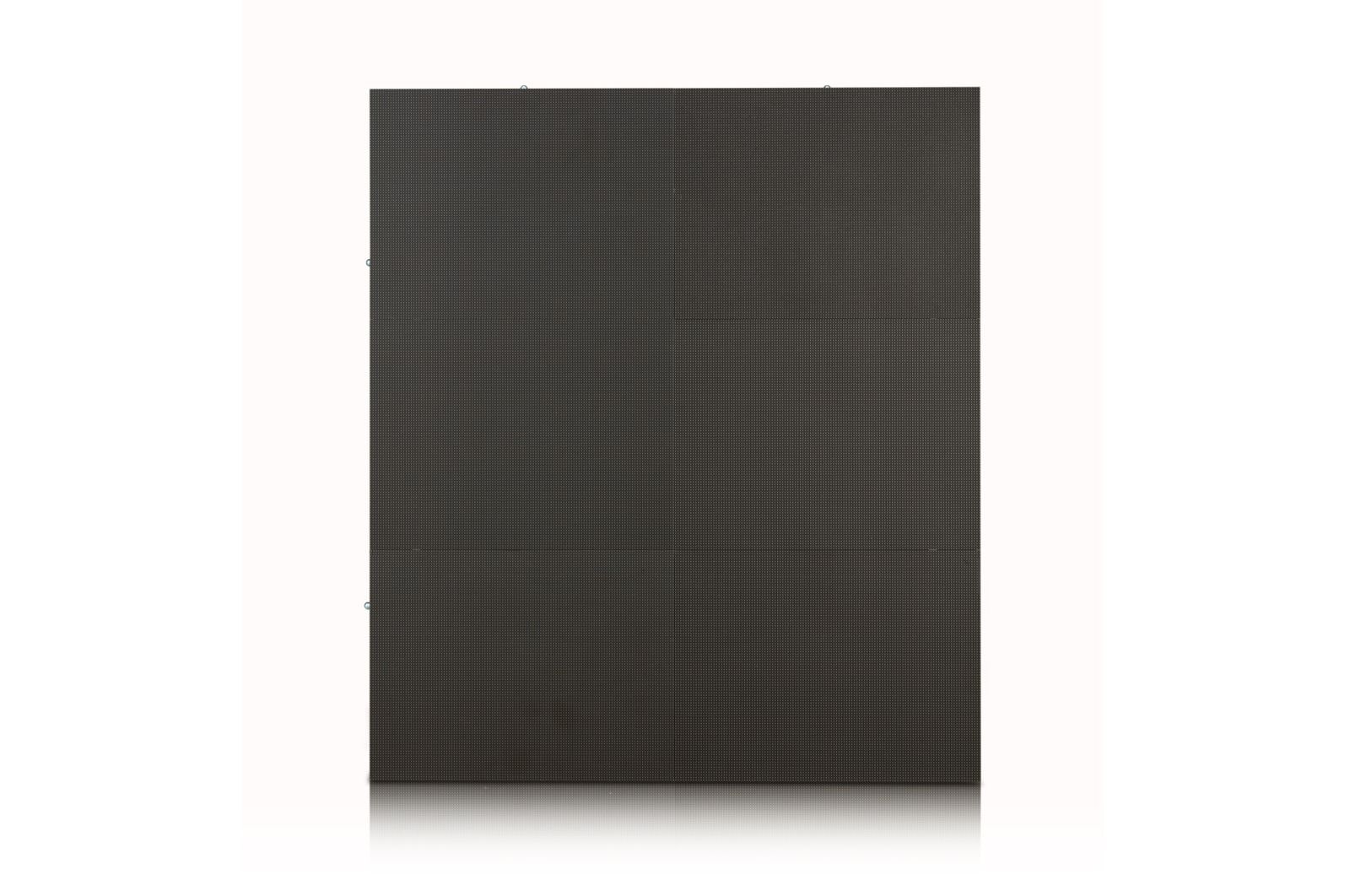

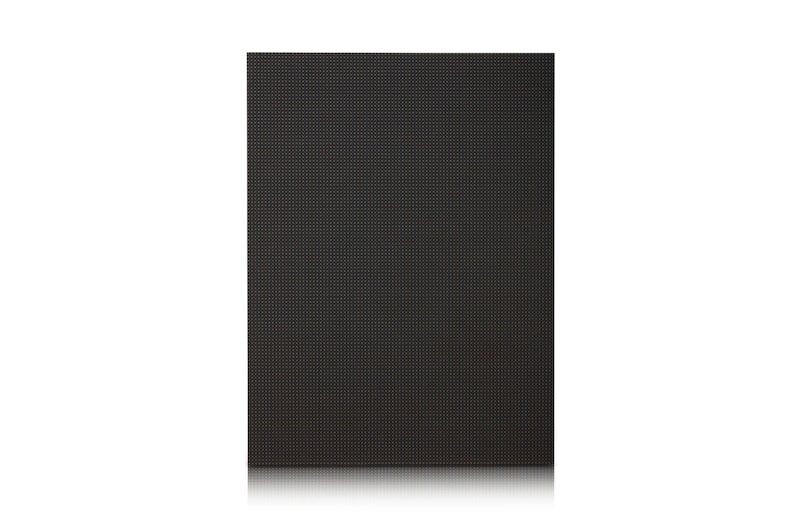

P1.5 700nit LG LED Curve Series for Indoor
Pixel Pitch
1.5mm
LED Type
SMD 3-in-1
Resolution(WxH, per Unit Frame)
160 x 120

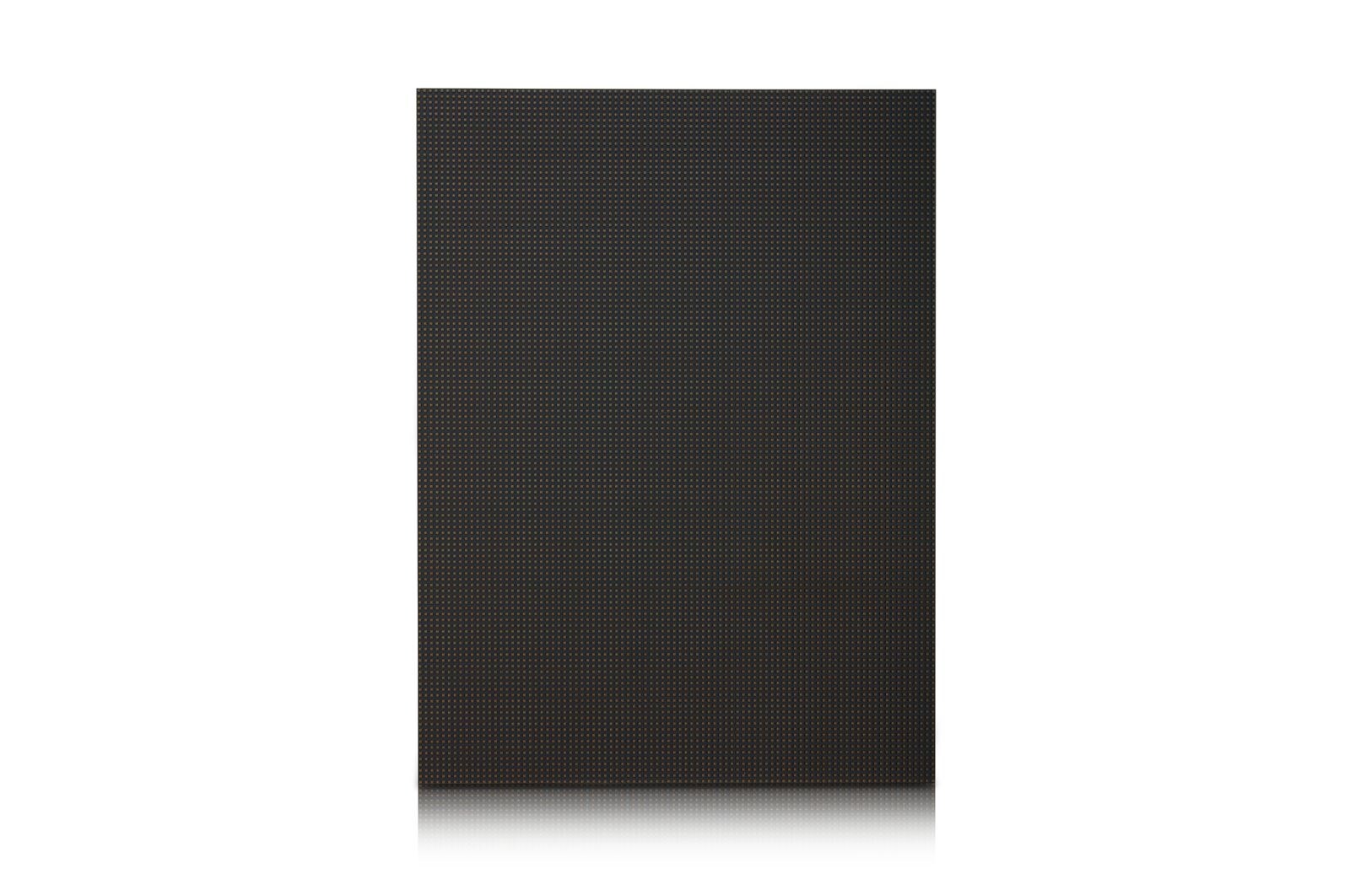

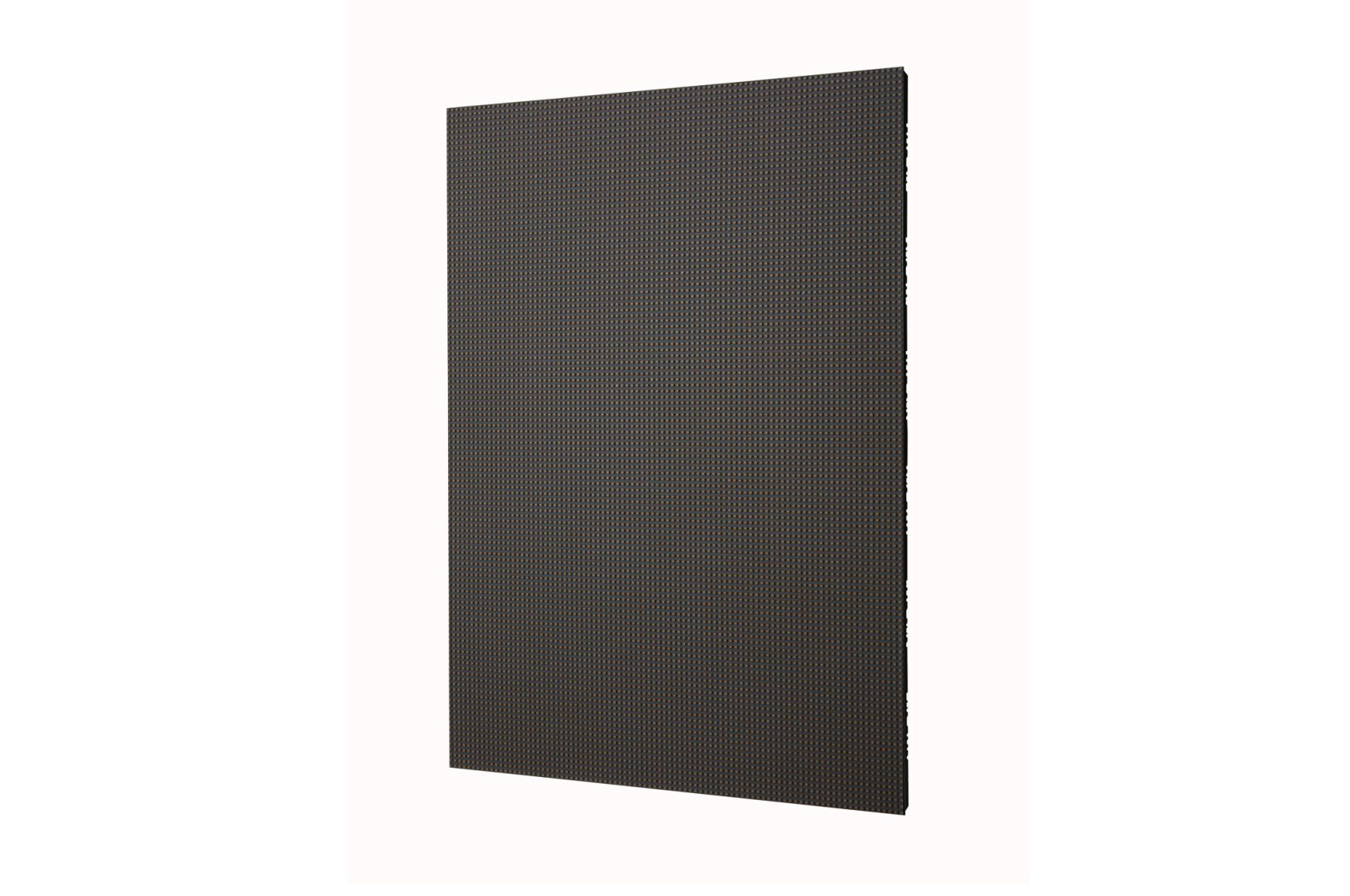

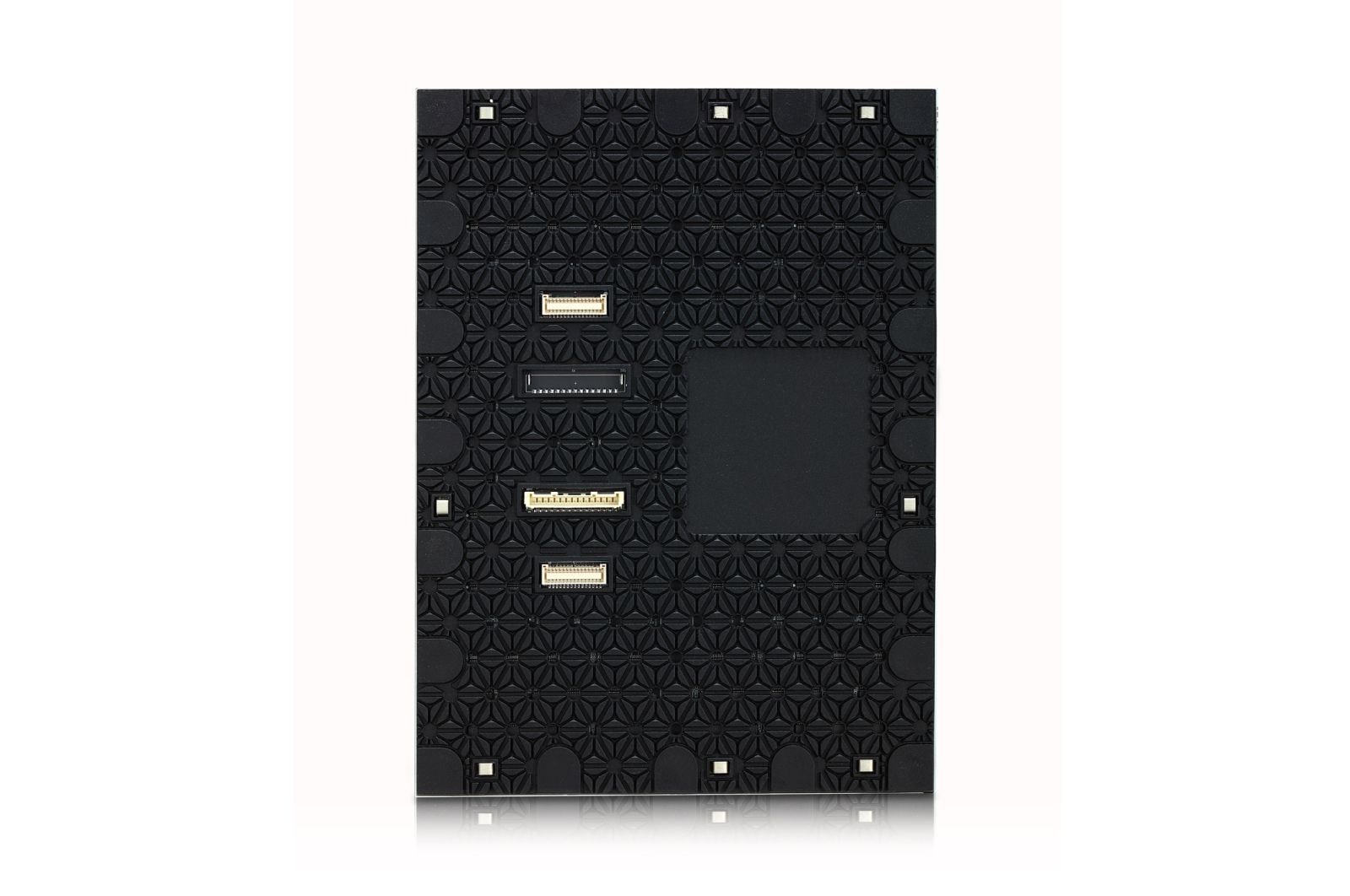

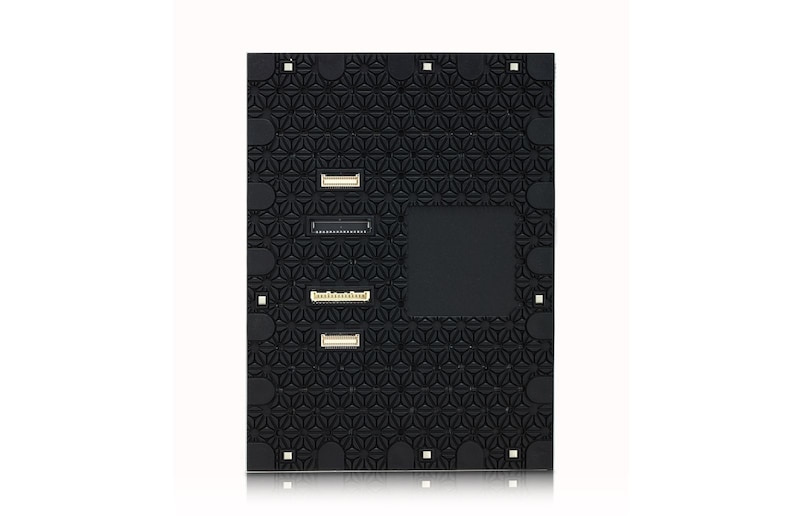

Dimensions(WxHxD, per LDM)
240 x 180 x 10.5 mm

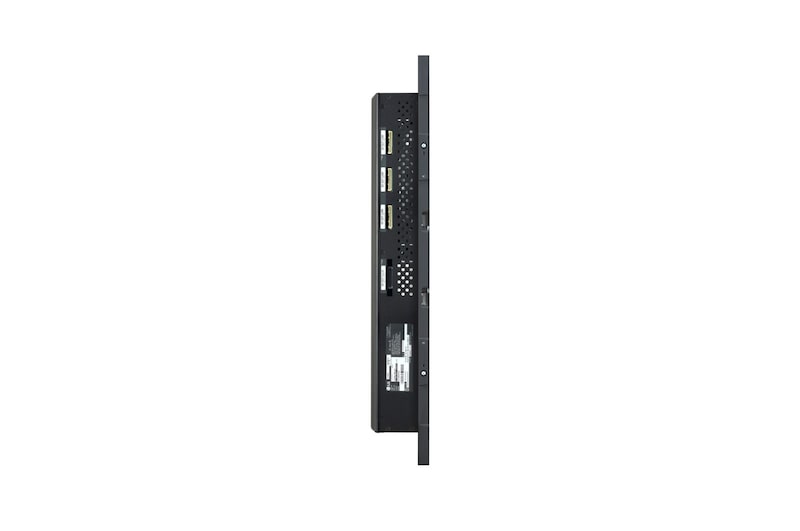

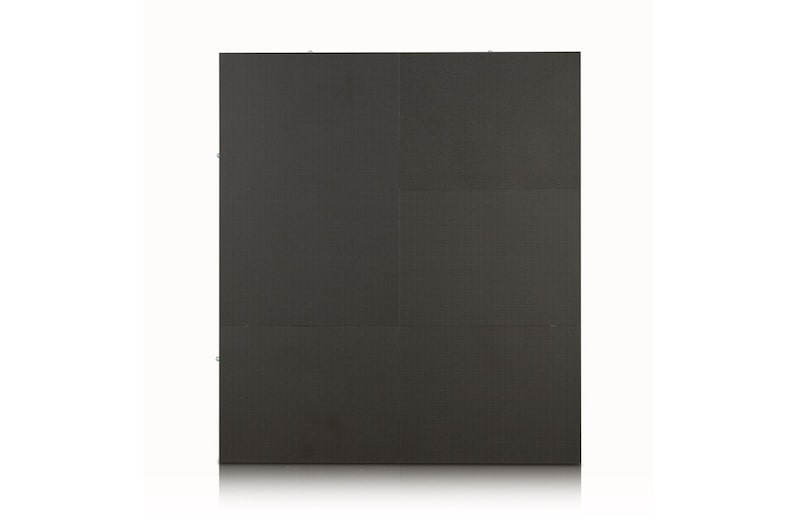

Dimensions(WxHxD, per Unit Frame)
480 x 540 x 105mm2)
Weight(per Unit Frame)1)
9.3 kg2)
Weight(per SQM)2)
35.9 kg2)
IP Rating
N/A

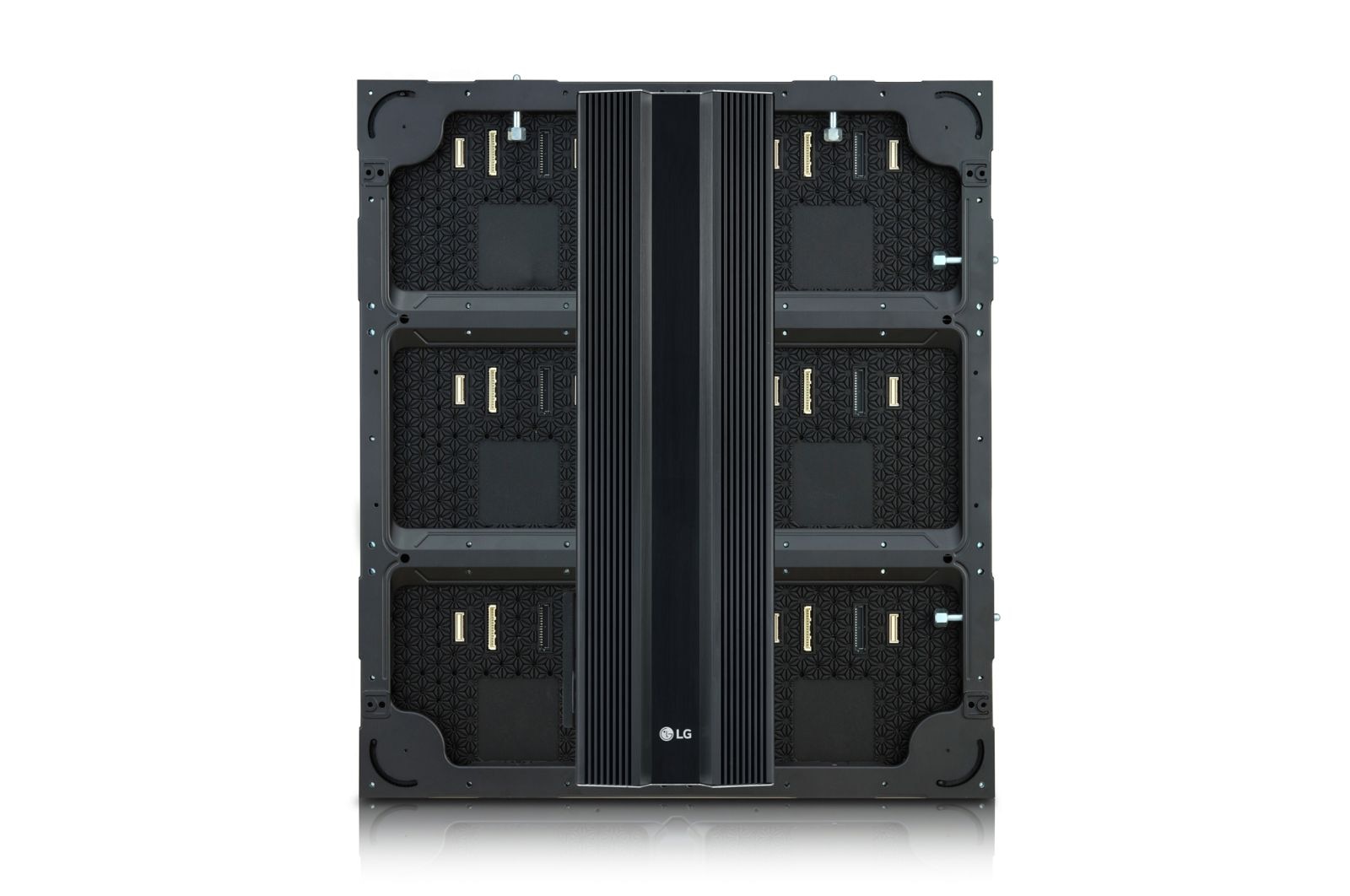

Unit Frame Material
Die Casting Alluminum
Unit Frame Color
Black
Curvature
H : Concave/Convex ±1,000R
V : Concave/Convex ±6,000R

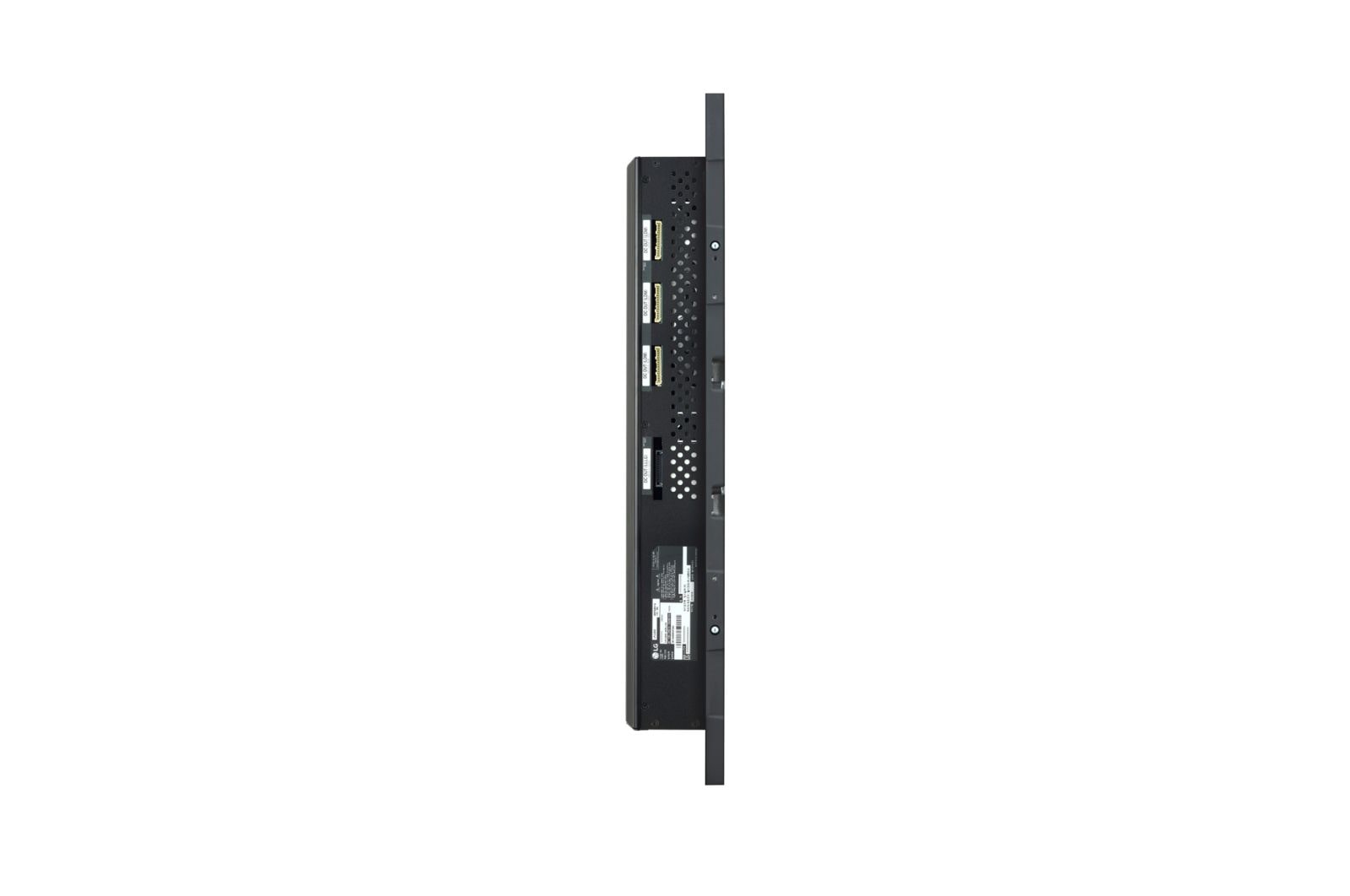

Access
Front and Rear
Brightness(Max)
700nit
Contrast Ratio
6,000:1
Viewing Angle(H x V)
160 x 140
Bit Depth(Bit Processing per Color)
16bit
Brightness Uniformity
≥ 95%
Color Uniformity
±0.015Cx, Cy
Color Gamut
NTSC 100%, BT2020 94%
Color temperature - Default
6,500K
Color temperature - Adjustable
3,200 - 9,300K
Video Frame Rate
50/60Hz

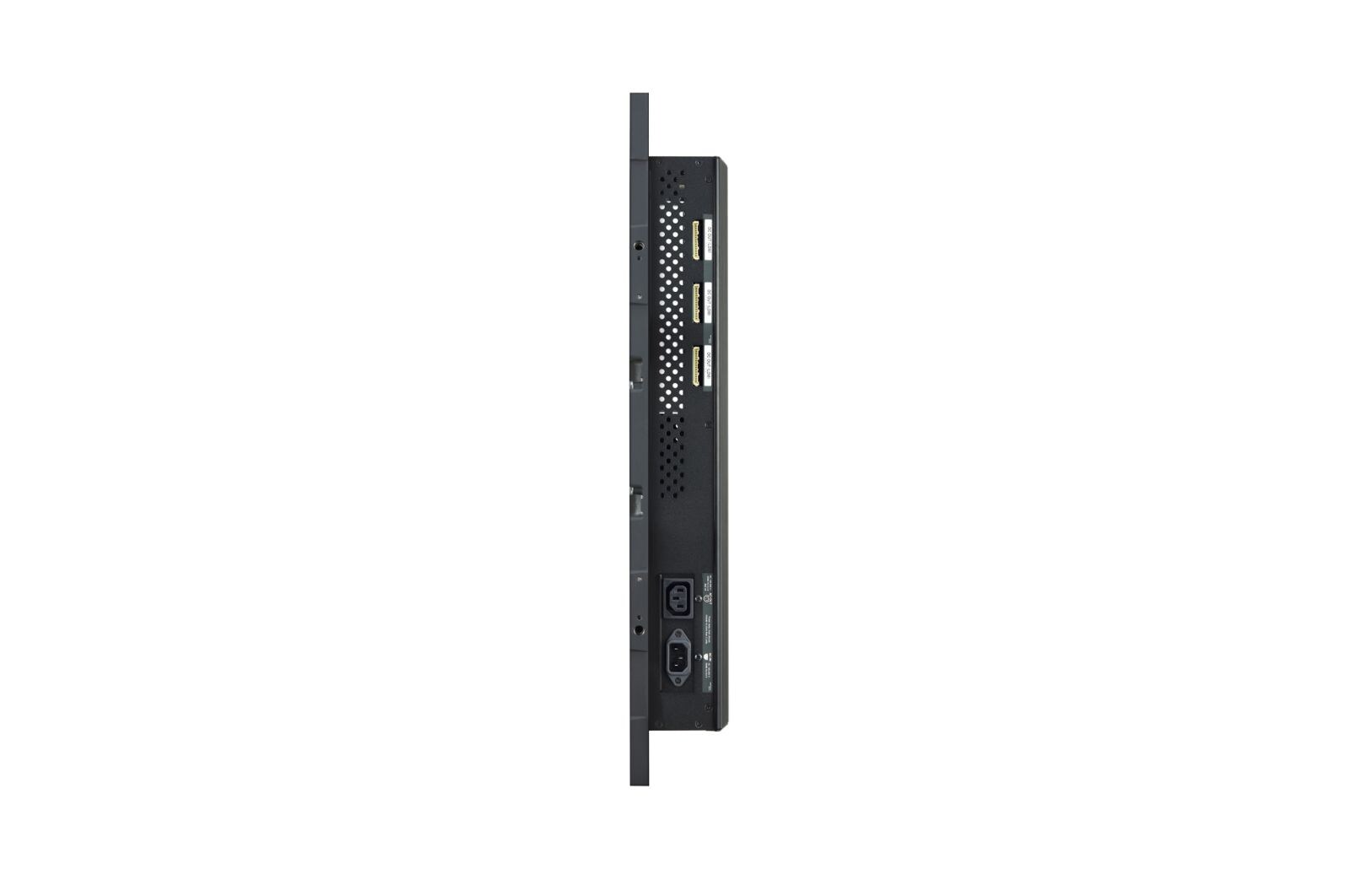

Input Power Range
100-240V~, 50/60Hz
Power consumption - Max/Typ(per Unit Frame)
250/125W
Power consumption - Max/Typ(per SQM)
965/485W
Refresh rate
3,840Hz(Max)
Redundancy
Signal
Video Inputs
HDMI In(1), DP In(1), OPS In(1), USB(1)
Control
RJ45 In(1), RS232C In(1)/Out(1)
Special Features
Temperature Sensor, Power Detection,
ADA Compliant4), PSU Hot Swappable4)
Working Temperature/Huminity
0 °C to 40 °C at 10 % to 80 %
Storage Temperature/Huminity
-20° to +60°C at 5 to 85%
LED Lifetime
100,000hrs
Safety
N/A
EMC
FCC Class "A" / CE / KC
Environment
RoHS
Optional Accessory
N/A
1)
Remote Power : LDM + Unit Frame + Power Gender (Except LED Controller, System Controller, PSU)
2)
Embedded Power : LDM + Unit Frame + Power Pack (Except LED Controller, System Controller)
3)
Features from System Controller
4)
Remote Power Models Only
