LAA015F

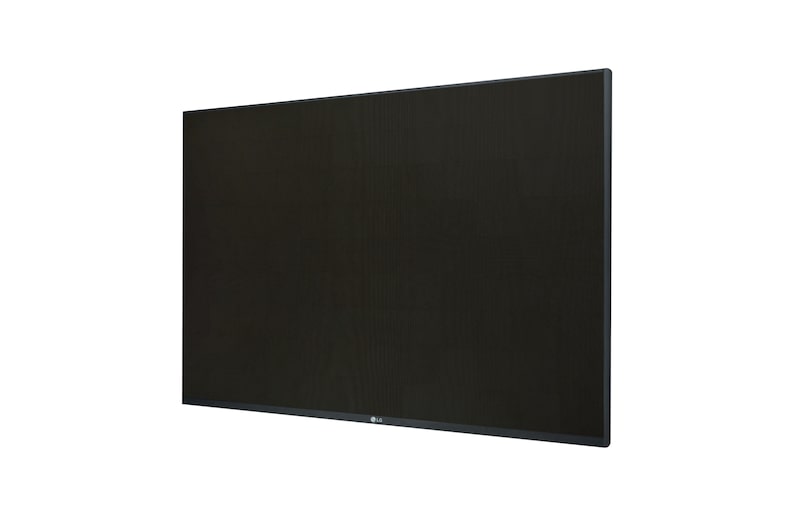

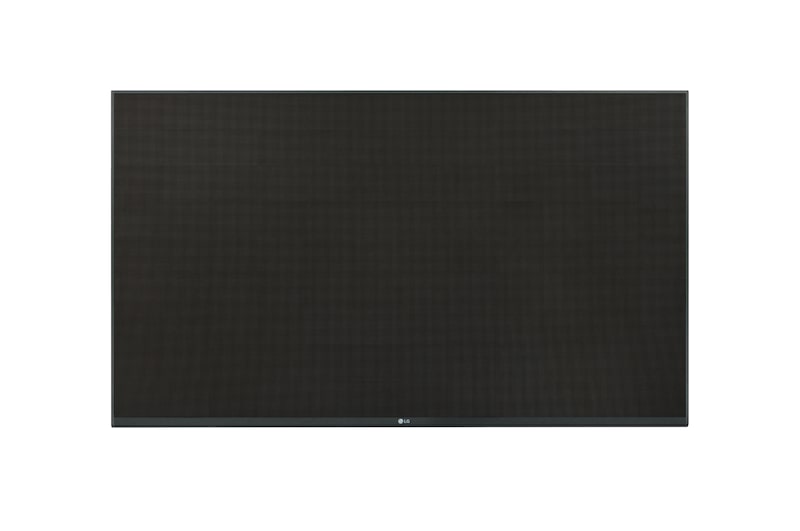

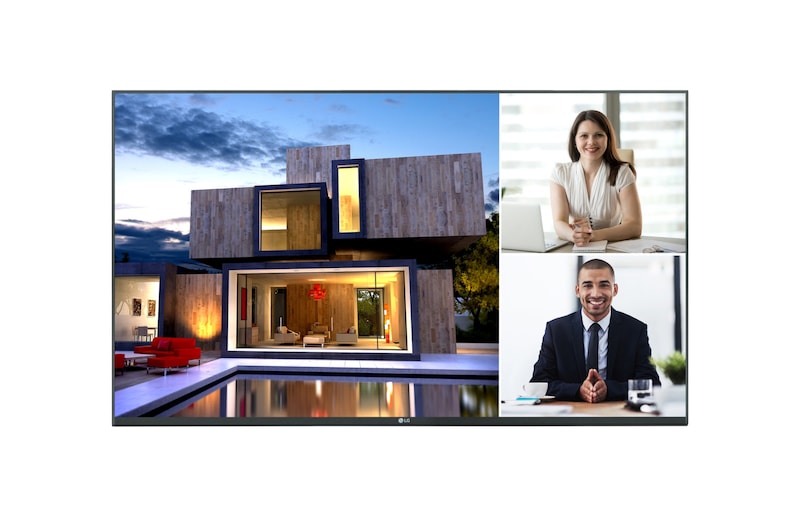

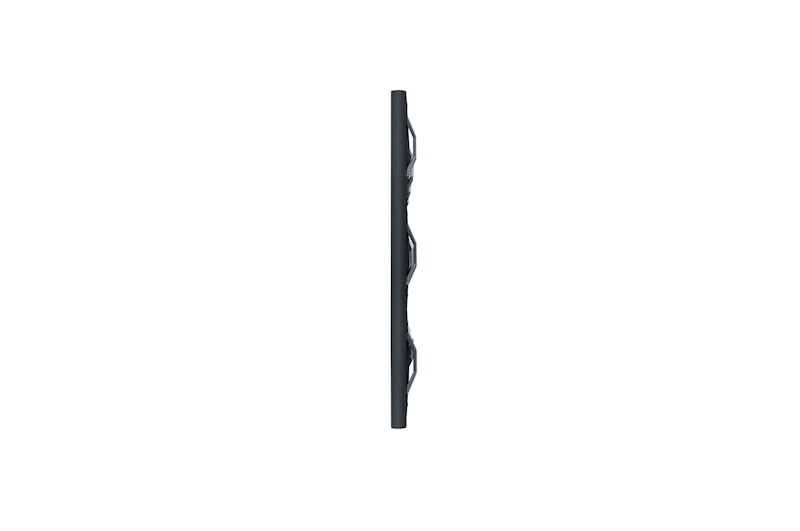

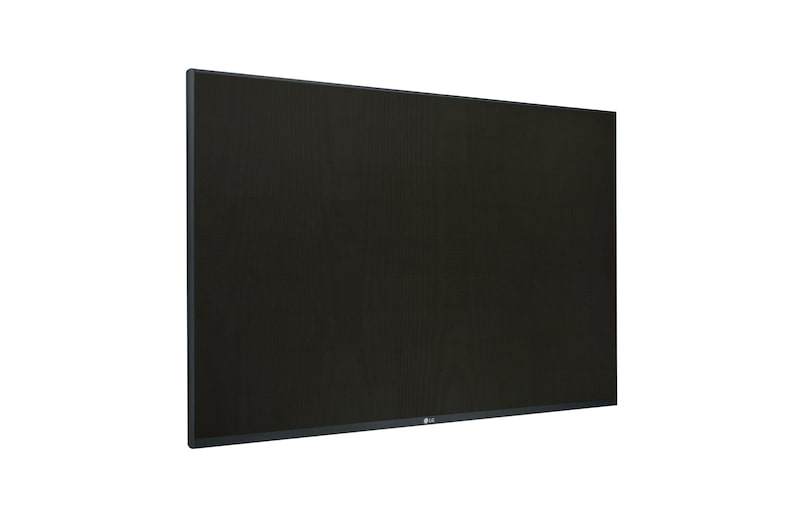

130'' All-in-one LED Screen
  • Pixel Pitch: 1.5mm
  • Screen Size: 130"
  • Brightness: 500 cd/m²
  • HDR10 Pro / Surface Sound
  • Embedded System Controller

component-OBScountrySelectDesc

130" All-in-one LED Screen
*Mounting accessories (wall mount, stand, etc.) are not included with LG products.
*Network-based control
  • SuperSign Solution1

    SuperSign Solution

    The LED screen is compatible with LG SuperSign CMS, which is a comprehensive software solution for integrated content management. This makes content creation and distribution much easier, helping your business save time and operate more effectively across its locations.

  • Signage365Care1

    Signage365Care

    Maintenance is easier and faster with the optional Signage365Care* service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

*The availability of the"Signage365 Care" service differs by region, so please contact the LG sales representative in your region for more details.

BASIC ACCESSORY

  • Basic Accessory
    Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual

CERTIFICATION

  • EMC
    FCC Class A / CE / KC
    Environment
    RoHS
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1

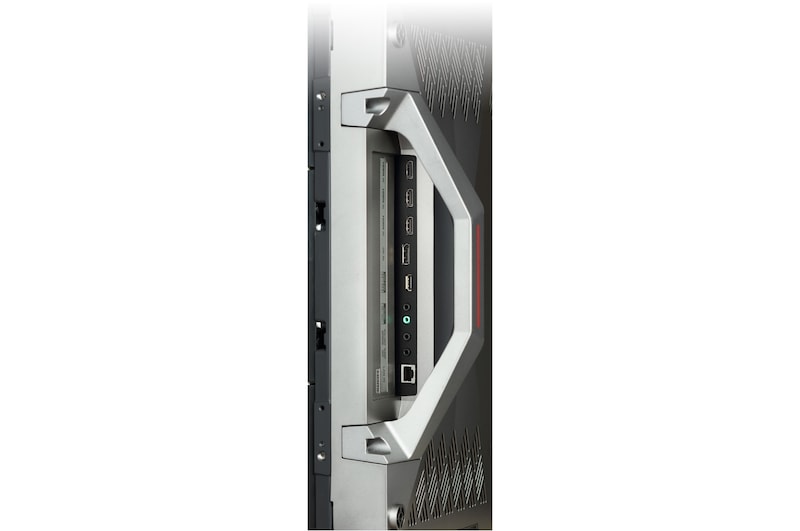

CONNECTIVITY(EMBEDDED CONTROLLER)

  • Control
    RJ45 In, RS232C In/out
    Special Features
    Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected(Network based control)
  • Video Inputs
    HDMI In(3), DP In, USB

ELECTRICAL PARAMETER

  • Frame Rate (Hz)
    50 / 60
    Power Consumption (W/m², Max.)
    760
  • Power Consumption (W/Screen, Avg.)
    980
    Power Consumption (W/Screen, Max.)
    2900
  • Power Supply (V)
    100 to 240
    Refresh Rate (Hz)
    3840
  • Sound Output (Max.)
    162W

OPERATION CONDITIONS

  • Lifetime (Half Brightness, hrs)
    100,000 (It is subject to LED package spec.)
    Operating Humidity
    10-80% RH
  • Operating Temperature (°C)
    0°C to 40°C

OPTICAL PARAMETER

  • Brightness Uniformity
    0.95
    Color Temperature
    6,500
  • Color Uniformity
    ±0.015Cx,Cy
    Contrast Ratio
    5,000
  • Min. Brightness (After Calibration)
    500 cd/m²
    Processing Depth (bit)
    16(HDR10, HDR10 Pro)
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140

PHYSICAL PARAMETERS

  • Flatness of Unit Case (mm)
    ±0.2

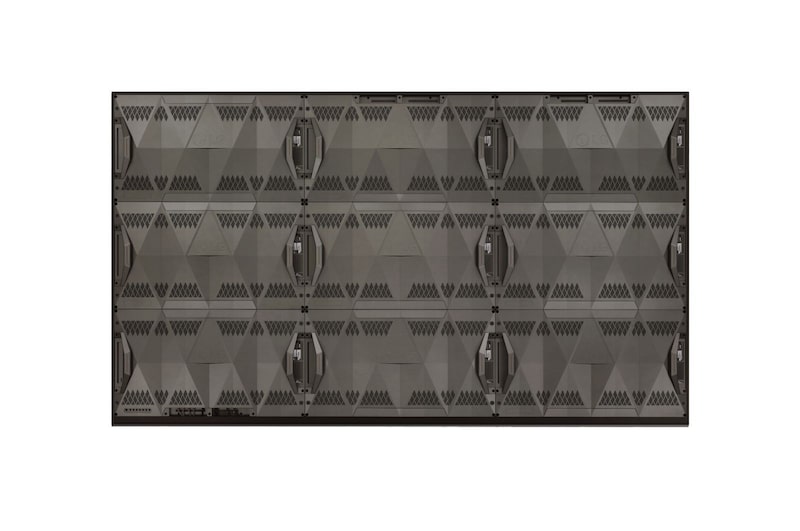

    No. of Modules per Unit Case (W x H)
    4x3
  • Physical Pixel Density (pixels/m²)
    444,444
    Pitch Name
    P1.5
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    1.5
  • Screen Dimensions(WxH, mm)
    2,880 x 1,620 x 128.5 (w/o Screen Frame)
    Screen Resolution (WxH)
    1,920x1,080
  • Screen Weight (kg)
    175 (w/o Screen Frame)
    Service Access
    Front and Rear
  • Unit Case Dimensions (W x H x D, mm)
    960x540x128.5
    Unit Case material
    Front : Die Casting Aluminum
    Rear : PC+ABS
  • Unit Case Resolution (W x H)
    640x360
    Unit Case Surface Area (m²)
    0.518
  • Weight per Square Meter (kg/m²)
    37.6
    Weight per Unit Case (kg/unit)
    Master: 20.85
    Slave: 19.24
