LBS DOOH

The LBS DOOH can withstand harmful outdoor environments or harsh weather and stands out even on the sunniest of days. Learn how this product will transform your campaign.

D01_ID_LED-Signage-Outdoor_hero_02_M03_High-Performance-Slim_1554708749332

LBS DOOH

The LBS DOOH series comes with a slim unit case design suitable for various premium grade outdoor applications.

D03_ID-LBS-DOOH-01-Outstading-Visibility_full_1554706871082

Outstading Visibility

Offering a 6,000 nits, this super-bright display excels outdoors even in direct sunlight, instantly captivating attention and effectively delivering content.

ID-LBS-DOOH-02-Smooth-Playback-in-Dynamic-Motion_full_D

Smooth Playback in Dynamic Motion

A high refresh rate of 4,000Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.

D05_ID-LBS-DOOH-03-Reliable-Weatherproof-Design_1554337323387

Reliable Weatherproof Design

The front and rear of the unit case are both IP66-certified, allowing stable operation unaffected by weather and harmful outdoor environments.

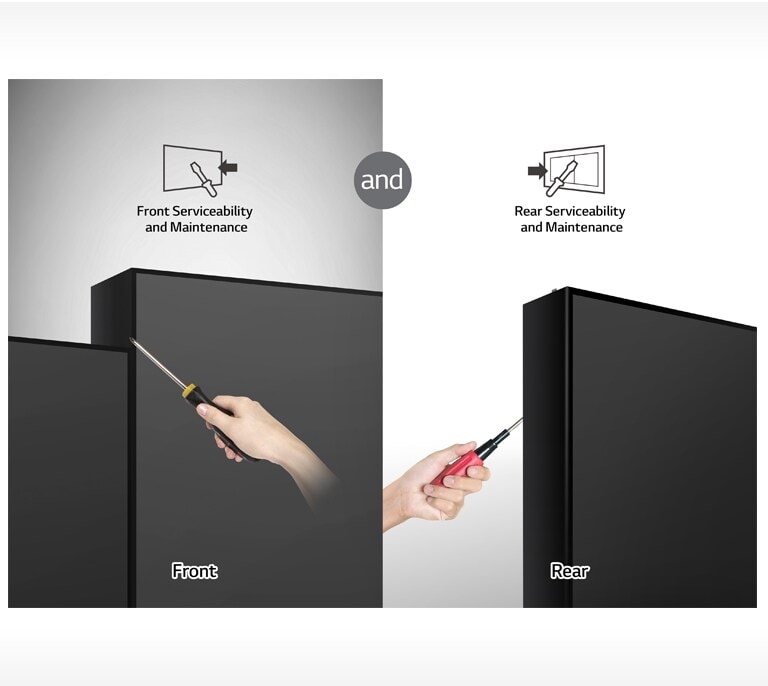

D06_ID-LBS-DOOH-04-Stadium-Front-and-Rear-Serviceability_1554337365098

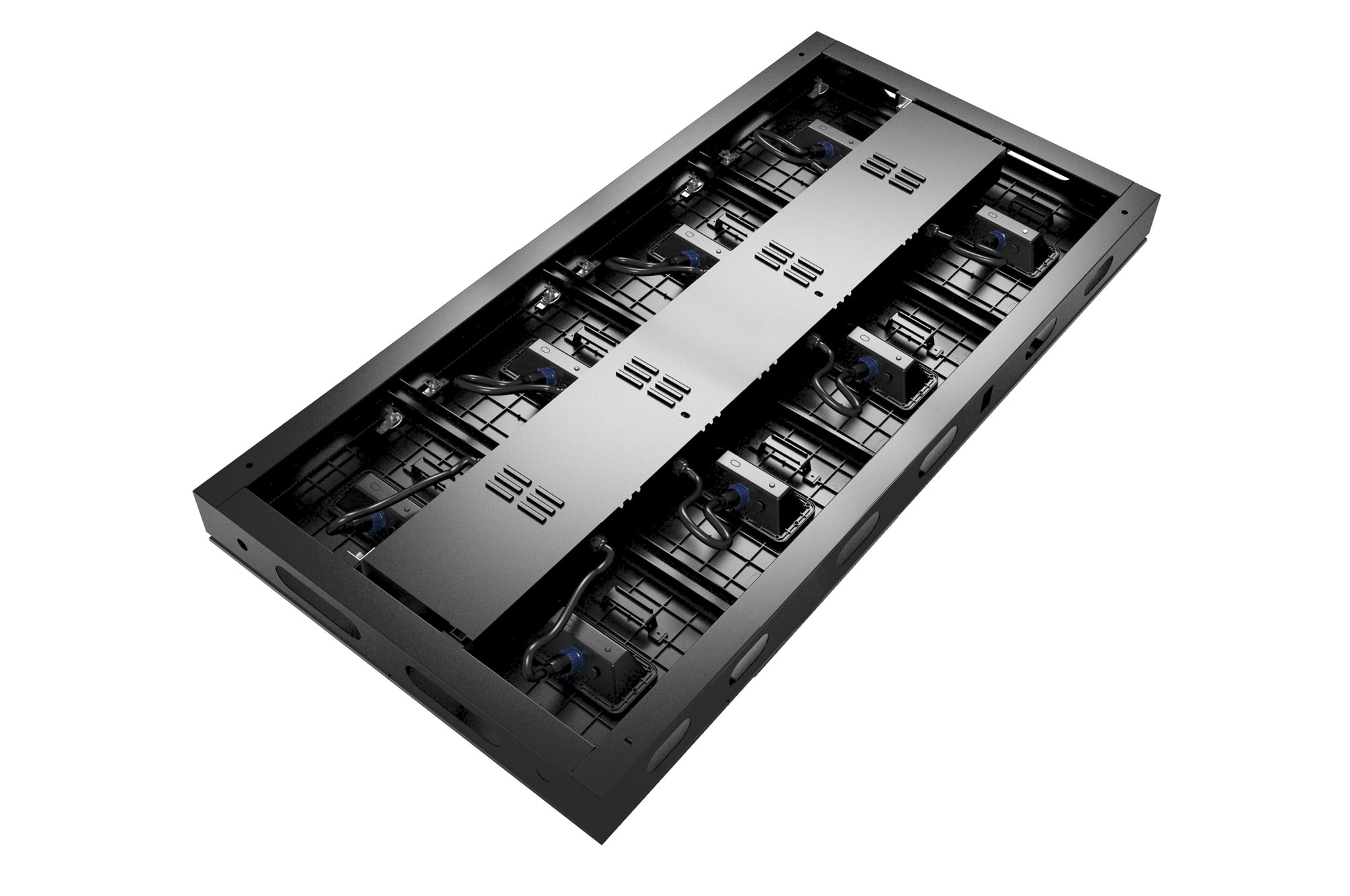

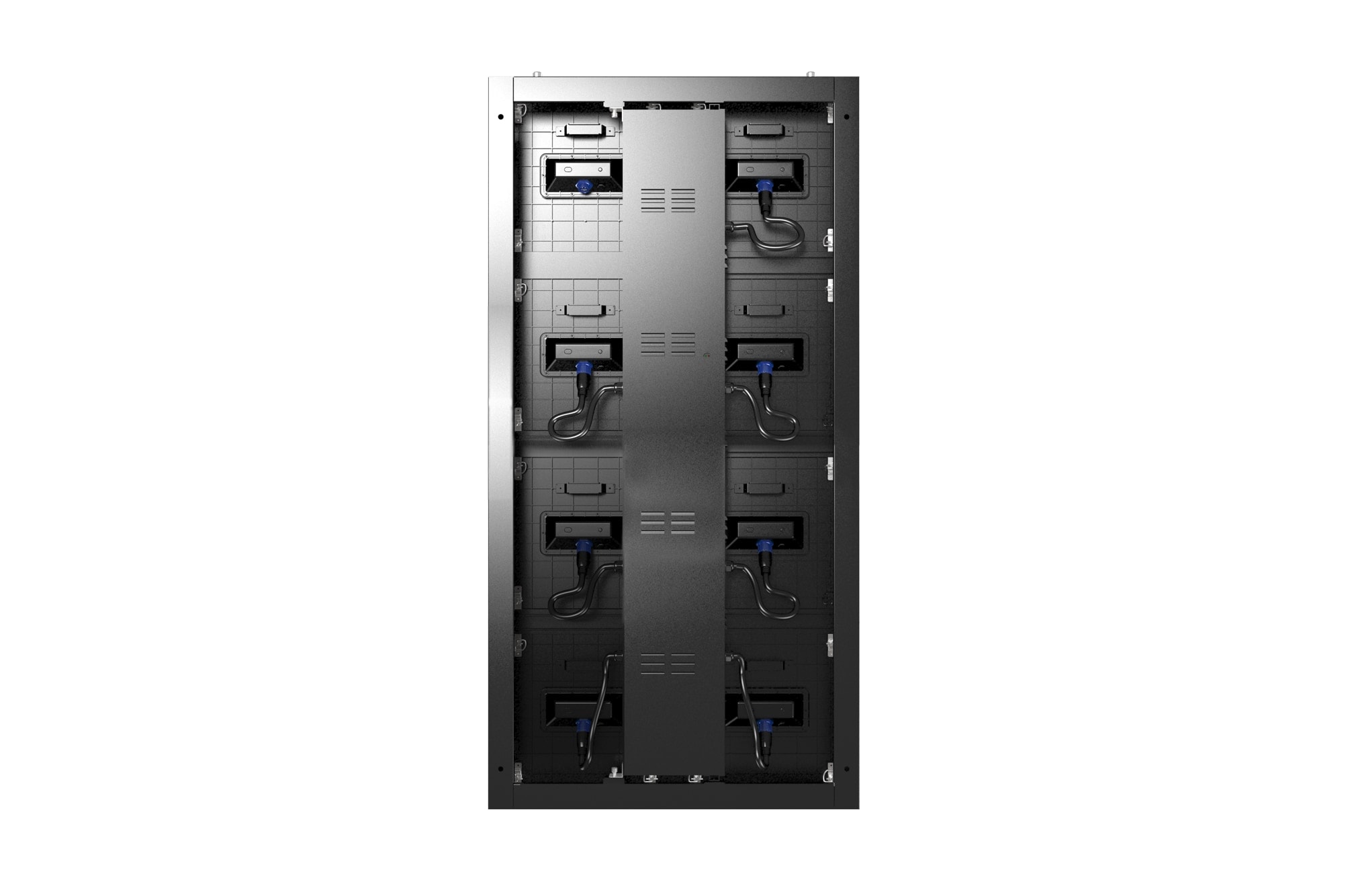

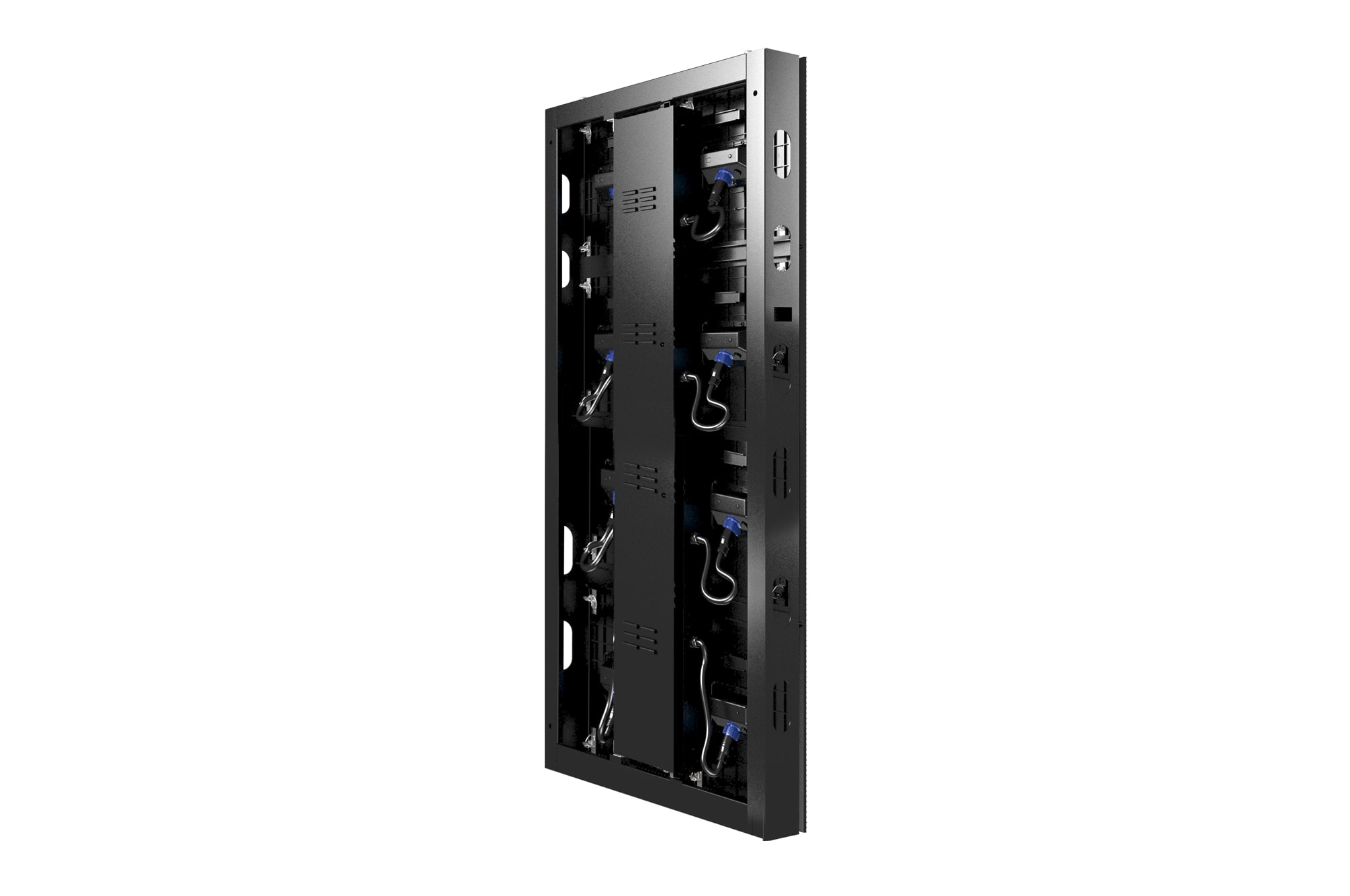

Front and Rear Serviceability

The product offers both front access and rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.

D07_ID-LBS-DOOH-05-Stadium-Detailed-Expression-of-Color-Depth_1554337406643

Detailed Expression of Color Depth

16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.

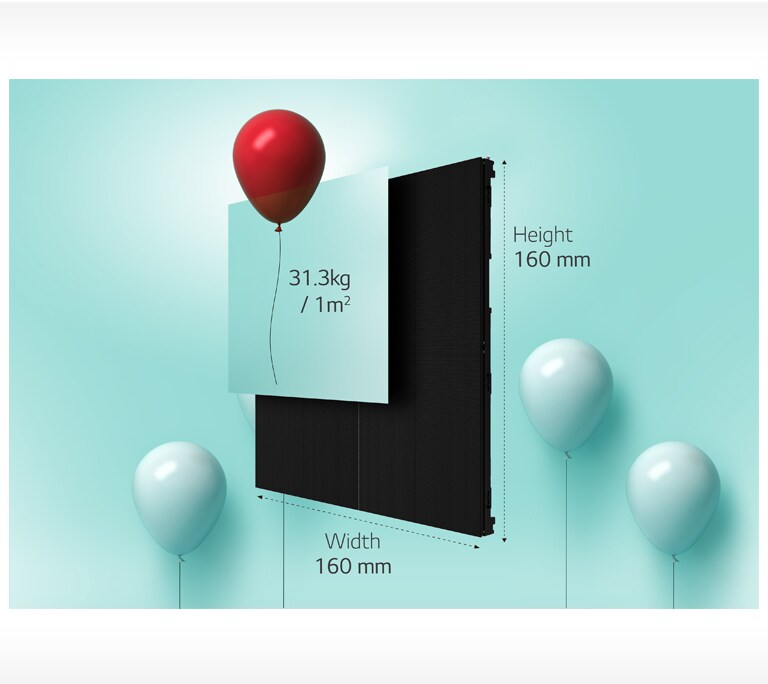

D08_ID-LBS-DOOH-06-Slim-and-Lightweight-Design_1554337475152

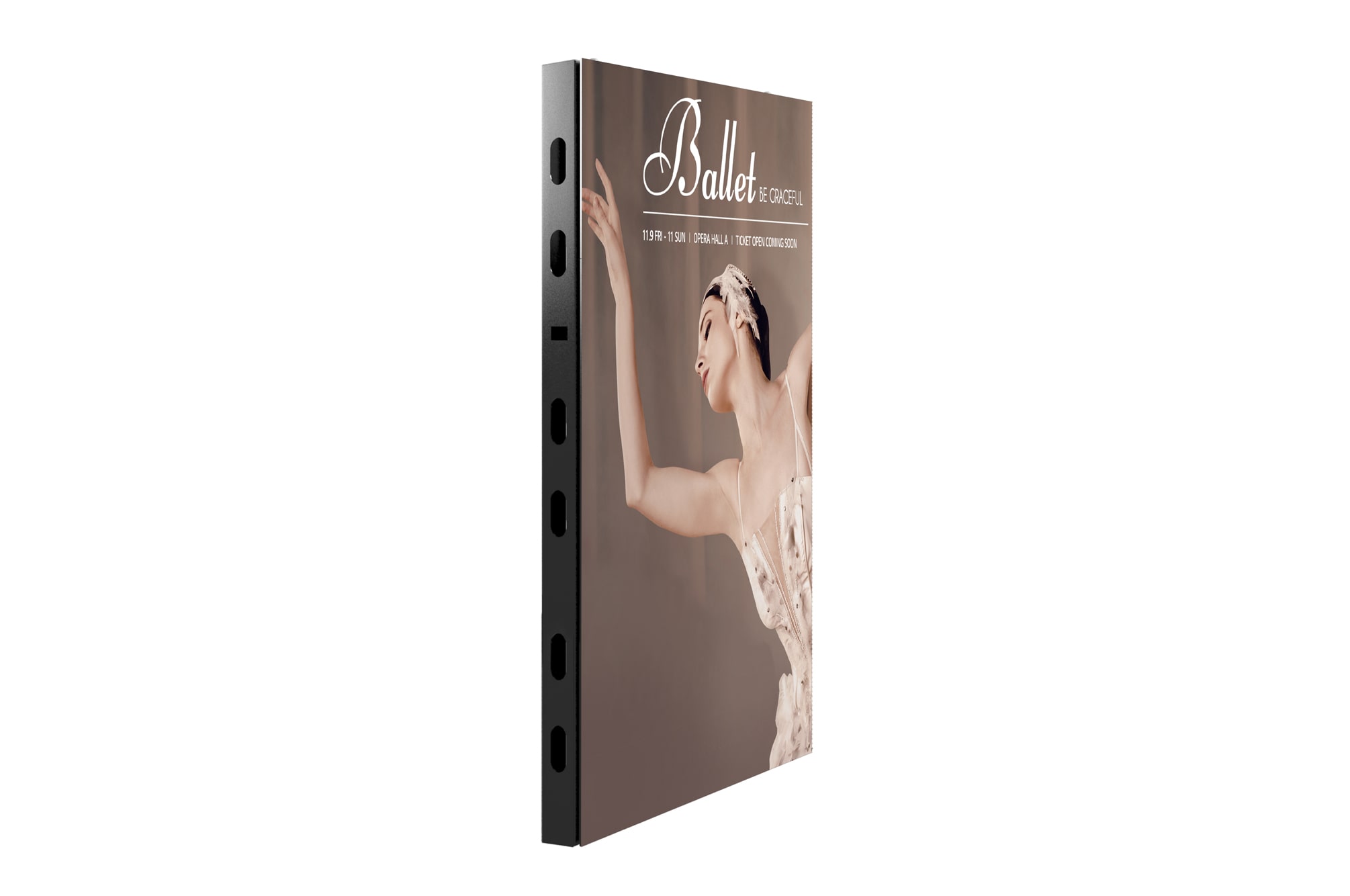

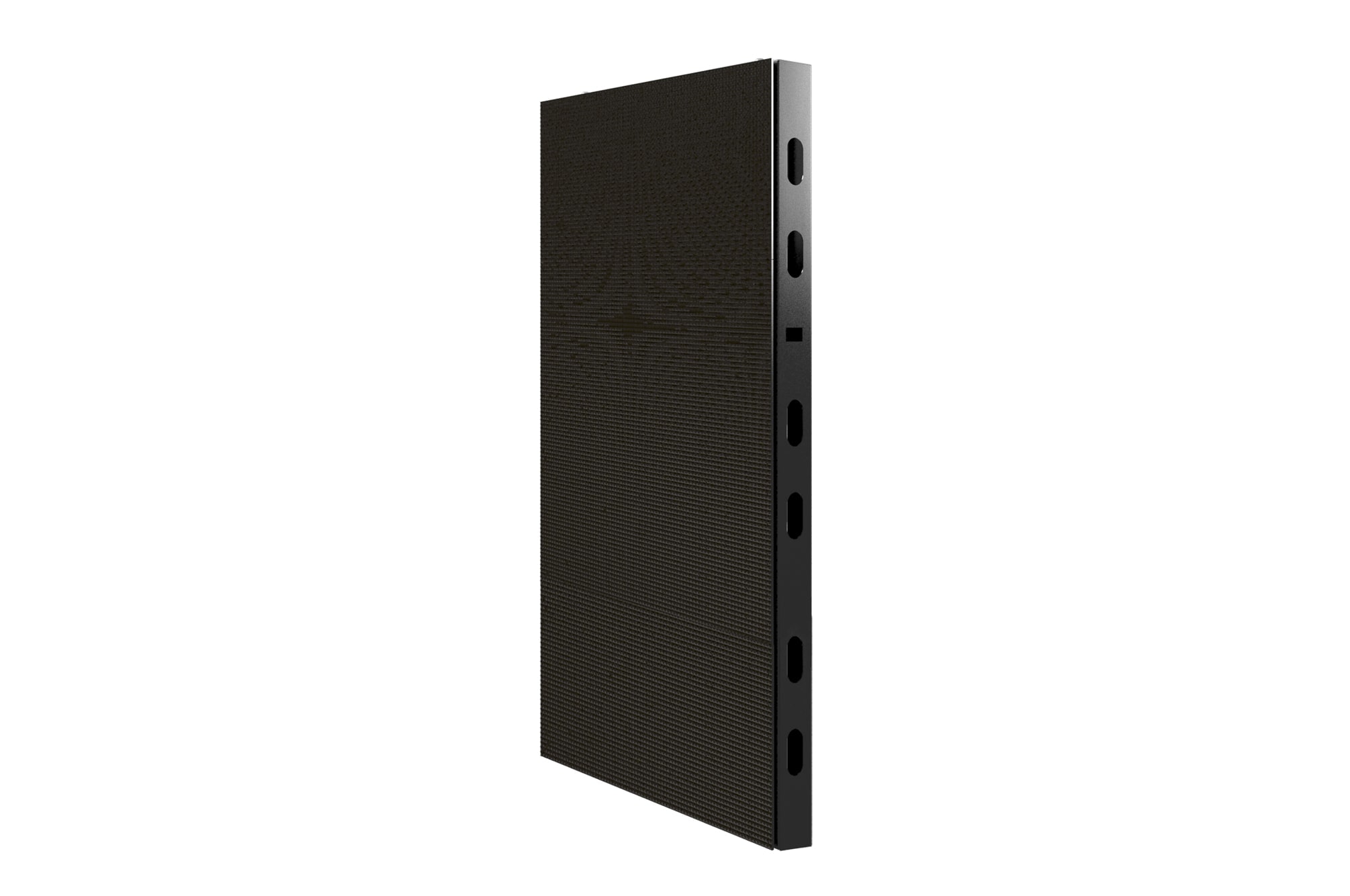

Slim and Lightweight Design

A 1m² LED display weighs only 31.3kg, keeping a full set of screens lightweight and reducing strain on the structure holding them.

Model NameLBS062DA1-VLBS062DA3-VLBS083DA1-VLBS083DA3-V
Pixel Configuration3 in 1 SMD3 in 1 SMD3 in 1 SMD3 in 1 SMD
Pixel Pitch(mm)6.256.258.338.33
Unit Case Resolution (WxH)128x256128x25696x19296x192
Unit Case Dimensions (WxHxD, mm)800x1600x143.5800x1600x143.5800x1600x143.5800x1600x143.5
Weight per Unit Case / Square Meter (kg)40.0/31.340.0/31.340.0/31.340.0/31.3
Service accessFront and RearFront and RearFront and RearFront and Rear
Min. Brightness (After Calibration)6,0006,0006,0006,000
Color Temperature3500-85003500-85003500-85003500-8500
Visual Viewing Angle (Horizontal/Vertical)160/130160/130160/125160/125
Brightness Uniformity / Color Uniformity≥97%/±0.05Cx,Cy≥97%/±0.05Cx,Cy≥97%/±0.05Cx,Cy≥97%/±0.05Cx,Cy
Contrast Ratio3,0003,0003,0003,000
Processing Depth (bit)16161616
Power Consumption (W/Unit, Avg./Max.)312/780312/780320/800320/800
Power Consumption (W/m², Max.)609609625625
Power Supply (V)100 to 240100 to 240100 to 240100 to 240
Refresh Rate (Hz)4,0004,0004,0004,000
Lifetime (Half brightness)*100,000100,000100,000100,000
Operating Temperature(°C) / Humidity-20° to 50°/< 90%RH-20° to 50°/< 90%RH-20° to 50°/< 90%RH-20° to 50°/< 90%RH
IP rating Front / RearIP66/IP66IP66/IP66IP66/IP66IP66/IP66

* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.

Model NameLBS100DA1-VLBS100DA3-V
Pixel Configuration3 in 1 SMD3 in 1 SMD
Pixel Pitch(mm)10.0010.00
Unit Case Resolution (WxH)80x16080x160
Unit Case Dimensions (WxHxD, mm)800x1600x143.5800x1600x143.5
Weight per Unit Case / Square Meter (kg)40.0/31.340.0/31.3
Service accessFront and RearFront and Rear
Min. Brightness (After Calibration)6,0006,000
Color Temperature3500-85003500-8500
Visual Viewing Angle (Horizontal/Vertical)160/115160/115
Brightness Uniformity / Color Uniformity≥97%/±0.05Cx,Cy≥97%/±0.05Cx,Cy
Contrast Ratio3,0003,000
Processing Depth (bit)1616
Power Consumption (W/Unit, Avg./Max.)300/750300/750
Power Consumption (W/m², Max.)586586
Power Supply (V)100 to 240100 to 240
Refresh Rate (Hz)4,0004,000
Lifetime (Half brightness)*100,000100,000
Operating Temperature(°C) / Humidity-20° to 50°/< 90%RH-20° to 50°/< 90%RH
IP rating Front / RearIP66/IP66IP66/IP66

* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
