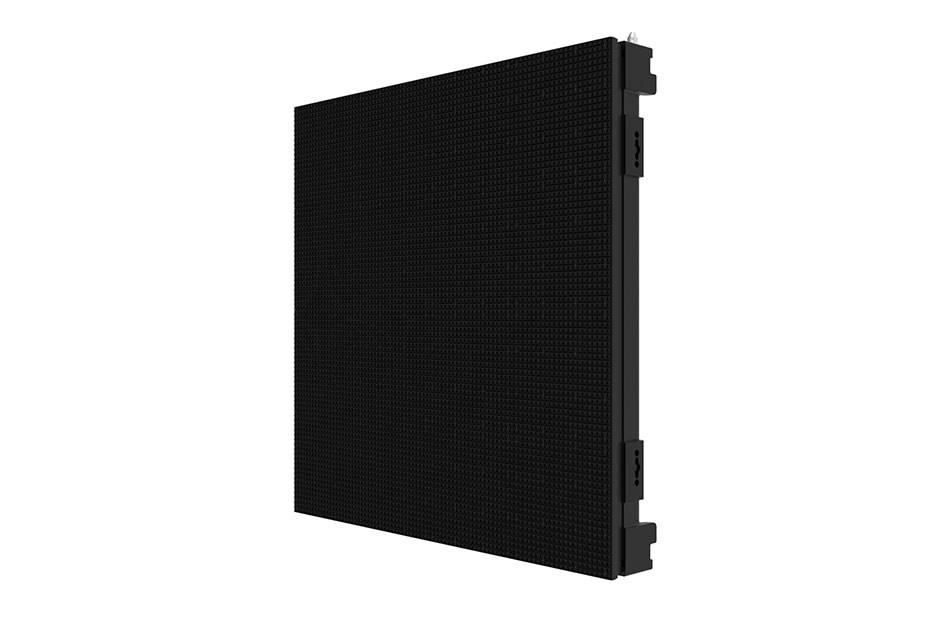

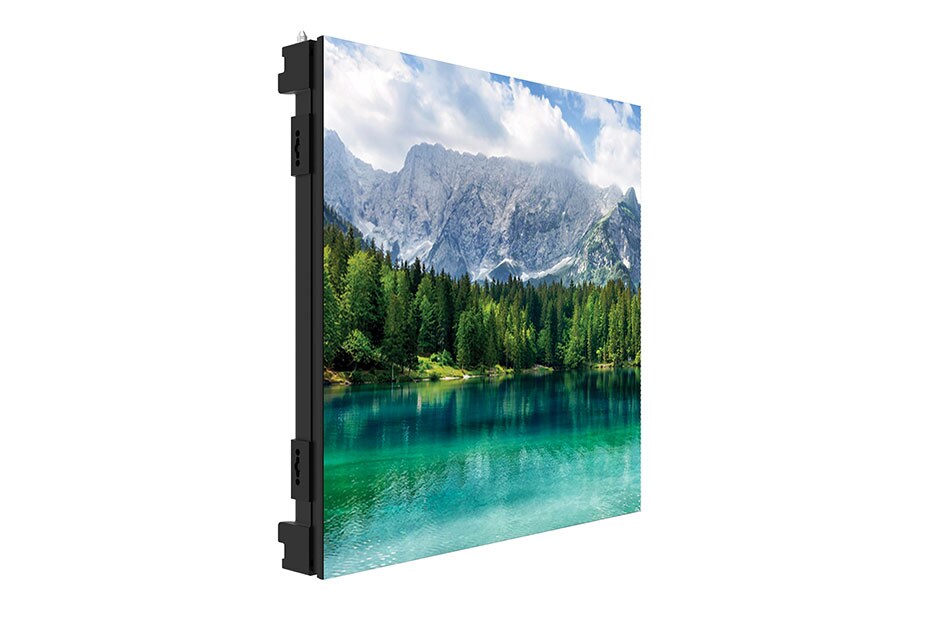

LAE Slim Fine-pitch DVLED Signage

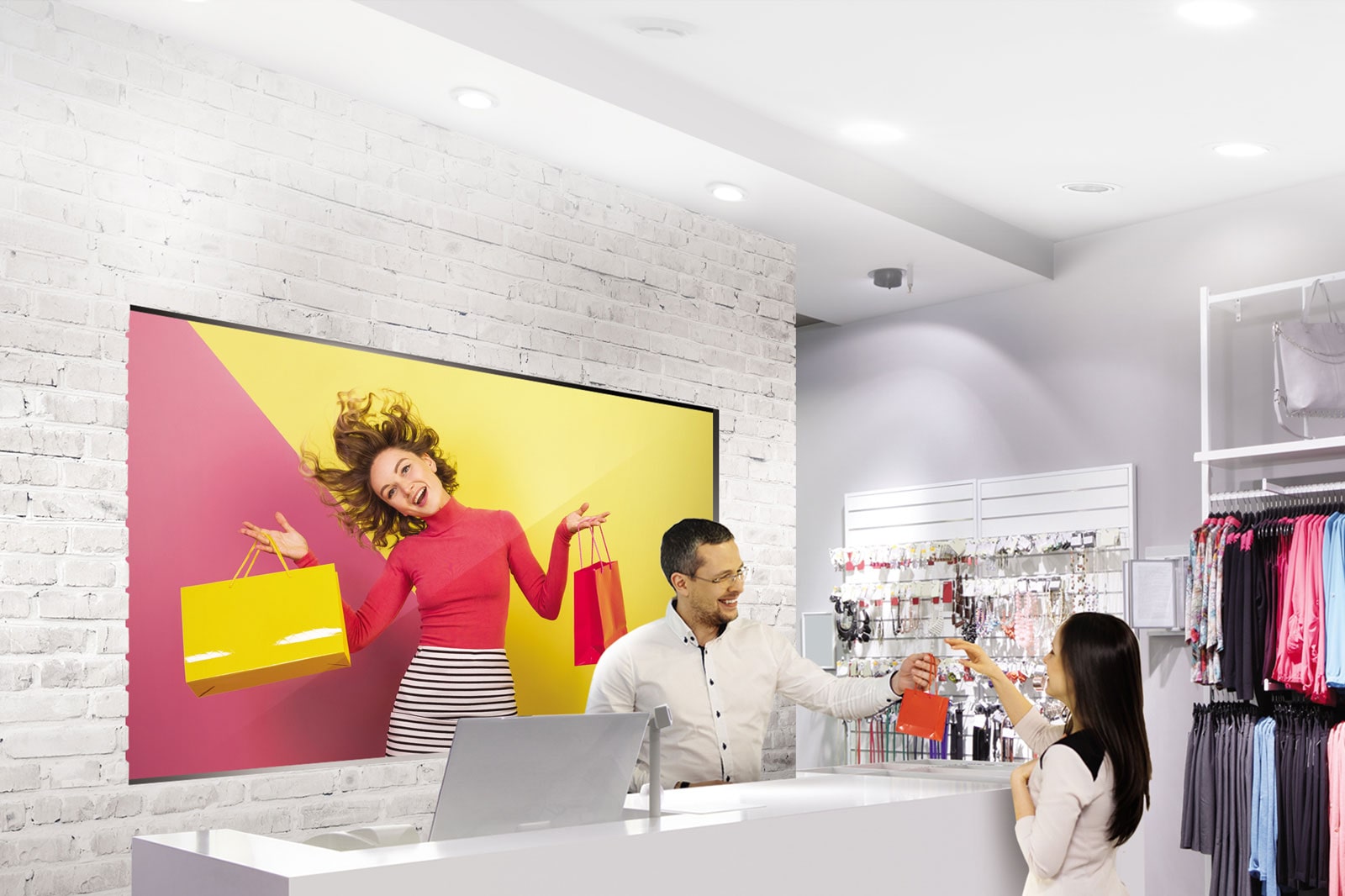

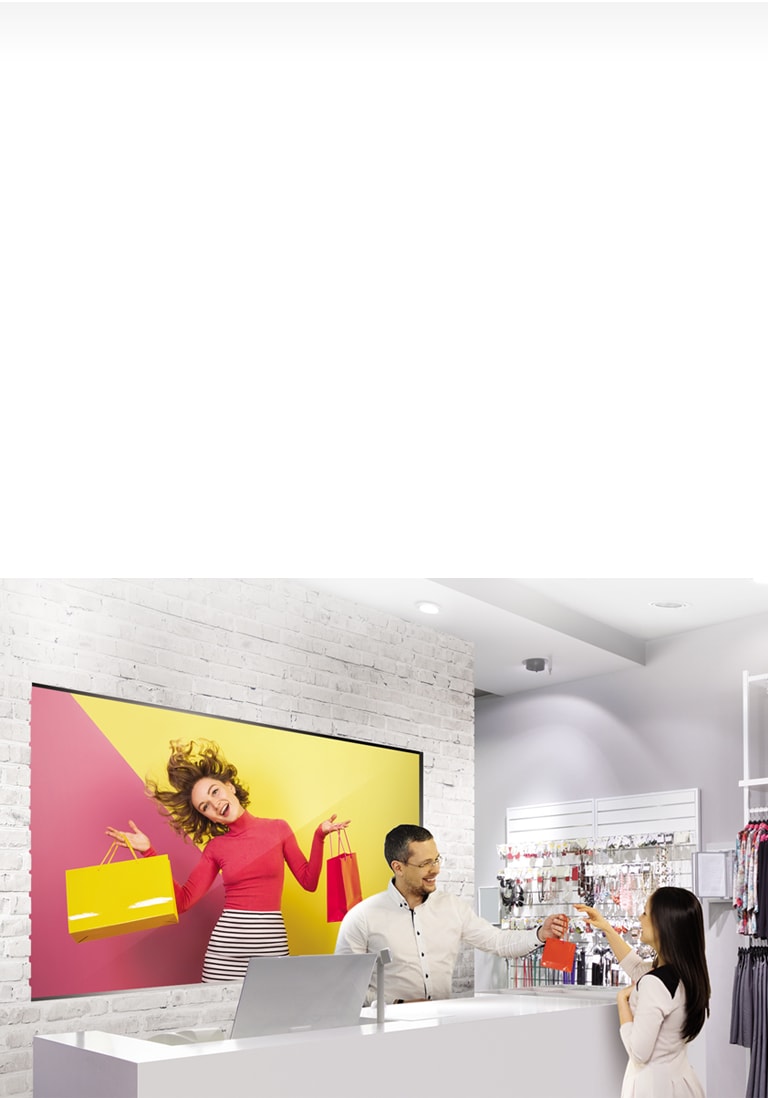

1,000nit High Brightness
Installed in a venue with natural or indoor lighting, this high-brightness product immediately captures the audience’s attention and effectively delivers your message.

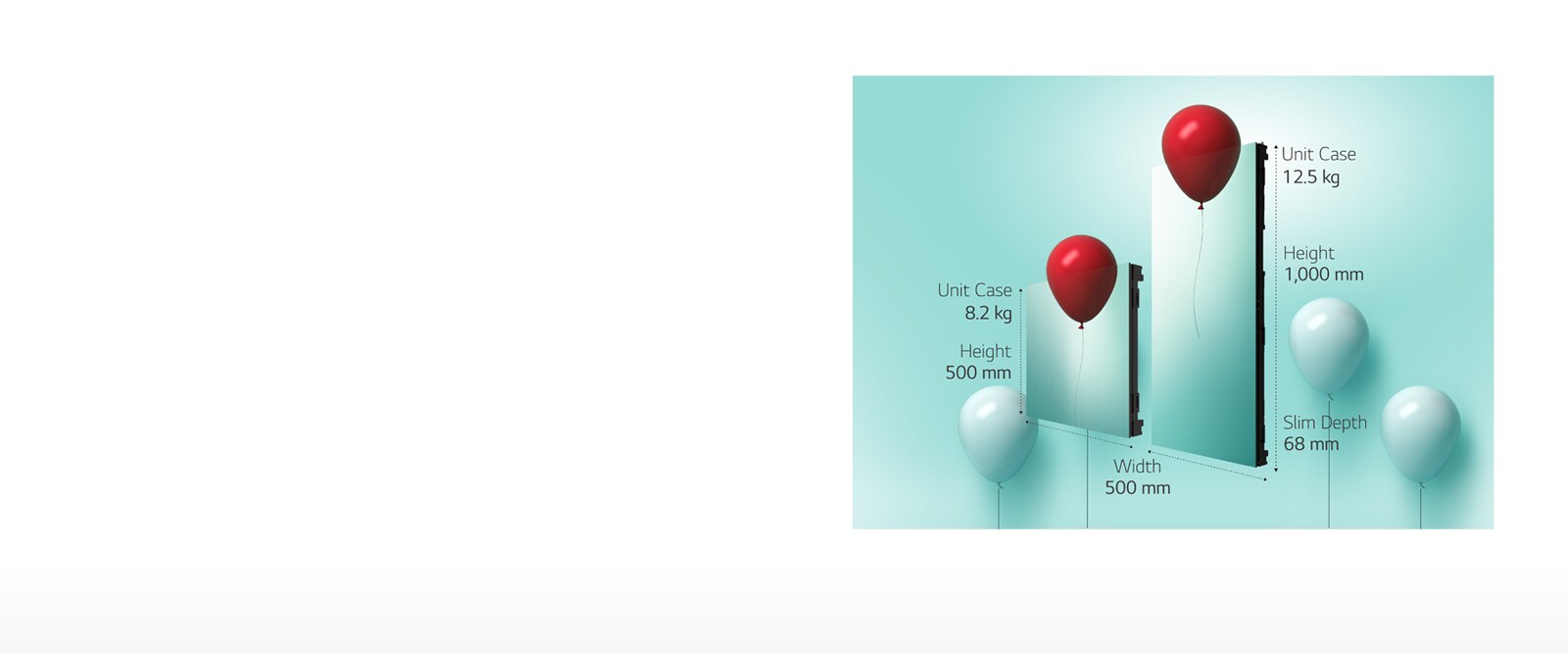

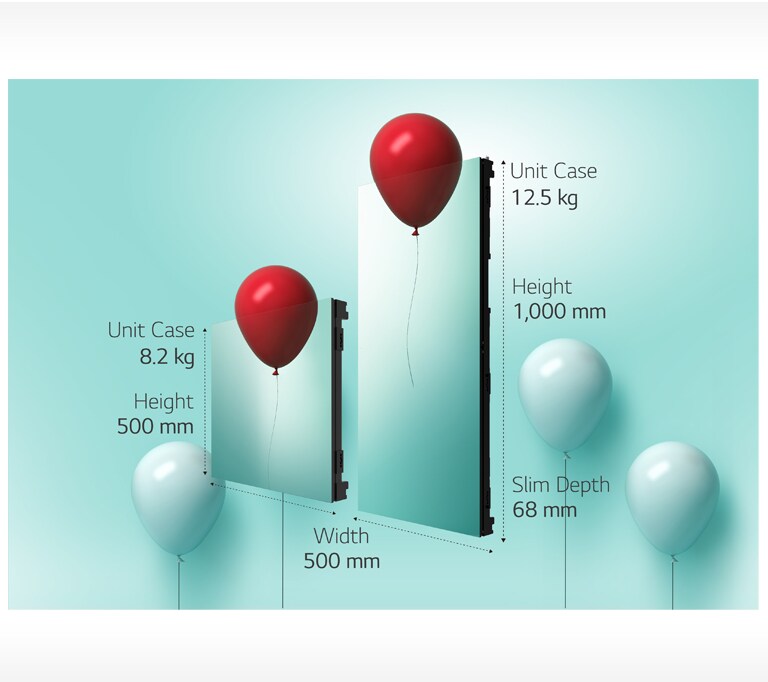

Lightweight and Slim Design
Each unit case weighs 8.2kg and 12.5kg, with 68mm depth. Slim and lightweight, the screens are easy to install, minimizing damage during installation. A full set of LED screens is still lightweight, reducing strain on the structure holding the screens.

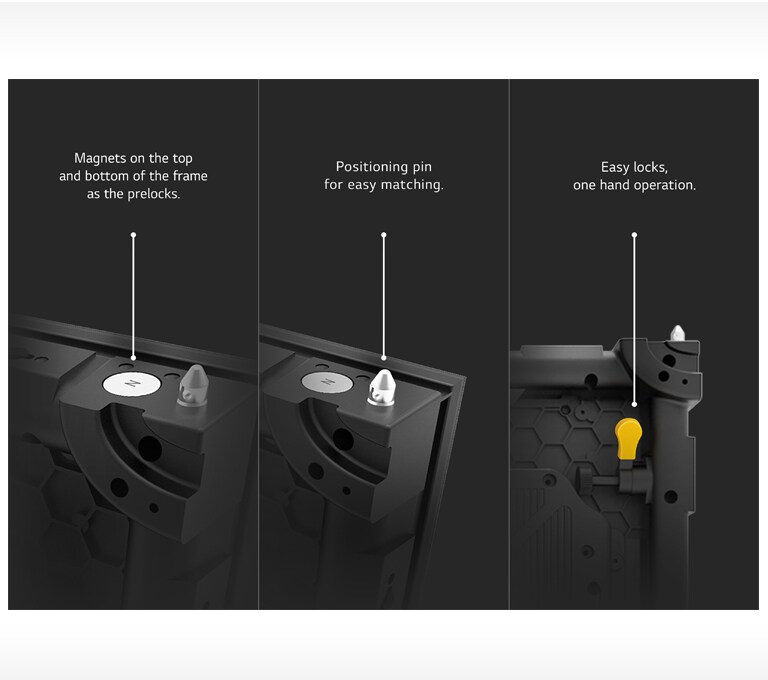

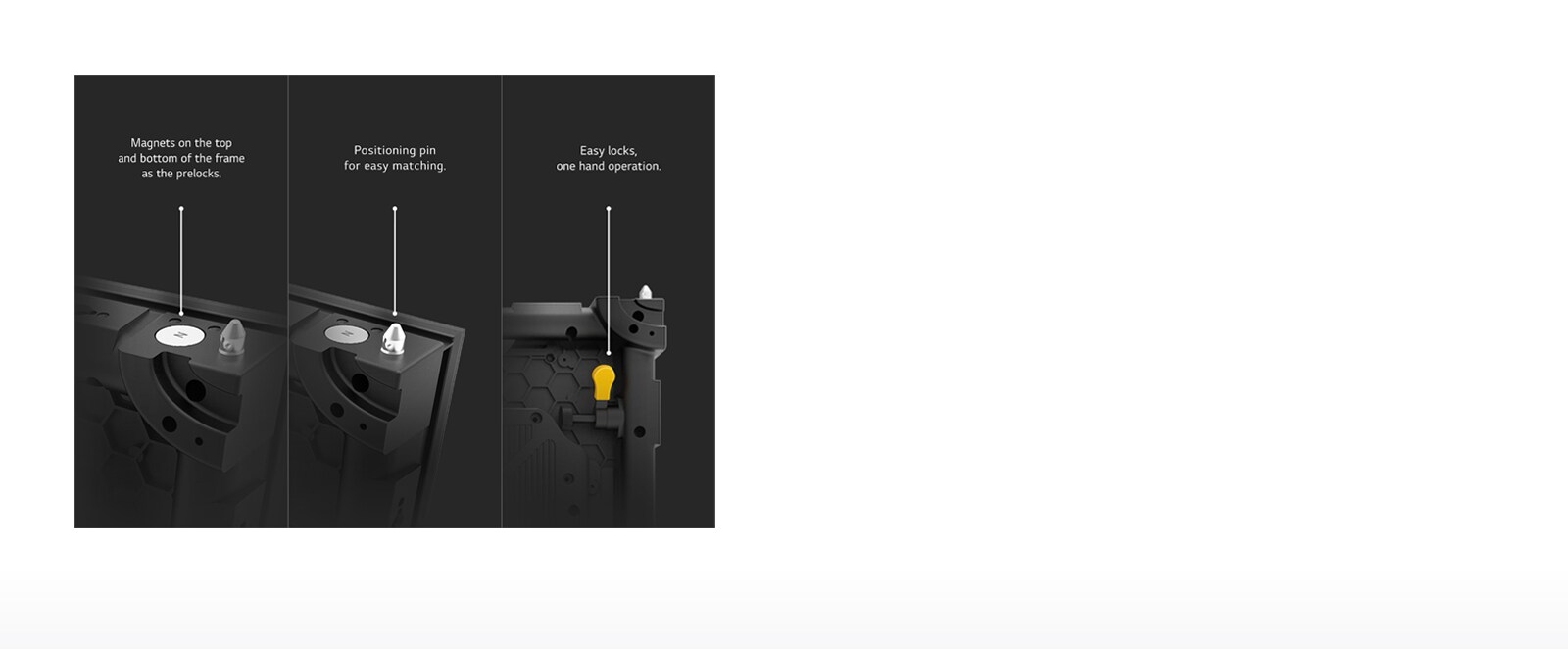

Easy Installation
Various factors including magnets on the top and bottom, positioning pins, and easy locks help installers easily set up and dismantle the screens.

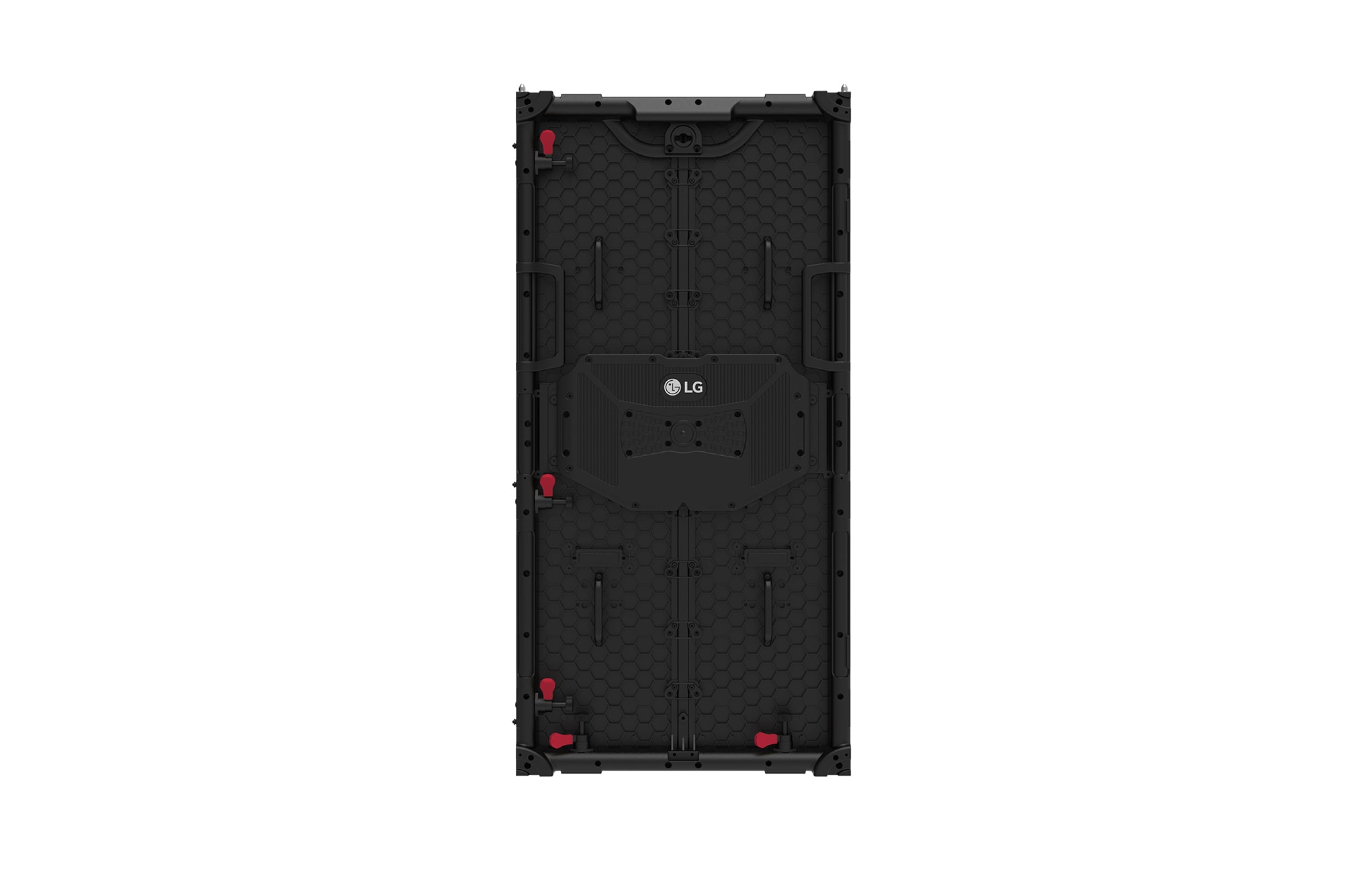

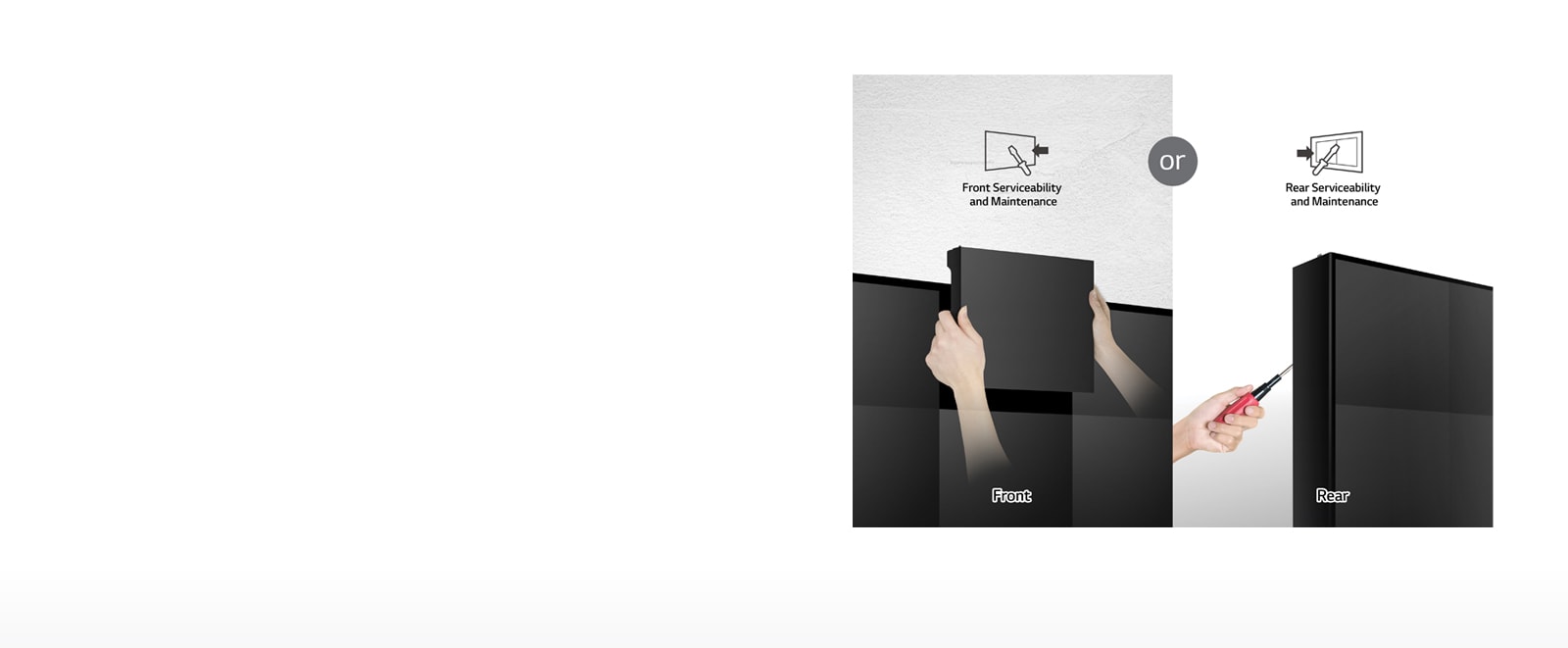

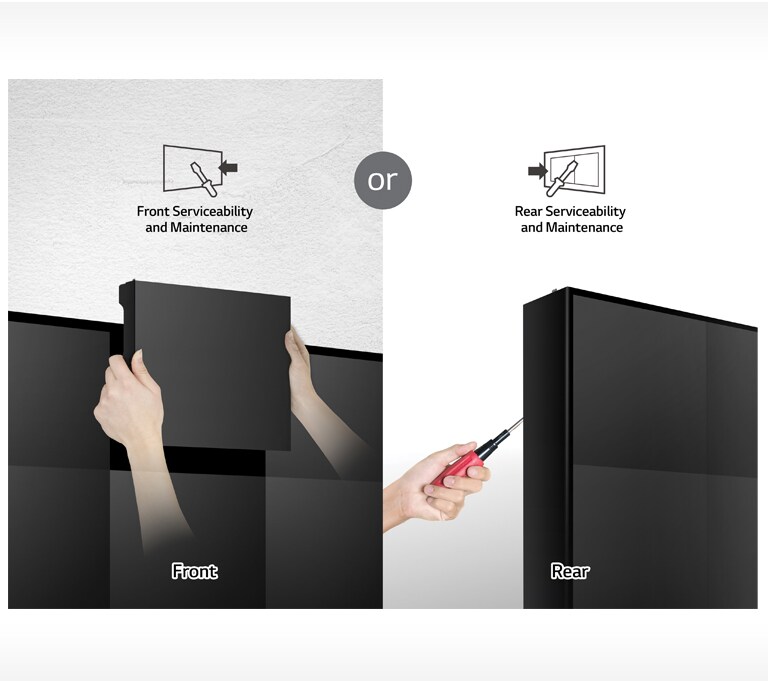

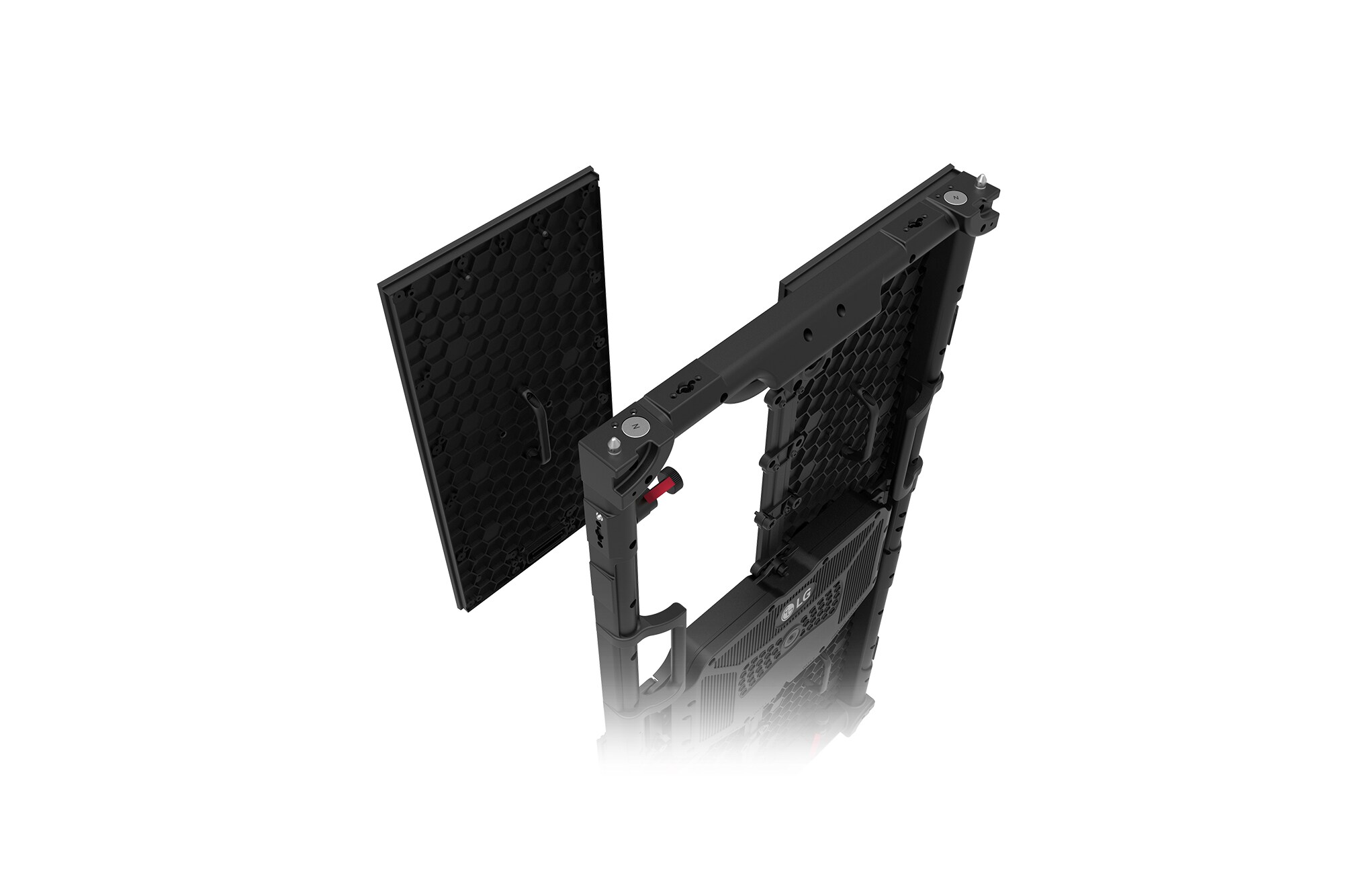

Front or Rear Serviceability and Maintenance
The product offers either front access or rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.

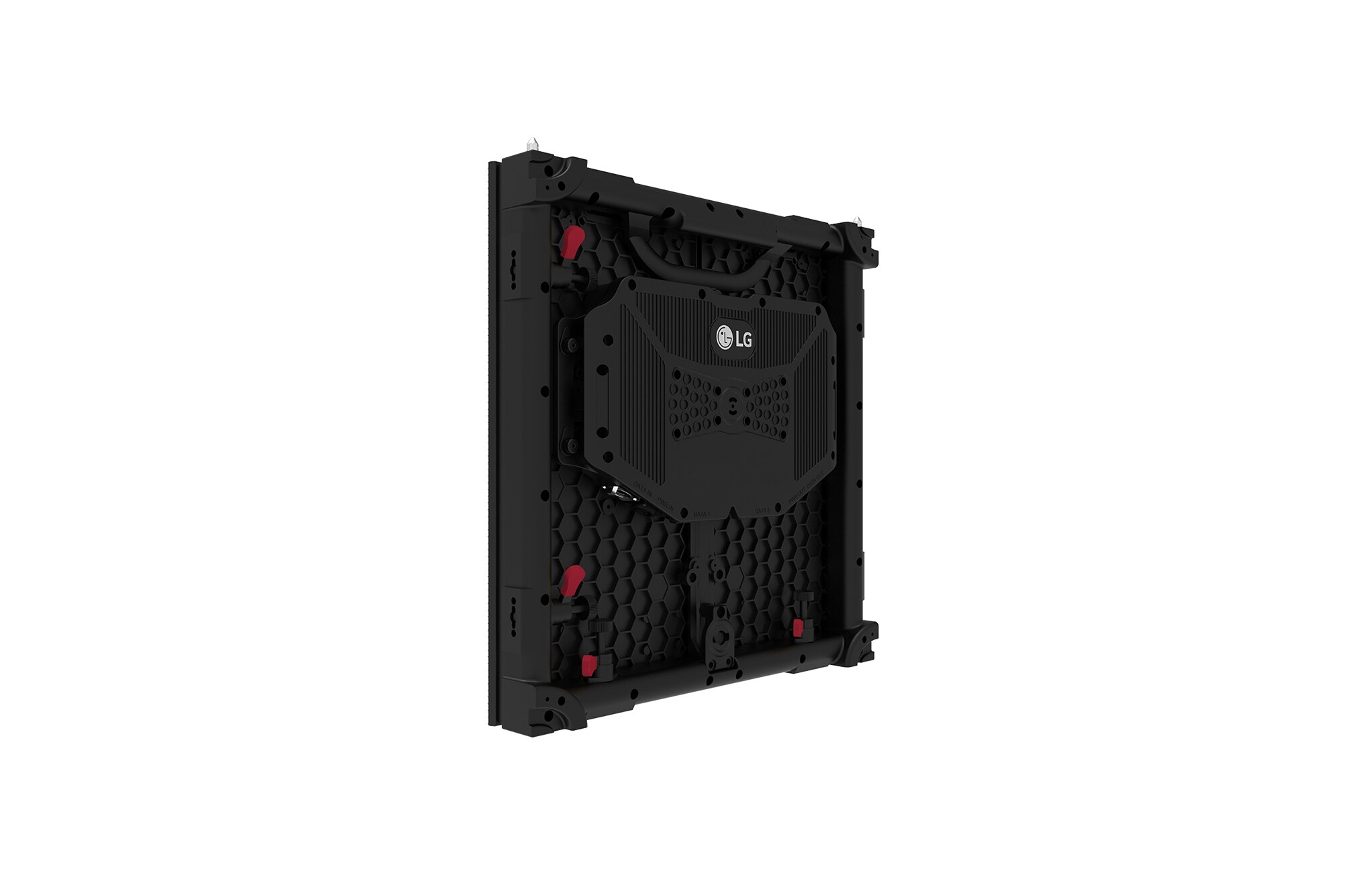

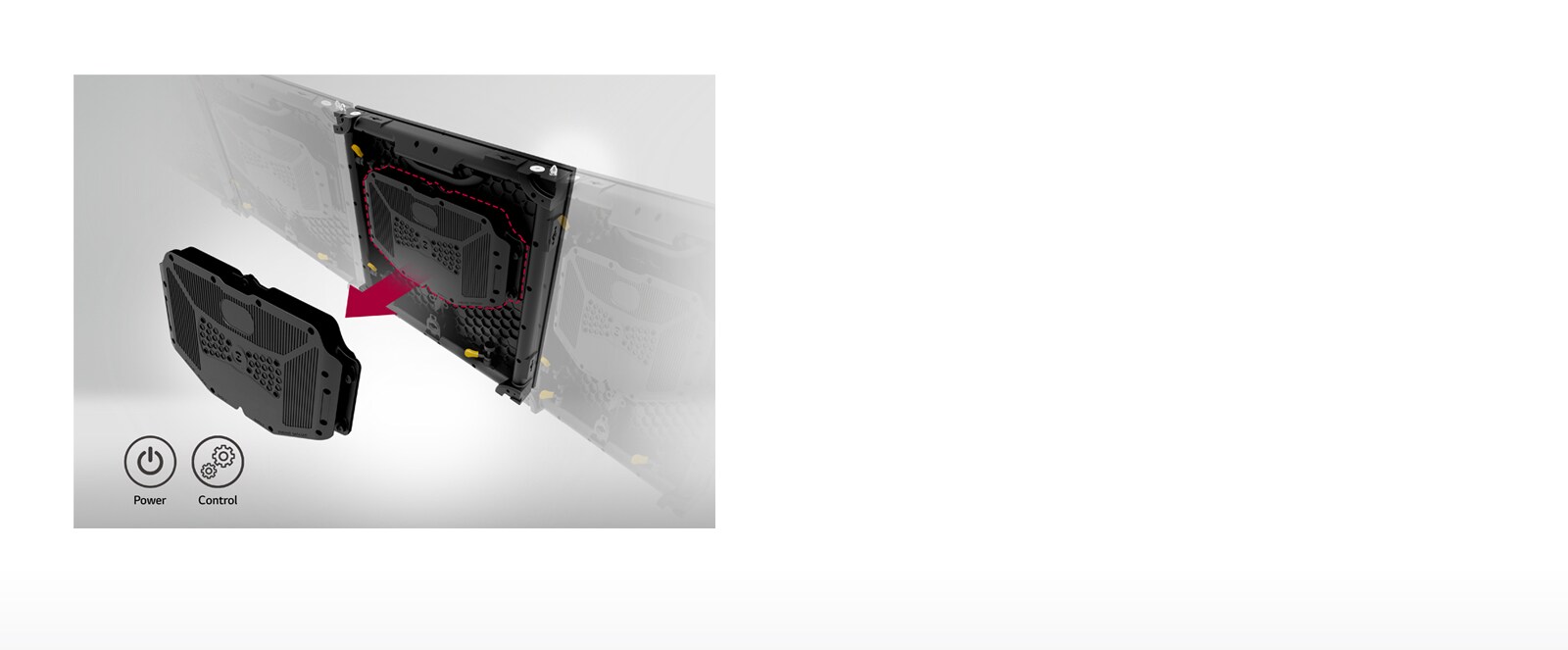

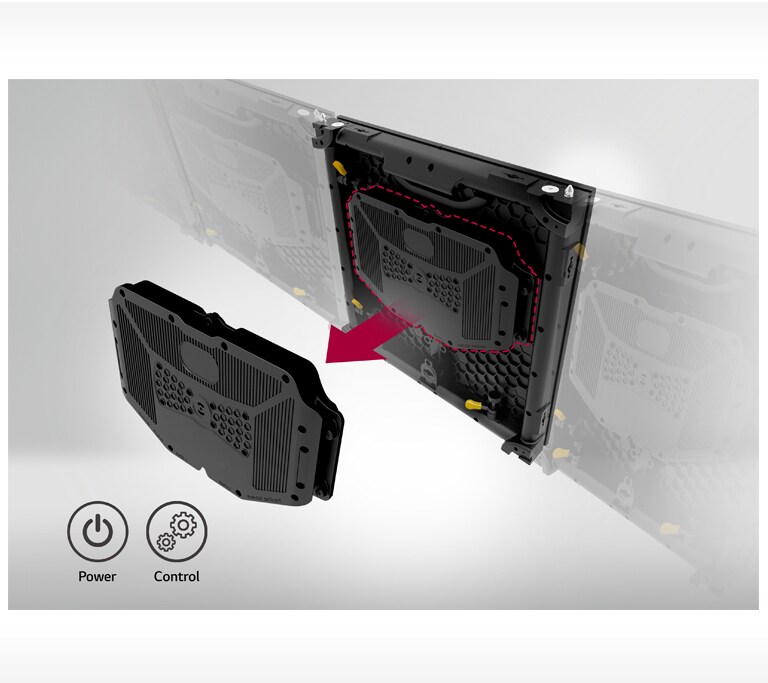

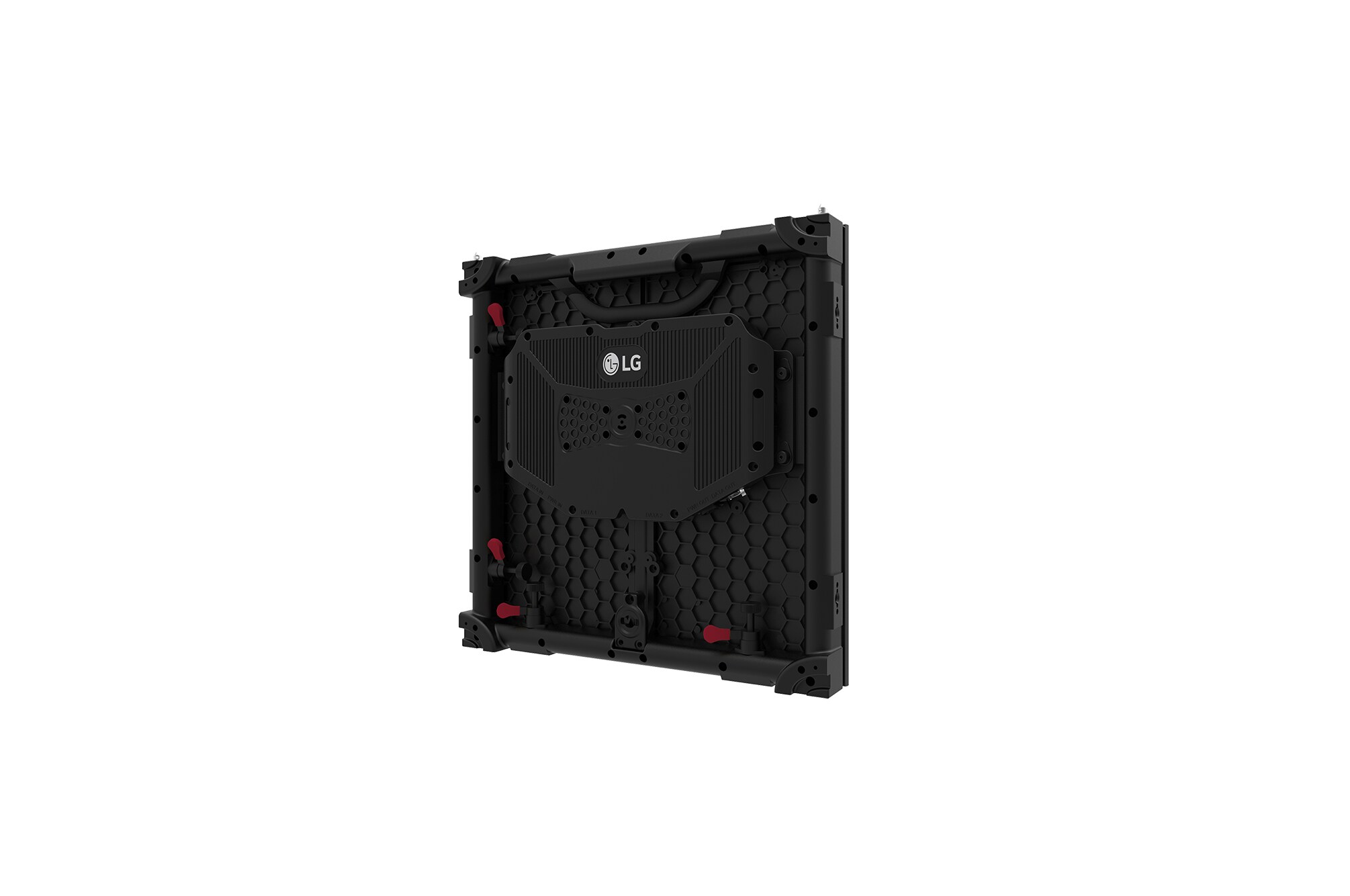

Attachable Power and Control Modules
Power and control modules attached to the unit cases can be removed easily, making it easy to fix problems that may arise.

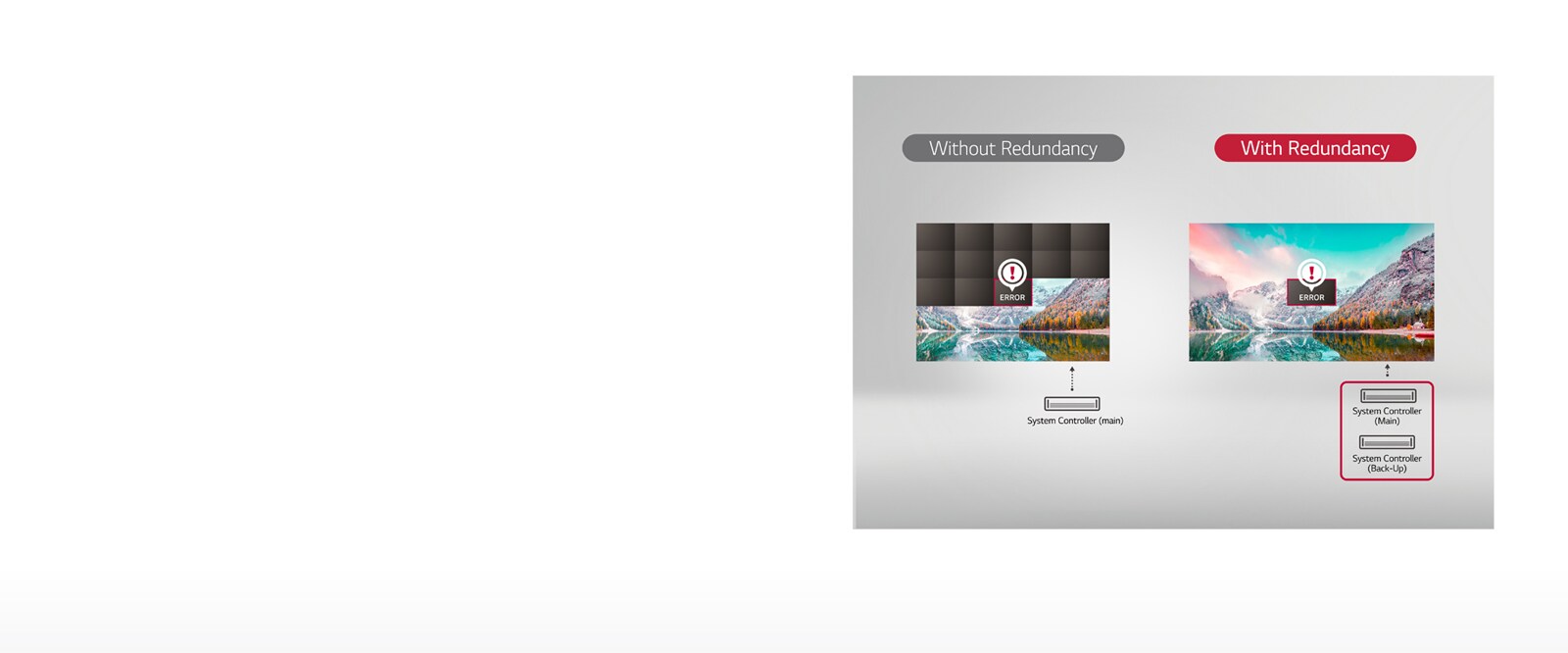

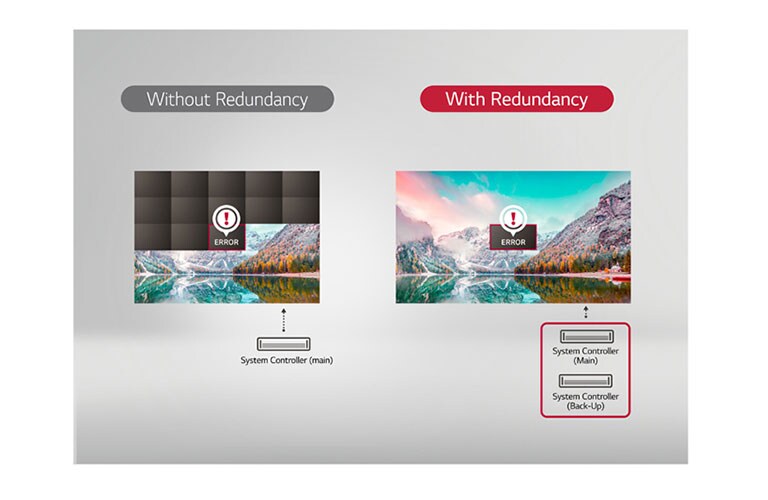

Reliable Operation with Signal Redundancy
With an additional controller, if one of the LED units (or a main controller) malfunctions, a back-up controller activates, preventing a screen blackout error. This feature is called Signal Redundancy*.
*Images are for Illustrative Purpose Only.
*Optional.
*Optional.

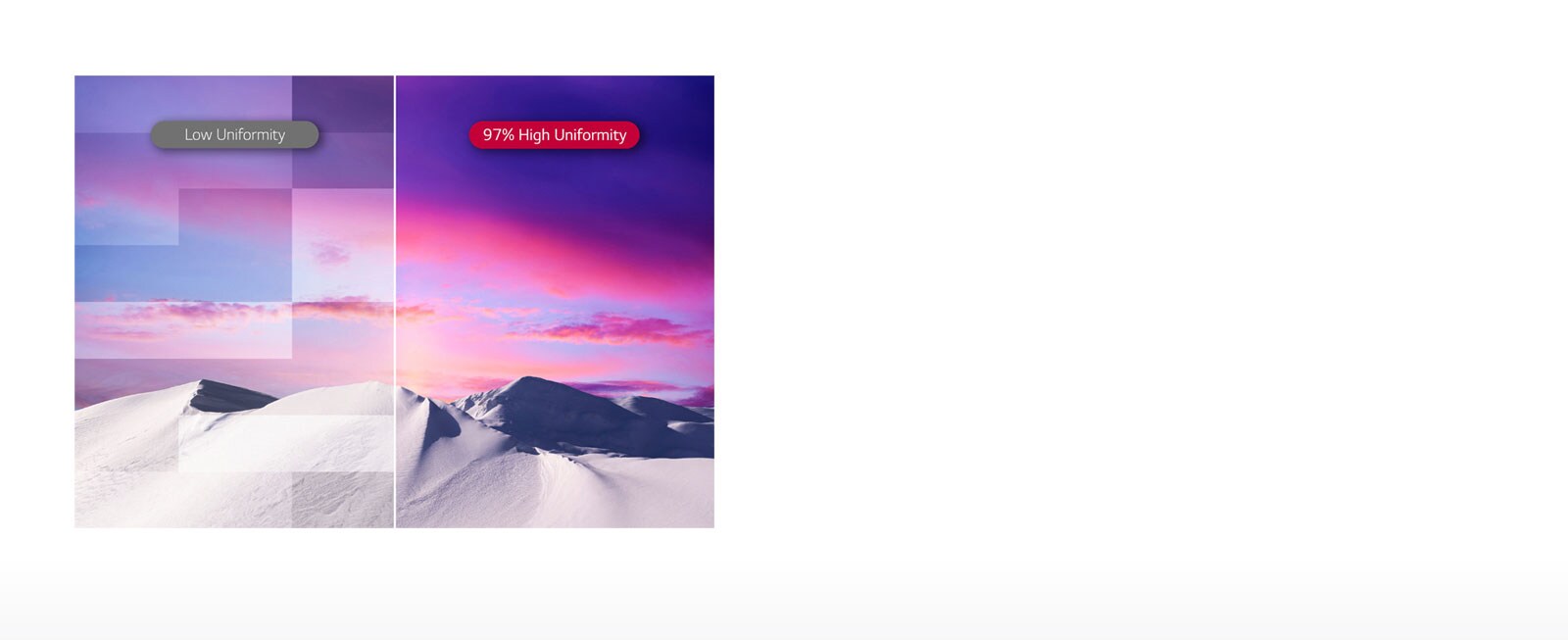

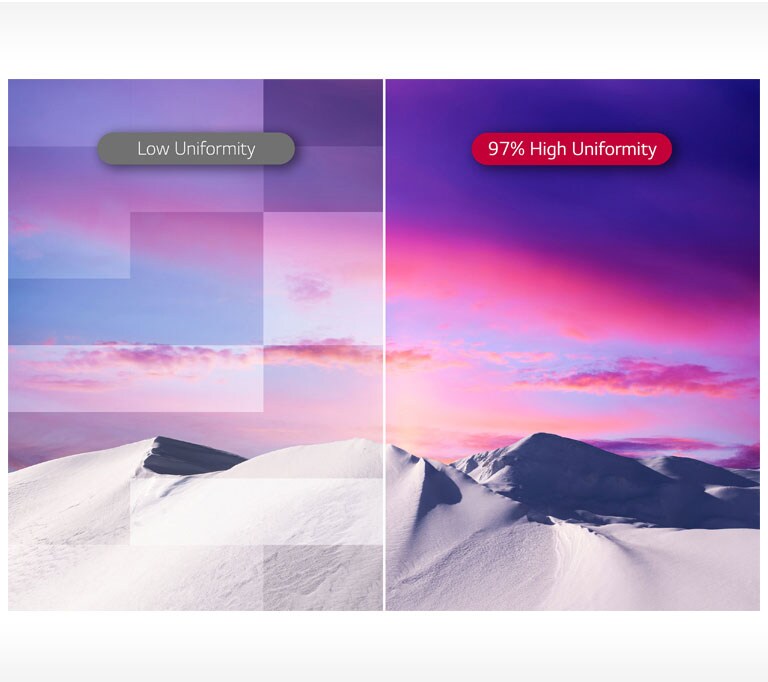

Uniform Picture Quality
Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with high brightness uniformity.
*Images are for Illustrative Purpose Only.
Vividness with Color Accuracy
LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.
*Images are for Illustrative Purpose Only.
| Model Name | LAE029DD8E |
|---|---|
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch(mm) | 2.97 |
| Unit Case Resolution (WxH) | 168x336 |
| Unit Case Dimensions (W x H x D, mm) | 500x1,000x68 |
| Weight per Unit Case / Square Meter (kg) | 15.5 / 31.0 |
| Service Access | Front or Rear (One Option Only) |
| Min. Brightness (After Calibration, cd/㎡) | 1,000 |
| Color Temperature | 6,500 |
| Visual Viewing Angle (Horizaontal / Vertical) | 160 / 160 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003CxCy |
| Contrast Ratio | 5,000 |
| Processing Depth (bit) | 13 |
| Power Consumption (W/Unit, Avg./Max.) | 330 / 110 |
| Power Consumption (W/㎡, Max.) | 660 |
| Power Supply (V) | 100 to 240 |
| Refresh Rate (Hz) | 1,920 |
| Lifetime (Duration of Half Brightness in Hrs) | 100,000 |
| Operating Temperature(℃)/ Humidity | -10 to 45 / 0~80% RH |
| Model Name | LAE029DD8DE |
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch(mm) | 2.97 |
| Unit Case Resolution (WxH) | 168x336 |
| Unit Case Dimensions (W x H x D, mm) | 500x500x68 |
| Weight per Unit Case / Square Meter (kg) | 10.0 / 40.0 |
| Service Access | Front or Rear (One Option Only) |
| Min. Brightness (After Calibration, cd/㎡) | 1,000 |
| Color Temperature | 6,500 |
| Visual Viewing Angle (Horizaontal / Vertical) | 160 / 160 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003CxCy |
| Contrast Ratio | 5,000 |
| Processing Depth (bit) | 13 |
| Power Consumption (W/Unit, Avg./Max.) | 160 / 53 |
| Power Consumption (W/㎡, Max.) | 640 |
| Power Supply (V) | 100 to 240 |
| Refresh Rate (Hz) | 1,920 |
| Lifetime (Duration of Half Brightness in Hrs) | 100,000 |
| Operating Temperature(℃)/ Humidity | -10 to 45 / 0~80% RH |
| Model Name | LAE039DD8 |
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch(mm) | 3.91 |
| Unit Case Resolution (WxH) | 128x256 |
| Unit Case Dimensions (W x H x D, mm) | 500x1,000x68 |
| Weight per Unit Case / Square Meter (kg) | 12.5 / 25.0 |
| Service Access | Front or Rear (One Option Only) |
| Min. Brightness (After Calibration, cd/㎡) | 1,000 |
| Color Temperature | 6,500 |
| Visual Viewing Angle (Horizaontal / Vertical) | 160 / 160 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003CxCy |
| Contrast Ratio | 5,000 |
| Processing Depth (bit) | 14 |
| Power Consumption (W/Unit, Avg./Max.) | 330 / 110 |
| Power Consumption (W/㎡, Max.) | 660 |
| Power Supply (V) | 100 to 240 |
| Refresh Rate (Hz) | 3,840 |
| Lifetime (Duration of Half Brightness in Hrs) | 100,000 |
| Operating Temperature(℃)/ Humidity | -10 to 45 / 0~80% RH |
| Model Name | LAE039DD8D |
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch(mm) | 3.91 |
| Unit Case Resolution (WxH) | 128x128 |
| Unit Case Dimensions (W x H x D, mm) | 500x500x68 |
| Weight per Unit Case / Square Meter (kg) | 8.2 / 32.8 |
| Service Access | Front or Rear (One Option Only) |
| Min. Brightness (After Calibration, cd/㎡) | 1,000 |
| Color Temperature | 6,500 |
| Visual Viewing Angle (Horizaontal / Vertical) | 160 / 160 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003CxCy |
| Contrast Ratio | 5,000 |
| Processing Depth (bit) | 14 |
| Power Consumption (W/Unit, Avg./Max.) | 160 / 53 |
| Power Consumption (W/㎡, Max.) | 640 |
| Power Supply (V) | 100 to 240 |
| Refresh Rate (Hz) | 3,840 |
| Lifetime (Duration of Half Brightness in Hrs) | 100,000 |
| Operating Temperature(℃)/ Humidity | -10 to 45 / 0~80% RH |
* Models may vary by region. Check with local salesteam.
