KEY FEATURES

  • Integrated, all-in-one system (PCS + NMC Battery AC Coupled)
  • Power resiliency when needed, with or without a PV (solar) system.
  • Backup, Time of Use and PV Self consumption modes for daily energy use optimization.
  • Compact design maximizes space and installation time
  • Up to 10-year limited warranty¹
  • LG ThinQ App access for Home Energy Management and Monitoring

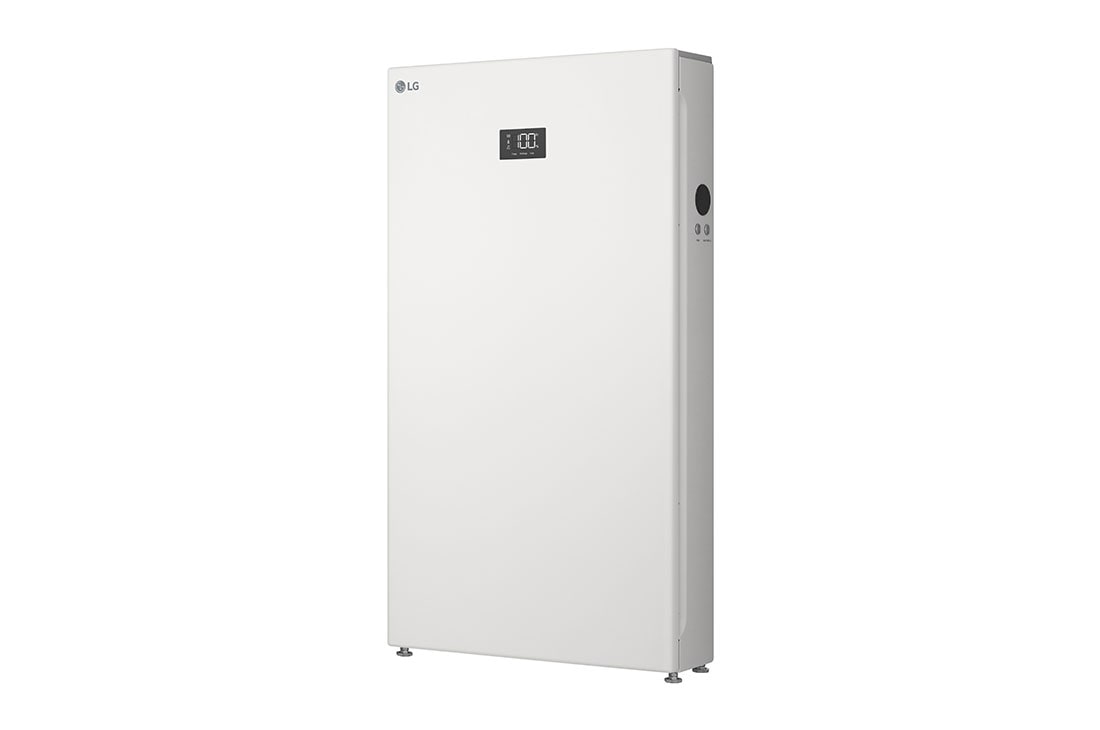

LG ESS Home 8 Energy Storage System
$

Energy Storage for Life Uninterrupted

Life happens at home. Stay up and running with the all-in-one LG Electronics Home 8 Energy Storage System (ESS), built to store and provide up to 14.4 kWh of usable energy from solar panels or AC-coupled power. Because with more reliable energy, you can keep doing what you love, where you’re most comfortable. Bring more energy to your life and achieve pure independence with cleaner backup power.
Stop

icon Empower your life Fuel your sustainable lifestyle and ensure your renewable resources operate with or without the grid.

icon Secure your family Ensure your home has access to needed power during grid outages and natural disasters.

icon Invest in security and guaranteed Avoid peak Time of Use Energy rates by storing and using your power to your benefit.

icon Power Everything Supercharge your smart home and manage your LG Electronics appliances with our ThinQ app.

Home 8 - General Specifications

    • Nominal Voltage (L-N/L-L)
    • 120/240 V Split Phase
    • Grid Frequency (Nominal)
    • 60 Hz
    • Rated AC Power (Discharging)
    • 7.5 kVA¹
    • Rated AC Power (Charging)
    • 5.4 kVA¹
    • Total Capacity
    • 15.8 kWh
    • Usable Capacity
    • 14.4 kWh²
    • Round Trip Efficiency
    • > 90% ³, ⁴
    • CEC Efficiency (PCS only)
    • 98%
    • Overvoltage Category
    • Category IV
    • Interface
    • LED Display

Home 8 - Grid Connection Mode

    • Nominal Voltage (L-N/L-L)
    • 120/240 V Split Phase
    • Grid Frequency (Nominal)
    • 60 Hz
    • Rated AC Power (Discharging)
    • 7.5 kVA¹
    • Rated AC Power (Charging)
    • 5.4 kVA¹
    • Rated AC Current (Discharging)
    • 31.25 A
    • Rated AC Current (Charging)
    • 22.5 A
    • Power Factor
    • - 0.8 ~ + 0.8

Home 8 - Backup Mode

    • Nominal AC Voltage
    • 120/240 V Split Phase
    • Nominal AC Frequency
    • 60 Hz
    • Max AC Power (Discharging)
    • 9.0 kVA (10s)
    • Rated AC Power (Discharging)
    • 7.5 kVA¹
    • Rated AC Power (Charging)
    • 5.4 kVA¹
    • Max AC Current (Discharging)
    • 37.5 A (10s)
    • Rated AC Current (Discharging)
    • 31.25 A
    • Rated AC Current (Charging)
    • 22.5 A

Home 8 - Battery

    • Battery Package Types
    • Cylindrical Li-ion
    • Total Capacity
    • 15.8 kWh
    • Usable Capacity
    • 14.4 kWh²
    • Nominal DC Voltage
    • 406.56 V

Home 8 - Battery Module

    • Battery Package Types
    • Cylindrical Li-ion
    • Module Nominal DC Voltage
    • 101.64 V
    • Module Capacity (Min)*
    • 36.9Ah (*Battery Capacity (Nominal) = 38.9Ah)
    • Module Size[W*H*D]
    • 600 x 212 x 190 [mm] (23.6 x 8.4 x 7.5 [in])
    • Module Weight (Max)
    • 26 kg / 57 lb

Compliance

    • Grid Code
    • Home 8 (IEEE1547, 1547.1, UL1741, UL1741SA, CA Rule21) / SE Box (CA Rule21, IEEE2030.5-2018/ Sunspec CSIP) UL1741SB
    • Safety
    • Home 8 (UL1741, C22.2 No.107.1-16, UL1642, UL1973, UL9540A) / (UL1741, C22.2 No.107.1-16)
    • Functional Safety
    • IEC60730-1 Annex H
    • System Safety
    • UL9540
    • Enclosure
    • NEMA Type 3R⁵
    • EMC
    • FCC Part15 Subpart B
    • Seismic
    • IEEE 693-2005, High

Environmental Specifications

    • Dimensions [W*H*D]
    • Home 8 (698 X 1260 X 205 [mm] (27.5 X 49.6 X 8.1 [in])) / SE Box (500 X 600 X 178 [mm] (19.7 X 23.6 X 7.0 [in]))
    • Weight
    • Home 8 (163 kg / 359 lb) / SE Box (25 kg / 55 lb)
    • Cooling
    • Home 8 (Fan (Forced Air Cooling)) / SE Box (Natural Convection)
    • Operating Temperature
    • Home 8 (-20 ~ 50˚C (-4 ~ 122˚F) @ Discharging -10 ~ 45˚C (14 ~ 113˚F) @ Charging) / SE Box (-20 ~ 50 ˚C (-4 ~ 122˚F))
    • Recommended Operating Temperature
    • Home 8 (0 ~ 35˚C (32 ~ 95˚F) @ Discharging 0 ~ 33˚C (32 ~ 91.4˚F) @ Charging) / SE Box (-20 ~ 50 ˚C (-4 ~ 122˚F))
    • Storage Temperature
    • -20 ~ 50˚C (-4 ~ 122˚F)
    • Ambient Humidity (RH)
    • 5 ~ 95% (non-condensing)
    • Altitude
    • < 3000 m (9843 ft)
    • Mounting Type
    • Home 8 (Floor Stand with Wall Support) / SE Box (Wall Mount)
    • Noise
    • < 47 dB
    • Warranty
    • 10 years (Battery: 70% @ 10 years)⁶

Disclaimer

    • Disclaimer
    • ¹ Adjustable, limited by the battery pack output capability such as charging/discharging power derating by the atmosphere temperature. ² Usable energy might be reduced for enhancing the battery lifetime and system stability. ³ Verified according to LG Electronics conditions. ⁴ AC to battery to AC with 4.32 kW charging and 2.88 kW discharging power at 25˚C ( 77 ˚F) under the beginning of life.
    • Disclaimer1
    • ⁵ Tested by NEMA 250 ⁶ 10-years Limited Warranty: Standard limited warranty period is five years parts/energy capacity for qualified products. Upon expiration of original manufacturer’s limited warranty, an extended limited warranty may apply (ten years parts/energy capacity) for qualified products registered with LG’s ThinQ® service and connected to internet. Full limited warranty terms are available at lgusa.com/ess ⁷ When protected by Class J fuses, LG, SE Box, is suitable for use in circuits capable of delivering not more than 22 kA symmetrical amperes. ⁸ LG SE Box is not suitable for use as service equipment in Canada.
