4K UHD Signage | LG South Africa

UHD Signage

86UL5Q-E

Key Features

Resolution : 3,840 × 2,160 (UHD)
Brightness : 500 nit (Typ.)
24Hr Usage Scene (24 Hours / 7 Days)
Face Up/Down with Tilt Support
Even Bezel
High-Performance with webOS 6.1

All Spec

PANEL

Screen Size (Inch): 86"

Panel Technology: ADS

Back Light Type: Direct

Aspect Ratio: 16:9

Native Resolution: 3840x2160 (UHD)

Refresh Rate: 60Hz

Brightness: 500nit (Typ.)

Contrast Ratio: 1,200:1

Dynamic CR: 1,000,000:1

Color Gamut: DCI 80%

Viewing Angle (H x V): 178 x 178

Color Depth (Number of Colors): Advanced 10bit, 1.07 Billion colors

Response Time: 8ms (G to G)

Surface Treatment (Haze): 1%

Life time: 30,000Hrs (Min)

Operation Hours (Hours/Day): 24/7

Portait / Landscape: Yes / Yes

Transparency: NO

QWP (Quarter Wave Plate): NO

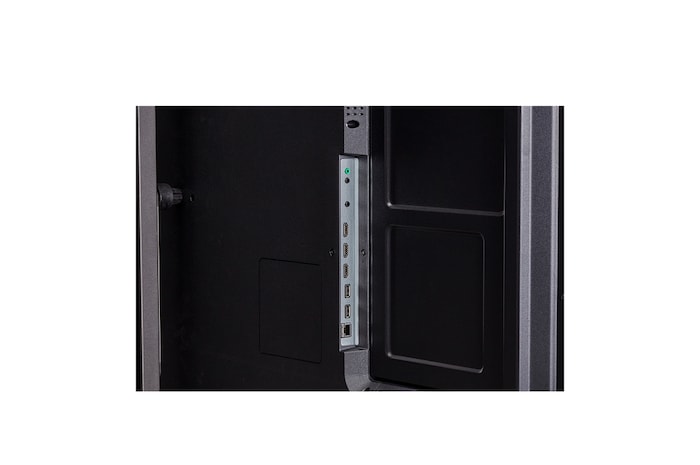

CONNECTIVITY

HDMI In: YES(3), HDCP2.2/1.4

DP In: NO

DVI-D In: NO

RGB In: NO

Audio In: NO

RS232C In: YES(1), 4pin Phone-jack

RJ45(LAN) In: YES(1)

IR In: NO

USB In: USB2.0 Type A(2)

HDMI Out: NO

DP Out: NO

Audio Out: YES(1)

Touch USB: N/A

External Speaker Out: NO

RS232C Out: YES

RJ45(LAN) Out: NO

IR Out: NO

Daisy Chain: NO

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: 12.9mm Even

Weight (Head): 31.8

Weight (Head+Stand): -

Packed Weight: 42.6

Monitor Dimensions (W x H x D): 1926.6 X 1098 X 60

Monitor Dimension with Stand (W x H x D): -

Carton Dimensions (W x H x D): 2080 X 220 X 1255

Handle: NO

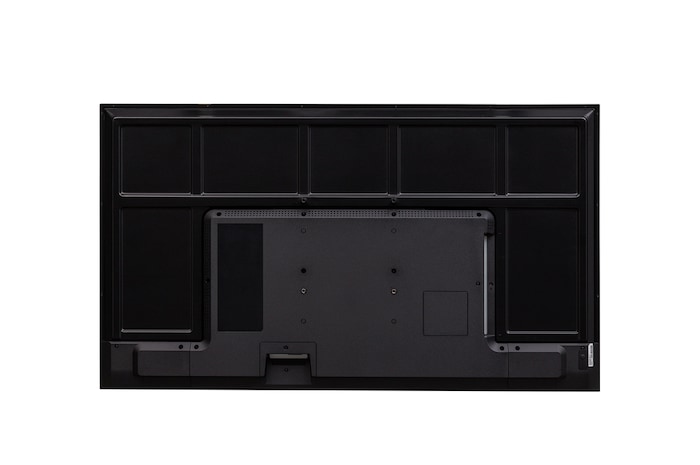

VESA Standard Mount Interface: 600 x 400

PROTECTION GLASS

Thickness: N/A

Degree of Protection: N/A

Tempered / Chemical strengthening: N/A

Anti-Reflective: N/A

Infrared - Resistance (IR): N/A

Shatter-Proof: N/A

FEATURE - HARDWARE

Internal Memory (eMMC): 8GB

Wi-Fi/BT (Built-in): YES

Temperature Sensor: YES

Auto Brightness Sensor: YES

Pixel Sensor: NO

Proximity Sensor: NO

Current Sensor: NO

BLU Sensor: NO

Humidity Sensor: NO

Acceleration(Gyro) Sensor: YES

Power Indicator: NO

Local Key Operation: YES (Power On/Off only)

FAN (Built-in): NO

FEATURE - SOFTWARE

OS Ver. (webOS): webOS6.1

Local Contents Scheduling: Yes

Group Manager: Yes

USB Plug & Play: Yes

Fail over: Yes

Booting Logo Image: Yes

No Signal Image: Yes

RS232C Sync: Yes

Local Network Sync: Yes

Backlight Sync: NO

PIP: NO

PBP: NO

Screen Share: Yes

Video Tag: Yes(4, Max One HDMI input)

Play via URL: Yes

Screen Rotation: Yes

External Input Rotation: Yes

Gapless Playback: Yes

Tile Mode Setting: Yes

Setting Data Cloning: Yes

SNMP: Yes

ISM Method: Yes

Auto Set ID: Yes

Status Mailing: Yes

Control Manager: Yes

Crestron Connected: Yes

Smart Energy Saving: Yes

PM mode: Yes

Wake on LAN: Yes

Network Ready: Yes

Beacon: Yes

HDMI-CEC: Yes

SI Server Setting: Yes

webRTC: Yes

Pro:Idiom: Yes

Brightness Compensation: NO

W/B Setting by Grey scale: NO

Scan Inversion: NO

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)

Operation Humidity: 10 % to 80 %

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

Typ.: 220W

Max.: 316W

BTU (British Thermal Unit): 750.7BTU/Hr(Typ.), 1078.3BTU/Hr(Max.)

Smart Energy Saving (70%): 154W

DPM: 0.5 W

Power off: 0.5 W

SOUND

Speaker (Built-in): Yes (10W X 2)

CERTIFICATION

Safety: CB

EMC: FCC Class "B" / CE

ERP / Energy Star: NA(New ERP)/Yes

ePEAT(US only): Yes

OPS COMPATIBILITY

OPS Type compatible: NO

OPS Power Built-in: NO

SOFTWARE COMPATIBILITY

SuperSign CMS: Yes

SuperSign Control+: Yes

SuperSign WB: Yes

SuperSign Cloud: Yes

Promota: NO

Mobile CMS: Yes

Connected Care: Yes

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

ACCESSORY

Basic: Remote Controller(include battery 2ea), Power Cord, Regulation Book, Easy setup guide, Warranty Card, Phone to D-Sub9 Gender

Optional: NO

SPECIAL FEATURE

Overlay Touch Compatibility: NO

Smart Calibration: NO

Tilt (Face up): NO

Tilt (Face down): NO

IP Rating: NO

Conformal Coating (Power Board): Yes

Power Protection: NO

Direct Sunlight: NO

DEDICATED FEATURE - TOUCH

Available Object Size for Touch: N/A

Response Time ('Paint' app on Windows 10 PC): N/A

Accuracy (Typ.): N/A

Interface: N/A

Protection Glass Thickness: N/A

Protection Glass Transmission: N/A

Operating System Support: N/A

Multi Touch Point: N/A

DEDICATED FEATURE - CREATE BOARD

CPU: N/A

GPU: N/A

Memory(RAM): N/A

Storage: N/A

Wi-Fi: N/A

LAN: N/A

Bluetooth: N/A

OS ver. (Android): N/A
