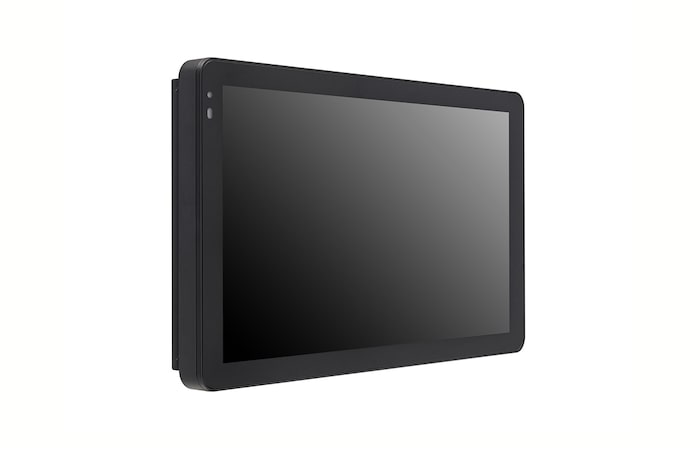

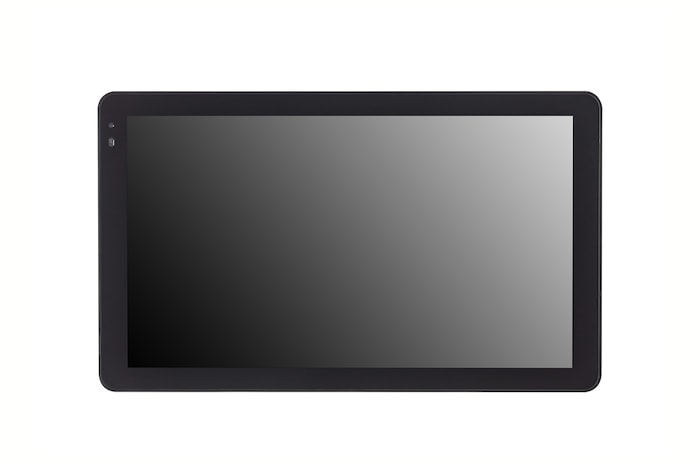

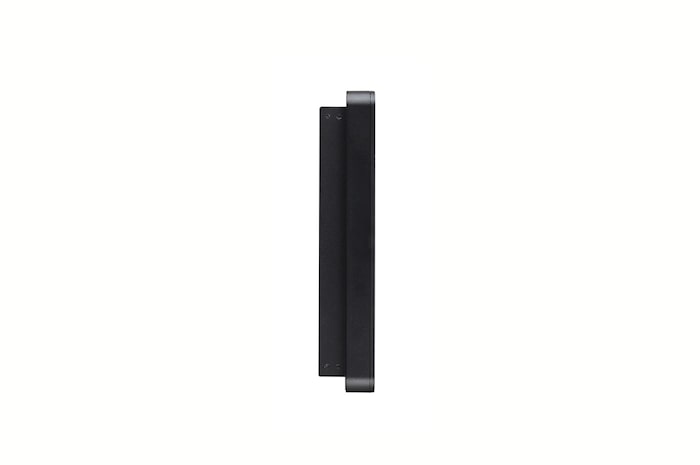

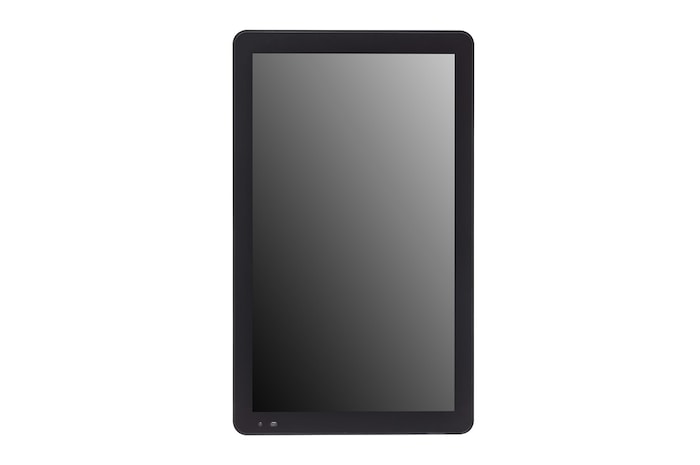

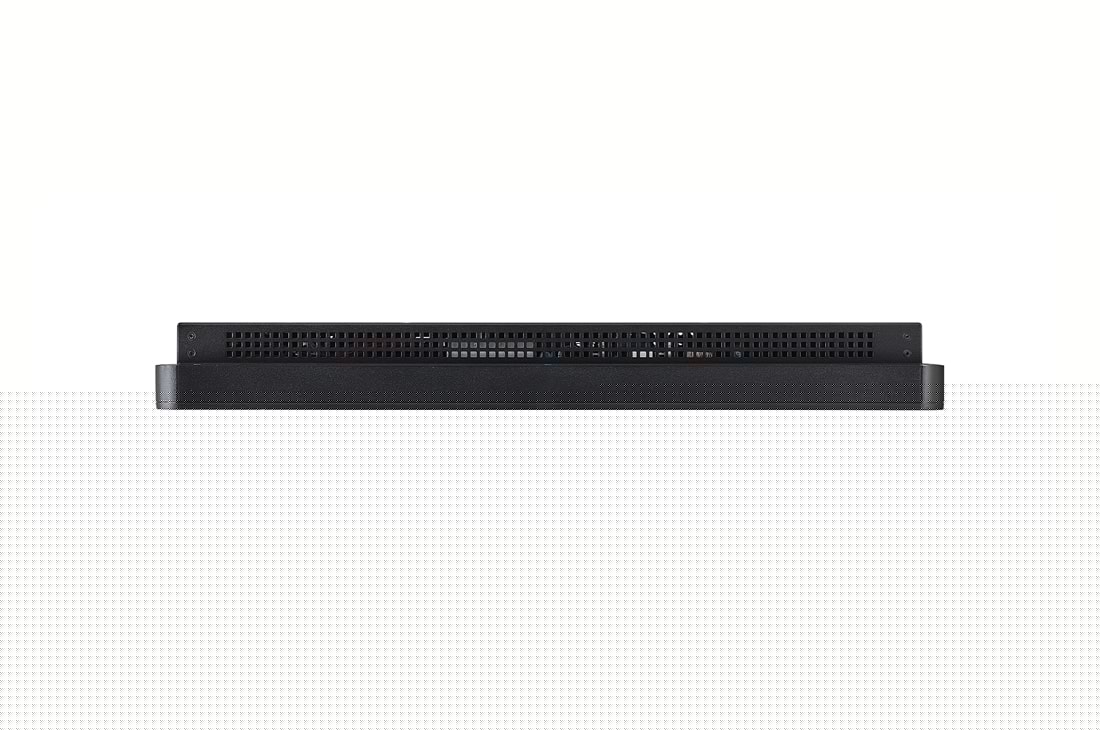

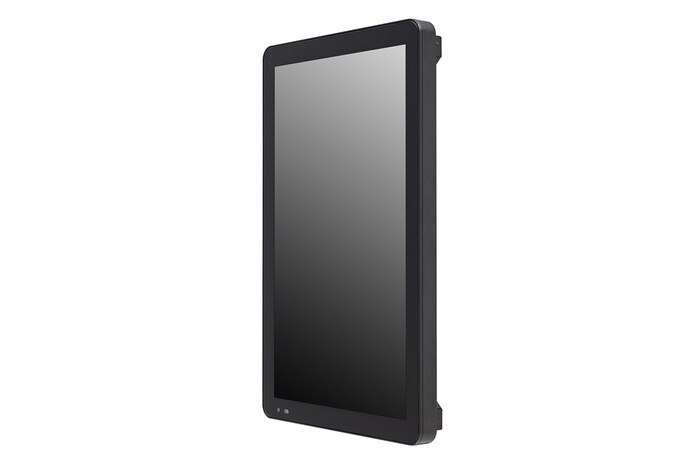

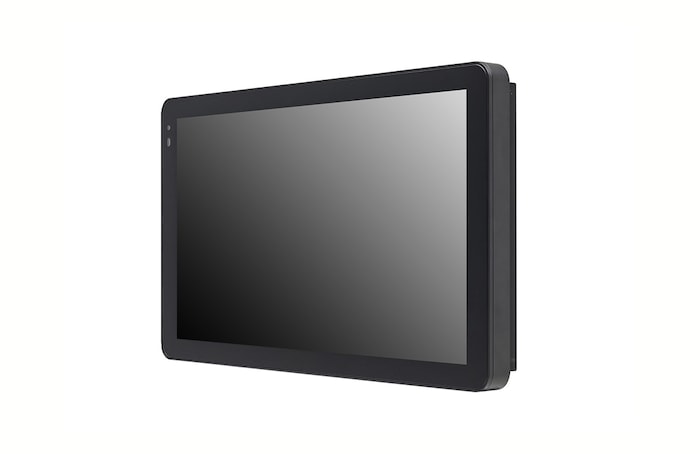

1,300nits FHD Outdoor Touch Open-frame Display

22XF1TJ-B

Key Features

Brightness : 1,300 nits (Typ. w/Glass)
IP66 Rated Dust & Waterproof
21.5" of Versatile Display Size
Wide Operating Temperature Range
webOS Smart Platform
Built-in Touch Display

All Spec

PANEL

Screen Size (Inch): 21.5

Panel Technology: IPS (AHVA)

Back Light Type: Edge

Aspect Ratio: 16:9

Native Resolution: 1920 x 1080 (FHD)

Refresh Rate: 60Hz

Brightness: 1,500nit (Typ., with Glass)

Contrast Ratio: 1,000:1 (Typ.)

Dynamic CR: 800,000:1

Color Gamut: NTSC 72%

Viewing Angle (H x V): 178º x 178º

Color Depth (Number of Colors): 16.7 Million colors

Response Time: 25ms (G to G)

Surface Treatment (Haze): Haze 25%

Life time: 70,000Hrs (Typ.)

Operation Hours (Hours/Day): 24/7

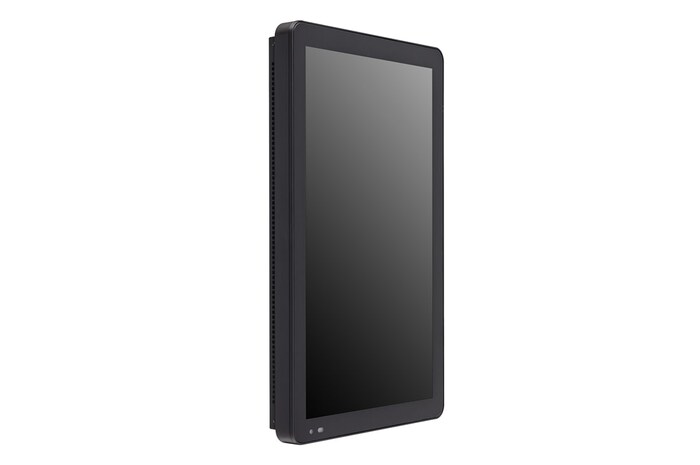

Portait / Landscape: YES / YES

Transparency: N/A

QWP (Quarter Wave Plate): YES

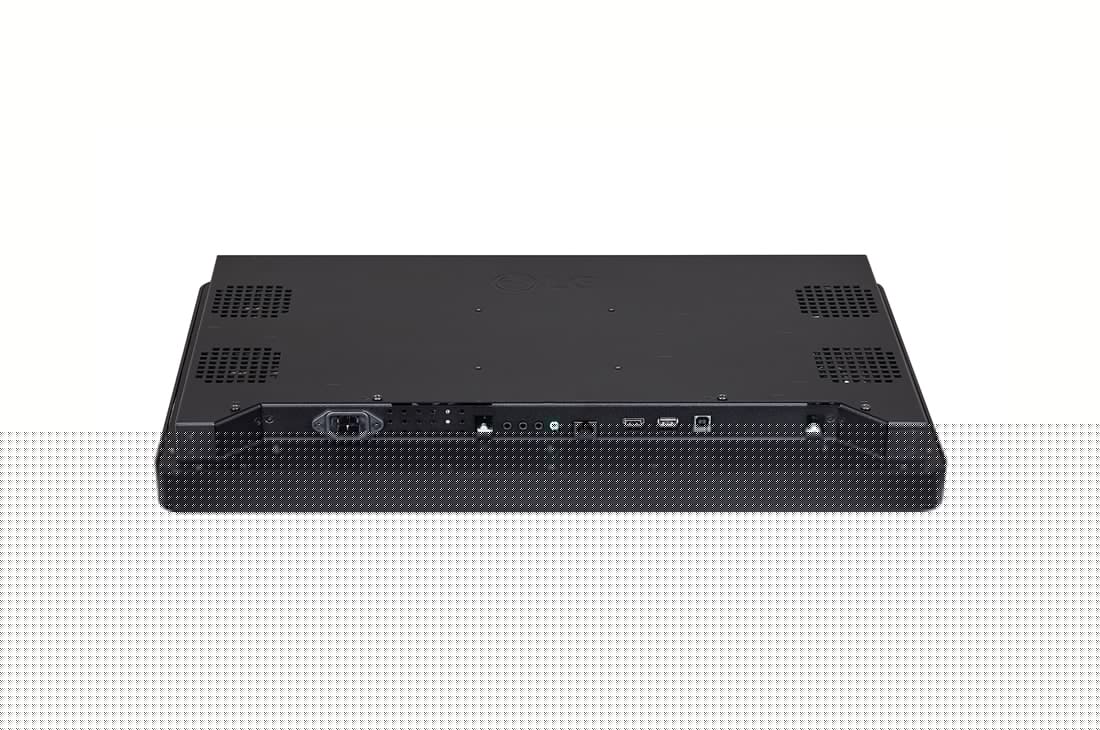

CONNECTIVITY

HDMI In: YES (1ea)

HDMI In (HDCP Ver.): 1.4

DP In: NO

DVI-D In: NO

RGB In: NO

Audio In: NO

RS232C In: YES

RJ45(LAN) In: YES (1ea)

IR In: NO

USB In: USB2.0 Type A (1ea)

HDMI Out: NO

DP Out: NO

Audio Out: NO

Touch USB: YES

External Speaker Out: YES

RS232C Out: YES

RJ45(LAN) Out: NO

IR Out: NO

Daisy Chain: NO

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: T/R/L/B : 25.5/30.5/30.5/25.5mm

Weight (Head): 7.0Kg

Weight (Head+Stand): N/A

Packed Weight: 8Kg

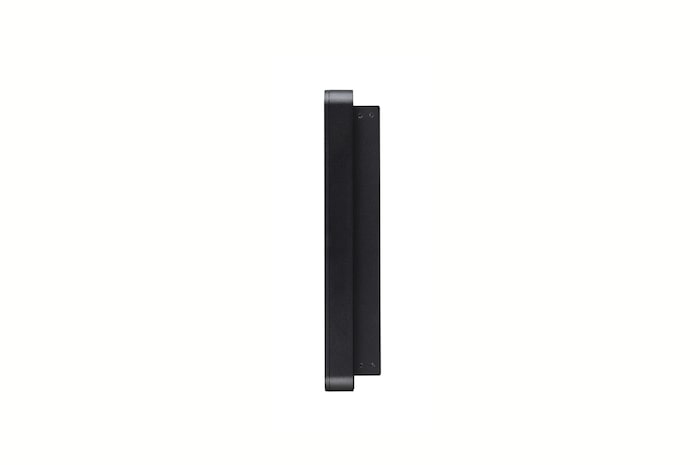

Monitor Dimensions (W x H x D): 557.3 x 322.8 x 60mm

Monitor Dimension with Stand (W x H x D): N/A

Carton Dimensions (W x H x D): 644 x 406 x 207mm

Handle: NO

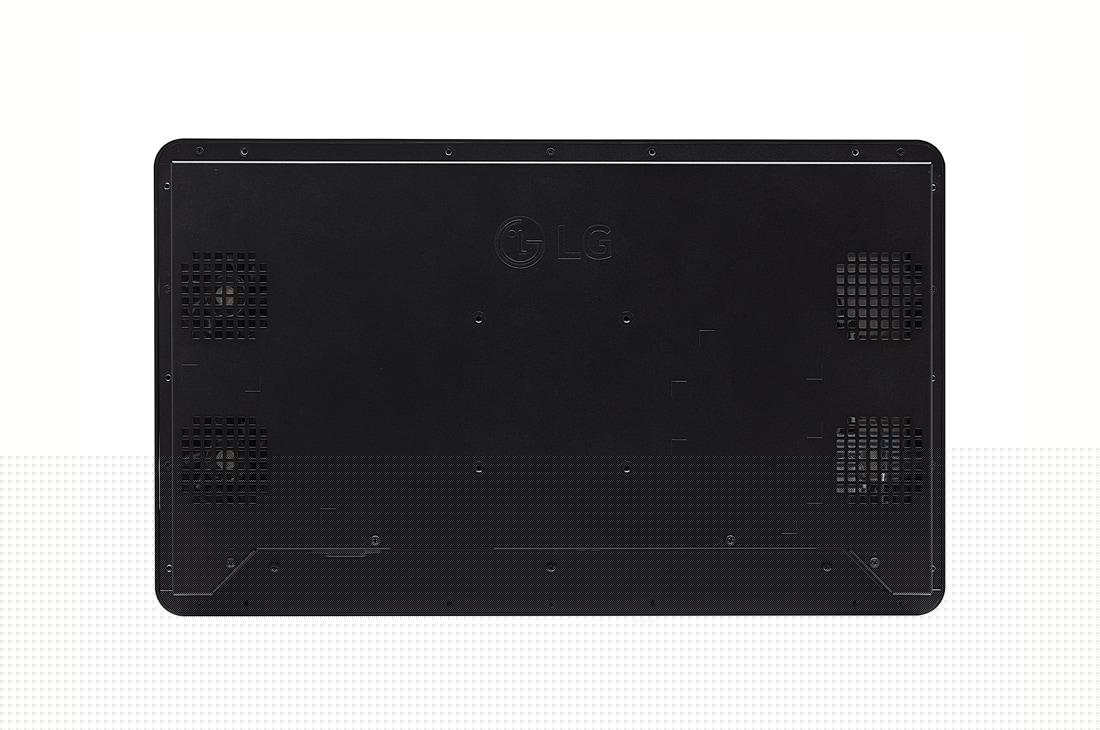

VESA Standard Mount Interface: 100 x 100 mm

PROTECTION GLASS

Thickness: 3mm

Degree of Protection: N/A

Tempered / Chemical strengthening: Tempered strengthening

Anti-Reflective: N/A

Infrared - Resistance (IR): N/A

Shatter-Proof: YES

FEATURE - HARDWARE

Internal Memory (eMMC): 16GB

Wi-Fi/BT (Built-in): NO

Temperature Sensor: YES

Auto Brightness Sensor: YES

Pixel Sensor: NO

Proximity Sensor: NO

Current Sensor: NO

BLU Sensor: NO

Humidity Sensor: YES

Acceleration(Gyro) Sensor: YES

Power Indicator: YES

Local Key Operation: NO

FAN (Built-in): YES

FEATURE - SOFTWARE

OS Ver. (webOS): webOS 4.1

Local Contents Scheduling: YES

Group Manager: YES

USB Plug & Play: YES

Fail over: YES

Booting Logo Image: YES

No Signal Image: YES

RS232C Sync: NO

Local Network Sync: YES

Backlight Sync: NO

PIP: NO

PBP: NO

Screen Share: NO

Video Tag: YES (4 Video Tag)

Play via URL: YES

Screen Rotation: YES

External Input Rotation: YES

Gapless Playback: YES

Tile Mode Setting: NO

Setting Data Cloning: YES

SNMP: YES

ISM Method: YES

Auto Set ID: NO

Status Mailing: YES

Control Manager: YES

Cisco Certification: NO

Crestron Connected: NO

Smart Energy Saving: YES

PM mode: YES

Wake on LAN: YES

Network Ready: YES

Beacon: NO

HDMI-CEC: YES

SI Server Setting: YES

webRTC: YES

Pro:Idiom: YES

Brightness Compensation: NO

W/B Setting by Grey scale: NO

Scan Inversion: NO

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 50 °C

Operation Humidity: 10 % to 80 %

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

POWER CONSUMPTION

Typ.: 85W (Full White) 37W (IEC 62087)

Max.: 115W

BTU (British Thermal Unit): 290 BTU/Hr(Typ.), 393 BTU/Hr(Max.)

DPM: 0.5W

Power off: 0.5W

SOUND

Speaker (Built-in): NO

CERTIFICATION

Safety: CB / NRTL

EMC: FCC Class "A" / CE / KC / VCCI

ERP / Energy Star: YES / NO

ePEAT(US only): NO

OPS COMPATIBILITY

OPS Type compatible: NO

OPS Power Built-in: NO

SOFTWARE COMPATIBILITY

SuperSign CMS: YES

SuperSign Control+: YES

SuperSign WB: NO

SuperSign Cloud: NO

Promota: YES

Mobile CMS: NO

Connected Care: YES

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

Basic: Remote Controller(including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender

Optional: NO

SPECIAL FEATURE

Overlay Touch Compatibility: N/A

Smart Calibration: N/A

Tilt (Face up): N/A

Tilt (Face down): N/A

IP Rating: IP66 (front only)

Conformal Coating (Power Board): YES

Power Protection: N/A

Direct Sunlight: YES

DEDICATED FEATURE - TOUCH

Available Object Size for Touch: N/A

Response Time ('Paint' app on Windows 10 PC): N/A

Accuracy (Typ.): N/A

Interface: N/A

Protection Glass Thickness: N/A

Protection Glass Transmission: N/A

Operating System Support: N/A

Multi Touch Point: N/A
