A096JH
Dual Inverter ARTCOOL 9000 BTU Heat & Cool Split Air Conditioner with Wi-Fi control and Ionizer
  • Inverter Compressor
  • Energy Saving
  • Faster Cooling and Heating
  • Ionizer Air Purification
  • SmartThinQ Wi-Fi Equipped

component-OBScountrySelectDesc

Dual Inverter ARTCOOL 9000 BTU Heat & Cool Split Air Conditioner with Wi-Fi control and Ionizer

Dimensions

GENERAL SPECIFICATIONS

  • Cooling Capacity
    2.64 kW, 9000 Btu/h
    Heating Capacity
    2.84 kW, 9690 Btu/h
  • Compressor Type
    Single Rotary
    Refrigerant
    R410A
  • EER
    3.40 W/W, 11.60 (Btu/h)/W
    COP
    3.80 W/W, 12.97 (Btu/h)/W

INDOOR

  • Fan Type
    Cross Flow Fan
    Motor Output
    30W
  • Sound Pressure Level
    41 / 35 / 27 / 19 dB(A)
    41 / 35 / 30 dB(A)
    Air Flow Rate
    9.8 / 8.7 / 7.5 / 4.2 ㎥/min
    346.1 / 307.2 /264.8 /148.3 CFM
    10.5 / 9 / 7 / 5.5 ㎥/min
    370.7 / 317.8 / 247.2 /194.2 CFM

OUTDOOR

  • Fan Type
    Propeller Fan
    Motor Type
    AC
  • Sound Pressure Level
    50 dB(A)
    52 dB(A)
    Air Flow Rate
    27.0 ㎥/min
  • Piping
    Ø 6.35 mm, Ø 9.52 mm
    Drain Hose Size
    28.0, 16.4 mm, 1.10, 0.65 in.

POWER

  • Cooling
    776 W
    Heating
    747 W
  • Cooling Running Current
    3.70 A
    Heating Running Current
    3.50 A
  • Power Supply
    220~240 Ø, V, Hz
    Available Voltage Range
    187 ~ 276 V
  • Power Factor
    93.0%
    Circuit Breaker
    15 A

DIMENSIONS

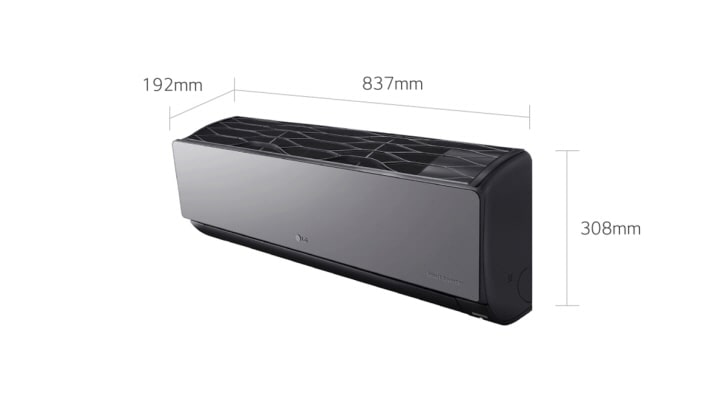

  • Indoor Dimensions
    837 mm X 308 mm x 192 mm
    Indoor Weight
    9.7Kg, 12Kg
  • Outdoor Dimensions
    717 mm X 483 mm x 230 mm
    Outdoor Weight
    25.8Kg, 30.1Kg

BETWEEN INDOOR & OUTDOOR

  • Piping length
    5.0 m
    Max. Elevation Difference
    7 m
  • Piping Connection Heat Insulation
    Both liquid and gas pipes
