86" class (85.6" Diagonal)

  • 86BH5C

Key Features

  • Ultra HD Resolution (3840 x 600)
  • 58:9 Extended Wide Format
  • 4 Divided PBP in Landscape or Portrait
  • Multiple Content Creation

86" ULTRA STRETCH INSTALLATION VIDEO

Learn how to install the 86BH5C here.

86
LG 86” Ultra Stretch Pillar Introduction

LG 86” Ultra Stretch Pillar Introduction

Watch this video to learn about the 86"Ultra Stretch Pillars: Single Digital Pillar, Dual Digital Pillar, Quad Digital Pillar and Three-Dided Digital Pillar.

Ultra HD Resolution (3840 x 600)

Ultra HD Resolution (3840 x 600)

Ultra HD large screens deliver an immersive viewing experience.

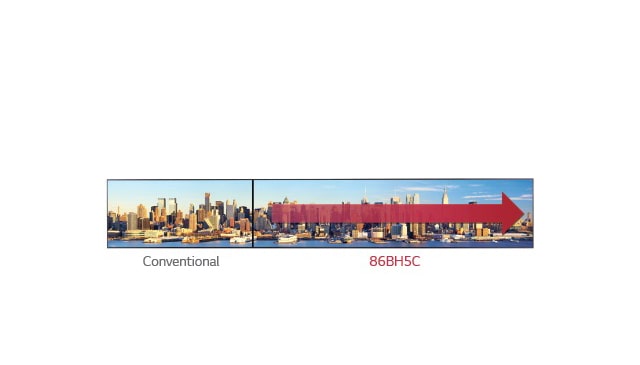

58:9 Extended Wide Format

Dynamic content is delivered on one screen since the new widescreen format is a 58:9 bar- type display.

58:9 Extended Wide Format
4 Divided PBP in Landscape or Portrait

4 Divided PBP in Landscape or Portrait

The Picture-by-Picture (PBP) feature allows you to divide a screen into four parts in landscape or portrait installations.

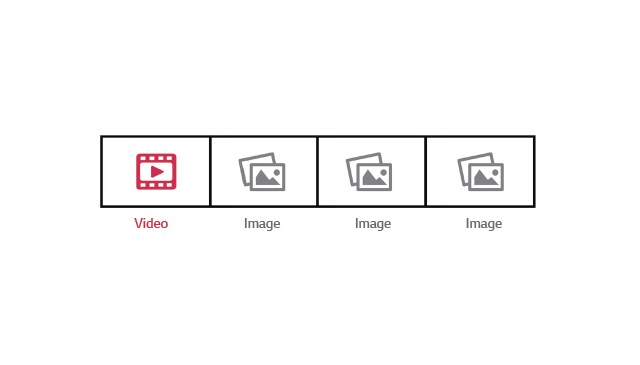

Multiple Content Creation

Users can edit content that consists of one video and several still images (up to 20) with SuperSign Editor.

Multiple Content Creation

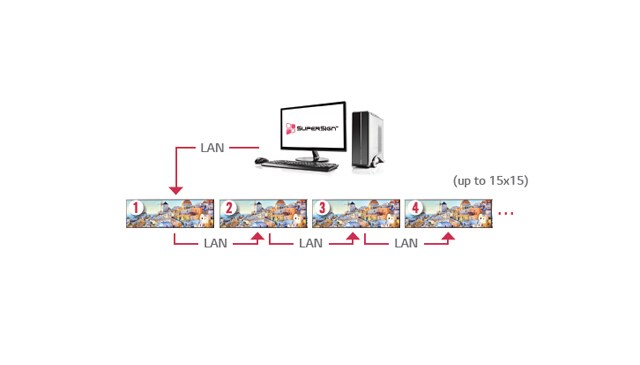

LAN Daisy Chain

LAN Daisy Chain

The LAN daisy chain allows you to control and monitor devices, distribute content, and even update firmware.

Visit our SuperSign Software Center for all the latest software needs

Click here to download SuperSign Software

PANEL
Screen Size86" class (TBD") diagonal
BrightnessTyp: 500cd/m2, Min : 400cd/m2
Life time50,000 Hrs
Viewing Angle(H x V)178 x 178
Dynamic CR500,000:1 (Typ) : TBD
Contrast Ratio1,100:1(Typ)
Response Time8ms (G to G BW) typ.
Surface TreatmentAGP (10% Haze)
OrientationLandscape / Portrait
Panel TechnologyIPS
Aspect Ratio58:9
Native Resolution3,840 x 600 (UHD)
ACCESSORY
BasicRemote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M) Owner's Manual (Website upload)
OptionalAN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available
MEDIA PLAYER COMPATIBILITY
OPS type compatibleYes
External Media player AttachableNo
PHYSICAL SPECIFICATION
Bezel ColorBlack
VESA TM Standard Mount Interface200mm x 600mm
Packed Weight78lbs
Carton Dimensions (W x H x D)90.2" x 9" x 18.9"
Weight (Head)45.2lbs
Bezel Width4.4mm (L/R), 5.9mm (T/B)
Monitor Dimension (W x H x D)85" x 13.7" x 3.2"
CONNECTIVITY
InputHDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card
External ControlRS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio
OutputAnalog Audio
OTHER
UPCTBD
SPECIAL FEATURES
YesTemperature Sensor, Auto Brightness Sensor, Tile Mode, Natural Mode@Tile Mode, ISM Method, Energy Saving, Smart Energy Saving, File Play with USB/SD/Internal Memory, PIP/PBP, 8GB (System 4GB + Available 4GB), Wi-Fi Dongle Ready, 4K Up Scaling
POWER
Power Consumption Smart Energy Saving30% of typical
Power Consumption Typ. / Max.180W/220W
Power Supply100 -240V~, 50/60Hz
Power TypeBuilt-In Power
STANDARD CERTIFICATION
SafetyUL / cUL / CB / TUV / KC
EMCFCC Class "A" / CE / KC
SOFTWARE COMPATIILITY
SuperSign CYes
SuperSign W/LiteYes
WARRANTY
Warranty3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available
ENVIRONMENT CONDITIONS
Operation Temperature Range32 °F to 104 °F
