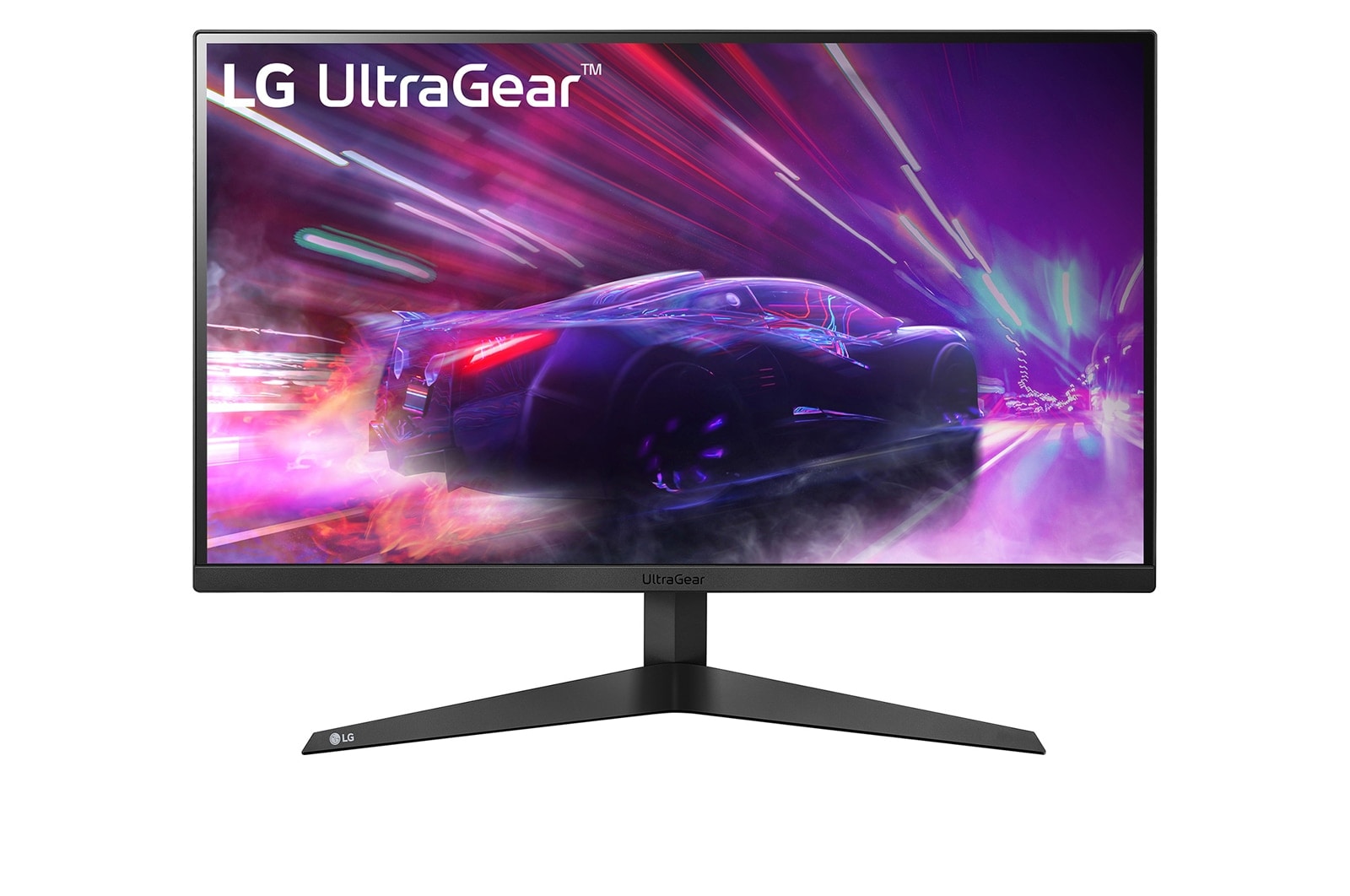

UltraGear™
Enhance your gaming experience with the LG UltraGear™ monitor
*AMD Freesync™ is only available when connected to a Display Port and used in conjunction with a compatible AMD graphics card.
*Images dramatised for illustrative purposes
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*1ms Motion Blur Reduction causes lowered luminance, and the following features cannot be used while it is activated : AMD FreeSync™ / DAS (Dynamic Action Sync).
*Flicker may occur during 1ms MBR operation.
*Images dramatised for illustrative purposes.
*Comparison of Mode 'OFF' (left image) and AMD FreeSync™ Premium.

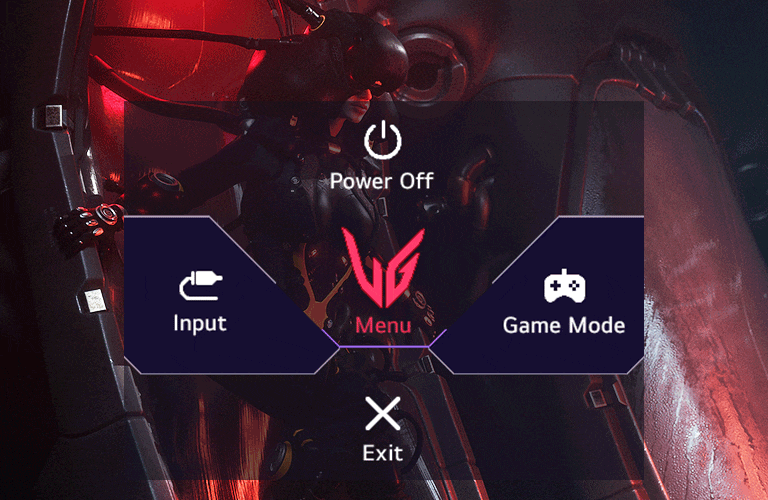

*To download the latest OnScreen Control, visit LG.COM.
*Images dramatised for illustrative purposes.
*The conventional illustrates the LG's model is not supported in Dynamic Action Sync (DAS) feature.
*Images dramatised for illustrative purposes.
*Images dramatised for illustrative purposes.
*Images dramatised for illustrative purposes.
Size [Inch]
23.8
Resolution
1920 x 1080
Panel Type
VA
Aspect Ratio
16:9
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Brightness (Typ.) [cd/m²]
250
Refresh Rate (Max.) [Hz]
165
Response Time
5ms (GtG at Faster)
Display Position Adjustments
Tilt
Size [Inch]
23.8
Aspect Ratio
16:9
Panel Type
VA
Response Time
5ms (GtG at Faster)
Resolution
1920 x 1080
Pixel Pitch [mm]
0.2739 x 0.2739
Color Depth (Number of Colors)
16.7M
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Brightness (Typ.) [cd/m²]
250
Contrast Ratio (Typ.)
3000:1
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Color Gamut (Min.)
NTSC 70% (CIE1931)
Refresh Rate (Max.) [Hz]
165
Brightness (Min.) [cd/m²]
200
Contrast Ratio (Min.)
1800:1
Size [cm]
60.3

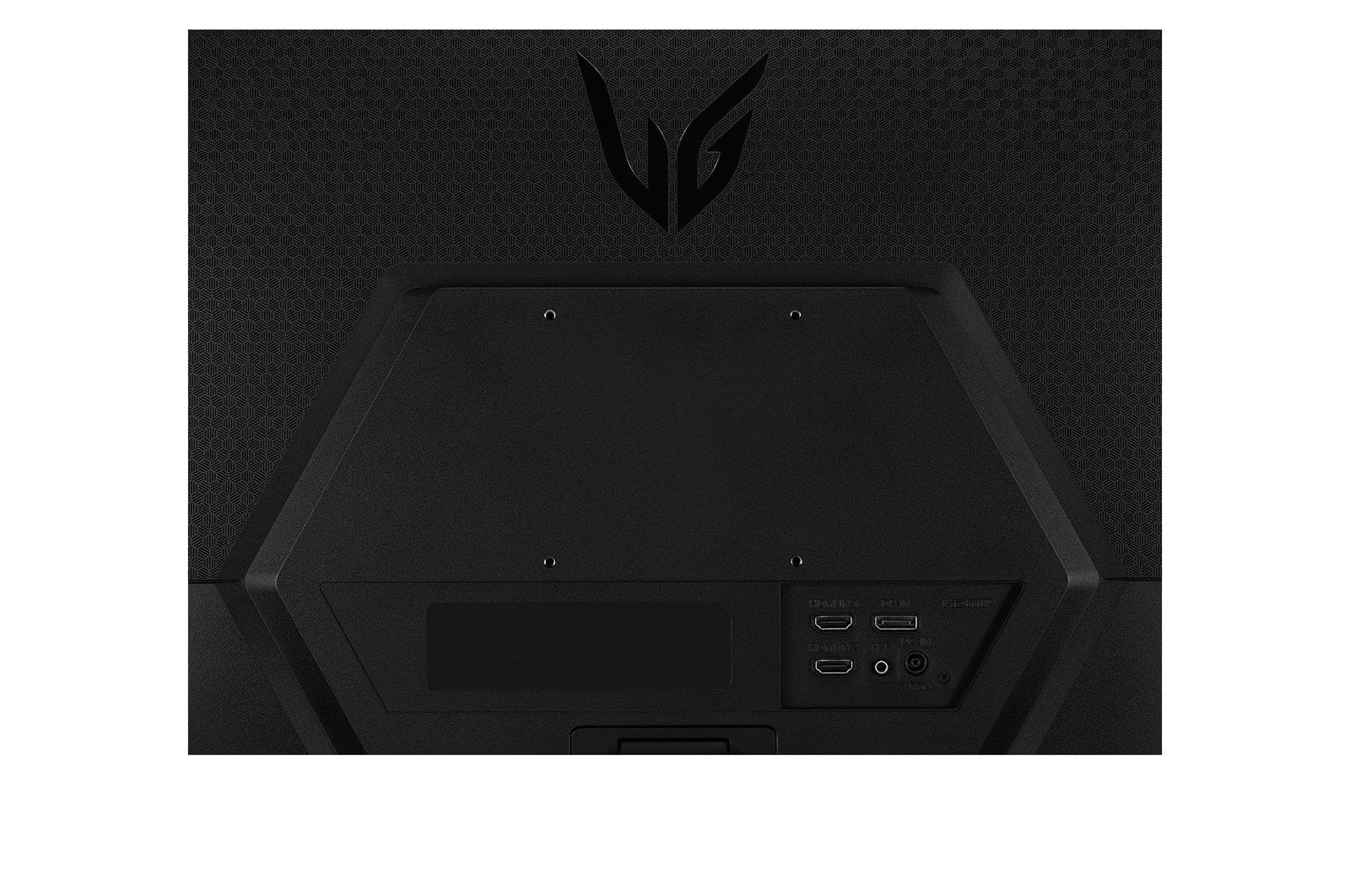

HDMI
YES(2ea)
DisplayPort
YES(1ea)
DP Version
1.2
Headphone out
3-pole (Sound Only)
AMD FreeSync™
FreeSync Premium
Smart Energy Saving
YES
Flicker Safe
YES
Dynamic Action Sync
YES

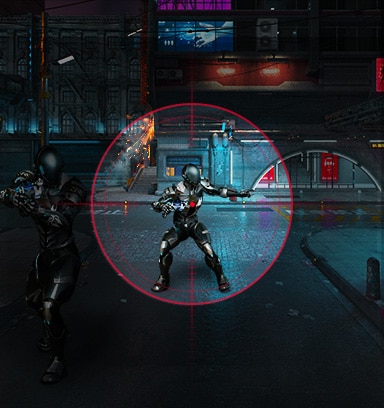

Black Stabilizer
YES
Crosshair
YES
Reader Mode
YES
FPS Counter
YES
Motion Blur Reduction Tech.
YES
User Defined Key
YES
Auto Input Switch
YES

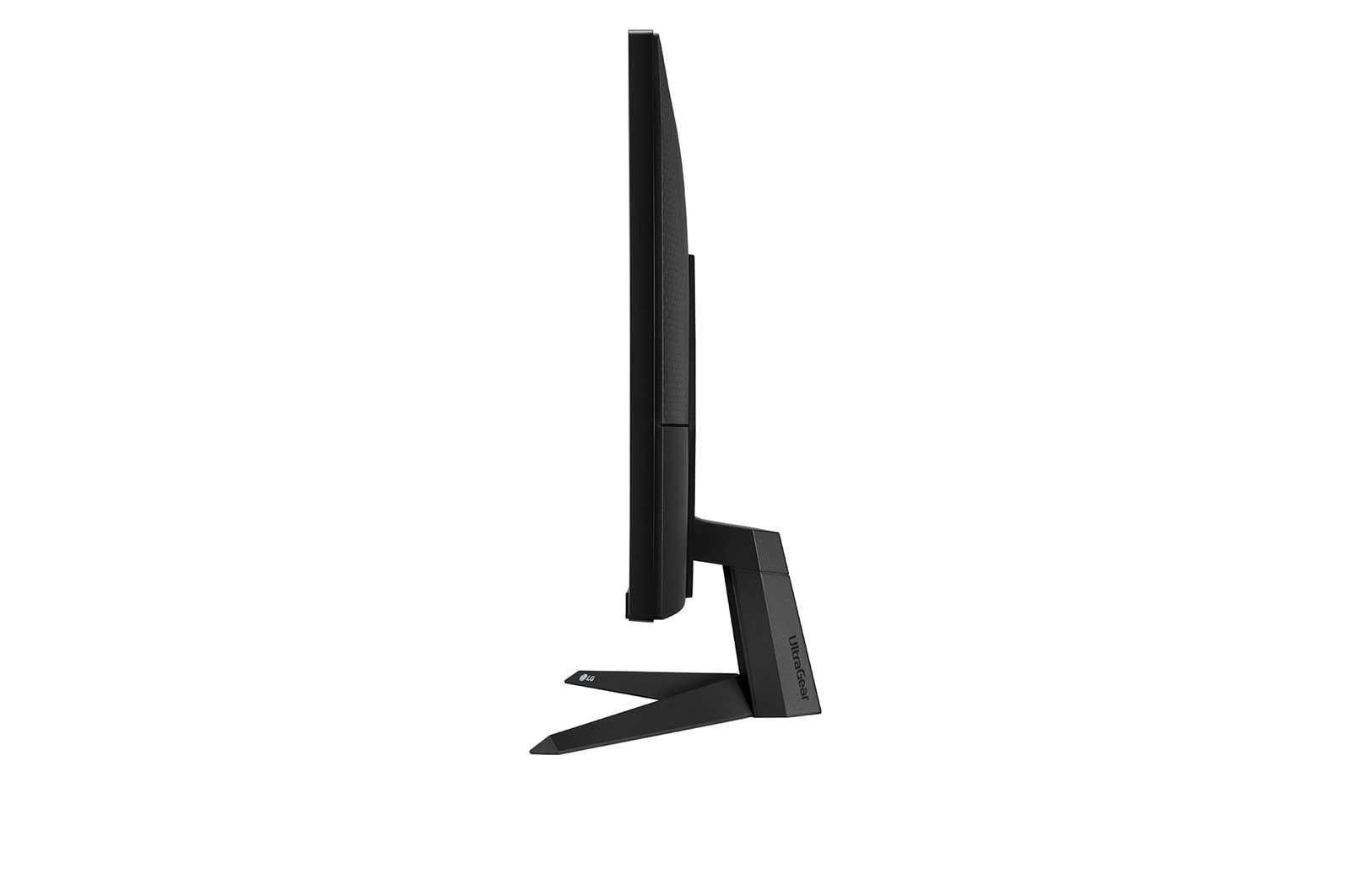

Display Position Adjustments
Tilt
Wall Mountable [mm]
75 x 75
Dimension in Shiping (W x H x D) [mm]
710 x 156 x 400
Dimension with Stand (W x H x D) [mm]
539.5 x 414.2 x 196.0
Dimension without Stand (W x H x D) [mm]
539.5 x 322.2 x 39
Weight in Shipping [kg]
5.28
Weight with Stand [kg]
3.57
Weight without Stand [kg]
2.97
Product name
UltraGear
Year
2022
Power Consumption (Max.)
27W
Power Consumption (Sleep Mode)
0.5W
Power Consumption (Typ.)
24W
Power Consumption (DC Off)
Less than 0.3W
AC Input
100-240V (50/60Hz)
Type
External Power(Adapter)
Display Port
YES
OnScreen Control (LG Screen Manager)
YES
RoHS
YES
