45” UltraGear™ OLED curved gaming monitor | 800R, DisplayHDR True Black 400, 240Hz, 0.03ms (GtG), USB Type-C™, DepthSound

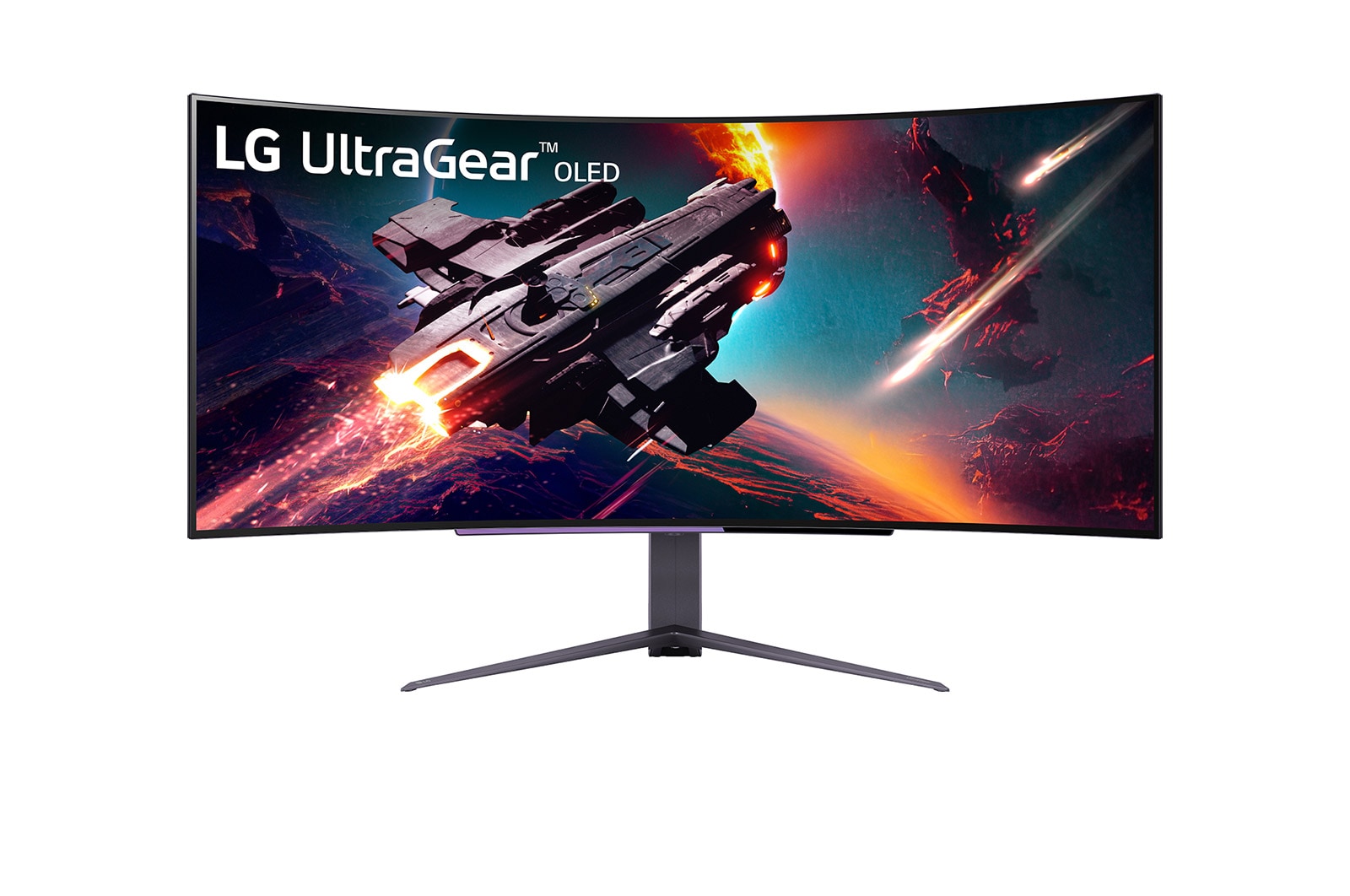

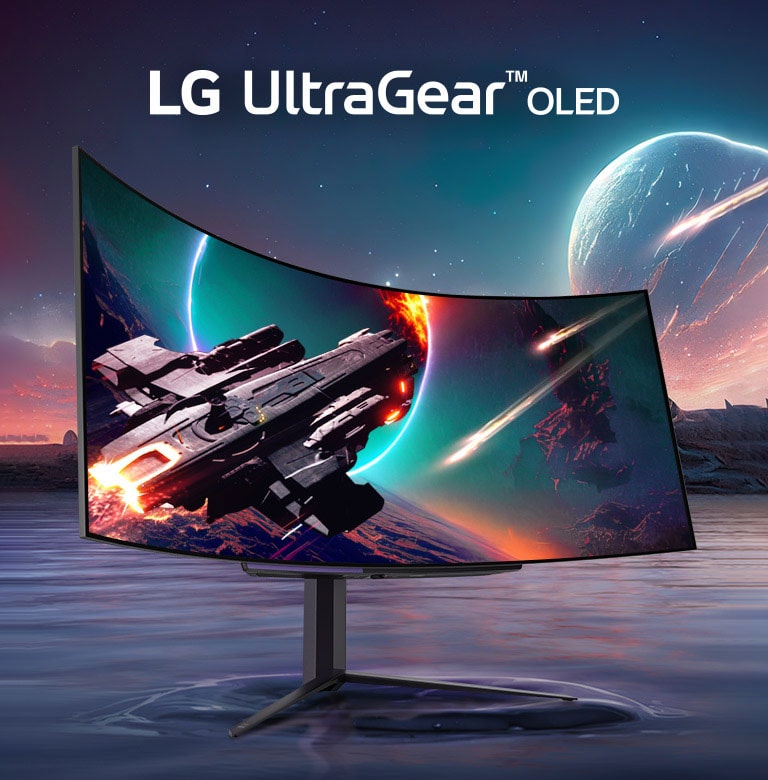

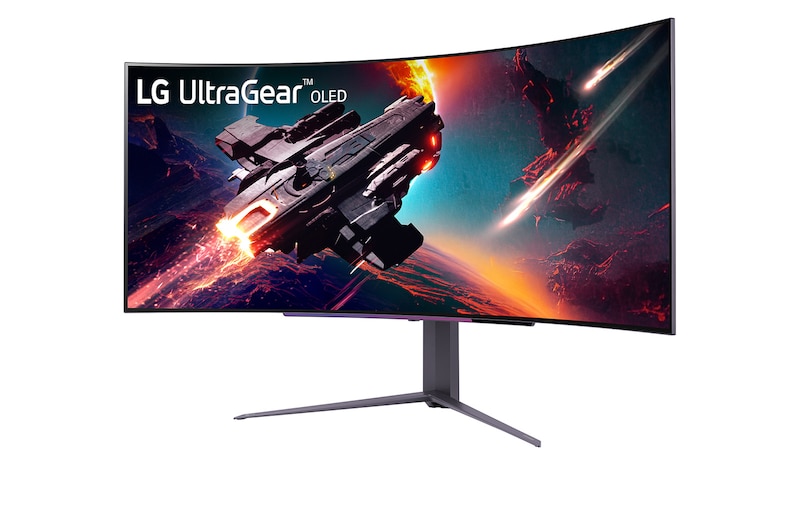

It is a 45GR96QB with the UltraGear™ OLED logo.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The brightness of the monitor is compared to the previous model, LG UltraGear™ 45GR95QE.

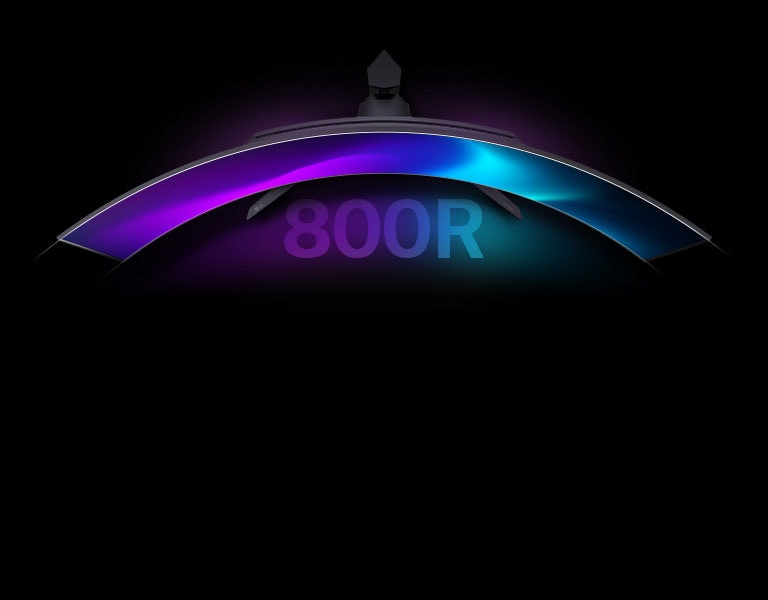

Top view of 800r curvature body.

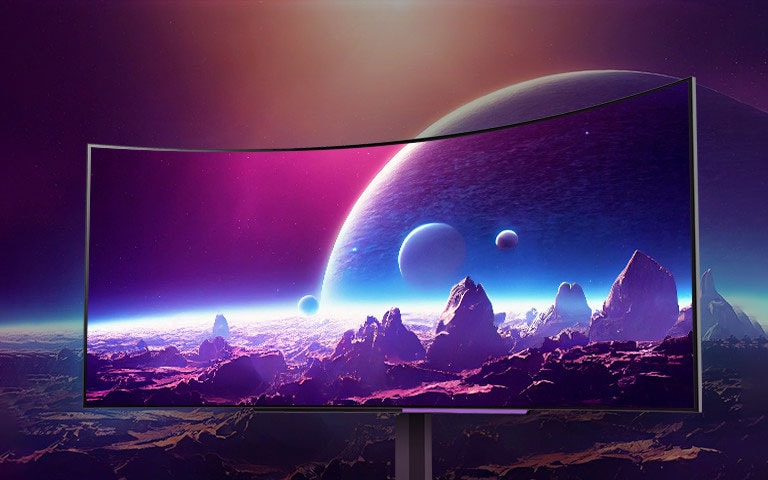

It is a 45" 800R curved monitor.
*Based on the assumption of viewing an 800R curved display from a distance of 800mm, and may vary depending on the distance from the screen and the user's posture.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
**The brightness of the monitor is compared to the previous model, LG UltraGear 45GR95QE.
***Brightness is 275-1,300nits (Typ.).
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
** 1.5m:1 is the contrast ratio at 25% APL (Average Picture Level) value is given as a percentage and refers to the value between the black level and the reference level for white.

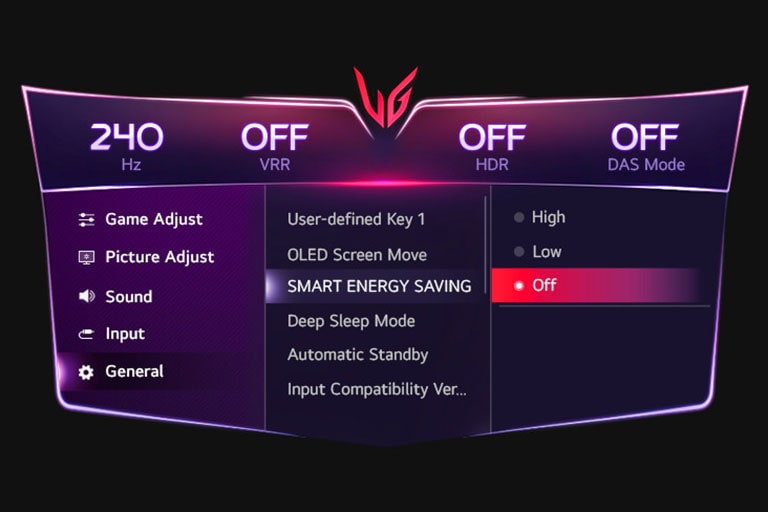

[Option 1] Turn off the Smart Energy Saving mode.

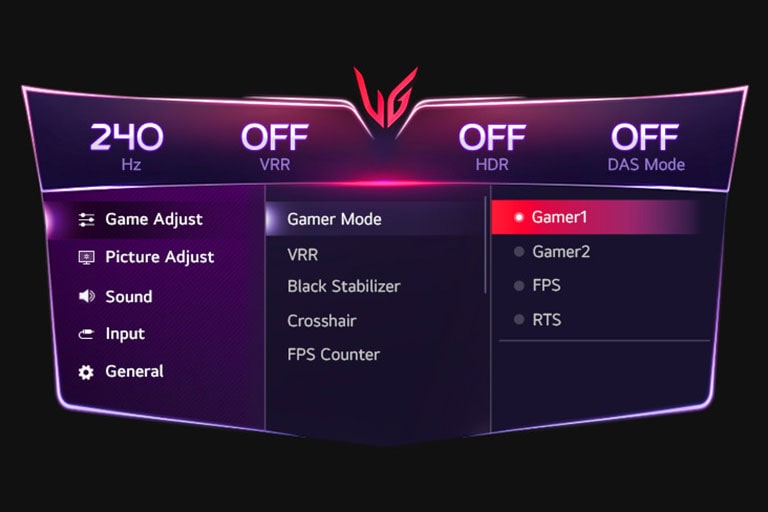

[Option 2] Set Game Mode as Gamer 1.

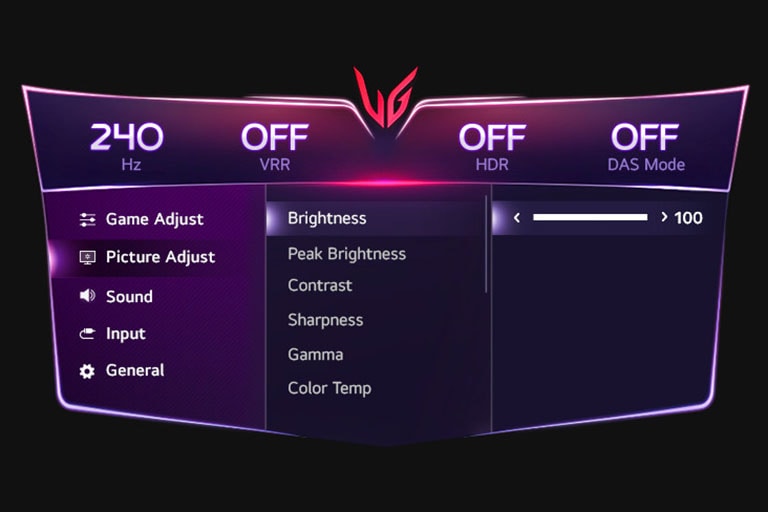

[Option 3] Set Brightness to 100.

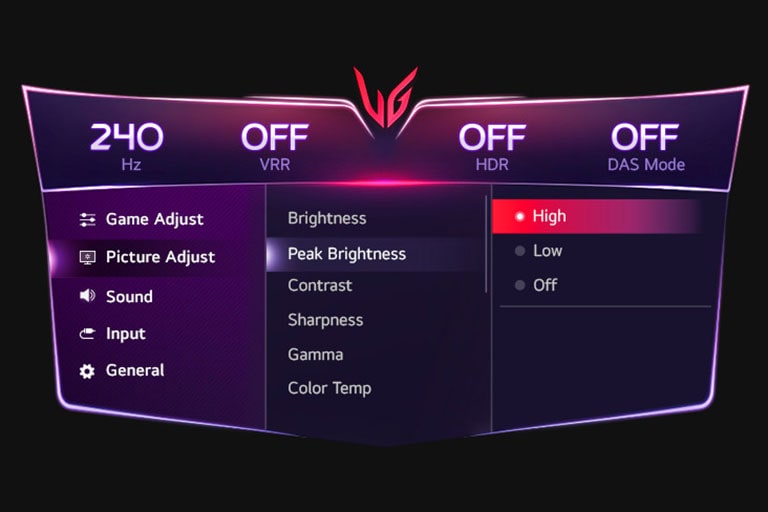

[Option 4] Set Peak Brightness as High.
[Option 1] Turn off the Smart Energy Saving mode.
[Option 2] Set Game Mode as Gamer 1.
[Option 3] Set Brightness to 100.
[Option 4] Set Peak Brightness as High.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Power consumption may increase when the above options are chosen.
*The display burn-in may occur in brighter mode.

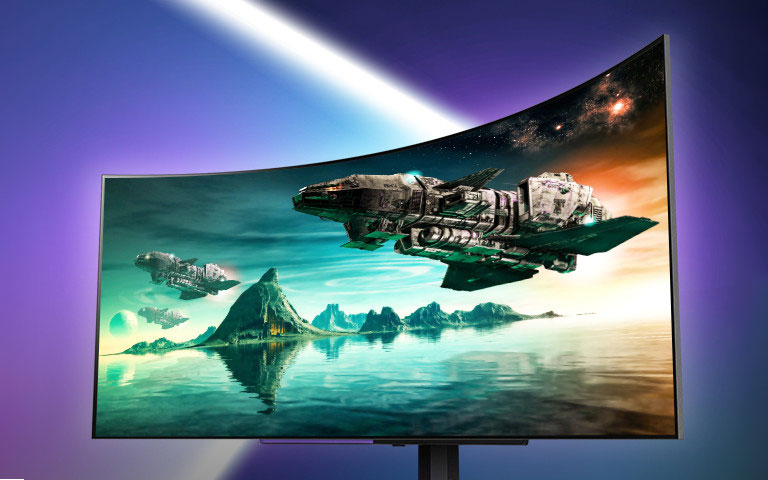

Better viewing display of Anti-glare
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*It supports up to 240Hz rapid refresh rate. A graphic card that supports DP 1.4, HDMI 2.1, or USB Type-C™ cable is required to work properly.
**The graphics card is NOT included in the package. You should purchase it separately. The DisplayPort, HDMI, and USB Type-C™ cables are included in the package.
Comparison of fluid gaming image - The left image is tearing, and the Right image is tear-free.
Featuring VESA AdaptiveSync Display certification, geared towards gaming with notably higher refresh rates and low latency. Enjoy smoother, tear-free gaming visuals and jitter-free video playback.
This monitor is an NVIDIA-tested and officially validated G-SYNC® Compatible monitor, that can give you a good gaming experience with significantly reduced tearing or stuttering.
With FreeSync™ Premium Pro technology**, gamers can experience seamless, fluid movement in high-resolution and fast-paced games. It significantly reduces screen tearing and stuttering.
*The images simulated to enhance feature understanding. It may differ from actual use.
**The performance of the feature is compared to the models not applying the sync technology.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Headsets are NOT included in the package. You should purchase it separately.
*This feature is only available as a 4-way joystick is included in the package.
Reducing input lag with Dynamic Action Sync, gamers can catch critical moments in real-time and respond quickly.
Black Stabiliser helps gamers detect snipers lurking in the darkest corners and swiftly navigate flash explosions.
The target point is fixed in the center to enhance shooting accuracy.
The FPS Counter will let you see how well everything is loading. Whether you're editing, playing games, or watching a movie, every frame matters, and with the FPS Counter, you'll have real-time data.
*The images simulated to enhance feature understanding. It may differ from actual use.
**The Crosshair feature is unavailable while the FPS Counter is activated.
***FPS (Frame Per Second) Counter: Measurement of frames per second. FPS Counter may display the value that exceeds the monitor’s maximum refresh rate.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The software and a Calibration Sensor are NOT included in the package. To download the latest LG Calibration Studio software, visit LG.COM.
HDMI
YES(2ea)
HDMI Version
HDMI 2.1
HDMI (HDCP Version)
2.3
DisplayPort
YES(1ea)
DP Version
1.4 (DSC)
DP (HDCP Version)
2.3
USB-C
YES(1ea)
USB-C (HDCP Version)
2.3
USB-C (Data Transsmission)
YES
USB-C (Power Delivery)
65W
USB Downstream Port
YES(2ea/ver3.0)

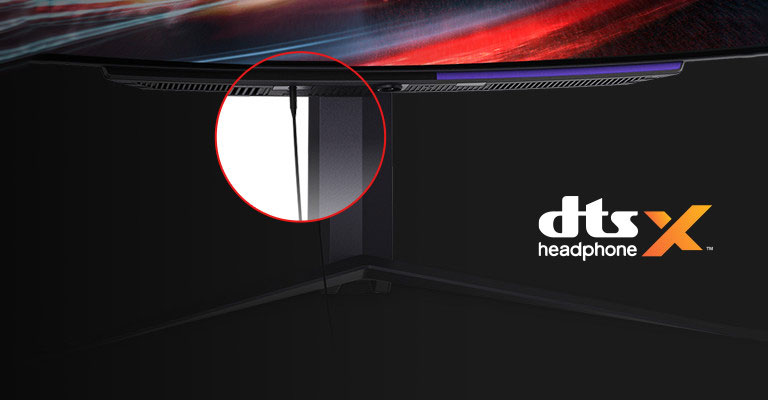

Headphone out
4-pole (Sound+Mic)
Type
External Power(Adapter)
AC Input
100~240V (50/60Hz)
Power Consumption (On-Mode)
56W
Power Consumption (On-Mode) (ErP)
43W
Power Consumption (On-Mode) (KR)
60.5W
Power Consumption (Sleep Mode)
Less than 0.3W
Power Consumption (DC Off)
Less than 0.5W
HDMI
YES (ver 2.1)
Display Port
Yes
USB-C
YES
HDR 10
YES
VESA DisplayHDR™
DisplayHDR™400 TRUE BLACK
HDR Effect
YES
Colour Calibrated in Factory
YES
HW Calibration
HW Calibration Ready
Reader Mode
YES
Colour Weakness
YES
NVIDIA G-Sync™
G-SYNC Compatible
AMD FreeSync™
FreeSync Premium Pro
VRR
YES <br/>
VESA Adaptive Sync
YES
VESA ClearMR
13000
Black Stabiliser
Yes
Dynamic Action Sync
YES
Crosshair
YES<br/>
FPS Counter
YES<br/>
User Defined Key
YES<br/>
Auto Input Switch
YES<br/>
RGB LED Lighting
Hexagon Lighting
PBP
2PBP
PIP
YES
Smart Energy Saving
YES
Live Colour Low Blue Light
YES
Size [Inch]
44.5
Size [cm]
113
Resolution
3440 x 1440
Panel Type
OLED
Aspect Ratio
21:9
Pixel Pitch [mm]
0.303 x 0.303mm
PPI (Pixel Per Inch)
84
Brightness (Min.) [cd/m²]
250cd/㎡
Brightness (Typ.) [cd/m²]
275cd/m²
Colour Gamut (Min.)
DCI-P3 90% (CIE1976)
Colour Gamut (Typ.)
DCI-P3 98.5% (CIE1976)
Colour Depth (Number of Colours)
1.07B
Contrast Ratio (Min.)
1200000:1
Contrast Ratio (Typ.)
1500000:1
Response Time
0.03ms (GtG)
Refresh Rate (Max.) [Hz]
240
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Curvature
800R
Speaker
7W x 2
DTS Headphone:X
Yes
DepthSound
YES
Dimension with Stand (W x H x D) [mm]
992.7 x 647.7 x 362.5mm(UP) / 992.7 x 537.7 x 362.5mm(Down)
Dimension without Stand (W x H x D) [mm]
992.7 x 457 x 218mm
Dimension in Shiping (W x H x D) [mm]
1100 x 317 x 550mm
Weight with Stand [kg]
11.3kg
Weight without Stand [kg]
9.0kg
Weight in Shipping [kg]
17.0kg

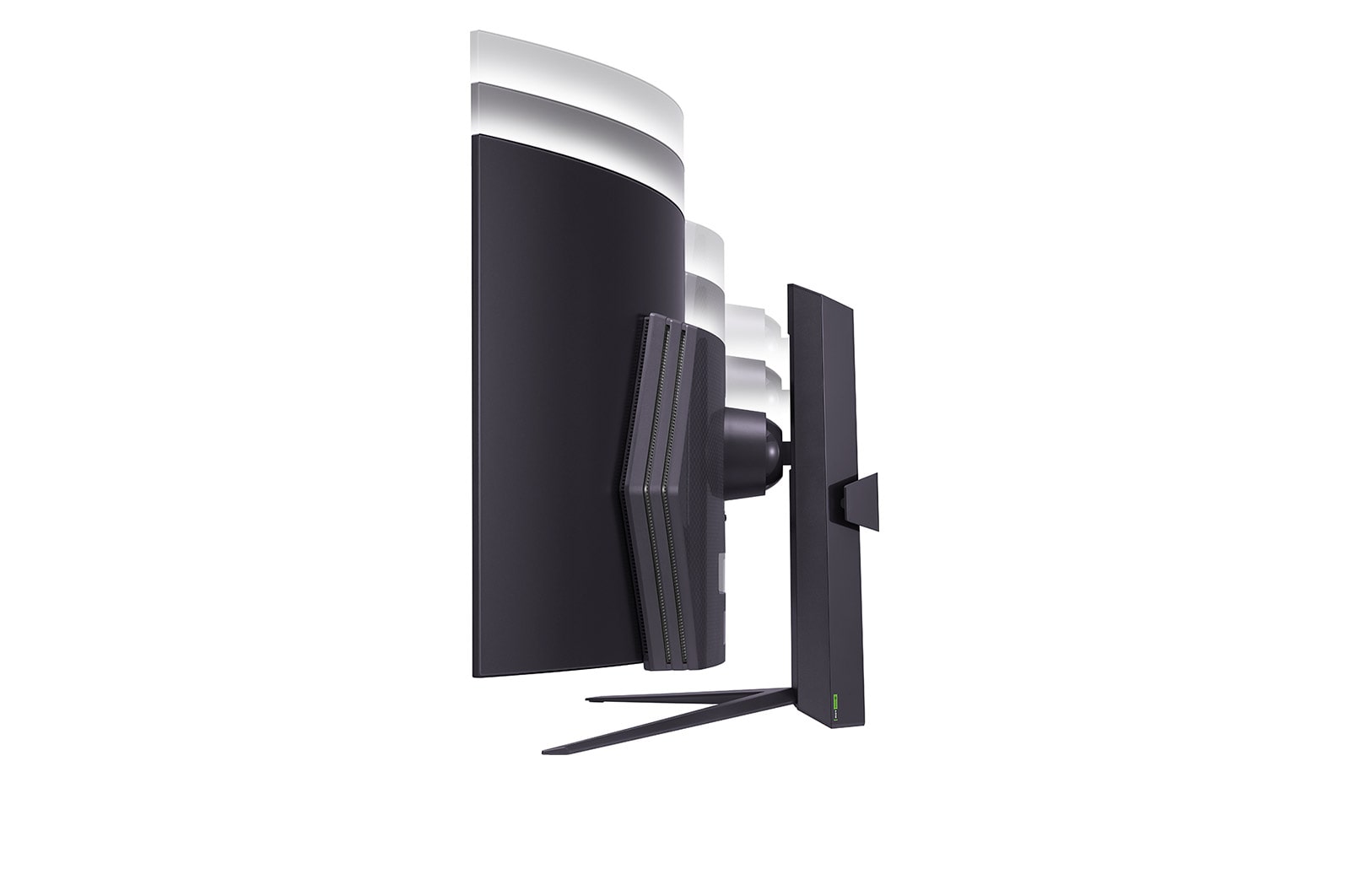

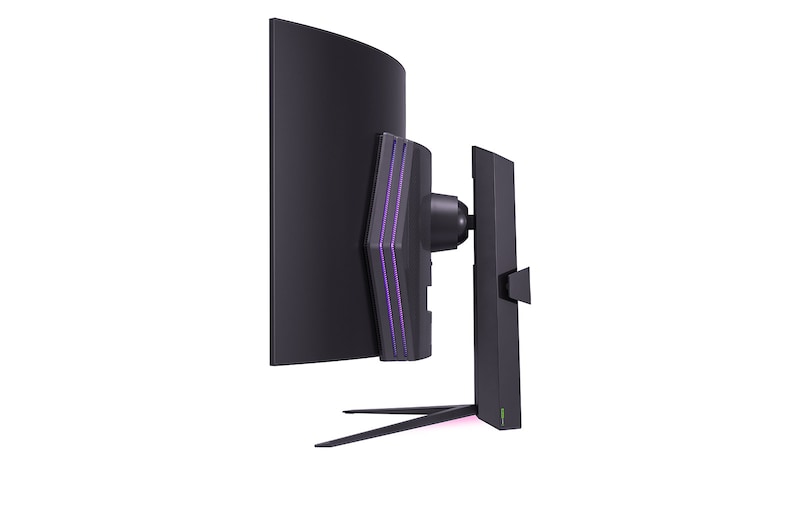

Display Position Adjustments
Tilt/Height/Swivel

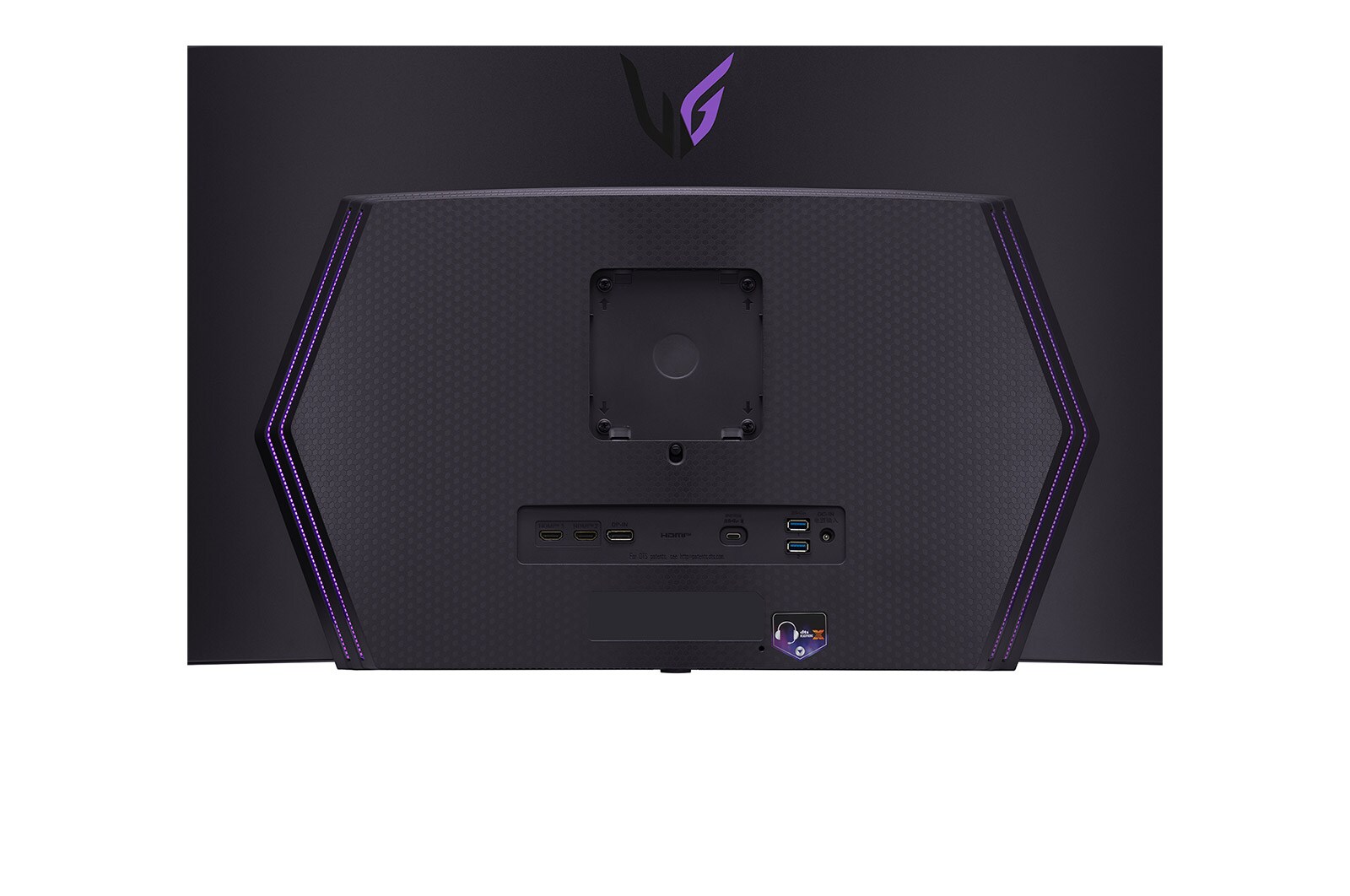

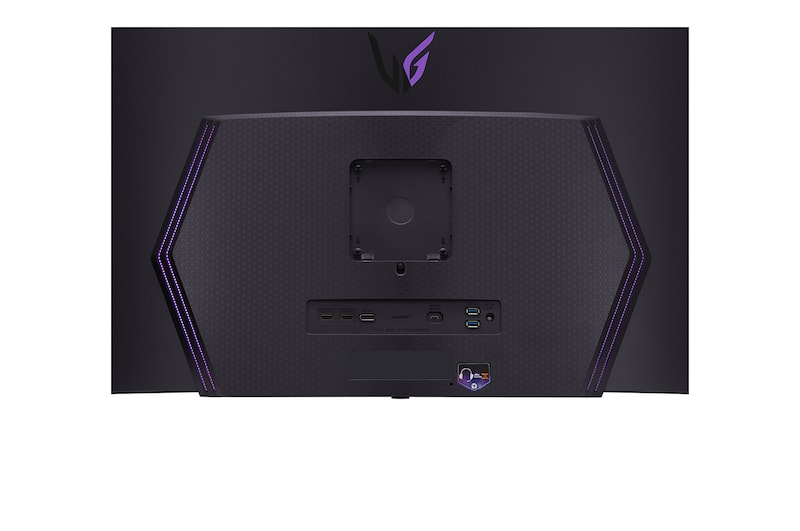

Wall Mountable [mm]
100 x 100mm
LG Calibration Studio (True Colour Pro)
YES
Dual Controller
YES
OnScreen Control (LG Screen Manager)
YES
Product name
UltraGear
Year
Y24
