*The images simulated to enhance feature understanding. It may differ from actual use.

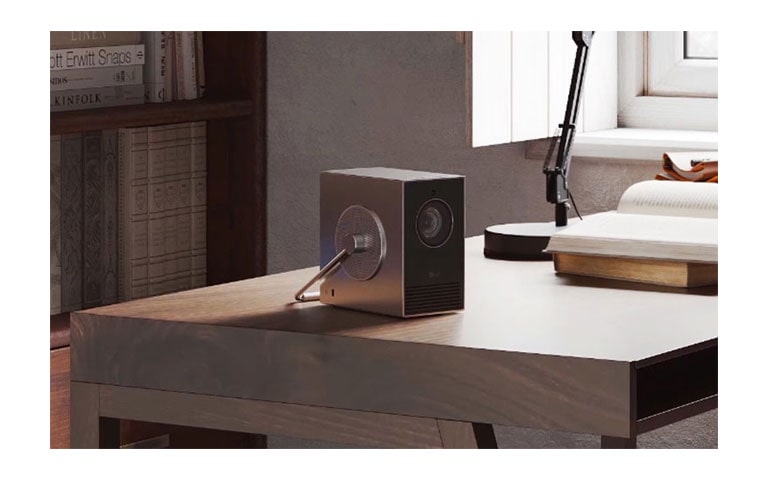

Small simplicity
Small size
Minimalism design
Premium picture quality
4K UHD RGB Laser
DCI-P3 154% (Overall) / Contrast 450,000:1
Up to 120-inch screen
Easy to use
Easy portability
Versatile handle

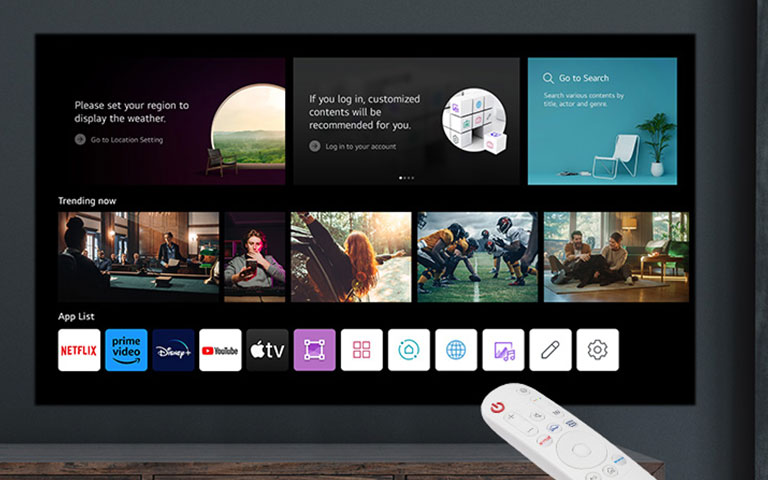

Smart webOS

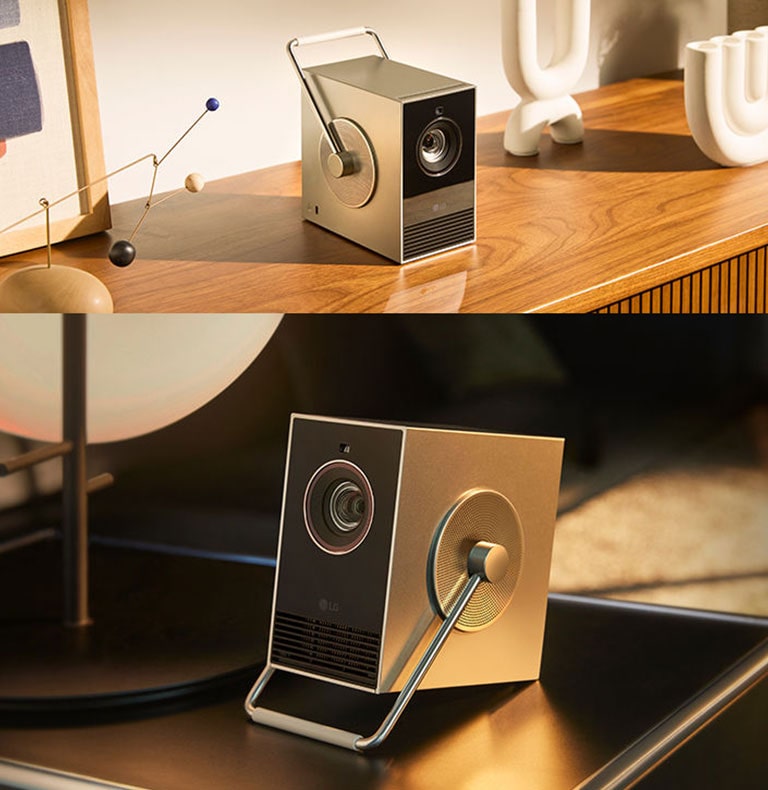

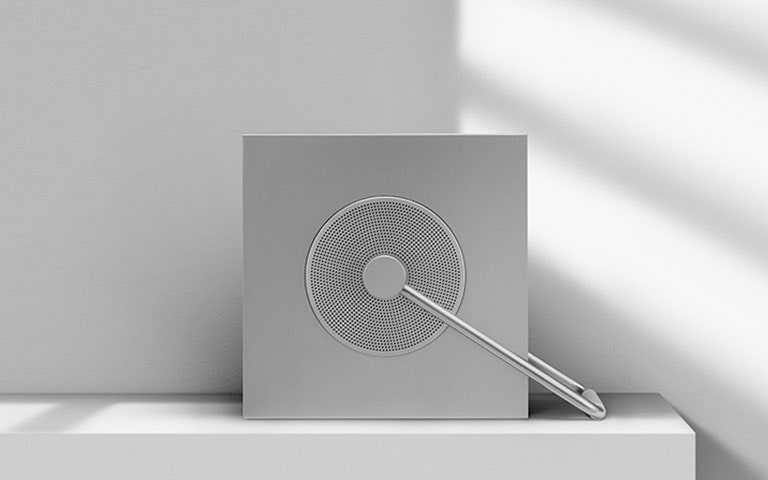

The essence of simplicity
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.

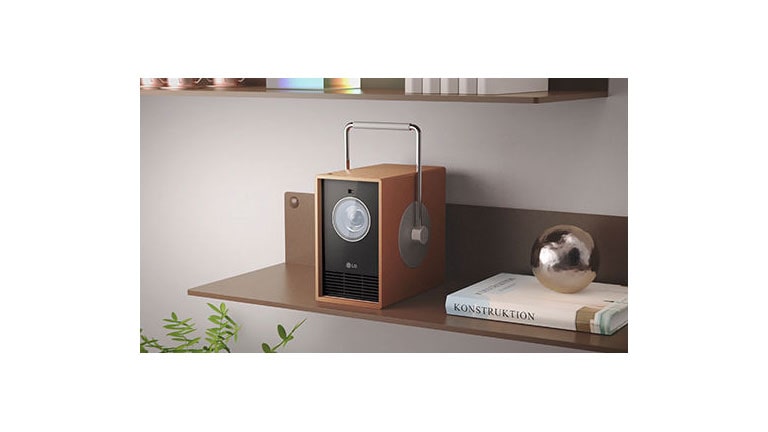

Add aesthetics practically
*Protector accessory is optional, available at additional cost.

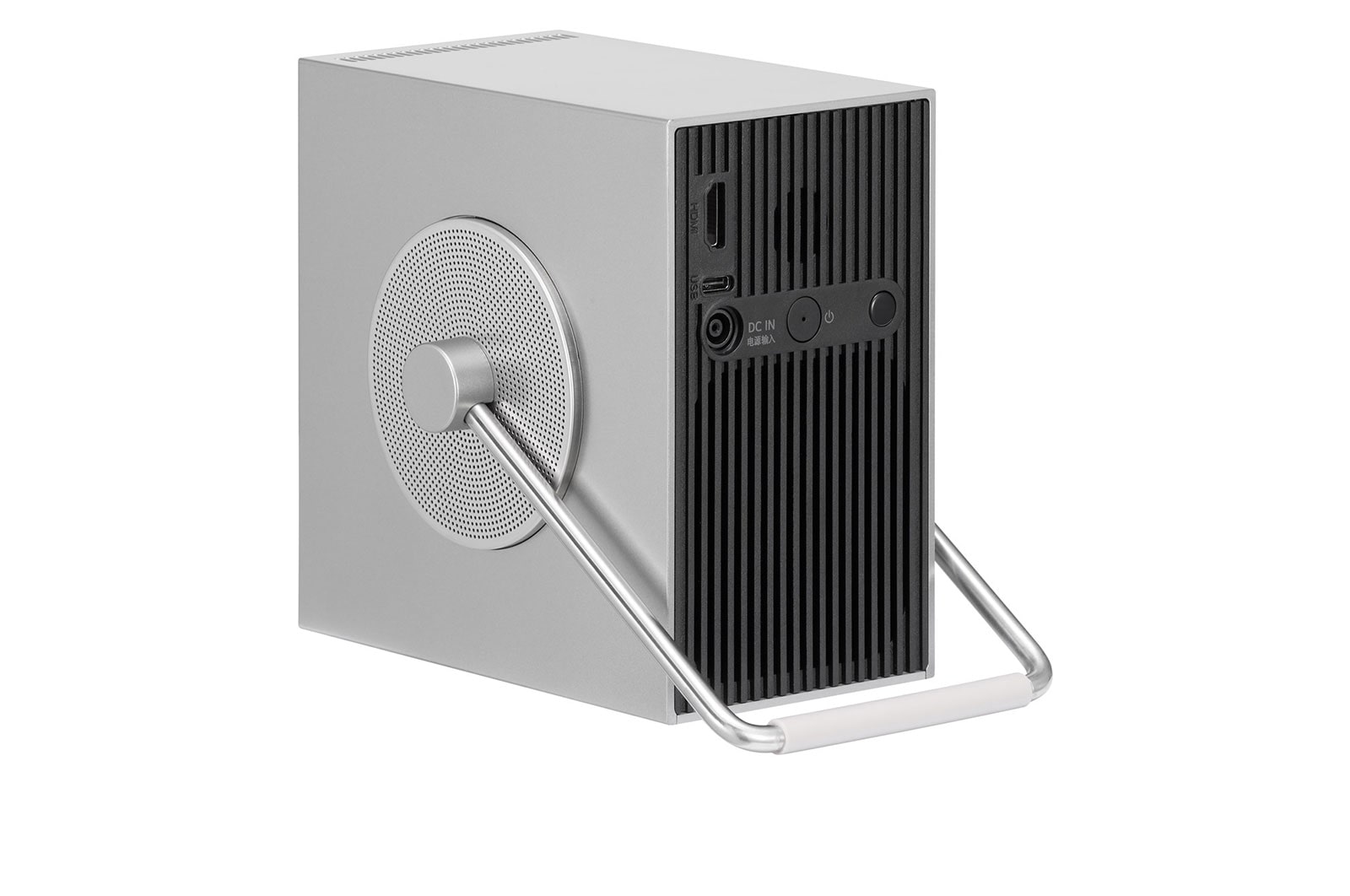

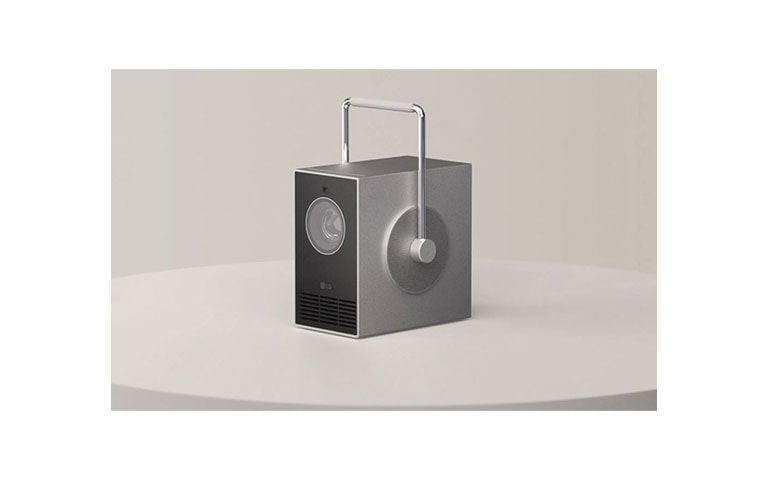

Handle with ease
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.

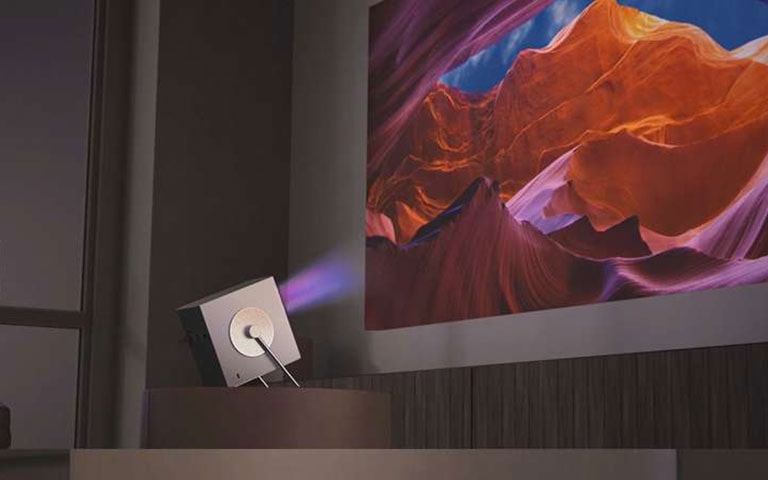

Small with greatness
*The images simulated to enhance feature understanding. It may differ from actual use.
*Screen size may vary based on projection distance.
Surreal colour to inspire
*The above figures are based on 'Brightest mode' and may vary depending on your environment.
*The figures of colour gamut measured values from internal testing and may vary depending on your environment.
*3-channel RGB Laser offers a separate light source for red, green, and blue.
*The images simulated to enhance feature understanding. It may differ from actual use.
Real black for deep detail
*The above figures are based on 'Brightest mode' and may vary depending on your environment.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The images simulated to enhance feature understanding. It may differ from actual use.
Place and play
*The images simulated to enhance feature understanding. It may differ from actual use.
*If there are obstacles such as corners or uneven surfaces, this feature may not work properly.
*If the distance from the screen is over 2m or the placement is over 25 degrees, the auto screen adjustment may not work properly.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Internet connection and subscription to related services are required. Separate services may require payment for a subscription, and it is not provided (purchase separately).
Fully ready to connect

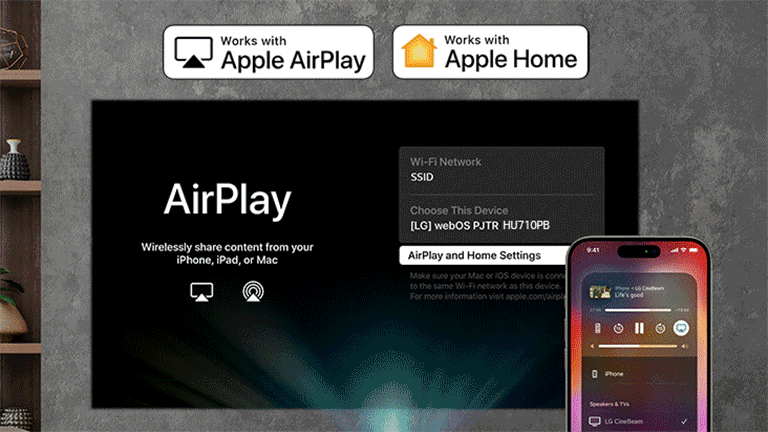

From phone to cinema
*Your Apple device must be connected to the same Wi-Fi network as your projector. This projector supports AirPlay 2 and requires iOS 12.3 or later or macOS 10.14.5 or later.
**Supported on Android or Windows 8.1 and above.
***Depending on the Wi-Fi environment and firmware version of connected external devices, these features may not work properly.
***The images simulated to enhance feature understanding. It may differ from actual use.
Cinematic surround sound
*Supported on BT 5.0 and above. The sound between the two connected devices may not match.
*The images simulated to enhance feature understanding. It may differ from actual use.

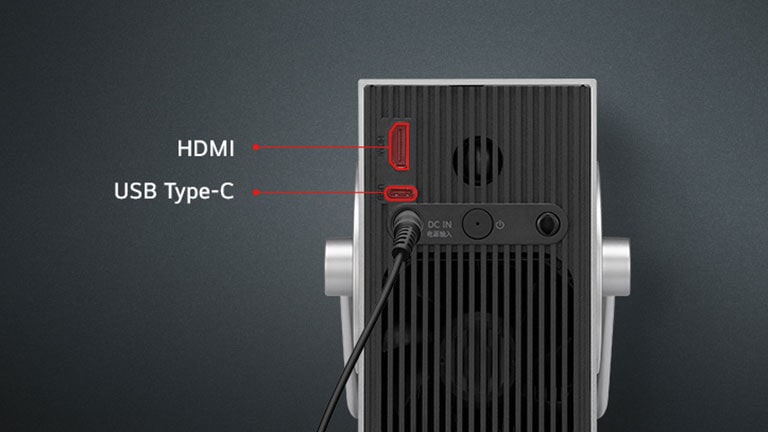

In line with various interfaces
*The images simulated to enhance feature understanding. It may differ from actual use.
*It supports a 4K 30Hz by connecting the external device with a USB Type-C port and does not support HDR.
*This projector does not have a built-in battery. The connection of the power cord or external battery is required for operation.

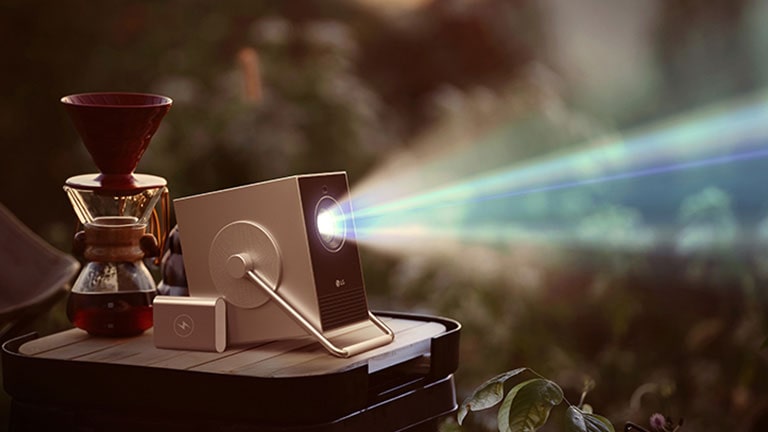

External battery compatibility
*The images simulated to enhance feature understanding. It may differ from actual use.
*This projector does not have a built-in battery. The connection of the power cord or external battery (20V/3.25A or higher) is required for operation.
Create your own vibe
A scene showcasing the application of the light drawing feature - reading a book in living room.
*The images simulated to enhance feature understanding. It may differ from actual use.
*To work properly, install the LG CineBeam Q App on the connected device and control details through the app.
*The images simulated to enhance feature understanding. It may differ from actual use.

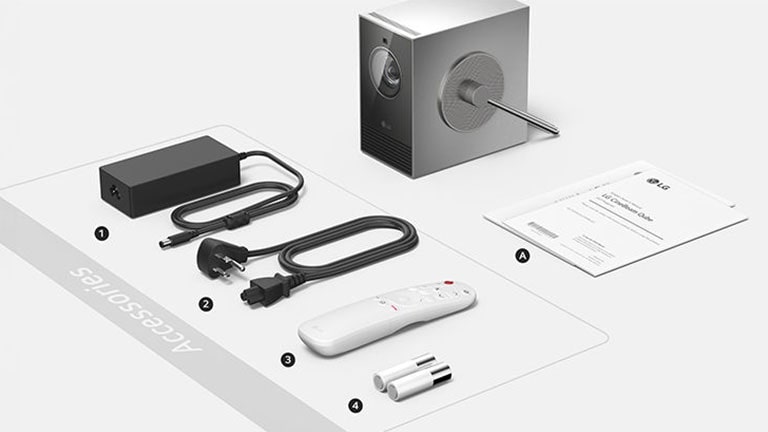

What's in the box
*The images simulated to enhance feature understanding. It may differ from actual use.
Key Feature
-
Minimal size & Design (135 x 135 x 80mm)
-
4K UHD RGB Laser
-
Maximal 120-inch screen size
-
DCI-P3 154% (Overall), Contrast 450,000:1
-
Auto Screen Adjustment, Light Drawing
-
500 ANSI Lumens

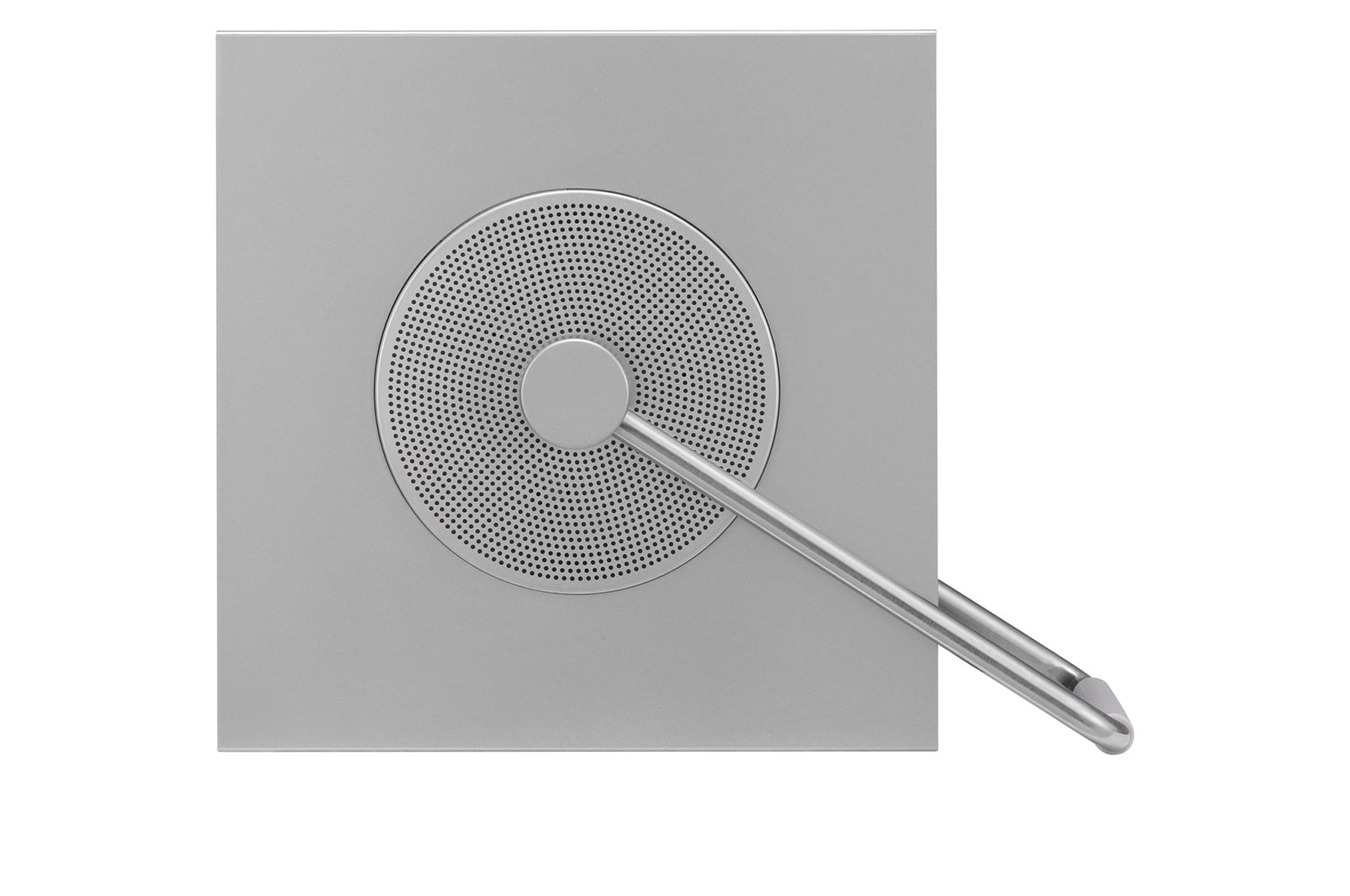

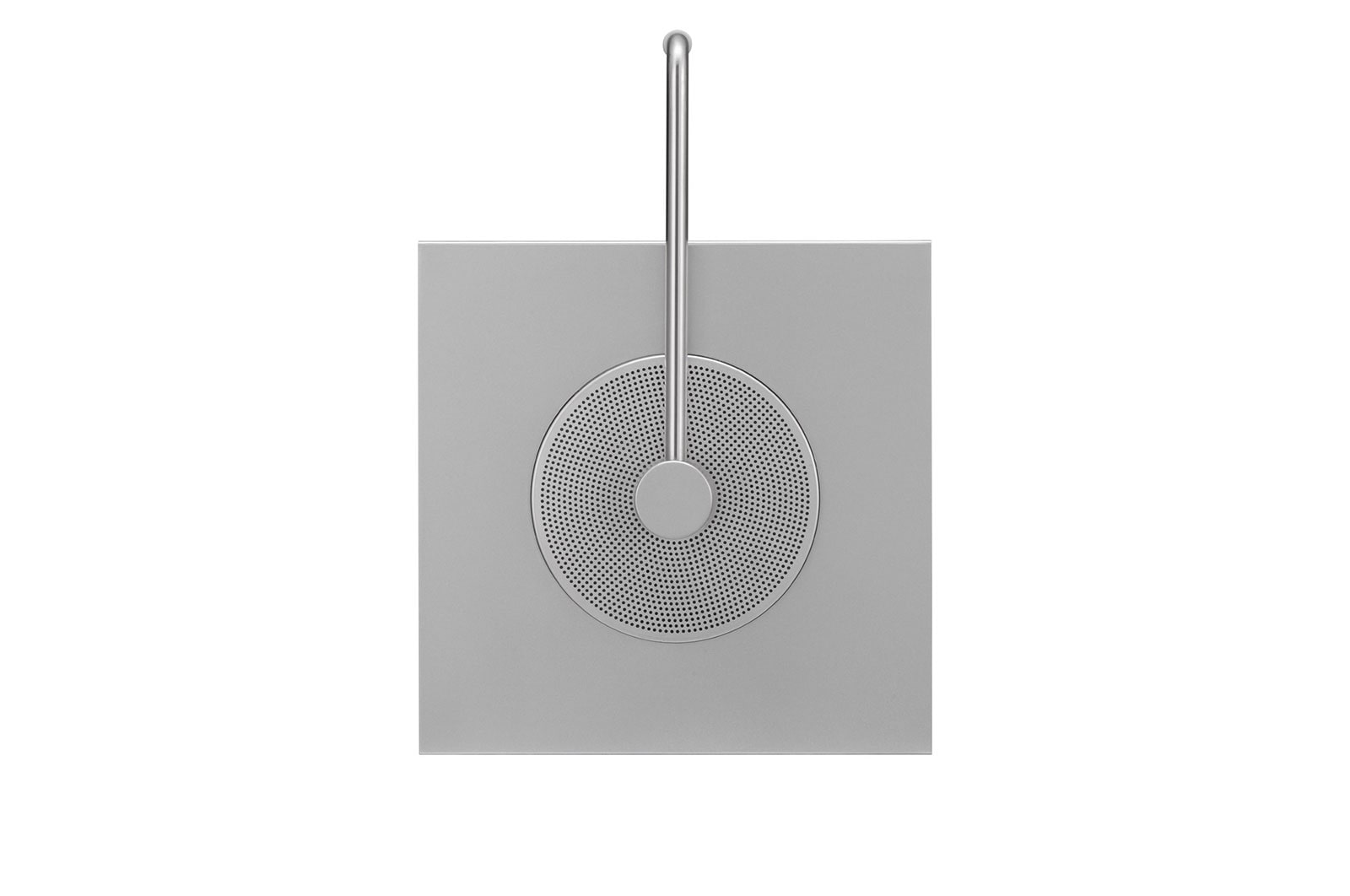

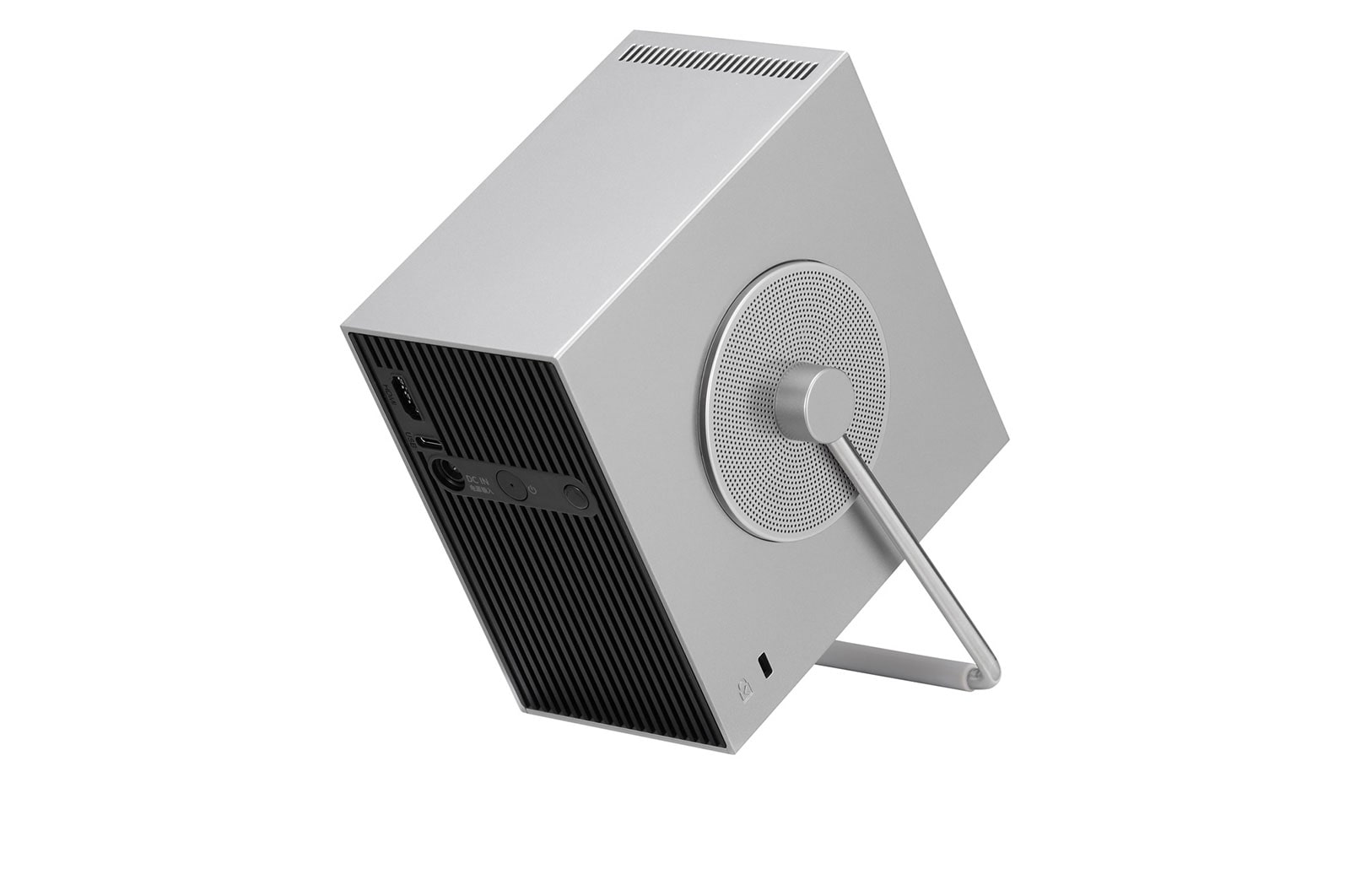

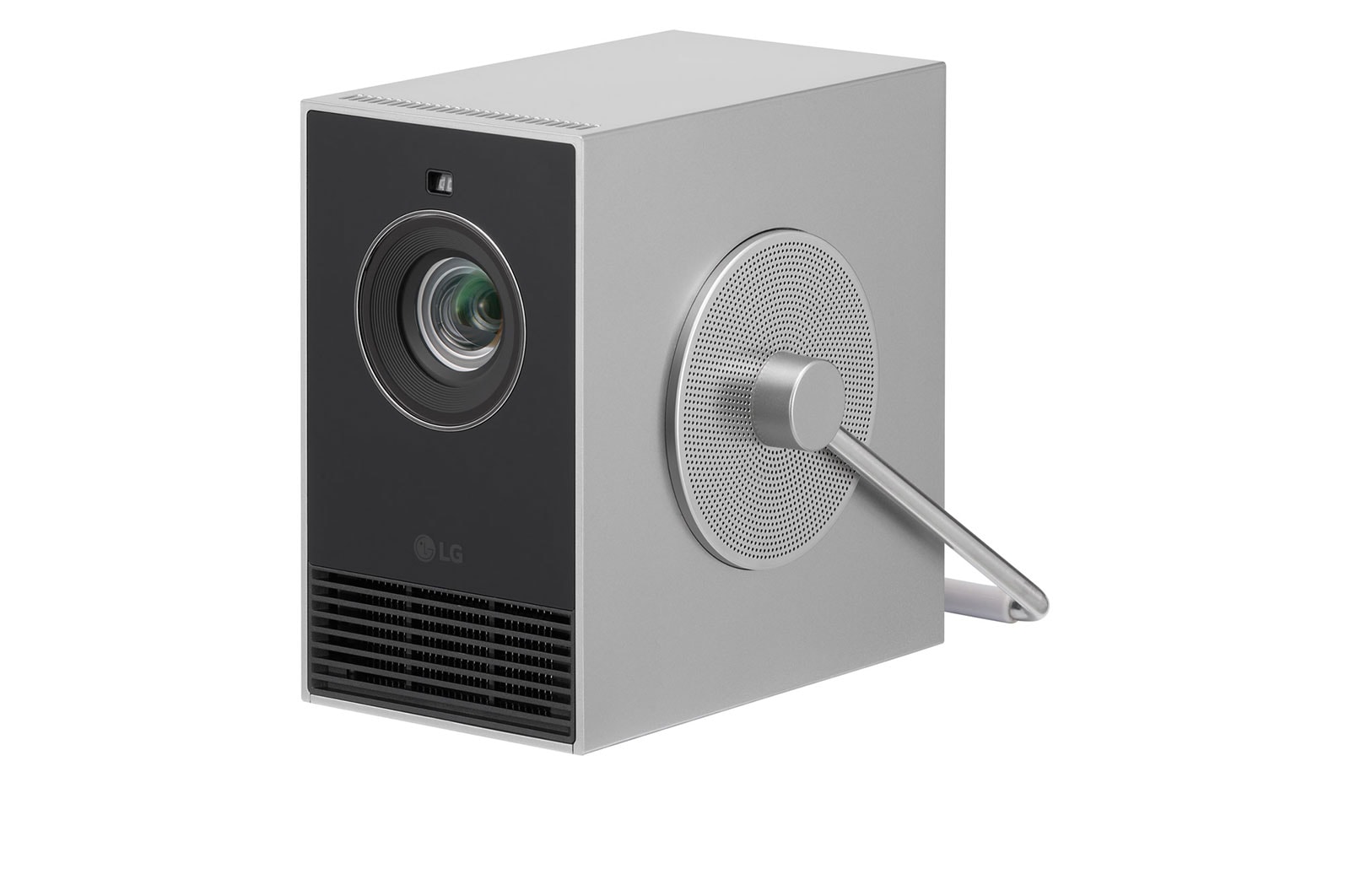

Gallery
All Spec
PROJECTION SYSTEM
-
Native Resolution
4K UHD (3840 x 2160) 1
-
Brightness (ANSI Lumen / Lumen) 1)
500
-
Contrast Ratio (Full On Full Off)
450,000:1
-
Noise (typical) - Energy Saving Min. (Bright)
29 dB(A)↓
-
Noise (typical) - Energy Saving Med.
27 dB(A)↓
-
Noise (typical) - Energy Saving Max. (Eco)
25 dB(A)↓
-
Uniformorty (JBMMA 9point)
85%
-
Projection Lens - Focus (Auto / Motorized / Manual)
Motorized, Auto
-
Projection Lens - Zoom
Fixed
-
Projection Image - Screen Size
50" ~ 120"
-
Projection Image - Standard / 100" (lens to wall)
80""@2.13m
100""@2.66m -
Projection Image - Throw Ratio
1.2
-
Projection Offset
100%
-
Light source - Type
3Ch Laser (R, G, B)
-
Light source - Life High Brightness
20,000 Hrs
GENERAL SPECIFICATION
-
OSD Language
Korean / English / English(UK) / French / Spanish / German / Portuguese / Brazilian Portuguese / Dutch / Russian / Polish / Hungarian / Romanian / Slovenian / Croatian / Bulgarian / Serbian / Italian / Finnish / Swedish / Lithuanian / Norwegian / Latvian / Estonian / Canadian / Czech / Turkish / Slovak / Arabic / ChineseSimplified / Indonesian / L-Spanish / India / Japanese / Thai / Taiwanese / Vietnamese / Danish
-
Aspect Ratio Control
16:9/Original/Full Wide/4:3/Vertical Zoom
-
Sound - Output
3W Mono
-
Sound - Clear Voice
Yes (Clear Voice lll)
-
Net Size (mm) (W x D x H)
135 x 135 x 80
-
Net Weight (kg or g)
1.49kg
-
Power Consumption (Max.)
65W
-
Stand-by Power
<0.5W
-
Power Supply
Adapter 65W
-
Operation Temperature
0 ~ 40℃
-
Input Signal Compatibility - USB Type-C
Yes
-
Input Signal Compatibility - Digital (HDMI)
Up to 4K (4096x2160)
(60Hz, 50Hz, 24Hz)

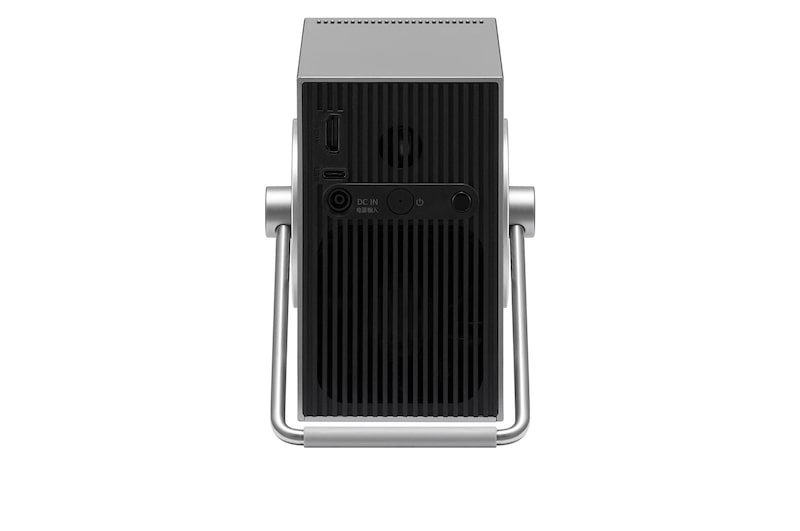

INPUT/OUTPUT TERMINALS
-
HDMI
1
-
USB Type-C (Display, Charging)
1 (USB2.0, Display, Power : 5V/1A Out)
OS/CONNECTIVITY
-
Platform (OS, UI)
webOS 6.0 (Smart)
-
Home Dashboard (Input, IoT with OCF device)
Yes (OCF/UEI IoT not supported)
-
Background Image
Yes
-
Premium CP
Yes
-
Contents Store (LG App Store)
Yes
-
Contents Suggestion
Yes
-
Internet Browser
Yes
-
Voice Recognition - Built-in (Thru MIC onMagic Remote)
LG ThinQ
-
Voice Recognition - Speaker Compatible (works-with)
Apple Homekit works-with
-
Screen Share (Wireless Mirroring with MiraCast supporting Android/Window device)
Yes (up to 4K/30Hz)
-
Airplay 2(iOS/Mac Video Casting, mirroring, Audio Streaming)
Yes (up to 4K/30Hz)
-
Contents Sharing (with DLNA supporting device)
Yes
-
Bluetooth - Bluetooth Sound out
Yes
-
Bluetooth - Bluetooth Surround Mode
Yes
-
Bluetooth - Bluetooth Multi-Stream
Yes (Dual)
-
Bluetooth - Bluetooth AV(Lip) Sync Control
Yes
-
LG Sound Sync(with Sound Bar)
Yes
-
HDMI ARC(Audio Return Channel)
Yes (eARC)
-
HDMI simplink(CEC)
Yes
-
HDCP
HDCP2.2
-
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
Yes
-
USB Host (Movie, Music, Photo)
Yes
-
Setting Guide
Yes (Bean Bird)
-
HID (Keyboard/Mouse/GamePad Connection Thru USB)
Yes
-
Eco Function - Energy Saving Mode
Yes (Min/Med/Max)
-
Eco Function - Sleep Timer
Yes
-
Eco Function - Auto Off / Auto Sleep
Yes
-
Eco Function - Time Power On/Off(On Time / Off Time)
Yes (On / Off)
-
Eco Function - Automatic Standby/ Auto Power Off
Yes
PICTURE QUALITY AND SETTING
-
Processor
Quad Core
-
HDR
HDR10, HLG
-
HDR Tone Mapping
Yes (Auto, Dynamic/frame by frame)
-
Cinema Screen (Real Cinema)
Yes (up to 4096x2160)
-
TruMotion
Yes (up to 4096x2160)
-
Upscaler
Yes (4K)
-
Super Resolution (Expert Control)
Yes (4K)
-
FILMMAKER mode
Yes
-
HGiG (HDR Gamming Interest Group) mode
Yes
-
Digital Keystone Correction
Edge Adjustment
(4/9/15 Point Warping) -
Auto Keystone
Yes (Auto Screen Adjustment)
-
Image Flip
Yes (Horizontal/Vertical)
-
Smooth Gradation
Yes
-
Black Level Control
Yes
-
Noise Reduction
Yes
-
Color Temperature Adjustment
Yes
-
Dynamic Contrast (Expert control)
Yes
-
Dynamic Color (Expert control)
Yes
-
Color Management System (Expert control)
Yes
-
Color gamut setting (Expert control)
Yes
-
Gamma Correction (Expert control)
Yes
-
White balance setting (Expert control)
Yes
ADDED FEATURES
-
Quick(Instant) Power on/off
Yes (on 12 Sec ↓ / off 2 Sec)
-
Store Mode
Yes
-
Self Diagnosis
Yes
DESIGN
-
Cabinet Colour
Silver
-
Local Key
One Key
-
Kensington Lock
Yes
-
Handle
Yes
ACCESSORY
-
Manual (Full or Simple Book)
Simple Book
-
Quick User Guide (Quick Set-up Guide)
Yes
-
Warranty Card
Depends on region
-
Cable - Adaptor
1
-
Cable - Power cord
1
-
Remote control (Battery included) - Motion
No (Ready)
-
Remote control (Battery included) - Normal
Yes
-
Conformances(Regulation)
KCC, KC, FCC, ETL, CE/CB, PSE
