22" Standard Signage

22" Standard Signage

22" Standard Signage

22SM3G-B

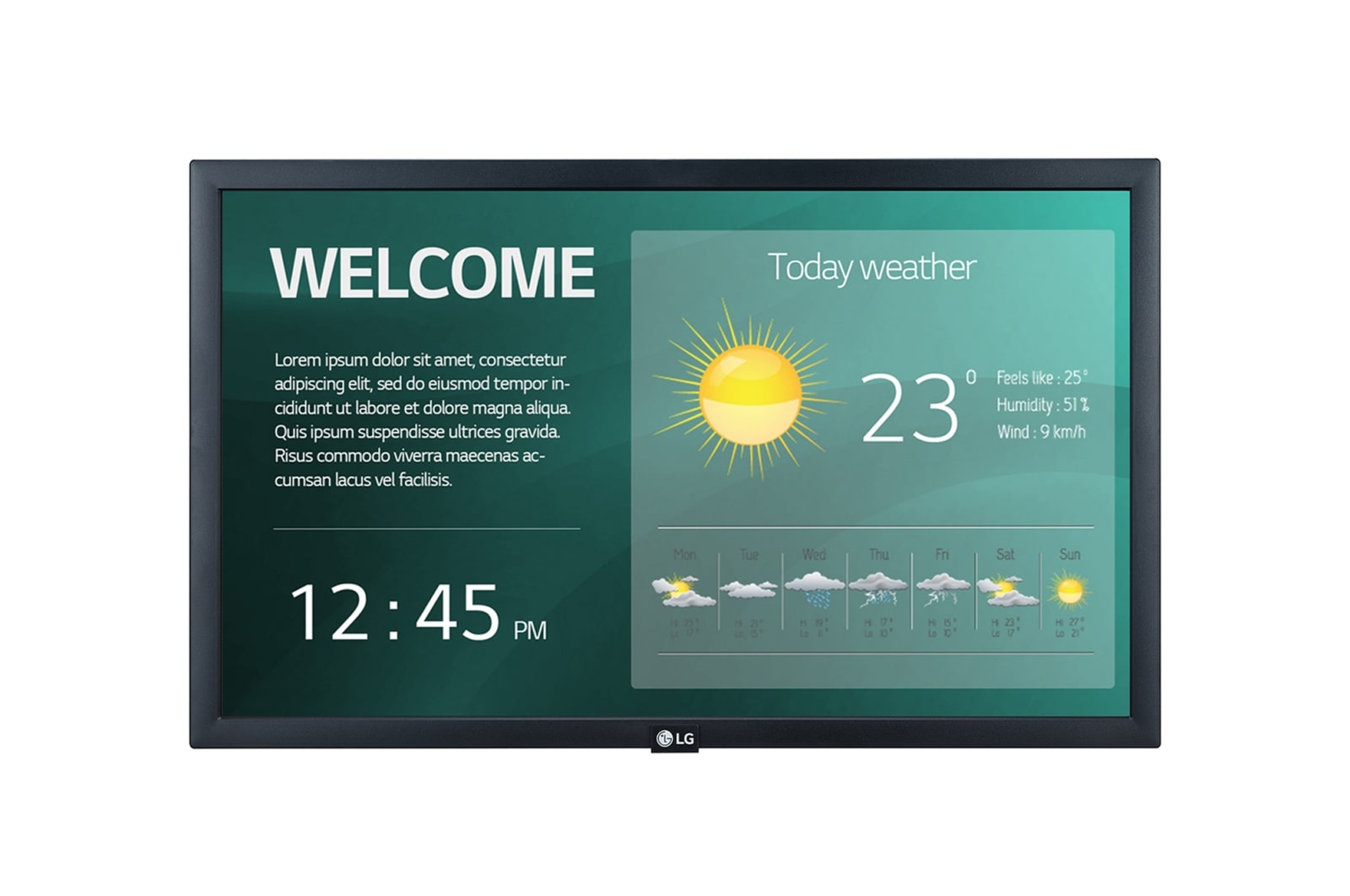

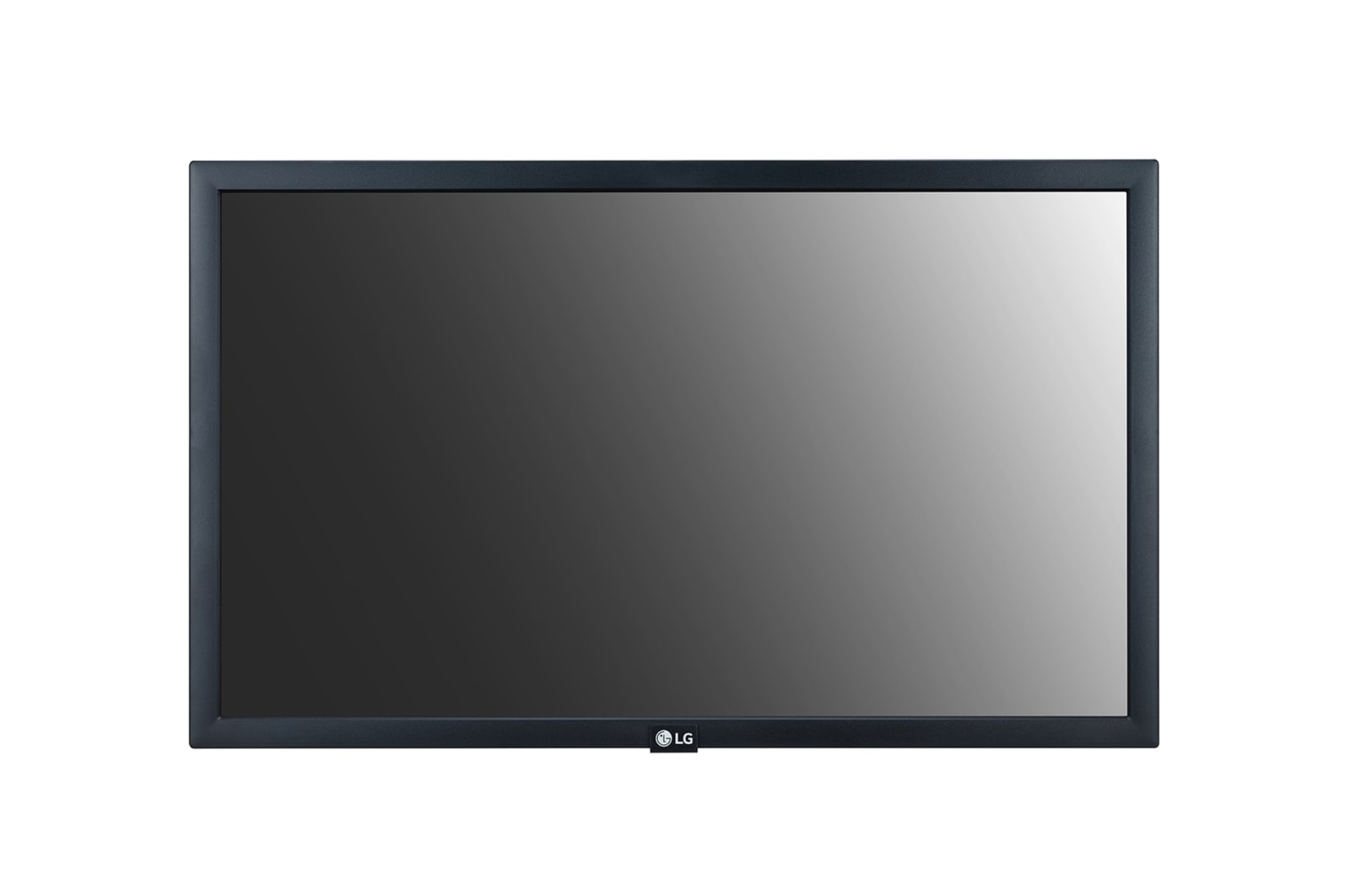

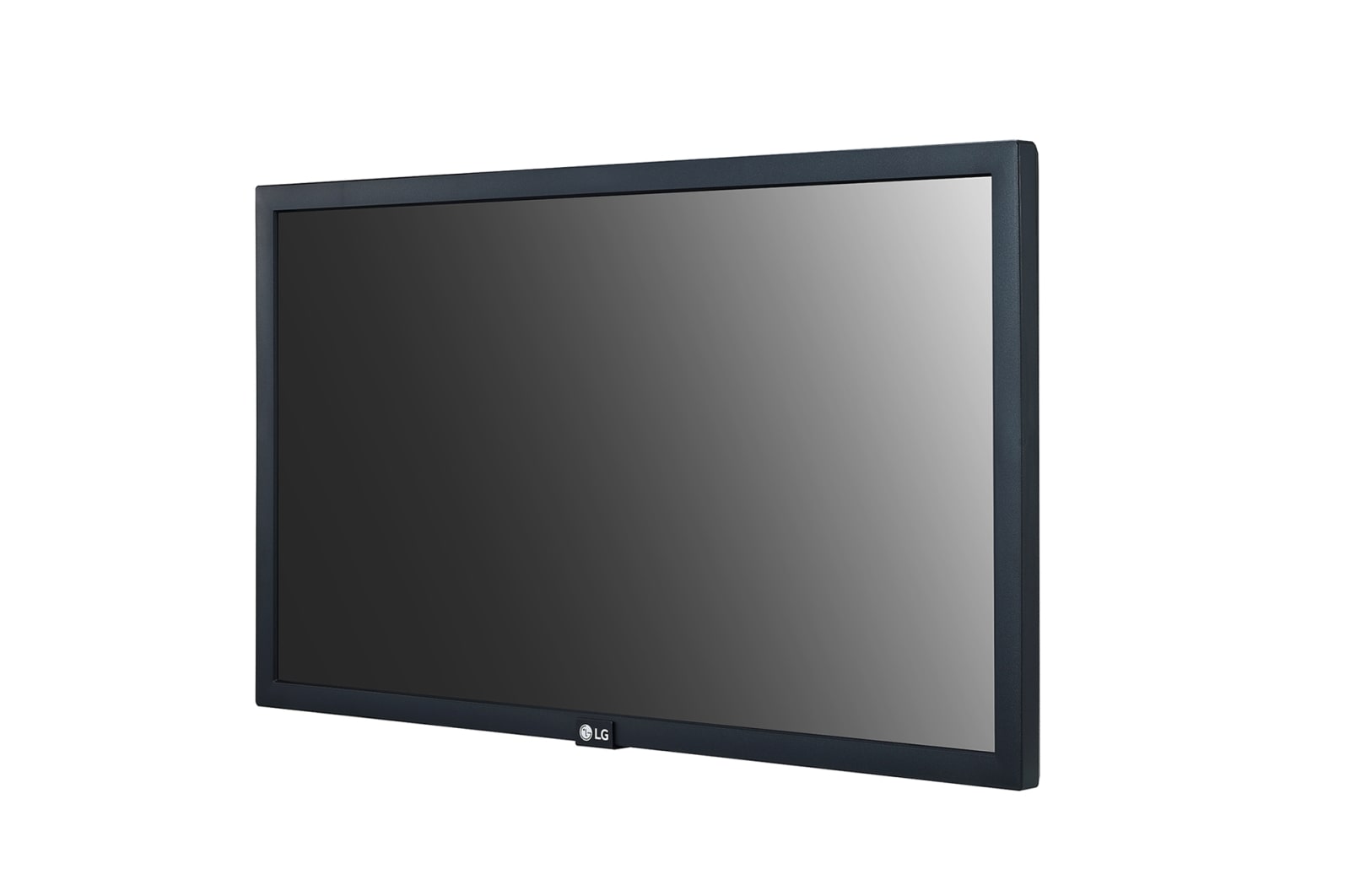

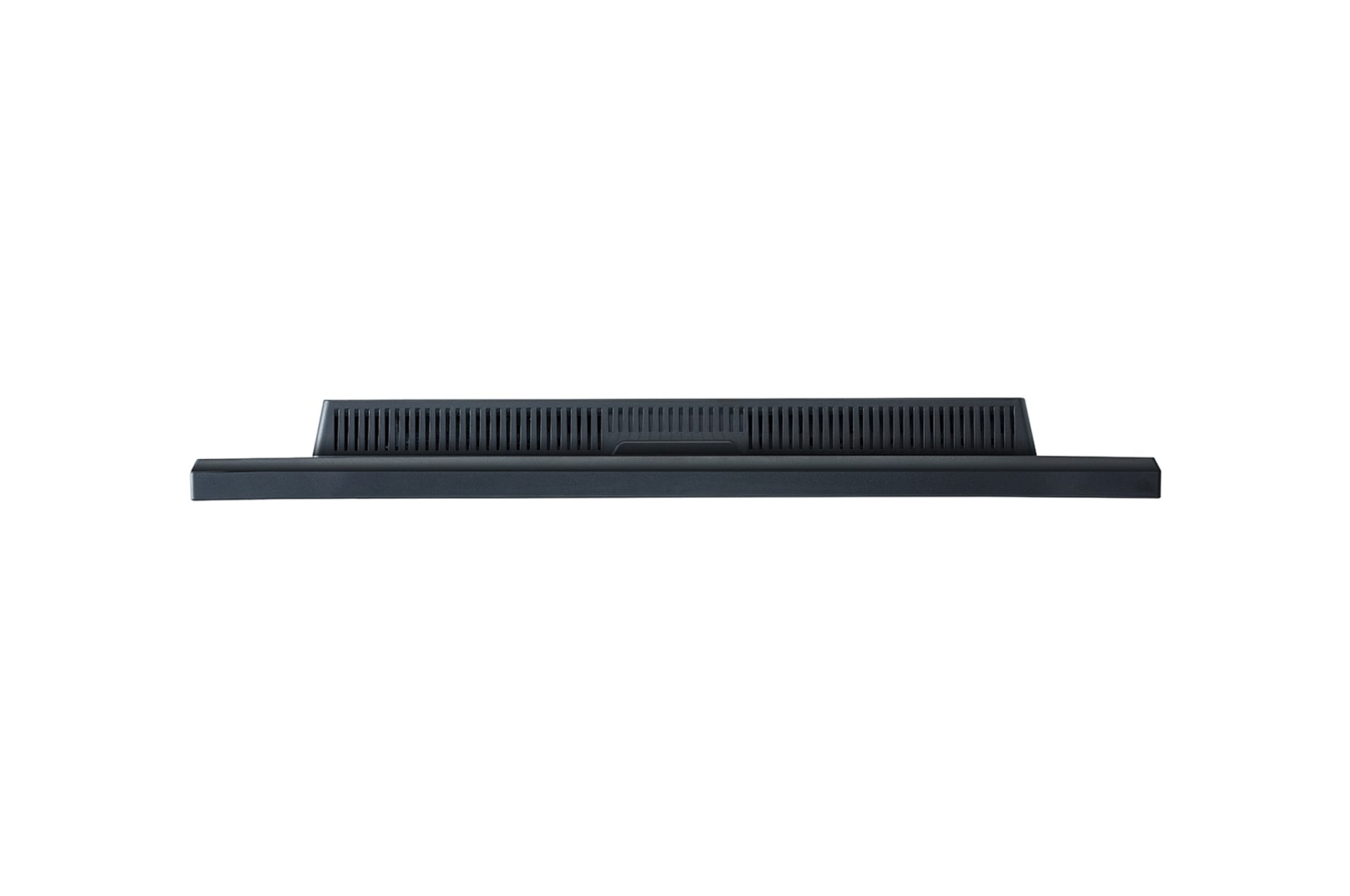

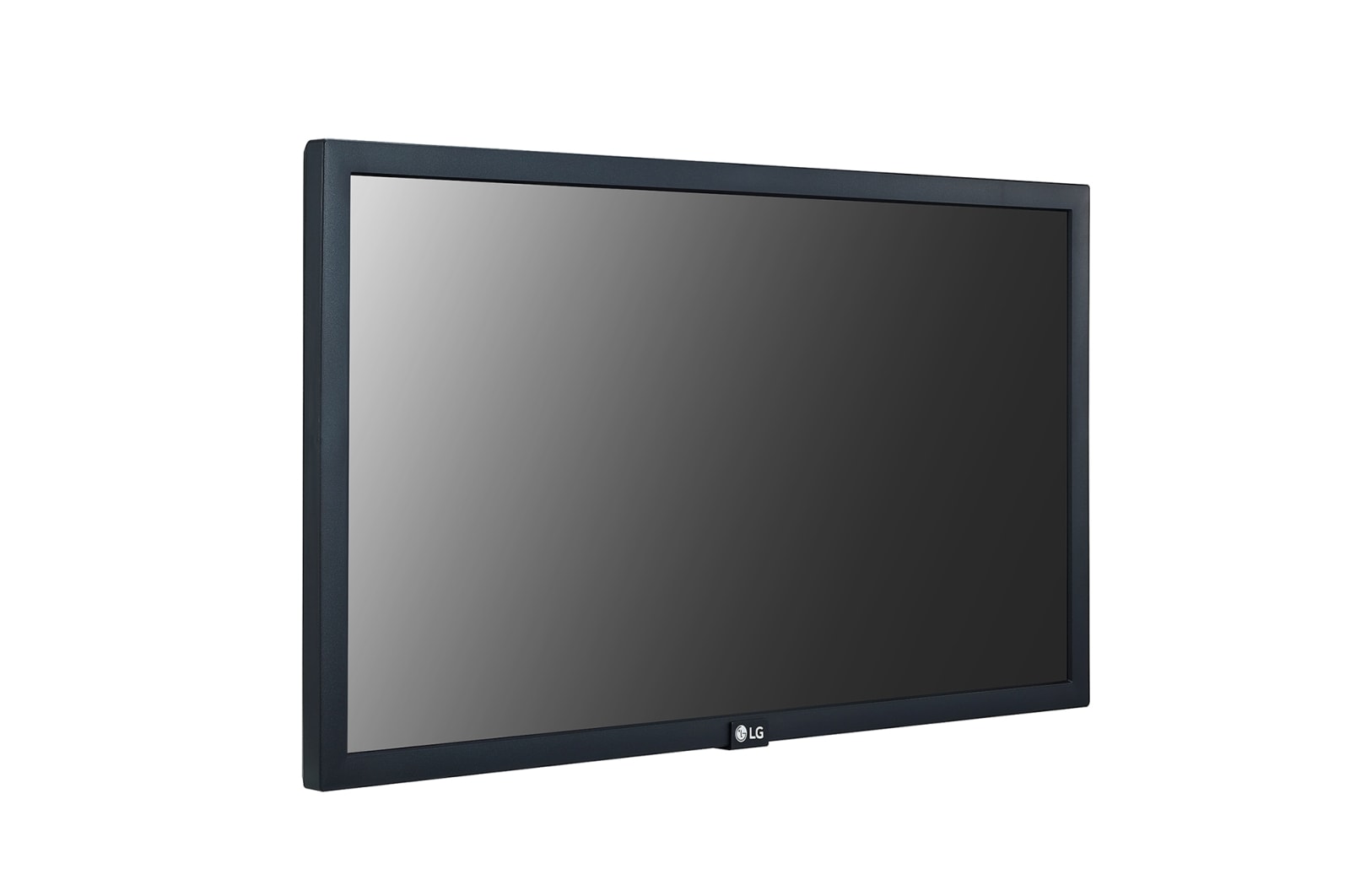

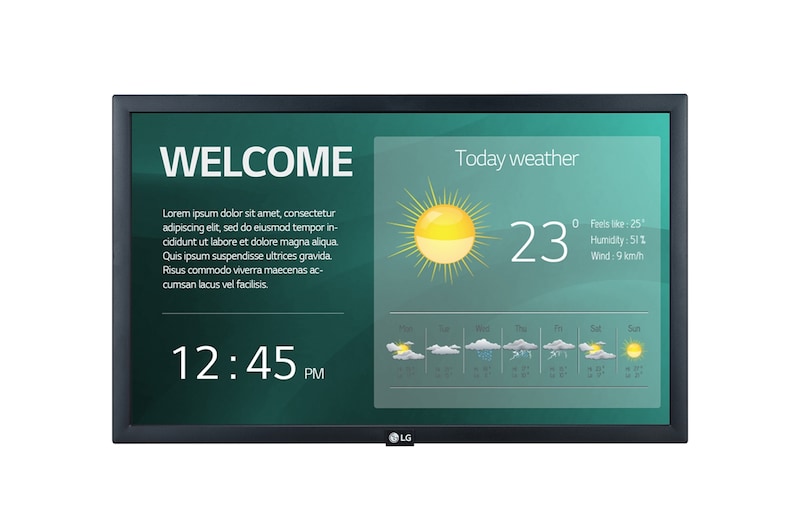

LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B
LG 22" Standard Signage, 22SM3G-B

Key Features

  • Brightness(Typ.) : 250 cd/m²
  • Bezel : 16.3mm

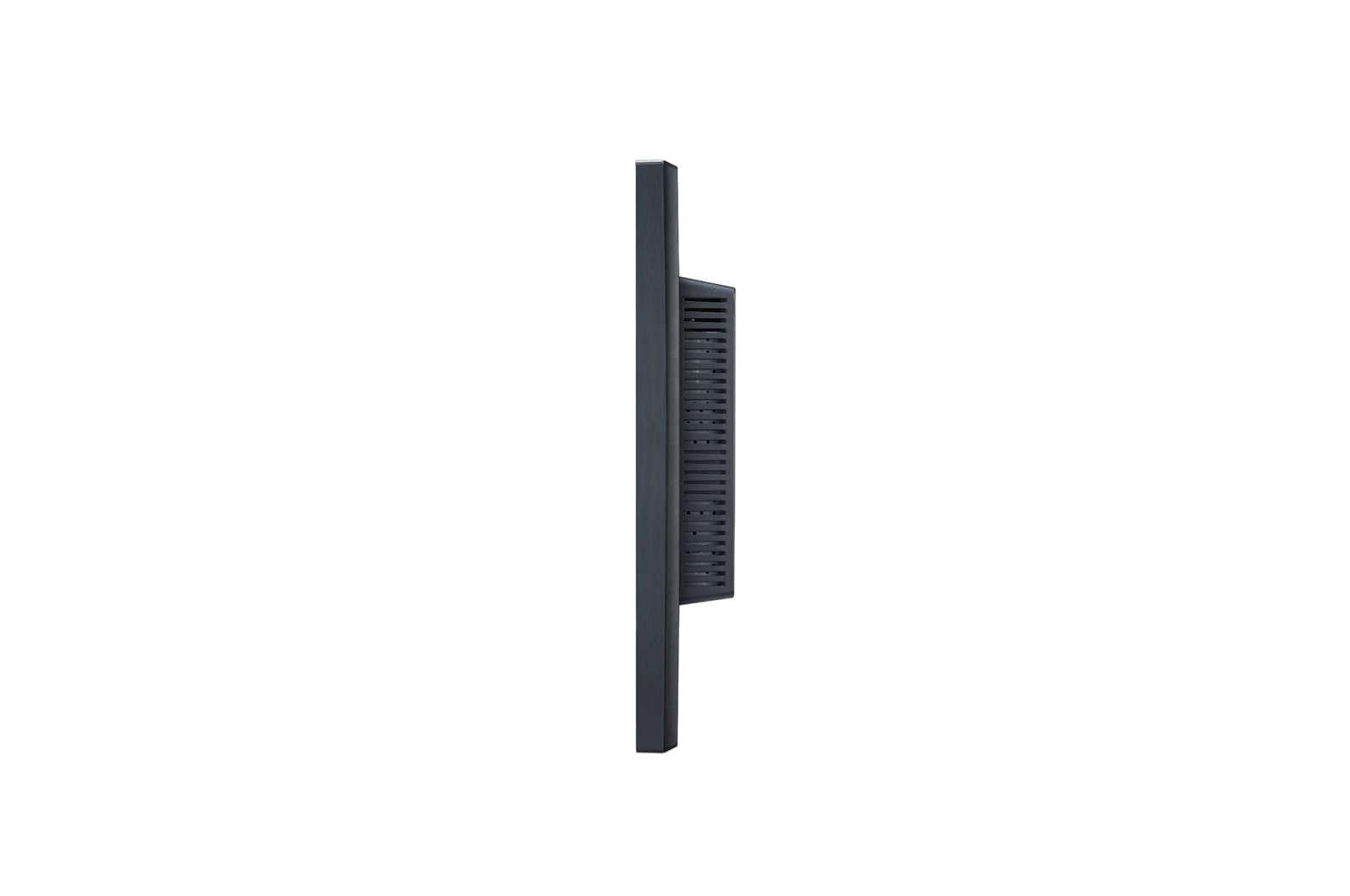

  • Depth : 53.8mm
  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
  • USB Plug & Play, Built-in Wi-Fi
More

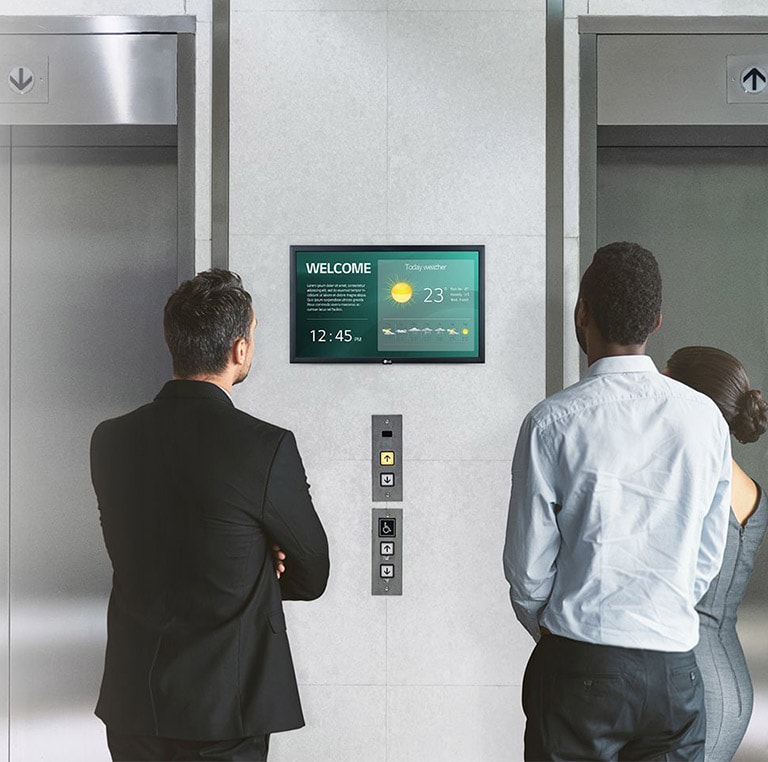

22" Signage with More Utility for Commercial Space

22" Signage with More Utility for Commercial Space

22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS
SMART SIGNAGE PLATFORM

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

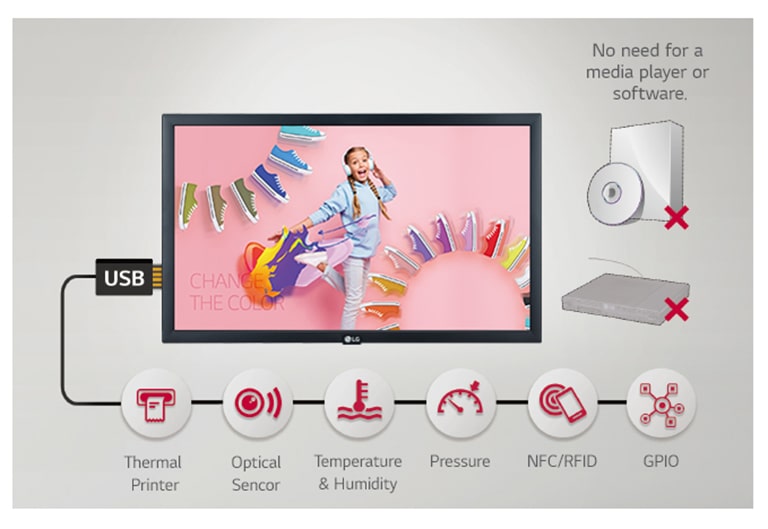

Various Sensor Applications
SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

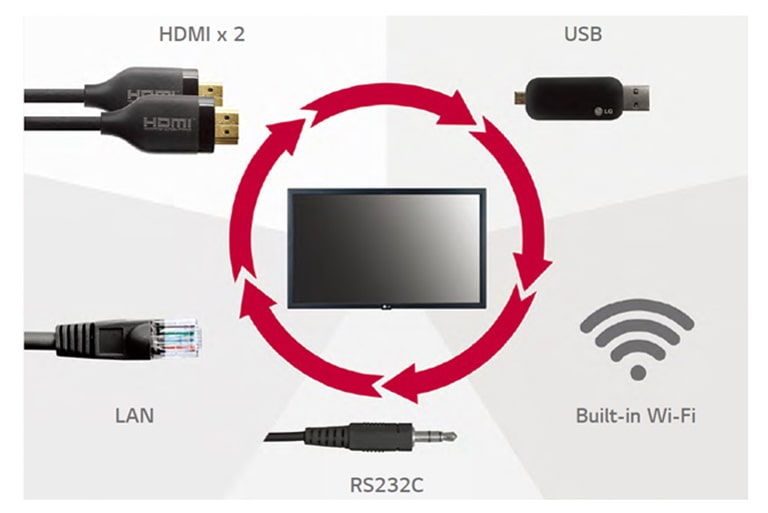

A Wide Range of Interfaces
SMART SIGNAGE PLATFORM

A Wide Range of Interfaces

Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

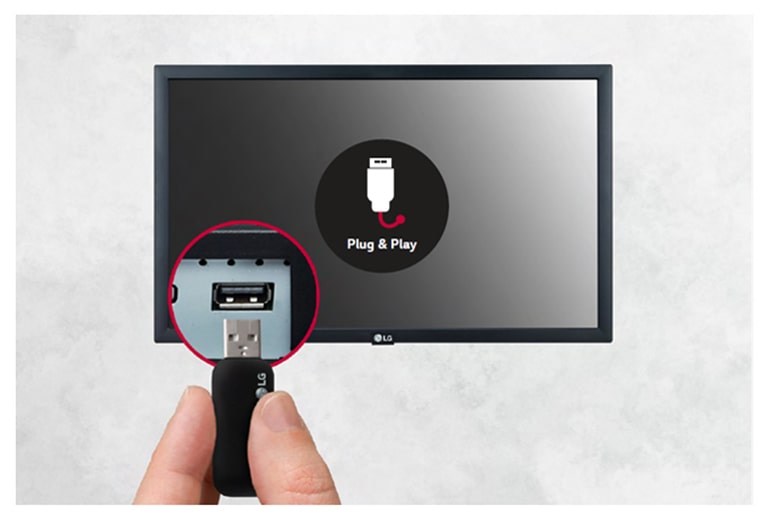

USB Plug & Play
SMART SIGNAGE PLATFORM

USB Plug & Play

22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

SMART SIGNAGE PLATFORM

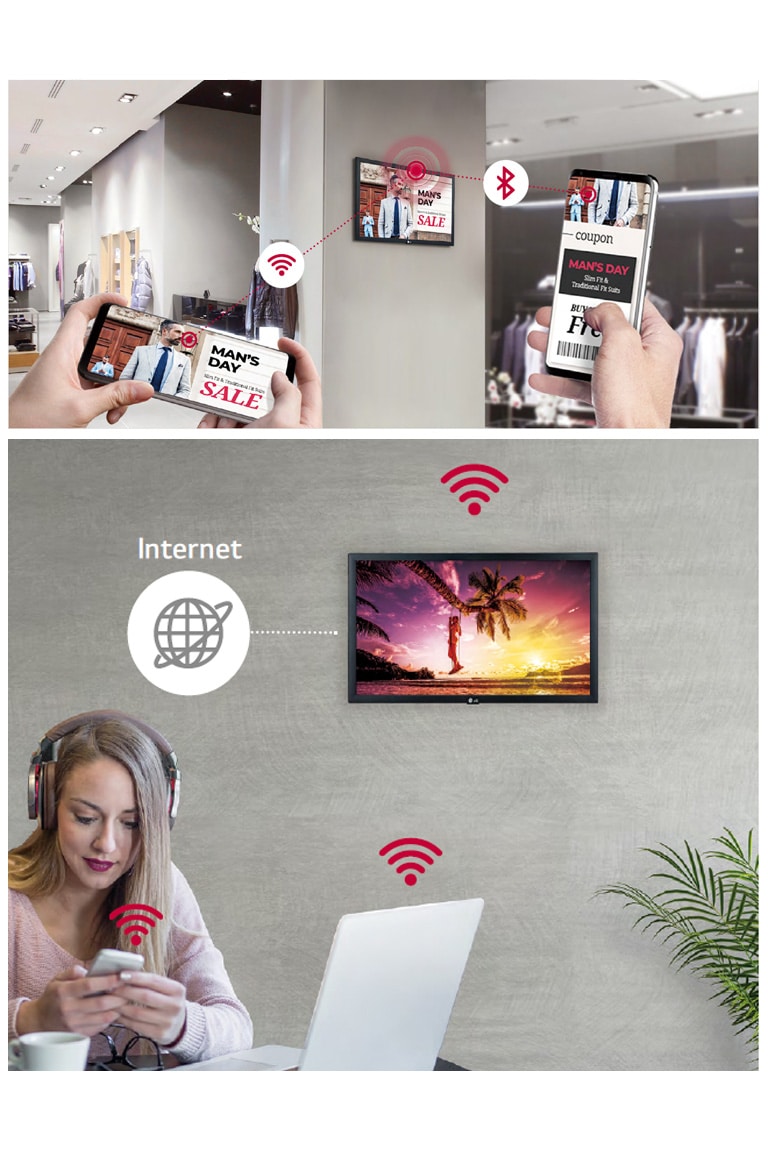

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.



Real-time Promotion

With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.



Wireless Solution

22SM3G operates as a virtual router which can be a wireless access point for mobile devices.

Remote Monitoring and Control
OPERATIONAL EFFICIENCY

Remote Monitoring and Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

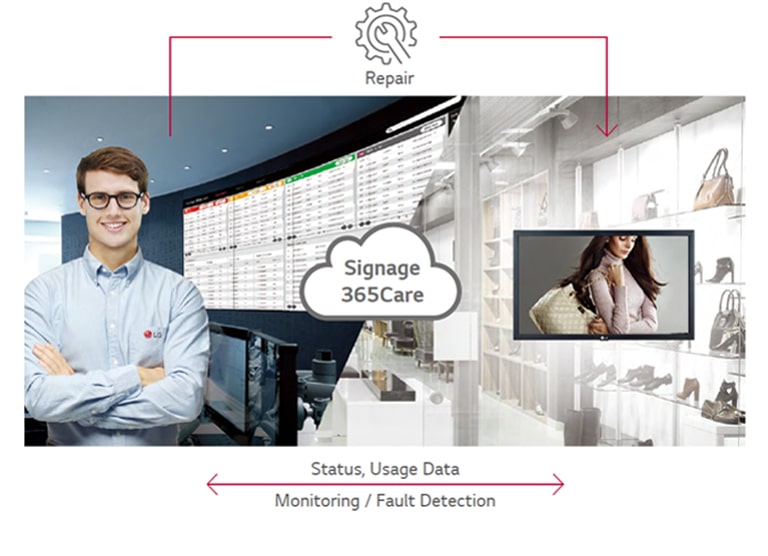

Real-time Care Service with LG Signage365Care
OPERATIONAL EFFICIENCY

Real-time Care Service with LG Signage365Care

The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client's business.

* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.



Print

All Spec

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet

  • Optional

    NO

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

SOUND

  • Speaker (Built-in)

    YES (1W x 2)

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

CERTIFICATION

  • EMC

    FCC Class "A" / CE

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    NO / NO

  • Safety

    CB / NRTL

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    NO

MECHANICAL SPECIFICATION

  • Weight (Head)

    3.34Kg

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 16.3mm

  • Carton Dimensions (W x H x D)

    565.0 x 357.0 x 103.0mm

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    510.3 x 302.1 x 53.8mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    4.74Kg

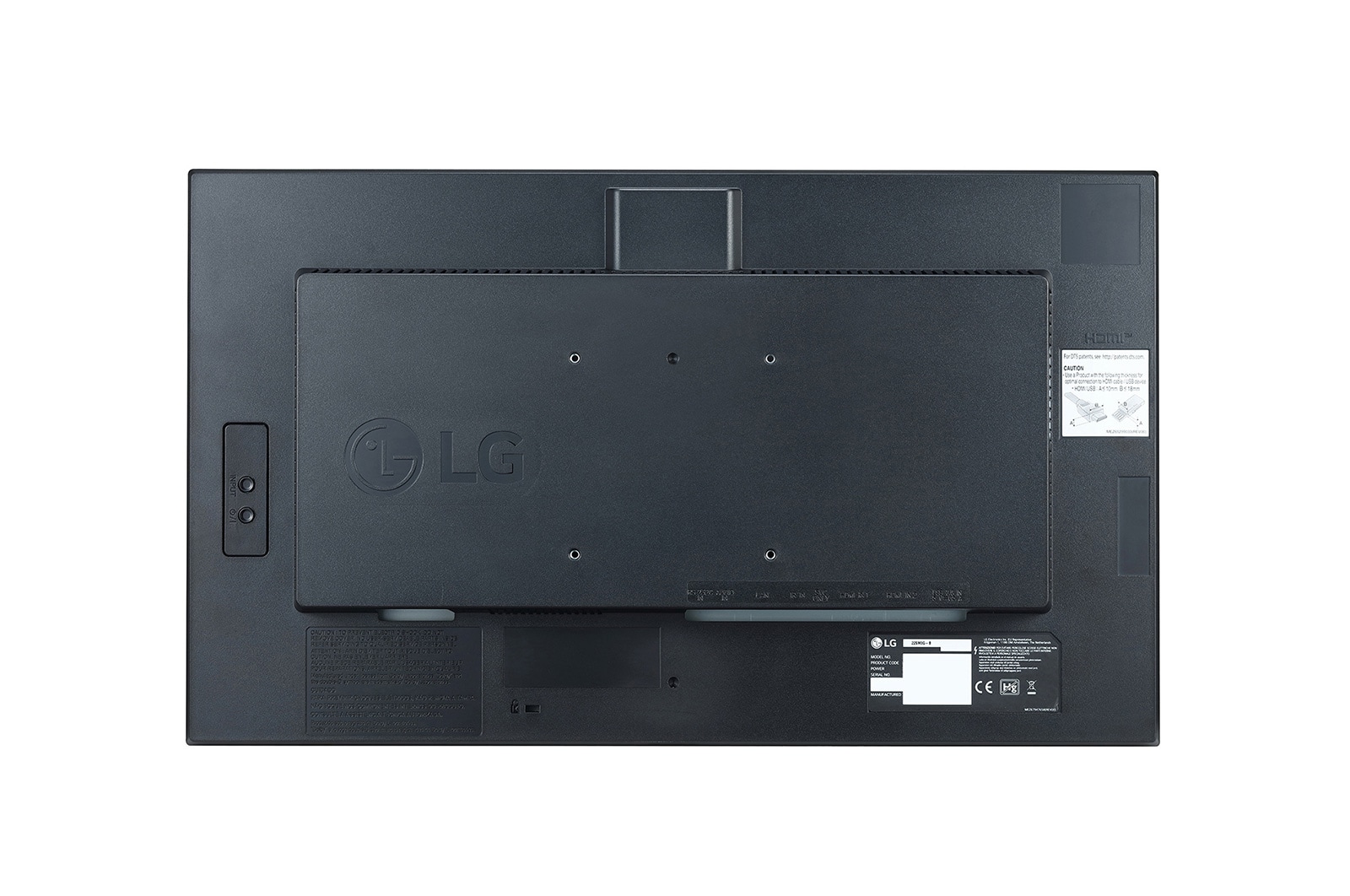

  • VESA Standard Mount Interface

    100 x 100 mm

  • Weight (Head+Stand)

    N/A

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    103 BTU/Hr(Typ.), 113 BTU/Hr(Max.)

  • DPM

    0.5W(WOL Off), 3.2W(WOL On)

  • Max.

    33W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    15W±5%

  • Typ.

    30W

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    Edge

  • Brightness

    250nit (Typ.)

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Color Gamut

    BT709 95%

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    400,000:1

  • Life time

    30,000Hrs (Min.)

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    16/7

  • Panel Technology

    IPS

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    60Hz

  • Response Time

    14ms (G to G)

  • Screen Size (Inch)

    21.5

  • Surface Treatment (Haze)

    Haze 25%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

CONNECTIVITY

  • Audio In

    YES

  • Audio Out

    NO

  • Daisy Chain

    NO

  • DP In

    NO

  • DP Out

    NO

  • DVI-D In

    NO

  • External Speaker Out

    NO

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    NO

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    N/A

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Power Protection

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    NO

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

FEATURE - HARDWARE

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8GB

  • Local Key Operation

    YES

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    YES

FEATURE - SOFTWARE

  • Auto Set ID

    NO

  • Backlight Sync

    NO

  • Beacon

    YES

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    NO

  • Network Ready

    YES

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 4.1

  • PBP

    YES (2PBP)

  • PIP

    YES

  • Play via URL

    YES

  • PM mode

    YES

  • Pro:Idiom

    YES

  • RS232C Sync

    NO

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    YES

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    NO

  • USB Plug & Play

    YES

  • Video Tag

    YES (2 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    NO

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
