SM5KE Series

Specs

Support

Resource

SM5KE Series

SM5KE Series

49SM5KE-B
(4)
  • Front view of SM5KE Series 49SM5KE-B
  • LG SM5KE Series, 49SM5KE-B
  • LG SM5KE Series, 49SM5KE-B
  • LG SM5KE Series, 49SM5KE-B
  • LG SM5KE Series, 49SM5KE-B
  • LG SM5KE Series, 49SM5KE-B
  • LG SM5KE Series, 49SM5KE-B
  • LG SM5KE Series, 49SM5KE-B

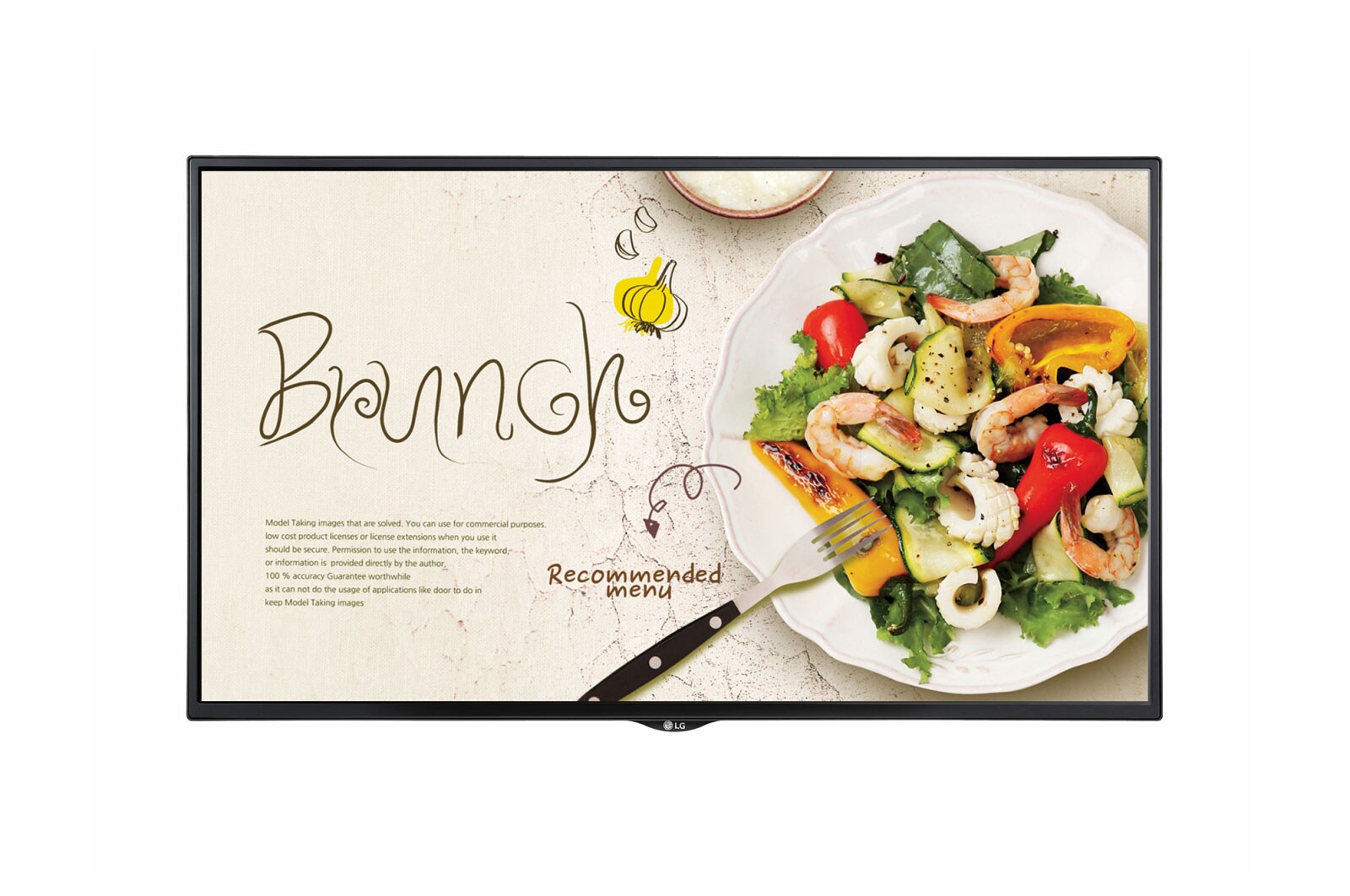

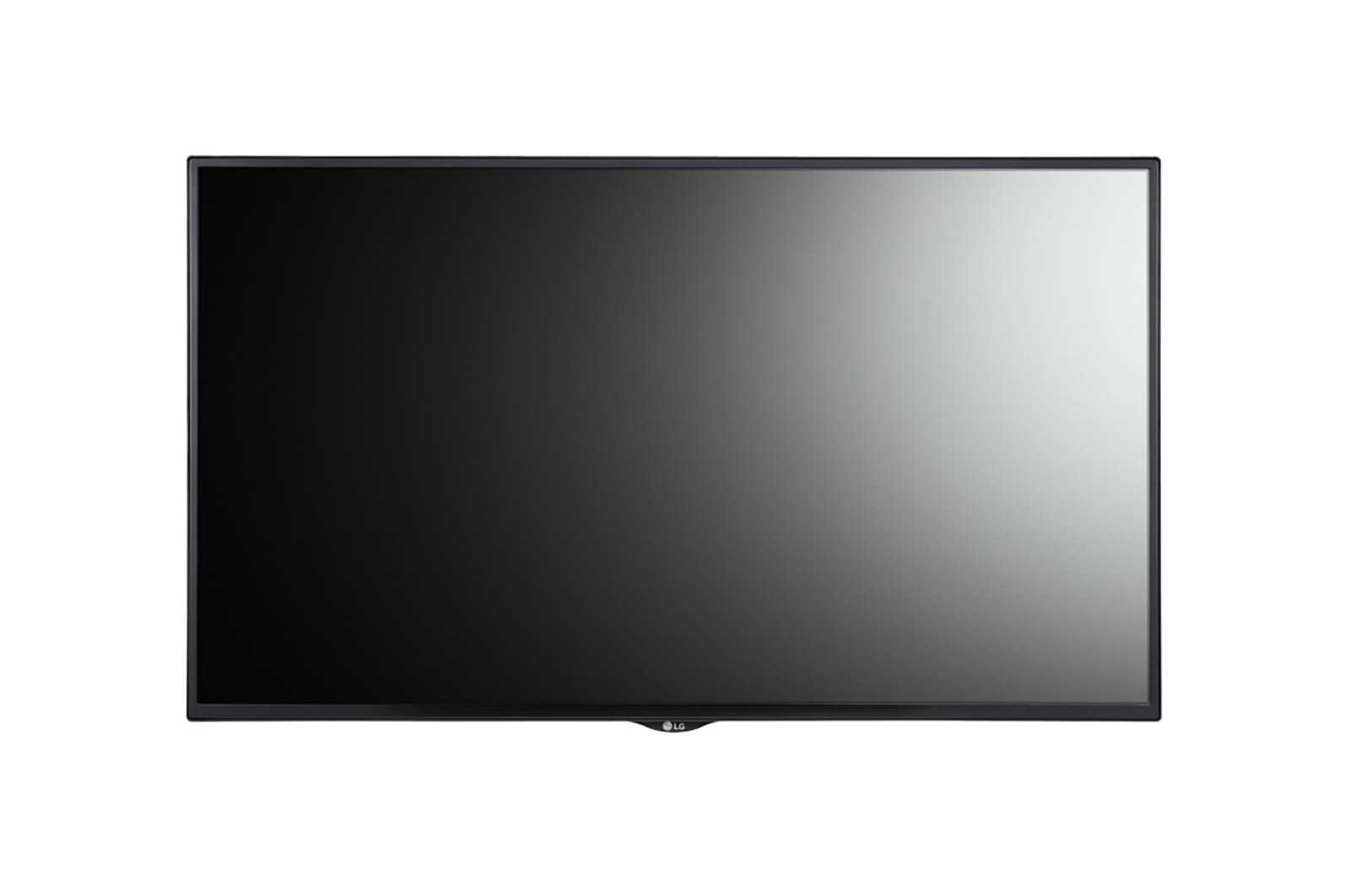

Front view of SM5KE Series 49SM5KE-B
LG SM5KE Series, 49SM5KE-B
LG SM5KE Series, 49SM5KE-B
LG SM5KE Series, 49SM5KE-B
LG SM5KE Series, 49SM5KE-B
LG SM5KE Series, 49SM5KE-B
LG SM5KE Series, 49SM5KE-B
LG SM5KE Series, 49SM5KE-B

Key Features

  • Brightness(Typ.) : 450 cd/mĀ²
  • Bezel : 11.9 mm (T/R/L), 18 mm (B)
  • Depth : 54 mm
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 3.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker : 10W + 10W
More
Print

All Spec

PANEL

  • Screen Size

    49"

  • Resolution

    1,920 x 1,080 (FHD)

  • Brightness(Typ.,cd/mĀ²)

    450

CONNECTIVITY

  • Input

    HDMI (3), DP, DVI-D, Audio, USB 3.0

  • Output

    DP(SST), Audio(Off/Fixed/Variable)

  • External Control

    RS232C In/Out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATION

  • Bezel Width

    11.9 mm (T/R/L), 18 mm (B)

  • Monitor Dimension (W x H x D)

    1,102.2 x 638.5 x 54 mm

  • Weight (Head)

    14.3 kg

  • Monitor with Optional Stand Dimensions (W x H x D)

    1102.2 x 696.8 x 219.6 mm

  • Weight (Head+Stand)

    17.6 kg

  • Carton Dimensions (W x H x D)

    1,197 x 760 x 166 mm

  • Packed Weight

    17.4 kg

  • VESAā„¢ Standard Mount Interface

    300 x 300 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0Ā°C to 40Ā°C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    100-240 V~, 50/60 Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.

    85 W (TBD) / 105 W

  • Smart Energy Saving

    60 W (TBD)

STANDARD(CERTIFICATION)

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes

  • External Media player Attatchable

    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control+/Control

ACCESSORY

  • Basic

    Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover

  • Optional

    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T49E)

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
