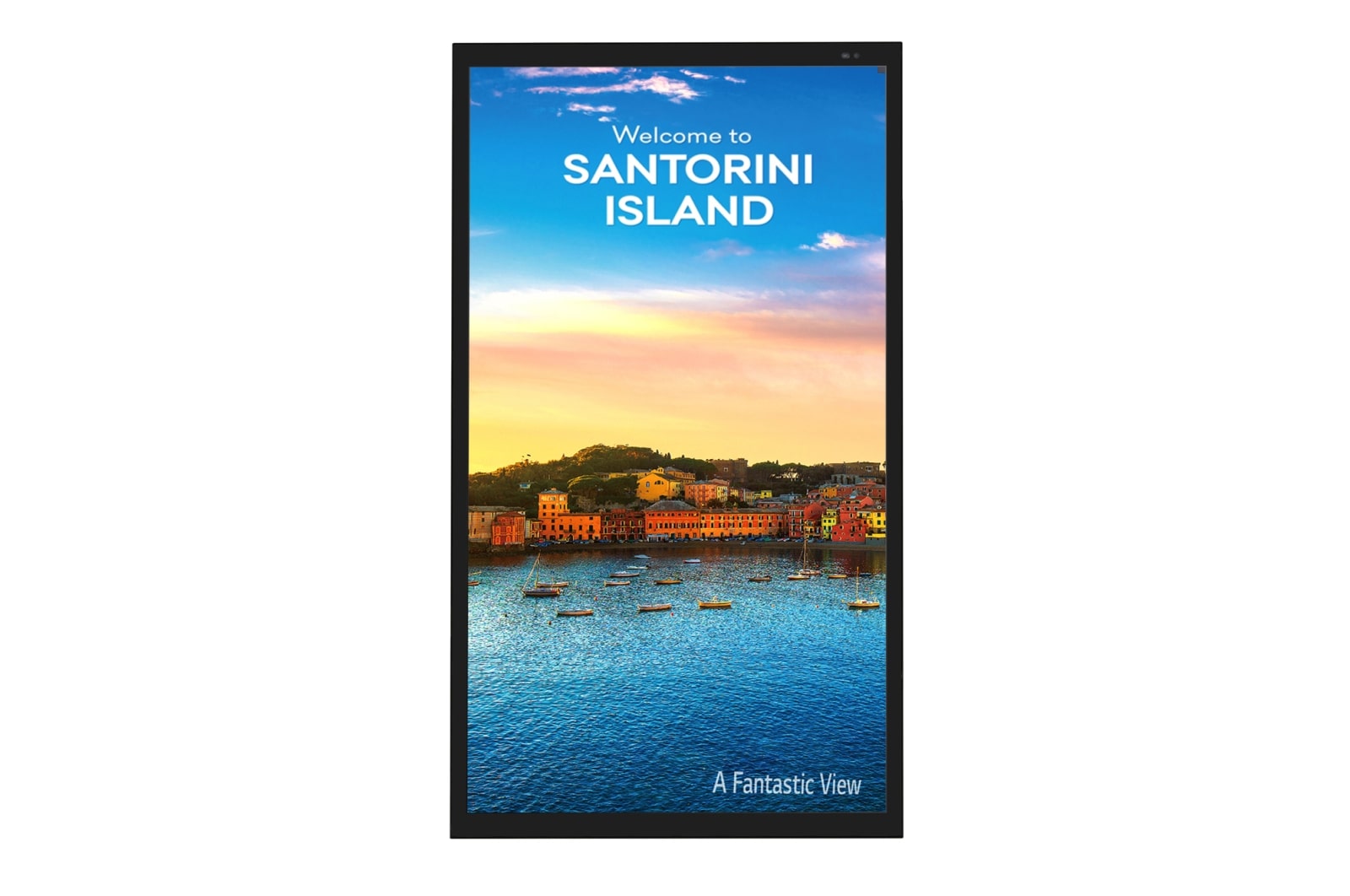

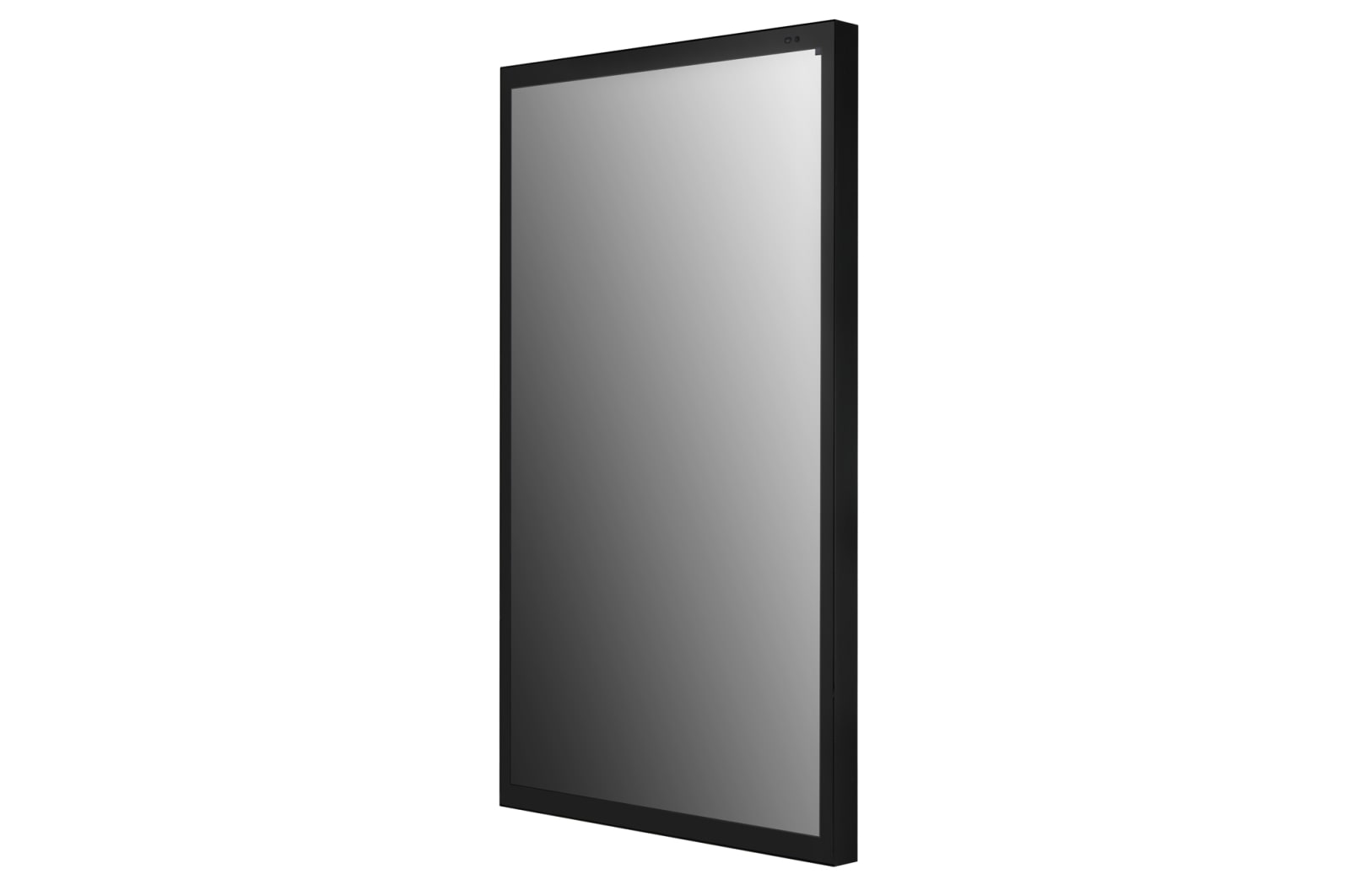

XE4F Series

(2)

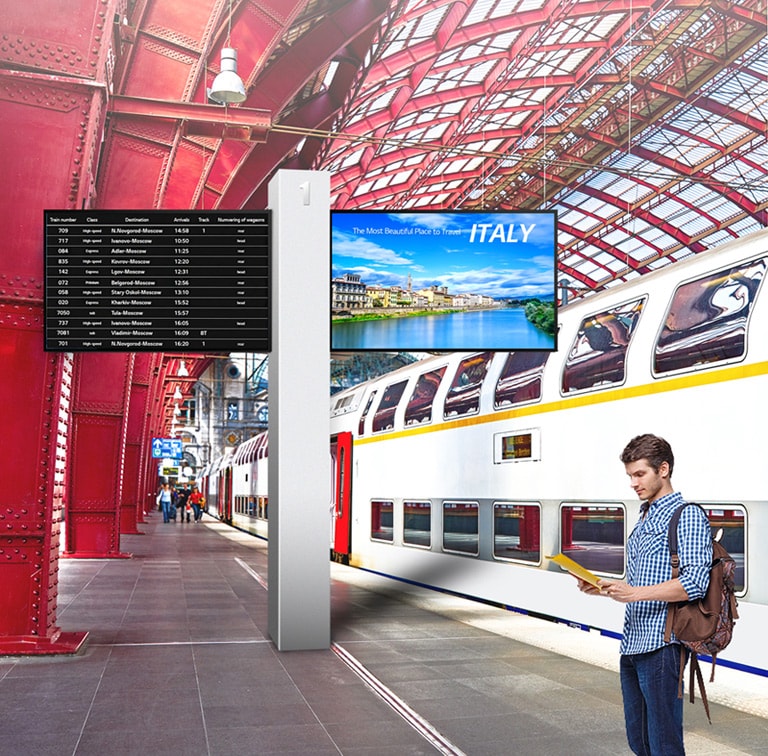

Slim & Robust Design with Outstanding Visibility

With a slim & robust design, XE4F series can be easily installed to meet the customer's needs in external environments that require complex installation conditions. And upgraded brightness captures the attention of customers even under strong and direct sunlight.

SLIM & ROBUST DESIGN

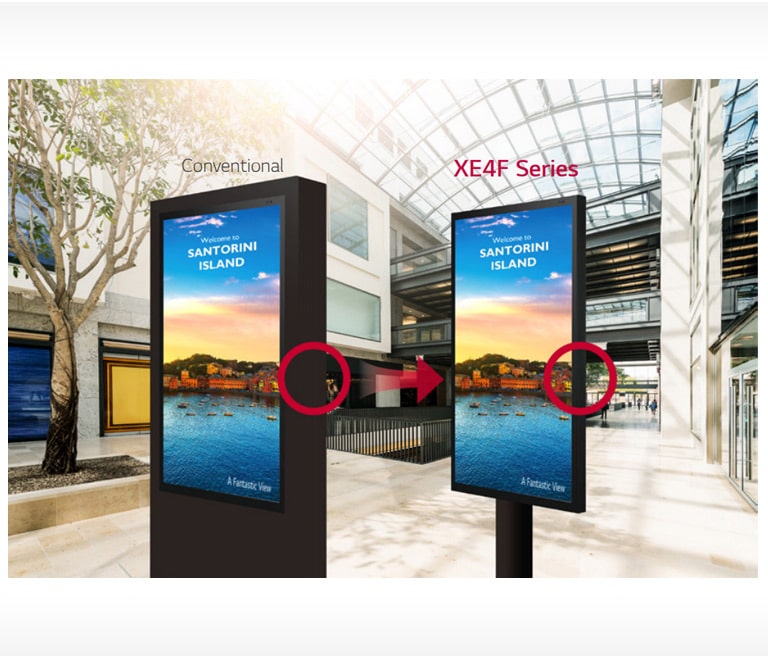

Slim & Light Design

XE4F series is composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.

SLIM & ROBUST DESIGN

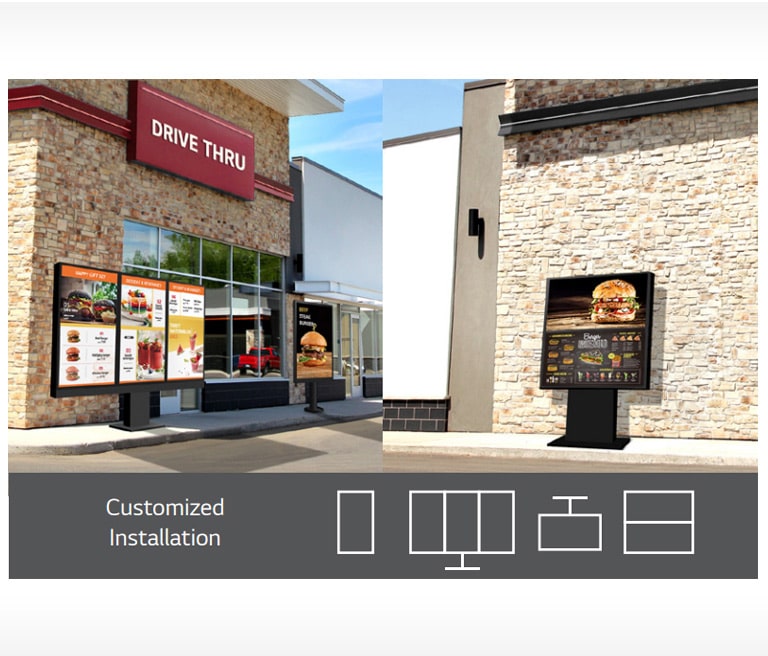

Easy integration for partner's customized design

The XE4F series is lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series is also mountable and optimized for customers, based on the industry purpose and use.

OUTSTANDING VISIBILITY

Bright & Brilliant

The XE4F series possesses powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.

OUTSTANDING VISIBILITY

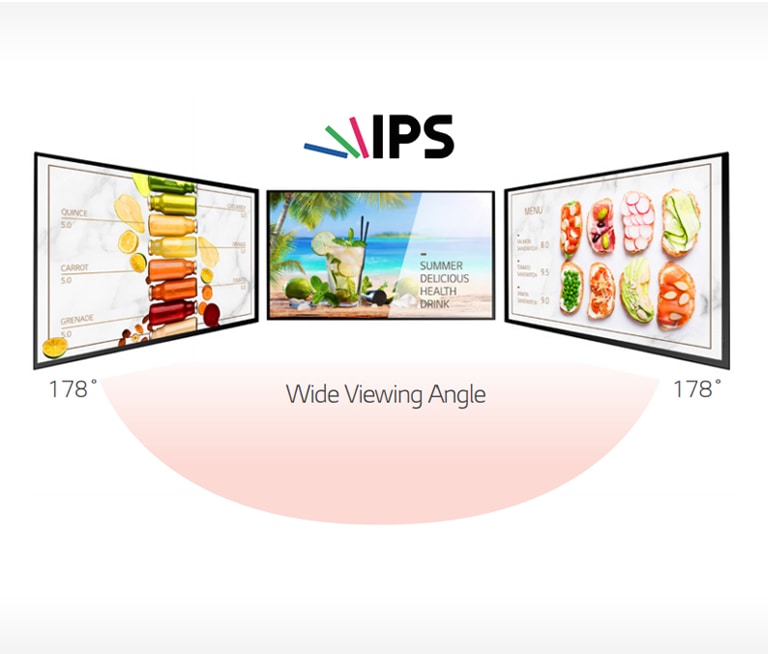

Wide Viewing Angle

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

OUTSTANDING VISIBILITY

Long Lasting Brightness

By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.

OUTSTANDING VISIBILITY

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

* Quarter Wave Plate

RELIABILITY FOR OUTDOOR USAGE

Secured Protection with IP56 Design

The display is sealed with IP56 design for reliable operation. It's designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.

RELIABILITY FOR OUTDOOR USAGE

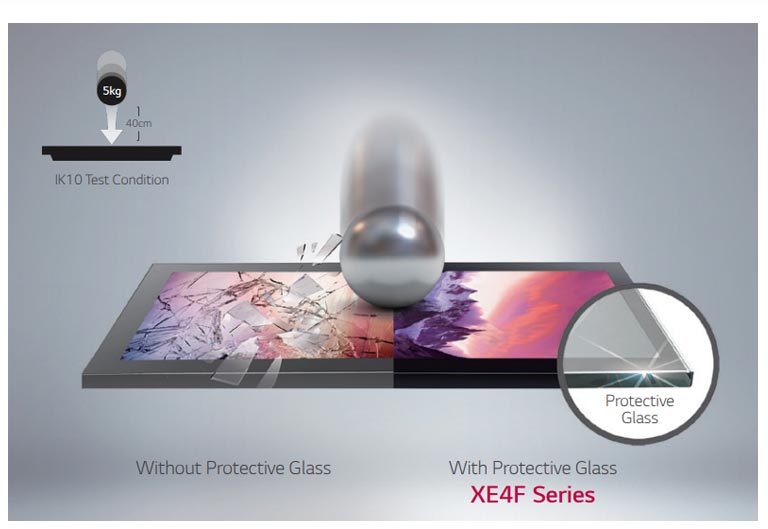

Protective Glass (IK10 Certified)

The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.

* The image is for illustrative purposes only
* IK rating refers to the deqree of resistance against external impacts on a scale of 0 to 10. (10 indicates the highest level of protection.).

EASY MAINTENANCE

Support HDBaseT ™

The XE4F Series supports HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installation and maintenance costs.

* XE4F Series don't support the power supply

EASY MAINTENANCE

Web Monitoring

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

* The image is for illustative purposes only

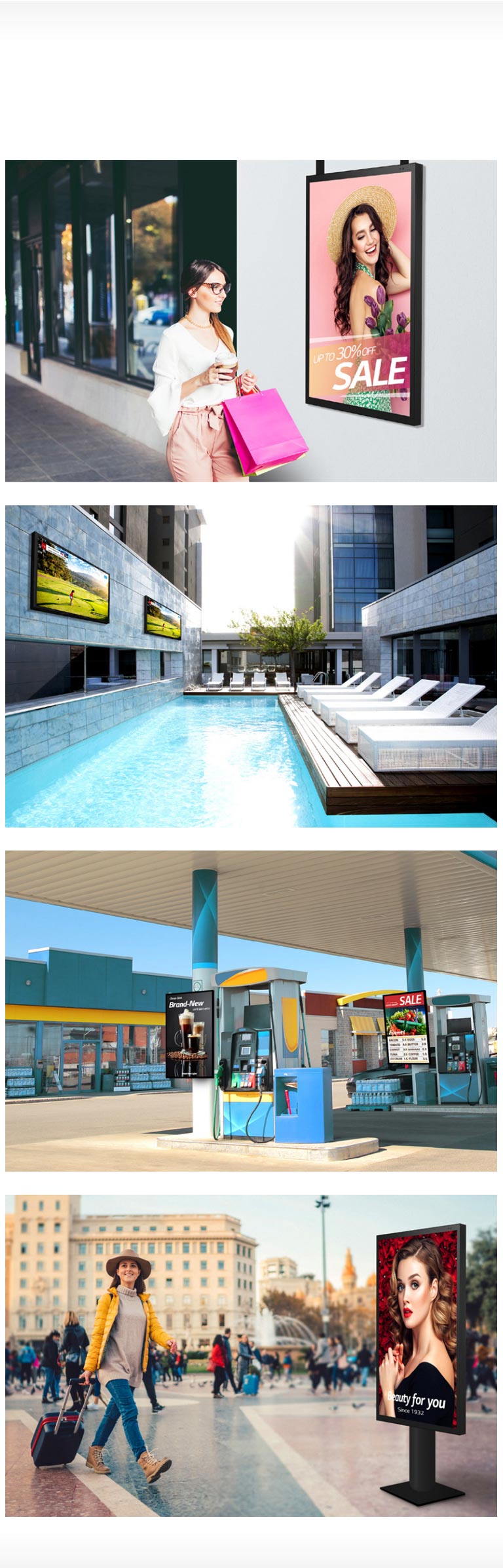

USER SCENE

All Spec

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

SOUND

Speaker (Built-in): NO

ACCESSORY

Basic: Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable, POWER CABLE, Battery, Screws

Optional: NO

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

CERTIFICATION

EMC: FCC Class "A" / CE / KC / VCCI

ePEAT(US only): NO

ERP / Energy Star: YES / NO

Safety: CB / NRTL

ENVIRONMENT CONDITIONS

Operation Humidity: 10 % to 80 %

Operation Temperature: -30 °C to 50 °C

OPS COMPATIBILITY

OPS Power Built-in: NO

OPS Type compatible: NO

POWER CONSUMPTION

BTU (British Thermal Unit): 1126 BTU/Hr(Typ.), 1364 BTU/Hr(Max.)

DPM: 3.5W(WOL Off), 8W(WOL on)

Max.: 400W

Power off: 0.5W

Typ.: 330W (Full White) 178W (IEC 62087)

DEDICATED FEATURE - TOUCH

Accuracy (Typ.): N/A

Available Object Size for Touch: N/A

Interface: N/A

Multi Touch Point: N/A

Operating System Support: N/A

Protection Glass Thickness: N/A

Protection Glass Transmission: N/A

Response Time ('Paint' app on Windows 10 PC): N/A

MECHANICAL SPECIFICATION

Weight (Head): 40Kg

Bezel Color: Black

Bezel Width: T/R/L/B : 38.4/26/26/38.4mm

Carton Dimensions (W x H x D): 1446 x 890 x 207mm

Handle: NO

Monitor Dimensions (W x H x D): 1292.5 x 737.4 x 88.0mm

Monitor Dimension with Stand (W x H x D): N/A

Packed Weight: 46Kg

VESA Standard Mount Interface: N/A

Weight (Head+Stand): N/A

PROTECTION GLASS

Anti-Reflective: YES

Degree of Protection: YES (IK10)

Infrared - Resistance (IR): YES

Shatter-Proof: YES

Tempered / Chemical strengthening: Tempered strengthening

Thickness: 5mm

PANEL

Aspect Ratio: 16:9

Back Light Type: Direct

Brightness: 4,000nit (Typ.), 3,200nit (Min.)

Color Depth (Number of Colors): 16.7 Million colors

Color Gamut: NTSC 72%

Contrast Ratio: 1,000:1

Dynamic CR: 500,000:1

Life time: 50,000Hrs (Typ.)

Native Resolution: 1920 x 1080 (FHD)

Operation Hours (Hours/Day): 24/7

Panel Technology: IPS / M+

Portait / Landscape: YES / YES

QWP (Quarter Wave Plate): YES

Refresh Rate: 60Hz

Response Time: 9ms (G to G)

Screen Size (Inch): 55

Surface Treatment (Haze): Haze 3%

Transparency: N/A

Viewing Angle (H x V): 178º x 178º

SPECIAL FEATURE

Conformal Coating (Power Board): YES

Direct Sunlight: YES

IP Rating: IP56

Overlay Touch Compatibility: N/A

Power Protection: YES

Smart Calibration: N/A

Tilt (Face down): N/A

Tilt (Face up): Max. 15 degree

CONNECTIVITY

Audio In: NO

Audio Out: NO

Daisy Chain: NO

DP In: YES (HDCP 2.2)

DP Out: NO

DVI-D In: NO

External Speaker Out: YES

HDMI In: YES (2ea)

HDMI In (HDCP Ver.): 2.2

HDMI Out: NO

IR In: NO

IR Out: NO

RGB In: NO

RJ45(LAN) In: YES (2ea, LAN 1ea / HDbaseT 1ea)

RJ45(LAN) Out: YES

RS232C In: YES

RS232C Out: YES

Touch USB: NO

USB In: USB2.0 Type A (2ea)

SOFTWARE COMPATIBILITY

Connected Care: YES

Mobile CMS: NO

Promota: NO

SuperSign Cloud: NO

SuperSign CMS: YES

SuperSign Control+: YES

SuperSign WB: NO

FEATURE - HARDWARE

Acceleration(Gyro) Sensor: YES

Auto Brightness Sensor: YES

BLU Sensor: YES

Current Sensor: NO

FAN (Built-in): YES

Humidity Sensor: YES

Internal Memory (eMMC): 16GB

Local Key Operation: NO

Pixel Sensor: YES

Power Indicator: YES

Proximity Sensor: NO

Temperature Sensor: YES

Wi-Fi/BT (Built-in): NO

FEATURE - SOFTWARE

Auto Set ID: YES

Backlight Sync: YES

Beacon: NO

Booting Logo Image: YES

Brightness Compensation: NO

Cisco Certification: NO

Control Manager: YES

Crestron Connected: NO

External Input Rotation: YES

Fail over: YES

Gapless Playback: YES

Group Manager: YES

HDMI-CEC: YES

ISM Method: YES

Local Contents Scheduling: YES

Local Network Sync: YES

Network Ready: NO

No Signal Image: YES

OS Ver. (webOS): webOS 4.0

PBP: YES (2PBP)

PIP: YES

Play via URL: YES

PM mode: YES

Pro:Idiom: YES

RS232C Sync: YES

Scan Inversion: NO

Screen Rotation: YES

Screen Share: NO

Setting Data Cloning: YES

SI Server Setting: YES

SNMP: YES

Status Mailing: YES

Tile Mode Setting: YES

USB Plug & Play: YES

Video Tag: YES (4 Video Tag)

Wake on LAN: YES

webRTC: YES

W/B Setting by Grey scale: NO

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
