IPS Edge LED

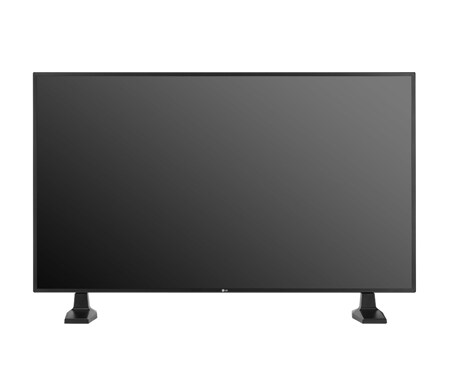

42WS50BS

IPS Edge LED

All specs

GENERAL

Screen size (inches): 42

Dynamic CR: 500,000:1

Panel Technology: IPS (LED BLU)

Life Span (hrs): 60,000

Aspect ratio: 16:9

Resolution: 1920 x 1080 (FHD)

Brightness (cd/m2): 450

Viewing angle (°): 178 x 178

Contrast ratio: 1300:1

Response Time (ms): 12ms (G to G)

Orientation: Portrait and Landscape

CONNECTIVITY - INPUT

Digital: DVI-D(1), HDMI(1), Display Port(1) with HDCP for all input

Analog: Component(1), Composite(1), RGB(1) (Shared with D-Sub)

Audio: RGB/DVI-D/AV/Component(3.5Φ 1)

External control: RS232C(1), RJ45(1), IR(1)

USB: Yes

HDTV Formats: Component : 720p, 1080i , 1080p - HDMI : 720p, 1080i, 1080p

CONNECTIVITY - OUTPUT

Digital: DVI-D(1)

Analog: Component(1), Composite(1), RGB(1) (Shared with D-Sub)

Audio: External Speaker

External Control: RS232C(1), IR(1)

AUDIO

Audio Power: 20W (10W x 2)

Balance: Yes

Clear Voice II: Yes

Speaker On/off: Yes

Sound mode: Standard, Music, Cinema, Sports, Game

PHYSICAL SPECIFICATION

Bezel Width (mm): 11.5mm

Monitor Dimension (WxHxD): 37.9” x 21.8” x 1.3”

Carton Dimension (WxHxD) mm: 42.7” x 29.1” x 4.9”

Packed Weight: 37.9 Ibs.

Weight (head) kg: 30.2 Ibs.

VESA™ Standard Mount Interface (mm): 400 x 400

SPECIAL FEATURES

Temperature Sensor: Yes

Smart Energy Saving: Yes

PIP/ PBP: Yes

Tile Mode: 15 X 15

ISM Method: Yes

Brightness/Contrast/Backlight: Yes

Position/Size: Yes

Key Lock: Yes

File Play with USB: Yes

Source Selection: AV, Component, RGB, Display Port, DVI-D, HDMI, SuperSign (Option)

Time: Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby

Input Label: Yes

DPM Select: Yes

Auto Config/Phase: Yes

Auto Power/Source Memory: Yes

ENVIROMENT CONDITIONS

Operation Temperature: 0°C ~ 40°C

Operation Humidity: 10% ~ 80%

STANDARD(CERTIFICATION)

Safety: UL / cUL / CB scheme / TUV

EMC: FCC Class "A" / VCCI / C-tick / CE / KCC

ErP / Energy Star: Yes / Yes (Energy Star 5.1)

SOFTWARE COMPATIBILITY

Supersign Compatibility: Elite-W / Elite-W lite/Editing, Scheduling, Distribution & Play, Control

POWER

Power Supply: 100-240V, 50/60Hz

PC - Typical: 115W

PC - Smart Energy Saving: 75W

PC - DPM: 2.0W (DPMS Off)

PC - Power Off: 0.5W

MEDIA PLAYER COMPATIBILITY

Slot PC Compatible (Optional): MP500 (Optional)

ACCESSORY

Included: Remote Controller, Power Cable, RGB Cable, Manual, ESG, IR Receiver

Optional: SP-2000 (Speaker), ST-200T (Stand), MP500 (Media Player)
