webOS UHD Signage

Specs

webOS UHD Signage

webOS UHD Signage

86UL3J-N
  • Front view with infill image
  • Front view
  • -15 degree side view
  • -45 degree side view
  • +45 degree side view
  • +15 degree side view
  • Top view
  • Image taken from the top right
  • Close-up image of bottom left corner
  • Close-up image of top right corner

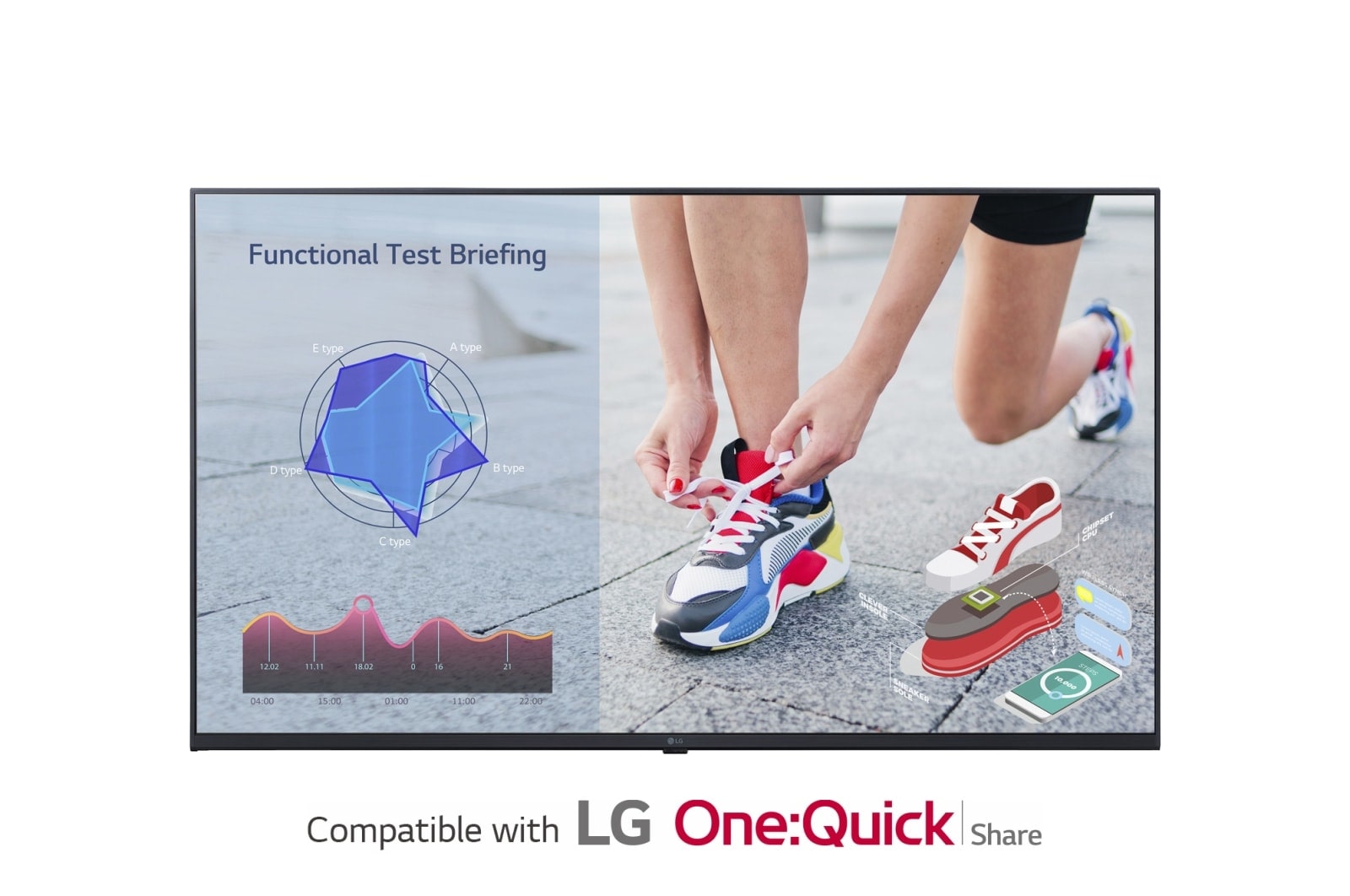

Front view with infill image

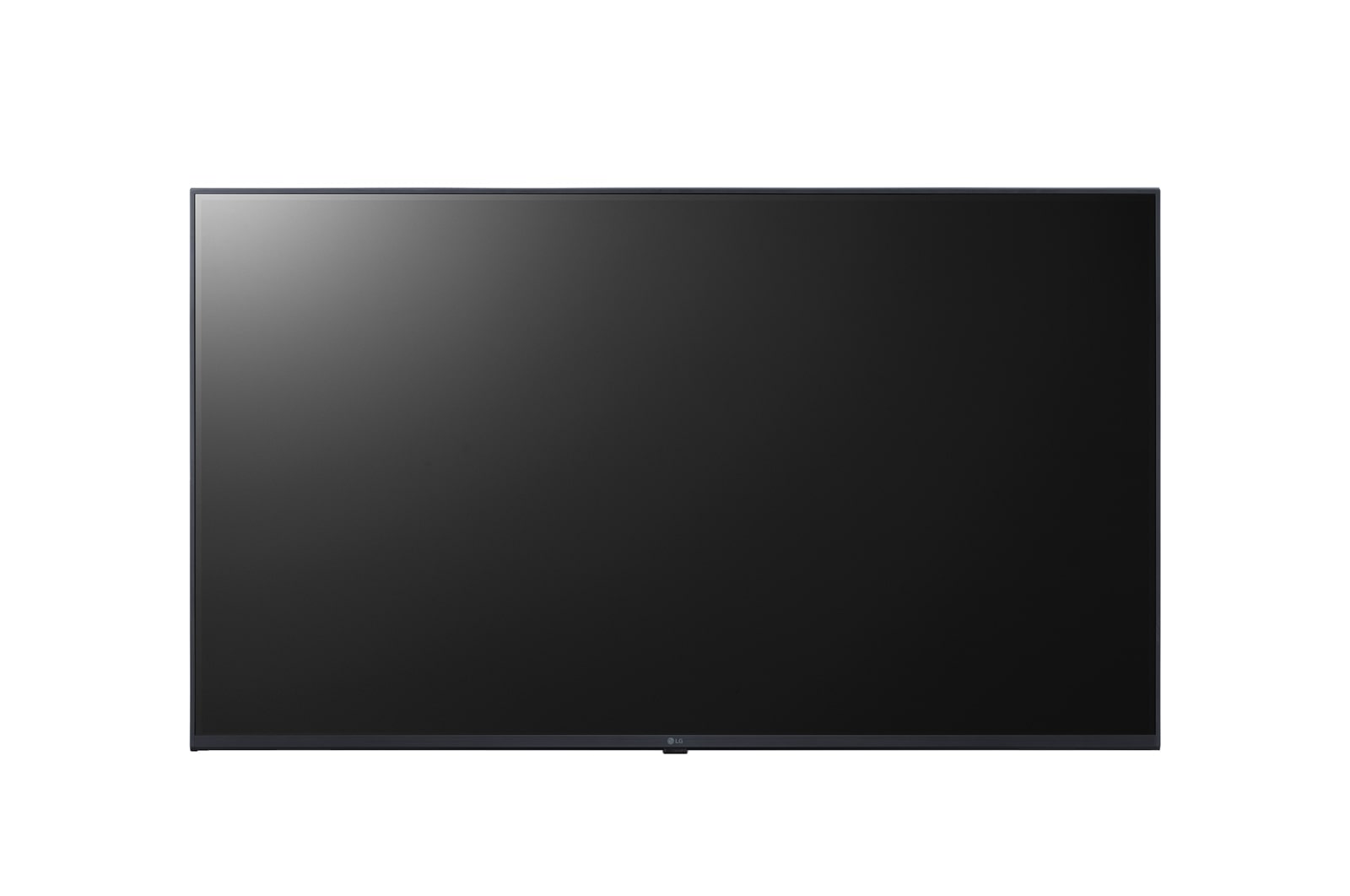

Front view

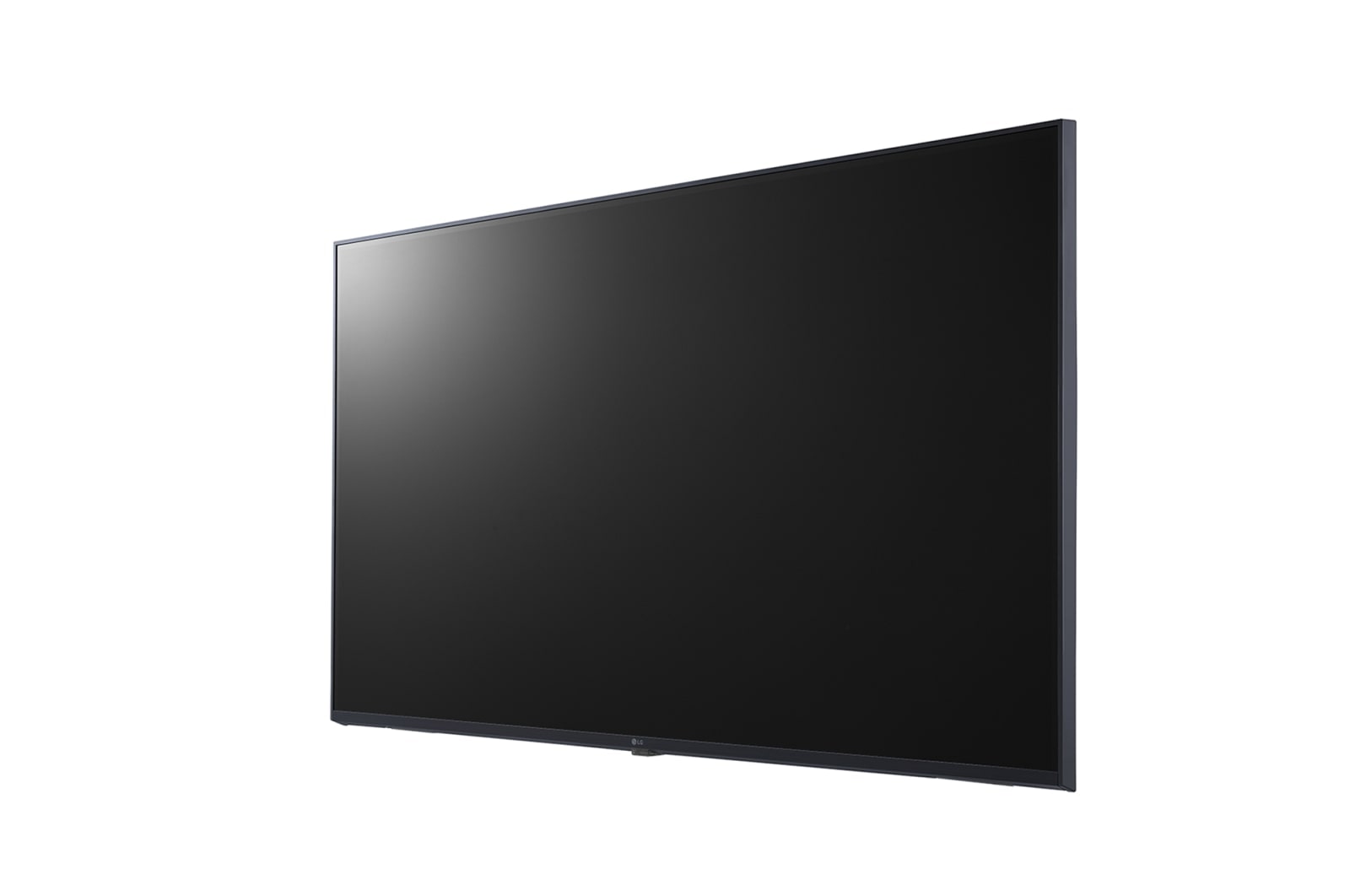

-15 degree side view

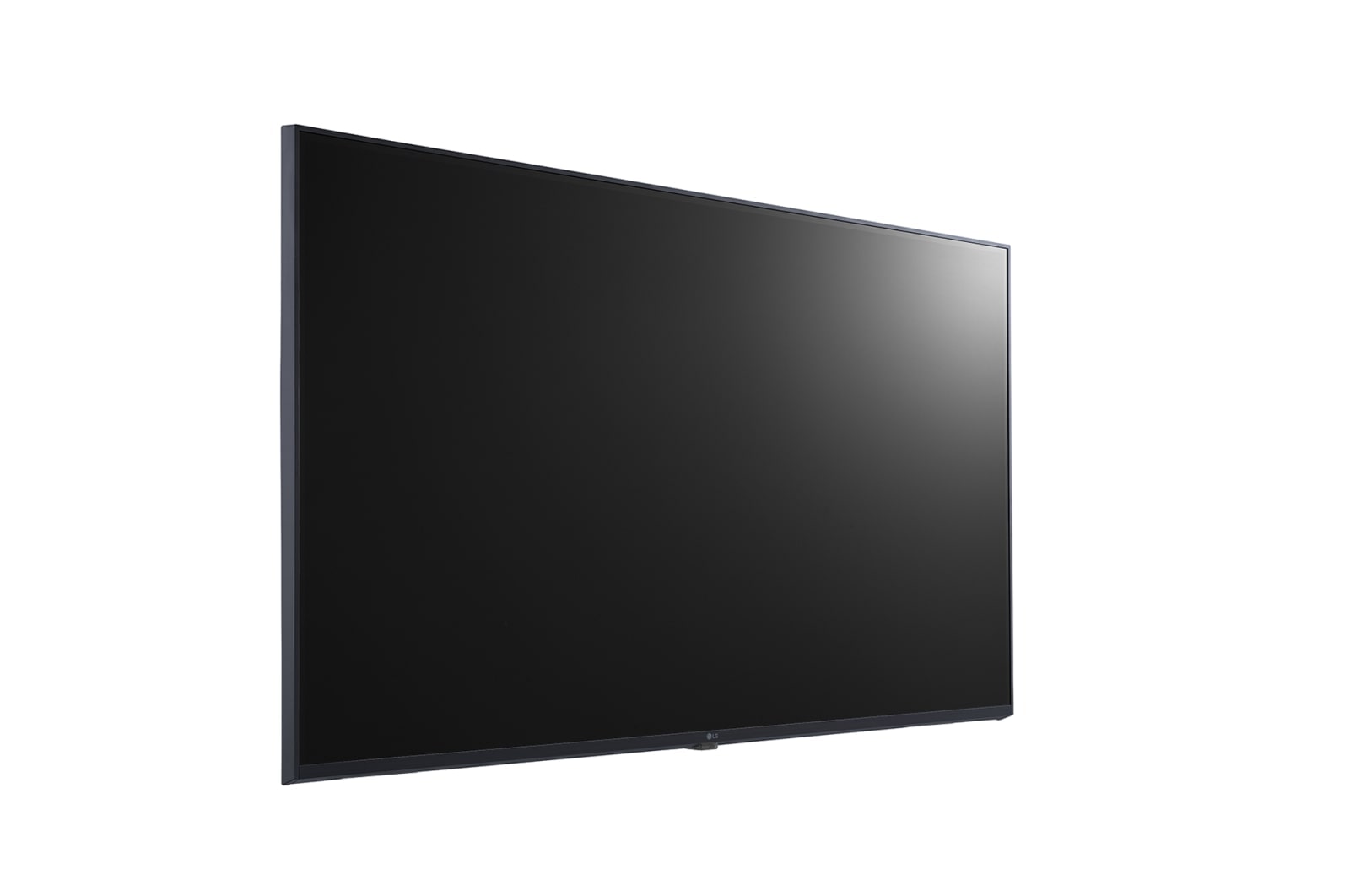

-45 degree side view

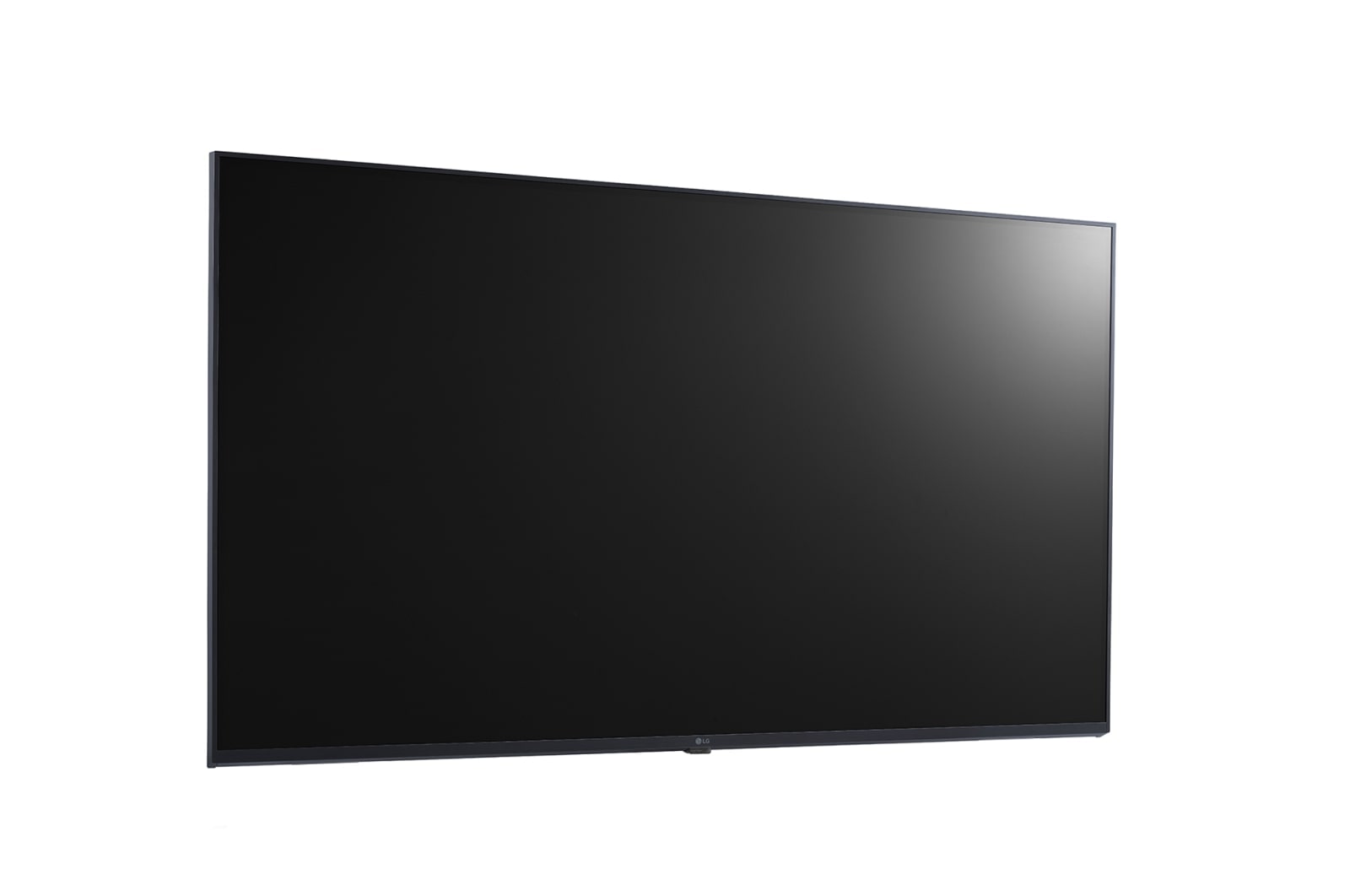

+45 degree side view

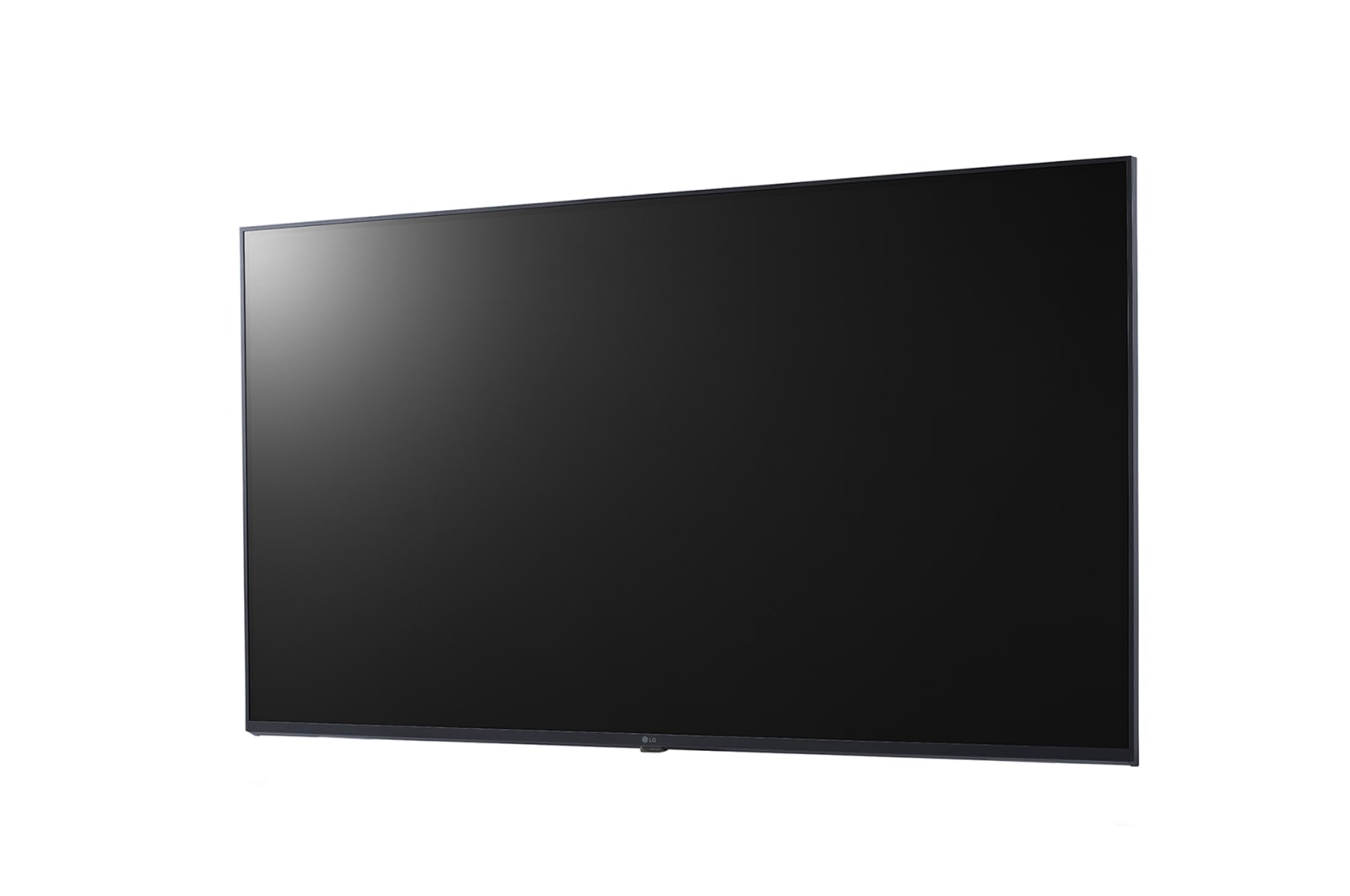

+15 degree side view

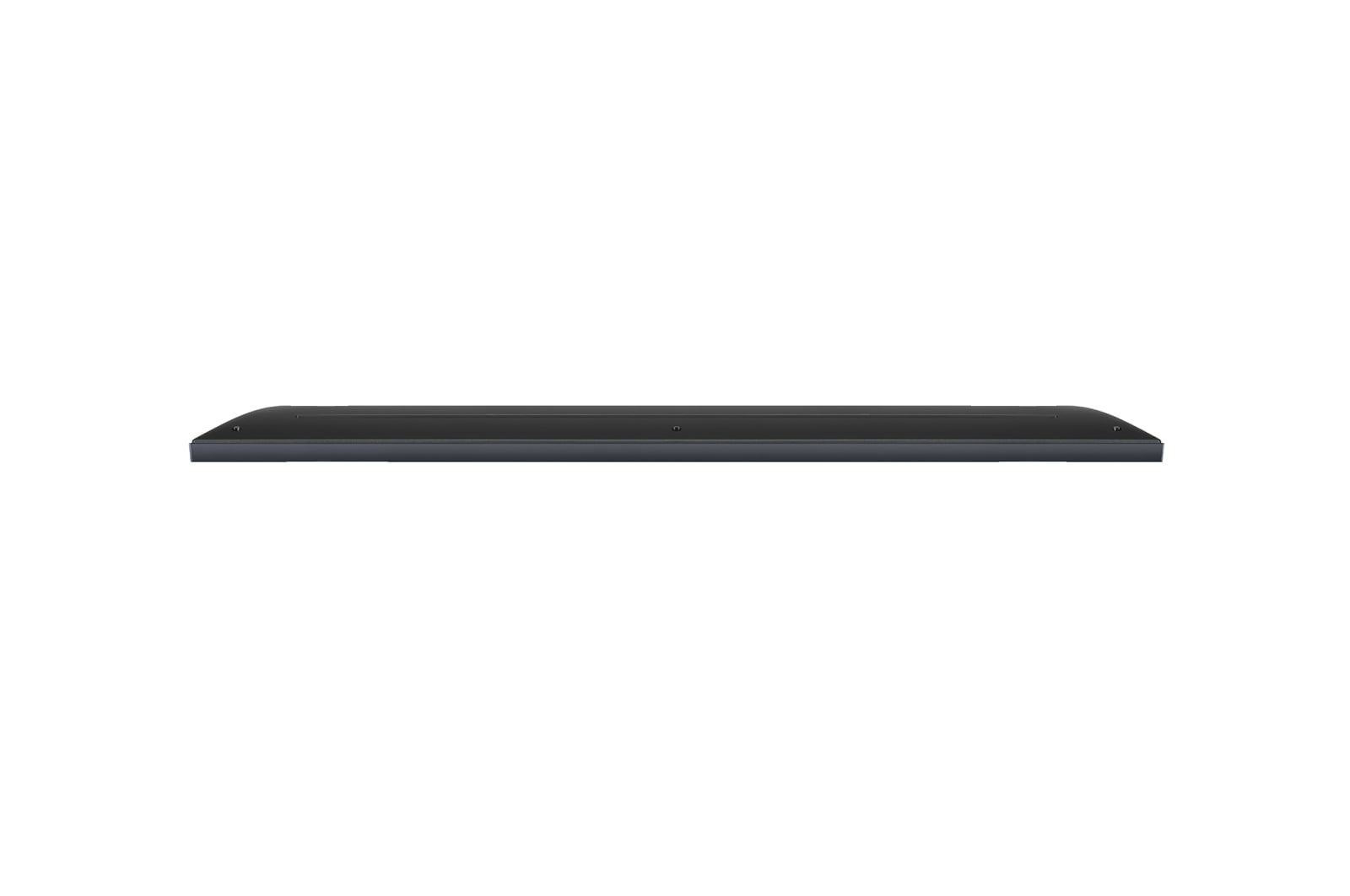

Top view

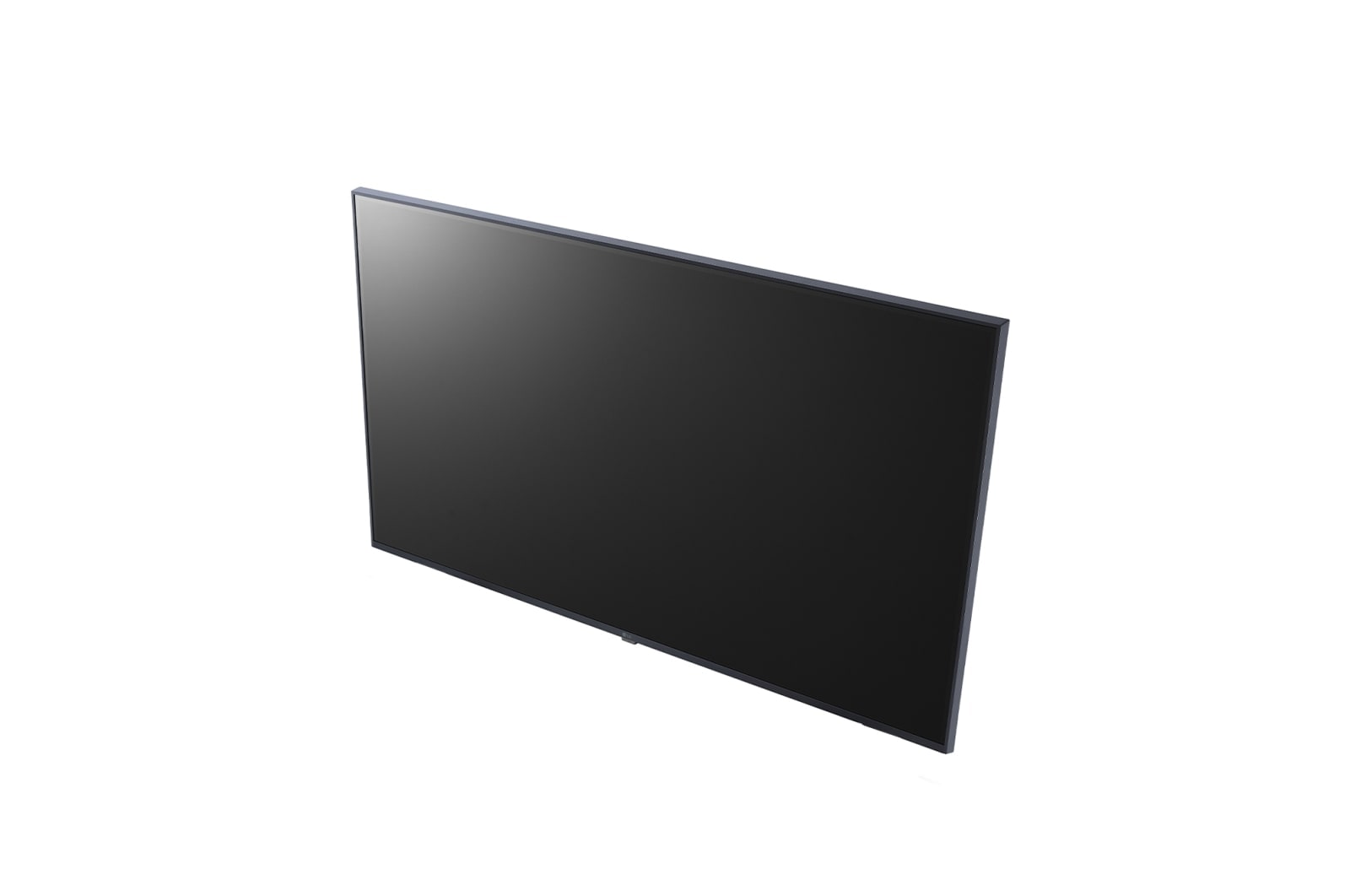

Image taken from the top right

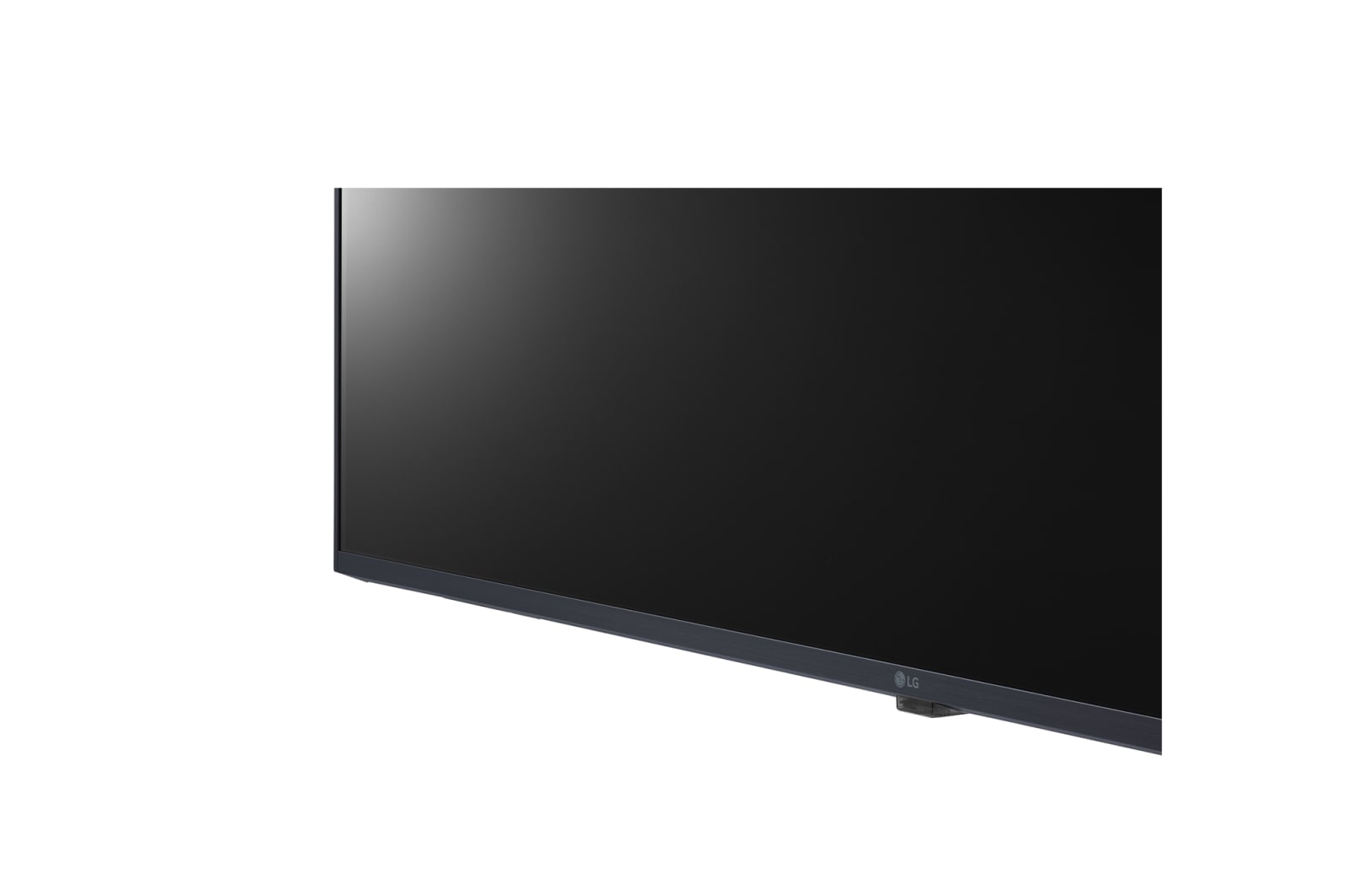

Close-up image of bottom left corner

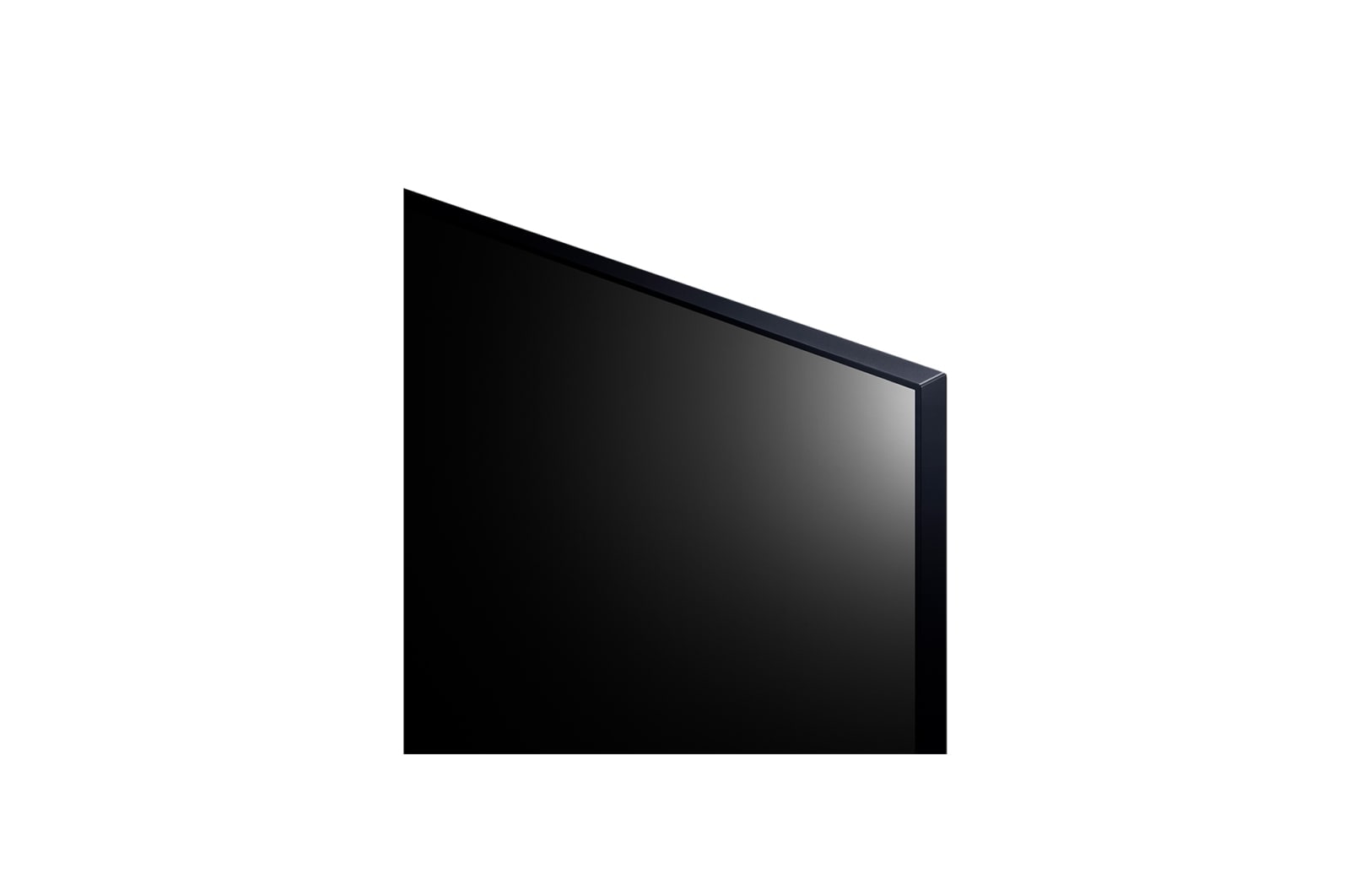

Close-up image of top right corner

Key Features

  • Brightness(Typ.) : 330 nits
  • Resolution : ULTRA HD (3,840 x 2,160)
  • webOS-based High Performance
  • Built-in Speaker
  • Compatible with LG's One:Quick Share
  • Compatible with AV Control Systems
More
Print

All specs

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder

CERTIFICATION

  • EMC

    FCC Class "A" / CE

  • ERP / Energy Star

    Yes (OldErP for Jordan) / No

  • Safety

    CB

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkiye, Arabic, polski

MECHANICAL SPECIFICATION

  • Bezel Color

    Ashed Blue

  • Bezel Width

    Off : 6.9/6.9/6.9/18.4
    On : 15.9/15.9/15.9/19.9

  • Carton Dimensions (W x H x D)

    2115 x 1215 x 228

  • Monitor Dimensions (W x H x D)

    1927 x 1104 x 59.9

  • Packed Weight

    57.7

  • VESA Standard Mount Interface

    600 x 400

  • Weight (Head)

    45.2

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    330nit (Typ.)

  • Color Depth (Number of Colors)

    Advanced 8bit, 1.07 Billion colors

  • Color Gamut

    DCI 80%

  • Contrast Ratio

    1,400:1

  • Dynamic CR

    1,000,000:1

  • Life time

    30,000Hrs (Min)

  • Native Resolution

    3840x2160 (UHD)

  • Operation Hours (Hours/Day)

    16/7

  • Panel Technology

    ADS

  • Portait / Landscape

    No / Yes

  • Refresh Rate

    120Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    86"

  • Surface Treatment (Haze)

    1%

  • Viewing Angle (H x V)

    178x178

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    751 BTU/Hr(Typ.), 1024 BTU/Hr(Max.)

  • DPM

    0.5W

  • Max.

    TBD W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    TBD W

  • Typ.

    TBD W

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign WB

    Yes

SOUND

  • Speaker (Built-in)

    Yes
