Open Frame

Specs

Open Frame

Open Frame

49XF3E-B

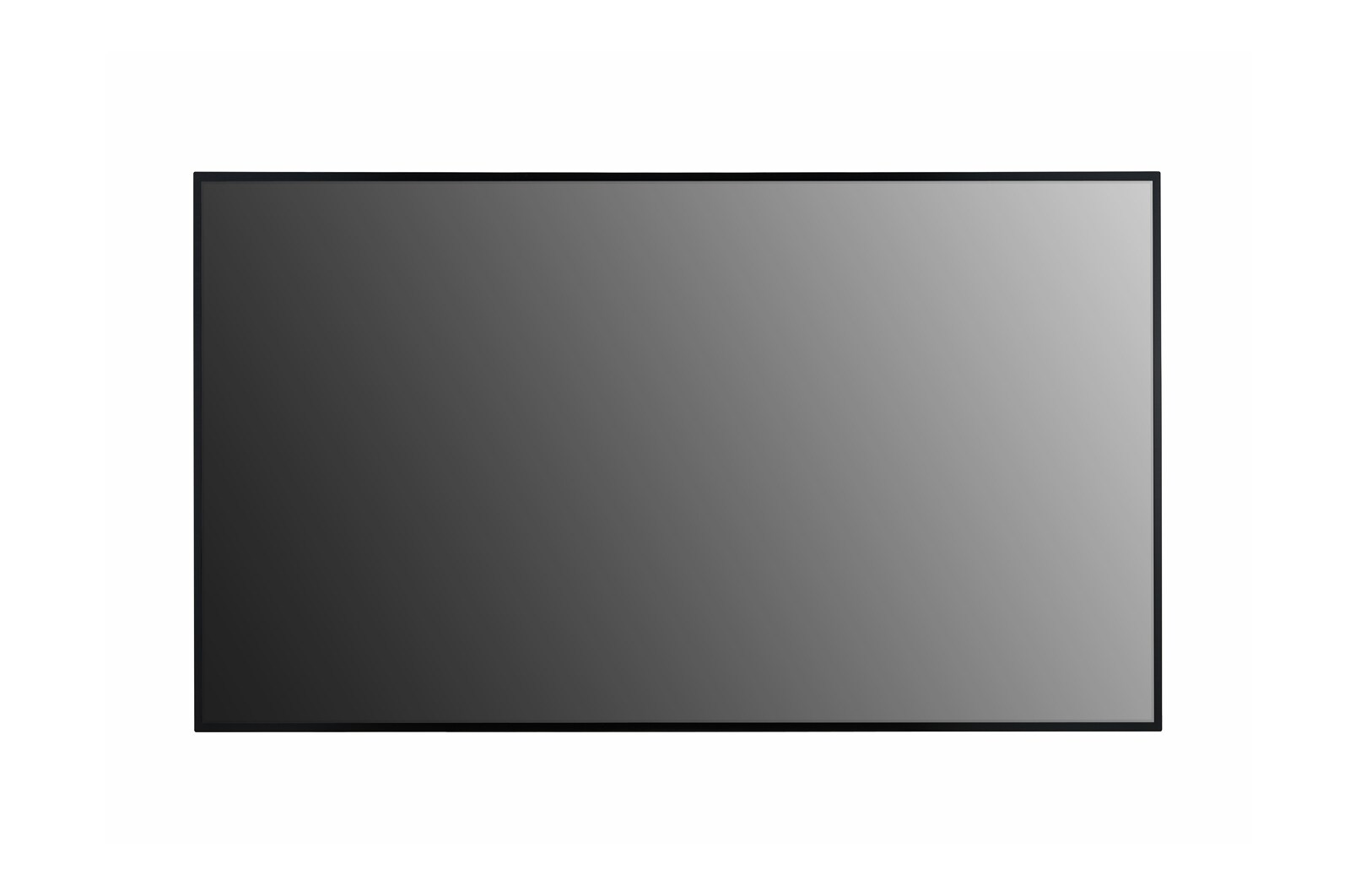

  • Front view of Open Frame 49XF3E-B

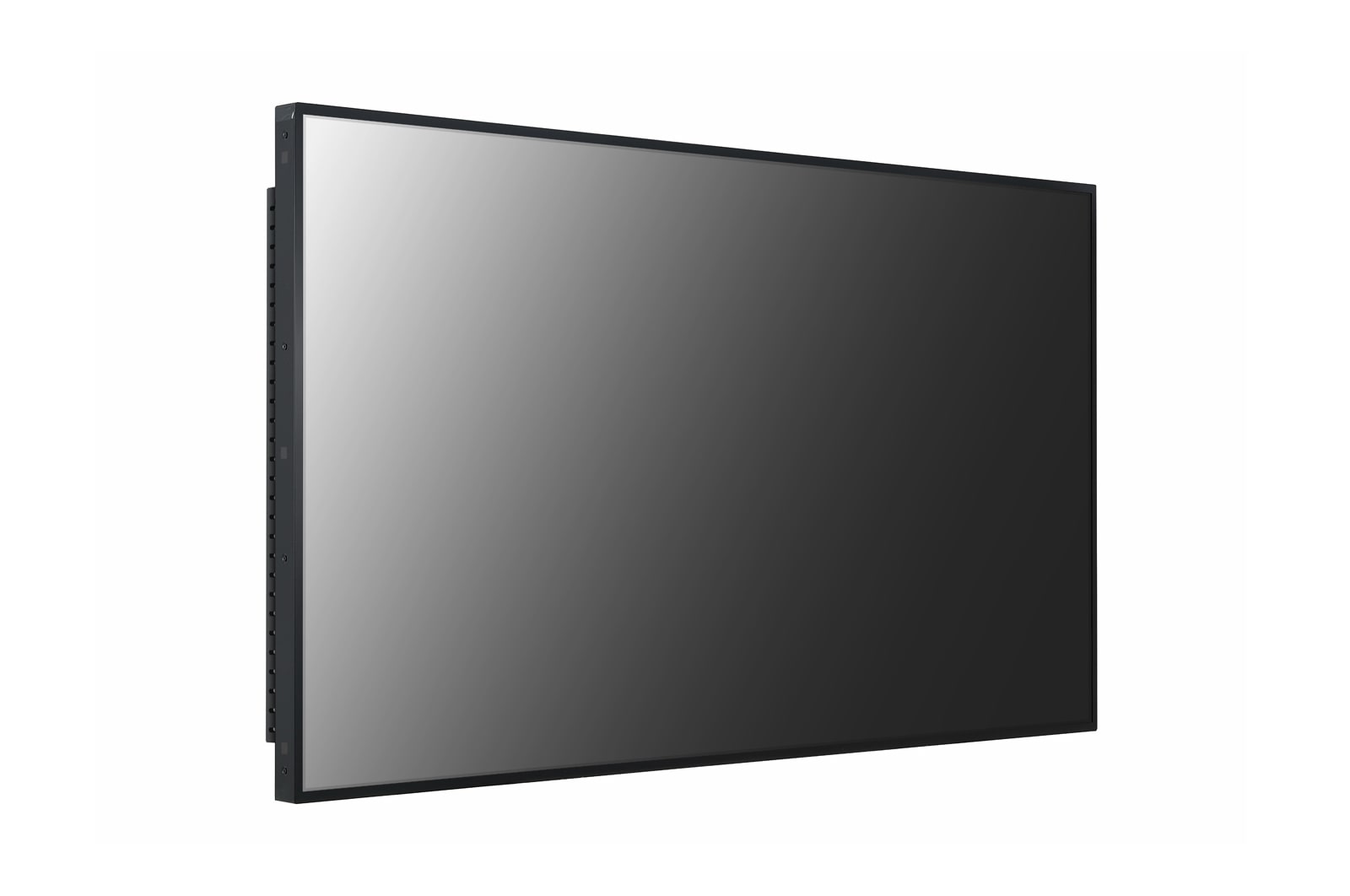

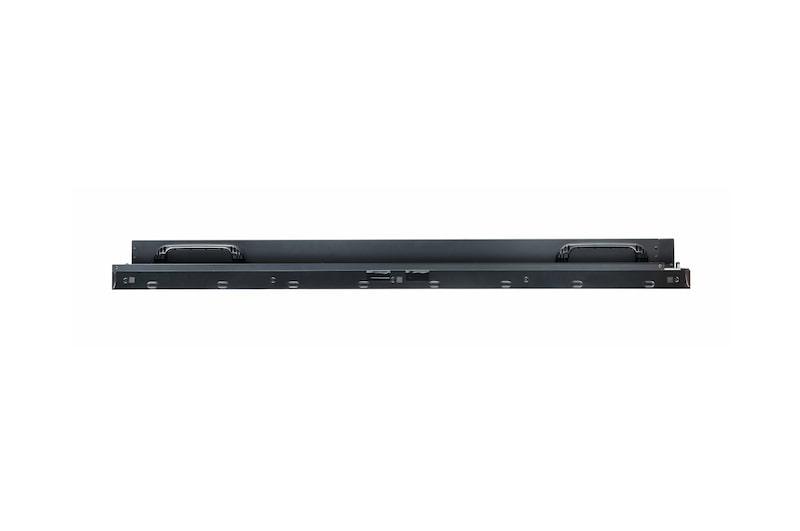

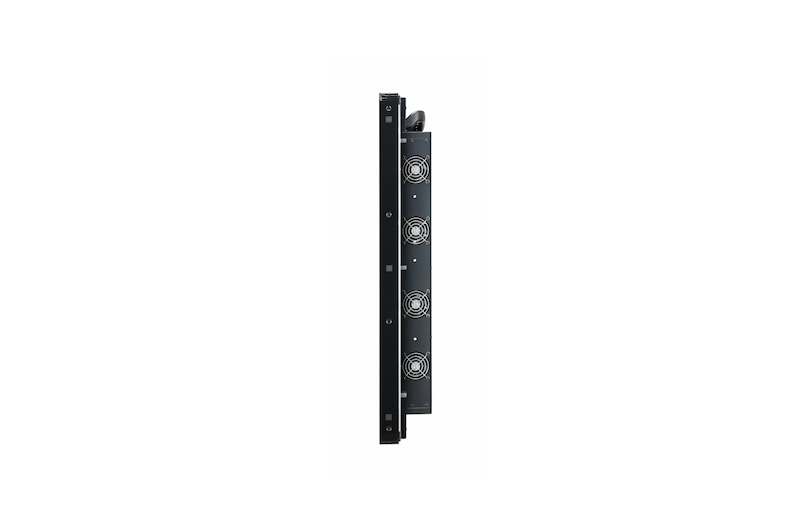

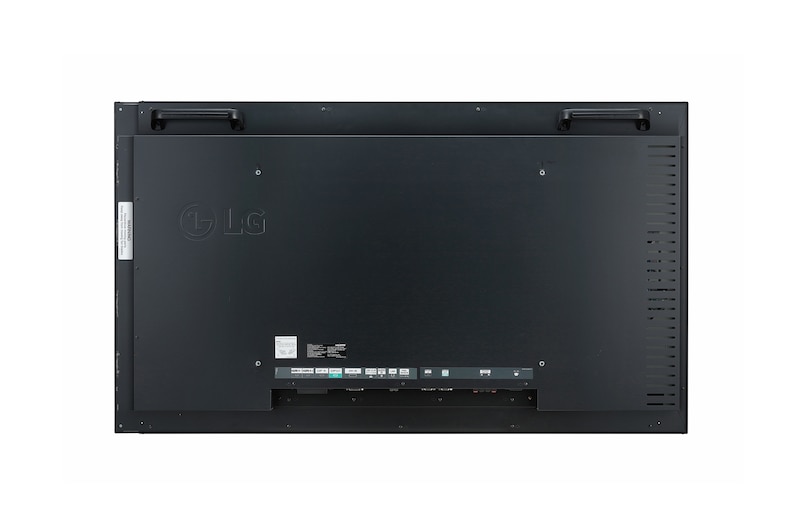

  • LG Open Frame, 49XF3E-B

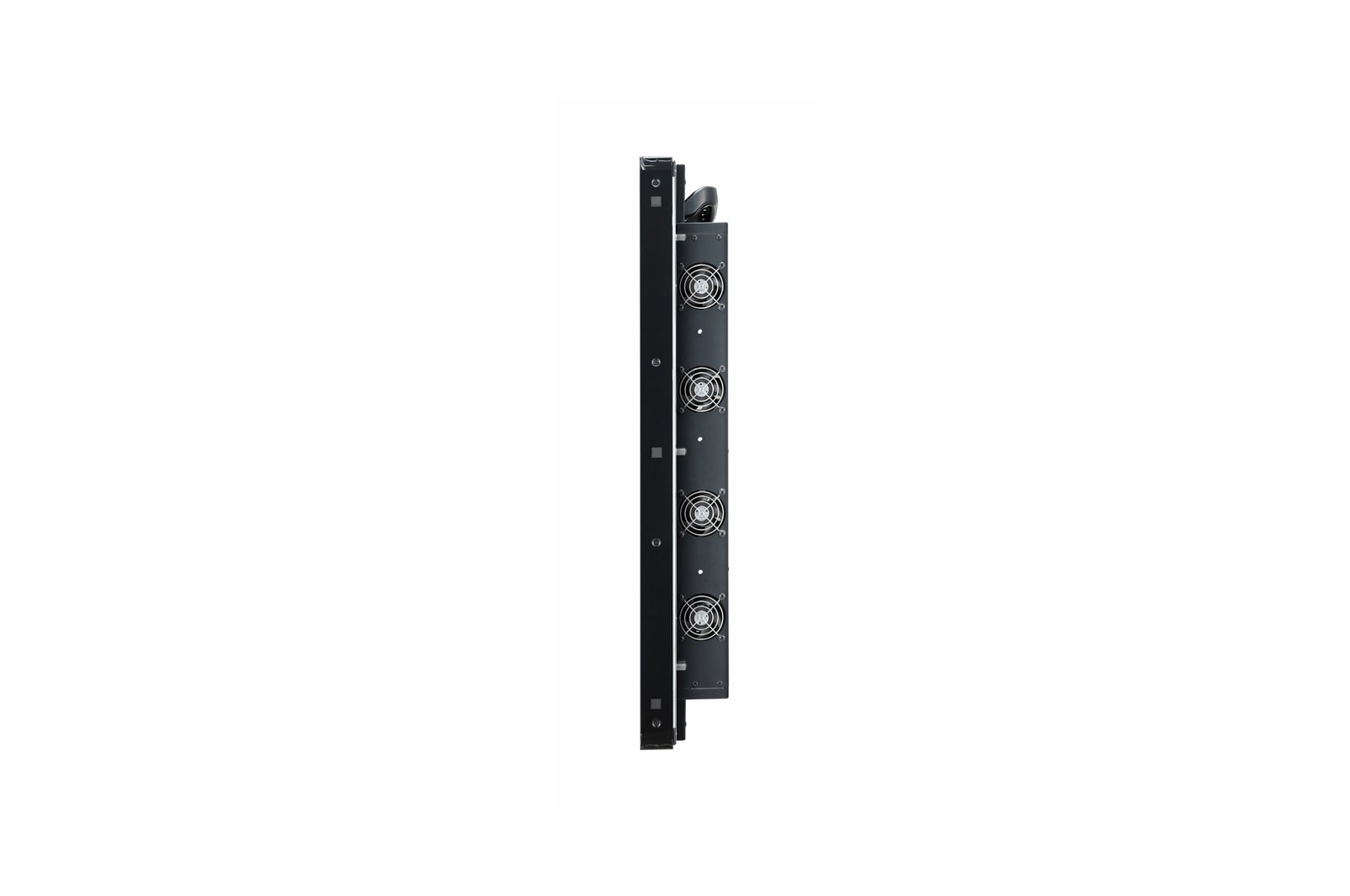

  • LG Open Frame, 49XF3E-B

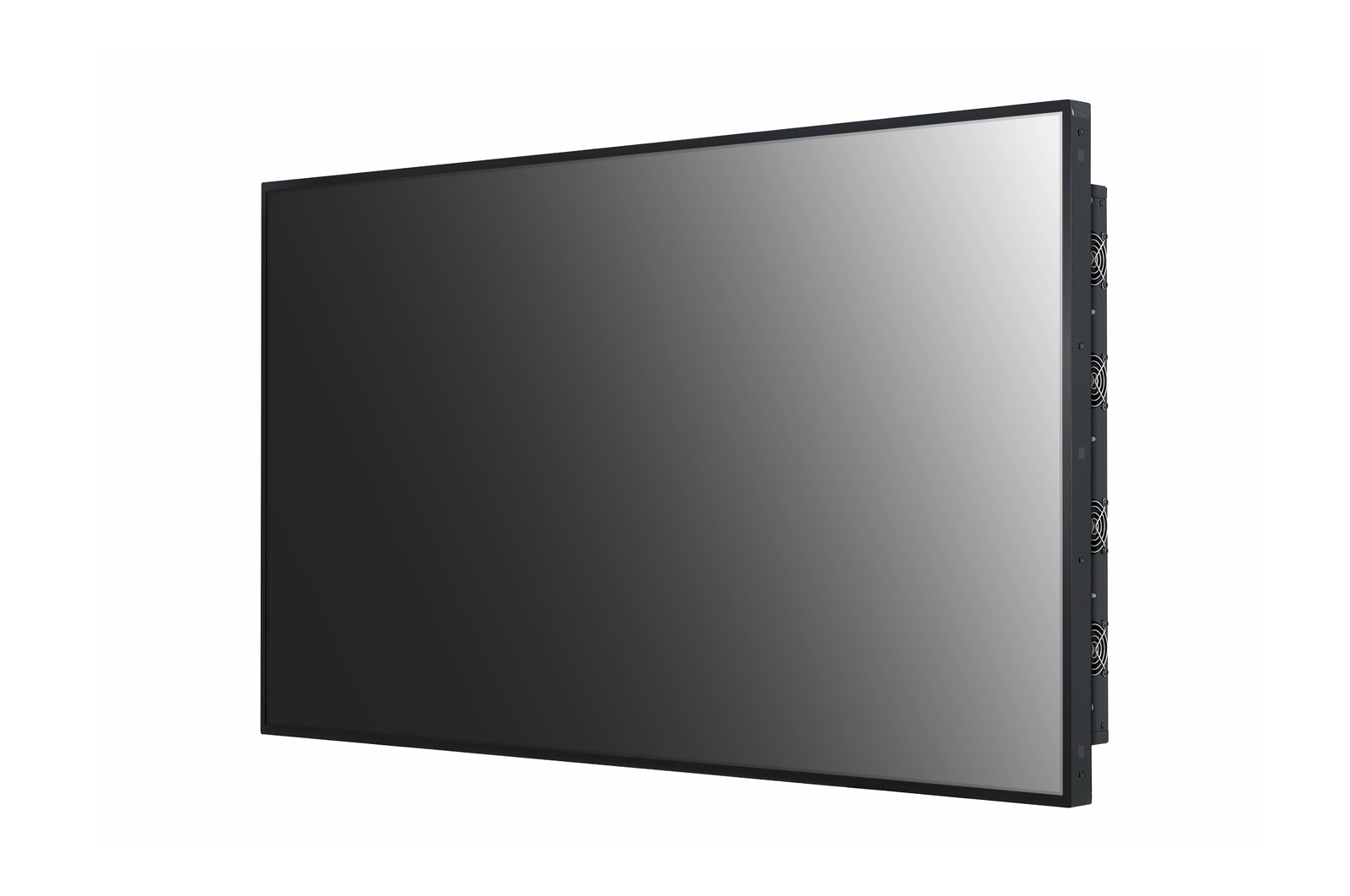

  • LG Open Frame, 49XF3E-B

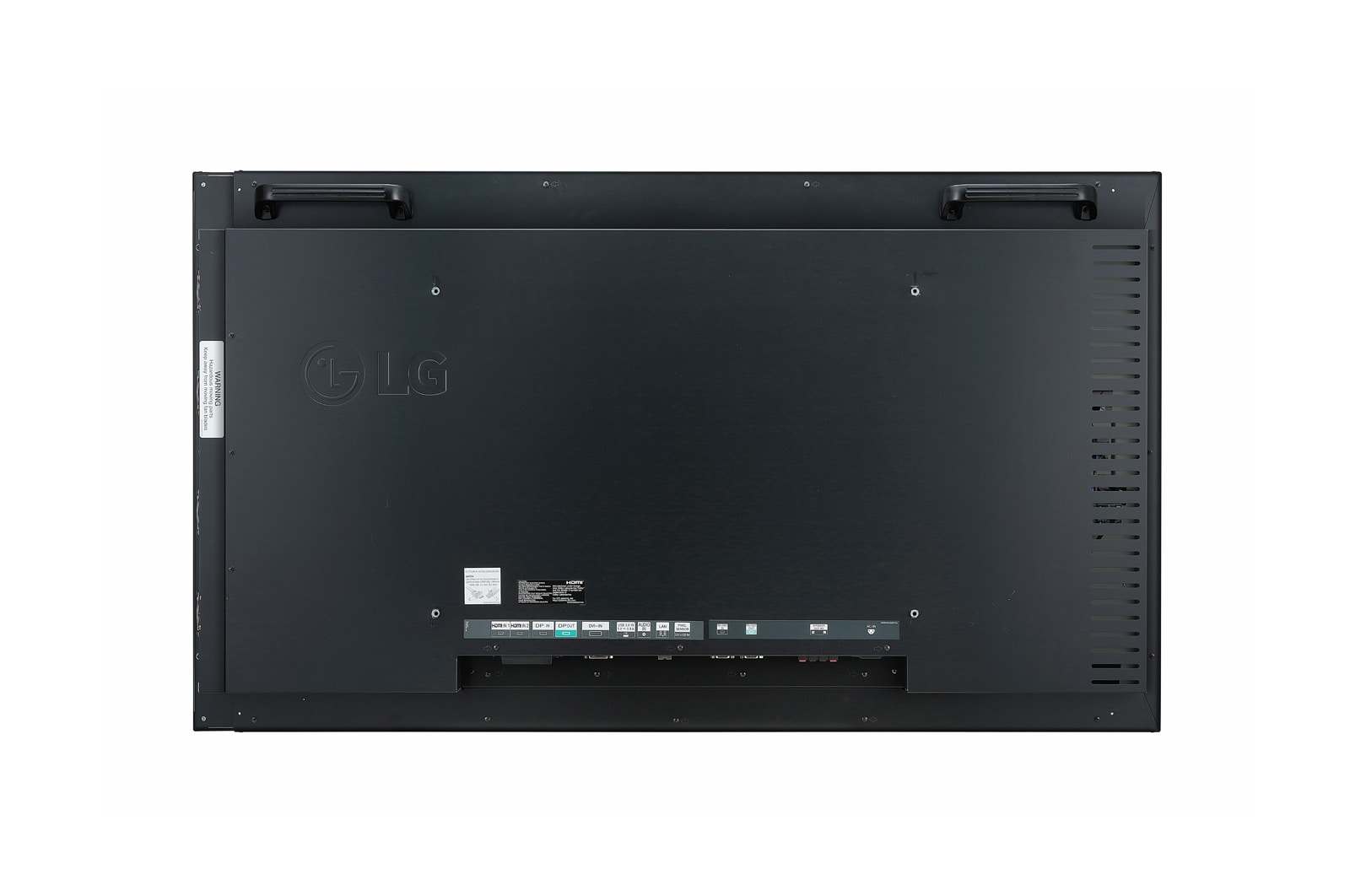

  • LG Open Frame, 49XF3E-B

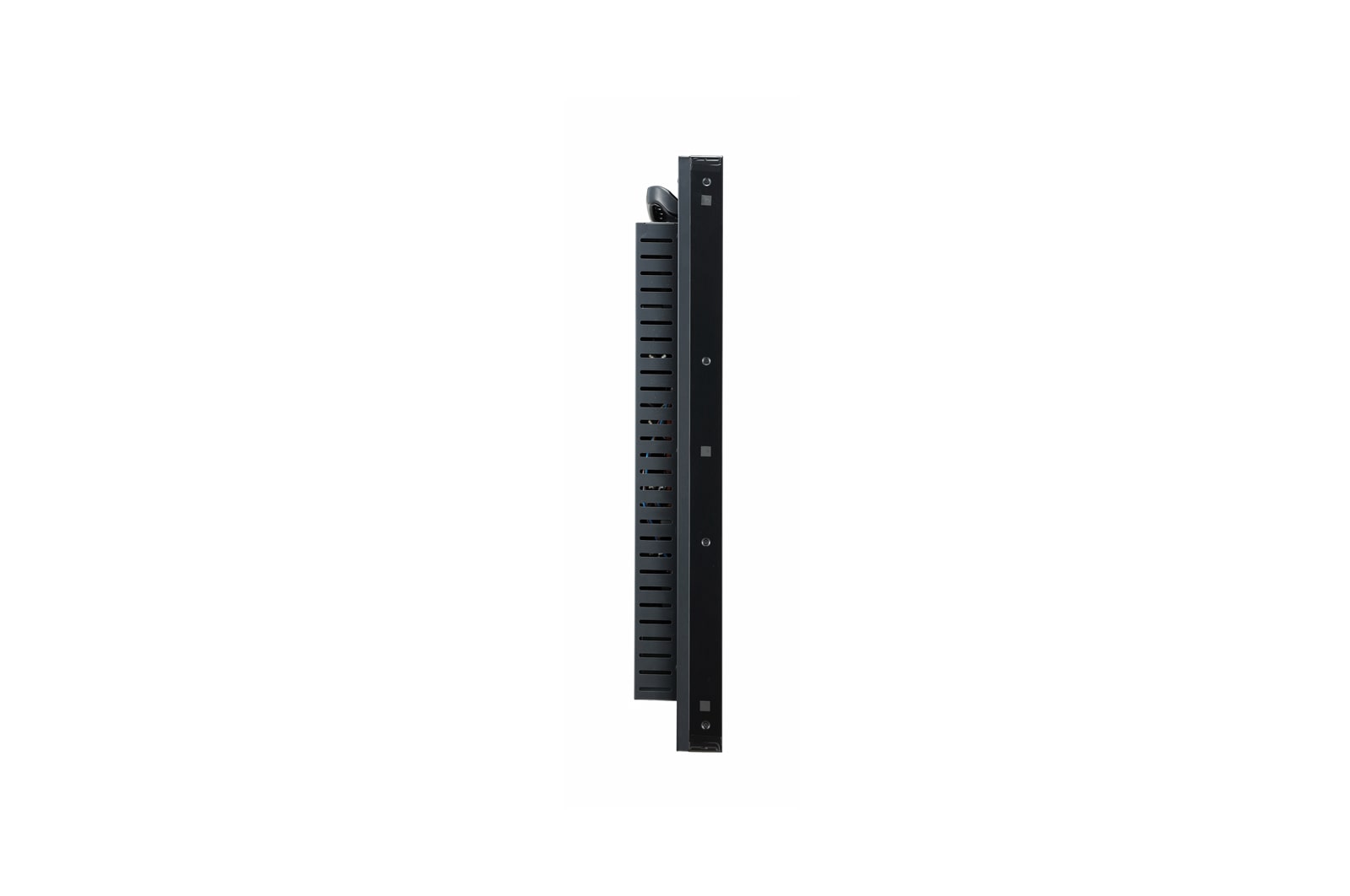

  • LG Open Frame, 49XF3E-B

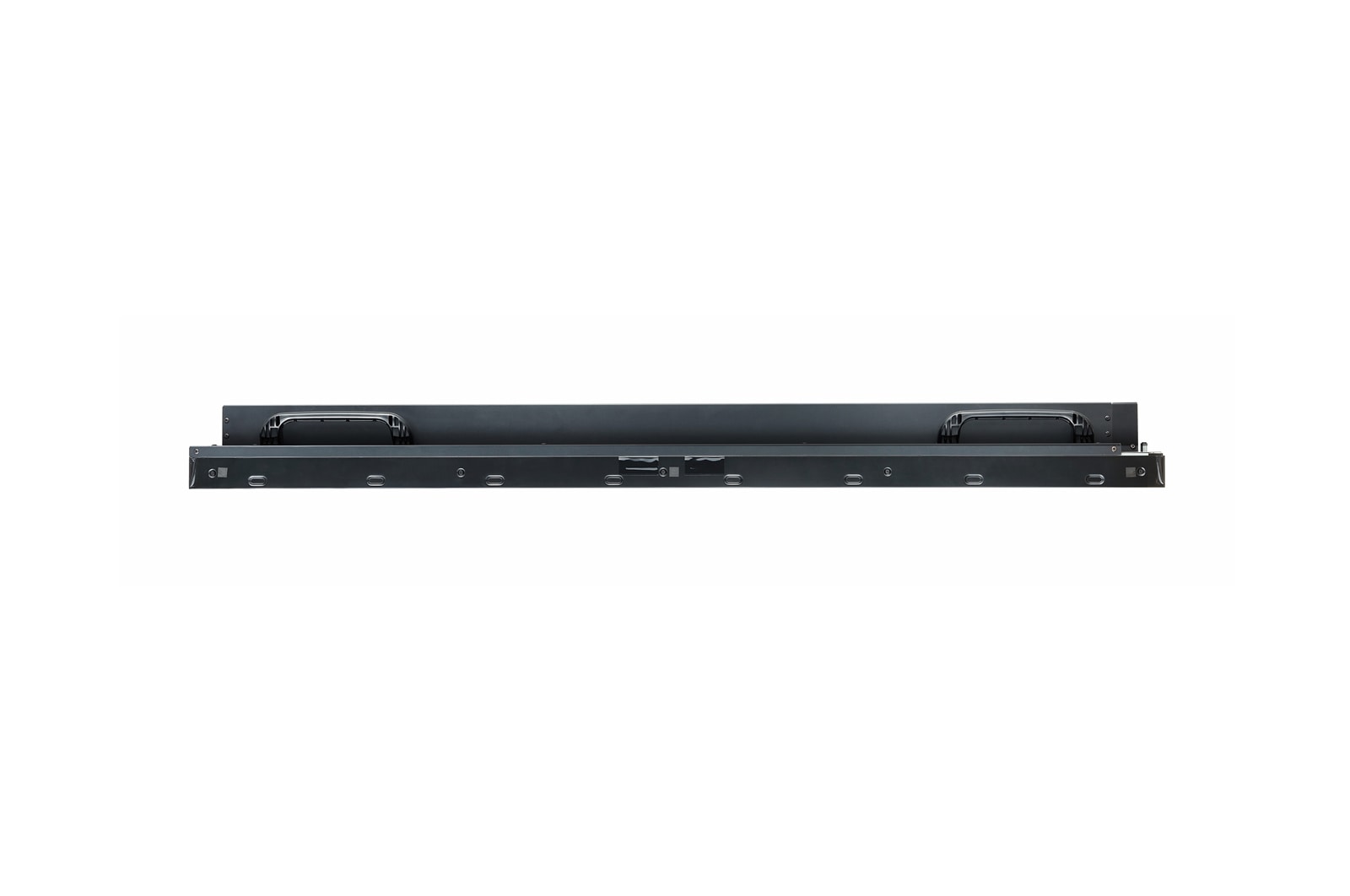

  • LG Open Frame, 49XF3E-B

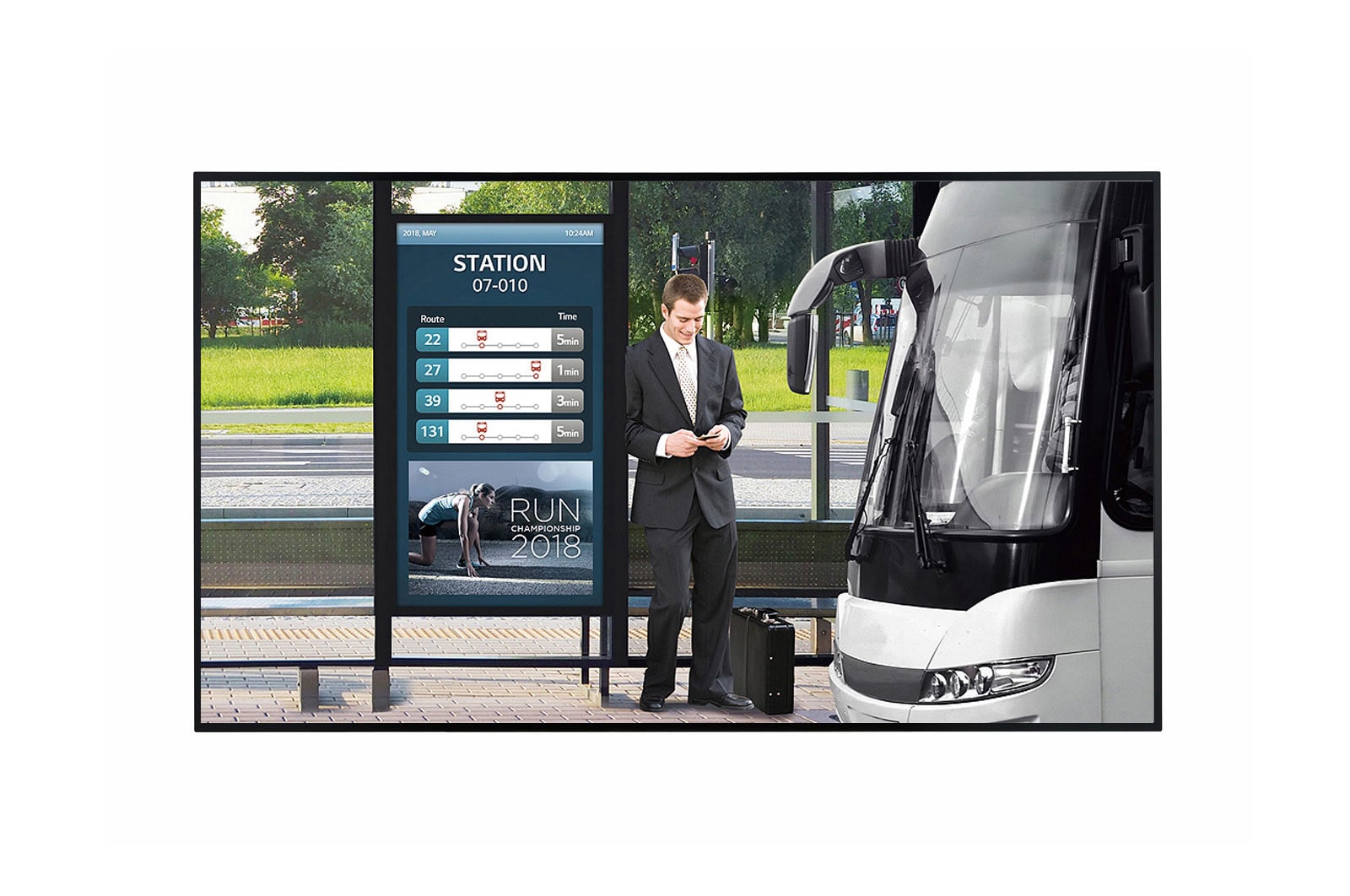

  • LG Open Frame, 49XF3E-B
Front view of Open Frame 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B
LG Open Frame, 49XF3E-B

Key Features

  • Brightness : 3,000 cd/㎡ (Typ.)
  • Life Time : 50,000 hours
  • Bezel : 9 mm (T/B), 6.5 mm (L/R)
  • Depth : 105 mm
  • Interface: HDMI(2) / DP / DVI-D / RJ45 / RS232C / USB / External speaker out (L/R)
More
Print

All specs

ACCESSORY

  • Basic

    Remote Controller, Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)

  • Optional

    Wi-Fi Dongle (AN-WF500)

CONNECTIVITY

  • External Control

    RS232C In/Out, RJ45 In, IR Receiver In

  • Input

    HDMI (2), DP, DVI-D, Audio, USB

  • Output

    DP, External Speaker

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0℃ to 50℃

PANEL

  • Brightness (Typ., cd/m²)

    3000

  • Resolution

    1,920 x 1,080 (FHD)

  • Screen Size

    49" (48.50" Measured Diagonal)

PHYSICAL SPECIFICATION

  • Bezel Width

    9 mm (T/B), 6.5 mm (L/R)

  • Carton Dimensions (W x H x D)

    1,195 x 196 x 760 mm

  • Monitor Dimension (W x H x D)

    1,092.7 x 626.4 x 105 mm

  • Packed Weight

    26.2 kg

  • VESA™ Standard Mount Interface

    600 x 400 mm

  • Weight (Head)

    21.5 kg

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Smart Energy Saving

    95 W

  • Typ./Max

    250 W / 290 W

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control+ / Control

STANDARD(CERTIFICATION)

  • EMC

    FCC Class "A" / CE / KC

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1
