High-brightness IP-rated Outdoor Display

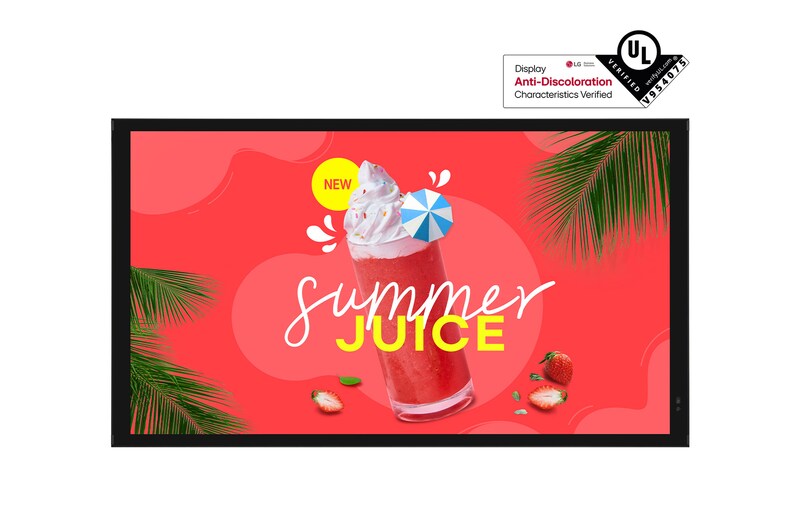

Display Anti-Discoloration Characterstics verified
There are four XE3P installed in the drive-thru zone at the burger place, and they vividly display the burger menus and images even in bright sunlight.
* All images are for illustrative purposes only.
LG offers advanced technical solutions equipped with various sensors, providing reliable and effective operations. In diverse spaces under sunlight, the XE3P highlights your content, reducing concerns about excessive operational burdens.

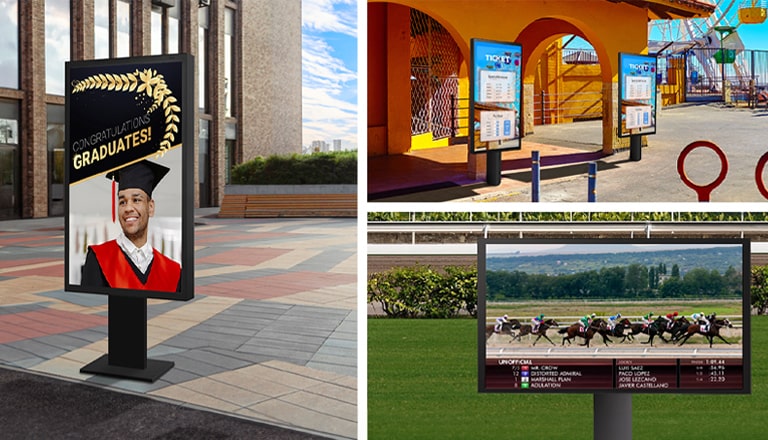

"An XE3P display is installed in the outdoor area next to the school building, clearly celebrating the graduation ceremony. Two XE3P displays are installed in front of the ticket booth at an amusement park, showing ticket purchase information clearly, even in strong sunlight. An XE3P display installed at the racetrack clearly shows the race and relevant information."
With outstanding high brightness of 3,500 nits (Typ.), the XE3P outdoor display delivers content clearly with captivating passersby. Through IPS technology, viewers can engage with the content at wide viewing angles.
An XE3P is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.
By focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE3P can deliver long-lasting and stable display quality.
The display on the left shows yellowing, degrading its quality, but with XE3P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen, as shown on the right, remains clear, safeguarding display quality.
Especially for screen yellowing resistance, we obtained the world’s first UL Verification of Anti-Discoloration characteristics for displays. The UL Verified XE3P can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.
Several outdoor displays are installed at a burger place’s drive-thru, brightly and clearly showcasing the menu and food images.
* For more details, please visit https://verify.ul.com/verifications/1382.
** World's first UL Verification in the manufacturing industry
Built-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE3P is equipped with a beacon that delivers real-time information, using location data for display content.
Displays installed inside and outside a café are connected via Wi-Fi and Bluetooth, making it easy to manage content seamlessly.
If the sensor detects the XE3P experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.
If the device detects external impact surpassing a certain threshold, an alert is automatically sent to the administrator.
Screen Size (Inch)
55"
Panel Technology
IPS, M+
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
1920x1080 (FHD)
Refresh Rate
60Hz
Brightness
3,500 nit (Typ), 2,800 nit(Min)
Contrast Ratio
1,000:1
Dynamic CR
500,000:1
Color Gamut
72%
Viewing Angle (H x V)
178 x 178
Color Depth (Number of Colors)
8bit, 16.7Million colors
Response Time
Typ. 9ms (G to G BW)
Surface Treatment (Haze)
3%
Life time
50,000 Hrs (Typ)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
O / O
QWP (Quarter Wave Plate)
O
HDMI In
O(2), HDCP2.2
DP In
O(1), HDCP2.2
RS232C In
O(1) (4pin phone jack)
RJ45(LAN) In
O(2) (Lan (1), HDbaseT(1))
USB In
USB2.0 Type A (2)
External Speaker Out
O(1, L/R, 10W+10W)
RS232C Out
O(1)
RJ45(LAN) Out
O(1)
Bezel Color
Black
Bezel Width
38.4/26/26/38.4mm
Weight (Head)
TBD
Packed Weight
TBD
Monitor Dimensions (W x H x D)
1292.5 x 737.4 x 88.0mm
Carton Dimensions (W x H x D)
1446 x 890 x 207mm
Thickness
5mm
Degree of Protection
O (IK10)
Tempered / Chemical strengthening
Tempered
Anti-Reflective
O
Infrared - Resistance (IR)
O
Shatter-Proof
O
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
O
Temperature Sensor
O
Auto Brightness Sensor
O
Pixel Sensor
O
Current Sensor
O
BLU Sensor
O
Humidity Sensor
O
Acceleration(Gyro) Sensor
O
Power Indicator
O
FAN (Built-in)
O

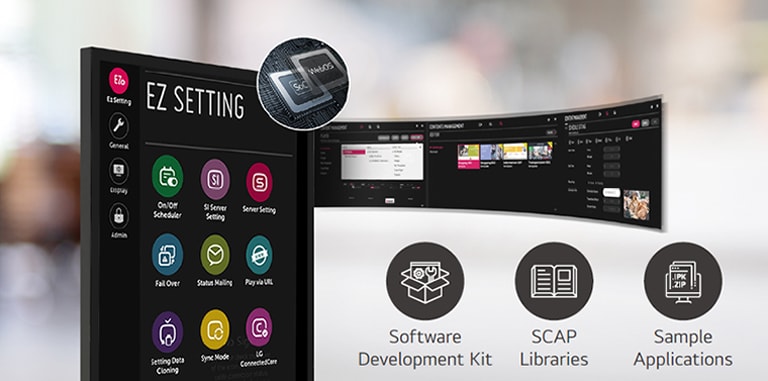

OS Ver. (webOS)
webOS6.1
Local Contents Scheduling
O
Group Manager
O
USB Plug & Play
O
Fail over
O
Booting Logo Image
O
No Signal Image
O
RS232C Sync
O
Local Network Sync
O
Backlight Sync
O
PIP
O
PBP
O(2)
Video Tag
O(4)
Play via URL
O
Screen Rotation
O
External Input Rotation
O
Gapless Playback
O
Tile Mode Setting
O(Max. 15x15)
Setting Data Cloning
O
SNMP
O
ISM Method
O
Auto Set ID
O
Status Mailing
O
Control Manager
O
Smart Energy Saving
O
PM mode
O
Wake on LAN
O (LAN in / HDbaseT port)
Network Ready
O
Beacon
O
HDMI-CEC
O
SI Server Setting
O
webRTC
O
Pro:Idiom
O
Operation Temperature
-30°C to 50 °C
Operation Humidity
5% to 100%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
380W
Max.
430W
BTU (British Thermal Unit)
1126 BTU/Hr(Typ.), 1365 BTU/Hr(Max)
Smart Energy Saving (70%)
180W
DPM
0.5W↓
Power off
0.5W↓
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ERP / Energy Star
O / X
SuperSign CMS
O
SuperSign Control+
O
SuperSign Cloud
O
Connected Care
O
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, polski (Polska), Arab
Basic
Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery, Screws
IP Rating
IP56
Conformal Coating (Power Board)
O
Direct Sunlight
O
