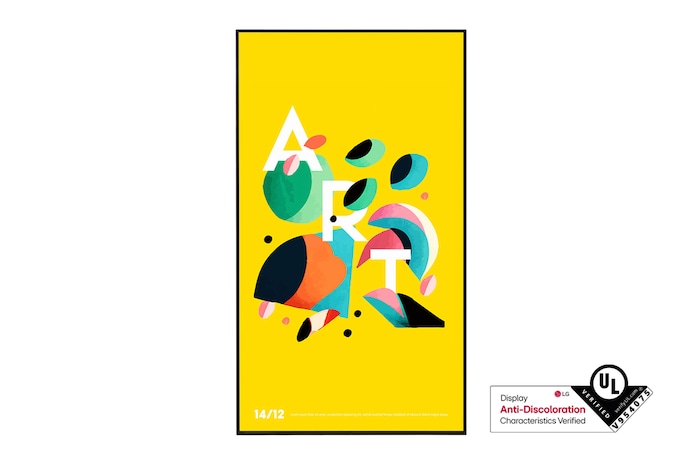

- UL Verified Display Anti-discoloration Characteristics
- Resolution : 1,920 × 1,080 (FHD)
- Brightness : 3,000 nit (Typ.), 2,400 nit (Min.)
- Portrait / Landscape
- Slim Design
- Conformal Coating
All specs
ACCESSORY
Basic
Remote Controller(including battery 2ea), Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)
Optional
AN-WF500 ** Stand is not available
CERTIFICATION
EMC
FCC Class "A" / CE / KC / VCCI
ERP / Energy Star
Yes / No
Safety
CB / NRTL
CONNECTIVITY
DP In
Yes(1), HDCP1.3
DP Out
Yes(1), Input DP/HDMI
External Speaker Out
Yes(1, L/R, 10W+10W) , (4pin phone jack)
HDMI In
Yes(2), HDCP2.2
RJ45(LAN) In
Yes(1)
RS232C In
Yes(1) (4pin phone jack)
RS232C Out
Yes(1) (4pin phone jack)
USB In
USB2.0 Type A (1)
ENVIRONMENT CONDITIONS
Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 50°C (w/o Direct Sunlight)
0 °C to 40°C (Direct Sunlight)
FEATURE - HARDWARE
Auto Brightness Sensor
Yes
FAN (Built-in)
Yes
Humidity Sensor
Yes
Internal Memory (eMMC)
8GB
Local Key Operation
Yes
Power Indicator
Yes
Temperature Sensor
Yes
FEATURE - SOFTWARE
Auto Set ID
Yes
Backlight Sync
Yes
Booting Logo Image
Yes
Control Manager
Yes
External Input Rotation
Yes
Fail over
Yes
Gapless Playback
Yes
Group Manager
Yes
HDMI-CEC
Yes
ISM Method
Yes
Local Contents Scheduling
Yes
Local Network Sync
Yes
Network Ready
Yes
No Signal Image
Yes
OS Ver. (webOS)
webOS6.1
Play via URL
Yes
PM mode
Yes
Pro:Idiom
Yes
RS232C Sync
Yes
Screen Rotation
Yes
Setting Data Cloning
Yes
SI Server Setting
Yes
Smart Energy Saving
Yes
SNMP
Yes
Status Mailing
Yes
Tile Mode Setting
Yes (Max. 15x15)
USB Plug & Play
Yes
Video Tag
Yes
Wake on LAN
Yes
webRTC
Yes
LANGUAGE
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, polski (Polska)
MECHANICAL SPECIFICATION
Bezel Color
Black
Bezel Width
12.0/9.9/9.9/12.0 mm
Carton Dimensions (W x H x D)
1344 x 236 x 820mm
Handle
Yes(2)
Monitor Dimensions (W x H x D)
1235.5 x 709.4 x 106.8mm
Packed Weight
32.25kg
VESA Standard Mount Interface
600 x 400
Weight (Head)
26.5kg
PANEL
Aspect Ratio
16:9
Back Light Type
Direct
Brightness
3,000nit (Typ), 2,400nit(Min)
Color Depth (Number of Colors)
8bit, 16.7Million colors
Color Gamut
NTSC 72%
Contrast Ratio
1,300:1
Dynamic CR
500,000:1
Life time
50,000 Hrs (Typ)
Native Resolution
1920x1080 (FHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
IPS, M+
Portait / Landscape
Yes / Yes
QWP (Quarter Wave Plate)
Yes
Refresh Rate
60Hz
Response Time
9ms (G to G)
Screen Size (Inch)
55"
Surface Treatment (Haze)
3%
Viewing Angle (H x V)
178 x 178
POWER
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
POWER CONSUMPTION
BTU (British Thermal Unit)
TBD
DPM
TBD
Max.
TBD
Power off
0.5W ↓
Smart Energy Saving (70%)
TBD
Typ.
TBD
SOFTWARE COMPATIBILITY
Connected Care
Yes
SuperSign Cloud
Yes
SuperSign CMS
Yes
SuperSign Control+
Yes
SPECIAL FEATURE
Conformal Coating (Power Board)
Yes
Direct Sunlight
Yes
