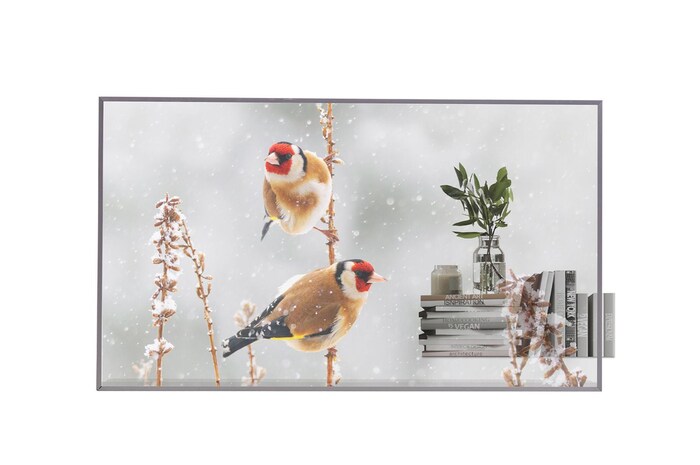

EW5P Series - 55'' Transparent OLED Signage

55EW5P-M

Key Features

Resolution : 1,920 × 1,080 (FHD)
Brightness : 200 / 600 nit (APL 100% / 25%, without Glass)
Transparency : 43% (Set)
Bezel Width : Even 12.2mm (T/R/L/B)

All specs

PANEL

Screen Size (Inch): 55"

Back Light Type: OLED

Panel Technology: OLED

Aspect Ratio: 16:9

Native Resolution: 1920x1080 (FHD)

Refresh Rate: 120 Hz

Brightness: 200/600nit (APL 100%/25%, Without Glass)

Contrast Ratio: 200,000 : 1

Color Gamut: DCI 90%, BT709 110%

Viewing Angle (H x V): 178x178

Color Depth (Number of Colors): 10bit(R), 1.07Bilion colors

Response Time: 0.1ms (G to G), 8ms (MPRT)

Surface Treatment (Haze): Haze 3% (SET), Hard coating (5H)

Life time: 30,000 Hrs (Typ.)

Operation Hours (Hours/Day): 18/7 (Moving Content Only)

Portait / Landscape: Yes / Yes

Transparency: 43% (SET)

CONNECTIVITY

HDMI In: Yes(1), HDCP 2.2/1.4

DP In: Yes(1), HDCP1.3

RS232C In: Yes(1)

RJ45(LAN) In: Yes(1)

IR In: Yes(1), External IR Receiver

USB In: USB2.0 Type A(2)

DP Out: Yes(1)

Audio Out: Yes(1)

RS232C Out: Yes(1)

RJ45(LAN) Out: Yes(1)

IR Out: Sharing RS232C Out

Daisy Chain: Input HDMI, DP / Output DP

MECHANICAL SPECIFICATION

Bezel Color: Transparent

Bezel Width: T/R/L/B : Even 12.2mm

Weight (Head): 14.1Kg (Head), 2.6Kg (Signage Box)

Packed Weight: 30.0Kg

Monitor Dimensions (W x H x D): 1237.6 x 717.9 x 86.5mm (Head) 381.6 x 217.6 x 73.6 (Signage Box)

Carton Dimensions (W x H x D): 1368 x 245 x 957mm

PROTECTION GLASS

Thickness: 3.0mm

Tempered / Chemical strengthening: Chemical strengthening

Anti-Reflective: Yes (Film)

Shatter-Proof: Yes

FEATURE - HARDWARE

Internal Memory (eMMC): 16GB

Temperature Sensor: Yes

FEATURE - SOFTWARE

OS Ver. (webOS): webOS7.5

Local Contents Scheduling: Yes

Group Manager: Yes

USB Plug & Play: Yes

Fail over: Yes

RS232C Sync: Yes

Local Network Sync: Yes

Video Tag: Yes(4)

Screen Rotation: Yes

External Input Rotation: Yes

Gapless Playback: Yes

Tile Mode Setting: Yes

Setting Data Cloning: Yes

SNMP: Yes

ISM Method: Yes

Auto Set ID: Yes

Status Mailing: Yes

Control Manager: Yes

PM mode: Yes

Wake on LAN: Yes

HDMI-CEC: Yes

SI Server Setting: Yes

Scan Inversion: Yes

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C

Operation Humidity: 10 % to 80 %

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

Max.: 230W

Typ.: 70W (IEC 62087)

BTU (British Thermal Unit): 239 BTU/Hr(Typ), 785 BTU/Hr(Max.)

DPM: 0.5W

Power off: 0.5W

CERTIFICATION

Safety: CB / NRTL

EMC: FCC Class "A" / CE / KC

ERP / Energy Star: Yes / No

SOFTWARE COMPATIBILITY

SuperSign CMS: Yes

SuperSign Control+: Yes

SuperSign Cloud: Yes

Mobile CMS: Yes

Connected Care: Yes

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic

ACCESSORY

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M3xL5.5 Black,24EA / M3xL5.5 Silver,8EA / M3xL6 Black, 14EA), Cover Shield Assy 1EA, Cable Rubber 2EA, Cable Cap Assy 2EA, Tiling Bracket 2EA, Signage Box Wing Bracket 2EA

SPECIAL FEATURE

Conformal Coating (Power Board): Yes
