65" 150/400 nits UHD Video Wall OLED

Specs

65" 150/400 nits UHD Video Wall OLED

65" 150/400 nits UHD Video Wall OLED

65EV5E-3
()

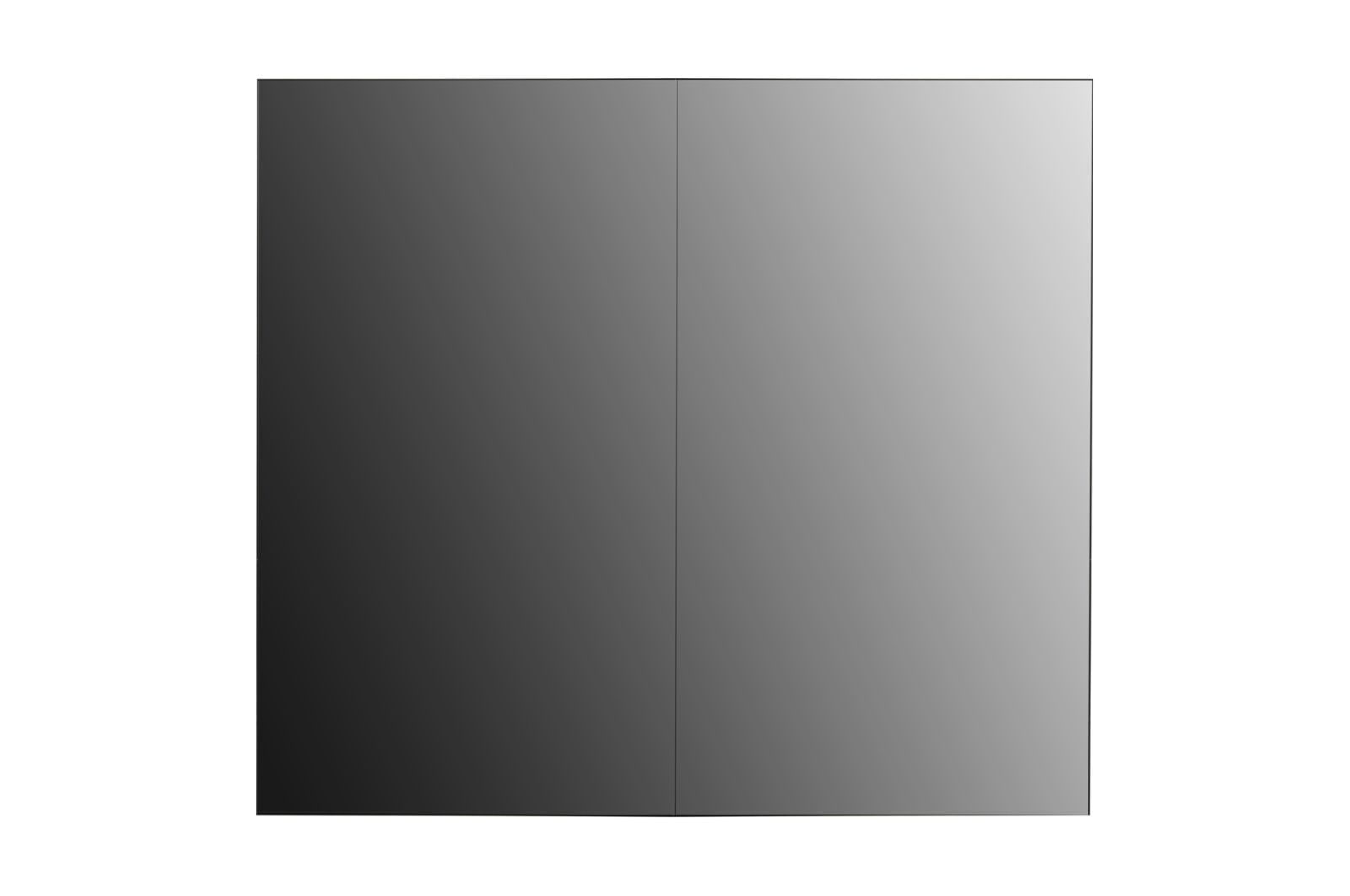

  • Front view of 65" 150/400 nits UHD Video Wall OLED 65EV5E-3
  • LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
  • LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
  • LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
  • LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
  • LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
  • LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
Front view of 65" 150/400 nits UHD Video Wall OLED 65EV5E-3
LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3
LG 65" 150/400 nits UHD Video Wall OLED, 65EV5E-3

Key Features

  • Brightness(Typ.): 400 cd/m² (APL 25%)
  • Bezel: 1.2 mm (Even, Off bezel)
  • Depth: 7.9 mm (Head)
  • Interface: HDMI/ DP/ USB 2.0(2)/ RS232C/ RJ45/ Audio Out/ IR
More
Print

All specs

ACCESSORY

  • Basic

    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection Between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Fixer Screws, Anchor Bolts, Polyester Tapes, Panel Jigs

CONNECTIVITY

  • External Control

    RS232C In/out, RJ45 (LAN) In/out, IR In

  • Input

    HDMI, DP, USB 2.0 (2)

  • Output

    DP, Audio

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10% ~ 80%

  • Operation Temperature

    0°C ~40°C

MEDIA PLAYER COMPATIBILITY

  • External Media player Attatchable

    Yes

  • OPS Type Compatible

    No

PANEL

  • Brightness

    150/400 cd/m2 (APL 100% / 25%) * Average picture level

  • Resolution

    3,840 x 2,160 (UHD)

  • Screen Size

    65"

PHYSICAL SPECIFICATION

  • Bezel Width (T/B/L/R)

    1.2mm (Even) *Off-Bezel9.1 mm (T/B), 8.7 mm (L), 11.6 mm (R) *On-Bezel6.7 mm (Seam)

  • Carton Dimensions (W x H x D)

    1,940 x 1,120 x 536 mm (Set 1x2) / 1,940 x 1,120 x 646 mm (Set 1x3)

  • Dimension (W x H x D)

    1,634.6 x 1,446.7 x 7.9 mm (Head 1x2)2,445.4 x 1,446.7 x 7.9 mm (Head 1x3)782.8 x 35.5 x 239.0 mm (Signage Box)

  • Packed Weight

    69.6 kg (Set 1x2, w/ Pallet) / 96 kg (Set 1x3, w/ Pallet)

  • Weight

    29.4 kg (Set 1×2) / 44.5 kg (Set 1×3)

POWER

  • Power Consumption (Typ. / Max.)

    440/478 W *8 Color Bar Based

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-in Power

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control+ / Control

STANDARD(CERTIFICATION)

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes / No

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1
