Non-Glare Ultra HD Series

Specs

Non-Glare Ultra HD Series

Non-Glare Ultra HD Series

55UH5F-H
(5)

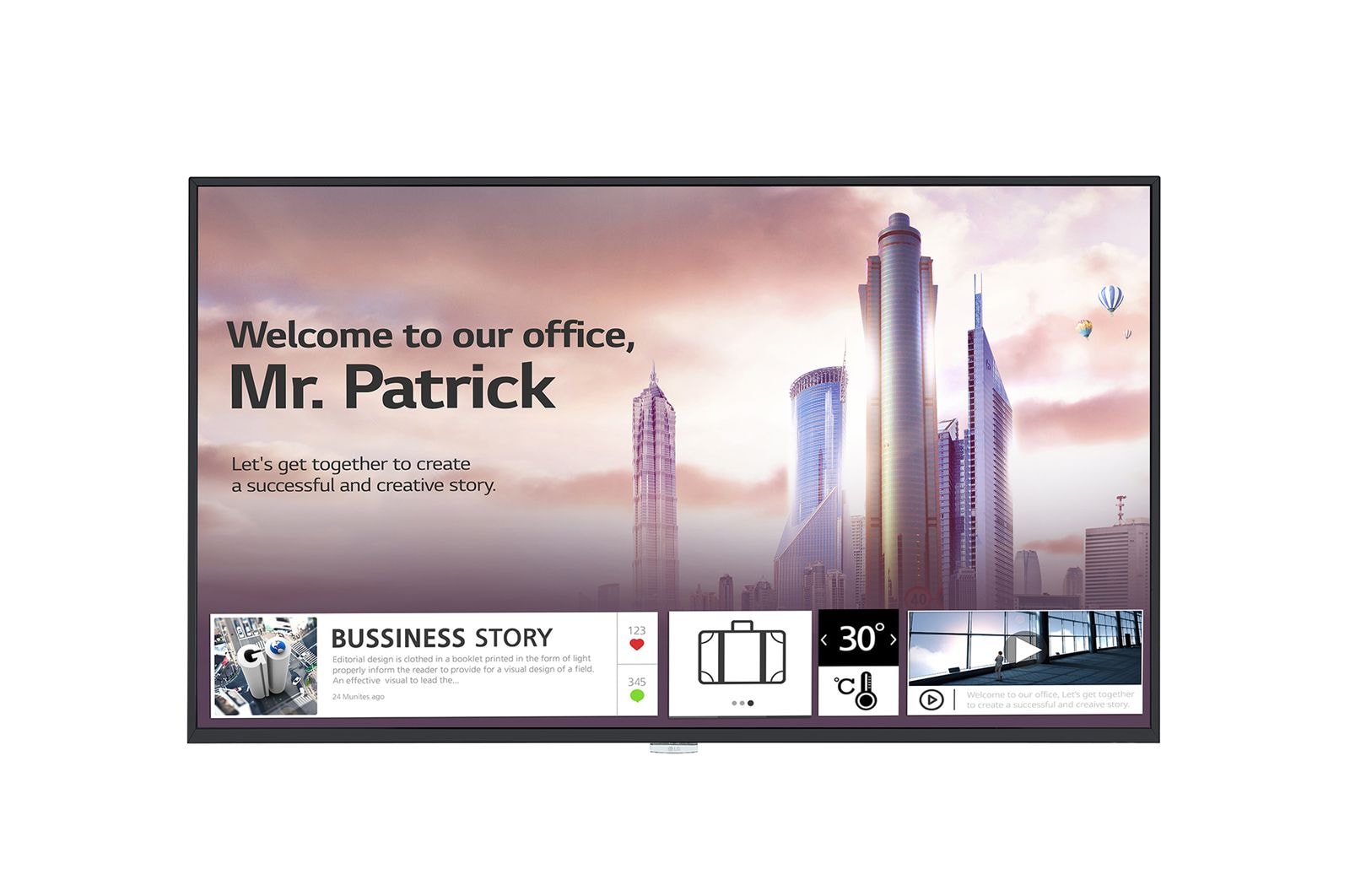

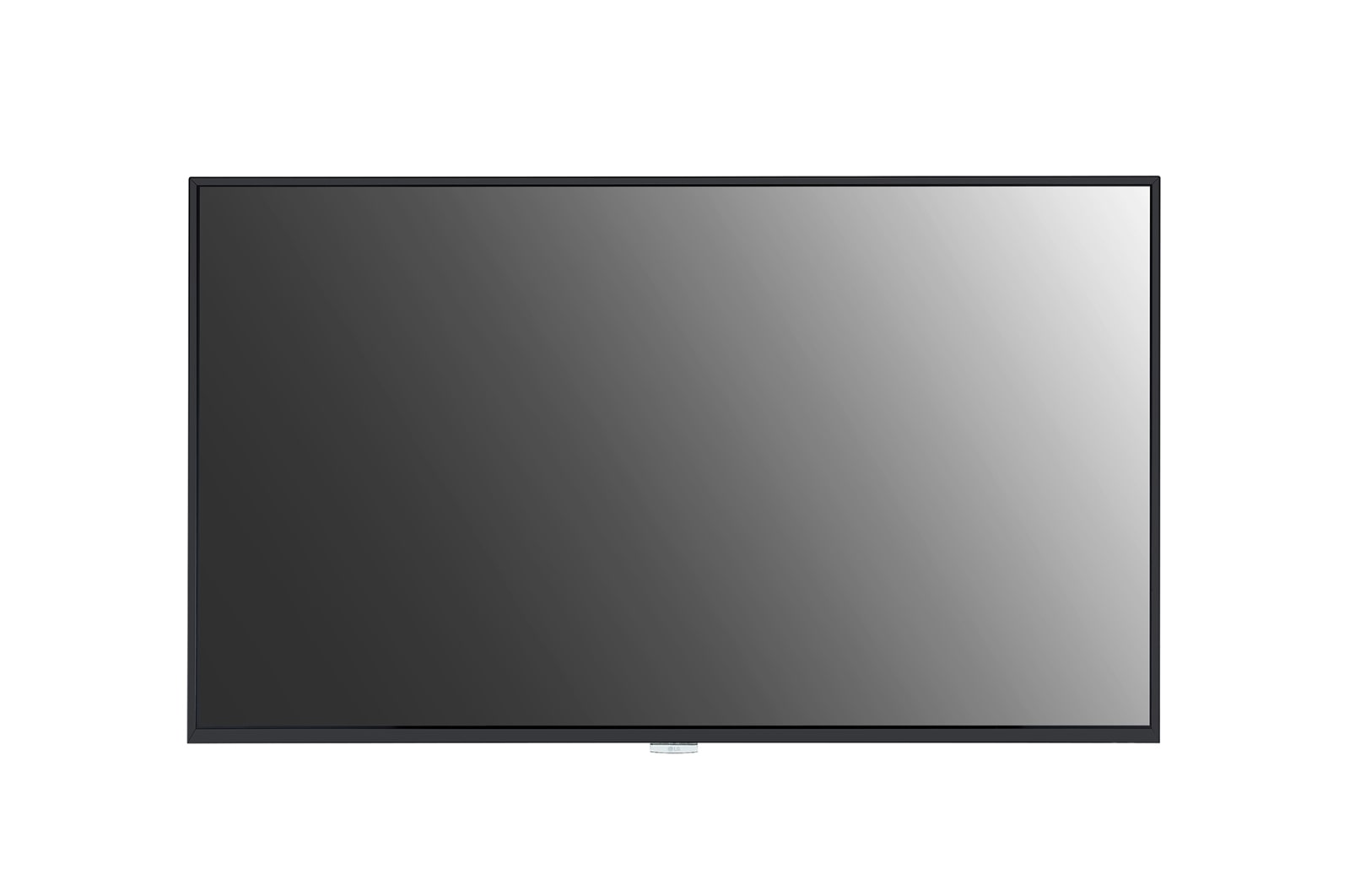

  • Front view of Non-Glare Ultra HD Series 55UH5F-H

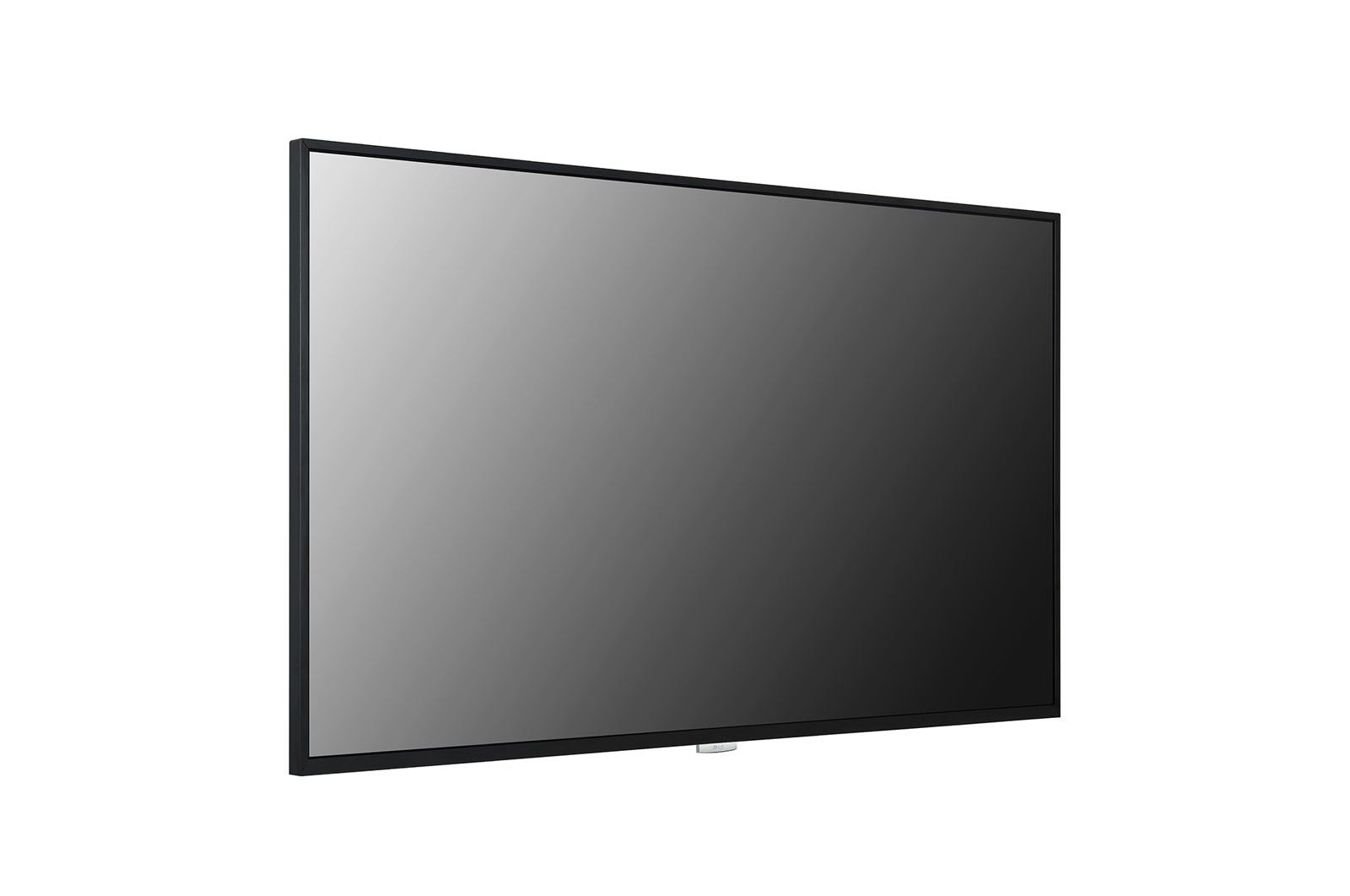

  • LG Non-Glare Ultra HD Series, 55UH5F-H

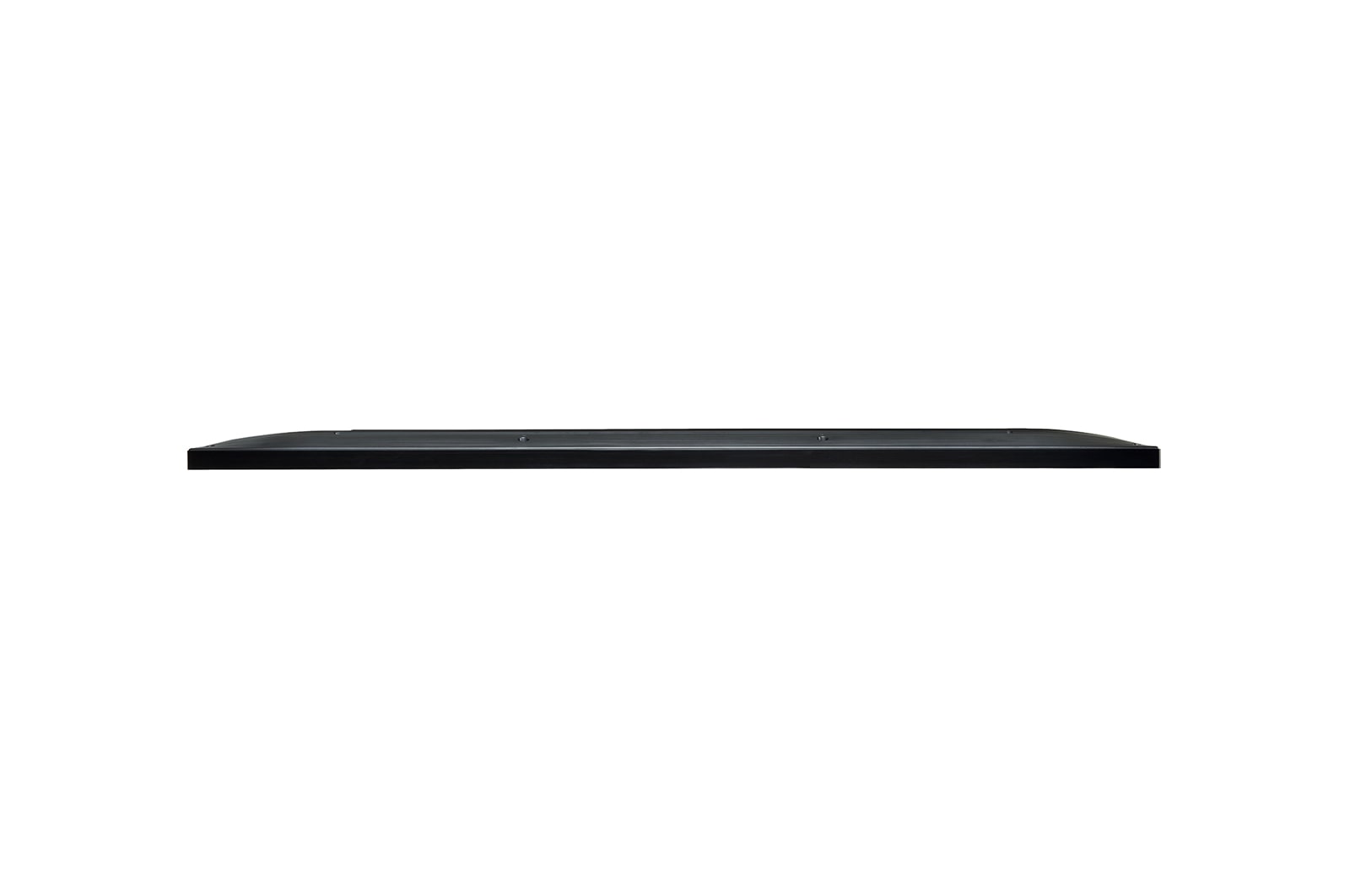

  • LG Non-Glare Ultra HD Series, 55UH5F-H

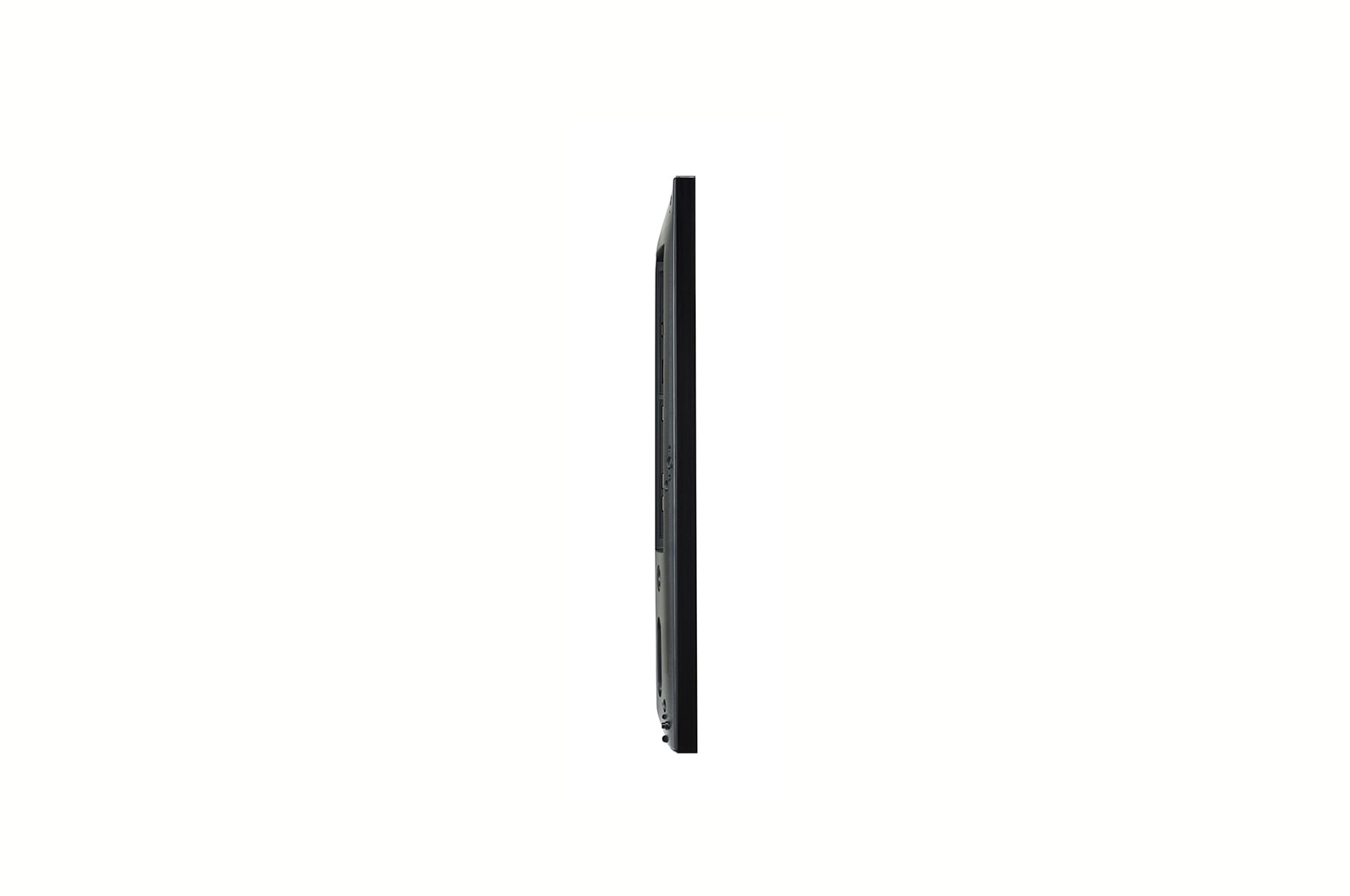

  • LG Non-Glare Ultra HD Series, 55UH5F-H

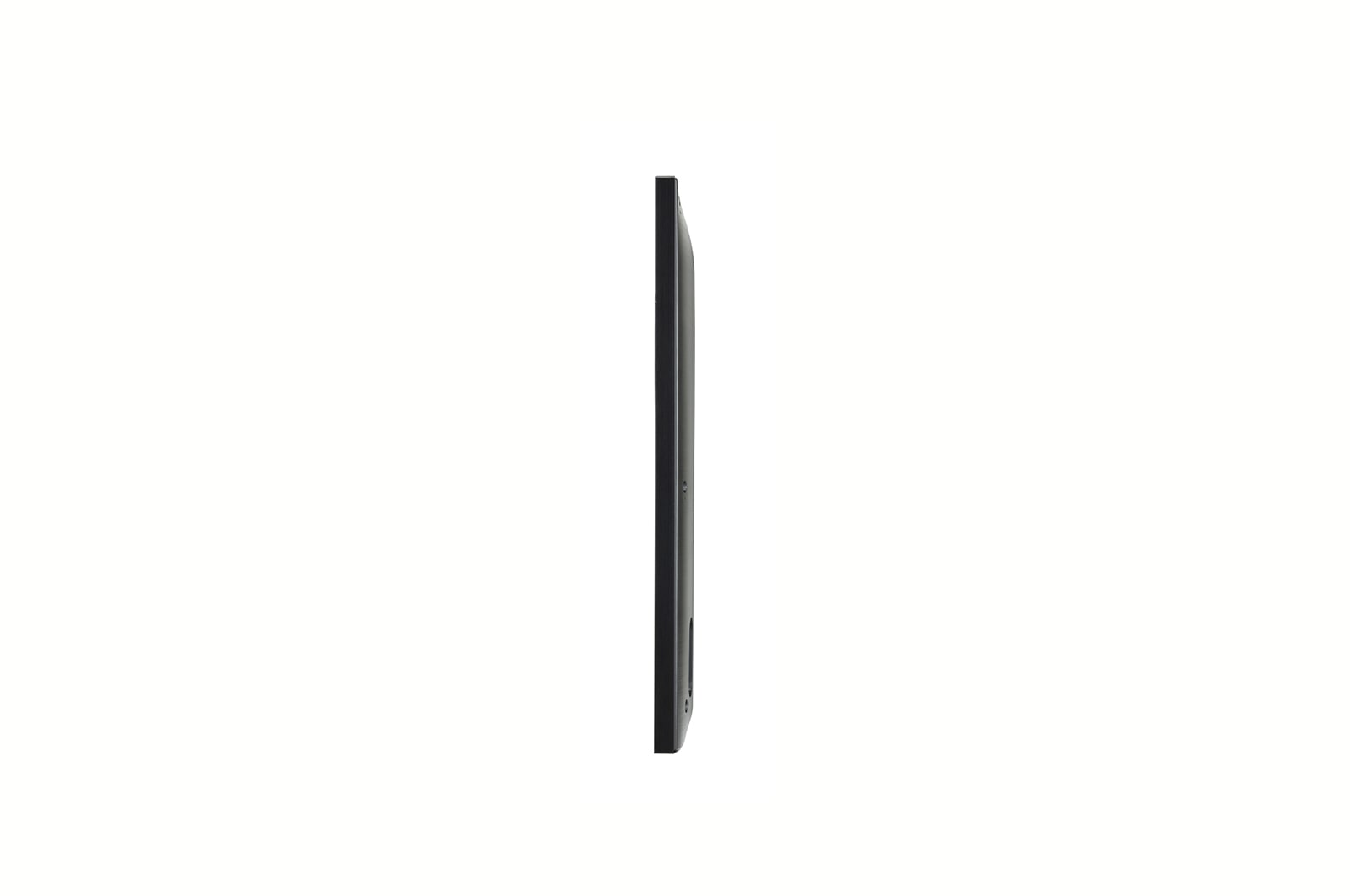

  • LG Non-Glare Ultra HD Series, 55UH5F-H
  • LG Non-Glare Ultra HD Series, 55UH5F-H
  • LG Non-Glare Ultra HD Series, 55UH5F-H

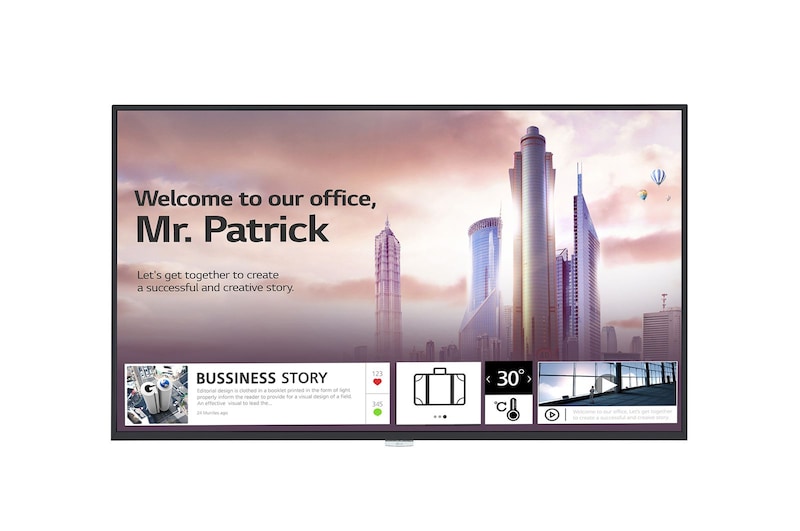

Front view of Non-Glare Ultra HD Series 55UH5F-H

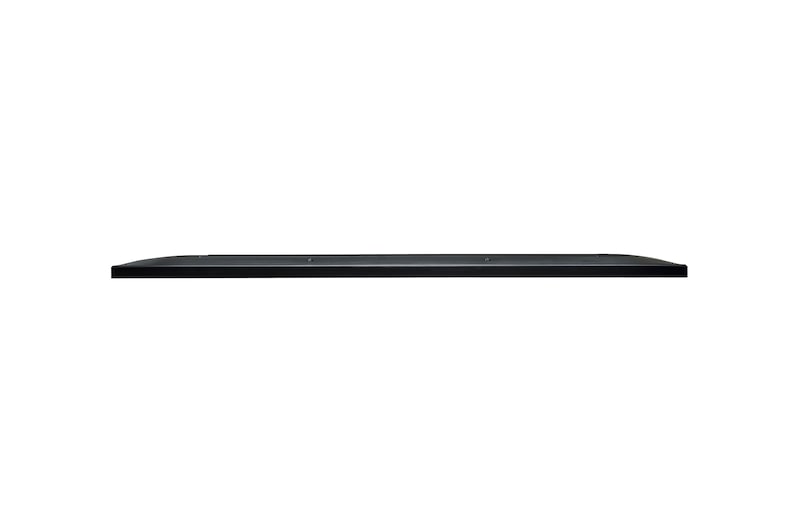

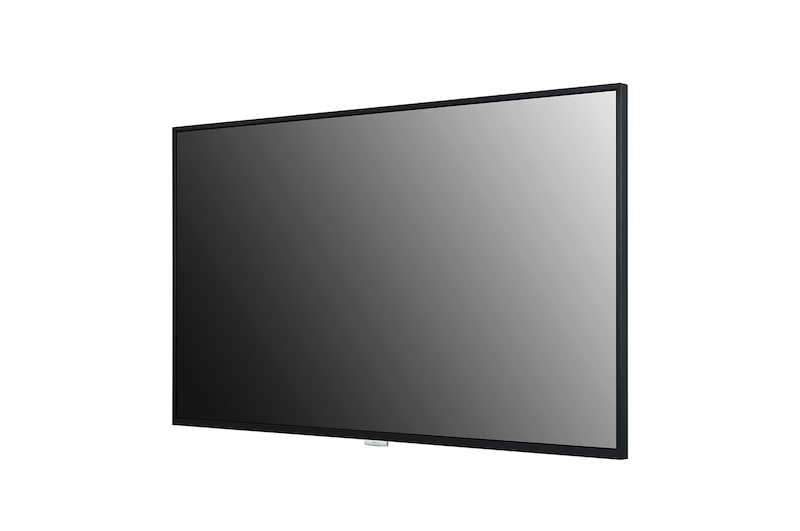

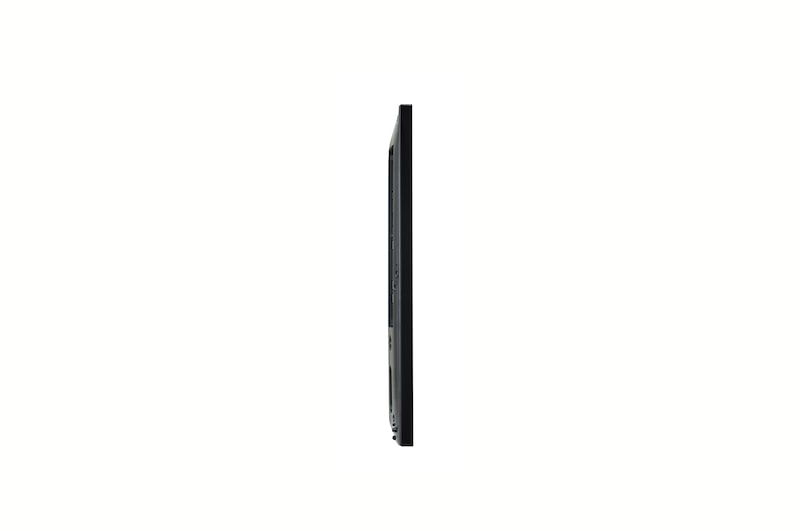

LG Non-Glare Ultra HD Series, 55UH5F-H

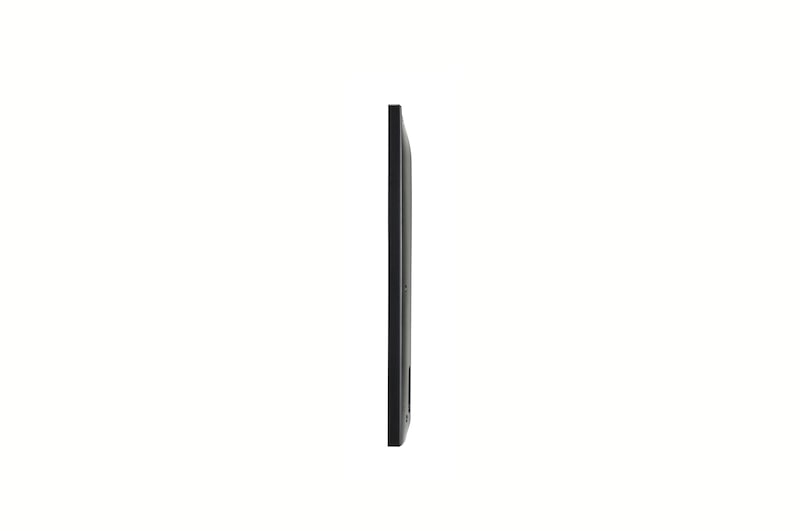

LG Non-Glare Ultra HD Series, 55UH5F-H
LG Non-Glare Ultra HD Series, 55UH5F-H
LG Non-Glare Ultra HD Series, 55UH5F-H
LG Non-Glare Ultra HD Series, 55UH5F-H
LG Non-Glare Ultra HD Series, 55UH5F-H

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Surface Treatment (Haze) : 28%
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • 30º Tilting Installation
More
Print

All specs

PANEL

  • Screen Size

    55"

  • Panel Technology

    IPS

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness (Typ.)

    500

  • Contrast Ratio

    1,100:1

  • Dynamic CR

    1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.

  • Color gamut

    BT709 95%

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth

    1.07 Billion Colors (10 bit)

  • Response Time

    8 ms (G to G)

  • Surface Treatment (Haze)

    Haze 28%

  • Operation Hours (Hours / Day)

    24 / 7

  • Portrait / Landscape

    Yes / Yes

CONNECTIVITY

  • Input

    HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A

  • Output

    DP, Audio

  • External Control

    RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    9.9mm(T/R/L), 14.4mm(B)

  • Weight (Head)

    19.0 kg

  • Monitor Dimension (W × H × D)

    1,234.4mm x 720.9mm x 39.9mm

  • Monitor Dimensions with Stand (W × H × D)

    1,234.4 × 770.7 × 290.0 mm

  • Handle

    No

  • VESA™ Standard Mount Interface

    300 x 300 mm

SPECIAL FEATURE

  • Tilt (Facedown)

    Yes (Max. 30º) *In conditions within 30ºC temperature, 50% humidity

  • IP Rating

    IP5x

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    AC 100-240 V~, 50 / 60 Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.

    105W / 145W

  • BTU (British Thermal Unit)

    358 BTU/Hr (Typ.),
    495 BTU/Hr (Max.)

SOUND

  • Speaker

    Yes

CERTIFICATION

  • Safety

    CB, NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP

    Yes

OPS COMPATIBILITY

  • OPS Type Compatible

    Yes

  • OPS Power Built In

    No

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • Signage365Care

    Yes (The availability can differ by region.)

ACCESSORY

  • Basic

    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    Stand (ST-653T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)

GENERAL

  • Region

    ASIA
