LG CreateBoard

Specs

LG CreateBoard

65TR3DK-B

LG CreateBoard

(3)

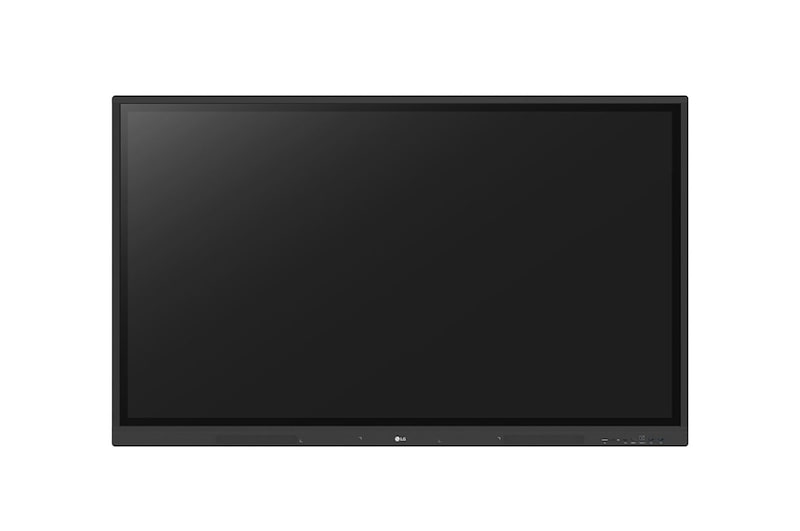

Front view with infill image
Print

All specs

PANEL

  • Screen Size

    65"

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840x2160 (UHD)

  • Refresh Rate

    60 Hz

  • Brightness

    440nit(wo Glass, max), 390nit (wo Glass, typ)
    400nit(w Glass, typ), 350nit (w Glass, typ)

  • Contrast Ratio

    1200:1

  • Dynamic CR

    5000:1

  • Color gamut

    NTSC 72%

  • Viewing Angle(H x V)

    178°(H/V)

  • Color Depth

    10bit(8bit + FRC)

  • Response Time

    8 ms

  • Surface Treatment(Haze)

    Haze 25%

  • Life time

    ≥30000 Hours

  • Life time

    50,000hrs (L30)

  • Operation Hours (Hours/Day)

    16/7

  • Portrait / Landscape

    No / Yes

CONNECTIVITY(JACK INTERFACE)

  • Input

    HDMI (3, HDCP2.2), RGB (1, VGA), Audio In, RS232C IN, RJ45(LAN), USB3.0 Type A (4), USB2.0 Type A(1), USB Type-C(1, USB-PD, DP-Alt,)

  • Output

    DP Out (HDMI Out), Audio Out (1, Optical 1(SPDIF)), Touch USB (2), RJ45(LAN)

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 15/15/15/44mm

  • Weight(Head)

    35.0Kg

  • Packed Weight

    44.7Kg

  • Monitor Dimension(W x H x D)

    1488.4×896.6×87.2mm

  • Carton Dimensions(W x H x D) (Box outer size)

    1628×1005×208mm

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    600 x 400 mm

KEY FEATURE

  • HW

    Internal Memory (32GB), Built-in Wi-Fi (Slot type), Auto Brightness sensor, Power Indicator

  • SW

    webOS ver. (Android 11.0), Background Image (Booting Logo Image), Multi-screen (PIP (1 external source), PBP(1 external source)), Screen Share (LG CreateBoard Share), Power (Smart Energy Saving (Energy Saving))

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 ~ 40 °C

  • Operation Humidity

    10 ~ 90 % RH

POWER

  • Power Supply

    100-240V~ 50/60Hz 4.0A

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    220

  • Max.

    420

  • BTU (British Thermal Unit)

    751 BTU/Hr(Typ.), 1433 BTU/Hr(Max)

  • DPM

    ≤0.5W

  • Power off

    ≤0.5W

SOUND

  • Speaker

    Yes (15W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes / Yes

OPS COMPATIBILITY

  • OPS Type Compatible

    Yes (Slot)

  • OPS Power Built In

    Yes

SOFTWARE COMPATIBILITY

  • LG ConnectedCare

    Yes

  • LG ConnectedCare DMS

    Yes (DMS)

LANGUAGE

  • OSD

    English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai

ACCESSORY

  • Basic

    Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

  • Optional

    Wall Mount(WM-L000S), Floor Stand(ST-000F)

SPECIAL FEATURE

  • Touch - Available object size for touch

    Ø2 mm ↑ .

  • Touch - Reponse Time

    ≤5ms

  • Touch - Accuracy

    ±1mm

  • Touch - Interface

    USB2.0

  • Touch - Protection Glass Thickness

    3T(Anti-Glare)

  • Touch - Protection Glass Transmission

    88%

  • Touch - Operating System Support

    Windows 7/8/10/Linux/Mac/Android
    (Linux/Mac Support one point touch)

  • Touch - Multi touch point

    Max 40 points

ANDROID SYSTEM

  • SoC

    Quad core A55

  • GPU

    Mali G52MP2

  • Internal Memory - Storage

    32GB

  • Internal Memory - Storage

    64GB

  • Internal Memory - RAM

    4GB

  • Internal Memory - RAM

    8GB

  • Wi-Fi

    802.11a/b/g/n/ac/ax (WiFi 6)

  • LAN

    Gigabit LAN

  • Bluetooth

    Bluetooth 5.0
