Transparent OLED Signage

Specs

Transparent OLED Signage

Transparent OLED Signage

55EW5G-V

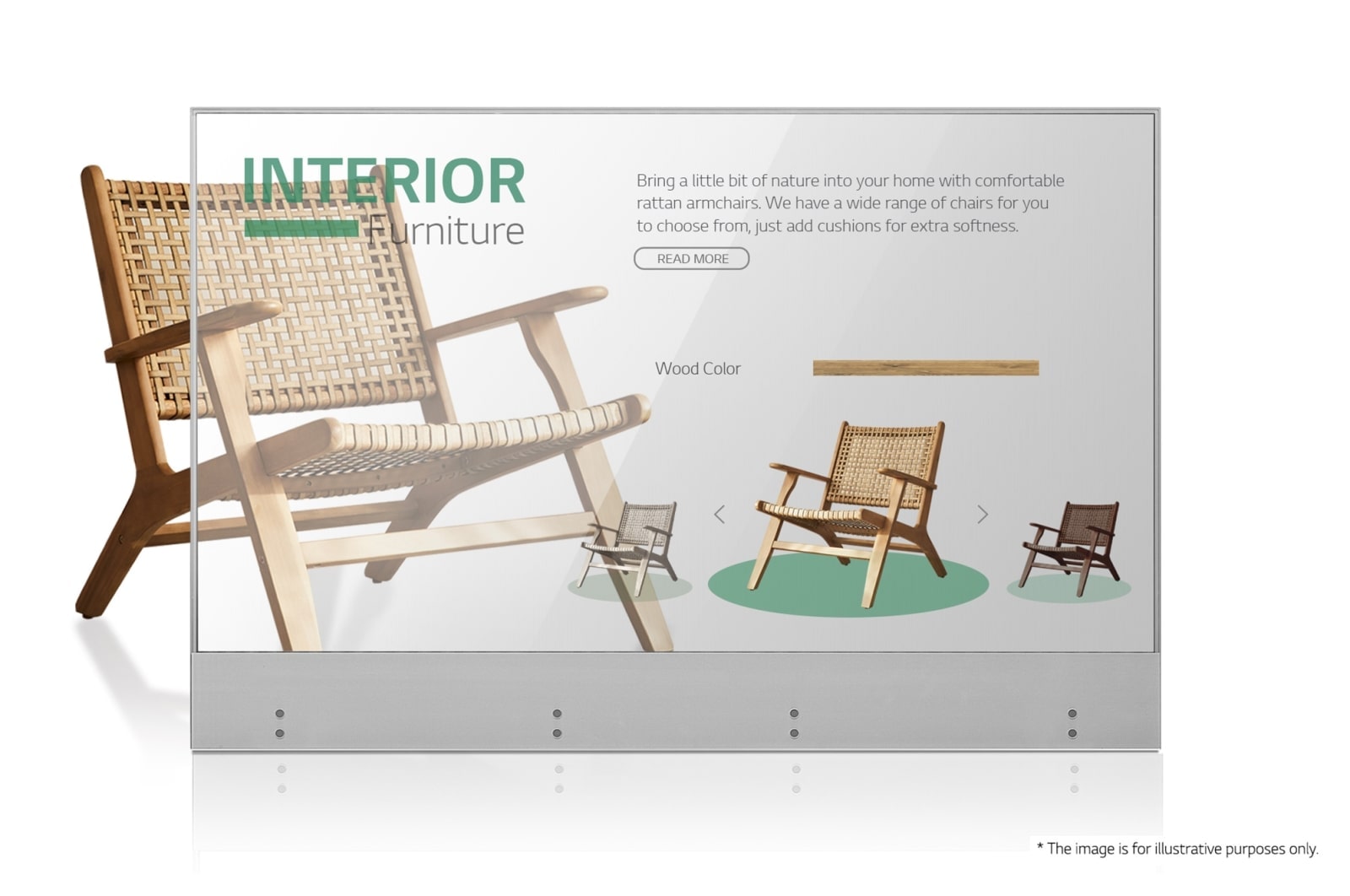

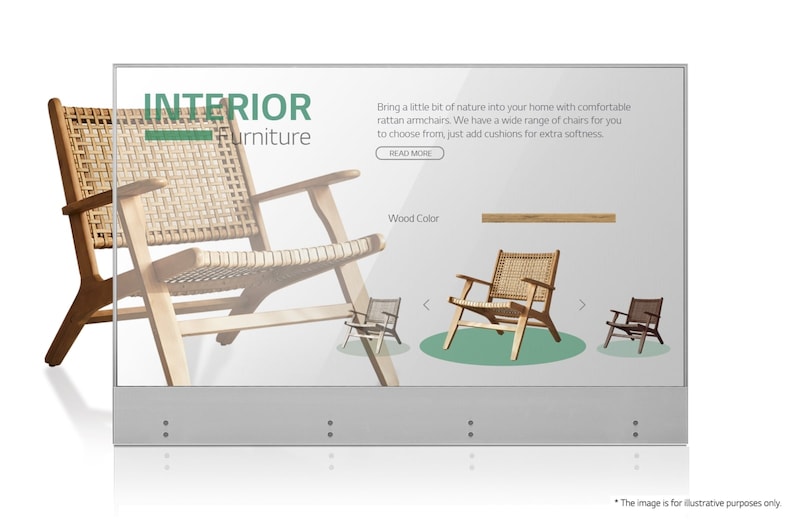

  • Front view of Transparent OLED Signage 55EW5G-V

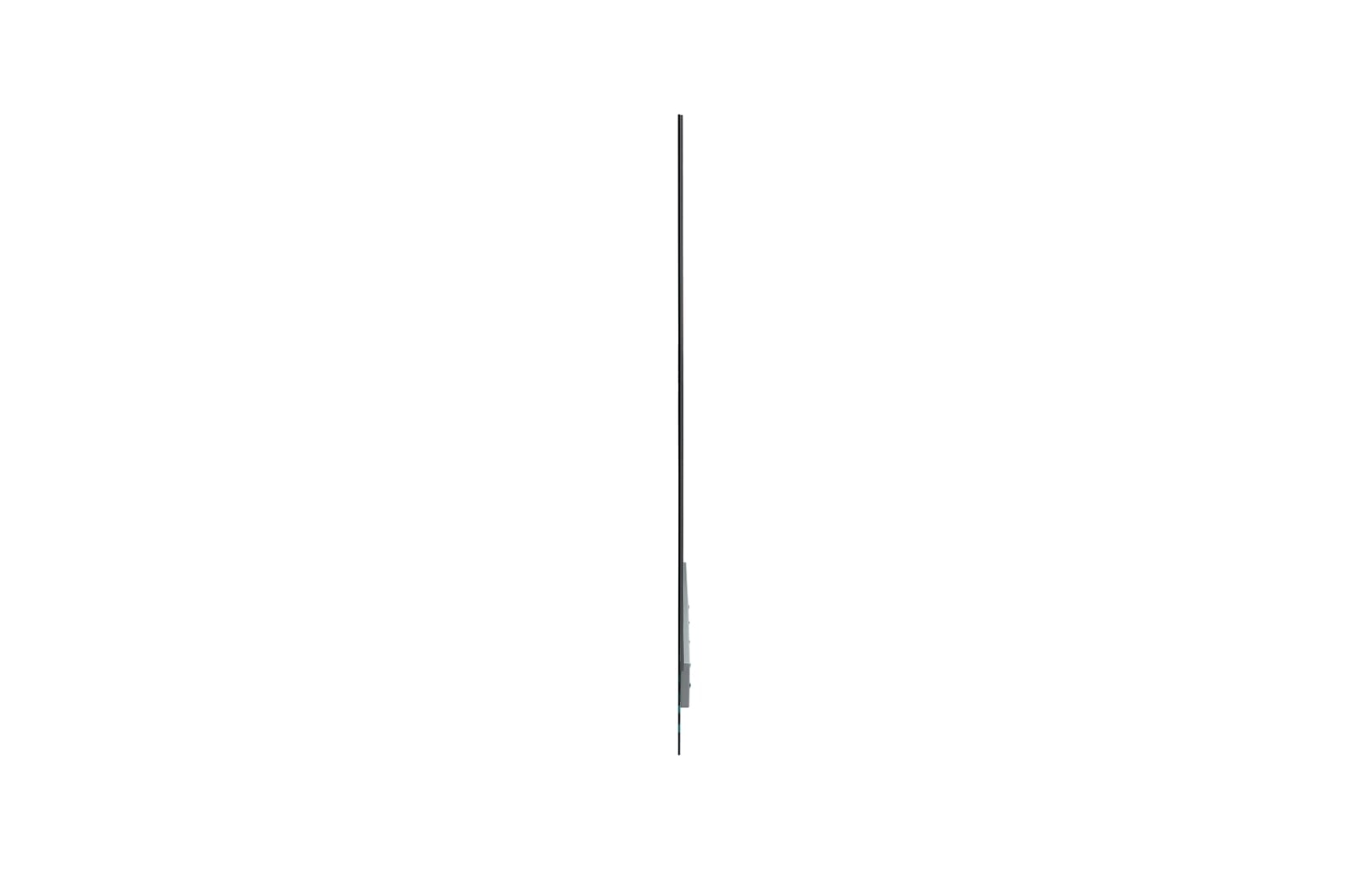

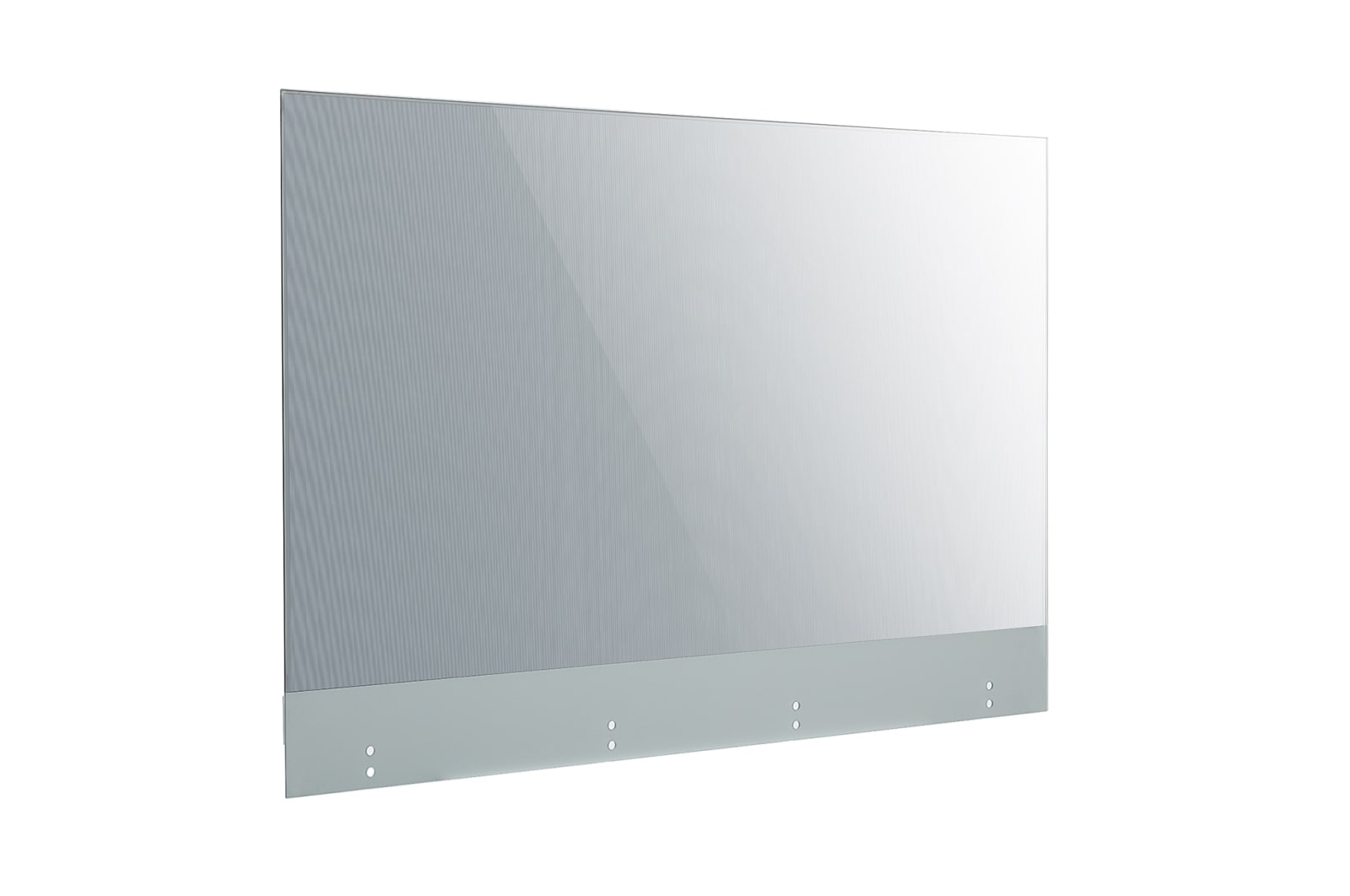

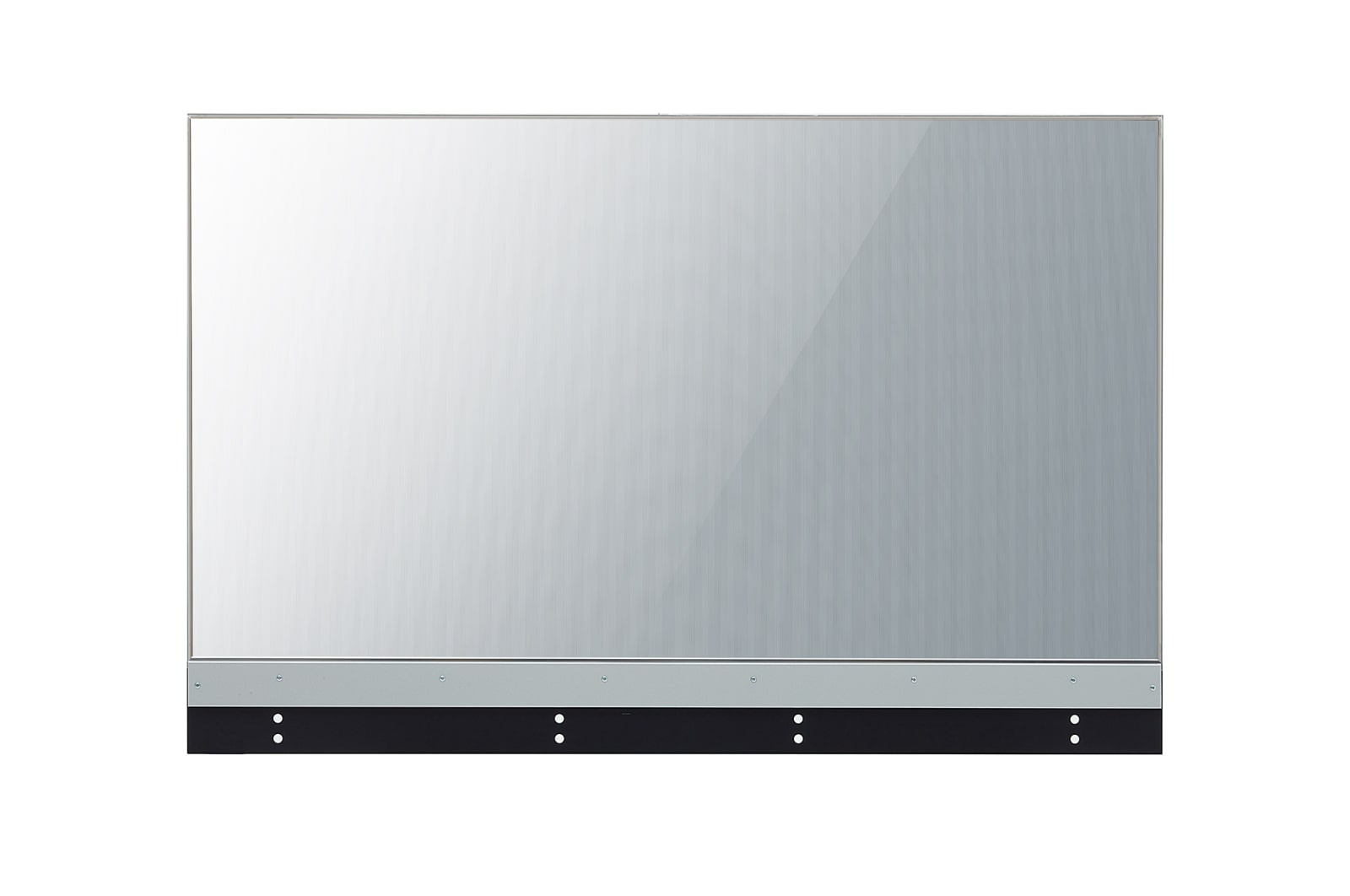

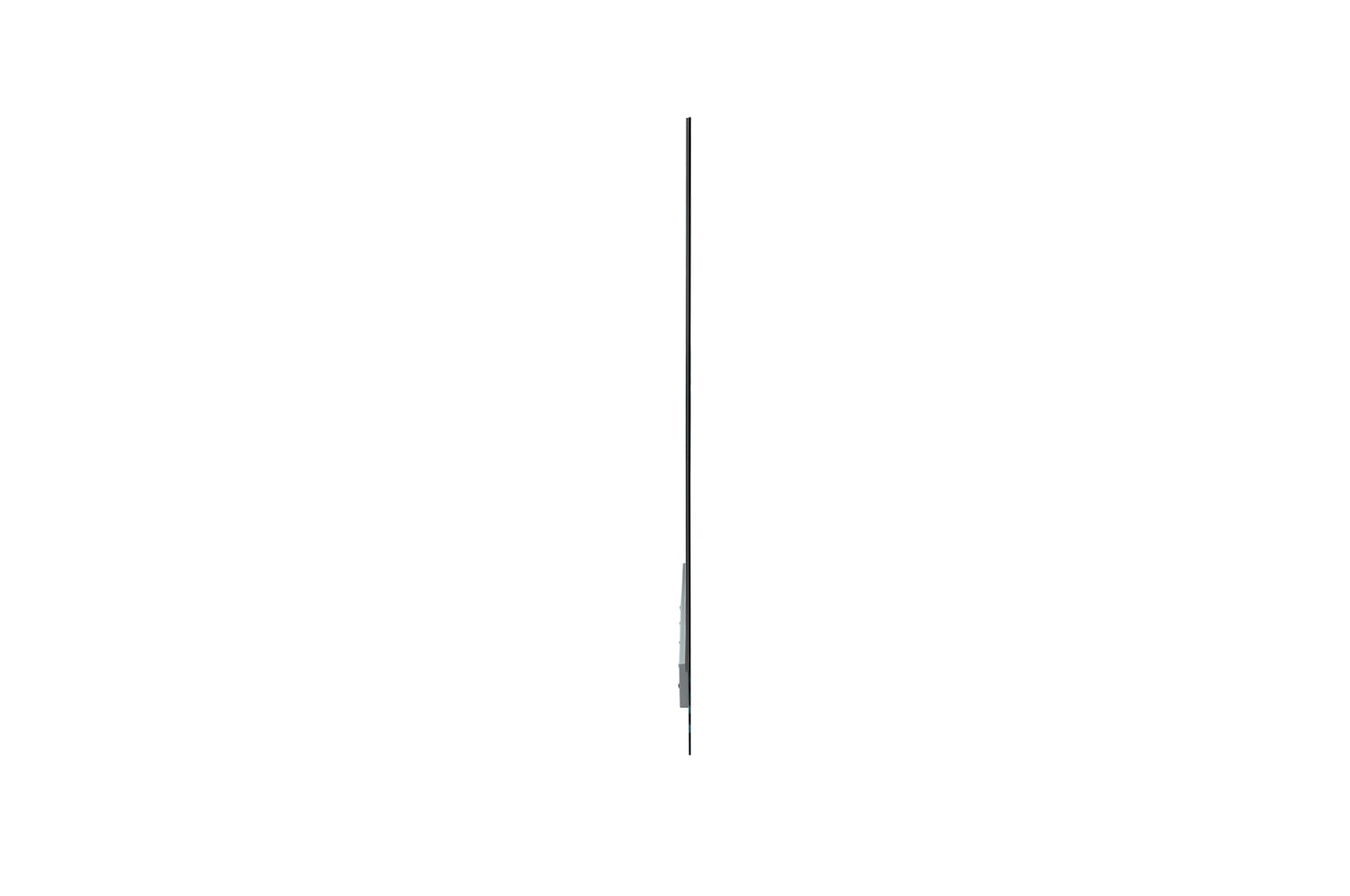

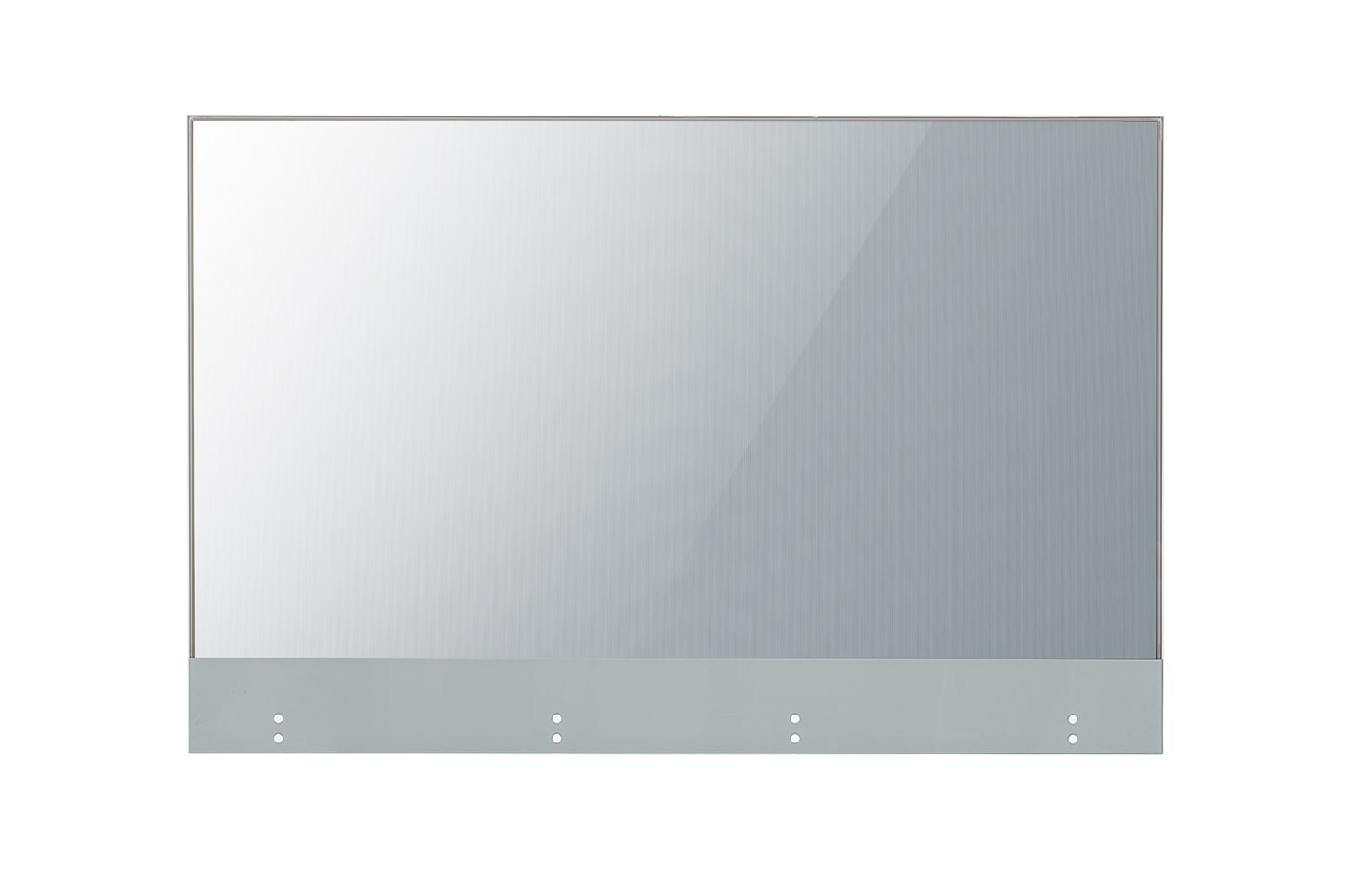

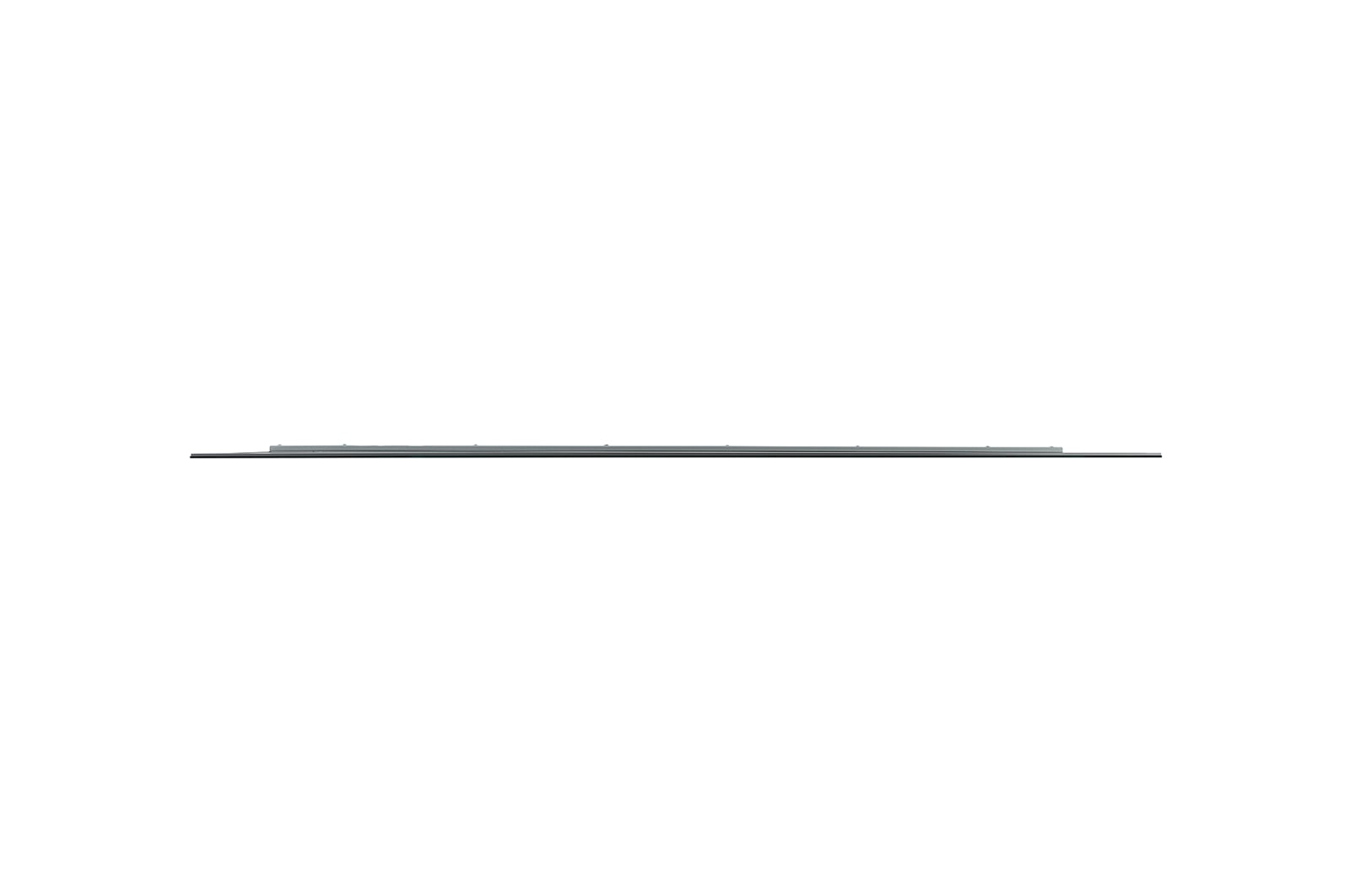

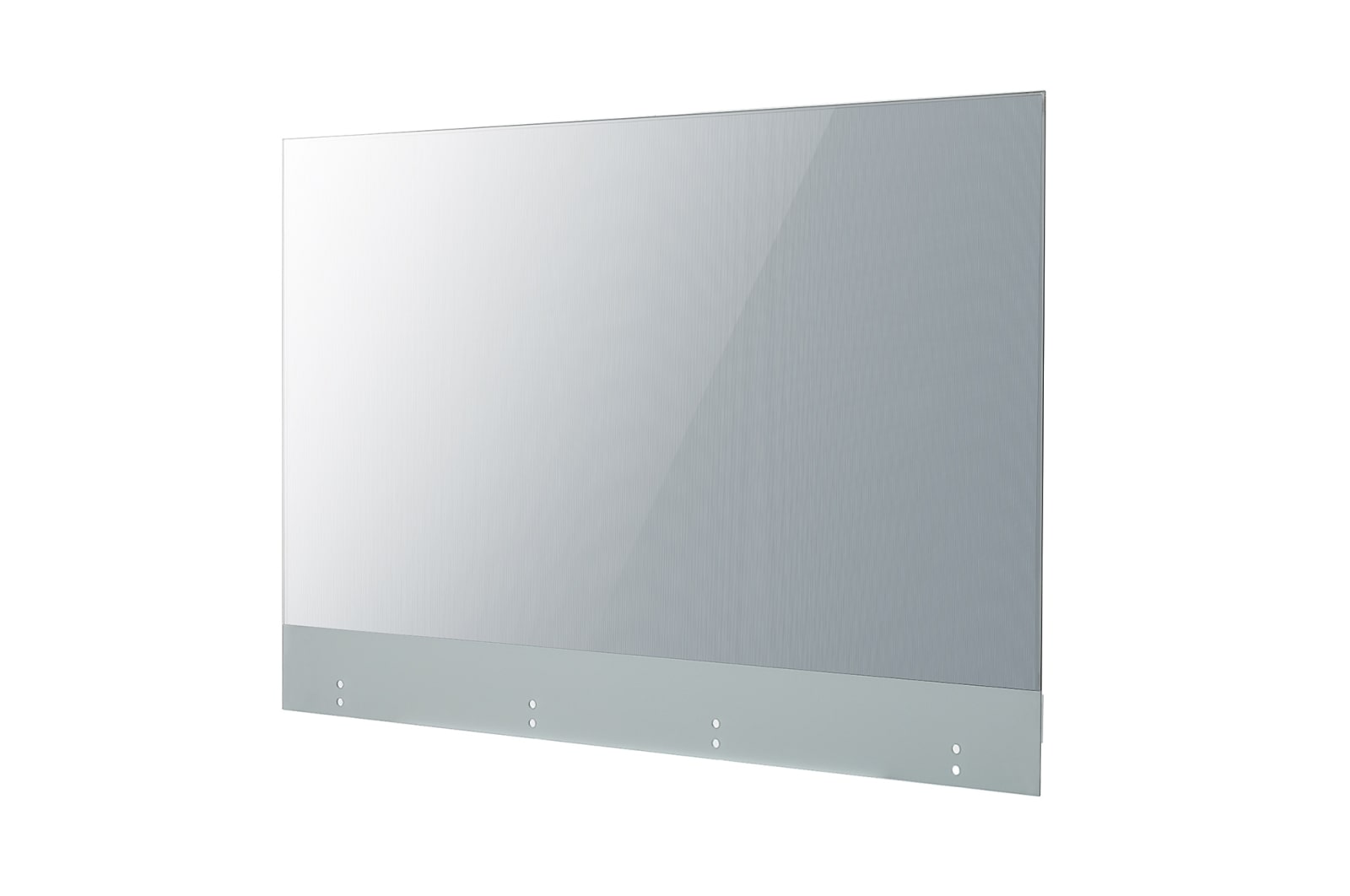

  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
Front view of Transparent OLED Signage 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V

Key Features

  • Brightness(Typ.): 400nit (APL 25%, Without Glass)
  • Transparency(Typ.) : 38%
  • Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
More
Print

All specs

PANEL

  • Screen Size

    55"

  • Panel Technology

    OLED

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness

    150/400nit (APL 100%/25%, Without Glass)

  • Contrast Ratio

    150,000 : 1

  • Dynamic CR

    No

  • Color gamut

    BT709 120 %

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth

    10bit(R), 1.07Bilion colors

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Surface Treatment (Haze)

    Hard coating (2H)

  • Operation Hours (Hours / Day)

    18 / 7 (Moving Content Only)

CONNECTIVITY

  • Input

    HDMI (1, HDCP 1.4), DP (1, HDCP 1.3), RS232C IN , RJ45(LAN), IR IN (1,External IR Receiver,) USB2.0 Type A(2)

  • Output

    DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45(LAN)

MECHANICAL SPECIFICATION

  • Bezel Width

    T/R/L/B : 7.9/7.9/7.9/121.7mm

  • Weight (Head)

    11.6Kg (Head), 3.4Kg (Signage Box)

  • Monitor Dimension (W x H x D)

    1225.5 x 810.1 x 4.9mm (Head)
    782.8 x 238.4 x 34.7mm (Signage Box)

  • VESA™ Standard Mount Interface

    No

  • Protection Glass

    Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective (Film), Shatter-Proof

FEATURE

  • HW

    Temperature Sensor

  • SW

    Fail over, Screen Rotation, External Input Rotation, Tile Mode Setting,

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    AC 100-240 V~, 50 / 60 Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    250W

  • Max.

    280W

  • Typ. / Max.

    250 W / 280 W

  • BTU (British Thermal Unit)

    853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max)

SOUND

  • Speaker

    No

CERTIFICATION

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class "A" / CE / KC

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5, 20EA), Shield Cover Assy', Rubber Damper 4EA, MCX cable Holder 4ea

  • Optional

    Stand (ACC-S-EW5F, 2 Pole)
