49'' 500 nits FHD Slim Bezel Video Wall

Features

Gallery

Specs

49'' 500 nits FHD Slim Bezel Video Wall

49VL5G-A

49'' 500 nits FHD Slim Bezel Video Wall

Incredible Immersion with
Ultra-Narrow Bezel

A man is looking at a big screen attached to the window of a sports store.

* All images in this web page are for illustrative purposes only.

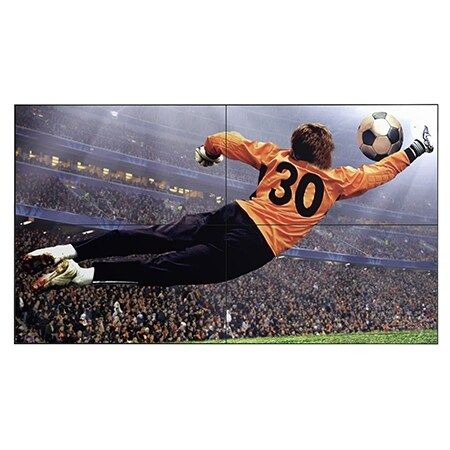

VL5G series has a less image gap between tiled screens compared to LG Conventional, so its content is seen well without being disturbed by the gap.

Image Gap Reduction

The VL5G series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "LG Conventional" refers to displays which do not include an image improvement algorithm.

A woman is looking up at the screen installed upstairs.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G series is high enough to display vivid colors throughout the screen with no distortion.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

A display is easily controlled using a user-friendly GUI and a remote control.

Intuitive GUI

The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.
Print

All specs

PANEL

  • Screen Size

    49"

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Refresh Rate

    60 Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    500,000:1

  • Color gamut

    NTSC 72%

  • Viewing Angle(H x V)

    178x178

  • Color Depth

    10bit, 1.07Billion colors

  • Response Time

    8 ms (G to G)

  • Surface Treatment(Haze)

    3%

  • Life time

    60,000Hrs (Typ.) / 50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portrait / Landscape

    Yes / Yes

CONNECTIVITY

  • Input

    HDMI (2, HDCP 1.4), DP (1, HDCP 1.3),DVI-D (1, HDCP 1.4) Audio In, RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A (1)

  • Output

    DP Out, Audio Out, RS232C OUT

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 2.25/1.25/2.25/1.25mm

  • Weight(Head)

    16.9Kg

  • Packed Weight

    29.3kg

  • Monitor Dimension(W x H x D)

    1077.6 x 607.8 x 89.7mm

  • Carton Dimensions(W x H x D) (Box outer size)

    1214 x 778 x 263mm

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    600 x 400

KEY FEATURE

  • HW - Sensor - Temperature Sensor

    Yes

  • SW - Embedded CMS - Local Contents Scheduling

    Yes

  • SW - USB Plug & Play

    Yes

  • SW - Fail over

    Yes

  • SW - Background Image - Booting Logo Image

    Yes

  • SW - Background Image - No Signal Image

    Yes

  • SW - Sync Mode - RS-232C Sync

    Yes

  • SW - Rotation - Screen Rotation

    Yes

  • SW - Tile Mode Setting

    Yes (Max. 15x15)

  • SW - Setting Data Cloning

    Yes

  • SW - SNMP

    Yes

  • SW - ISM Method

    Yes

  • SW - Auto Set ID

    Yes

  • SW - 3rd Party Compatibility - Crestron Inside

    Yes

  • SW - Power - Smart Energy Saving

    Yes

  • SW - Power - PM mode

    Yes

  • SW - Power - Wake on LAN

    Yes

  • SW - HDMI-CEC

    Yes

  • SW - SI Server Setting

    Yes

  • SW - W/B Setting by Grey scale

    Yes

  • SW - Scan Inversion

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    100W

  • Max.

    120W

  • BTU (British Thermal Unit)

    341 BTU/Hr(Typ.), 409 BTU/Hr(Max)

  • Smart Enegy Saving

    60W

  • DPM

    0.5W

  • Power off

    0.5 W

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes / Energy Star 8.0(US Only)

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes / Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • Connected Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, RS232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual

  • Optional

    Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V)
