55" 500 nits FHD Slim Bezel Video Wall

55" 500 nits FHD Slim Bezel Video Wall

55" 500 nits FHD Slim Bezel Video Wall

55VL5F-A

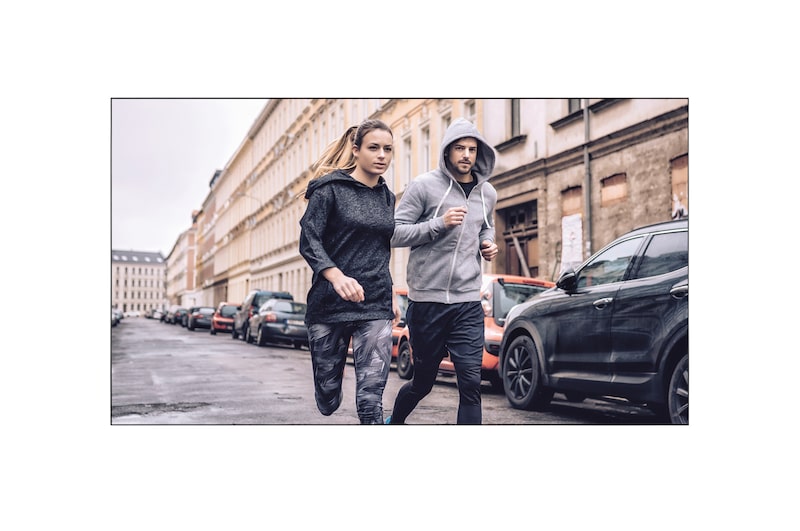

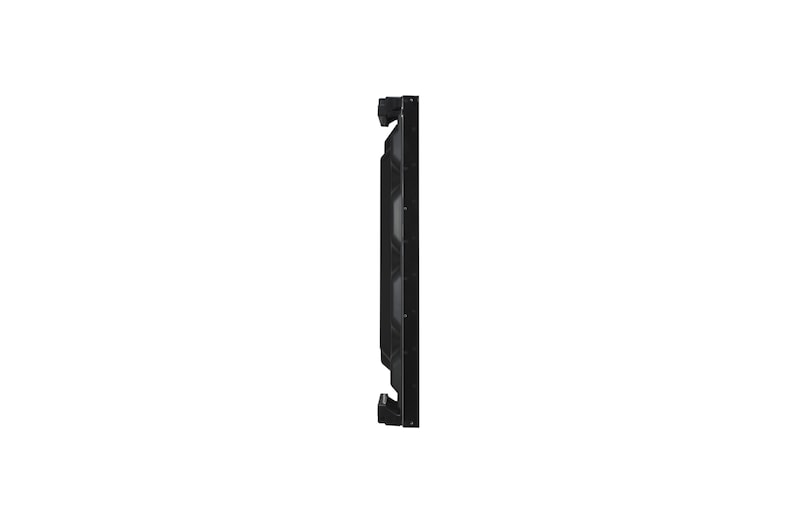

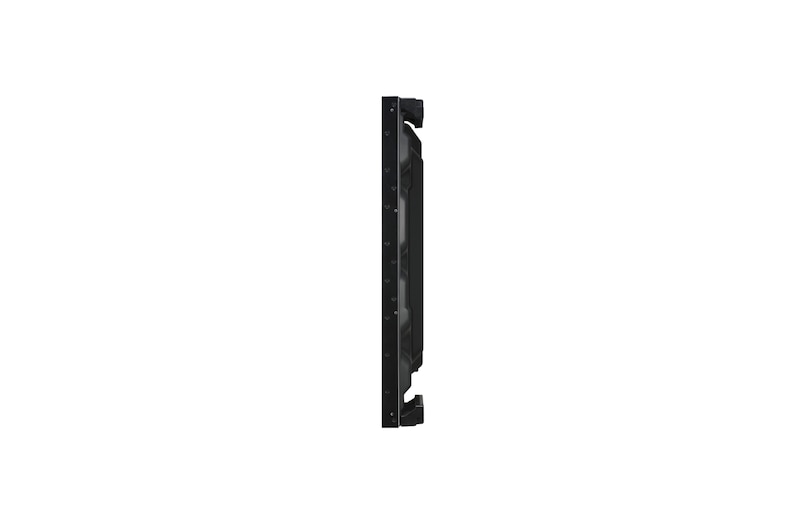

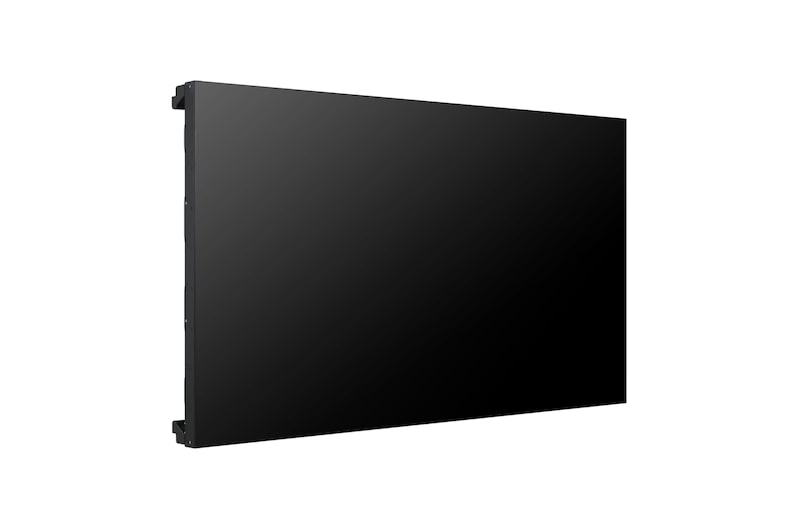

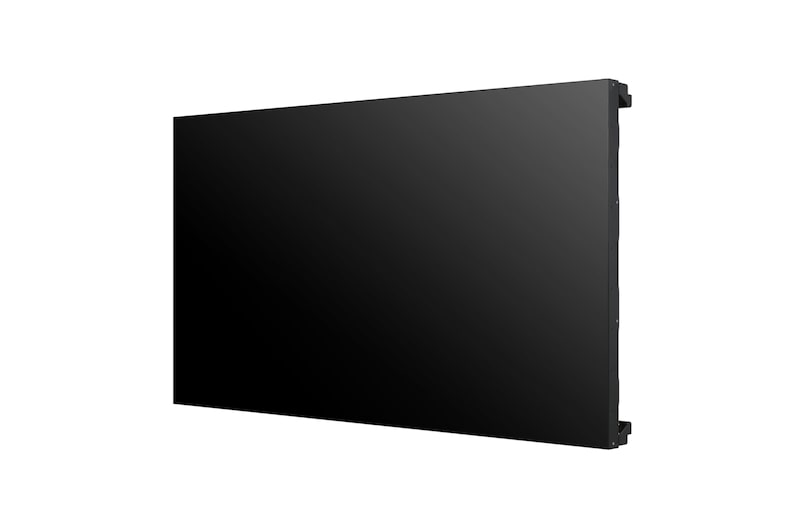

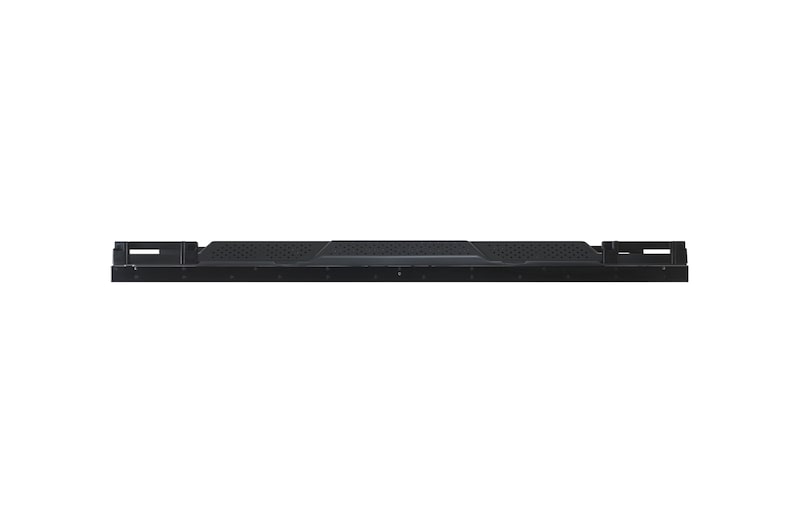

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

LG 55" 500 nits FHD Slim Bezel Video Wall, 55VL5F-A

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 93.1 mm
Interface : HDMI (2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

All specs

ACCESSORY

Included:
Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)

CERTIFICATION

EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (EU Only) / Yes (Energy Star 8.0)
Safety
CB / NRTL

CONNECTIVITY

External Control
RS232C In/out, RJ45(LAN) In, IR In
Input
HDMI(2), DP, DVI-D, Audio, USB
Output
DP, Audio

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0°C to 40°C

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
2.25 mm (T/L) / 1.25 mm(B/R)
Carton Dimensions (W × H × D)
1,353 x 980 x 263mm
Handle
Yes
Monitor Dimension (W × H × D)
1,213.4 x 684.2 x 93.1 mm
Packed Weight
33kg
VESA™ Standard Mount Interface
600 x 400 mm
Weight (Head)
20.3kg

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible
No

PANEL

Aspect Ratio
16 : 9
Brightness (Typ., cd/m²)
500
Contrast Ratio
1,200:1
Dynamic CR
500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)
Life Time (Typ.)
60,000 Hrs
Native Resolution
1,920 x 1,080 (FHD)
Operation Hours
24 Hrs
Orientation
Landscape & Portrait
Panel Technology
IPS
Response Time
8 ms (G to G)
Screen Size
55"
Surface Treatment
3%
Viewing Angle (H x V)
178 x 178

POWER

Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power

POWER CONSUMPTION

Smart Energy Saving
62 W
Typ. / Max.
130 W / 150 W

SOFTWARE COMPATIBILITY

Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
