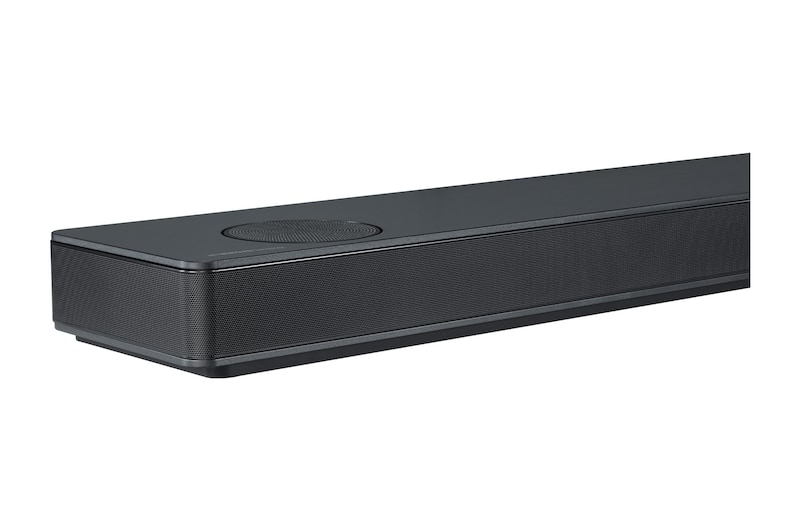

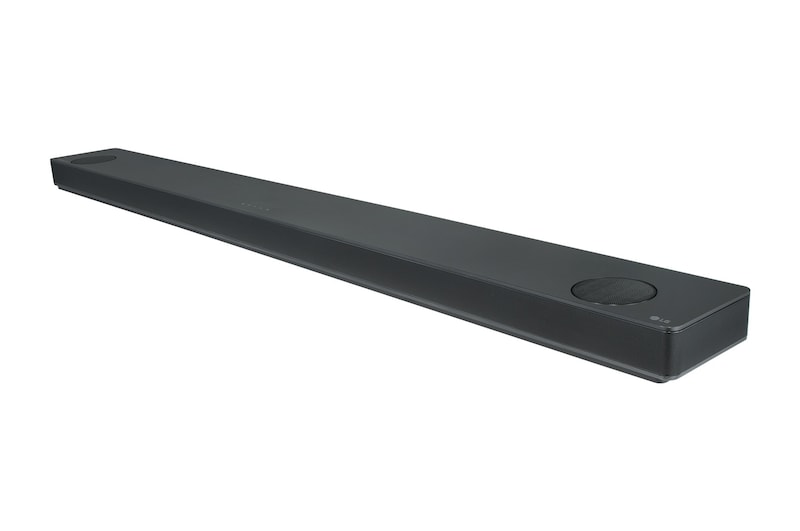

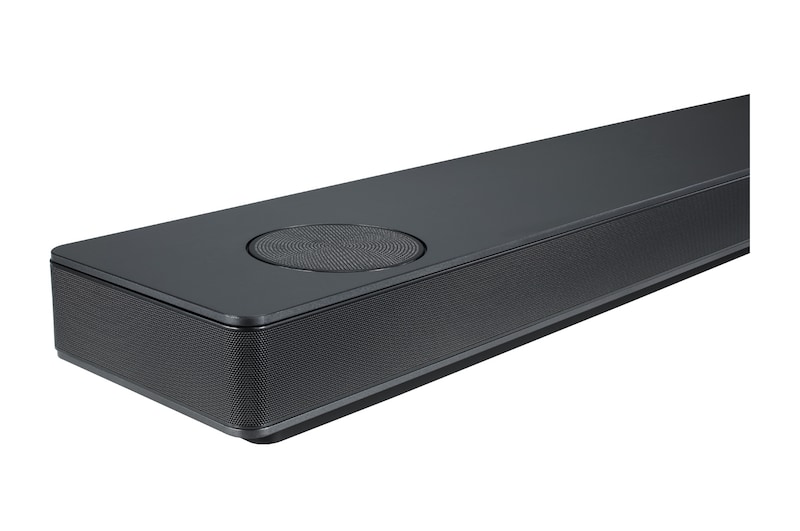

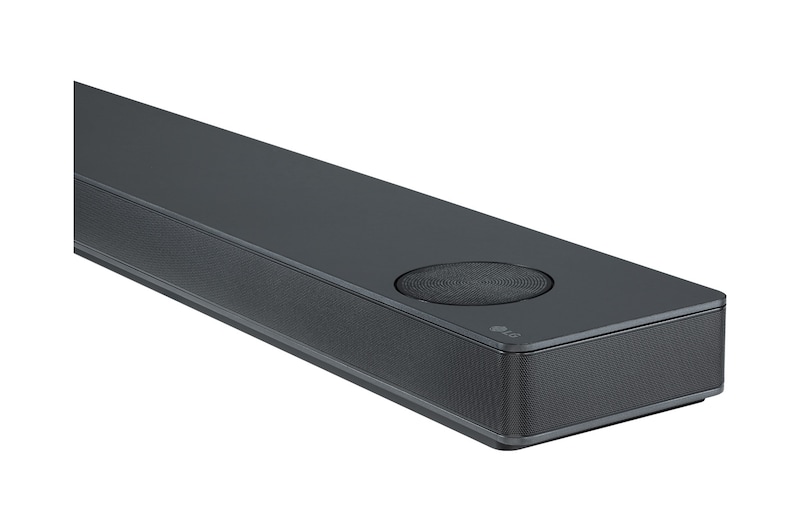

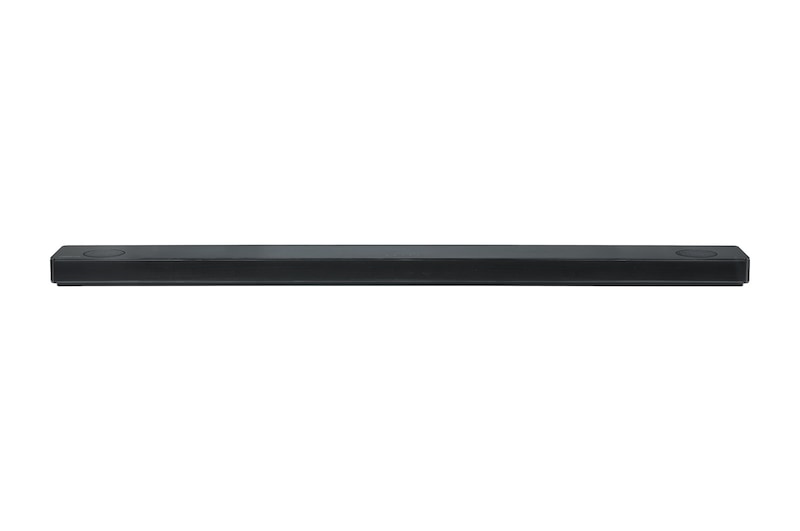

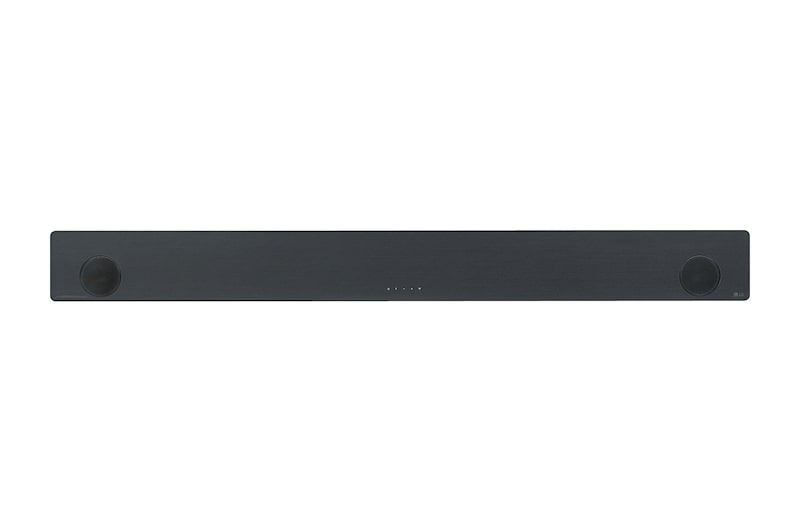

Main (W x H x D / MM)
1443.0 x 63.0 x 146.0

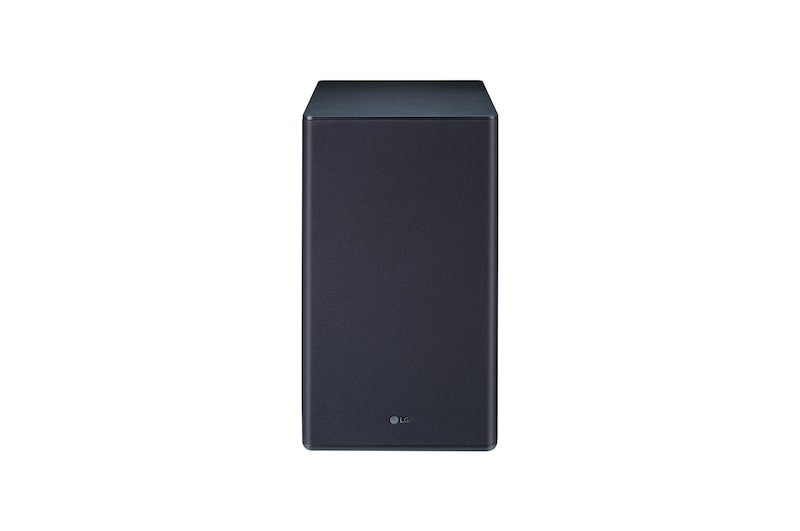

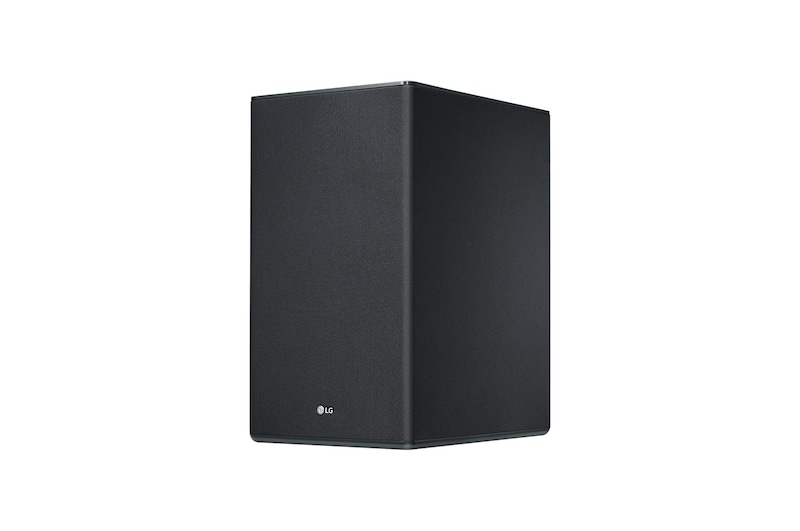

Subwoofer (W x H x D / MM)
221.0 x 390.0 x 312.8
Carton Size (W x H x D / MM)
1516 x 472 x 284
Carton Type
Offset
Main (Net Weight / Kg)
7.5
Subwoofer - Net Weight (Kg)
7.6
Gross Weight (Kg)
19.3
Material - Mainset - Front
Metal Grille
Material - Mainset - Top/Bottom
Mold / Mold
Material - Subwoofer - Front
Jersey
Material - Subwoofer - Body
Wood
Container Quantity - 20ft
112
Container Quantity - 40ft
240
Container Quantity - 40ft (HC)
300
Matching TV Sizebr ('18 New Designed LG TV)
55 ~ 66 inch
Channel
5.1.2ch
Output Power (THD 10%) - Total
550W
Output Power (THD 10%) - Front
50W x 2
Output Power (THD 10%) - Center
50W
Output Power (THD 10%) - Surround
50W x 2
Output Power (THD 10%) - Top
50W x 2
Output Power (THD 10%) - Subwoofer
200W(Wireless)
Audio DAC - 192kHz/24bit
Yes
Main - SPL
82dB
Main - System
Closed
Main - Tweeter Unit - Front Only
20mm AL Dome
Main - Woofer Unit
40x100mm
Main - Impedance
4ohm
Main - Magnetic Shielding
non-Shield
Top - SPL
80dB
Top - System
Closed
Top - Woofer Unit
2.5"
Top - Impedance
7ohm
Top - Magnetic Shielding
non-Shield
Subwoofer - SPL
85dB
Subwoofer - System
Bass Reflex
Subwoofer - Woofer Unit
7 inch
Subwoofer - Impedance
3ohm
Subwoofer - Magnetic Shielding
non-Shield
WiFi Band Width - 2.4G / 5G
Yes
General - Audio Input - Portable In (3.5Ø)
Yes
General - Optical
Yes(1)

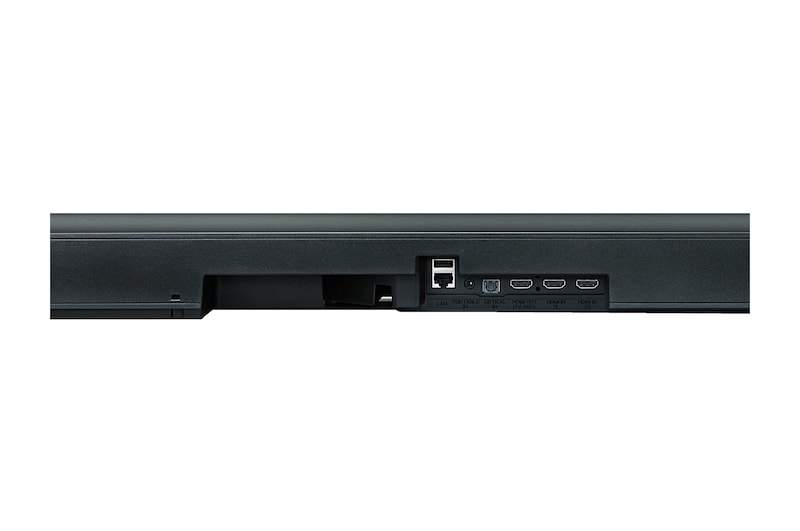

General - HDMI 2.0 (HDCP 2.2): 4K pass through - In / Out
Yes (2) / Yes (1)
General - USB
Yes(Service Only)
Wireless - Bluetooth 4.0
Yes
Wireless - Ethernet port
Yes
Wireless - WiFi
Yes
Display Type
LCD (8 char.)
LED Indicator Colour
2 colour LED (Red/White)
Hi-Res Audio - Sampling - 24bit/192kHz
Yes
Hi-Res Audio - Sampling - 24bit/96kHz
Yes
Hi-Res Audio - Upbit/Upsampling to 24bit/192kHz
Yes
Google Multi Zone - Group Play Mode (One Source -- Multi Speaker)
Yes
Sound Effect - ASCbr (Adaptive Sound Control : Default)
Yes
Sound Effect - Standard
Yes
Sound Effect - Music
Yes
Sound Effect - Bass Blast
Yes
Sound Effect - Movie / DTS Virtual X
Yes / No
Sound Effect - Meridian
Yes
Tone control - User EQ
Yes
Night Mode - On/Off
Yes
Dynamic Range Control - On/Off
Yes
Auto Volume Leveler - On/Off
Yes
Smart Phone & Tablet Remote App - iOS / Android OS
Yes / Yes
Smart Phone File Playback
Yes
EZ setup (BLE)
Yes
Works with the Google Assistant
Yes
NSU (Network Software Update)
Yes
Control with your TV Remote - Vol + , - , Mute
Yes
Sound Sync - Bluetooth (LG TV)
Yes
Sound Sync - Optical
Yes
Automatic Power On/Off - Bluetooth (LG TV)
Yes
Automatic Power On/Off - Optical
Yes
A/V Sync - 0~300ms
Yes
SIMPLINK
Yes
Audio Return Channel (ARC)
Yes
Woofer Level - -15~+6 (Step)
Yes
Mute
Yes
Auto Dimmer
Yes
Timer / Sleep
Yes
Demo Music x 2
Yes
Bluetooth Stand-By
Yes
Wireless Rear Speaker Ready - 1:1 Rx module Type (Wireless Kit for rear)
Yes
LPCM
Yes
Dolby Atmos
Yes
Dolby TrueHD
Yes
Dolby Digital Plus
Yes
Dolby Digital
Yes
DTS Digital Surround
Yes
FLAC - Up to 192kHz
Yes
OGG - Up to 48kHz
Yes
WAV
Yes
Apple Lossless (m4a)
Yes
MP3
Yes
WMA
Yes
AAC / AAC+
Streaming (Wi-Fi), Bluetooth
AIFF
Yes
Chrome Cast
Yes
Main - Type
SMPS (100~240V, 50/60Hz)
Main - Power Off Consumption
0.5W Under
Main - Power Consumption
61W
Subwoofer - Type - SMPS
100~240V, 50/60Hz
Subwoofer - Power Off Consumption
0.5W Under
Subwoofer - Power Consumption
33W
Subwoofer - Wireless Frequency
5.8GHz
Owners Manual br Web (w/ Simple Manual)
Yes (Full)
Owners Manual - Book
Simple / Yes
Owners Manual br Wall Mount Guide
Yes
Owners Manual br Open Source
Yes (Full)

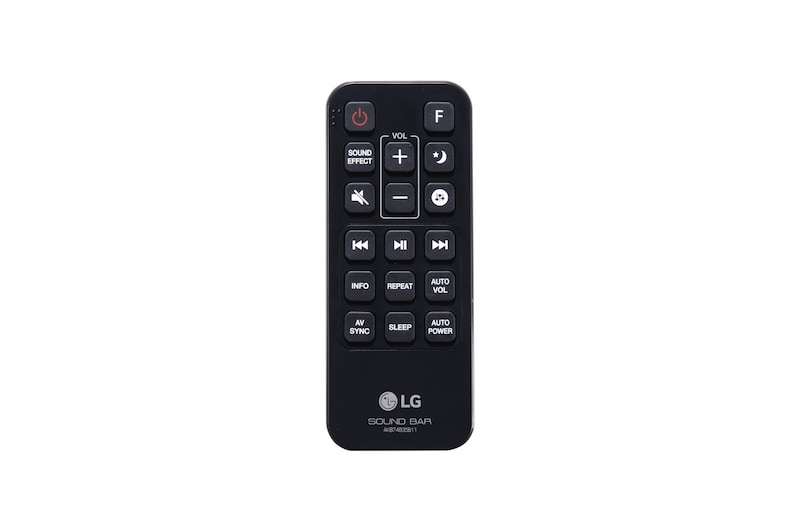

Remote Control Unit - Model
MA7
Remote Control Unit br Battery (Size)
AAA x 2
Batteries
Yes
Warranty Card
Yes
Optical Cable
Yes
Wall Mount Bracket
Yes
Cable Management
Tie
Box Type
Offset
