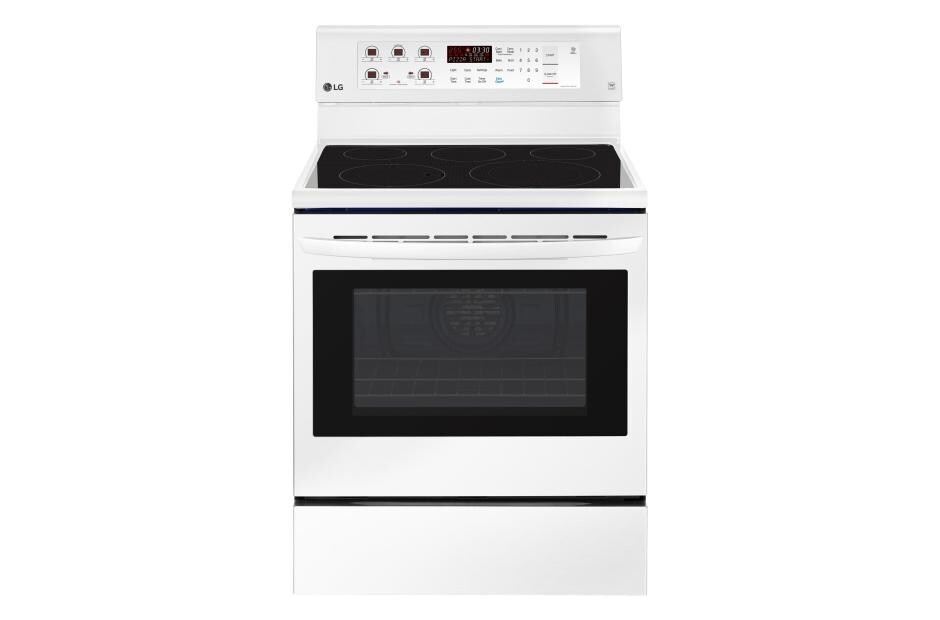

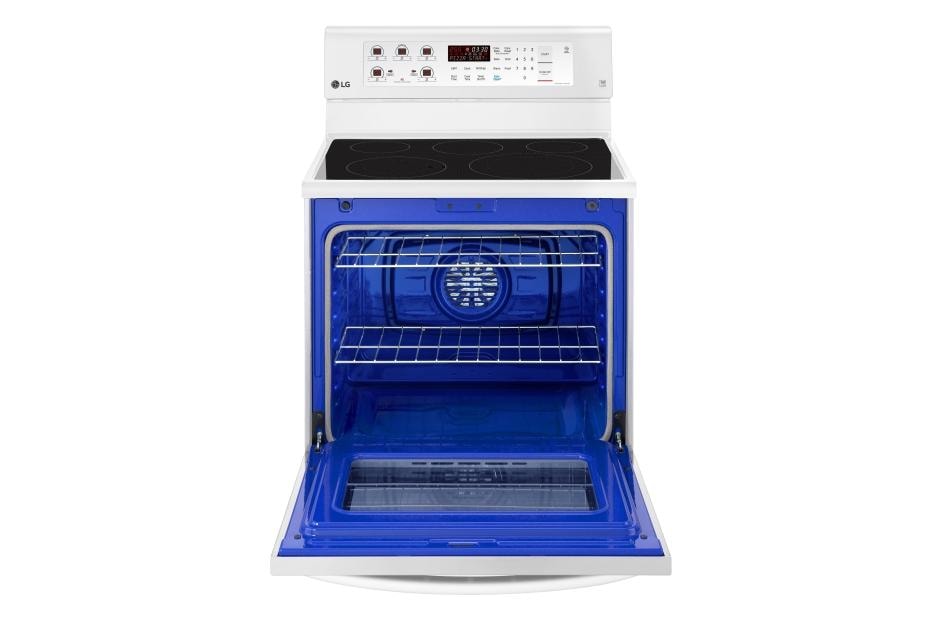

LRE3193SW
6.3 cu. ft. Electric Single Oven Range with True Convection and EasyClean®
/
1/9
6.3 cu. ft. Electric Single Oven Range with True Convection and EasyClean®
SUMMARY
-
- EasyClean®
- Yes
- Range Type
- Electric
-
- Capacity
- 6.3 cu.ft.
- Color
- Smooth White
CAPACITY
-
- Oven Capacity (cu. ft.)
- 6.3

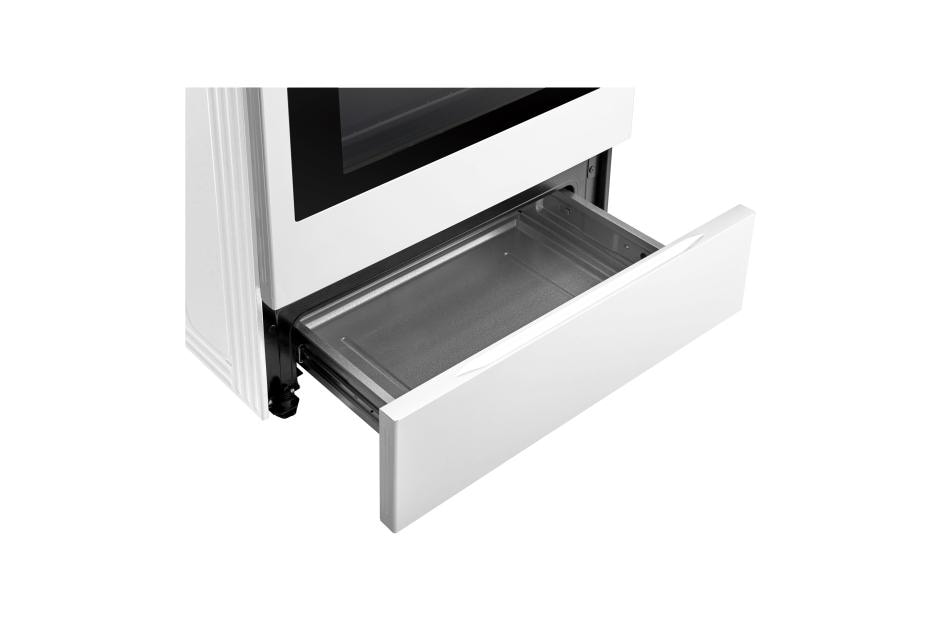

- Storage Drawer Capacity (cu. ft.)
- .8
OVEN FEATURES
-
- Configuration
- Single Oven
- Configuration Type
- Freestanding Electric Range
-
- Broil Element (Watts)
- Sheath 4,200W / 6 Pass
- Convection/Bake Element (W)
- 700W (Convection) / 3400W (Bake)
-
- Oven Cooking Technology
- True Convection
- Oven Cooking Modes
- Bake, Broil, Convection Bake, Convection Roast, Multi-Rack Convection Baking, Delay Bake, Proof, Warm
-
- Oven Control Features
- Glass Touch
- Convection Conversion
- Yes
-
- EasyClean®
- Yes
- GoCook Smart Oven Light
- Yes (1 Light)
-
- No. of Rack Positions
- 7
- Automatic Safety Shut-Off
- After 12 hours

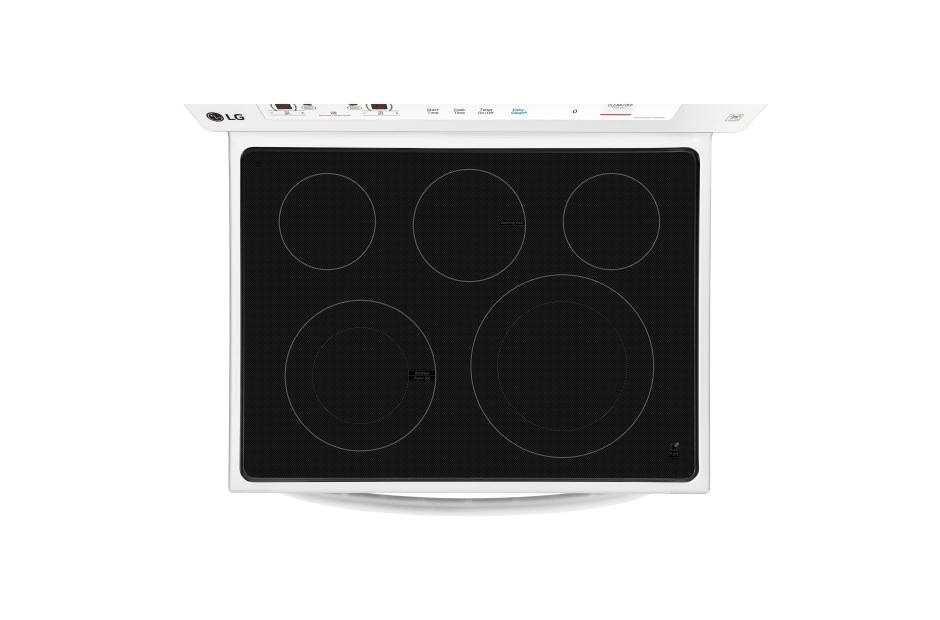

COOKTOP
-
- Element Size/Wattage - Left Rear
- 6" - 1,200W
- Element Size/Wattage - Right Rear
- 6" - 1,200W
-
- Element Size/Wattage - Left Front
- 9" - 3,200W / 6" - 1,400W
- Element Size/Wattage - Right Front
- 12" - 2,700W / 9" - 1,700W
-
- Element Size/Wattage - Center (Warming Zone)
- 7" - 100W
- Cooktop Finish
- Grey Patterned on Black Ceramic Glass
-
- Hot Surface LED Indicator
- Yes

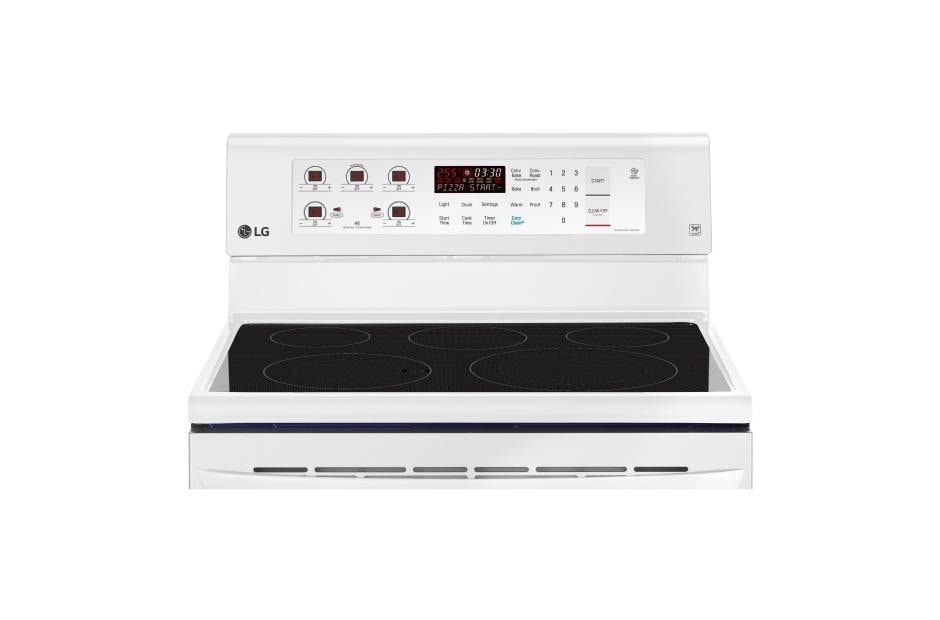

CONTROL
-
- Cooktop Control Type
- Glass Touch
- Oven Control Type
- Glass Touch
-
- Display
- VFD Scrolling
- Language
- English, Spanish, French
-
- Smart Function
- Smart Buzzer
- Clock
- 12 hr or 24 hr (option)
-
- Temperature Unit of Measure
- ˚F or ˚C
- Preheat Alarm Light
- On/Off
-
- Oven Thermostat Adjustment
- (+) or (-)
- Cooking Complete Reminder Volume
- Normal/Mute
APPEARANCE
-
- Available Colors
- Stainless Steel, Black Stainless Steel, Black, White
- Handle/Knobs
- Matching Finish (AIuminum)
-
- Oven Door Feature
- WideView™ Window
DIMENSIONS / CLEARANCES / WEIGHT
-
- Product Weight (lbs)
- 167
- Shipping Weight (lbs)
- 191
-
- Product Dimensions (in) (W x H x D)
- 29 7/8" x 47 1/8" (w/backguard) x 28 1/4" (w/ handle)
- Cabinet Dimensions (in) (W x H x D)
- 30" x 36" x 25"
-
- Height to Cooking Surface (in)
- 36"
- Oven Interior Dimensions (Upper) (in) (W x H x D)
- 24 13/16" x 22 1/4" x 19 11/16"
-
- Drawer Dimensions (in) (W x H x D)
- 22 3/16" x 4 1/2" x 16 3/8"
- Carton Dimensions (in) (W x H x D)
- 33 11/16" x 50 7/8" x 30 9/16"
POWER / RATINGS
-
- Amp Rating at 208V
- 40A
- Amp Rating at 240V
- 40A
-
- KW Rating at 208V
- 10.1kW
- KW Rating at 240V
- 13.4kW
ACCESSORIES
-
- Standard Rack
- 2
- Spray Bottle
- Yes
WARRANTY
-
- Limited Warranty
- 1 Year Parts & Labor
WARRANTY/UPC
-
- UPC
- 048232337532
