KEY FEATURES

  • 5.4 cu. ft. Large Capacity
  • SuperBoil™ 17,000 BTU Burner
  • 5 Cooktop Burners
  • EasyClean®
  • Brilliant Blue Interior

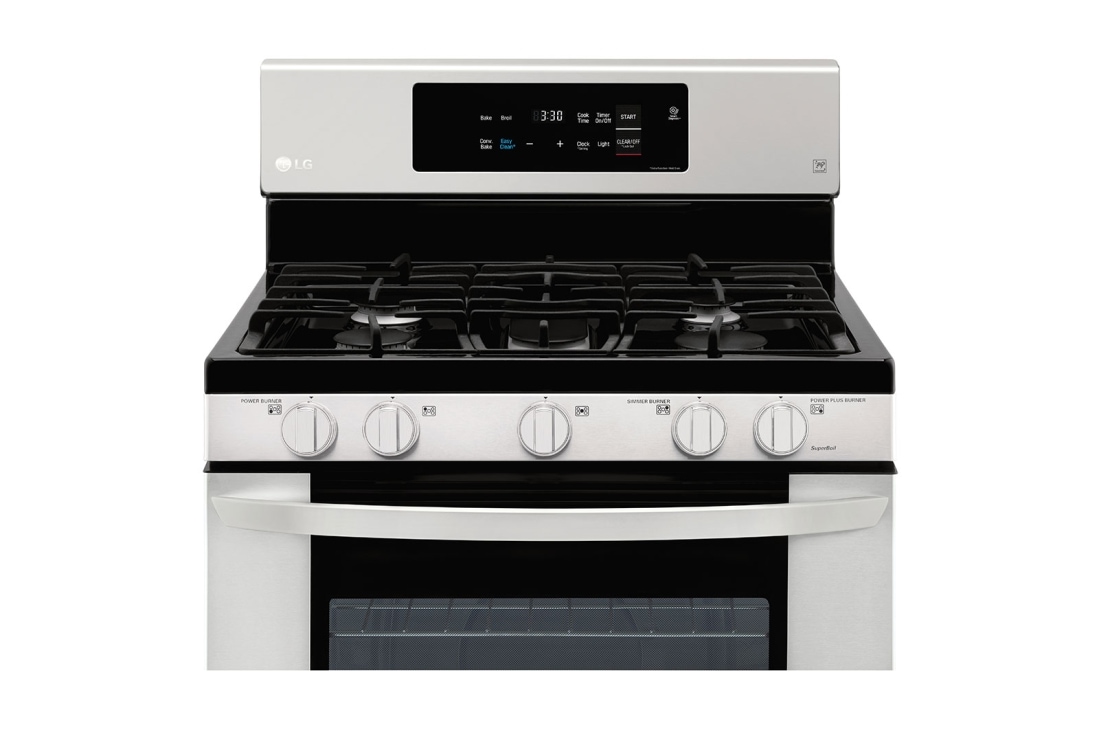

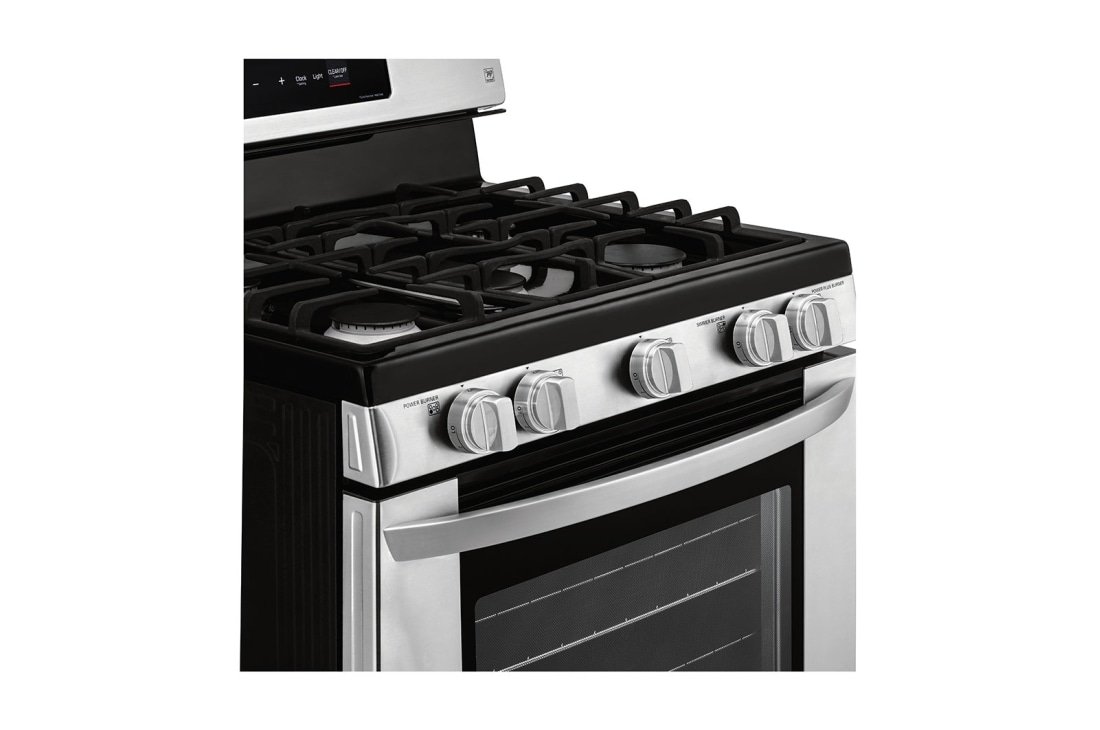

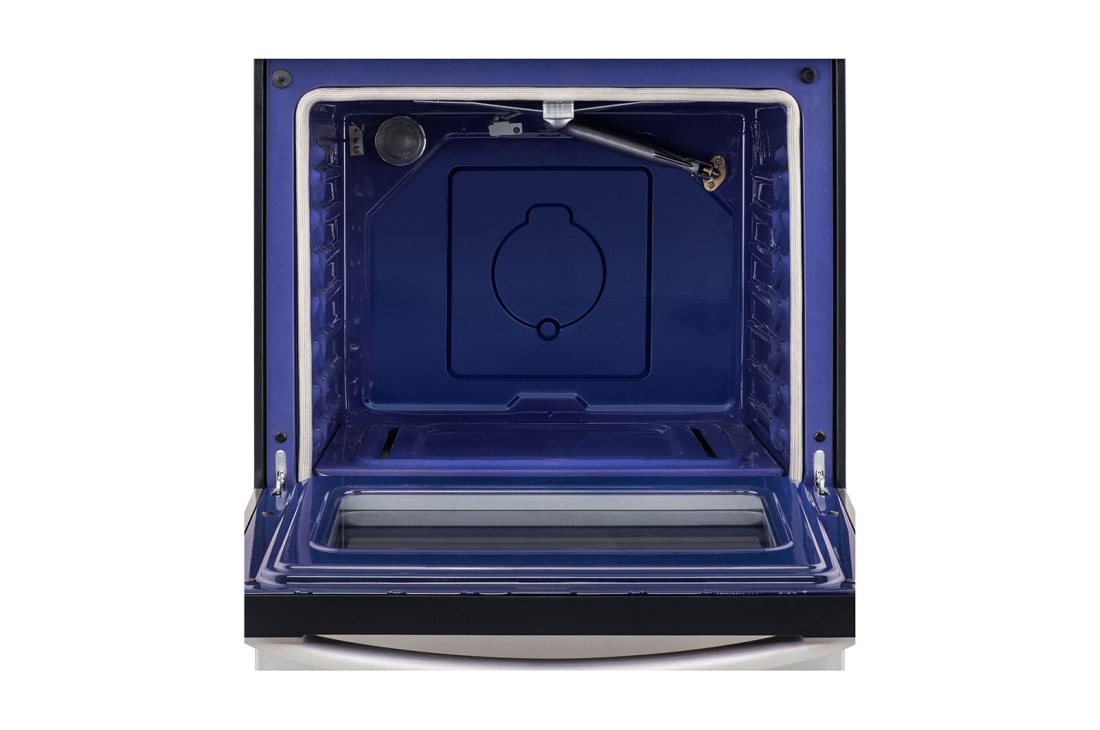

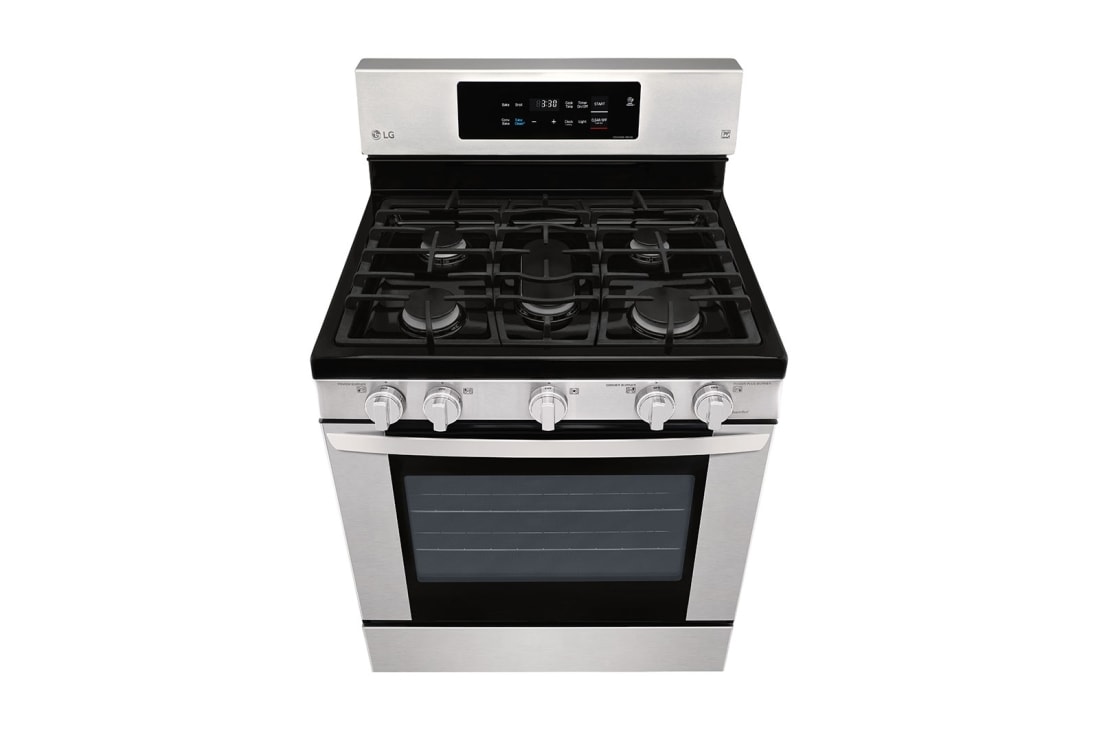

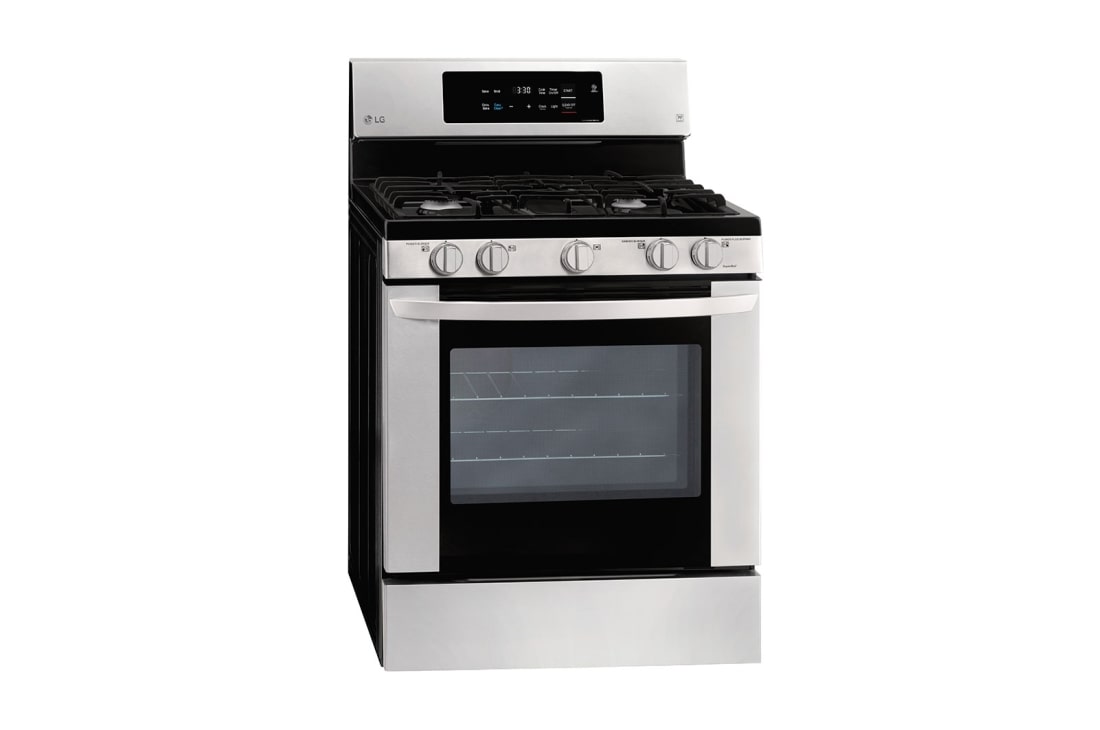

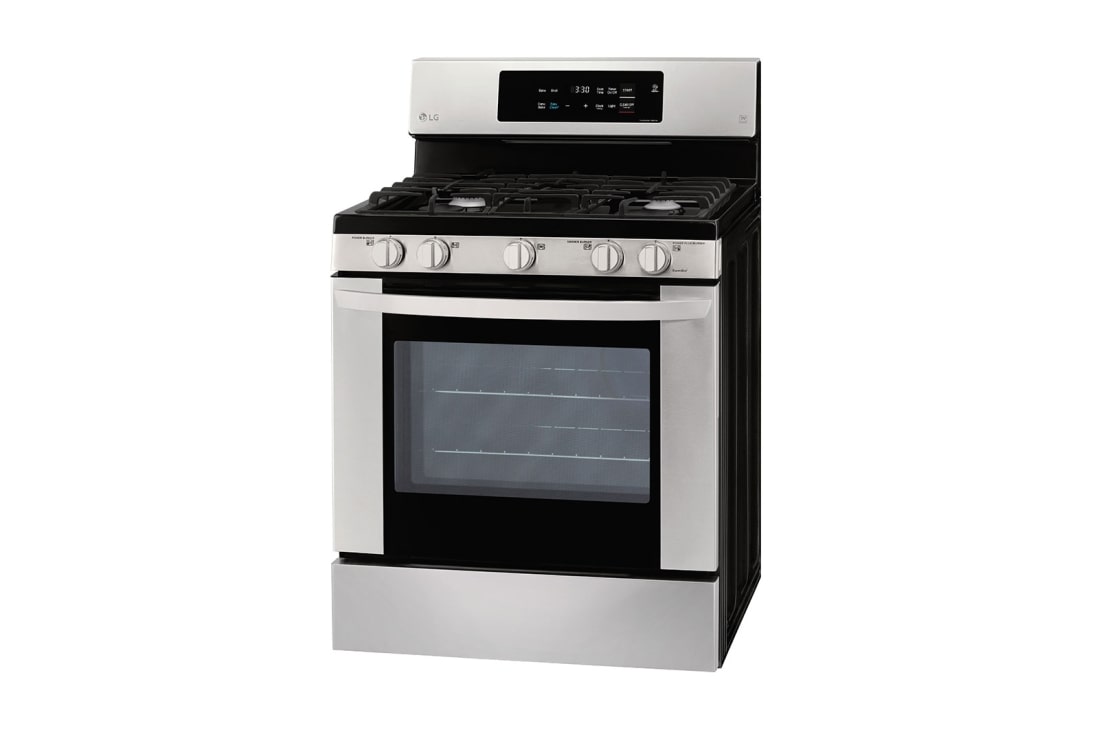

5.4 cu. ft. Gas Single Oven Range with EasyClean®
$

Extra Space. Extra Swagger.

This LG range has the largest capacity oven in its class. So you can use all the pots, pans, dutch ovens, skillets you need to get your cook on.
* Based on LG internal survey (October 2018) for 6.3 traditional self clean gas and electric single ovens, 6.9 freestanding gas double ovens and 7.3 electric double ovens.
* Largest in its class in reference to 6.3 traditional self clean gas & electric single ovens, 6.9 freestanding gas double ovens and 7.3 electric double ovens.

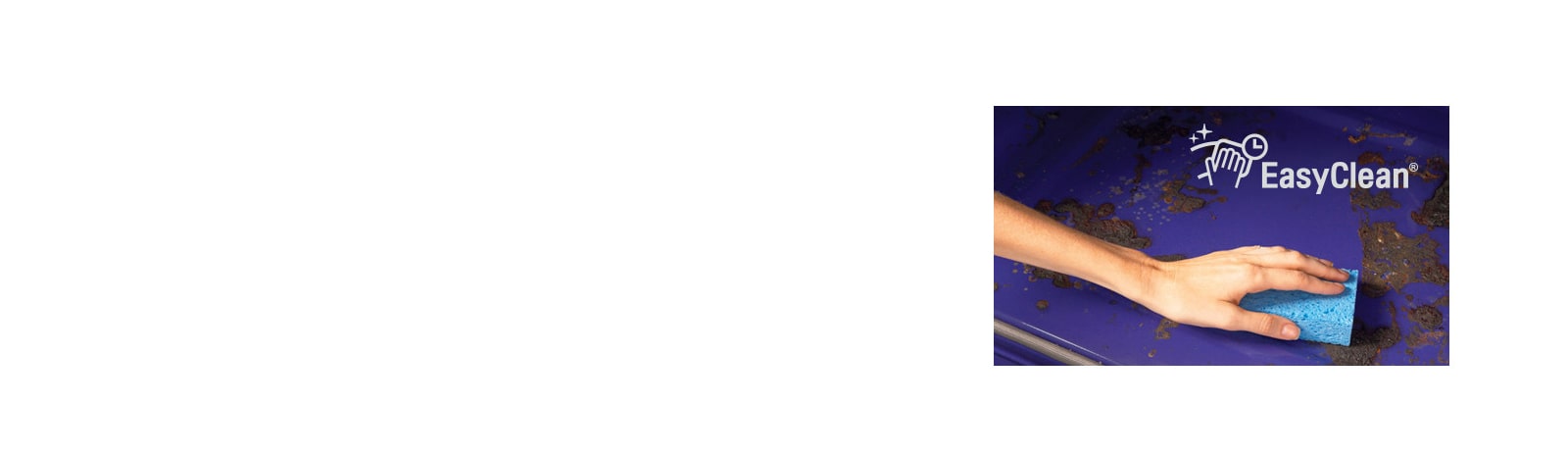

A clean oven in just 20 minutes

LG EasyClean® brings you our fastest oven-cleaning feature yet. In just three steps your oven can sparkle, all without strong chemical fumes or high heat*. Simply spray the oven interior with water, press EasyClean and 20 minutes later, wipe away leftover grime.

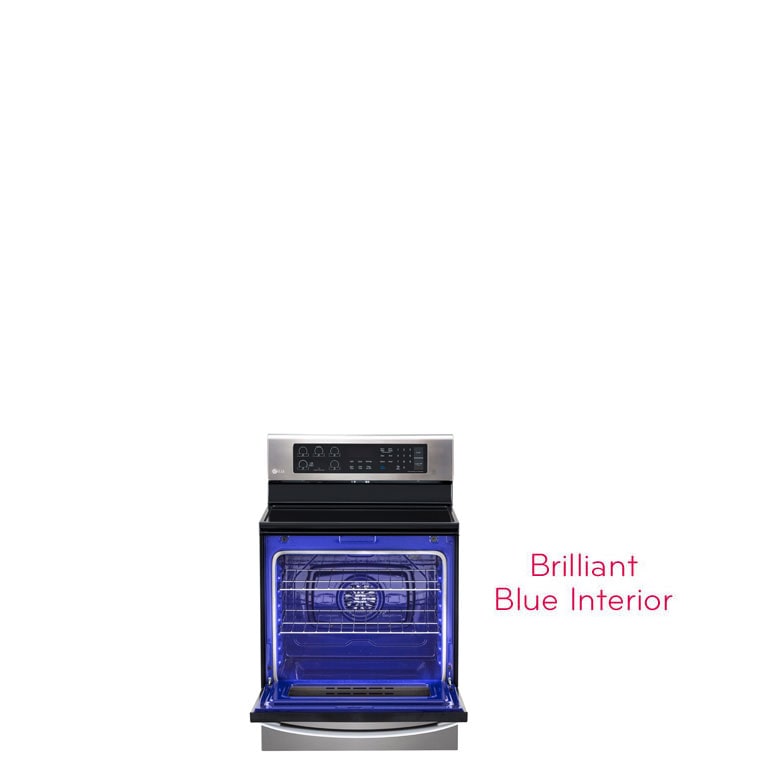

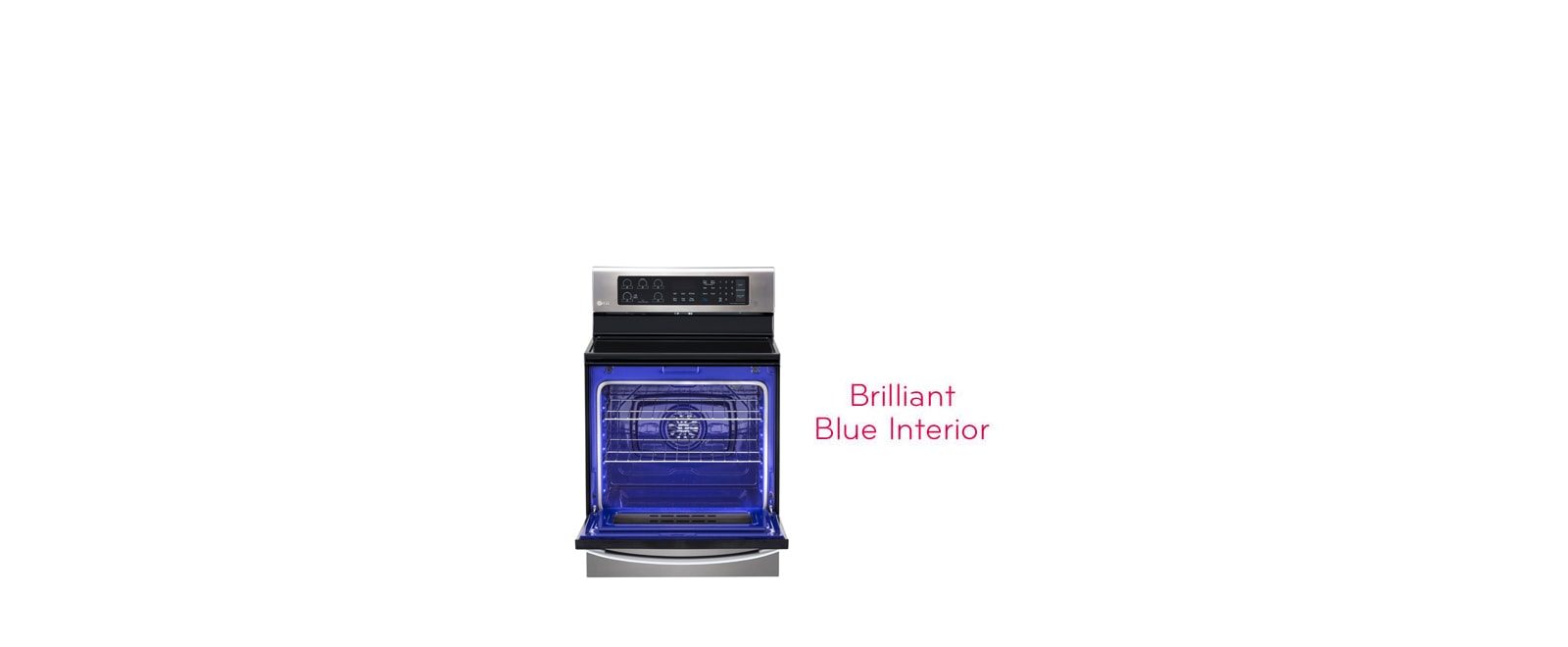

Brilliantly Lit

A premium range should meet your needs and look beautiful doing it. The Brilliant Blue Interior provides an upscale look with premium interior design.

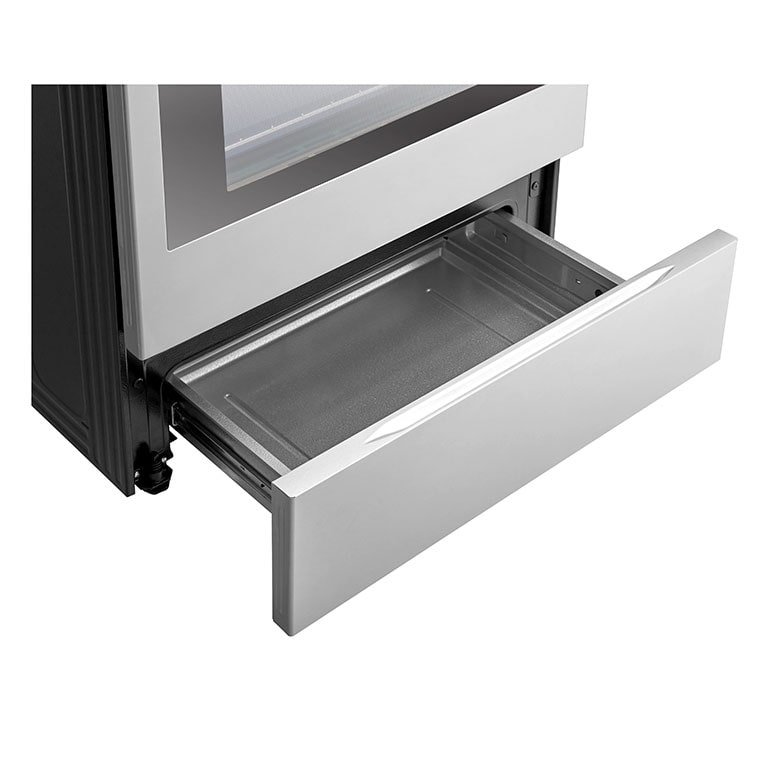

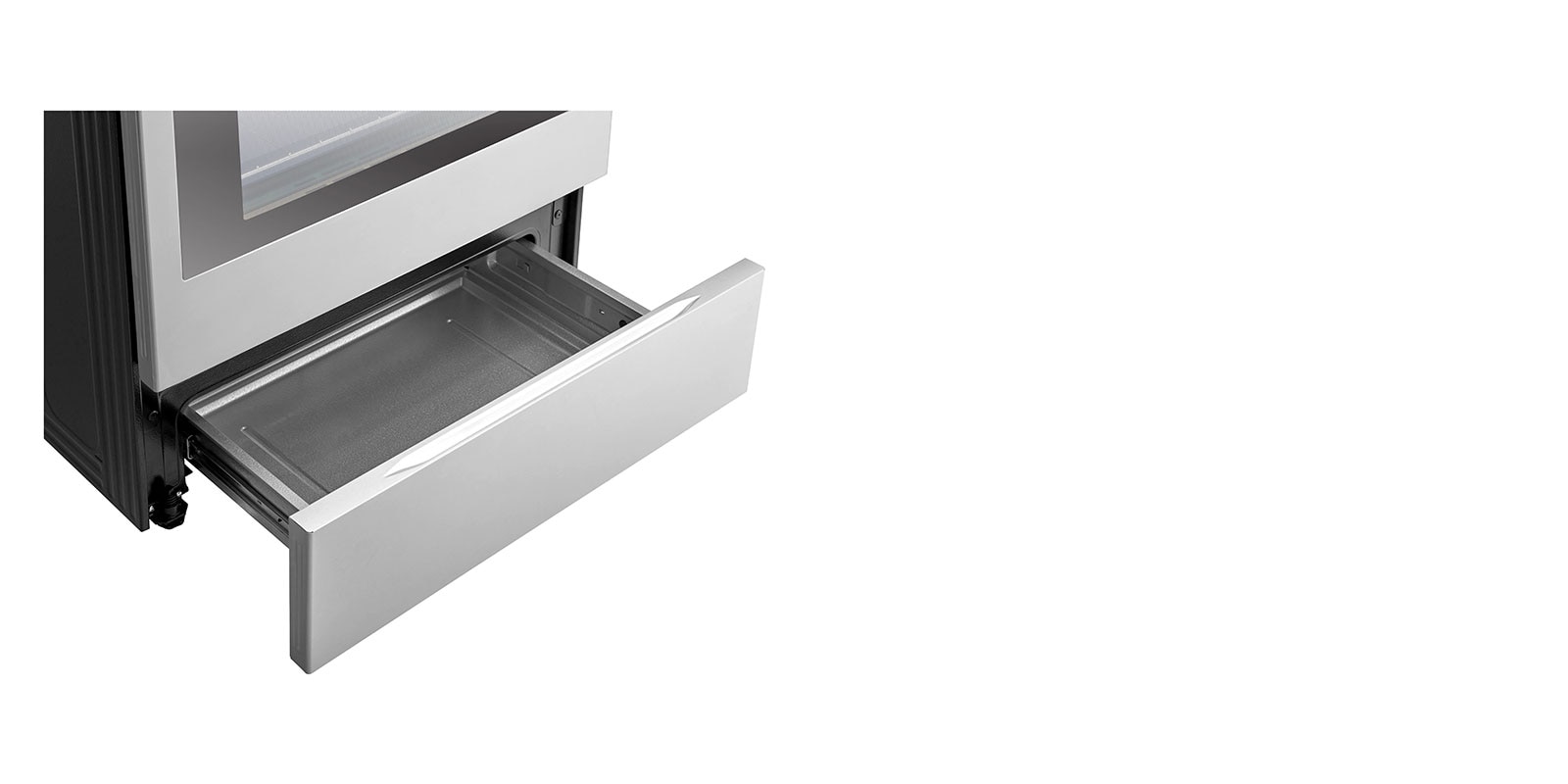

Eliminate Kitchen Clutter.

Even with the huge capacity oven above, LG still found a way to maintain the handy storage drawer below. It’s a convenient, stylish way to store all your kitchen necessities and stay organized.
Download Spec Sheet

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 210
    • Weight (Product)
    • 189
    • Cabinet Width (in)
    • 30"
    • Overall Depth (in)
    • 28 3/4"
    • Overall Height (in)
    • 47 7/16"
    • Overall Width (in)
    • 30"
    • Height to Cooking Surface (in)
    • 36"
    • Oven Interior Dimensions (in) (W x H x D)
    • 24 1/2" x 19 1/2" x 19 3/8"
    • Drawer Dimensions (in) (W x H x D)
    • 22 3/16" x 4 1/2" x 16 3/8"
    • Carton Dimensions (in) (W x H x D)
    • 32 1/2" x 51 9/16" x 30 1/2"

OVEN FEATURES

    • Configuration
    • Single Oven
    • Bake Element
    • 19000 / 18000 (LNG/LPG)
    • Broil Element (BTU)
    • 15500 / 12500
    • Oven Cooking Modes
    • Bake, Broil, Proof, Warm
    • Door Lock
    • Yes
    • No. Rack Positions
    • 7
    • Oven Control Features
    • Keypad
    • GoCook Smart Oven Light
    • 1 Light
    • Automatic Safety Shut-Off
    • After 12 hours
    • EasyClean®
    • Yes

CONTROLS

    • Control Type
    • Front Control Knobs
    • Display
    • LED Green
    • Cooking Complete Reminder
    • 1. Hi 2.Lo 3.Off
    • Language
    • English
    • Oven Control Type
    • Keypad
    • Clock
    • 12 hr or 24 hr (option)
    • Temperature Unit of Measure
    • Fahrenheit / Celsius
    • Timed Cook
    • Yes

POWER/RATINGS

    • Amp Rating at 240V
    • 4.5A (120VAC, 60Hz)

WARRANTY/UPC

    • UPC
    • 048232335484
    • Parts & Labor
    • 1 Year

CAPACITY

    • Oven Capacity
    • 5.4
    • Storage Drawer Capacity (cu. ft.)
    • 0.8 (No Handle)

MATERIALS/FINSHES

    • Available Colors
    • Stainless Steel
    • Handle
    • Stainless Steel
    • Oven Door Feature
    • WideView™

DRAWER

    • Type
    • Storage

ACCESSORIES

    • Standard Rack
    • 2
    • Scouring Pad
    • Yes
    • Spray Bottle
    • Yes
    • Conversion Kit
    • Yes

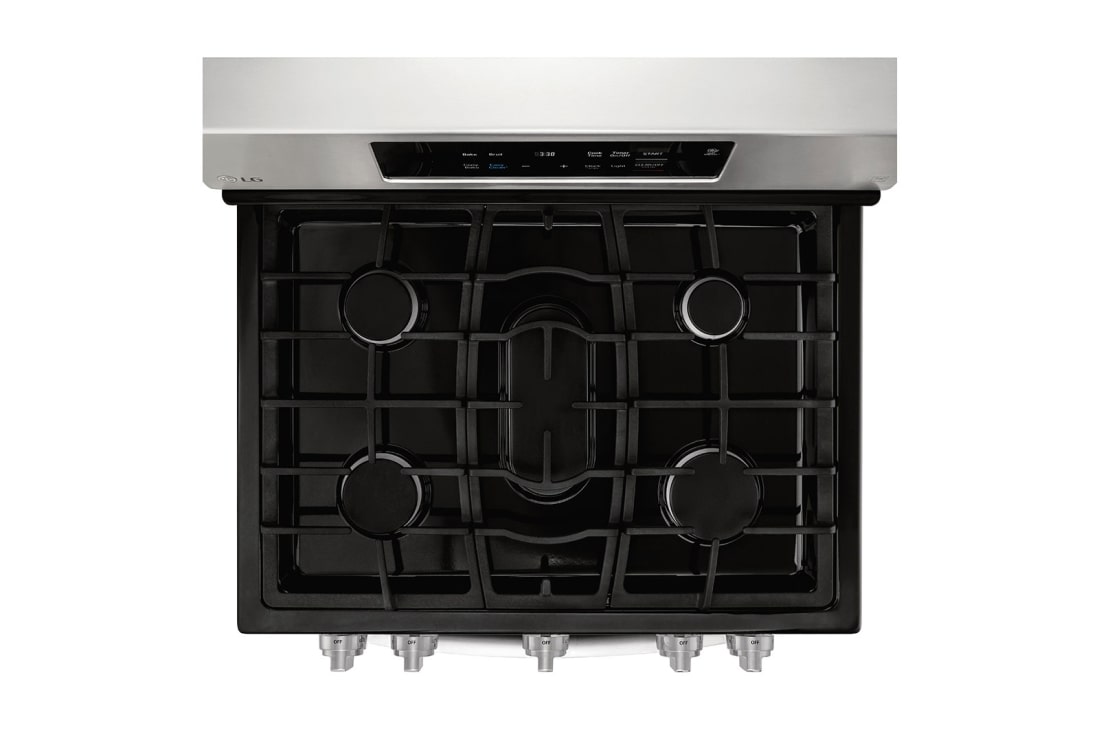

COOKTOP

    • Cooktop Finish
    • Black Porcelain
    • Burner Configuration - Left Rear
    • 9100 / 9100
    • Burner Configuration - Right Rear
    • 5000 / 5000
    • Burner Configuration - Left Front
    • 12000 / 9500
    • Burner Configuration - Right Front
    • 17000 / 10000 (SuperBoil™)
    • Simmer BTU - Left Rear
    • 1100
    • Simmer BTU - Right Rear
    • 650
    • Simmer BTU - Left Front
    • 1100
    • Simmer BTU - Right Front
    • 1200
    • Center (Warming Zone)
    • 2300
    • Center (Warming Zone) (BTU)
    • 8000 / 8000 (Oval)
    • Fuel Type
    • Gas

APPEARANCE

    • Knobs
    • Silver
    • Oven Door Feature
    • WideView™

SMARTTHINQ®

    • SmartDiagnosis™
    • Yes
