KEY FEATURES

  • LG SIGNATURE
  • ProBake Convection®

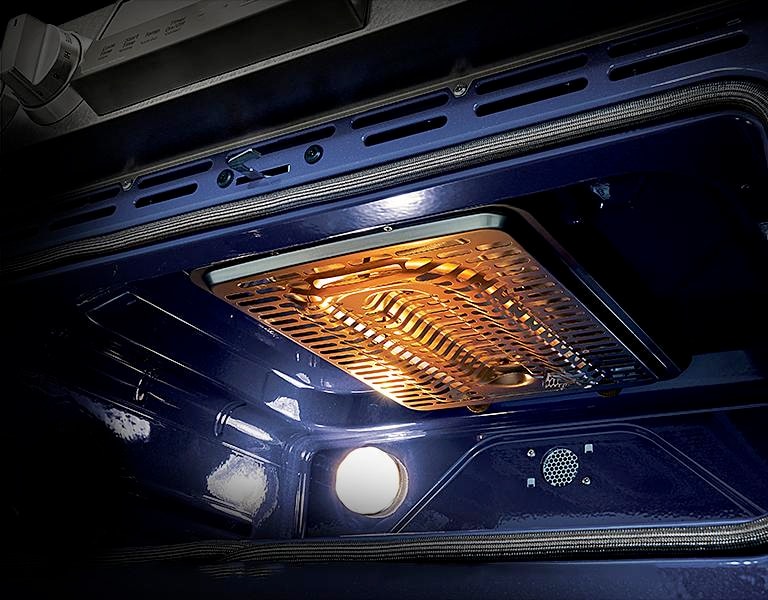

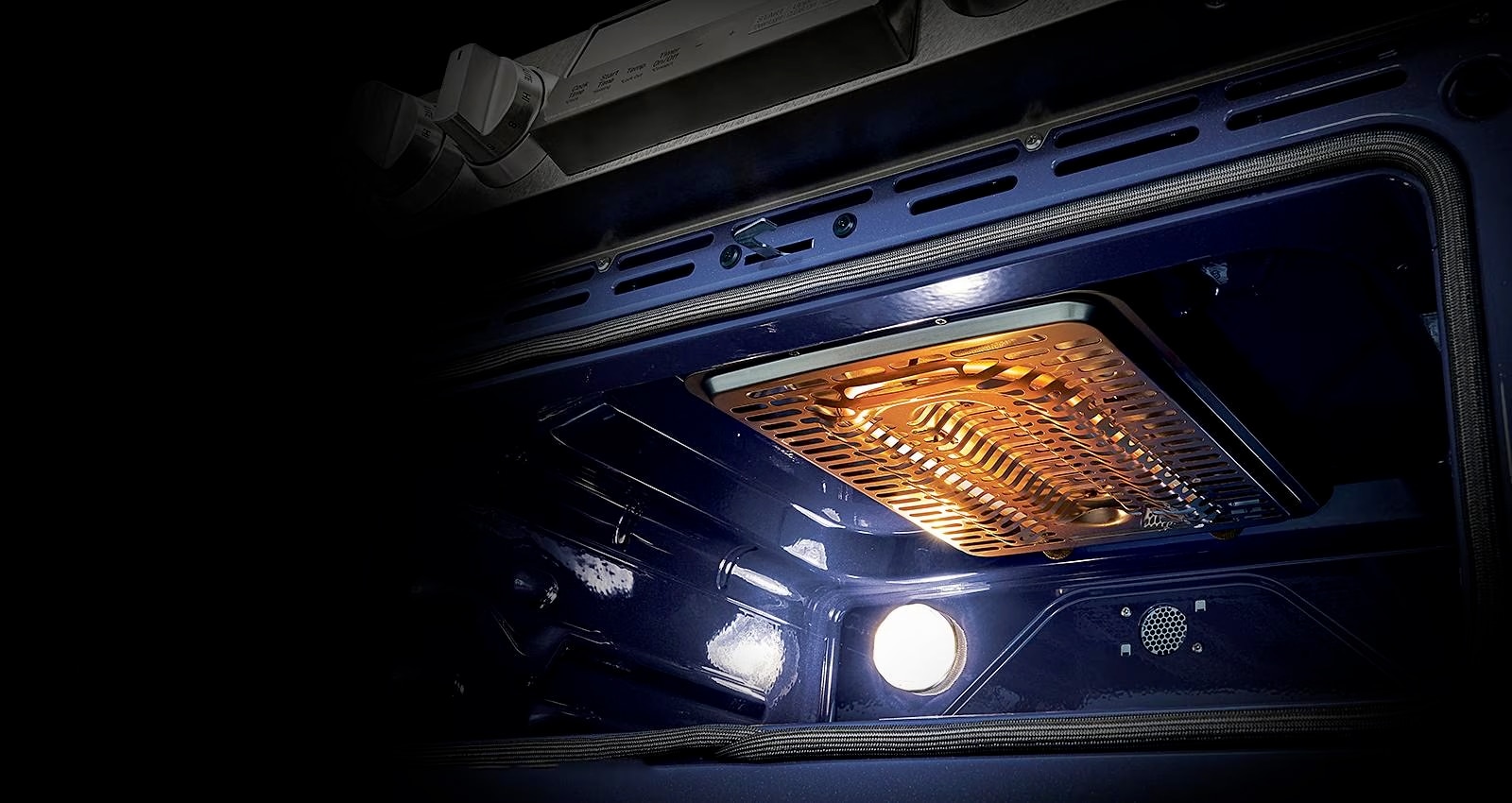

  • Infrared Heating™ System

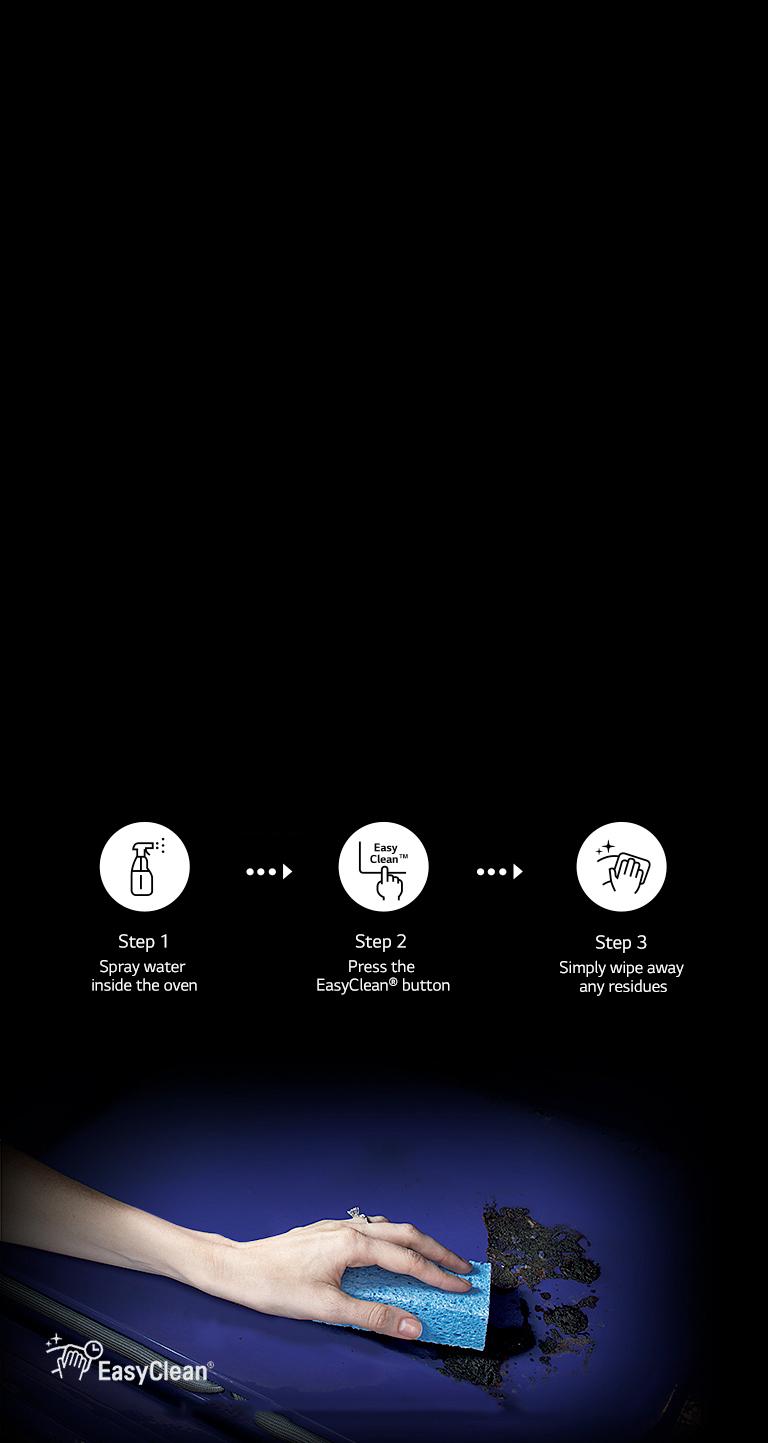

  • EasyClean®

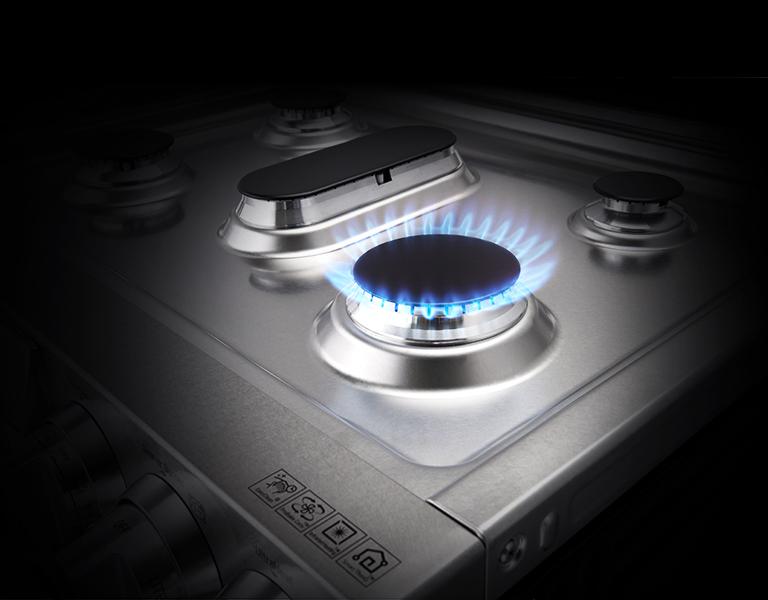

  • UltraHeat™ Burner
  • SmartThinQ® Technology

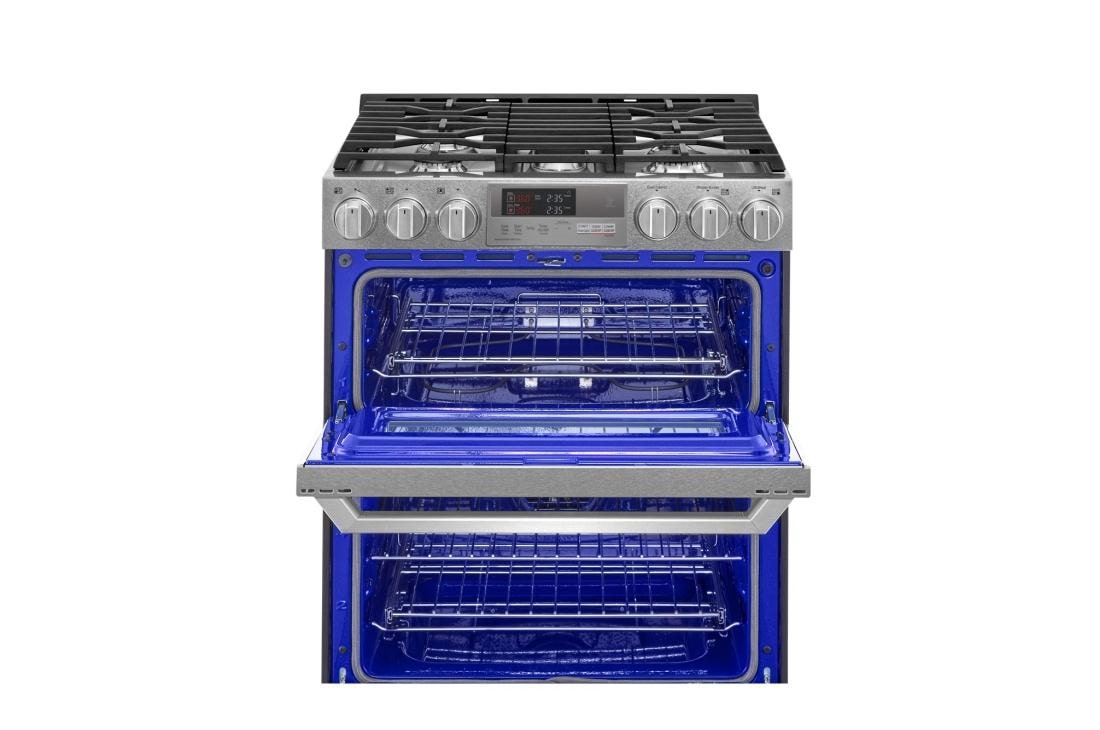

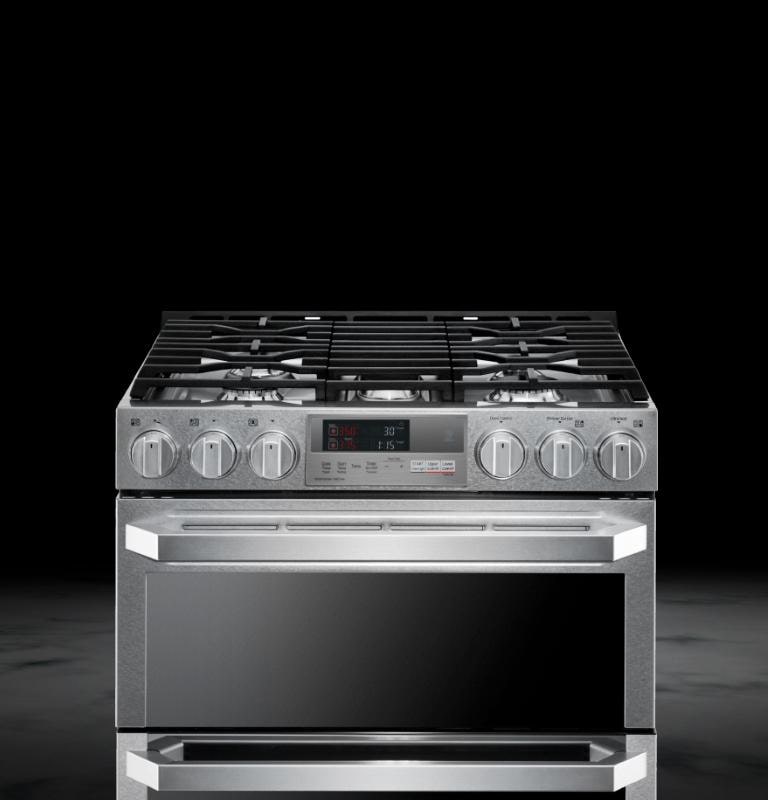

LG SIGNATURE 7.3 cu.ft. Smart wi-fi Enabled Dual Fuel Double Oven Range with ProBake Convection®
$ 3,599.99
Red Dot Design Award Winner1

Red Dot Design Award Winner

The LG SIGNATURE range was recognized with a 2017 Red Dot Design Award for exemplary design and innovation.
* Compared to LG’s conventional ovens
* Compared to LG’s non-infrared heating ovens using chicken breasts, hamburgers and salmon
* As of June 2015. Heavy build-up may require additional manual effort or use of the full self-clean feature.

Follow Us

Stay connected with LG SIGNATURE social channels.

Dimensions

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 242.5
    • Weight (Product)
    • 196.2
    • Cabinet Width (in)
    • 30"
    • Overall Height (in) - including backguard
    • 37 7/8"
    • Height to Cooking Surface (in)
    • 36"
    • Overall Width (in)
    • 29 7/8"
    • Oven Interior Dimensions (Upper) (in) (W x H x D)
    • 24 13/16" x 10 13/16" x 20"
    • Oven Interior Dimensions (Lower) (in) (W x H x D)
    • 24 13/16" x 14 1/4" x 20"
    • Carton Dimensions (in) (W x H x D)
    • 32 1/2" x 44" x 30 1/2"

OVEN FEATURES

    • Configuration
    • Double Oven

SUMMARY

    • SmartThinQ®
    • Yes

CONTROLS

    • Display
    • VFD
    • Language
    • English

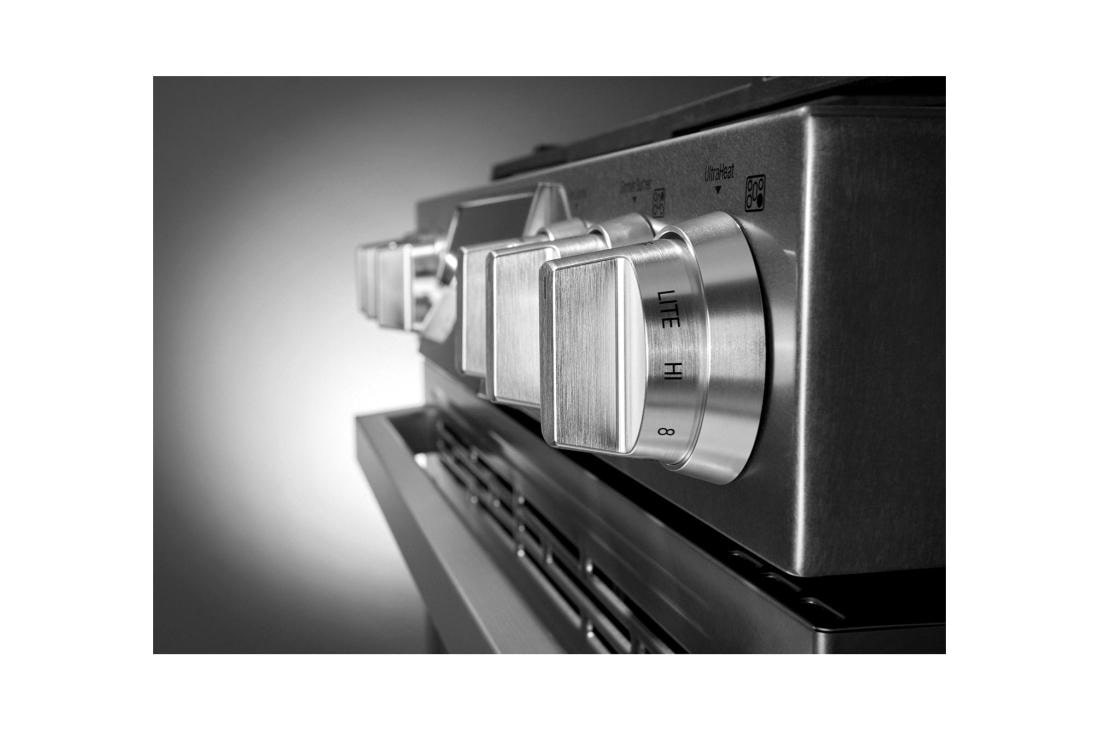

    • Cooktop Control Type
    • Front rectangle - Control Knobs

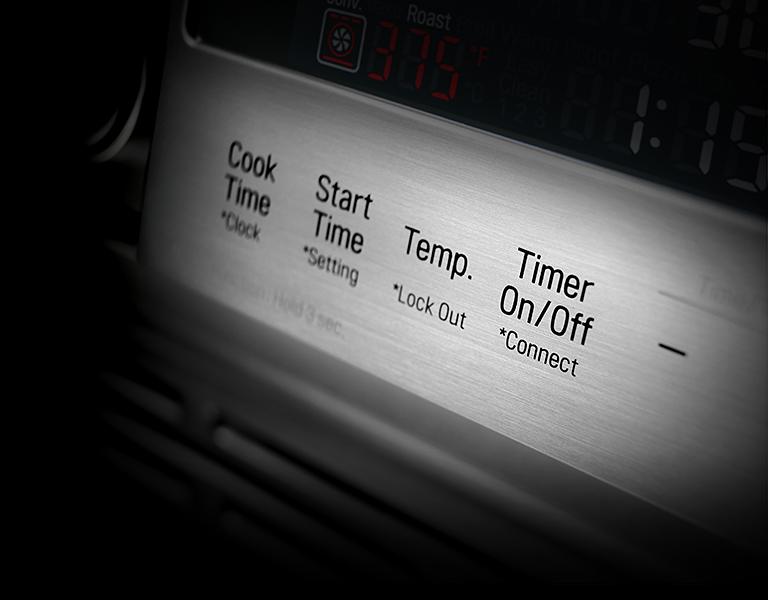

    • Oven Control Type
    • STS Touch
    • Clock
    • 12 hr or 24 hr (option)

POWER/RATINGS

    • Amp at 208V / 240V
    • 40A / 40A
    • kW at 208V / 240V
    • 6kW / 6.9 kW

WARRANTY/UPC

    • UPC
    • 048232335408
    • Parts & Labor
    • 1 Year

CAPACITY

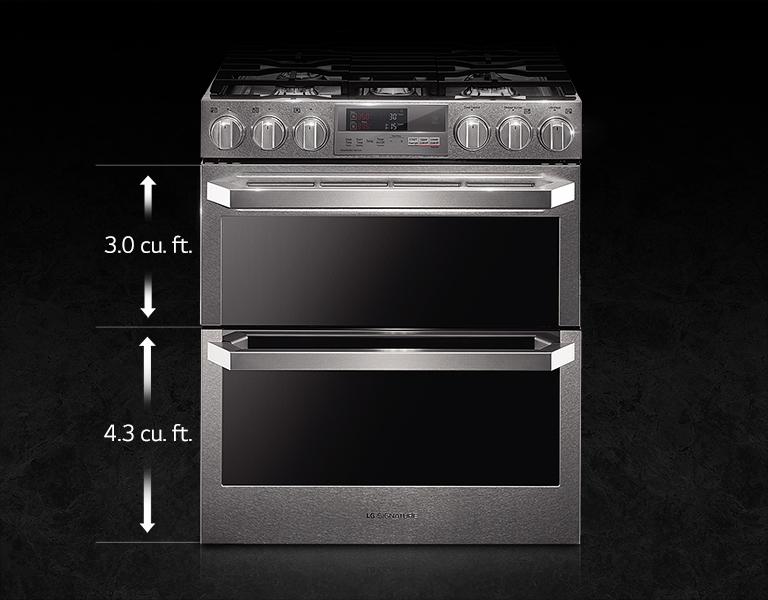

    • Total Oven Capacity (cu. ft.)
    • 7.3

MATERIALS/FINSHES

    • Oven Door Feature
    • WideView™ Window

ACCESSORIES

    • Heavy Duty Rack
    • 2
    • Gliding Rack
    • 1
    • Scouring Pad
    • Yes
    • Spray Bottle
    • Yes
    • Wok Grate
    • Yes

COOKTOP

    • Center (Warming Zone)
    • 10,000 / 10,000
    • Burner/BTU - Left Rear
    • 9,100/9,100
    • Burner/BTU - Right Rear
    • 5,000/5,000
    • Burner/BTU - Left Front
    • 12,000/10,000
    • Burner/BTU - Right Front
    • 18,500 / 12,500

APPEARANCE

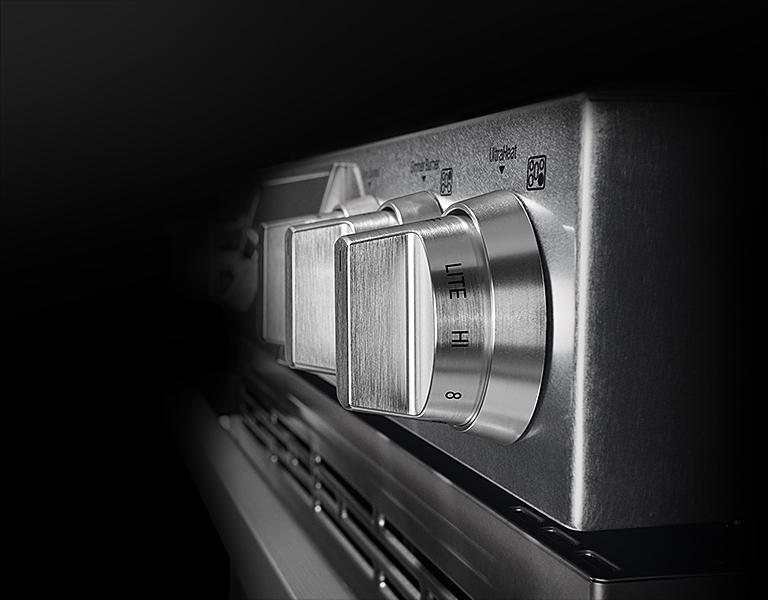

    • Handle/Knobs
    • STS Finish (AI)

UPPER OVEN FEATURES

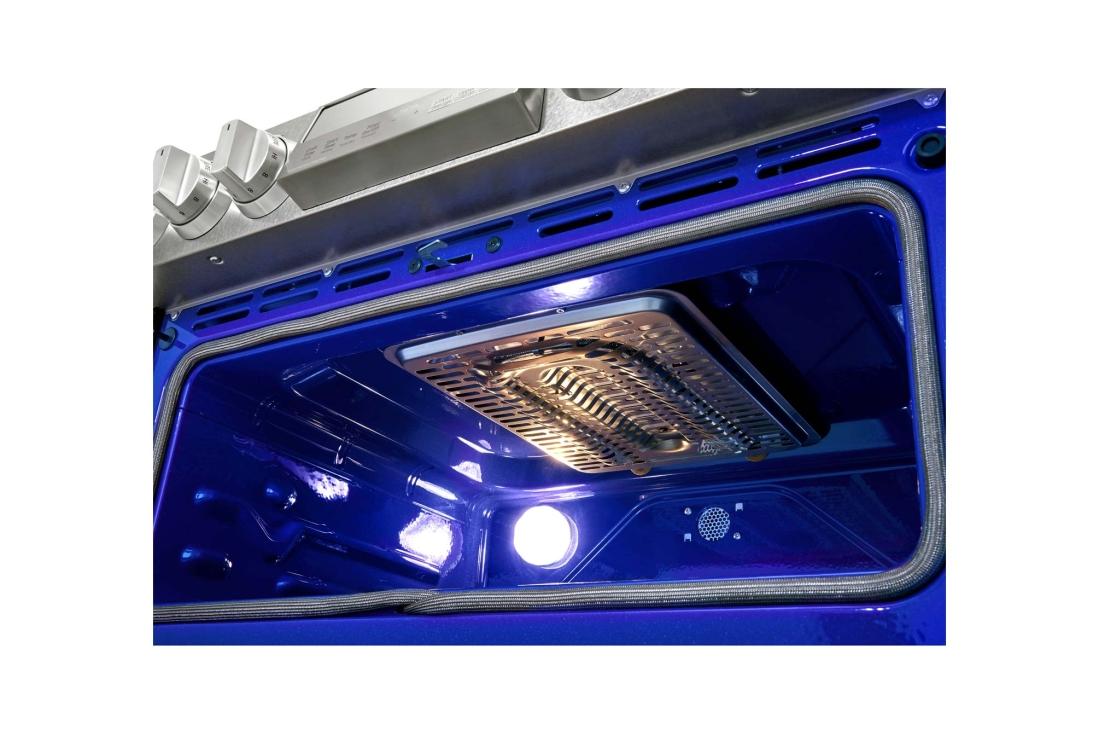

    • Broil Element (Watt)
    • Charcoal 3,000W (Infrared Heating™)

Catalog

Specification Sheet
