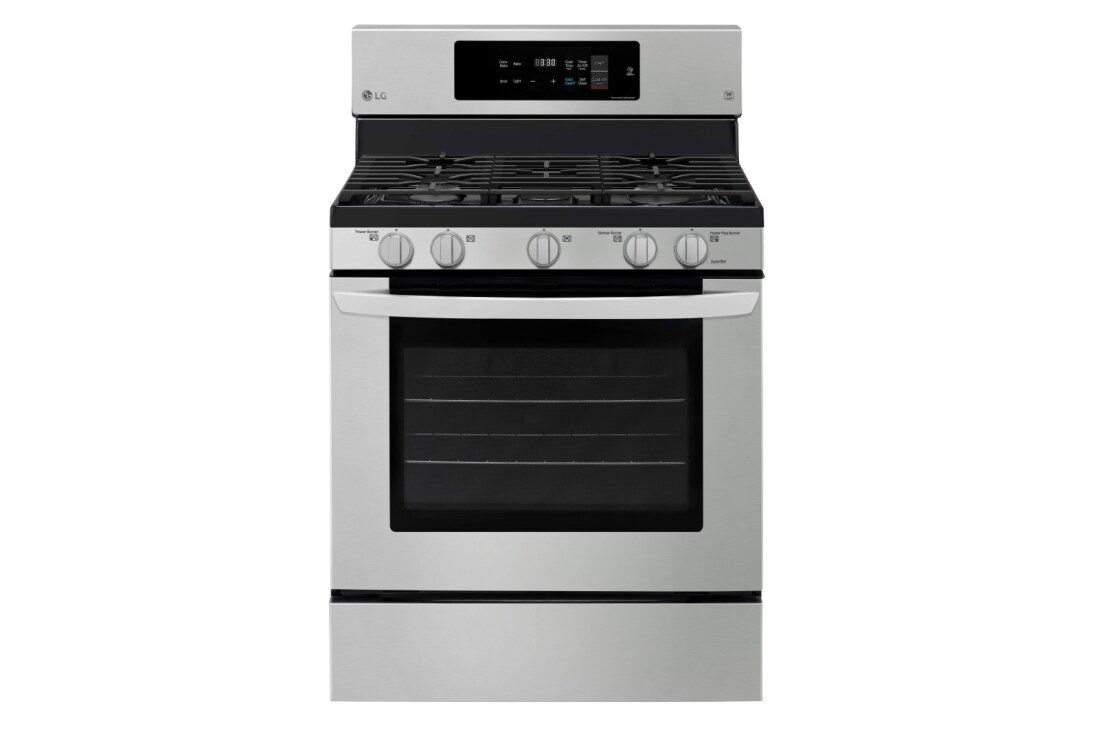

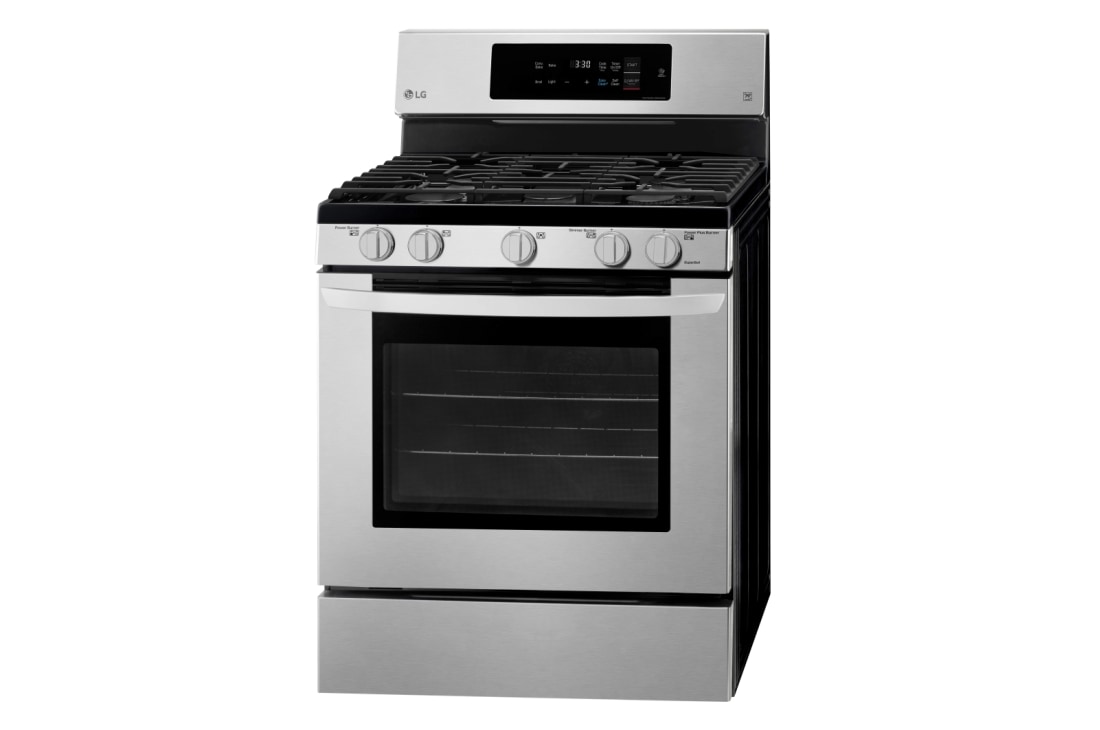

LRG3194ST

5.4 cu. ft. Gas Single Oven Range with Fan Convection and EasyClean®

MSRP
$1,099.99

KEY FEATURES

  • 5.4 cu. ft. Large Capacity
  • Fan Convection

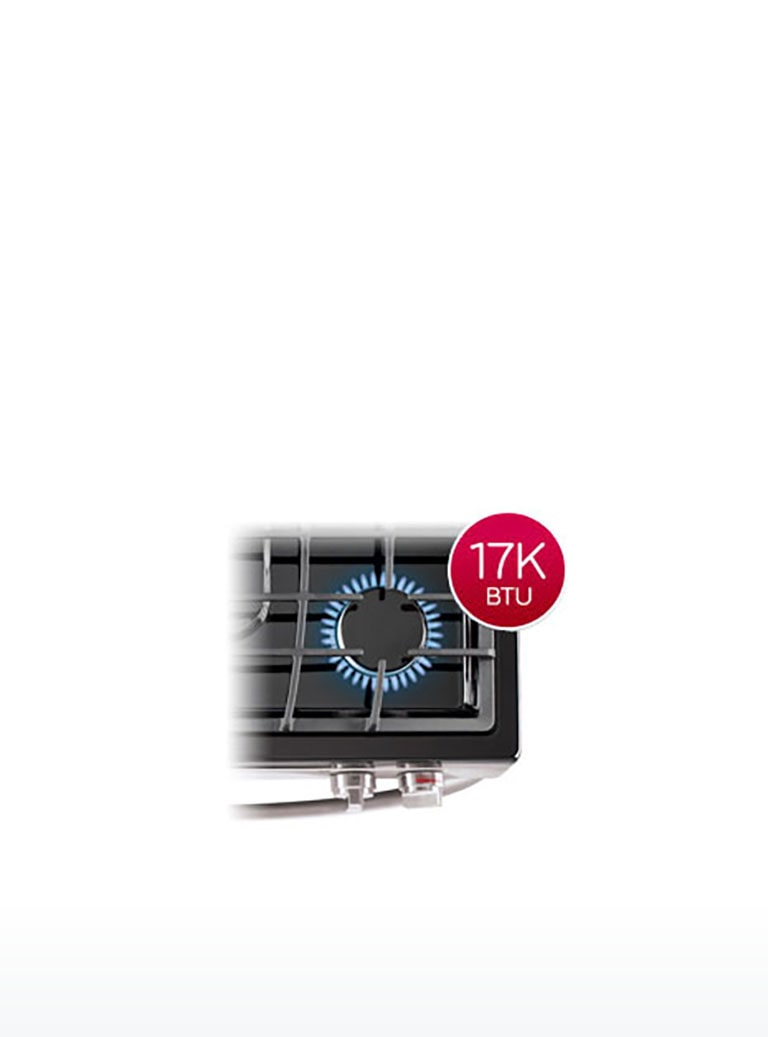

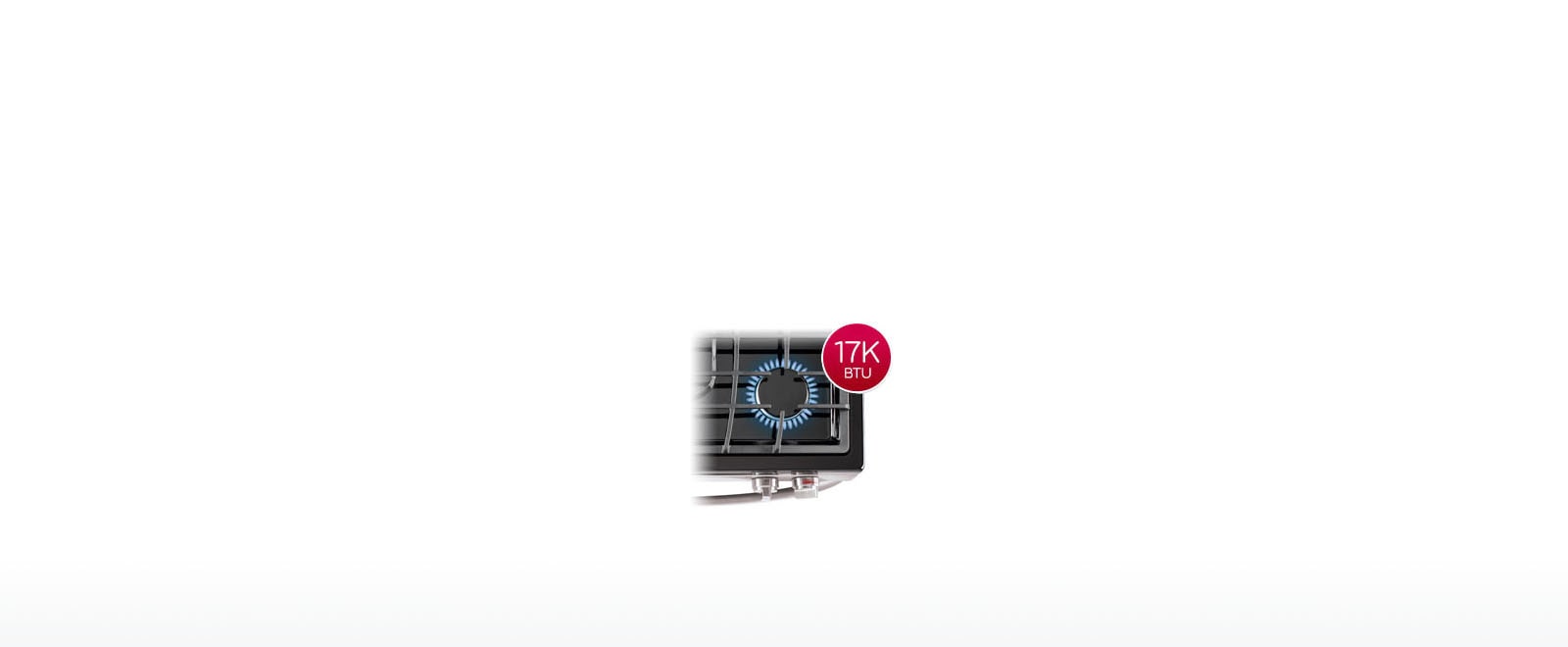

  • SuperBoil™ 17,000 BTU Burner

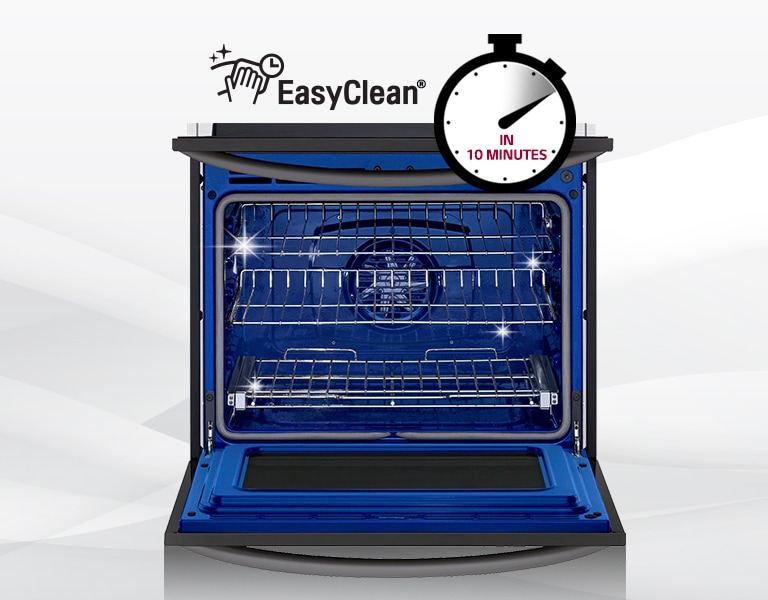

  • EasyClean® + Self Clean
5.4 cu. ft. Gas Single Oven Range with Fan Convection and EasyClean®
$ 1,099.99
*Among major leading appliance brands as surveyed in June 2017. Heavy build-up may require additional manual effort or use of the full self-clean feature.

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 210
    • Weight (Product)
    • 189
    • Cabinet Width (in)
    • 30"
    • Overall Depth (in)
    • 28 3/4"
    • Overall Height (in)
    • 47 7/16"
    • Overall Width (in)
    • 30"
    • Height to Cooking Surface (in)
    • 36"
    • Oven Interior Dimensions (in) (W x H x D)
    • 24 1/2" x 19 1/2" x 19 3/8"
    • Drawer Dimensions (in) (W x H x D)
    • 22 3/16" x 4 1/2" x 16 3/8"
    • Carton Dimensions (in) (W x H x D)
    • 32 1/2" x 51 9/16" x 30 1/2"

OVEN FEATURES

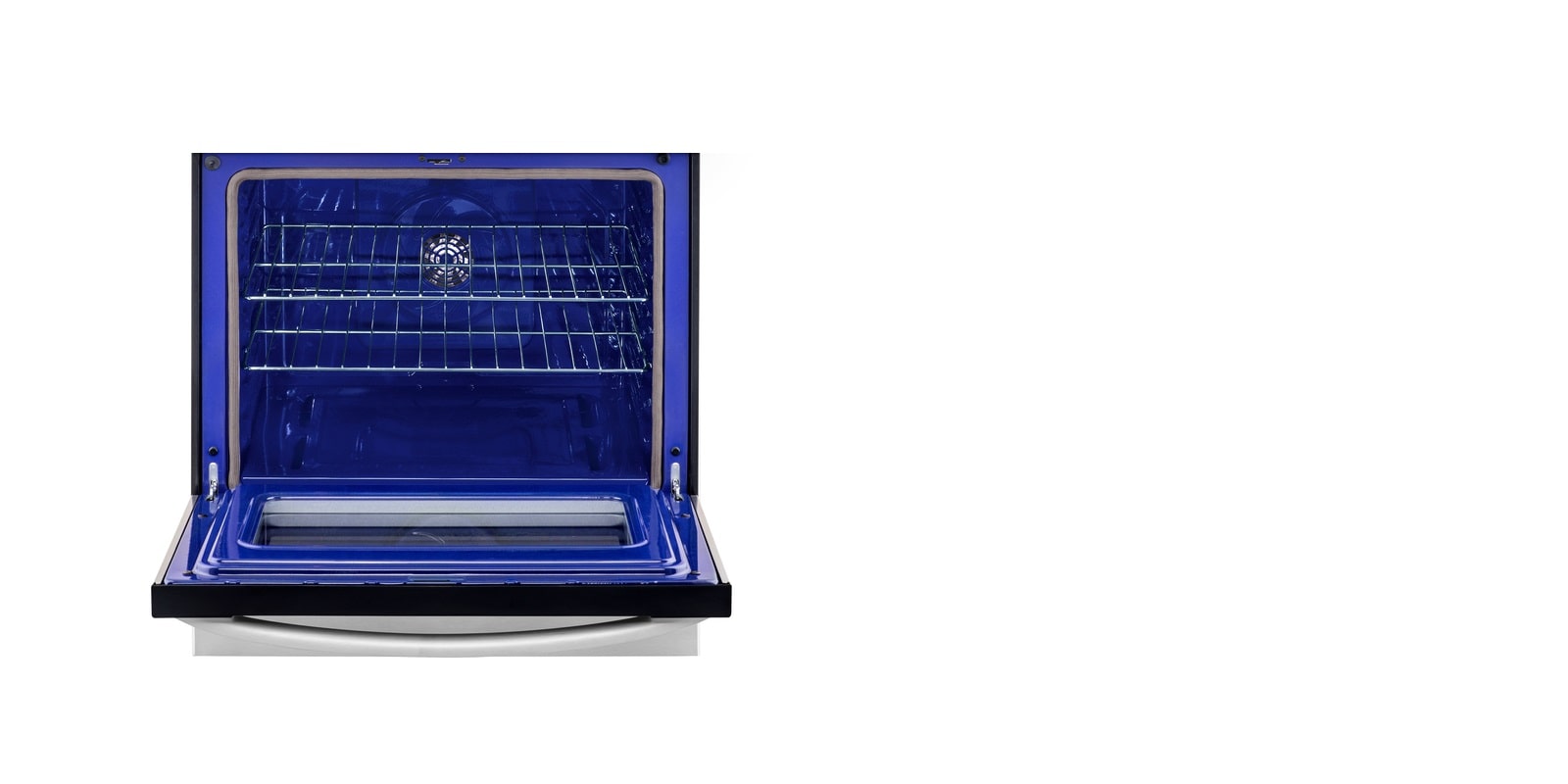

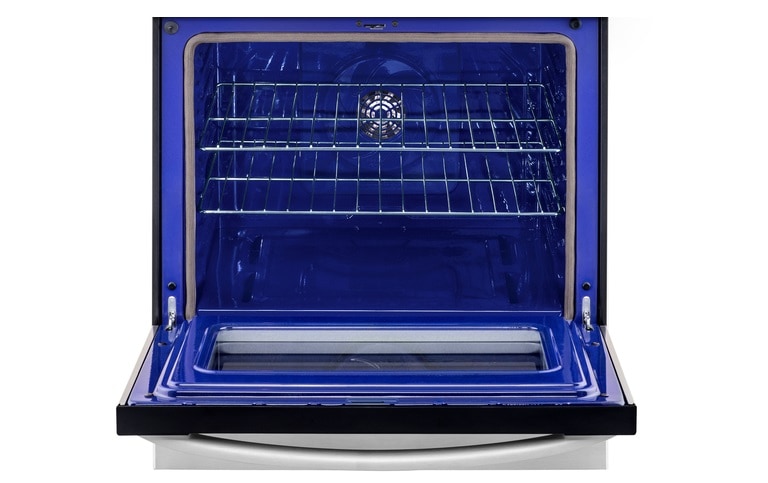

    • Convection System/Mode/Cooking System
    • Fan Convection
    • Convection (BTU)
    • 19000 / 18000 (LNG/LPG)
    • Convection Conversion
    • Yes
    • Configuration
    • Single Oven
    • Broil Element (BTU)
    • 15500 / 12500
    • Oven Cooking Modes
    • Bake, Broil, EasyClean, Convection Bake
    • Self-Cleaning
    • Yes
    • Door Lock
    • Yes
    • No. Rack Positions
    • 7
    • Oven Control Features
    • Keypad
    • GoCook Smart Oven Light
    • 1 Light
    • Automatic Safety Shut-Off
    • After 12 hours
    • EasyClean®
    • Yes

SUMMARY

    • EasyClean®
    • Yes

CONTROLS

    • Display
    • VDF White
    • Cooking Complete Reminder
    • 1. Hi 2 .Lo 3. Off
    • Language
    • English
    • Cooktop Control Type
    • Front Control Knobs
    • Oven Control Type
    • Keypad
    • Clock
    • 12 hr or 24 hr (option)
    • Temperature Unit of Measure
    • Fahrenheit / Celsius
    • Timed Cook
    • Yes

POWER/RATINGS

    • Amp Rating at 240V
    • 4.5A (120VAC, 60Hz)

WARRANTY/UPC

    • UPC
    • 048231341066
    • Parts & Labor
    • 1 Year

Convenience Features

    • Kitchen Timer
    • Yes

CAPACITY

    • Oven Capacity
    • 5.4
    • Storage Drawer Capacity (cu. ft.)
    • 0.8 (No Handle)

MATERIALS/FINSHES

    • Available Colors
    • Stainless Steel, PrintProof™ Black Stainless Steel, PrintProof™ Matte Black Stainless Steel, Smooth White

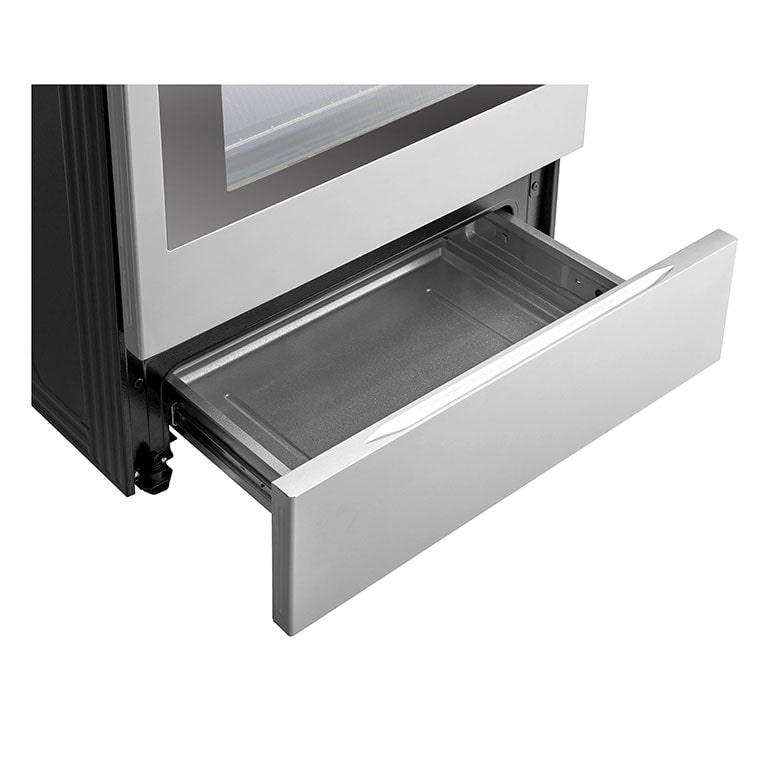

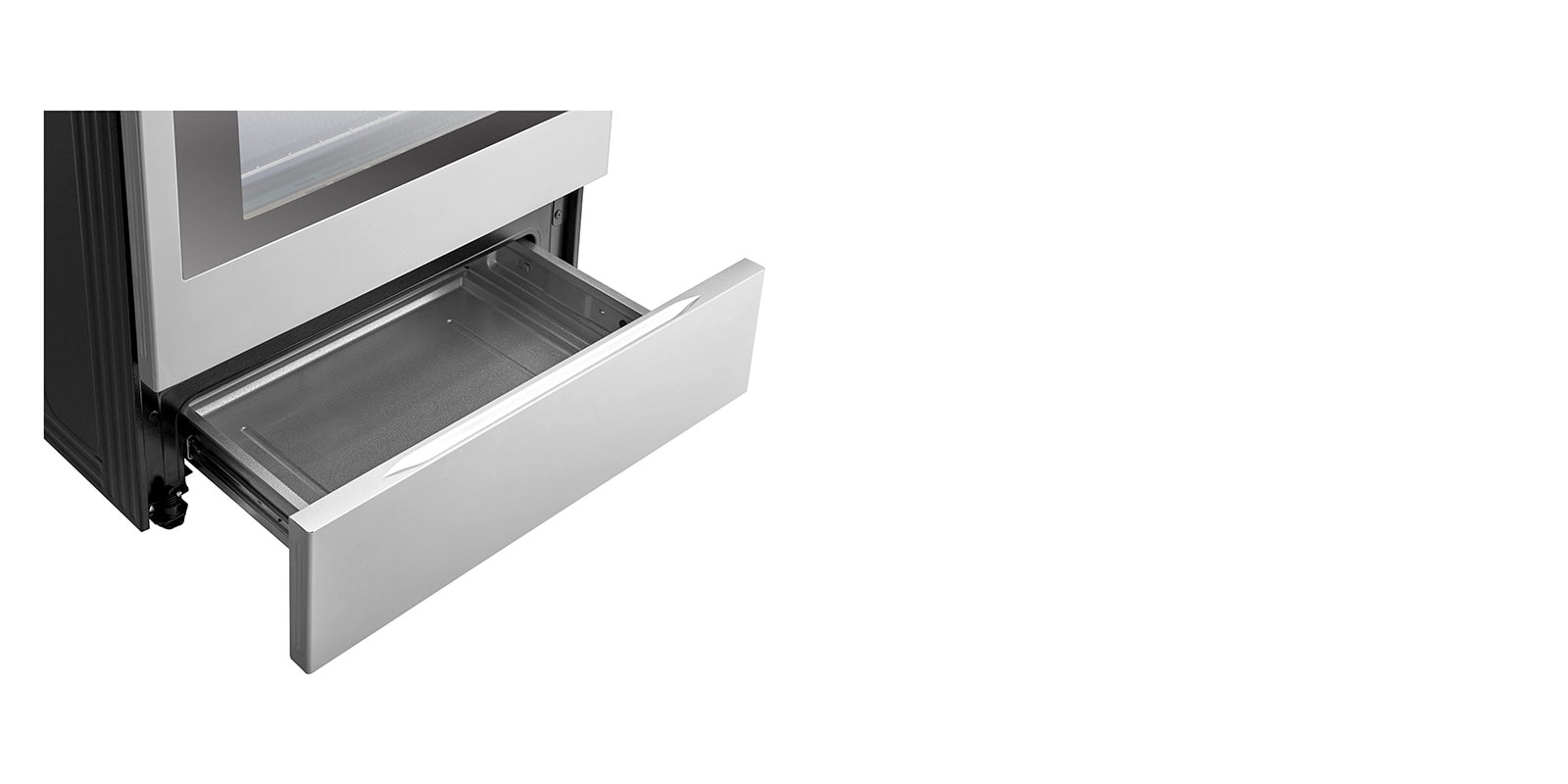

DRAWER

    • Type
    • Storage

ACCESSORIES

    • Griddle
    • Yes
    • Standard Rack
    • 2
    • Scouring Pad
    • Yes
    • Spray Bottle
    • Yes
    • Conversion Kit
    • Yes

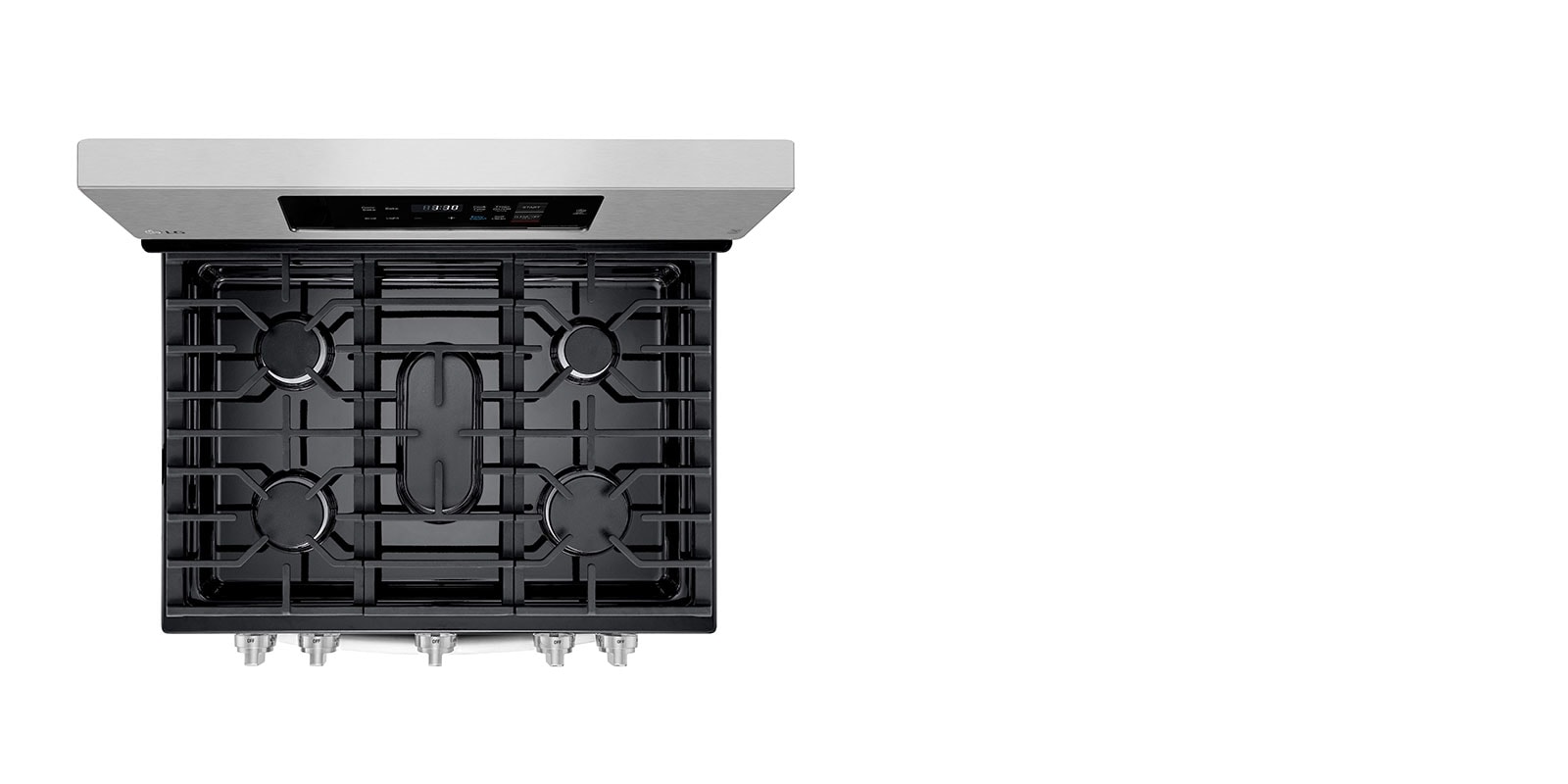

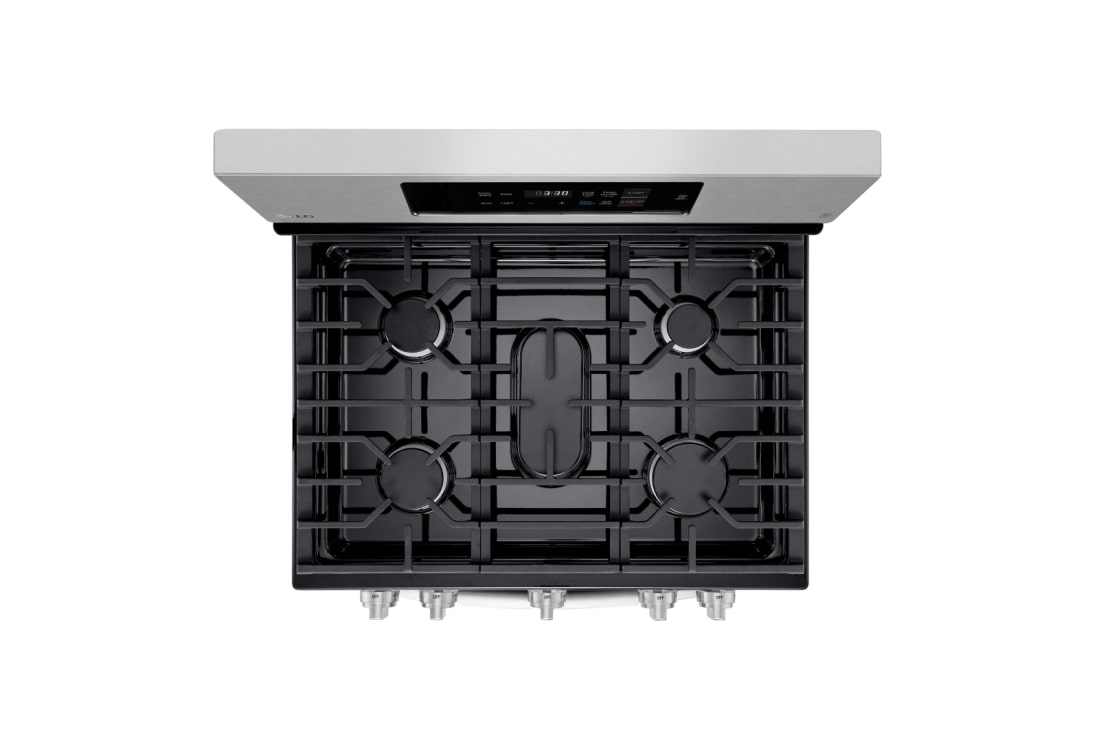

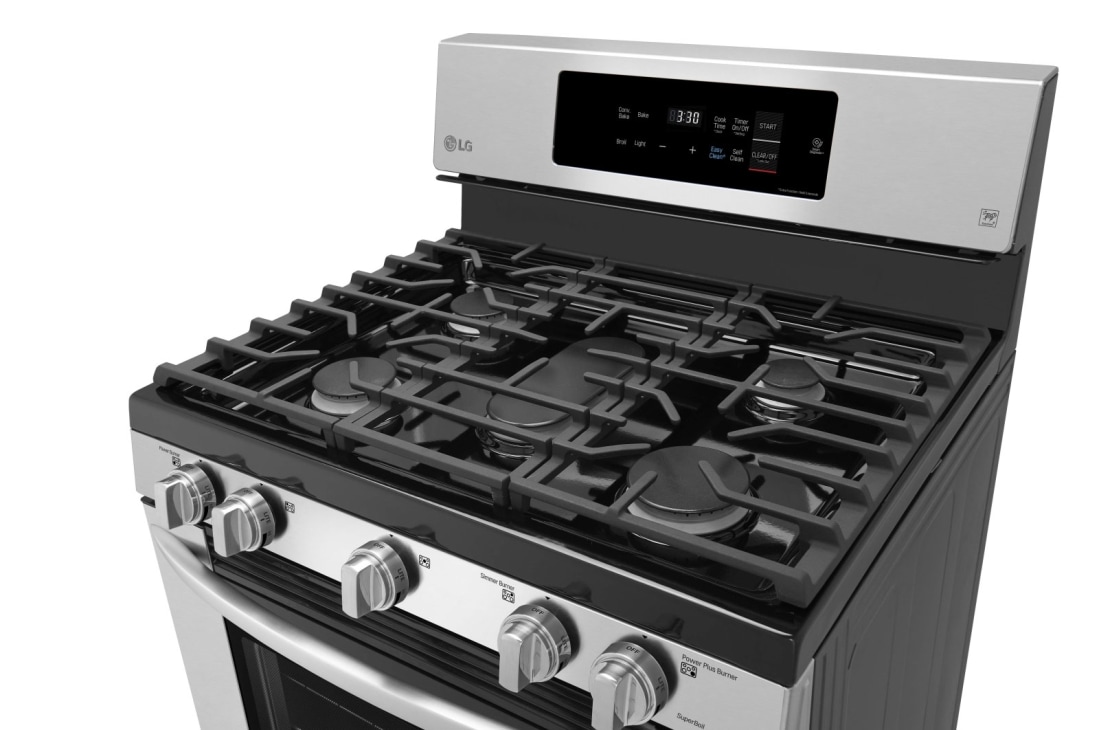

COOKTOP

    • Cooktop Finish
    • Black Porcelain
    • Simmer BTU - Left Rear
    • 1100
    • Simmer BTU - Right Rear
    • 650
    • Simmer BTU - Left Front
    • 1100
    • Simmer BTU - Right Front
    • 1200
    • Simmer BTUh - Center (Warming Zone) (BUT)
    • 2300
    • Center (Warming Zone) (BTU)
    • 8000 / 8000 (Oval)
    • Burner/BTU - Left Rear
    • 9100 / 9100
    • Burner/BTU - Right Rear
    • 5000 / 5000
    • Burner/BTU - Left Front
    • 12000 / 9500
    • Burner/BTU - Right Front
    • 17000 / 10000 (SuperBoil™)
    • Fuel Type
    • Gas

APPEARANCE

    • Handle/Knobs
    • Stainless Steel, Black Stainless Steel, Matte Black Stainless Steel, Smooth White
    • Oven Door Feature
    • WideView™

SMARTTHINQ®

    • SmartDiagnosis™
    • Yes

Oven

    • Fuel Type
    • Gas
