KEY FEATURES

  • 9.4 cu. ft. Total Capacity (4.7 cu. ft. upper/lower)
  • InstaView® Window
  • 7" LCD Touch Display
  • True Convection® with Air Fry and Steam Sous Vide
  • EasyClean® + Self Clean Performance
  • ThinQ® Technology

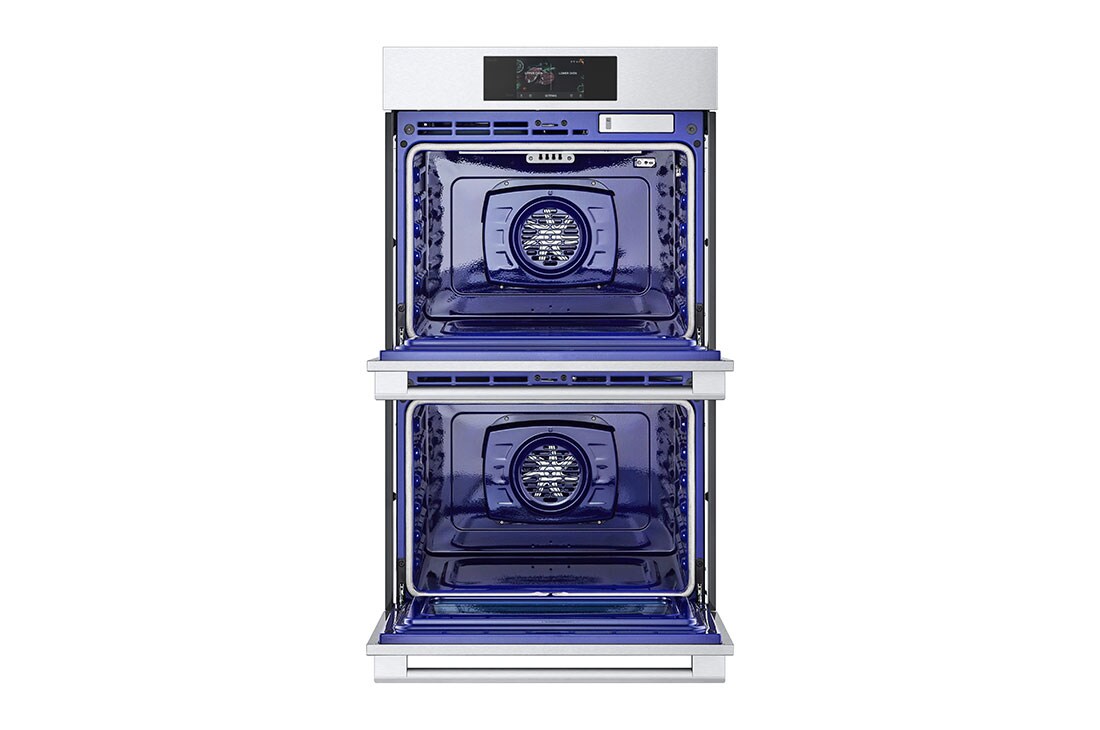

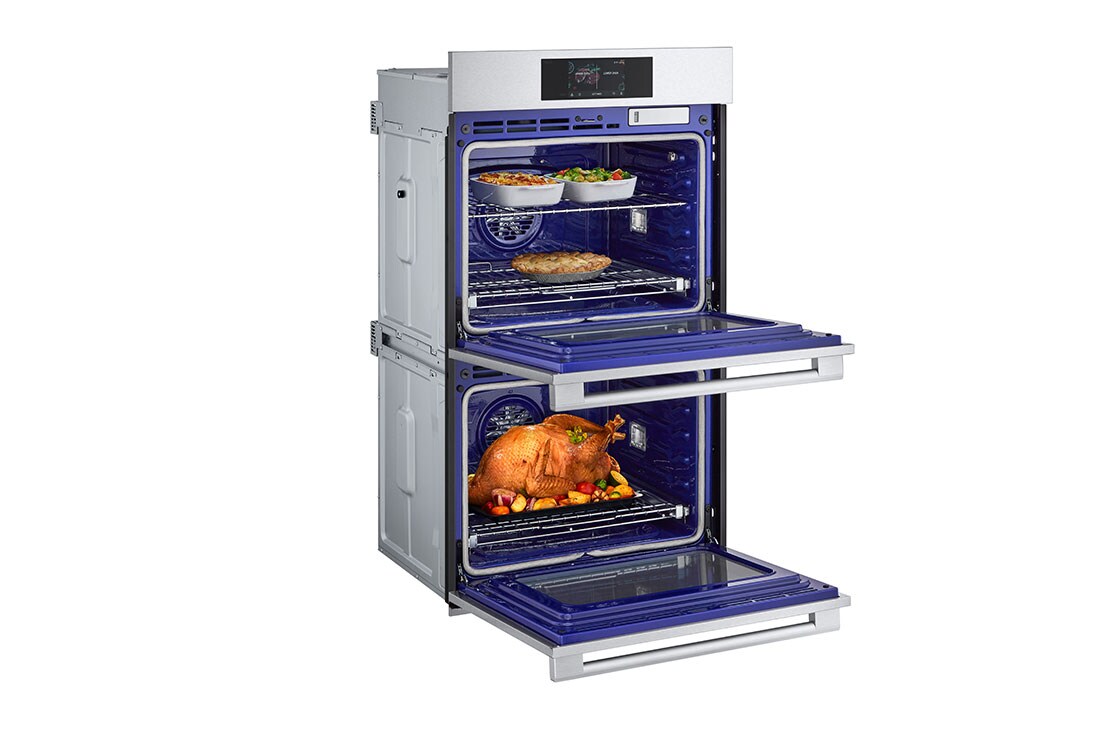

LG STUDIO 9.4 cu. ft. Smart InstaView® Electric Double Built-In Wall Oven with Air Fry & Steam Sous Vide
$
Download Spec Sheet

Summary

    • LG STUDIO
    • Yes
    • Type
    • Double Wall Oven
    • Total Oven Capacity (cu. ft.):
    • 9.4 (Upper & Lower)
    • Color:
    • Stainless Steel

CONTROL FEATURES:

    • Oven Control Type
    • Glass Touch
    • Knob
    • No
    • Display
    • 7" TFT LCD
    • Language
    • English / Spanish / French
    • Clock
    • 12 hr or 24 hr (option)
    • Kitchen Timer
    • Yes
    • Timed Cook
    • Yes
    • Temperature Unit of Measure
    • Fahrenheit / Celsius
    • Cooking Complete Reminder Volume
    • Beeper (Hi, Lo, Off)
    • Certified Sabbath mode
    • Yes

Upper Oven Features

    • Capacity (cu.ft):
    • 4.7
    • EasyClean®:
    • Yes
    • EasyClean(SpeedClean) time
    • 10mins
    • Self Clean:
    • Yes
    • Variable cleaning time:
    • Yes
    • Steam Assist
    • Yes
    • Steam Element
    • True Convection
    • Convection element
    • 2,000 watts (Sheath heater)
    • Convection Fan
    • Single Speed
    • Convection conversion:
    • Yes
    • Bake Element
    • 2,500 watts
    • Bake element type
    • Hidden (8 pass)
    • Broil Element
    • 2,500 watts inner / 1,500 watts outer
    • Broil element pass
    • 8
    • Variable broil:
    • Yes( Full,Center / High,Med,Low)
    • Oven Cooking Modes:
    • "Bake / Conv. Bake / Conv. Roast / Broil / Air Fry / Warm / Proof / Steam Cook(Steam Bake, Sous-Vide) / Auto Cook / Favorite / Clean(Self Clean, Easy Clean, Steam Mainenance)"
    • No of Auto cook
    • Upper (45EA), Lower (39EA) except Miscellaneous
    • No of Favorite
    • 40EA
    • No. of Rack Positions
    • 5
    • No of light
    • 2 (Halogen Lamp)
    • Proof:
    • Yes
    • Drying / Dehydrating
    • Yes
    • Temp probe
    • Yes
    • 12 hrs. shut-off:
    • Yes
    • Variable warm:
    • Yes (High,Med,Low)

Lower Oven Features

    • Capacity (cu.ft):
    • 4.7
    • EasyClean®:
    • Yes
    • EasyClean(SpeedClean) time:
    • 10min
    • Self Clean:
    • Yes
    • Variable cleaning time:
    • Yes
    • Steam Assist:
    • No
    • Steam element:
    • No
    • Convection element:
    • 2,000 watts (Sheath heater)
    • Convection Type:
    • True Convection
    • Convection Fan:
    • Single Speed
    • Convection Conversion:
    • Yes
    • Bake Element
    • 2,500 watts
    • Bake element type
    • Hidden (8 pass)
    • Broil Element
    • 2,500 watts inner / 1,500 watts outer
    • Broil element pass
    • 8
    • Variable broil:
    • Yes( Full,Center / High,Med,Low)
    • Oven Cooking Modes:
    • "Bake / Conv. Bake / Conv. Roast / Broil / Roast / Warm / Proof / Auto Cook / Favorite / Clean(Self Clean, Easy Clean)"
    • No of Auto cook:
    • 44EA (Except Miscellaneous)
    • No of Favorite:
    • 40EA
    • No. of Rack Positions
    • 5
    • No of light:
    • 2 (Halogen Lamp)
    • Proof:
    • Yes
    • Drying / Dehydrating:
    • Yes
    • Temp probe:
    • Yes
    • 12 hrs. shut-off:
    • Yes
    • Variable warm:
    • Yes (High,Med,Low)

Appearance

    • All Available Colors
    • Stainless Steel
    • Handle
    • Stainless Steel
    • Knobs
    • No
    • PrintProof™ Finish
    • Yes
    • Oven Door Feature
    • WideView™ Window
    • InstaView®:
    • Yes

SMART FEATURES:

    • ThinQ® (Wifi Enabled)
    • Yes
    • Check & Control
    • Yes
    • Voice Control
    • Yes
    • Smart Recipe (3rd Party Recipe App)
    • Sidechef
    • Proactive Customer Care
    • No
    • Smart Diagnosis™
    • Yes
    • NFC Tag On
    • No

Accessories

    • Broiler pan
    • 1EA
    • Griddle:
    • 1EA
    • Temp Probe
    • 1EA
    • Heavy Duty Rack
    • 4EA
    • Gliding Rack
    • 2EA
    • Spray Bottle
    • 1EA
    • Air Fry Rack:
    • 1EA

Dimensions/Clearances/Weight

    • Product (W x H x D) : Including Door:
    • 29-3/4" x 52-1/16" x 24-15/32"
    • Product (W x H x D) : Including Handle:
    • 29-3/4" x 52-1/16" x 26-29/32"
    • Product (W x H x D) : Opening Door:
    • 29-3/4" x 52-1/16" x 45-21/32"
    • Cut-out (W x H x D) : Standard:
    • Min. 28- 1/2" x 51-13/16" x 24", Max. 28- 5/8" x 51-15/16" x 24"
    • Cut-out (W x H x D) : Flush:
    • 30" x 52-5/16" x 25"
    • Interior Cavity (W X H X D)
    • 24-1/2" x 17-5/8" x 18-7/8"
    • Packing (W x H x D):
    • 34" x 57" x 30"
    • Product Weight (lbs):
    • 238
    • Shipping Weight (lbs)
    • 302

Power/Ratings

    • Amp at 240V:
    • 42.5 A
    • kW at 240V
    • 10.2 kW
    • Energy Requirements
    • 60 Hz / 240 V, 208 V

LIMITED WARRANTY:

    • Parts & Labor
    • 2 Year
