Committed to Sustainability
LG Recognized as MSAP Leader
LG’s environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23.
MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices.
LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices.
LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
LSCB Direct View LED Customizable to fit your needs

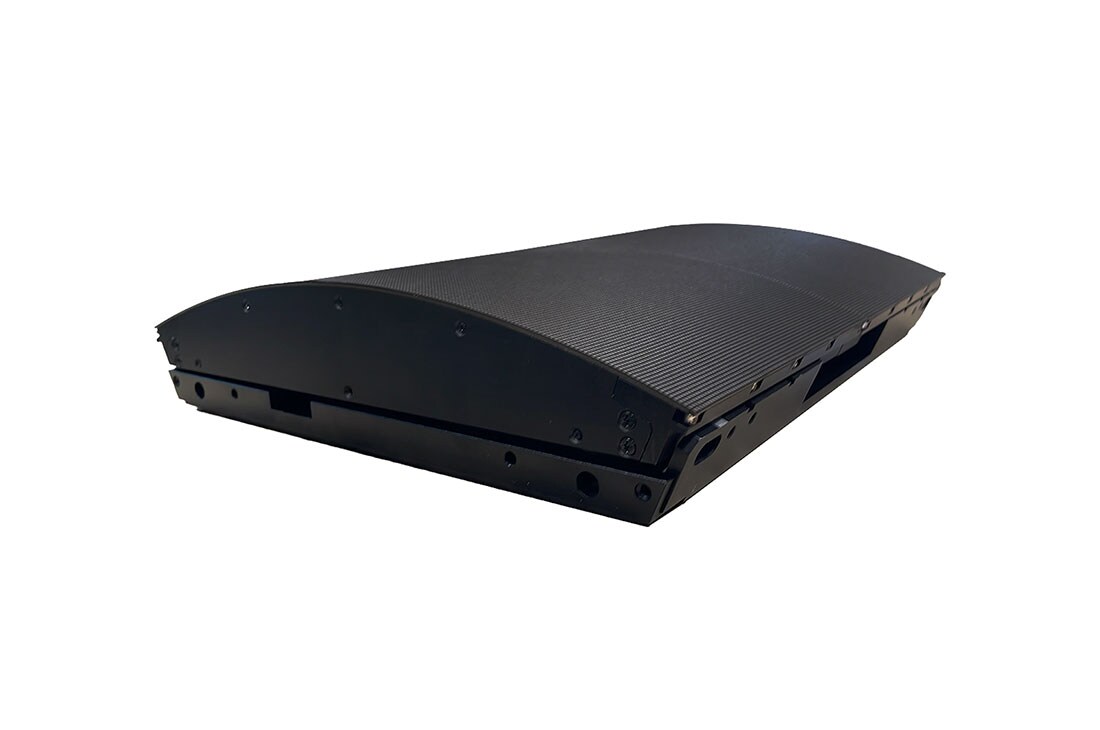

For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations*.
*Depending on the radius, the unit case dimension size changes.
Ultra Slim Depth
The LSCB Series’ ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.
Front and Rear Installation and Maintenance
The LSCB series cabinets can be accessed from the front or rear for maintenance for added convenience and enhanced installation options.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.
EMC Certified & Fire Resistant Design
The LSCB Series is safe from electromagnetic waves, harmful to the environment and human body, with EMC Class B Certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.
Compatibility with LG Software Solution
Powered by LG’s high performance
system controller and webOS™, the LSCB series is
compatible with LG software solutions, including SuperSign CMS, LED Assistant,
and ConnectedCare™, which help customers operate their own business flawlessly.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your area for more details.
*The items that LG ConnectedCare can monitor: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).
*The items that LG ConnectedCare can monitor: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).
PHYSICAL PARAMETERS
-
- Pixel Configuration
- 3 in 1 SMD
- Pixel Pitch (mm)
- 1.563
-
- Module Resolution (W x H)
- 192 x 108
- Module Dimensions (W x H)
- 11.8 x 6.6 in / 300 x 168.75 mm
-
- Weight per Module
- 1.47 lbs / 0.67 kg
- No. of Modules per Cabinet (W x H)
- 1 x 2
-
- Unit Case Resolution (W x H)
- 192 x 216 mm
- Unit Case Dimensions (W x H x D)
- 11.8 x 13.3 x 1.4 in / 300 x 337.5 x 35.6 mm (Cabinet Mounting depth)
-
- Unit Case Surface Area
- 1.1ft² / 0.101 m²
- Weight per Cabinet
- 6.8 lbs / 3.1 kg
-
- Weight per Unit Area
- 8 lbs/ft² / 39.0 kg/m²
- Physical Pixel Density
- 409,600 pixels/m² 4,408,898 pixels/ft²
-
- Flatness of Cabinet
- ±0.1 mm
- Cabinet Material
- Aluminum
-
- Service Access
- Front
OPTICAL SPECIFICATIONS
-
- Max Brightness (After Calibration)
- 800 nits
- Color Temperature
- 3,200~9,300 K
-
- Visual Viewing Angle (Horizontal)
- 160°
- Visual Viewing Angle (Vertical)
- 160°
-
- Brightness Uniformity
- 97%
- Color Uniformity
- ±0.003CxCy
-
- Contrast Ratio
- 5000:1
- Processing Depth
- 14 bit (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
-
- Max Power Consumption
- 75 W
- Avg. Power Consumption
- 25 W
-
- Max Power Consumption per Unit Area
- 740 W/m²
- Avg. Heat Dissipation per Cabinet
- 256 BTU/h
-
- Max Heat Dissipation per Unit Area
- 85 BTU/h / 2,525 BTU/h/m²
- Power Supply
- 100 to 240 V
-
- Frame Rate
- 50 / 60 Hz
- Refresh Rate
- 3,840 Hz
OPERATION SPECIFICATIONS
-
- LED Lifetime (Half brightness)
- 100,000 Hours
- Operating Temperature
- 14°F to 113°F/-10°C to 45°C
-
- Operating Humidity
- 0~80%RH
- IP Rating Front
- IP30
-
- IP Rating Rear
- IP30
- REGULATORY & CERTIFICATIONS
- CE EMC Class B, FCC, ETL
-
- CONTROLLER COMPATIBILITY
- CVCA, LCIN006, LCIN008 and LCIN009
- 90 DEGREE CORNER CUT AVAILABLE
- Yes
