Discontinued
LDT5665WW

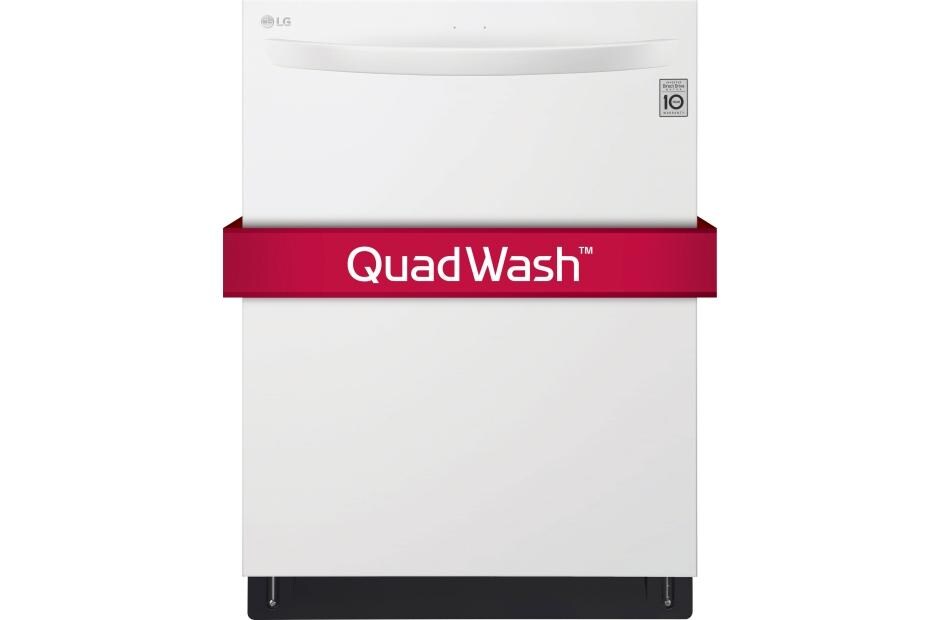

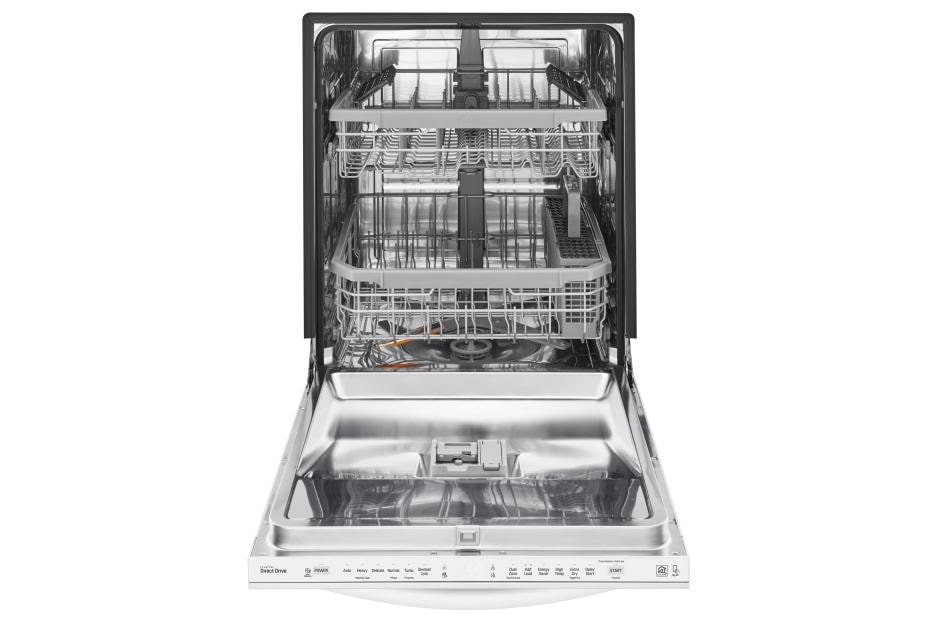

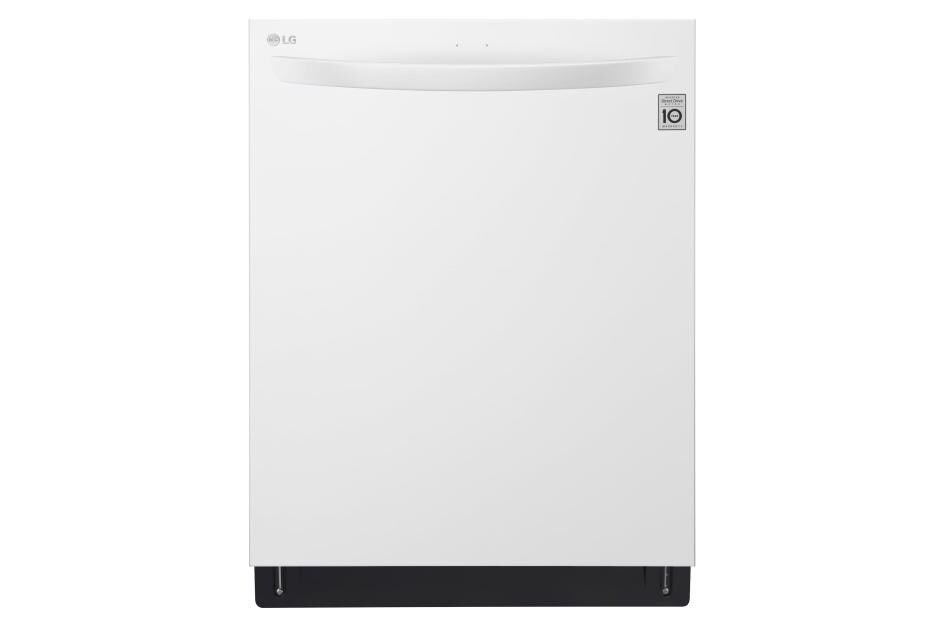

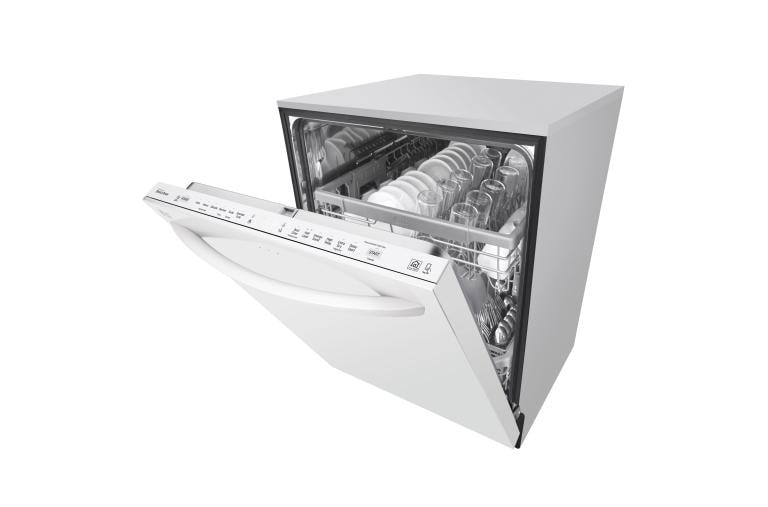

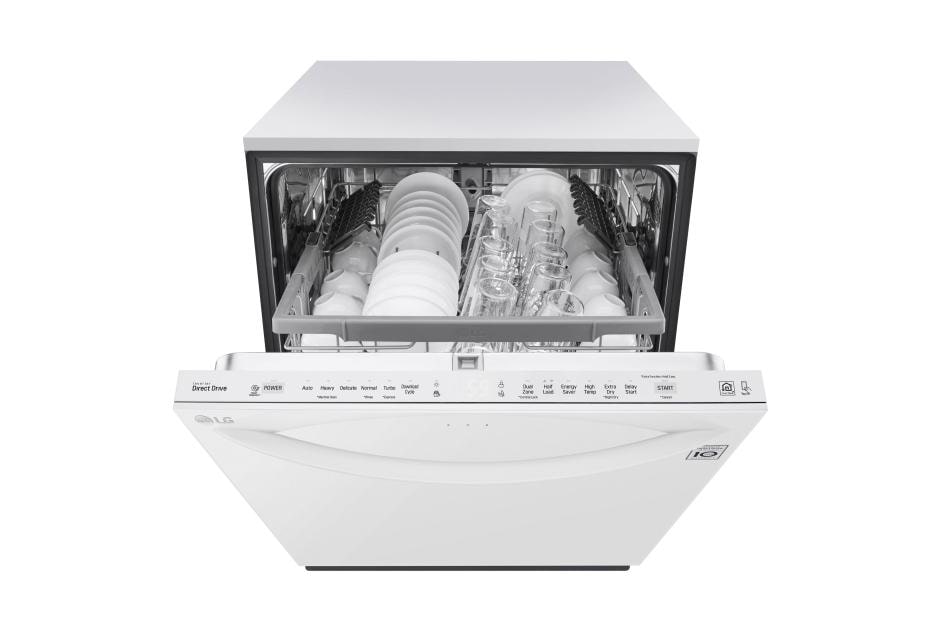

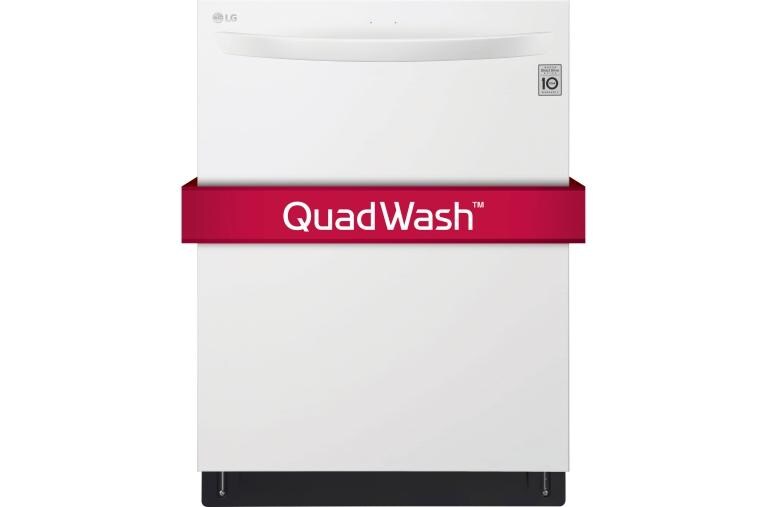

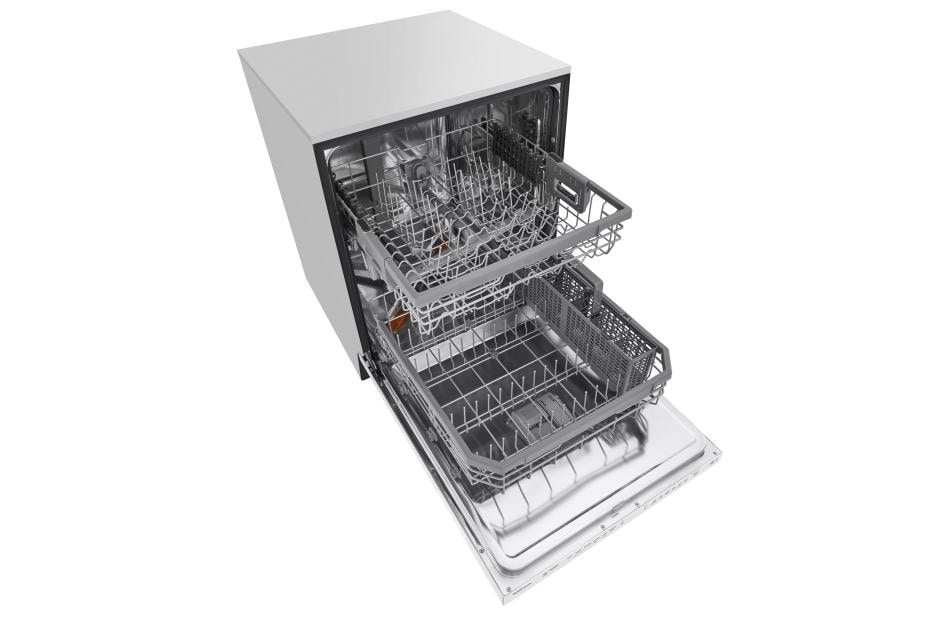

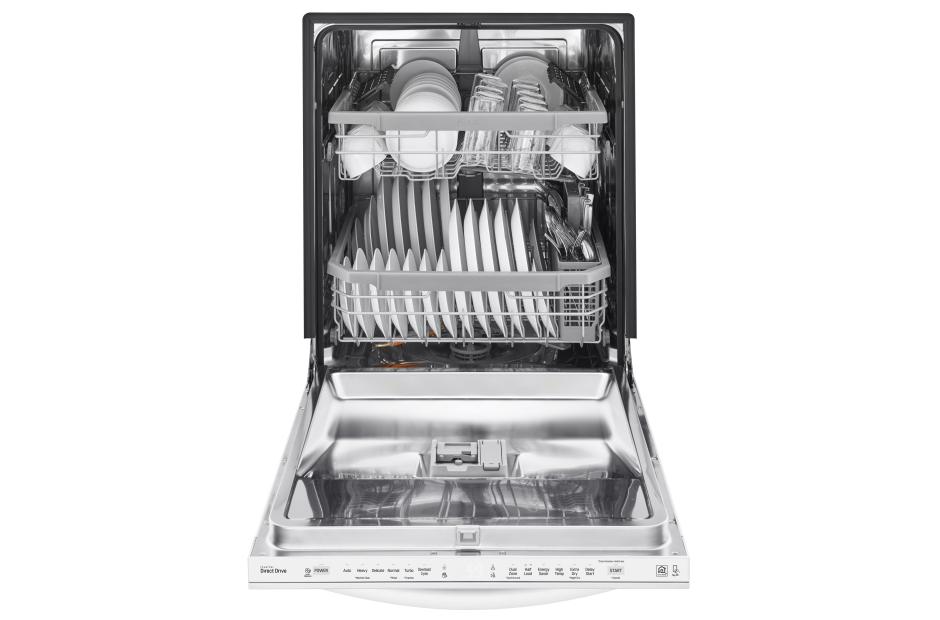

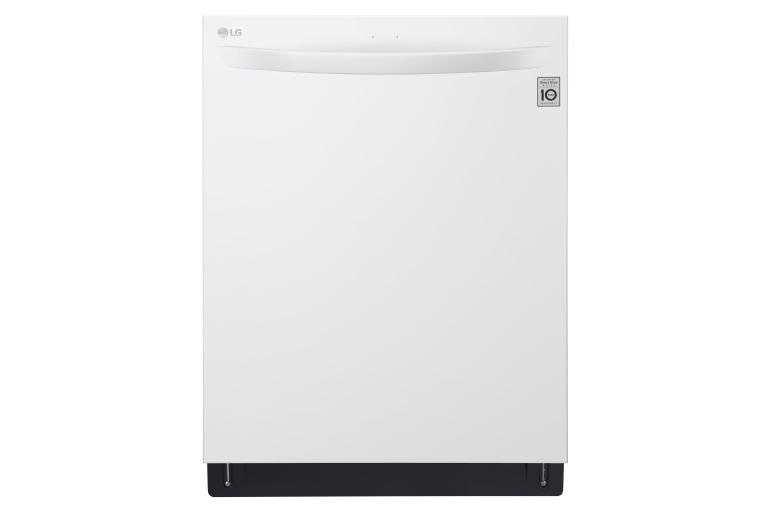

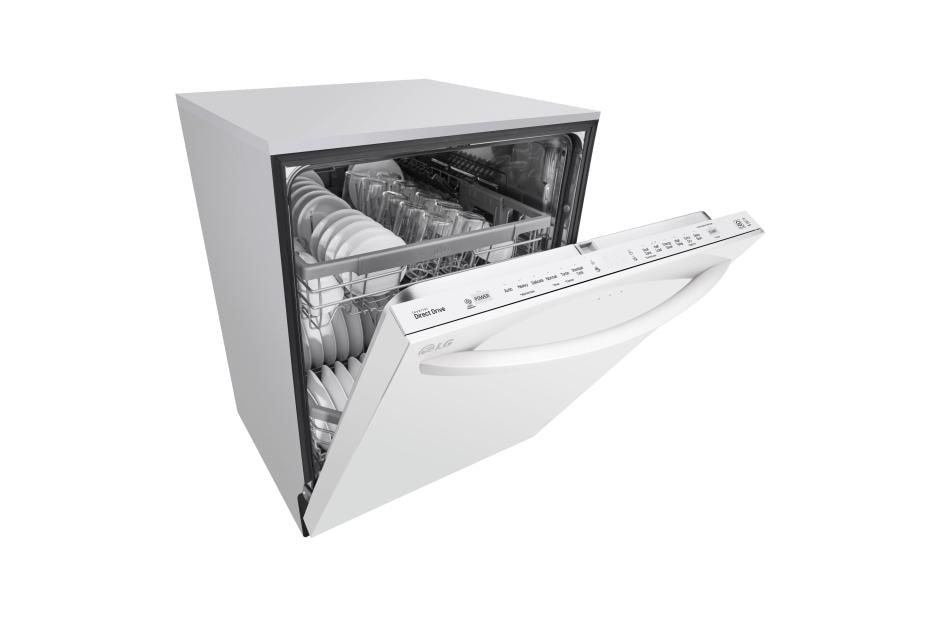

Top Control Smart wi-fi Enabled Dishwasher with QuadWash™
/
1/9
Top Control Smart wi-fi Enabled Dishwasher with QuadWash™
SUMMARY
-
- Handle Design
- Towel Bar Handle
- Wi-Fi Compatible
- Yes
-
- SmartThinQ®
- Yes
- wi-fi Enabled
- Yes
CAPACITY
-
- Total Place Settings
- 15
- Upper Rack Dish Height Limit
- 7.1"
-
- Lower Rack Dish Height Limit
- 12.5"

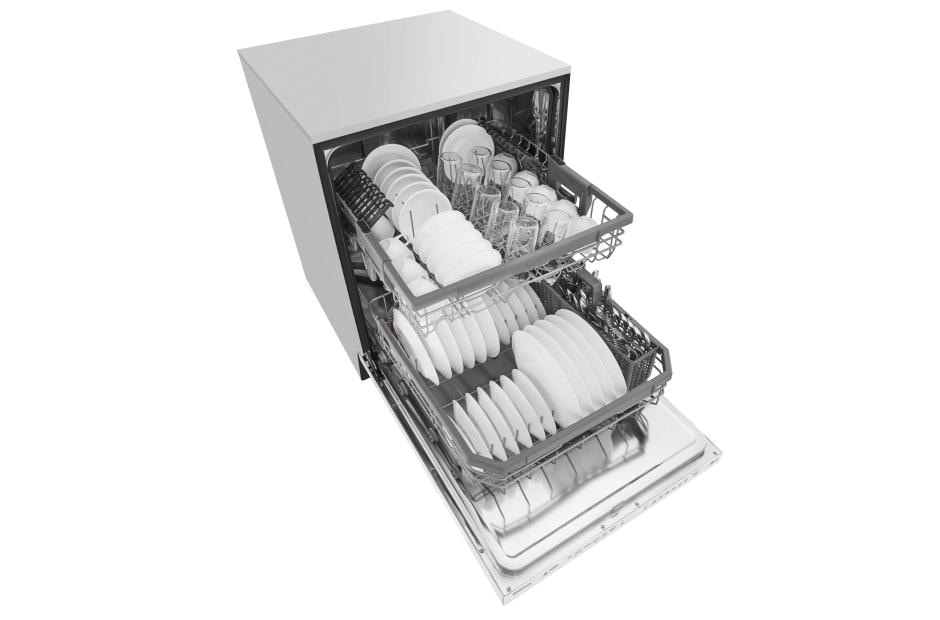

RACKS AND BASKETS
-
- Cutlery Baskets
- Yes
- Cup Rack
- Yes
-
- Stemware Holders
- Yes
- Fold Down Tines
- Yes (Half Fold on Upper & Lower)
-
- BPA-Free Nylon Coated Racks and Tines
- Yes
- Rack Handle
- Yes (Upper/Lower)
-
- EasyRack™ Plus System
- Yes
- Height Adjustable Upper Rack
- Yes (One Touch; 3 Level)
STYLE AND DESIGN
-
- Control Panel Location
- Top
- Electronic Controls
- Hidden SmoothTouch™ Controls with LED Display
-
- SignaLight™ Cycle Indicator Lights
- 3
- Time Remaining Indicator
- Yes (LED)
-
- Tub Material
- NeveRust™ Stainless Steel
- Handle
- Matching Commercial Handle
-
- Available Colors
- Black Stainless Steel (BD), Stainless Steel (ST), White (WW), Black (BB)
- Scratch-Resistant
- Yes (Black Stainless Steel Model Only)
-
- Fingerprint Resistant
- Yes (Black Stainless Steel Model Only)
FEATURES
-
- QuadWash™
- Yes
- Inverter Direct Drive Motor
- Yes
-
- LoDecibel™ Quiet Operation
- 46 dB
- Number of Wash Cycles
- 9 (Auto, Heavy, Delicate, Normal, Turbo, Download Cycle, Machine Clean, Rinse, Express)
-
- Number of Options
- 8 (Dual Zone, Half Load, Energy Saver, High Temp, Extra Dry, Delay Start, Control Lock, Night Dry)
- No. of Spray Arms
- 3 (Top, Upper, Lower)
-
- SenseClean™ Wash System
- Yes
- Vario Wash
- Yes
-
- Detergent and Rinse-Aid Dispenser
- Yes
- Hybrid Condensing Drying System
- Yes
-
- End of Cycle Indicator
- Beeper + END Indication on Display
- Hidden Water Heater
- Yes
-
- Safety Float Switch (Leaks)
- Yes
- Soil (Turbidity) Sensor
- Yes
-
- Tub Insulation (Damping Sheet)
- Yes
- Sound Absorbing Material (felt), Base)
- Yes
-
- BPA-Free Nylon Coated Racks and Tines
- Yes
- Anti-Bacterial Treatment (Sump, Inner / Outer filter, Drain pump case, Drain hose)
- Yes
-
- Balanced Door
- Yes
- Multi-Level (5) Water Direction
- Yes (Top Nozzle (Down), Upper Nozzle (Up/Down), Lower Nozzle (Up/Down)
-
- 3-Stage Filtration System
- Yes
SmartThinQ® SMART FEATURES
-
- wi-fi Enabled
- Yes
- Voice Activation
- Yes
-
- Works with the Google Assistant
- Yes
- Cycle Complete Notification
- Yes
-
- Monitor Cycle Time
- Yes
POWER RATINGS
-
- ENERGY STAR® Qualified
- Yes
- CEE Tier
- 1
-
- Energy Use (kWh/Year)
- 258 kWh
- Water Factor (WF)
- 2.8
DIMENSIONS / CLEARANCES / WEIGHT
-
- Product Dimensions (in) (W x H x D)
- 23.75" x 33.6" x 24.6"
- Product Weight (lbs)
- 81.6 lbs
-
- Depth with Door Closed with Handle (in)
- 26 7/8"
- Depth with Door Open (in)
- 50.5"
-
- Carton Dimensions (in) (W x H x D)
- 28" x 34.7" x 29.6"
- Shipping Weight with Carton (lbs)
- 94.8 lbs
LIMITED WARRANTY
-
- Labor
- 1 Year
- Parts
- 1 Year
-
- Control Board and Rack Parts
- 5 Years
- Direct Drive Motor
- 10 Years
-
- Stainless Steel Door Liner or Tub
- Lifetime
Warranty/UPC
-
- UPC
- 048231015042
