50US670H0UA

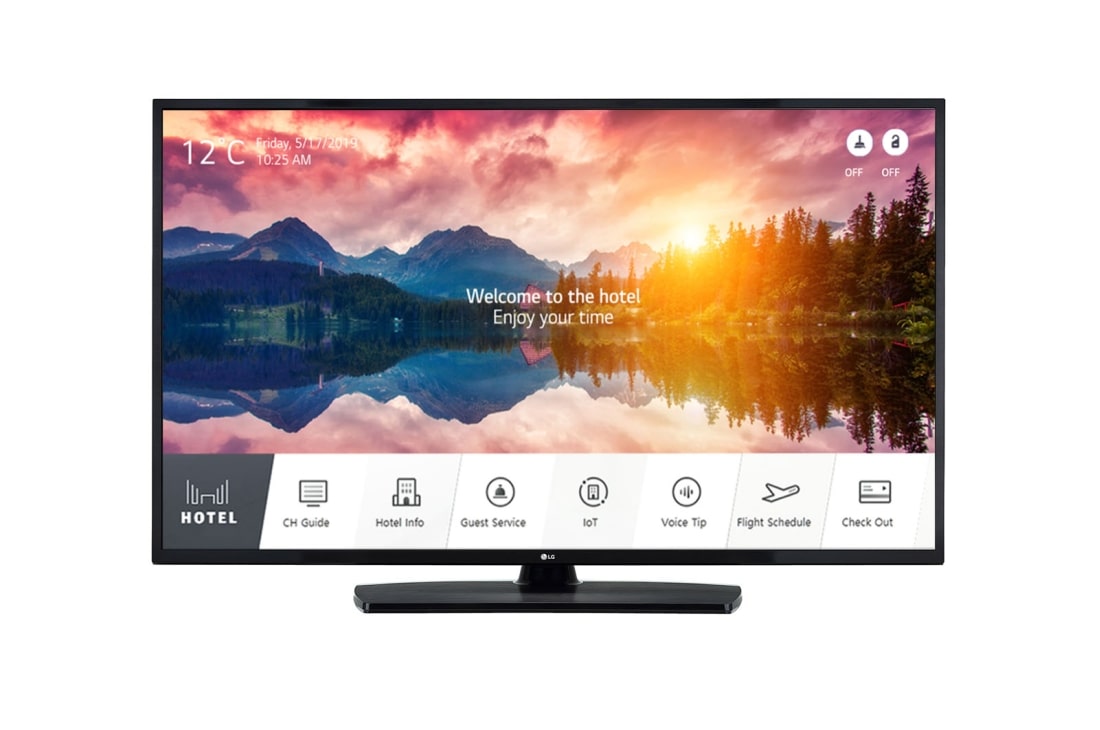

50” US670H Series UHD 4K Pro:Centric Smart Hospitality TV with Pro:Centric Direct, webOS 5.0, Embedded b-LAN™, Smart Share, Screen Share, Pro:Idiom®, SoftAP & Voice Recognition

KEY FEATURES

  • Pro:Centric Hotel Management Solution
  • UHD 4K Display
  • WebOS 5.0
  • Embedded b-LAN™
  • SoftAP
  • Voice Recognition
50” US670H Series UHD 4K Pro:Centric Smart Hospitality TV with Pro:Centric Direct, webOS 5.0, Embedded b-LAN™, Smart Share, Screen Share, Pro:Idiom®, SoftAP & Voice Recognition
$
Pro:Centric Solutions and Embedded b-LAN™

UHD 4K Smart Hospitality TV

The US670H series offers Ultra HD resolution with vivid details and a virtually flawless picture, as well as customizable tools for LG’s System Integrator partners. It supports the Pro:Centric Direct Application, Smart Share, Screen Share, Pro:Idiom® and embedded b-LAN™.
*55 inch
*All images are for illustrative purpose only.

Pro:Centric Direct

The hotel content management solution, Pro:Centric Direct, offers editing tools that make it easy to perform service and IP network-based remote management. The Pro:Centric Direct solution enables users to edit their interface & provides customized interface to efficiently manages in-room TVs. The current PCD version provides IoT-based in-room control as well as voice control function through LG Natural Language Processing (NLP).
*Some devices may have limited compatibility with the IoT function.

Feature Highlights

*Bluetooth Sound Sync supports Android (above v4.4 KitKat) / iOS based mobile devices.
*Requires optional Multi-code IR remote.
*This feature may have a restriction depending on installation environment.

DISPLAY

    • Diagonal Size
    • 50"
    • Resolution
    • 3,840 x 2,160 (UHD)
    • Backlight Unit Type
    • Direct
    • Display Type
    • LCD
    • Brightness
    • 400 nits
    • Dynamic Contrast Ratio
    • 1,000,000:1
    • Refresh Rate
    • 60 Hz
    • Response Time (G to G)
    • 8 ms
    • Life Span
    • 30,000 hours

VIDEO

    • HDR_HDR 10 Pro
    • Yes
    • HDR_HLG
    • Yes
    • UHD Contents Streaming Support
    • USB/IP/HDMI/RF
    • Tru 4K Upscaler
    • Yes

BROADCASTING

    • Digital (Terrestrial,Cable,Satellite)
    • ATSC (Clear QAM)
    • Analog (NTSC / SECAM / PAL)
    • NTSC
    • MPEG-2 / MPEG-4 H.264 Decoding
    • Yes
    • Closed Caption
    • Yes

AUDIO

    • Speaker (Sound Output)
    • 10 W + 10 W
    • Speaker System
    • 2.0 ch
    • AI Sound
    • Yes
    • One Touch Sound Tuning
    • Yes
    • LG Sound Sync
    • Optical / Bluetooth Wireless

HOSPITALITY

    • Pro:Centric Data Streaming (IP & RF)
    • Yes
    • HCAP (GEM/FLASH/HTML)
    • GEM / HTML5
    • Pro:Centric IP Return Path
    • Yes
    • Multicast / Unicast ready
    • Yes / Yes
    • Pro:Centric webRTC (Real Time Communication)
    • Yes
    • Pro:Centric Direct (HTML)
    • Yes
    • Pro:Centric Application (Java)
    • Yes
    • Quick Menu Version
    • 4.0
    • Pro:Idiom DRM (S/W, Mobile, Lite)
    • Yes

SMART FEATURES

    • Gallery Mode
    • Yes
    • Web Browser
    • Yes
    • CP App
    • Yes
    • Magic Motion Remote (MMR) Compatibility
    • Yes
    • SW Clock (World Clock / Alarm)
    • Yes
    • Soft AP
    • Yes
    • Wi-Fi
    • Yes
    • Screen Share (Miracast / WiDi)
    • Yes
    • Smart Share (DLNA)
    • Yes
    • LG Connect (LG TV Plus App)
    • Yes
    • Dial
    • Yes
    • Beacon
    • Yes
    • Bluetooth Sound Sync
    • Yes
    • Mobile Connection Overlay
    • Yes

OTHER FEATURES

    • First Use Wizard
    • Yes
    • USB Data Cloning
    • Yes
    • Wake on RF
    • Yes
    • WOL
    • Yes
    • SNMP
    • Yes
    • Diagnostics (IP Remote)
    • Yes
    • SI Compatible
    • Yes (MPI, RS-232C)
    • Simplink (HDMI-CEC) plus CEC-HTNG
    • Yes (1.4)
    • IR Out
    • Yes (MPI, RS-232C)
    • Multi-code IR
    • Yes
    • Installer Menu
    • Yes
    • Welcome Screen (Boot Logo)
    • Yes
    • Insert Image
    • Yes
    • One Channel Map (LCM)
    • Yes
    • Instant On
    • Yes
    • V-Lan Tag
    • Yes
    • RJP (Remote Jack Pack) Compatibility
    • HDMI (CEC)
    • Auto Off / Sleep Timer
    • Yes / Yes
    • Embedded b-LAN
    • Yes

INTERFACES

    • HDMI In
    • 3 (2.0)
    • USB In
    • 2 (2.0)
    • Antenna / Cable In (RF)
    • 1 (Dual b-LAN)
    • Optical Digital Audio Out
    • 1
    • RS-232C (Control & Service)
    • 1 (D-Sub 9 pin)
    • RJ45
    • 2 (Ethernet, Aux)
    • External Speaker Out
    • 1 (3.5mm Stereo Jack)
    • TV Link Configuration (for b-LAN)
    • 1 (3.5mm Stereo Jack)
    • MPI Port (RJ12)
    • 1
    • Service Only
    • 1 (3.5mm Stereo Jack)

MECHANICALS

    • Stand Type
    • 1 Pole Swivel Stand
    • Front Color
    • Ceramic Black
    • VESA Compatible
    • 200 x 200
    • Lock Down Plate
    • Yes
    • Chromecast Anti-theft Cover
    • Yes (optional)
    • Weight without Stand
    • 25.3 lbs / 11.5 kg
    • Weight with Stand
    • 32.0 lbs / 14.5 kg
    • Shipping Weight
    • 40.3 lbs / 18.3 kg
    • Dimensions without Stand
    • 444.9 x 261.0 x 34.0 in / 1130 x 663 x 86.3 mm
    • Dimensions with Stand
    • 44.5 x 28.4 x 11.9 in / 1130 x 722 x 303 mm
    • Shipping Dimensions
    • 52.2 x 31.9 x 7.9 in / 1325 x 810 x 200 mm
    • Bezel Width (L / R / T / B): On Bezel
    • 17.0 / 17.0 / 17.0 / 23.8 mm
    • Bezel Width (L / R / T / B): Off Bezel
    • 15.5 / 15.5 / 15.5 / 22.3 mm

POWER

    • Power Supply
    • 120 Vac ~ 50/60 Hz
    • Max Power Consumption
    • 140 W
    • Typical Power Consumption
    • 66.0 W
    • Standby Power Consumption
    • Less than 0.5 W

WARRANTY & OTHER

    • Standards
    • UL
    • EMC Certification
    • FCC
    • Warranty
    • Two-Year Limited Warranty
    • Remote type
    • S-Con MMR (Optional)
    • Power Cable
    • 1.8m, Angle Type
