Committed to Sustainability
LG Recognized as MSAP Leader
LG’s environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23.
MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices.
LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices.
LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.

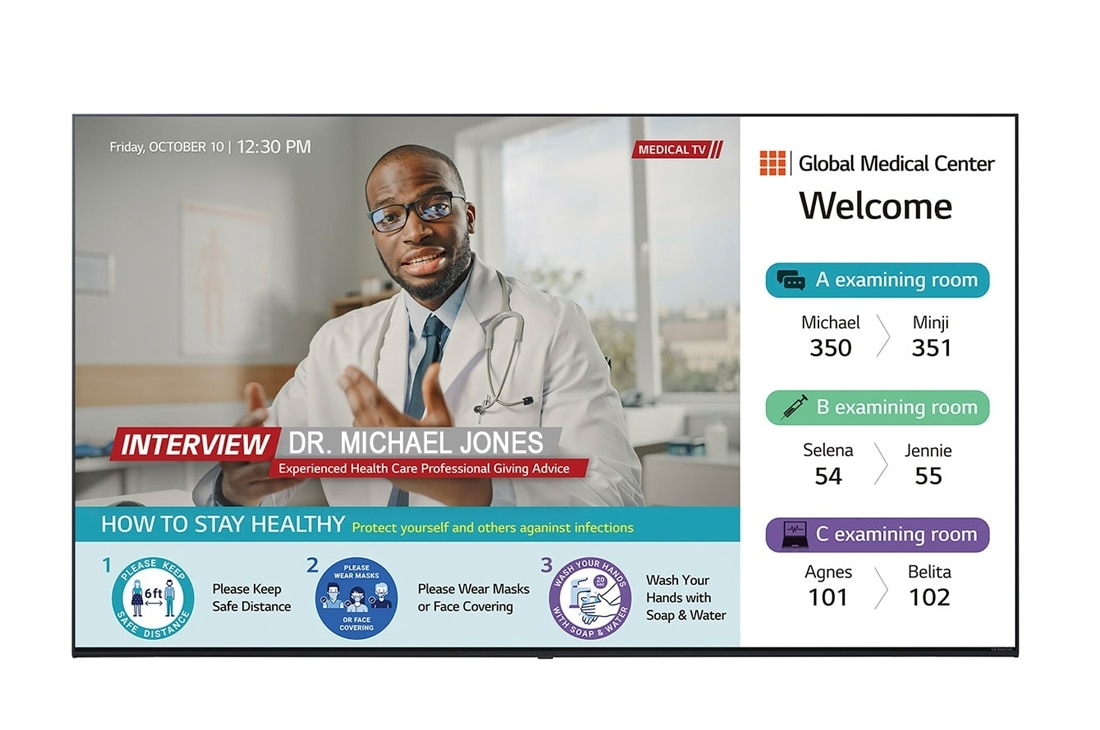

UL-Listed Hospital TVs with NanoCell Technology
*All images are for illustrative purposes only.
Putting Color on Full Display
This hospital TV delivers a broad spectrum of color with advanced NanoCell technology.
*Conventional refers to LG’s UHD TVs without NanoCell technology.
**Image simulated.
**Image simulated.
Slim Bezel adds Sophisticated Ambiance
The sleek, minimal bezel surround is designed to reduce distractions and blend elegantly into existing interiors for a more immersive.
Hospital-Focused Functions
-
Pillow Speaker Ready
The UR772M NanoCell hospital TV is equipped with a compatible pillow speaker* interface, giving patients the ability to control the TV sound and video from their bed.
*Pillow speakers must be purchased through a third party. -
Nurse Call System Ready
The nurse call system found on a pillow speaker allows patients to conveniently notify hospital staff in the event of an urgent need or emergency.
-
UL Hospital Grade Listed
The UR772M series is designed for healthcare and hospital environments and meets UL safety requirements.
Group Telemedicine Ready
The UR772M series NanoCell Hospital TV is ready for web-based telemedicine. System Integrator can develop and deploy their web applications without additional video conferencing equipment for 1:1 or 2:1 remote meetings. Camera* angle and zoom control during a session are also possible.
*Supporting camera : Logitech C310, MS lifecamHD-3000.
Pro:Centric®
Hospital Management Solution
LG’s Pro:Centric Direct is a robust hospital content management solution that offers simple editing tools and provides IP network-based remote management and service capabilities*. Pro:Centric Direct enables users to edit their interface easily by providing a customized interface and efficient management of all TVs in the hospital.
*Some features may not be supported based on PCD versions.
Embedded b-LAN™
The UR772M series NanoCell Hospital TV supports an embedded b-LAN™, enabling PPV (Pay Per View) and VOD service without needing a set-top box.
*b-LAN is a trademark of SONIFI Solutions, Inc. All other trademarks and registered trademarks are the property of their respective owners.
Pro:Idiom®
The UR772M series provides embedded Pro:Idiom® decryption unlocking access to high-value digital content with Pro:Idiom® Digital Rights Management (DRM). This prevents illegal copying of the content.
SoftAP
Software-enabled Access Point (SoftAP) is a "virtual" Wi-Fi feature that enables patients to connect their own devices to the SoftAP by using the TV as a wireless hotspot.
*SoftAP should be set in the installation menu after the TV is turned on.
**Smart Mirroring may not be operated at the same time as SoftAP.
**Smart Mirroring may not be operated at the same time as SoftAP.
Voice Recognition
LG’s webOS 6.0™ features embedded Natural Language Processing Voice Recognition,* allowing users to control the LG hospital TV simply using their voices.
*LG Magic Motion Remote is required. (sold separately)
*LG Magic Motion Remote is required. (sold separately)
Multi-code IR
Multi-code IR* function eliminates any remote control signal interference between TVs in rooms with multiple TVs installed.
*Separately purchased multi-IR remote controller
*Separately purchased multi-IR remote controller
DISPLAY
-
- Diagonal Size
- 55"
- Resolution
- 3840 x 2160 (UHD)
-
- Backlight Unit Type
- Edge
- NanoCell Display
- Yes
-
- Brightness
- 330 nits
- Dynamic Contrast Ratio (Dynamic MCI (Hz))
- 1,000,000:1
-
- Static (Panel) Contrast Ratio
- 5000:1
- Response Time (G to G)
- 14ms
-
- Refresh Rate
- 60Hz
- Life Span
- 30,000 hours
VIDEO
-
- HDR 10 Pro
- Yes
- HDR HLG
- Yes
AUDIO
-
- Speaker (Sound Output)
- 10W + 10W
- Speaker System
- 2.0ch
-
- AI Sound
- Yes
- One‐Touch Sound Tuning
- Yes (Ready)
-
- LG Sound Sync
- Yes (Required Bluetooth)
BROADCASTING SYSTEM
-
- Digital (Terrestrial, Cable, Satellite)
- ATSC, Clear QAM
- Analog
- NTSC
-
- Global IPTV Support
- Yes
HOSPITALITY
-
- Data Streaming (IP & RF)
- Yes
- HCAP
- GEM / HTML5
-
- IP Return Path
- Yes
- Multicast / Unicast ready
- Yes/Yes
-
- webRTC (Real Time Communication)
- Yes
- Pro:Centric™ Cloud (Version)
- Yes (1.0)
-
- Pro:Centric Direct (Version)
- Yes (4.5)
- Pro:Centric Application (Version)
- Yes (PCA 3.8)
-
- PCS500R
- Yes
- PCS400R
- Yes
-
- Quick Menu Version
- Yes (5.0)
- Pro:Idiom® (S/W Type)
- Yes
-
- Pro:Idiom (Mobile, Lite)
- Yes
SMART FEATURES
-
- webOS version
- webOS 6.0
- Smart Home (Launcher Bar)
- Yes
-
- Gallery Mode
- Yes
- Web Browser
- Yes
-
- Pre-loaded Apps
- Yes
- SDP Server Compatible
- Yes
-
- Magic Remote Compatible
- Yes (MR18HA)
- SW Clock (World Clock / Alarm)
- Yes
-
- Soft AP
- Yes
- WiFi (Version)
- Yes (802.11ac)
-
- Screen Share (Miracast)
- Yes
- Smart Share (DLNA)
- Yes
-
- LG TV Plus App
- Yes
- DIAL
- Yes
-
- Bluetooth Sound Sync
- Yes
- Mobile Connection Overlay
- Yes
-
- HDMI‐ARC
- Yes (HDMI 2)
- Voice Recognition (Standalone Solution)
- Yes
-
- IoT
- Yes
OTHER FEATURES
-
- EzManager
- Yes
- USB Data Cloning
- Yes
-
- Wake on RF
- Yes
- WOL
- Yes
-
- Diagnostics
- Yes (IP Remote)
- IR Signal from Receiver (Logic Low Pulses)
- MPI
-
- IR Signal from Receiver (Logic High Pulses)
- RS-232C
- HTNG-CEC
- Yes (1.4)
-
- Simplink (HDMI-CEC)
- Yes (1.4)
- Multi-code IR
- Yes
-
- Installer Menu
- Yes
- Port Block
- Yes
-
- Welcome Video
- Yes
- Welcome Screen (Splash Image)
- Yes
-
- Insert Image
- Yes
- One Channel Map
- Yes (LCM)
-
- IP Channel Manager
- Yes
- Instant On
- Yes
-
- VLAN ID
- Yes
- RJP (Remote Jack Pack) Compatibility
- Teleadapt / Guestlink (HDMI CEC)
-
- Remote App
- Yes
- Moving Picture Playback (SD/HD/Plus HD)
- Yes
-
- Auto Off / Sleep Timer
- Yes/Yes
- Energy Saving Mode
- Yes
-
- Motion Eye Care
- Yes
- Embedded b-LAN
- Yes
VERTICAL FEATURES
-
- NTP Sync Time
- Yes (Clock Setup)
- BEACON
- Yes
-
- Video Tag
- Yes (2 Supported)
INTERFACES
-
- HDMI In
- 3 (2.0)
- USB In
- 1 (2.0)
-
- RF In
- 1
- Digital Audio Out (Optical)
- 1
-
- RS-232C
- 3.5mm TRRS Jack
- Pillow Speaker (6-pin DIN)
- 1
-
- RJ45
- 1 (Ethernet)
- TV Link CFG
- 3.5mm Stereo Jack
-
- Service Only
- 3.5mm Stereo Jack
- Game Control / MPI (RJ12)
- 1
MECHANICAL & POWER
-
- VESA Compatible
- 300 x 300
- Kensington Lock
- Yes
-
- Weight without Stand
- 30.9 lbs / 14.0 kg
- Shipping Weight
- 41.4 lbs / 18.8 kg
-
- Dimensions without Stand
- 48.6 x 28.1 x 2.3 in / 1235 x 715 x 57.5 mm
- Shipping Dimensions
- 53.5 x 31.9 x 6.4 in / 1360 x 810 x 162 mm
-
- Bezel Width (L/R/T/B): On Bezel
- 12.8/12.8/12.8/19.9 mm
- Bezel Width (L/R/T/B): Off Bezel
- 6.9/6.9/6.9/18.4 mm
-
- Power Supply (Voltage, Hz)
- 100-240 Vac, 50/60Hz
- Power Consumption(Max)
- 160 W
-
- Power Consumption(Typ)
- 81 W
- Standby Power Consumption
- 0.5W under
Warranty & Other
-
- Warranty
- 2 Year Limited
- UPC
- 1 95174 01743 2
-
- Safety
- UL
- EMC
- FCC
-
- Remote type
- S-Con/MMR (Optional)
- Chromecast Dongle Anti‐Theft Cover
- Optional
-
- Power Cable
- Detached 1.8m
