KEY FEATURES

  • Pitch : 14mm
  • LED Type: R,G,B 3in1 SMD
  • Transmittance: 53%
  • Curvature(concave and convex): 1,100R
  • Self-adhesive Film

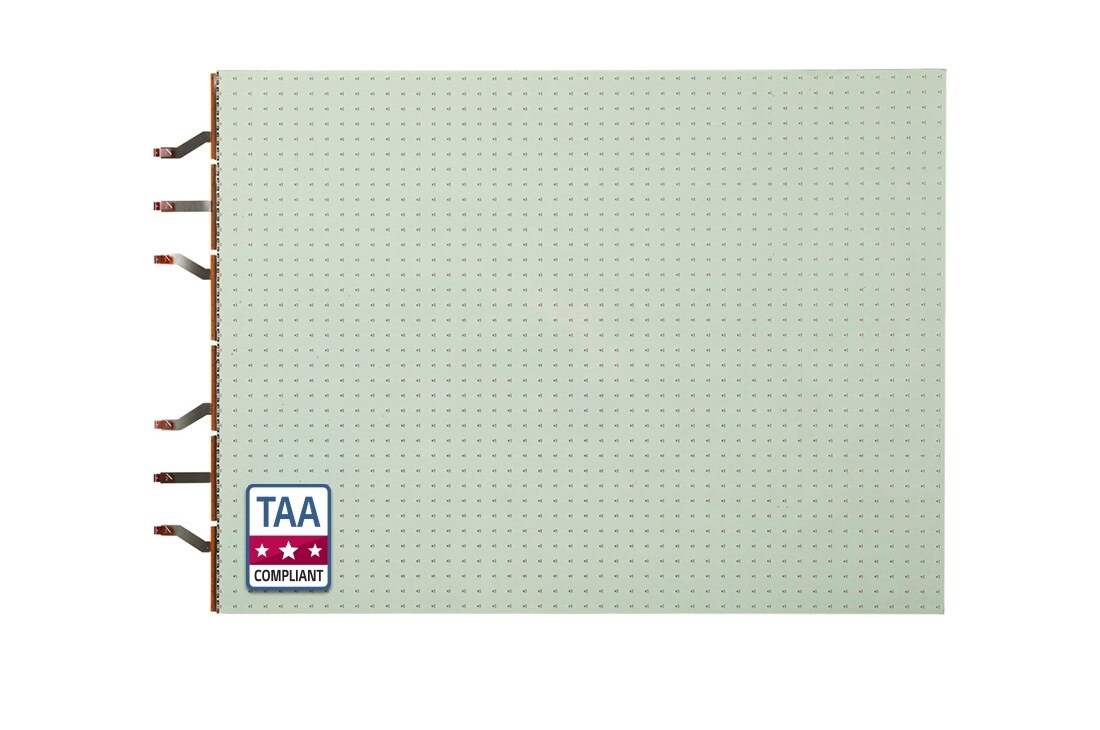

14mm Self-adhesive Transparent Color LED Film with Concave & Convex Curvature, webOS™ Smart Platform & Control Manager

LED Film

    • Pixel Pitch
    • 13.68mm
    • MODEL
    • LAT140GT81
    • LED Type
    • RGB 3-in-1 Color Package (SMD2020)
    • Resolution
    • 48 x 36
    • Pixels per Panel
    • 1,728
    • Pixel Density
    • 5102pixels/m²
    • Contrast Ratio
    • 100,000:1
    • Brightness (Typ.)
    • 2100nits/m², 735nits/pixel
    • Luminance Uniformity
    • ≥ 70%
    • Chromaticity Uniformity
    • Δu’v’ ≤ 0.015
    • Viewing Angle (H x V)
    • 120° x 120°
    • Lifetime (Brightness 50%)
    • 50,000 Hrs
    • Daily Usage
    • 24/7
    • Warranty
    • 2 Year Limited
    • Transparency
    • Typ 53%
    • Operating Temperature
    • 32°F to 113°F/0°C to 45°C
    • Curved Installation
    • 1,100 R

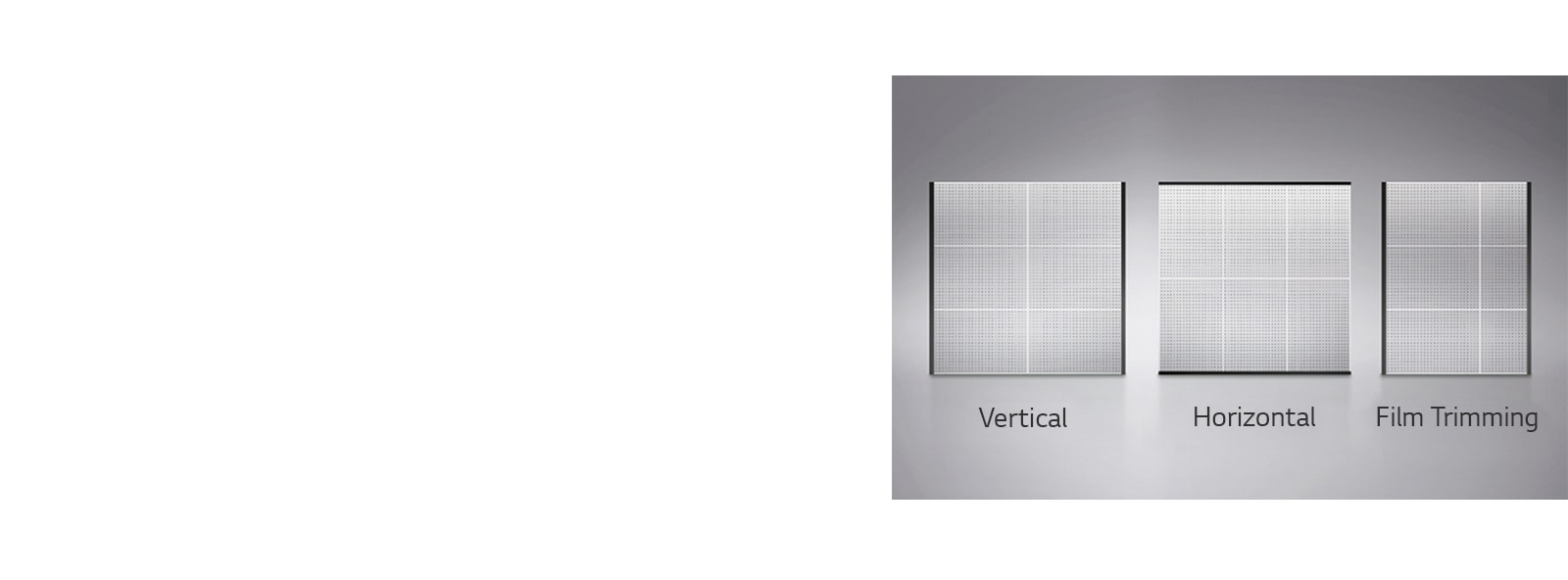

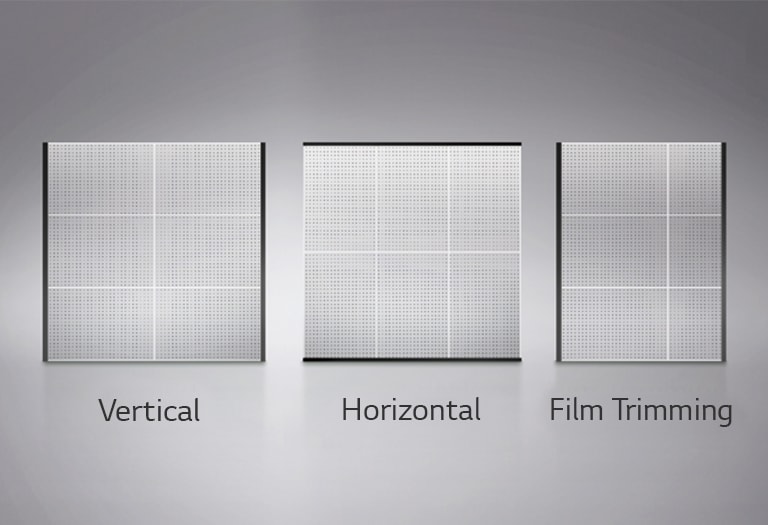

    • Film Trimming
    • Yes (Only cut parallel to bezel)
    • Color Processing
    • (9bit) 500/500/500 Level (RGB)
    • Colors
    • 125 Million Colors
    • Color Chromaticity
    • Cx: 0.25±0.03, Cy: 0.34±0.03
    • Dimensions (W x H x D) (includes front & back protection film)
    • 25.8 x 19.4 x 0.11 in/655 x 492 x 2.7 mm
    • Weight
    • 2.2 lbs/1kg
    • Power Consumption (Transparent panel 1EA + Common Bezel kit 2EA)
    • 37W

FIRST BEZEL

    • MODEL
    • ACC-14LATB1
    • Interface
    • Input: RGMII/Output: Differential Serial
    • Dimensions (W x H x D)
    • 2.7 x 19.4 x 0.98 in/69.4 x 492 x 25 mm
    • Weight
    • 0.88 lbs/0.4kg
    • Power Consumption (Transparent panel + First & Common Bezel kits)
    • 37W

COMMON BEZEL

    • MODEL
    • ACC-14LATB2
    • Interface
    • Input: Differential Serial/Output: Differential Serial
    • Dimensions (W x H x D)
    • 2.0 x 19.4 x 0.98 in/51.4 x 492 x 25 mm
    • Weight
    • 0.66 lbs/0.3kg
    • Power Consumption (Transparent panel + 2 Common Bezel kits)
    • 37W

Unit Controller

    • MODEL
    • LCLG140U
    • Resolution
    • 960 x 540 (1/4 FHD)
    • Interface
    • Input: LVDS/Output: RJ45 x4EA
    • Maximum Transmission Length (CAT5E, CAT6)
    • 100m
    • Dimensions (W x H x D)
    • 11.5 x 1.5 x 7.4 in/293 x 37 x 188.7 mm
    • Weight
    • 3.3 lbs/1.5kg
    • Temperature Sensor
    • Yes
    • Power consumption
    • 20W

System Controller

    • MODEL
    • LCLG002
    • Video - Max. Input Resolution
    • DP: 1920x1080@60Hz/HDMI: 1920x1080@60Hz/DVI-D: 1920x1080@60Hz
    • Interface - Digital (w/ HDCP) - HDMI
    • Input: 1EA
    • Interface - Digital (w/ HDCP) - DP
    • Input: 1EA/Output: 1EA
    • Interface - Digital (w/ HDCP) - DVI-D
    • Input: 1EA
    • Interface - Comm. Port - RS-232C
    • Input: 1EA (3.5mm)/Output: 1EA (3.5mm)
    • Interface - Comm. Port - RJ-45
    • Input: 1EA (without LED indicator)/Output: 1EA (without LED indicator)
    • Interface - Comm. Port - IR Receiver (w/ Light Sensor)
    • 1EA (3.5mm): Used for installation
    • Interface - USB3.0
    • 1EA
    • Interface - LVDS
    • Output: 1EA
    • Dimensions (W x H x D)
    • 11.5 x 1.6 x 7.6 in/293 x 40.1 x 193.3 mm
    • Weight (Head)
    • 3.5 lbs/1.6kg
    • Temperature Sensor
    • Yes
    • Light Sensor
    • Yes
    • Source Selection
    • HDMI, DVI-D, DP
    • TPC (Temporal Peak luminance Control)
    • Yes
    • Motion Eye Care
    • Yes
    • Power consumption
    • 17W
    • LG CMS (optional paid software)
    • Yes
    • LG Signage365care (optional paid service)
    • Yes

ADAPTER

    • MODEL
    • ACC-LATP1
    • Dimensions (W x H x D)
    • 7.2 x 3.4 x 1.1 in/183 x 86 x 28 mm
    • Weight
    • 1.7 lbs/0.769kg
    • Input
    • 100 to 240 Vac, 50~60 Hz
    • Output
    • 19.5V/10.8A (210W)
    • Color
    • White
    • DC output cable
    • 14AWG, 1.5m
    • Type
    • L Type
