55EF5E-P

Flexible Curved Open Frame

  • Brightness(Typ.): 400cd/m² (Average Picture Level 25%)
  • Depth: 12.4mm (Head Only)
  • Supported Curvature: Up to 1,000R (Concave/Convex)
  • Interface: HDMI, DP, USB, Audio, RS232C, RJ45, IR
Flexible Curved Open Frame
$ 7,500.00

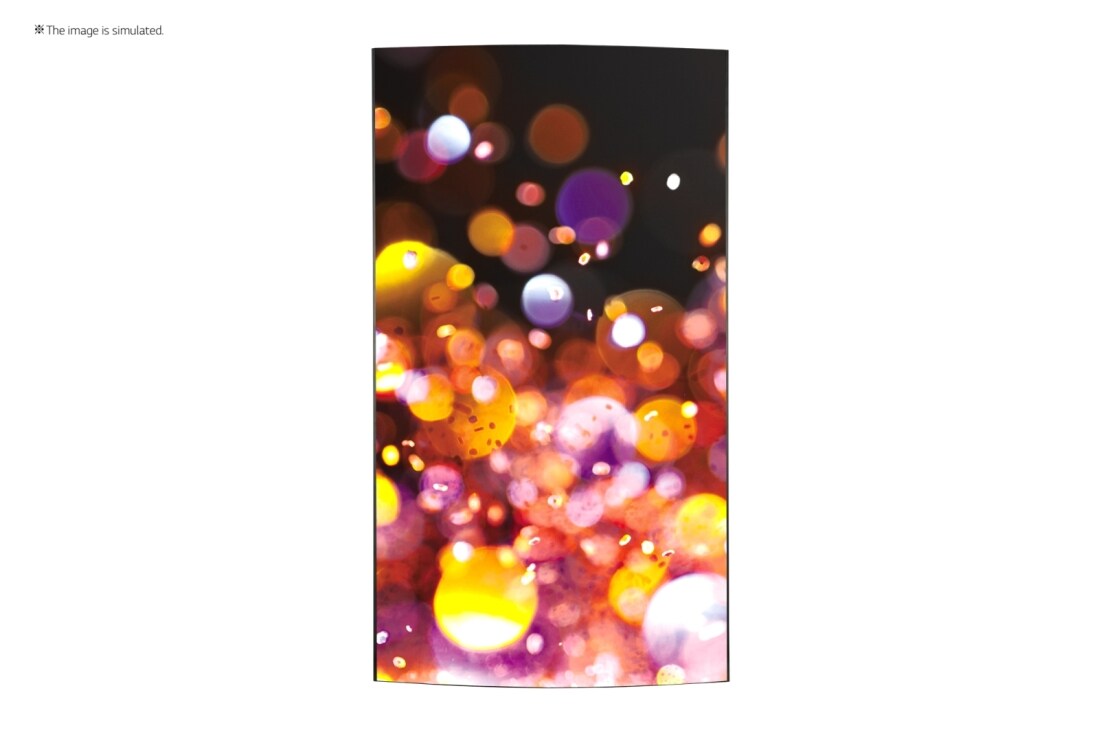

*Actual on-site appearance may differ from above simulated scene.
1)A Curvature Calibrator needs to be purchased separately.
   Please contact your regional LG sales representatives for details.

PANEL

  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Average Picture Level 25%, Typ., cd/m²)
    400
    Brightness (Average Picture Level 100%, Typ., cd/m²)
    150

PHYSICAL SPECIFICATIONS

  • Packed Weight
    17kg
    Bezel Width
    0.6/0.6/6.7/6.7 mm (Flat, Off Bezel)
    5.0/5.0/7.8/13.2 mm (Flat, On Bezel)
  • Dimensions (Carton) (W x H x D)
    1,350 x 837 x 250 mm
    Dimensions (Monitor) (W x H x D)
    701.4 x 1,219.7 x 38.0 mm (Head, w/Pem-nut) 701.4 x 1,219.7 x 12.4 mm (Head Only)
  • Weight
    Set: 9.9kg, Signage Box: 3.5kg

ENVIRONMENTAL CONDITIONS

  • Operating Temperature Range
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

CONNECTIVITY

  • Input
    HDMI, DP, USB 2.0 (2)
    Output
    DP, Audio (Fixed/Off/Variable)
  • External Control
    RS232C In/out, RJ45 In/out, IR In

CERTIFICATIONS

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A"/CE/KCC
  • ErP
    Yes

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-in Power
  • Power Consumption (Typ/Max)
    309W / 318W

ACCESSORIES

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)
    Optional
    Curvature Calibrator (ACC-CC-EF5E)

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control

MEDIA PLAYER COMPATIBILITY

  • External Media Player Attachable
    Yes
