KEY FEATURES

  • 23 cu. ft. Capacity
  • Counter-Depth
  • InstaView™ Door-in-Door®
  • Full-Convert™ drawer with 5 temperature settings
  • Dual Ice Maker with Craft Ice™
  • ThinQ® Technology with Proactive Customer Care

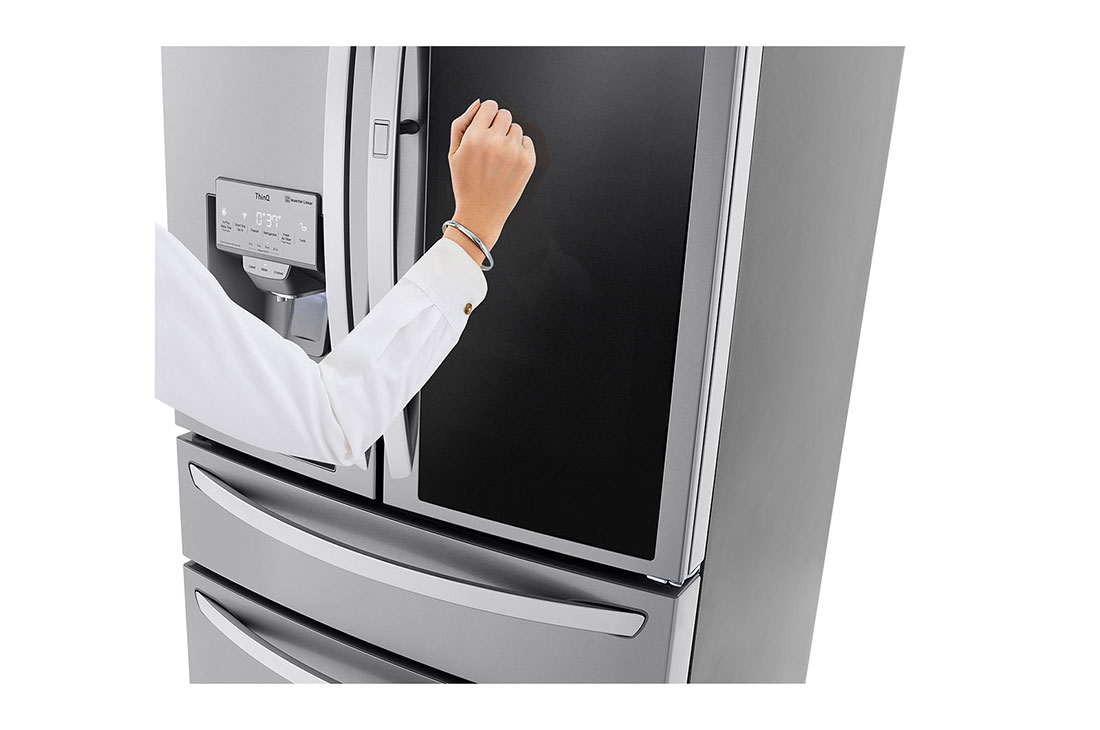

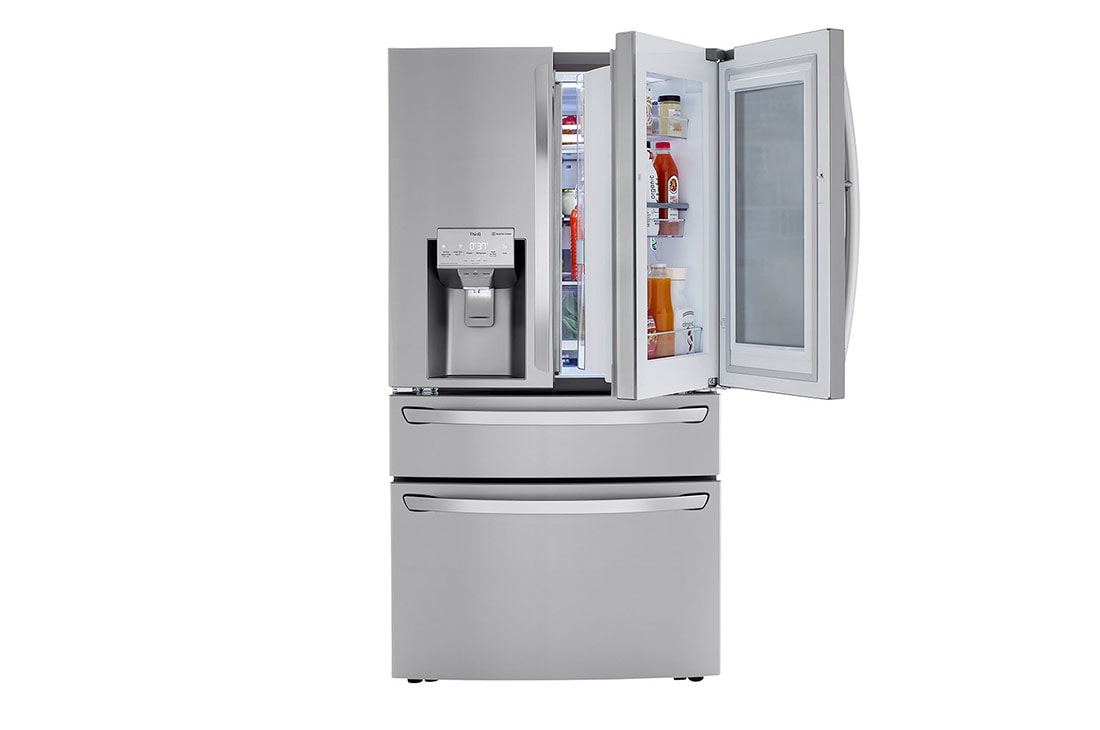

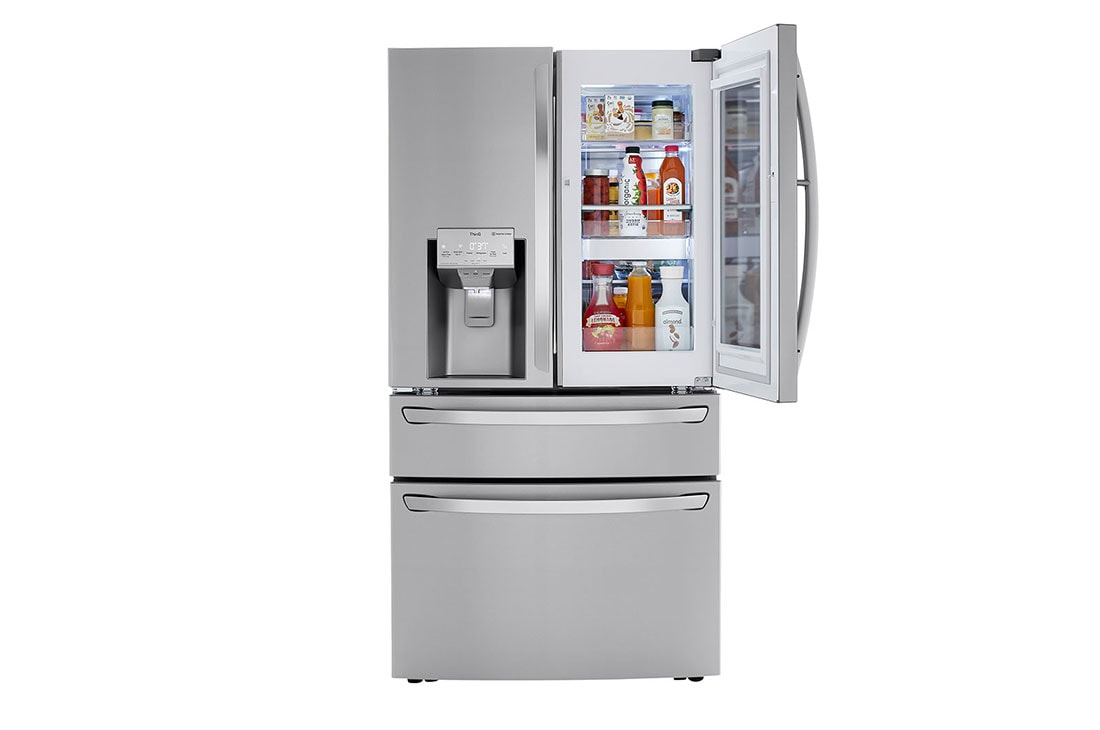

23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator with Craft Ice™ Maker
$ 4,199.99
*Shape and clarity of ice will be impacted when Craft Ice+ is activated; may vary with settings, home use and water supply.
  • Cubed Ice

    Easily dispense standard cubed ice from the door of your refrigerator.

  • Crushed Ice

    Dispense crushed ice with the push of a button.

*Standard width french door refrigerator, excludes other LG manufactured products.

Qualifications

SUMMARY

    • Series
    • LG
    • Type:
    • French Door
    • Door Type:
    • 4-Door
    • InstaView™ Door-in-Door®:
    • Yes

DIMENSIONS/CLEARANCES/WEIGHTS

    • Counter Depth
    • Yes

SUMMARY

    • Total Capacity (cu.ft.):
    • 22.50
    • Color:
    • PrintProof™ Stainless Steel

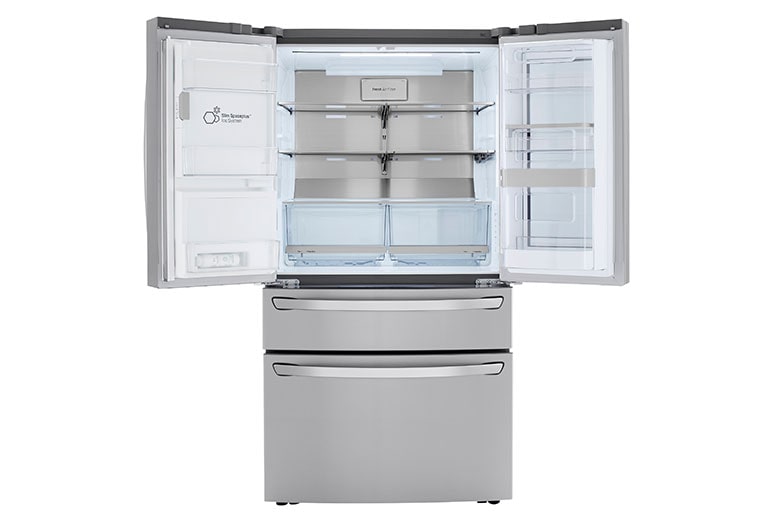

CAPACITY

    • Refrigerator (cu.ft.)
    • 13.20

FULL-CONVERT DRAWER™

    • Full-Convert™ Drawer Capacity
    • 2.80

CAPACITY

    • Freezer (cu.ft.)
    • 6.50
    • Total Capacity (cu.ft.)
    • 22.50
    • Energy Consumption (kWh/Year):
    • 716
    • ENERGY STAR® Qualified:
    • Yes

WATER & ICE SYSTEM

    • Ice & Water Dispenser
    • Yes
    • Dispenser Type
    • Integrated Ice & Water Dispenser
    • Measured Fill
    • Yes
    • Daily Ice Production (lbs)
    • 3.5 lbs
    • IcePlus™ Production (lbs)
    • 3.8 lbs
    • Craft Ice™ Daily Ice Production
    • 0.4 lbs
    • Ice Storage Capacity (lbs)
    • 3.0 + 3.3 lbs
    • Ice System
    • Slim SpacePlus®
    • Dual Ice with Craft Ice™
    • Yes
    • Dispenser Light
    • Yes
    • Water Filter
    • LT1000P

COOLING

    • Linear Compressor
    • Yes
    • Smart Cooling Plus™ System
    • Yes
    • Door Cooling+
    • Yes
    • Multi-Air Flow™ System
    • Yes
    • Temperature Sensors
    • 9
    • Fresh Air Filter
    • Yes
    • Evaporator
    • 2

SUMMARY

    • Display Type
    • Smooth Touch Control/White LED

CONVENIENCE

    • Temperature Controls
    • Electronic/Digital
    • Door Alarm
    • Yes
    • Child Lock
    • Yes
    • Auto Closing Door Hinge
    • Yes
    • Sabbath Mode
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes

REFRIGERATOR

    • No. of Shelves
    • 4 Split (3 Fixed+1 Folding)
    • Folding Shelf
    • 1
    • Cantilevered Shelves
    • Yes
    • Shelf Construction
    • Spill Protector™ Tempered Glass
    • Crisper Bins
    • 2 Humidity Crisper
    • Cool Guard
    • Yes
    • Refrigerator Light
    • Micro Surface LED

Full-Convert™ Drawer:

    • Dividers
    • Yes
    • Temperature Range (°F)
    • -7, 29, 33, 37, 41
    • Handle Type
    • SmartPull™

REFRIGERATOR DOOR:

    • InstaView™ Door-in-Door®
    • Yes
    • Adjustable Door-in-Door® Bin
    • Yes
    • No. of Bins
    • 6
    • Door Bin Construction
    • 1 Piece (clear)

FREEZER

    • Door Type
    • Pull Drawer
    • Drawers
    • 3-Tier Organization
    • DuraBase™ Solid Drawer Base
    • Yes
    • Drawer Divider
    • Yes
    • Ice Bin / In-Door Ice
    • Icemaker & Ice bin in the freezer
    • Freezer Light
    • Premium LED
    • Freezer Handle
    • SmartPull™ Handle

REFRIGERATOR THINQ® SMART FEATURES

    • wi-fi Enabled
    • Yes
    • ThinQ Care™
    • Yes
    • Works with
    • Google Assistant, Amazon Alexa
    • SmartDiagnosis™
    • Yes

MATERIALS AND FINISHES

    • Contour Door
    • Yes
    • Hidden Hinges
    • Yes
    • Surface
    • Smooth
    • Fingerprint & Smudge Resistant Exterior
    • Yes
    • Handles
    • Matching Commercial Handles
    • All Available Colors
    • PrintProof™ Stainless Steel, PrintProof™ Black Stainless Steel

DIMENSIONS/CLEARANCES/WEIGHTS

    • Depth with Handles
    • 31 1/4"
    • Depth without Handles
    • 28 7/8"
    • Depth without Door
    • 24"
    • Depth (Total with Door Open)
    • 43 1/8"
    • Height to Top of Case
    • 69"
    • Height to Top of Door Hinge
    • 70 1/4"
    • Width
    • 35 3/4"
    • Width (Door Open 90˚ with Handle)
    • 45"
    • Width (Door Open 90˚ without Handle)
    • 40"
    • Door Edge Clearance with Handle
    • 4 5/8"
    • Door Edge Clearance without Handle
    • 2 1/4"
    • Installation Clearance
    • Sides 1/8", Top 1", Back 2"
    • Weight (Unit/Carton)
    • 371 lbs/404 lbs.
    • Carton Dimensions (WxHxD)
    • 38" x 73" x 33"

LIMITED WARRANTY & UPC

    • Parts & Labor
    • 1 Year
    • Sealed System (Parts & Labor)
    • 5 Years
    • Compressor (Parts & Labor)
    • 5 Years
    • Linear Compressor (Parts Only)
    • 6-10 Years
    • UPC
    • 048231806183
