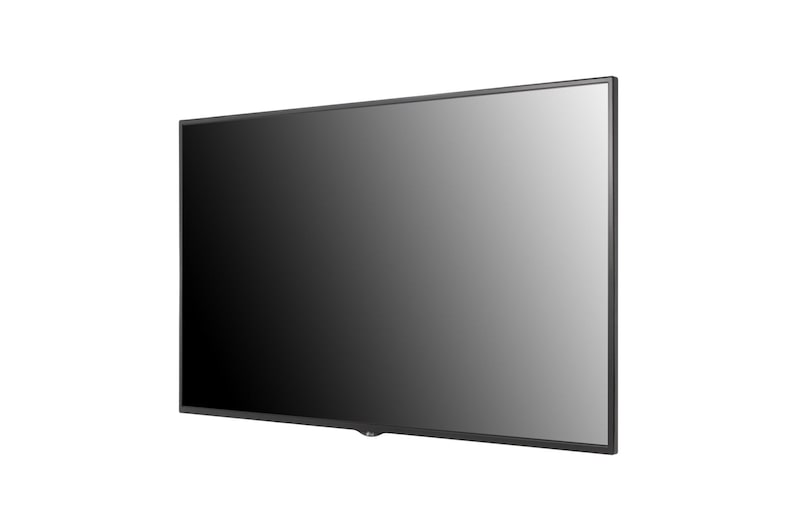

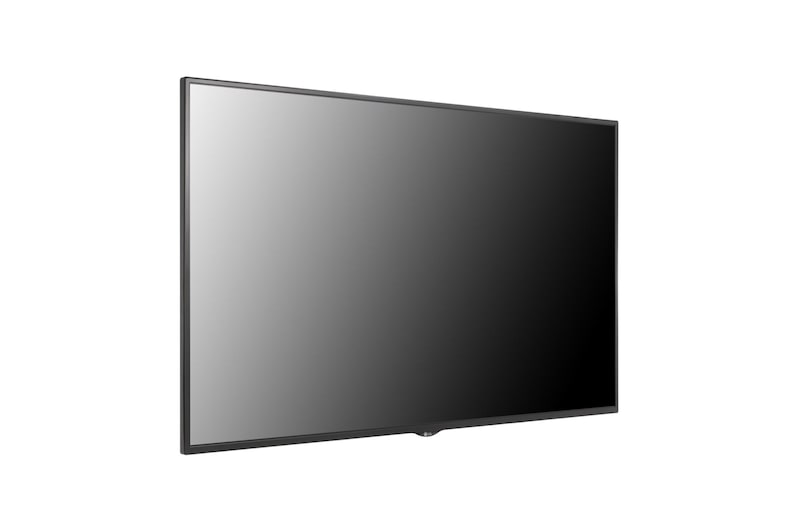

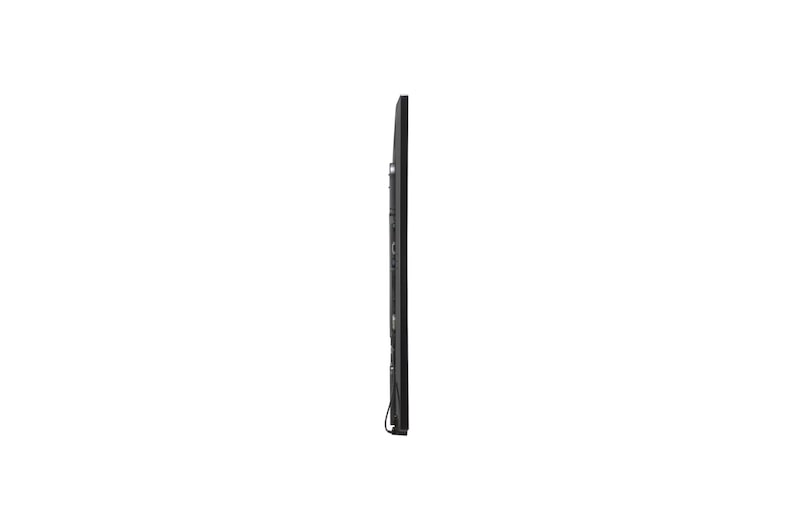

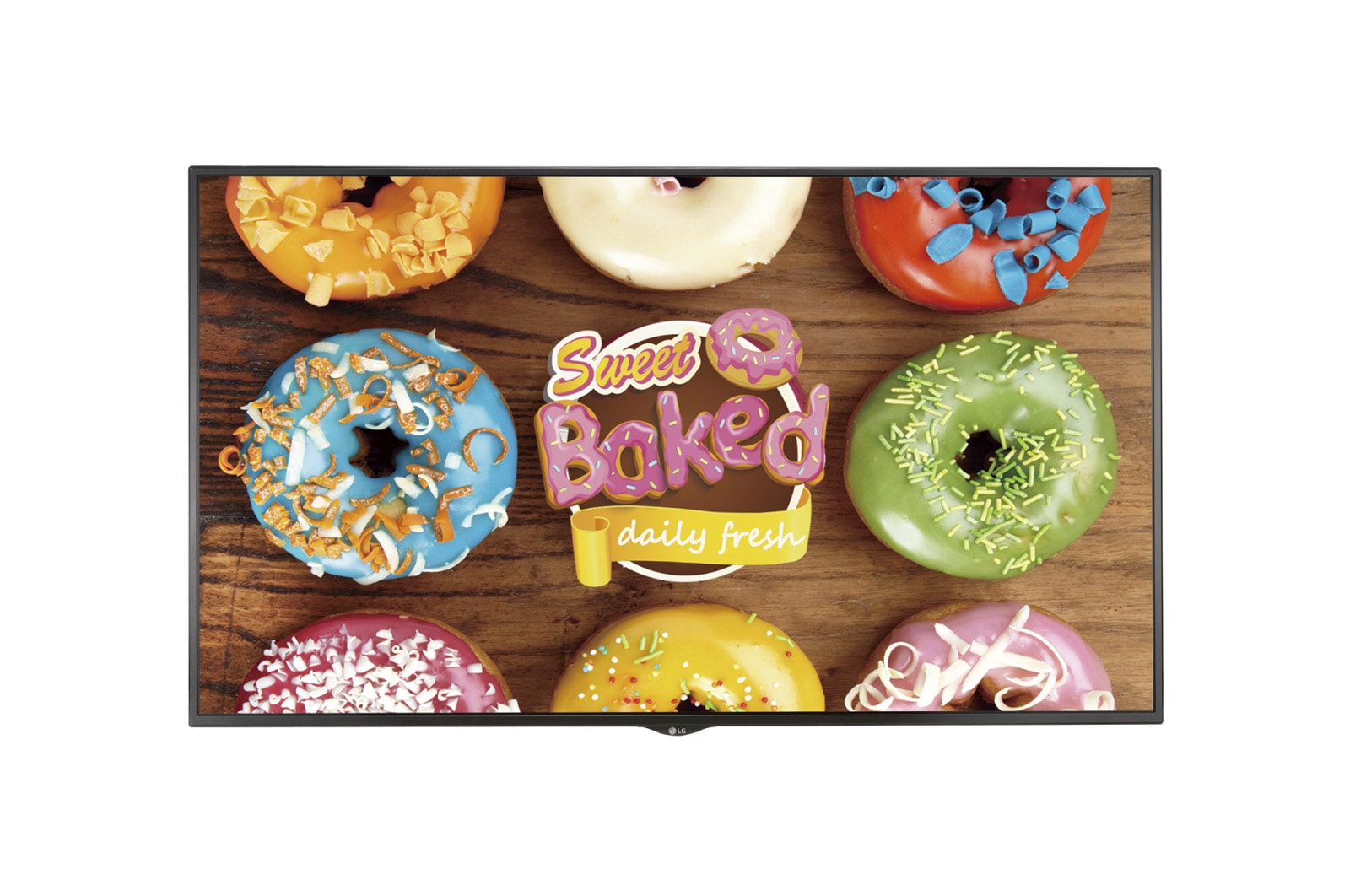

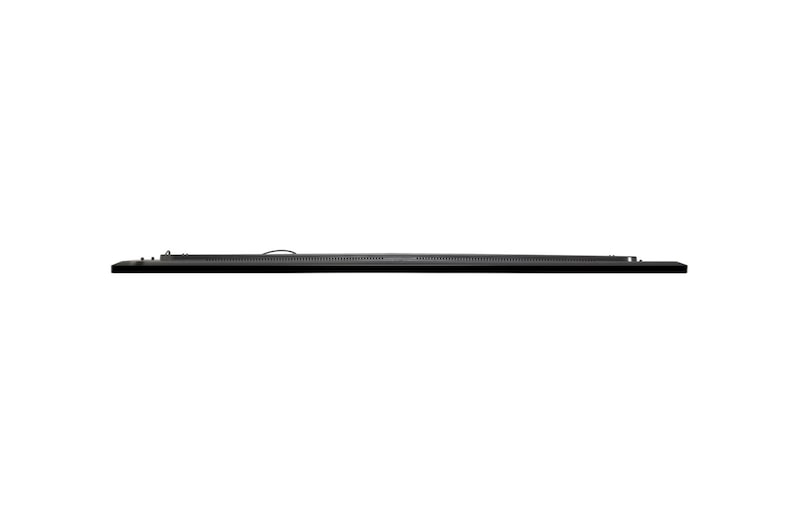

65” UH5E Series Display Screen

65UH5E-B

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)

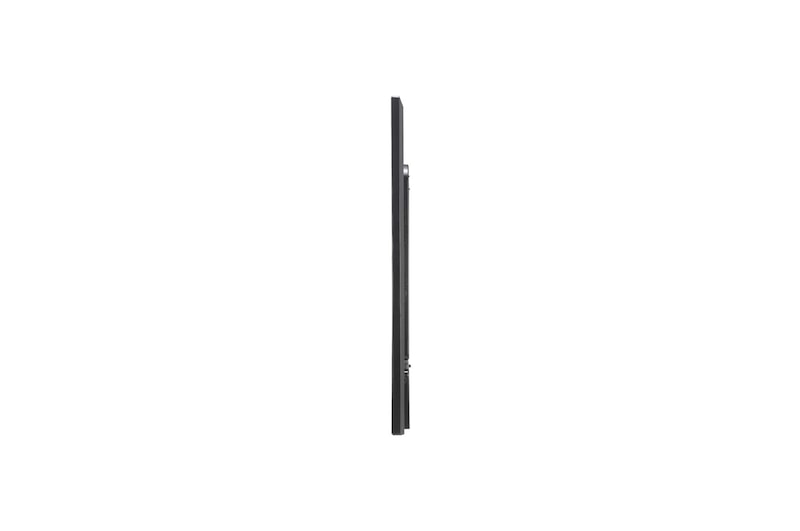

Depth : 40.1 mm
Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker Out
Haze 28%

Vibrant Colors, Powerful Performance Bring Content

With superb picture quality and cutting-edge processing power, the UH5E series delivers a value-added visual experience without the need for peripherals. It delivers vivid content with no reflections, even under bright lights, enhancing its ability to capture the attention of passersby.

Superior Picture Quality

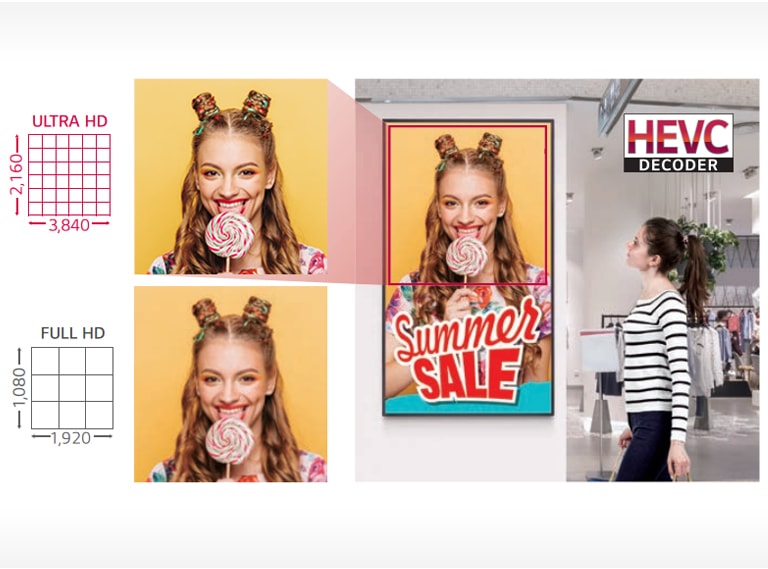

True Color, Immersive View

The UHD resolution delivers more detailed and vivid content without distortion, with four times higher definition than FHD. The UH5E series ensures stable UHD video playback by supporting HEVC^{(High Efficiency Video Coding)}

Superior Picture Quality

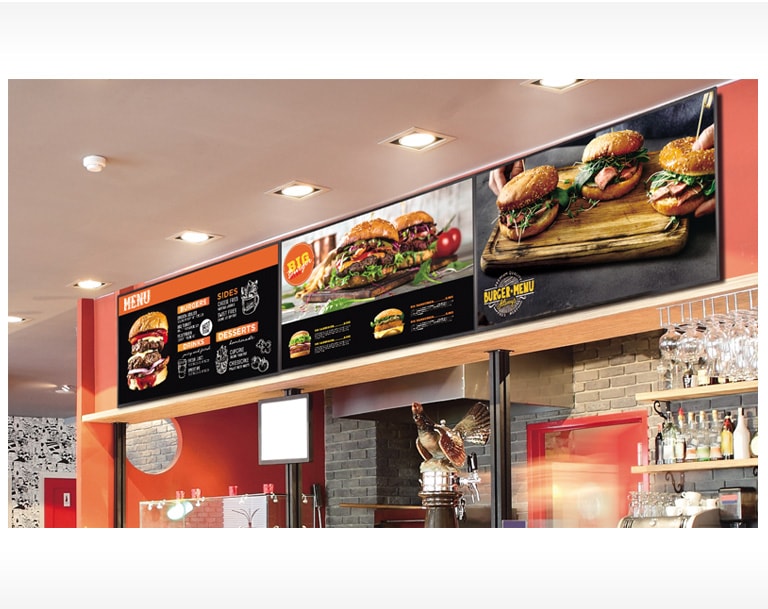

Clear View with Non-glare Coating

Viewers can easily become frustrated by unnecessary reflections when watching a screen under brightly lit conditions. The UH5E series has resolved this problem by increasing the haze value up to 28％, enhancing content visibility and text readability

High Compatibility

Compatibility with AV Control System

The UH5E series has been certified Crestron Connected^Ⓡ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

High Compatibility

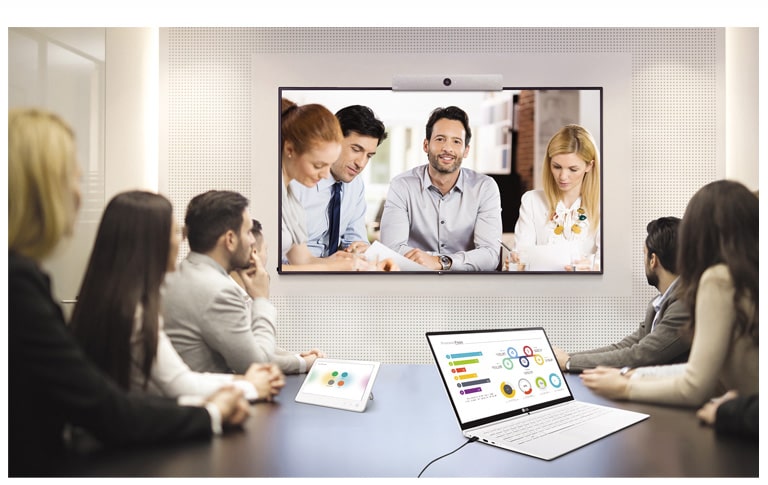

Compatibility with Video Conference System

For the optimum visual meeting, the UH5E series has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

Easy Maintenance

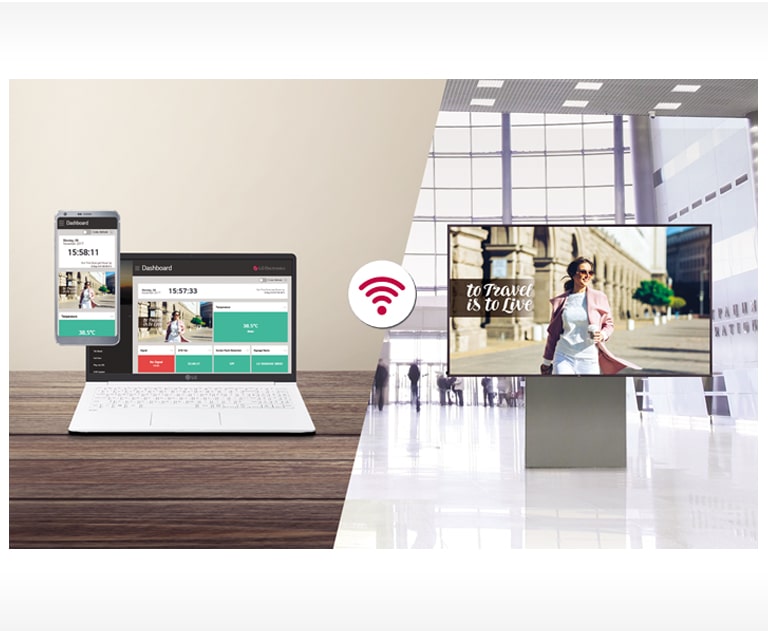

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Easy Maintenance

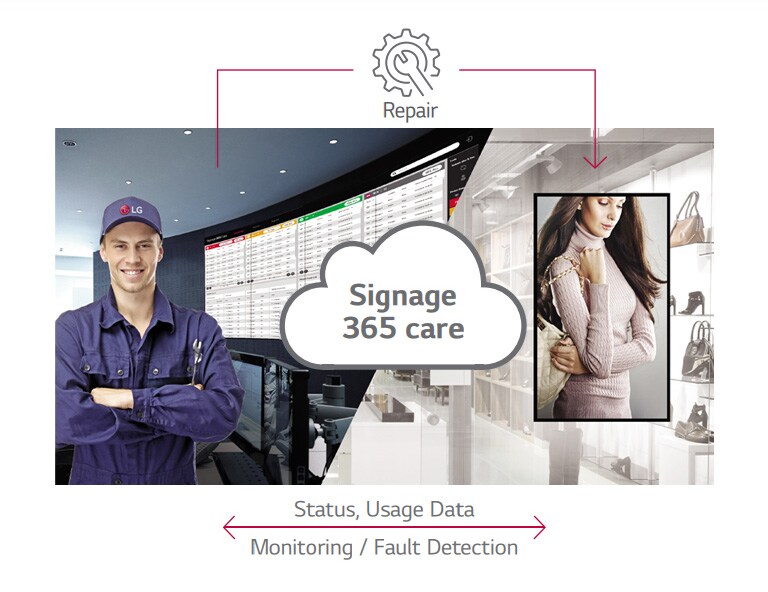

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

Powerful webOS Smart Signage Platform

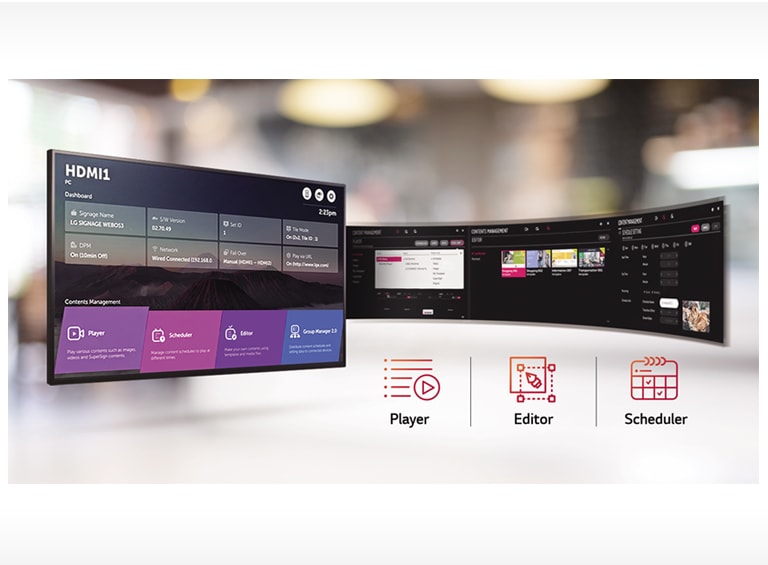

Easy Content Management

The embedded CMS allows you to create and edit content using internal or external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier.

Powerful webOS Smart Signage Platform

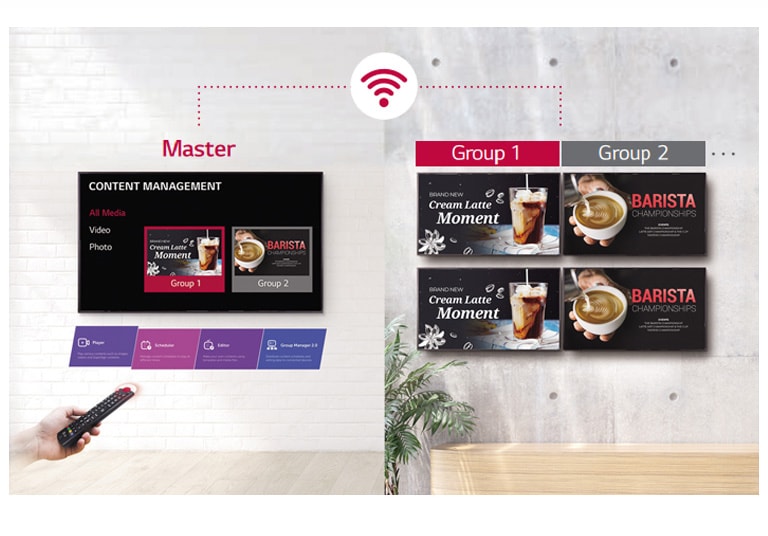

Simple Group Management

The embedded Group Manager makes a master display work as a server and manage other displays* connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.

Powerful webOS Smart Signage Platform

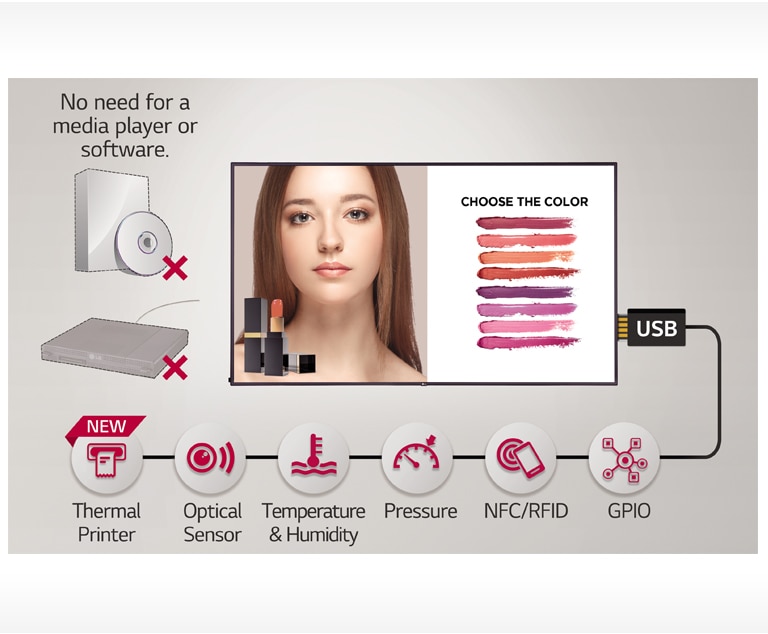

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Powerful webOS Smart Signage Platform

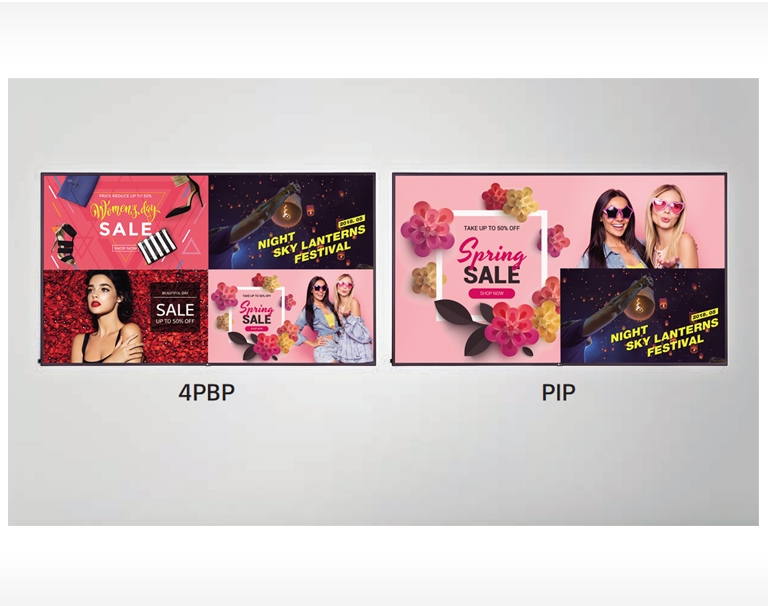

Multi Screen Mode

PBP^{(Picture-By-Picture)} features multi screen in a single display with upto 4 input sources while PIP^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

Wireless Solution

Headline can be up to 150 characters.

Body Copy can be up to 1000 characters.

Headline can be up to 150 characters.

Body Copy can be up to 1000 characters.

Content Sharing

Body Copy can be up to 250 characters.

Real-time Promotion

Body Copy can be up to 250 characters.

Wireless Access Point

Body Copy can be up to 250 characters.

* Network-based control

* Using an HDMI cable connection

* The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.

* One master display can create a max. of 25 groups, and each group can consist of a max. of 12 slave displays.

All Spec

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender,
Optional
Speaker(SP-5200), Stand(ST-651T),Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (EU Only) / Yes (Energy Star 8.0)

CONNECTIVITY

Input - Digital (HDMI)
Yes(3), HDCP2.2
Input - Digital (DP)
Yes(1), HDCP2.2
Input - Digital (DVI-D)
Yes(1)
Input - Analog (RGB)
Yes
Input - Audio In
Yes(1)
Input - External Control (RS232C IN)
Yes(1)
Input - External Control (RJ45(LAN))
Yes(1)
Input - External Control (IR IN)
Yes(1)
Input - Pixel Sensor
Yes
Input - USB
Yes(2), USB2.0
Input - SD Card(SDHC/Full Size)
Yes
Output - HDMI Out
Yes
Output - DP Out
Yes(1), SST, input : HDMI1/2/3/DVI/DP/OPS
Output - Audio Out
Yes(1, Off/Fixed/Variable)
Output - Externel Speaker Out
Yes(1, L/R), 6Ω
Output - External Control (RS232C OUT)
Yes(1), 4 pin phone-jack
Output - External Control (RJ45(LAN))
Yes

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

KEY FEATURE

HW - Internal Memory
8GB(System 4GB + Available 3.6GB)
HW - Wi-Fi (Built-in)
Yes
HW - Wi-Fi (Dongle ready)
Yes
HW - Sensor (Temperature Sensor)
Yes
HW - Sensor (Auto Brightness sensor)
Yes
HW - Sensor (Pixel sensor)
Yes
HW - Sensor (Proximity Sensor)
Yes
HW - Sensor (Gyro Sensor)
Yes
HW - Sensor (Current Sensor)
Yes
HW - Power Indicator
Yes
HW - Local Key Operation
Yes
HW - FAN
Yes
SW - webOS ver.
webOS 4.0
SW - Embedded CMS (USB Auto Playback)
Yes
SW - Embedded CMS (Local Contents Scheduling)
Yes
SW - Embedded CMS (Group Manager)
Yes
SW - Fail over
Yes
SW - Image Customization (Booting Logo)
Yes
SW - Image Customization (No Signal)
Yes
SW - Content Sync. (RS-232C)
Yes
SW - Content Sync. (Local Network)
Yes
SW - Multi-screen (PIP)
Yes
SW - Multi-screen (PBP)
Yes(4)
SW - Screen Share
Yes
SW - Video Tag
Yes(2)
SW - Play via URL
Yes
SW - OSD Rotation
Yes
SW - Lock mode
Yes(Home Dashboard, USB, OSD, IR Operation, Local Key, WiFi, SoftAP, Screen Share)
SW - Content Rotation
Yes
SW - Gapless Playback
Yes
SW - Tile Mode Setting
Yes(Max. 15x15)
SW - Setting Data Cloning
Yes(RS-232C, Network, USB)
SW - Firmware Update by Network
Yes
SW - SNMP
Yes(Ver. 1.4)
SW - ISM Mode (Image Sticking Minimization)
Yes
SW - Auto Set ID
Yes
SW - Status Mailing
Yes
SW - Control Manager
Yes
SW - 3rd Party Control Compatibility (Crestron Connected)
Yes
SW - Power Mgmt. (DPM)
Yes
SW - Power Mgmt. (On/Off Schedule)
Yes
SW - Power Mgmt. (Holiday Schedule)
Yes
SW - Power Mgmt. (Power on Status)
Standby, PWR, LST
SW - Power Mgmt. (Energy Saving)
Yes
SW - Power Mgmt. (Smart Energy Saving)
Yes
SW - Power Mgmt. (PM mode)
Yes
SW - Power Mgmt. (Wake on LAN)
Yes
SW - Power Mgmt. (Power on Delay)
Yes
SW - Daylight Saving Time
Yes
SW - Beacon
Yes
SW - HDMI-CEC
Yes
SW - SI Server Setting
Yes
SW - webRTC
Yes

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek
Manual
English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Ukrainian, Polish, Arabic, Indonesian, Korean, Turkish, Czech, Slovak, Taiwanese, Danish, Norwegian, Swedish, Finnish, Uzbekistan

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
12.1mm(T), 12.6mm(R/L), 15.7mm(B)
Monitor Dimension(W x H x D)
1458.6mm x 848.9mm x 40.1mm
Weight(Head)
26.0Kg
Weight(Head+Stand)
27.4Kg
Monitor with Optional Stand & Speaker Dimensions(W x H x D)
1458.6mm x 915.8mm x 313.9mm
Weight(Head+Stand+Speaker)
28.1Kg
Carton Dimensions(W x H x D)
1561mm x 971mm x 190mm
Packed Weight
32.5Kg
VESATM Standard Mount Interface
300 x 300
