32" class (31.5" diagonal) IPS Edge LED Super Narrow Bezel

  • 32WL30MS-B

Key Features

  • TCO- Total Cost of Ownership
  • IPS- In Plane Switching
  • BEZEL WIDTH
NO <span>BLACKENING DEFECT</span>

NO BLACKENING DEFECT

Display has a built-in temperature control that adjusts to light and heat eliminating dark or blackened areas.

TRUE WIDE VIEWING

Color changes and distortion are eliminated from any viewing angle. Color change average @ 60°, Gamma change average @ 60°

TRUE <span>WIDE VIEWING</span>

PANEL STABILITY

Minimized image distortion when external pressure is applied.

PANEL <span>STABILITY</span>

Wide Viewing Angle

Provides a clear image virtually at any angle.

Wide Viewing Angle
High<span>  Picture Quality & Brightness</span>

High Picture Quality & Brightness

Clear and vivid picture quality with the deepest black. Consumes approximately 40% less energy the LCD models.

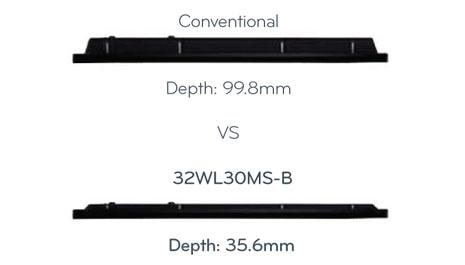

Improved Bezel & Depth

Improved Bezel & Depth
<span>Smart</span> Energy Saving

Smart Energy Saving

Reduce energy consumption by approximately 30%

Easy & Fast Delivery of Content

USB multi-media playback

<span>Easy & Fast</span> Delivery of Content
Easy Installation & Maintenance

Easy Installation & Maintenance

The MP500, external Media Player, has a slim profile and will help your signage look professional while providing easy accessibility for maintenance.

PANEL
Panel Size32" (31.5" diagonal)
Panel TechnologyIPS
Aspect Ratio16 : 9
Brightness400cd/m^2
Viewing Angle178°/178°
Pixels (H x V x 3)6,220,800
Response Time25ms (G to G),16.4ms (40.0°C)
Dynamic CR500,000:1
Surface TreatmentHard Coating(2H), Anti-glare(Haze <1%)
OrientationPortrait & Landscape
Color Depth16.7 Million
Lifetime60,000 Hrs
Native Resolution1920 x 1080 (FHD)
Color Gamut68%
Contrast Ratio1,300:1
Tni110°
INPUT (REAR)
AnalogRGB(1), Shared Component(1), AV (1)
DigitalHDMI(1), DVI-D(1) with HDCP for all input
AudioRGB/DVI-D(3.5Φ 1)
External ControlRS232C (1), RJ45 (1)
USBYes (1)
HDTV FormatsHDMI : 720p, 1080p
OUTPUT (REAR)
AudioExternal speaker
External ControlRS232C(1)
OPTIONAL ACCESSORIES
SP-2000 (Speaker)Yes
ST-320 (Stand)Yes
CABINET
Bezel Width18.9mm(Top/Right/Left), 26mm(bottom)
Monitor Dimensions 29.1” x 17.4” x 1.4” (W x H x D) (head only)
Monitor Weight17.4 lbs. (head only)
Carton Dimensions 31.7” x 23.3” x 4.5” (W x H x D)
Packed Weight21.6 lbs.
VESA Standard Mount Interface200mm x 200mm
Monitor with Opt. Stand29.1” x 19.6” x 11.9” (W x H x D)
Monitor with Opt. Stand & Speaker29.1” x 19.6” x 11.9” (W x H x D)
Monitor Weight with Opt. Stand19.1 lbs. (head +stand)
Monitor Weight with Opt. Stand & Speaker20.9 lbs. (head+stand+speaker)
SPECIAL FEATURES
Tile mode, Natural mode (Up to 15 x 15)Yes
PIP/PBPYes
Temperature SensorYes
Smart Energy Saving (Yes, Off/Minimum/Medium/Maximum/Screen Off/Auto)Yes
Clock, On/off Time, Sleep Timer, Power on Delay, Auto off, Automatic standbyYes
Brightness / Contrast / BacklightYes
Position / SizeYes
Auto Config / PhaseYes
Input LabelYes
Auto Power / Source MemoryYes
ISM MethodYes
File Play with USBYes
Key LockYes
Multi-media PlaybackYes
ENVIRONMENT CONDITIONS
Operation Temperature0 °C to 40 °C
Operation Humidity10 % to 80 %
POWER
Power Supply100-240V~, 50/60Hz
Power Consumption-Normal400W
Power Consumption-Smart Energy Saving on45W
Power Consumption-DPMS Off1.0W(RGB)
Power Consumption-Power Off0.5W
AUDIO
BalanceYes
Audio Power20W(10W x 2)
Speaker On/OffYes
Sound ModeStandard, Music, Cinema, Sports, Game
Clear Voice IIYes
STANDARD CERTIFICATIONS
SafetyUL, cUL, CB scheme, TUV
EMCFCC Class "B", VCCI, C-tick, CE, KCC
ErP/Energy StarYes / Yes(Energy Star 5.1)
WARRANTY
Warranty3-Year Limited Warranty (Parts/Labor/Backlight)
UPC
UPC Code7 19192 19083 2
MEDIA PLAYER COMPATIBILITY
External Media Player AttatchableYes
SOFTWARE COMPATIBILITY
SuperSign Elite-w lite Editing, Scheduling, Distribution & Play, ControlYes
VIDEO (PC)
Max Input Resolution1920 X 1080@ 60Hz (RGB,HDMI/DVI-D)
Rec. Resolution1920 X 1080@ 60Hz (RGB,HDMI/DVI-D)
H-Scanning Freq30 ~ 67.5 kHz (RGB, HDMI/DVI-D)
V-Scanning Freq60Hz(RGB, HDMI, DVI-D)
Pixel Frequency148.5 MHz (RGB, HDMI/DVI-D)
Picture modeVivid, Standard, Cinema, Sports, Game
Color temperatureWarm, Medium, Cool
