24" class (24.0" diagonal) Zero Client TERA2 (V series)

  • 24CAV37K-B

Key Features

  • Our V series Zero Clients utilize a Teradici® TERA 2 Chipset, Amazon WorkSpaces, and Vmware; to deliver a powerful, secure, virtual computing solution; while reducing system building including maintenance costs as well. LED backlight technology, also provides a bright and clear display to facilitate a comfortable computing experience for daily office work and multimedia applications.
HIGH PERFORMANCE VIRTUAL COMPUTING

HIGH PERFORMANCE VIRTUAL COMPUTING

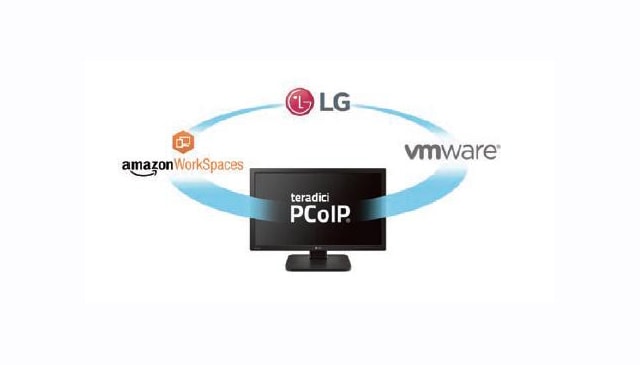

LG’s 19CNV42K-B, 23CAV42K-BL, 24CAV37K-B and CBV42-B utilize a Teradici® TERA 2 Chipset and VMware to deliver a powerful and secure virtual computing solution. Compared to a traditional desktop computing system, the V series allows advanced computing with greater security while reducing system-building and maintenance costs. LED backlight technology also provides a bright and clear display to facilitate a comfortable computing experience for daily office work and multimedia applications. The LG Cloud Monitor (Zero Client) combined with a Teradici PCoIP Processor and VMware Software result in an innovative ‘PCoIP Virtual Computing’ solution.

PANEL
TAA ComplaintYes
Panel Size (measured diagonally)24” (23.8”)
ProcessorTeradici Tera2321 PCoIP Chip
RAM512MB
ProtocolPCoIP
Networking10 / 100 / 1000
Color Depth16.7M
Pixel Pitch(mm)0.275(H) x 0.275(V)
Contrast Ratio1,000:1(Typ) 5,000,000:1(DFC)
Response Time (on/off)14ms (GTG)
Viewing Angle (CR≥10)178°/178°
Surface TreatmentHard coating, Anti-Glare
Aspect Ratio16:9
Brightness (Typ.)250 cd/m2
Color Depth (DFC)16.7M
Panel TypeAH-IPS
Resolution1920 x 1080
Pixel Pitch (mm)0.2652 (H) x 0.2652 (V)
INPUT (SIGNAL)
D-SubYes
OUTPUT (SIGNAL)
DVIYes
Others10/100 /1000
INTERACTIVE
USB 2.06 (4 Back, 2 Side)
INPUT AUDIO
Mic InYes
OUTPUT AUDIO
Headphone OutYes
SYSTEM
Networking10/100/1000 Ethernet
ProcessorTeradici Tera2321 PCoIP Chip
Memory512MB
SPECIAL FEATURES
IPSYes
2.0 USB Input (6)Yes
UPoE available with AUPoE* AdapterYes
CABINET
ColorBlack Texture
Set (with Stand) (WxHxD)22.4” x 13.4” x 2"
Set Weight (with Stand)12.1 Ibs.
Set (without Stand) (WxHxD)22.4” x 15.3” x10.2”
Set Weight (without Stand)10.6 Ibs.
Box (WxHxD)25.3" x 7.6" x 16.1"
Box Weight15.4 Ibs
StandBase detachable, Tilt, Yes / -5° (front), 35° (rear), Swivel (90°), Height (130mm), Pivot
VESA Standard Mount Interface100mm x 100mm
STANDARD CERTIFICATION
UL(cUL)Yes
TUV-TypeYes
FCC-B, CEYes
RoHSYes
INPUT/OUTPUT
USB (2.0)6 (4 Rear, 2 side)
OthersLAN (Ethernet)
Headphone OutYes
DVI-I out (Dual)Yes
D-sub inYes
Audio Input (Mic In)Yes
SPEAKER
SpeakerYes (5W x 2)
POWER
TypeAdapter (19V DC)
Input100 - 240V
Normal On (Typ)24W(Monitor) / 29W(Cloud)
DC Off (Max)0.5W(Monitor) / 0.5W(Cloud)
POWER CONSUMPTION (TYPICAL)
Watts in on24W(D-sub)/29W(PCoIP)
Watts in sleep0.5W(D-sub)/7W(PCoIP)
Watts in off0.5W(D-sub)/0.5W(PCoIP)
FREQUENCY
H-Frequency (Analog)30 kHz ~ 68 kHz
V-Frequency (Digital)57Hz ~ 63Hz
ANALOG FREQUENCY
H-Frequency30kHz ~ 68kHz
V-Frequency57Hz ~63Hz
STAND
VESA Mount™100mm x 100mm
PivotYes
Base DetachableYes
Tilt-5°(front)/15°(rear)
Swivel (Angle)90°
Height (mm)130mm
DIMENSIONS
Weight Set w/Stand12.3 Ibs.
Weight Set w/o Stand7.4 Ibs.
Warranty3 Years (Parts, Labor, Backlight)
UPC7 19192 19162 4
Set w/o Stand (W x H x D)21.4" x 13.1" x 1.9"
Set w/Stand (W x H x D)21.4" x 15.2" x 5.1"
Box weight16.2 lbs
Box (W x H x D)24.3" x 15.9" x 7.8"
WARRANTY
Warranty3-Year Limited Warranty (Parts/Labor/Backlight)
UPC
24CAV37K-B7 19192 19754 1
ACCESSORIES
D-SubYes
Power CordYes
